Eviciv MDS-15607 User manual

MDS-15607
USER MANUAL
15.6 inch Portable Monitor

Attention
Content
Attention
Product List
Button&Port
Specifications
Connecting
Adjusting
Troubleshooting
Support
1
3
2
1
3
4
5
6
8
9
Caution:
• Please read the manual and documents carefully before setup.
• To prevent from fire disaster or electronic shock, please do not put the monitor in humidity or even in a worse
condition.
• To prevent hurt from dangerous high-voltage module inside the monitor, please do not open the shell by yourself.
• Please resort to a professional or support team, and do not handle it by yourself while breakdown happened.
• Please confirm connections are right before power on. Or contact vendor if any damage.
• Openings on back or top of monitor for venting, please keep them in good condition. And do not put the monitor
centering around a heating source or even in a worse condition.
• Please power the monitor with specified power supply in the tag. And please confirm the specifications of power
supply before using.
• Please use power socket stipulated by the standard locally.
• To prevent from fire disaster, please do not get the power socket or power supply cable overloaded.
• To make monitor work longer lifespan, please keep it in a stable desktop, but do not keep it in conditions of full of
dust, moisture and extreme temperature.
• To prevent damage from variable voltage, please plug off power supply cable during thunderstorm or in a idle
time.
• Please do not stuff any objects or liquid into openings on the body of monitor.
• If you have any technical problem, we suggest you contact a profession or vendor.
Maintainance
• Please plug off power supply and cables before lift or relocation, and lift it with frame.
• Please power off before cleaning. And use cleaning cloth without abrasive fiber and neutral detergent.
• Please do not use liquid with Alcohol or Acetone, but use special detergent for cleaning screen. And to prevent
from electronic shock, please do not spray directly on screen to clean.
• Screen flickers at the first use. ---Plug off and power on again.
• A little bit uneven brightness on screen. ---Change the image to confirm again.
• There might be some residue for an image showing for hours or longer. Power off for a while and refresh screen.
• Please do not repair it by yourself unless you are professional, but resort to a professional or vendor, while screen
get black, flickering and break down.

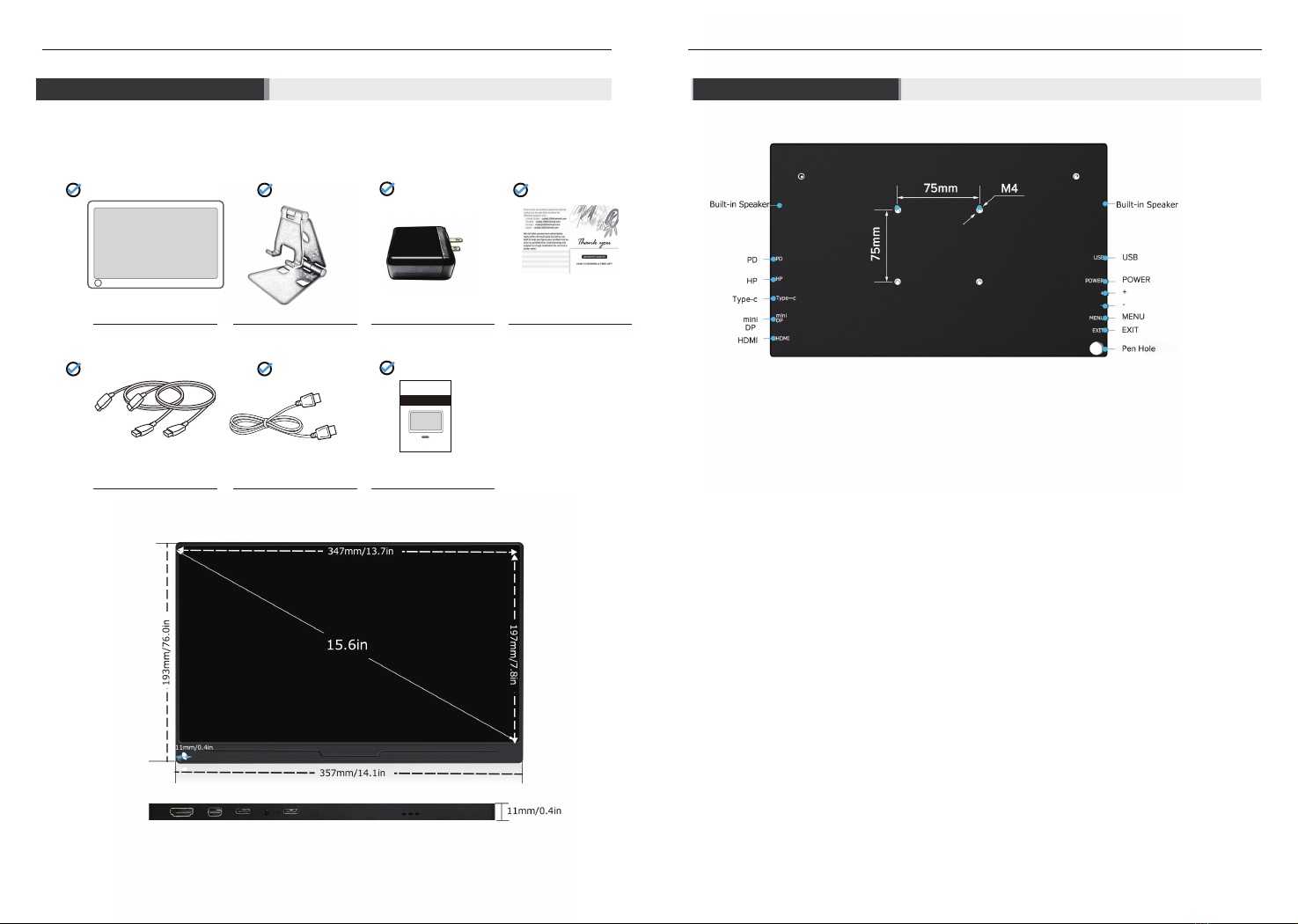

Product List Button&Port
2
3
15.6’’ IPS Monitor Adjustable Stand
PD Adapter
Thanks Card
2 Type-c to Type-c Cable Standard HDMI Cable User Manual
Monitor User Manual
For 13.3 inch 1080P HDMI Portable Monitor
DS13302
+:
-:
Power supply to monitor, but not as signal transmission port.
Headphone jack
While a cell phone supporting USB 3.1 and a laptop supporting thunderbolt 3.0, a Type-C to Type-C
cable can supply power and transfer signal
Transfer signal from Mini DP port to Mini DP port. And signal transmission from a standard DP to Mini DP
by a converter from standard DP to Mini DP.
Signal transmission. Any device with HDMI port can be connected with the monitor. By a signal
converter, to transfer signal for a device without HDMI port, to the monitor. You can buy a converter from
market.
Connecting mouse and keyboard. (Not using it for power supply to avoid an unstable voltage.)
Power On/Off
Volume Up
Volume Down
Menu management, including menu ‘BRIGHTNESS’, ‘IMAGE’, ‘COLOR TEMP.’, ‘OSD SETTING’, ‘RESET’,
and ‘MISC.’. Navigate to sub-menu or as confirm button after the values changed under sub-menu.
Similar to ‘Esc’ on the keyboard, to use it to exit from sub-menu or main menu.
PD:
HP:
Type-C:
Mini DP :
HDMI:
USB:
POWER:
Menu:
EXIT:

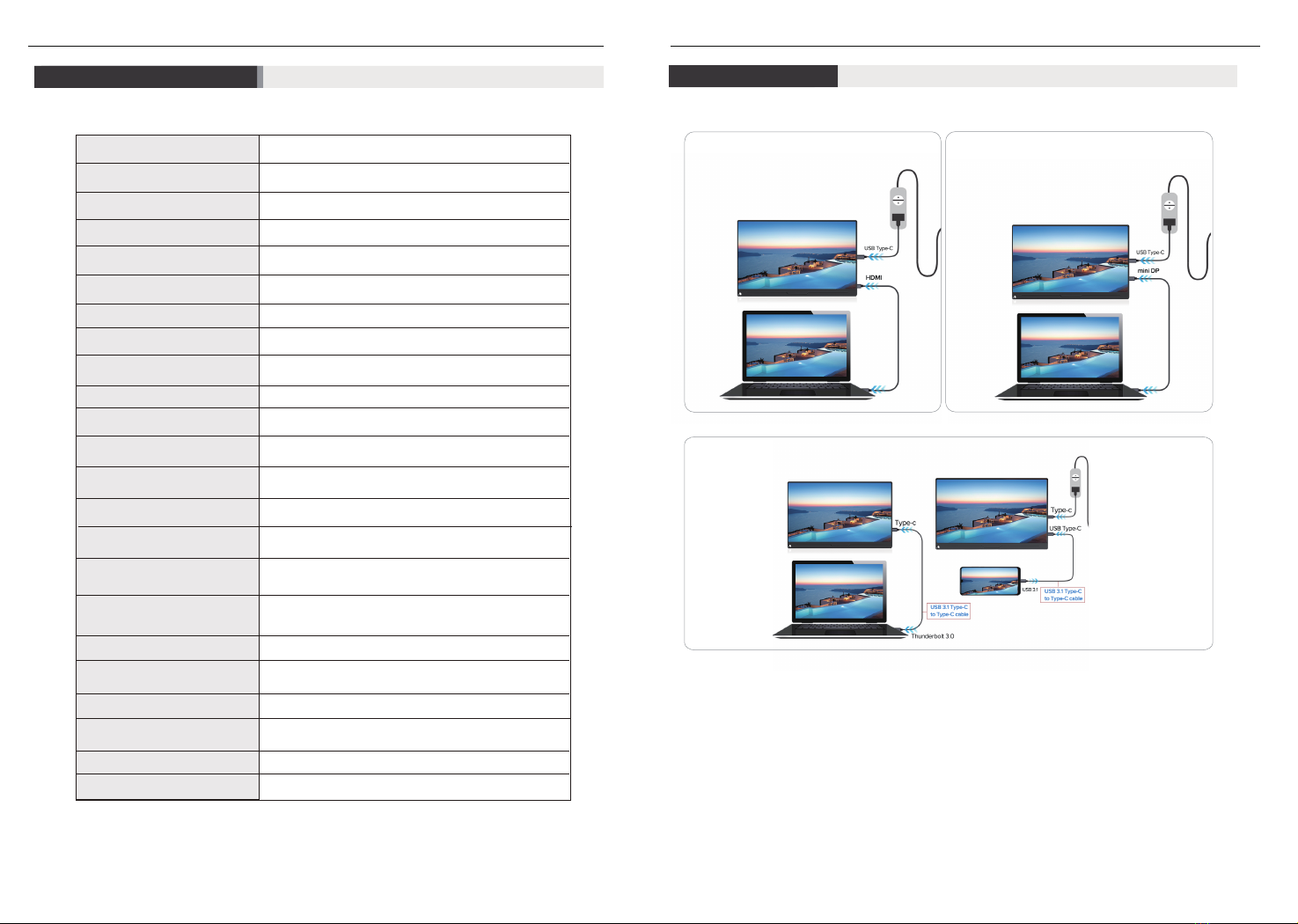

ConnectingSpecifications
4
5
HDMI Cable Mini DP/DP to Mini DP/DP Cable
Model MDS-15607
IPS Screen
15.6 inch
3840*2160
300 cd/m2
800:1
72%
16.7M
3-5 ms
2160P
16:9
3.5mm / 0.14in
Black
60 Hz
347*197 mm / 13.66*7.76 in
8 w
Aluminum Alloy
8Ω2W
Panel Type
Display Size
Resolution Ratio
Brightness
Contrast Ratio
Color Gamut
Visual Angle
Gray Level
Response Time
Full HD
Aspect Ratio
Headphone Jack
Color
Refresh Rate
Display Area
Rated Power
Shell Material
Built-in Speakers
Total Weight
Net Weight (Monitor Only)
Operating Temperature
Storage Temperature
Type-C to Type-C Cable
Compatability
Laptop with Thunderbolt 3.0
Smartphones with USB 3.1
Apple
Macbook 12" 2016 2017
Macbook Pro 13" 2017 2018
New Macbook Air 2018
Huawei
Mate Book X/Mate Book E
Huawei
Mate 10/Mate 10 Pro/P20/P20 Pro/Mate
20/Mate 20 ProP30/P30 Pro
Samsung
S8/S8+/S9/S9+/Note 8/Note 9
Lenovo
Yoga 900/ThinkPad
ASUS
U4100/ROG
Xiaomi
Air 12.5"/13.3"/Pro 15.6"
HP
Envy 13 2017/Spectre 13
Dell
XPS 13/15
178°
849g / 1.87lb
1892g / 4.17lb
0-50℃/ 32-122℉
20-60℃/ 68-140℉

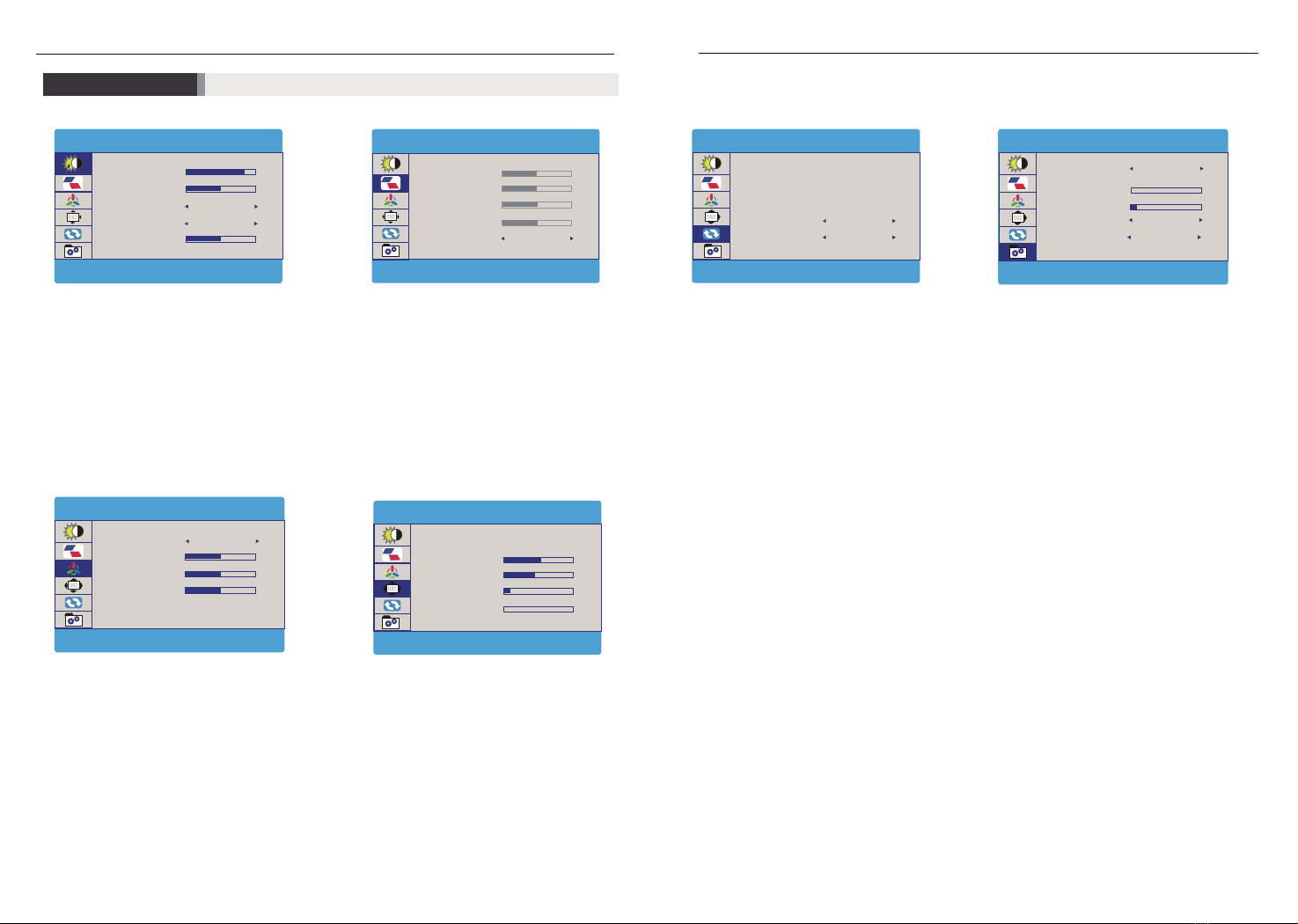

Adjusting
BRIGHTNESS
COLOR TEMP
MISC
OSD SETTING
RESETIMAGE
Under ‘BRIGHTNESS’ menu, you can adjust ‘BRIGHTNESS’,
‘CONTRAST’, ‘ECO’, ‘DCR’, and ‘SHARPNESS’.
BRIGHTNESS: Range from 0 to 100;
CONTRAST: Range from 0 to 100;
ECO: Choose from ‘STANDARD’, ‘RTS’, ‘FPS’, ‘TEXT’, ‘MOVIE’, and ‘GAME’.
DCR: Choose ‘OFF’, or ‘ON’.
SHARPNESS: Range from 1 to 4.
Under ‘COLOR TEMP’ menu, you can adjust ‘COLOR TEMP’, ‘RED’,
‘GREEN’, and ‘BLUE’.
COLOR TEMP : Choose from ‘USER’, ‘WARM’, and ‘COOL’.
Under ‘USER’ option, you can also adjust the following options
RED : Range from 0 to 100.
GREEN : Range from 0 to 100.
BLUE : Range from 0 to 100.
Under ‘WARM’ and ‘COOL’ option, color option ‘RED’, ‘GREEN’, and
‘BLUE’ in pale are default.
Under ‘OSD SETTING’ menu, adjustable options are ‘LANGUAGE’,
‘OSD H. POS.’, ’OSD V. POS.’, ‘OSD TIMER’, and ‘TRANSPARENCY’.
LANGUAGE : Including ‘English’, ‘French’, ‘German’, ‘Chinese
Simplified’, ‘Italian’, ‘Spanish’, ‘Portuguese’, ‘Turkish’, ‘Polish’, ‘Dutch’,
‘Japanese’ and ‘Korean’.
OSD H. POS.: Range from 0 to 100.
OSD V. POS.: Range from 0 to 100.
OSD TIMER : Range from 0 to 60.
TRANSPARENCY : Range from 0 to 100.
Under ‘RESET’ menu, adjustable options are ‘RESET’, ‘AUTO
POWERDOWN’, and ‘HDR MODE’, other options ‘IMAGE AUTO ADJUST’,
and ‘COLOR AUTO ADJUST’ in pale are default.
RESET : to restore default setting or manufacturer setting.
AUTO POWERDOWN :in minutes to power off monitor, options include
‘OFF’, ‘240’, ‘120’, ‘60’, ‘50’, ‘40’, ‘30’, ‘20’ and ‘10’.
HDR MODE : options include ‘OFF’ ‘2084’ and ‘AUTO’.
Under ‘MISC.’menu, adjustable options include ‘SIGNAL SOURCE’,
‘LOW BLUE LIGHT’, ‘VOLUME’, ‘FREESYNC’, and ‘OD’.
SIGNAL SOURCE : signal source from ‘HDMI’, ‘Type-C’ and ‘DP’.
LOW BLUE LIGHT : Range from 0 to 100.
VOLUME : Range from 0 to 100.
FREESYNC : Choose from ‘ON’ or ‘OFF’.
OD : Choose from ‘ON’ or ‘OFF’.
Under ‘IMAGE’ menu, you can adjust ‘ASPECT’ only,
other options in pale are default.
ASPECT: Choose from ‘16:9’ or ‘4:3’.
ECO
DCR
SHARPNESS
OFF
100
50
2
BRIGHTNESS
BRIGHTNESS
CONTRAST
STANDARD CLOCK
PHASE
51
50
52
53
H.POSITION
V.POSITION
ASPECT 16 : 9
GREEN
BLUE
COLOR TEMP
COLOR TEMP.
RED
USER
50
50
50
OSD V. POS.
OSD TIMER
TRANSPARENCY
50
60
10
0
LANGUAGE
OSD SETTING
OSD H. POS.
IMAGE AUTO ADJUST
RESET
COLOR AUTO ADJUST
RESET
AUTO POWERDOWN
HDR MODE
OFF
OFF
VOLUME
FREESYNC
OD
10
0
SIGNAL SOURCE
MISC.
LOW BLUE LIGHT
3840BX216060HZ
HDMI
OFF
ON
67

Under ‘COLOR TEMP’ menu, you can adjust ‘COLOR TEMP’, ‘RED’,
‘GREEN’, and ‘BLUE’.
COLOR TEMP : Choose from ‘USER’, ‘WARM’, and ‘COOL’.
Under ‘USER’ option, you can also adjust the following options
RED : Range from 0 to 100.
GREEN : Range from 0 to 100.
BLUE : Range from 0 to 100.
Under ‘WARM’ and ‘COOL’ option, color option ‘RED’, ‘GREEN’, and
‘BLUE’ in pale are default.
Under ‘OSD SETTING’ menu, adjustable options are ‘LANGUAGE’,
‘OSD H. POS.’, ’OSD V. POS.’, ‘OSD TIMER’, and ‘TRANSPARENCY’.
LANGUAGE : Including ‘English’, ‘French’, ‘German’, ‘Chinese
Simplified’, ‘Italian’, ‘Spanish’, ‘Portuguese’, ‘Turkish’, ‘Polish’, ‘Dutch’,
‘Japanese’ and ‘Korean’.
OSD H. POS.: Range from 0 to 100.
OSD V. POS.: Range from 0 to 100.
OSD TIMER : Range from 0 to 60.
TRANSPARENCY : Range from 0 to 100.
Troubleshooting
89
Monitor shows nothing or 'No Signal' while
connecting my cellphone with monitor via Type-C
cable?
Be sure the model of your cellphone has USB
3.1 port. Cellphone models support one Type-C
cable functioning is listed as below: Huawei
Mate 10/10 Pro/20/20 Pro/P20/P20
Pro/P30/P30 Pro//Samsung
S8/S8+/S9/S9+/Note 8/Note 9.
Be sure your laptop has Thunderbolt 3.0 port,
if it has, to check and be sure the cable-port
connecting is correct.
Monitor is in EXTENSION mode, you can
adjust it to DUPLICATE mode by pressing
simultaneously 'Win'+'P' for Windows or
adjusting ’Preference’ for Mac.
First, check and adjust the resolution of your
laptop to be same with that of monitor.
Second, try to connect with another laptop to
see if everything is okay. Third, to change
with a new HDMI cable.
Yes, it needs just a converter to HDMI.
Yes, it needs just a wired/wireless display
dongle
Monitor shows nothing or 'No Signal' while
connecting my laptop with monitor via Type-C
cable?
The screen displays unchangeable picture while
connecting my laptop with monitor via HDMI
cable?
Monitor shows nothing or 'No Signal' while
connecting my laptop with monitor via HDMI
cable?
Any device without HDMI port can work with
monitor?
iPad or other models of cellphone can work with
monitor?
If you have any query, our friendly customer service team will work hard to put a smile back
on your face. Here's how we can connect.
North America: [email protected]
[email protected]
Question/Problem Possibly Quick Solutions
1
2
3
4
5
6
SUPPORT
Europe:
