Evocheck BPM68 User manual

BPM
Upper Arm
Digital Blood
Pressure Monitor
68
R
Digital Blood Pressure Monitor
USER
MANUAL
Home blood pressure monitoring can provide early detection and save lives
0598
AViTA Corporation
9F, No. 78, Sec. 1, Kwang-Fu Road, San-Chung District.,
New Taipei City, Taiwan 24158
Manufacturing site: AViTA (WUJIANG) CO., LTD
No.858, Jiao Tong Road, Wujiang Economic Development Zone,
Jiangsu Province, P.R.C.
www.pharmevo.biz
A product of
PharmEvo (Pvt.) Ltd.
Plot # A-29, North Western Industrial Zone, Port Qasim,
Karachi-75020, Pakistan. www.pharmevo.biz
E-mail: [email protected]
Establishment License no. ELI-00055
MDSS GmbH
Schigraben 41
30175 Hannover Germany

® BPM68® BPM68
Contents
Introduction 2
Important Information Before Use 3
Make sure you have the following 5
EVOCHECK BPM68 Overview 6
Overview of Display 7
Battery Installation 7
Low battery warning: 7
Setting the Date and Time 8
Placement of the Pressure Sleeve (Cu) 9
Measurement of Blood Pressure and Pulse Rate 11
Irregular Heartbeat Detector 12
World Health Organization (WHO) Indicator 13
Two Set Memory Function 14
Recalling Measurements in Memory: 14
Clearing Measurements from Memory: 14
Troubleshooting 15
Care and Maintenance 16
Error Codes 17
Explanation of Symbols 18

® BPM68® BPM68
Introduction
EVOCHEK® BPM 68 oers a clinically validated companion for
safe and easy monitoring of blood pressure with irregular
heartbeat detection.
EVOCHECK® Blood pressure monitor BPM68 is US FDA cleared
device which is clinically validated by European society of
hypertension (ESH). EVOCHECK® BPM68 applies the
Oscillometric method to measure human systolic / diastolic
blood pressure and heart rate at once. All measured values are
displayed on the LCD monitor after measurements have been
recorded. EVOCHECK BPM68 has two sets of memory each can
record 90 readings. This device is designed only for adults.
Important Information Before Use
1. Blood pressure measurements should only be interpreted by a
physician or a trained health care professional who is familiar with
your medical history.
2. Only take measurement with the manufacturer supplied cu, or else it
will lead to inaccurate results.
3. Do not use the blood pressure monitor when you are close proximity
to strong static electricity or electromagnetic elds, and avoid using
the mobile during measurement.
4. Through regular use of this device and recording of your measure-
ments, you can keep your physician informed of the changes in your
blood pressure.
5. Perform your measurement in a quiet place. You should be seated in a
relaxed position.
6. Avoid smoking, eating, taking medication, alcohol consumption or
physical activity 30 minutes prior to taking a reading. If you are
exhibiting signs of stress, avoid taking your measurement until the
feeling subsides.
7. Rest 15 minutes prior to taking a reading.
8. Remove any constrictive clothing or jewellery that may interfere with
the cu placement.
9. Keep the monitor stable during measurement to achieve an accurate
reading. Remain still; do not talk during the measurement.
10. Do not install or use the unit in the following locations:
• Locations subject to vibration such as ambulances and emergency
helicopters.
• A location where there is gas or ame.
• A location where there is water or steam.
• A location where chemicals are stored.
• A location where the unit may easily fall.
11. Record your daily blood pressure and pulse readings on a chart.
12. Take your readings at the same time, each day or as recommended
by your physician to get an accurate indication of change in your
true blood pressure.
32
User Guide
Please read this user guide carefully before operating
EVOCHECK® Blood Pressure monitor BPM68.

® BPM68® BPM68
13. Wait a minimum of 15 minutes between readings to allow for the
blood vessels to return to normal. The wait time may vary depending
on your individual physiological characteristics.
14. Although such cases are rare, for those with an extremely weak pulse
or irregular pulse, errors may result which prevent proper measure-
ment. If abnormal variations are noticed, consult with your physician
or trained healthcare professional.
15. The battery has positive/negative polarity. If the battery does not
connect well to the unit, do not forcibly connect it.
16. Keep out of reach of infants, small children, and compromised people
who cannot express their consent. Playing with the air tube may
result in suocation and children may swallow small parts and
lead to Choking.
17. Children must be supervised to ensure that they are not playing with
the device.
18. Use only manufacturer authorized parts and accessories. Parts and
accessories not approved for use with the device may damage
the unit.
19. Be careful not to rest your arm on the air tube. This will restrict the
ow of air to the cu.
20. Do not measure blood pressure too frequently, or else it may result in
bruising where the cu is applied.
21. Do not apply the cu over a wound or inamed area.
22. Do not apply the cu on the same limb where intravascular access
or therapy or an arterio-venous (A-V) shunt is present, because of
temporary interference to blood ow and could result in injury to
the patient.
23. Do not apply the cu on the arm on the side where a mastectomy has
done, because of temporary interference to blood ow and could
result in injury to the patient.
24. The application of the cu and its pressurization on the arm can
cause temporary interference to blood ow, but it would not result in
injury to the patient.
25. Operation of the device does not result in prolonged impairment of
the circulation of the blood of the patient.
26. When using the device, the patient is an intended operator .
27. This device is intended for adult use. While taking a measurement,
you can stop the ination or deation process of the cu at any
time by pressing the POWER button.
Under any circumstances, the measurement taking result is ONLY
for reference.
Any further medical action should follow the advice of doctor.
Make sure you have the following
• 1 Blood pressure monitoring device
• 1 Inatable cu.
• 1 User manual.
• 4 AAA batteries.
54

® BPM68® BPM68

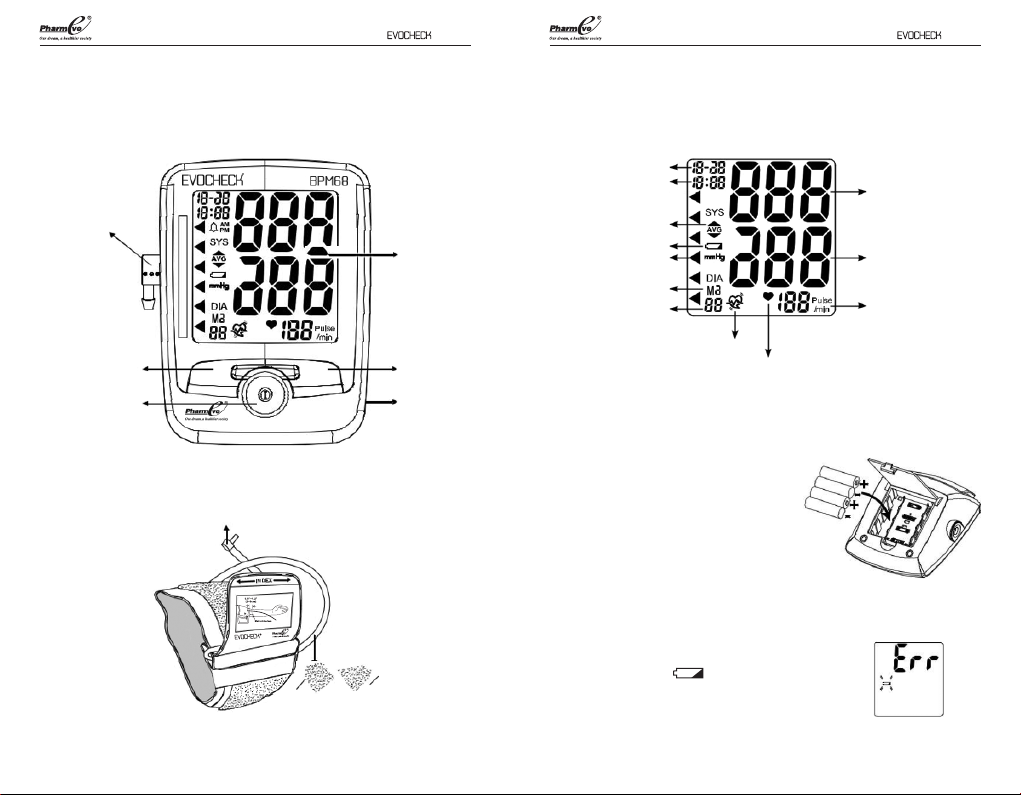

EVOCHECK® BPM68 Overview Overview of Display
Air Socket
(insert Air
connector
plug here)
M1 MEMORY
Recall Button
START/POWER
Button (on/o)
Air Connector Plug
(connects to Air socket)
Air tube
AC Adapter
Port
M2 MEMORY
Recall Button
LCD Display
Date
Time
Systolic Pressure
Diastolic Pressure
Pulse Rate
Heartbeat Symbol
Irregular Heart
Beat Symbol
Average Measurement
Symbol
Low Battery Symbol
WHO indicator
Memory Symbol
Memory Set
76
Battery Installation
1. Press down on latch and lift the cover
on the bottom of the monitor.
2. Insert or replace 4 x 1.5 V AAA alkaline
batteries into the battery compartment,
ensuring to match the indicated polarity
symbols. Always use new batteries.
3. Replace the battery cover.
Low battery warning:
It is necessary to replace the batteries when the
Low Battery symbol “ ” appears on the display,
or when the display does not turn on after the
POWER button is pressed.

® BPM68® BPM68

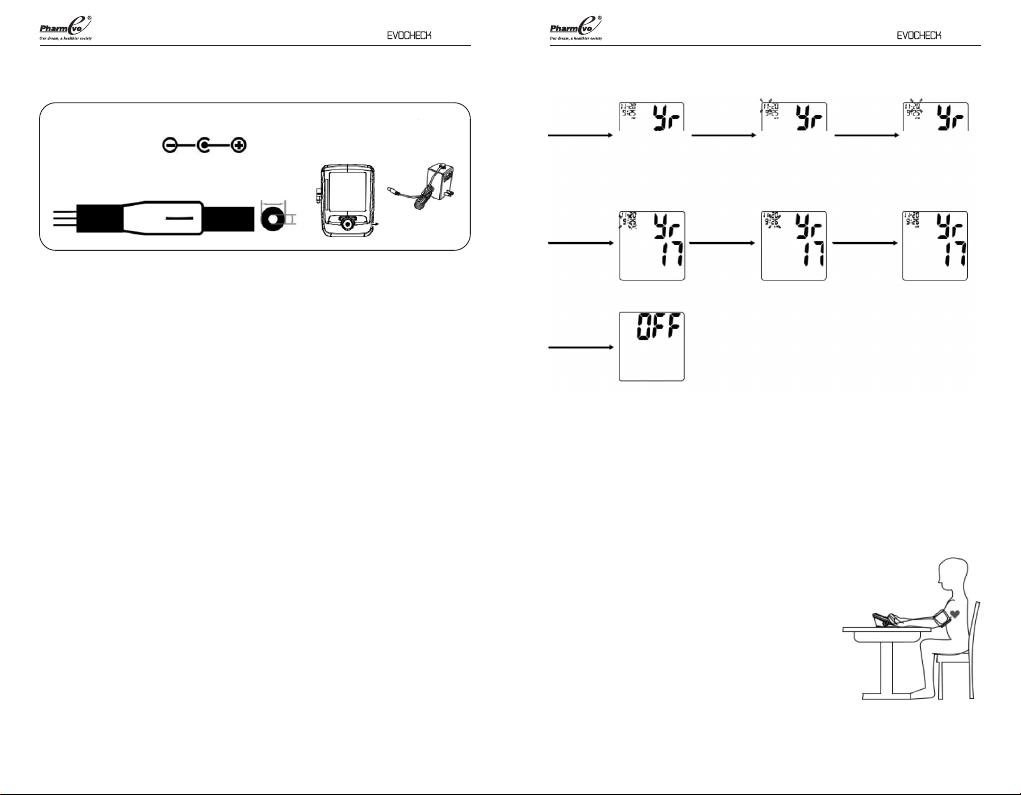

Setting the Date and Time
It is necessary to set the date and time for the unit every time batteries
are initially installed or replaced.
1. Loading 4 AAA alkaline batteries; the year will begin to ash on the
display.
2. Press the“M1” button to proceed the display to the desired year,
press “M2” button to conrm the year.
3. Next, the month will blink. Repeat step 2 to set the month and date,
then hours, then minutes.
4. After setting the minutes, the unit will automatically exit out of the
date/time setting mode and briey show the word OFF before
shutting down.
NOTE: Battery-operated
1. Please properly dispose of the batteries away from small children and heat.
2. It is recommended to remove the batteries if the unit will not be used for an
extended period of time.
3. Batteries must be disposed of in accordance with local environmental and
institutional policies.
AC Power Adapter (not included)
Adapter polarity:
Input: AC 100~240V 60Hz
Output: DC 6V 1.0A
AC Adapter Port
AC Power Adapter
(not included)
Load
Batteries
Press the
“M2” button
Month will
blink
Press the
“M2” button
Date will
blink
Year will
blink
Press the
“M2” button
Press the
“M2” button
Hour will
blink
Press the
“M2” button
Minute
will blink
Press the
“M2” button
Setting
saved
Placement of the Pressure Sleeve (Cu)
It is important to avoid smoking, eating, taking medication, alcohol
consumption or physical activity 30 minutes prior to taking a reading If for
any reason you are unable to use or should not use your left arm, please
modify the instructions for cu application to your right arm. Your
physician can help you identify which arm is best for you to take
measurements from.
1. Remove any constrictive clothing or jewellery that
may interfere with cu placement.
2. Be seated at a table or desk with your feet
at on the oor.
3. The cu should not be plugged into the monitor
until after the cu is applied to your arm.
98

® BPM68® BPM68
Note:
Blood pressure naturally varies from one arm to the other; therefore,
measure your blood pressure on the same arm to ensure comparability
of the two readings.
4. Insert your left arm into the cu loop.
Position the ( ) mark over the main
artery on the inside of your arm.
5. The bottom edge of the cu should
be positioned approximately one
inch above the elbow joint.
6. Reaching underneath your left arm
with your right hand, pull the end of
the cu towards your body to tighten
the cu. Wrap and secure the cu,
making sure that the ( ) mark
remains in place as shown.
7. The cu should t comfortably, yet
snugly around your arm. You should be able to insert one nger easily
between your arm and the cu.
8. The cu size is suitable for use when the vertical ‘index’ mark is within
the horizontal OK range. A dierent size cu is needed if the ‘index’
mark is outside the OK range.
Note:
If you are uncomfortable with applying your cu, please seek the assistance
of another person or work with your physician to practice the cu
application. Incorrectly applied cu may result in inaccurate readings.
Main Artery
Measurement of Blood Pressure
and Pulse Rate
Please read the preceding portions of this
manual prior to taking your rst reading.
1. Position the monitor on a at, stable surface
with the digital display in view.
2. Insert the cu tubing connector into the port
on the left side of your monitor.
3. Rest your elbow on a solid surface with your
palm facing upward. Elevate your arm so
that the cu is at the same level as your
heart. Relax your left hand.
4. Press the POWER button. This will turn the
power on.
5. After the self-test, the values for the last
reading will appear on the display.
6. The blood pressure monitor starts to
measure.
7. The cu will automatically begin to inate,
with the display showing the increasing
pressure in the cu. As the pressure
increases, an arrow pointing up will appear
on the display.
8. When the ination has reached optimum
level, the display will begin to show the
decreasing pressure; the screen will display
an arrow pointing down while you feel the
pressure of the cu decrease.
1110

® BPM68® BPM68
9. To detect the heartbeat, the heartbeat symbol will
appear and continuous ashes on the LCD display.
10. Your blood pressure measurement and pulse will
display simultaneously on the screen.
11. The Hypertension Indicator will indicate your reading
range on the display separately.
12. Press the M1 Button to record the measurement
result into the MEMORY Recall Button“M 1”
Press the M2 Button to record the measurement
result into the MEMORY Recall Button“M 2”
Press the START/POWER Button to record the
measurement result into the MEMORY Recall Button
“M 1” and power o immediately.
13. If you do not press any Button, the unit will
automatically shut-o approximately 2 minutes.
Irregular Heartbeat Detector
Your digital blood pressure monitor features an Irregular
Heartbeat Detector. This feature allows users to
accurately monitor blood pressure even if an irregular
heartbeat should occur. When an irregular heartbeat is
detected, the “ ” icon will appear on the display.
Note:
Please consult with your physician or trained healthcare professional for
further information regarding an irregular heartbeat and if this symbol
appears frequently.

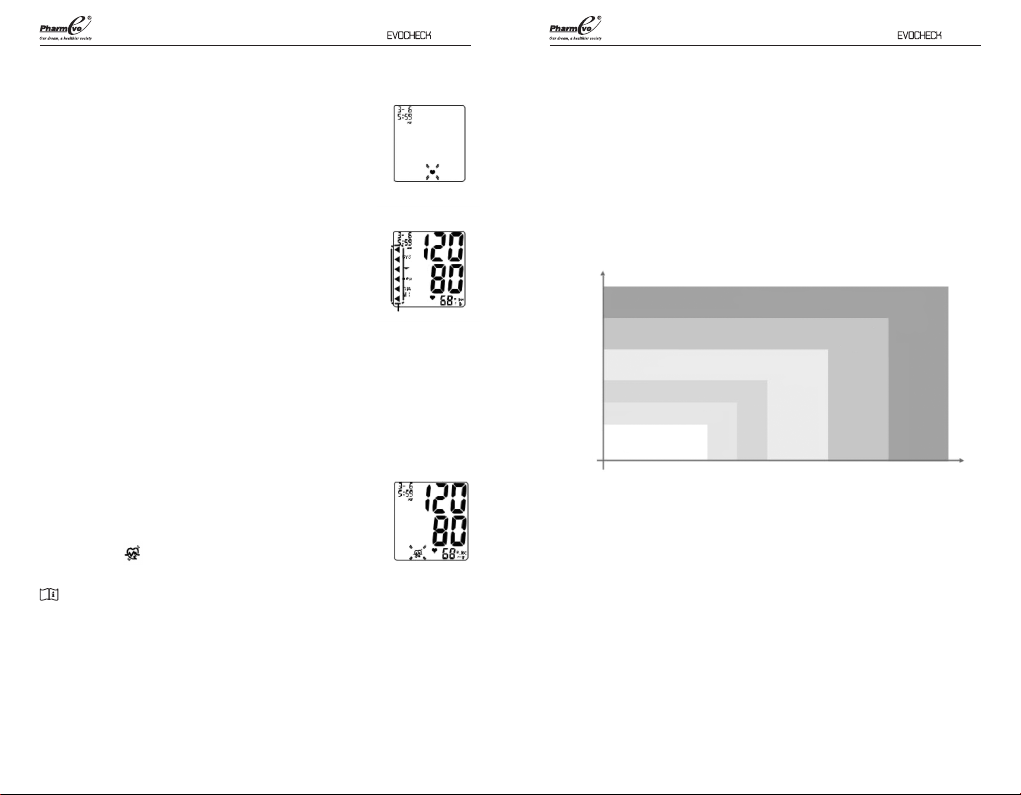

World Health Organization (WHO) Indicator
EVOCHECK® BPM68 features our unique Hypertension Indicator. The World
Health Organization has established globally accepted standards for the
assessment of high or low blood pressure readings. The below chart
should be considered only as a guideline, always consult with your
physician or health care professional to interpret your individual results.
mmHg
110
100
90
85
80
120 130 140 160 180 mmHg
Diastolic Blood Pressure
Systolic Blood Pressure
Optimal -Green
Normal -Green
High-Normal -Green
Mild Hypertension (Grade 1) -Yellow
Moderate Hypertension (Grade 2) -Orange
Severe Hypertension (Grade 3) -Red
Hypertension
Indicator
1312

® BPM68® BPM68
Two Set Memory Function Troubleshooting

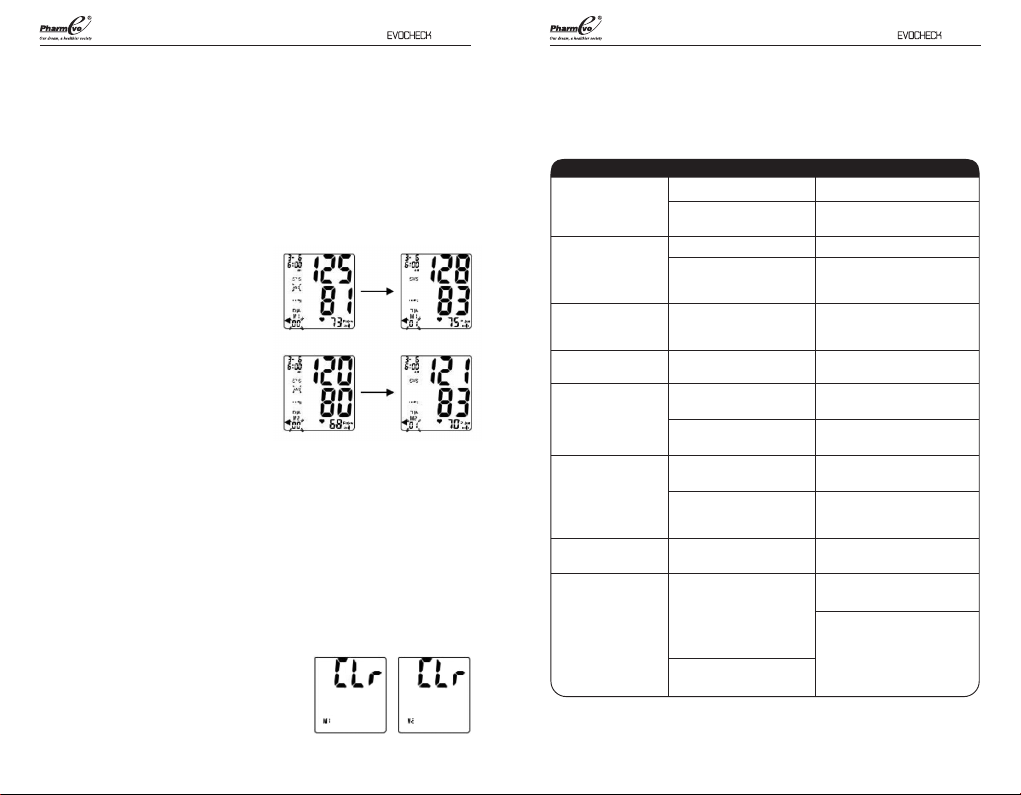

Recalling Measurements in Memory:
You can recall up to 90 measurements per memory bank, 180 total, plus
an average of last 3 currently stored measurements in memory to share
with your physician or trained healthcare professional.
1. Press and release the M1 or M2
button. The unit will rst display
the average of last 3 currently
stored measurements.
2. Continue to press the M1 or M2
button to successively view the
next previously stored
measurements. Measurements will
appear on the display from most
current to oldest; the memory
number will appear on the lower
left corner.
3. All results for a given measurement will display, including
measurement results, pulse rate, Hypertension Indicator, Irregular
Heartbeat alert, and date/time stamp.
4. Each memory bank stores up to 90 readings; when the number
of readings exceeds 90, the oldest data will be replaced with the
new record.
5. Press the Power button to turn the monitor OFF at any time during
review of the stored measurements.
Clearing Measurements from Memory:
From power display o, press and hold down
the M1 button or the M2 button until the
display shows CLr. This indicates that all
measurements have been erased.
Problem Probable Cause Recommended Action
Nothing appears in Batteries are drained. Replace all batteries with new ones.
the display even
when the power Battery are not correctly Reinsert batteries in the correct
is turned on aligned with terminals. position.
Low Battery Batteries are drained. Replace all batteries with new ones.
Symbol appears.
In colder temperatures Warm up the batteries, or use the
batteries have weaker device in a warmer setting.
electrical charges.
Device operation Dierent battery brands Use Alkaline batteries and
time is inconsistent. have dierent life spans. replace all batteries at the same
time with same brand batteries.
No reading after Batteries are drained. Replace all batteries with new
measurement. ones.
Suspicious blood Perhaps the cu was Adjust patient and arm cu
pressure results. improperly positioned. to measure.
Blood pressure naturally Rest a while, relax and measure
varies throughout the day. again.
Suspicious heart Bodily movement during Refrain from moving during
rate results. device use. measurement.
Measurement shortly after Do not take measurements after
exercise or exposure to exercise or coming back from
the outdoors. the outdoors.
Power switches System design. Push the power button again,
o automatically. and then begin measure again.
During measuring, It could be a normal action Relax, and try to take a measure
air re-inates. if the user's blood pressure is again.
higher than the initial pressure
value, the device automatically Check that the arm cu is
pumps to a higher pressure by fastened properly and retake
40mmHg each time. the measurement.
The arm cu is not fastened
properly.
1514

® BPM68® BPM68
Care and Maintenance
1. Clean the device and arm cu carefully only with a slightly
moistened cloth.
2. Do not immerse the device in water. It may cause damage if water
enters.
3. Do not use any gas, strong detergent, or solvents to clean the device,
including the arm cu.
4. Do not attempt to disassemble, repair or modify the blood pressure
monitor or arm cu.
5. Disconnect the cu and tubing from the monitor prior to storing.
6. Do not use any liquids or water for cleaning on the monitor or cu.
7. Use a soft, dry cloth to clean your monitor.
8. Do not store in direct sunlight, dust or excessive humidity.
9. Avoid extreme temperatures.
10. Remove batteries if the monitor will not be used for an extensive
period of time.
11. Do not drop or expose the device to heavy shock.
CAUTION:
lNo modication of this equipment is allowed.
lKeep your equipment out of the reach of children, pets and pest.
lThe patient is an intended operator.
lRisk of explosion if battery is replaced by an incorrect type.
lDispose of used batteries according to the instructions.
Technical Specication
lMeasuring range: Blood Pressure: 30~280 mmHg Pulse Rate : 40~199
beats/min
lCalibration accuracy: Blood Pressure: ± 3 mmHg Pulse rate: ± 4% of
reading
lOperating environment: 10°C~40°C (50°F~104°F) with relative
humidity up to 85% (non condensing)
lStorage/ transportation environment: 20°C~+50°C (-4°F~+122°F)
with relative humidity up to 85% (non condensing)
lPower source: 4 x 1.5 V AAA batteries
lWeight: Approx. 226g (exclude batteries)
lDimensions: Approx. 95 x 130 x 45(W x H x D)
lCu circumference (L Size): approx. 22 ~ 42 cm (9”~ 17”)\
Error Codes
Err Code Meaning Corrective Action
Err 0 No pulse or detect pulses Take o heavy clothes and
not enough. retry again.
Err 1 Leakage in Cu Pressure/ The arm cu is not fastened
Ination too low. properly. Reapply the cu, and take
a measurement again.
Err 2 Pressure fault. Rest a while, relax and retry again.
Err 3 Deation fault. The arm cu is not fastened
properly. Reapply the cu, and take
a measurement again.
Err Memory error. Take o batteries to reboot the
device, then take another
measurement.
Low batteries. Replace all batteries with new ones.
1716

® BPM68® BPM68
EMC Tables
EVOCHECK® Blood Pressure Monitor BPM8 is intended for use in the electromagnetic
environment specied below. The customer or the user of EVOCHECK® Blood Pressure Monitor
BP68 must make sure that it is used in such an environment.
Guidance and manufacturer’s declaration - Electromagnetic emissions
Phenomenon Professional healthcare facility Home Healthcare
environment a) environment a)
Conducted and radiated a) CISPR 11
RF EMISSIONS Group 1 Class B
Harmonic distortion Not applicable
Voltage uctuations Not applicable
and ickering
a) The equipment is suitable for use in Home Health Environments and Professional Health Care Environments
limited to patient rooms and respiratory treatment facilities in hospital or clinics. The more restrictive
acceptance limits of Group 1 Class B (CISPR 11) have been considered and applied. The equipment is suitable
for use in the mentioned environments when directly connected to the Public Mains Network.
b) The test is not applicable in this environment unless the ME EQUIPMENT and ME SYSTEM used will be connected
to the PUBLIC MAINS NETWORK and the power input is otherwise within the scope of the Basic EMC standard.
Guidance and manufacturer’s declaration - Electromagnetic immunity - Enclosure port
Phenomenon Basic EMC mmunity test levels
standard or test method Professional healthcare HOME HEALTHCARE
facility environment ENVIRONMENT
ELECTROSTATIC IEC 61000-4-2 ± 8kV contact
DISCHARGE ± 2 kV, ±4kV ±, ±8 kV, ±15 kV air
Radiated RF EM elds IEC 61000-4-3 a)
10 V/m b) 80MHz - 2.7
GHz 80% AM at 1kHz
Proximity elds from RF IEC 61000-4-3 COMPLIANT
wireless communications NOTE: Further information about distances to
equipment be maintained between portable and mobile
RF communications equipment (transmitters)
and the EVOCHECK® Blood Pressure Monitor
BP68 can be requested from EVOCHECK® Blood
Pressure Monitor using the contact information
provided in this manual. However, it is advisable
to keep the electromechanical aerosol equipment
at an adequate distance of, at least, 0.5 m from
mobile phones or other RF communications
transmitters to minimise possible interference.
RATED power frequency IEC 61000-4-8 30 A/m c)
magnetic elds. 50 Hz or 60 Hz
a) The equipment is suitable for use in Home Health Environments and Professional Health Care Environments
limited to patient rooms and respiratory treatment facilities in hospital or clinics. The more restrictive IMMUNITY
acceptance limits have been considered and applied.
b) Before modulation is applied.
c) This test level assumes a minimum distance of at least 15 cm between the ME EQUIPMENT or ME SYSTEM and
sources of power frequency magnetic elds.
18 19

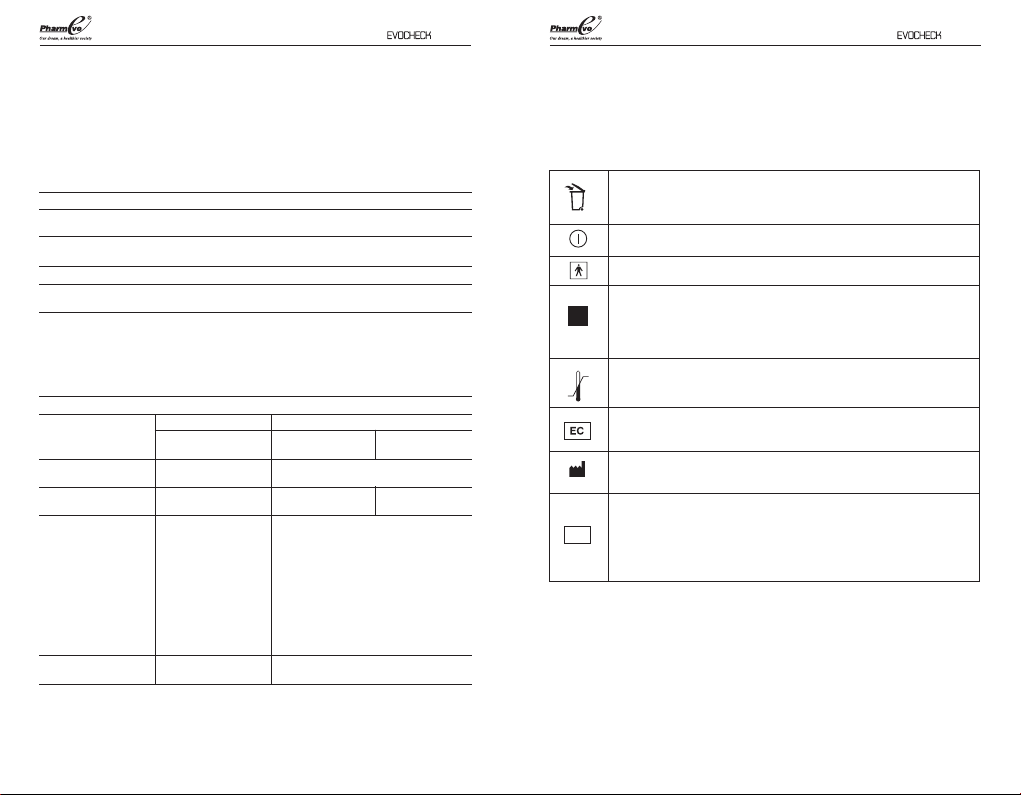

Explanation of Symbols
Disposal information: Should you wish to dispose of the article, do so
in accordance with current regulations. Details are available from your
local authority
“ON/OFF” (push-push)
Type of protection of applied part against electric shock, body oating
This product meets the basic safety and essential performance
requirements indicated in the IP22 conditioning test (protection
against solid foreign objects of 12.5mm ø and greater and against
vertically falling water drops when enclosure tiled up to 15°)
Temperature limits
European Authorized Representative
Manufacturer’s name and address
SN YYMWWWXXXXX
SN: Product Serial Number
YY: year, M:month, WWW: working sheet, XXXXX:
serial no.
Follow instructions for use
IP22
SN

® BPM68

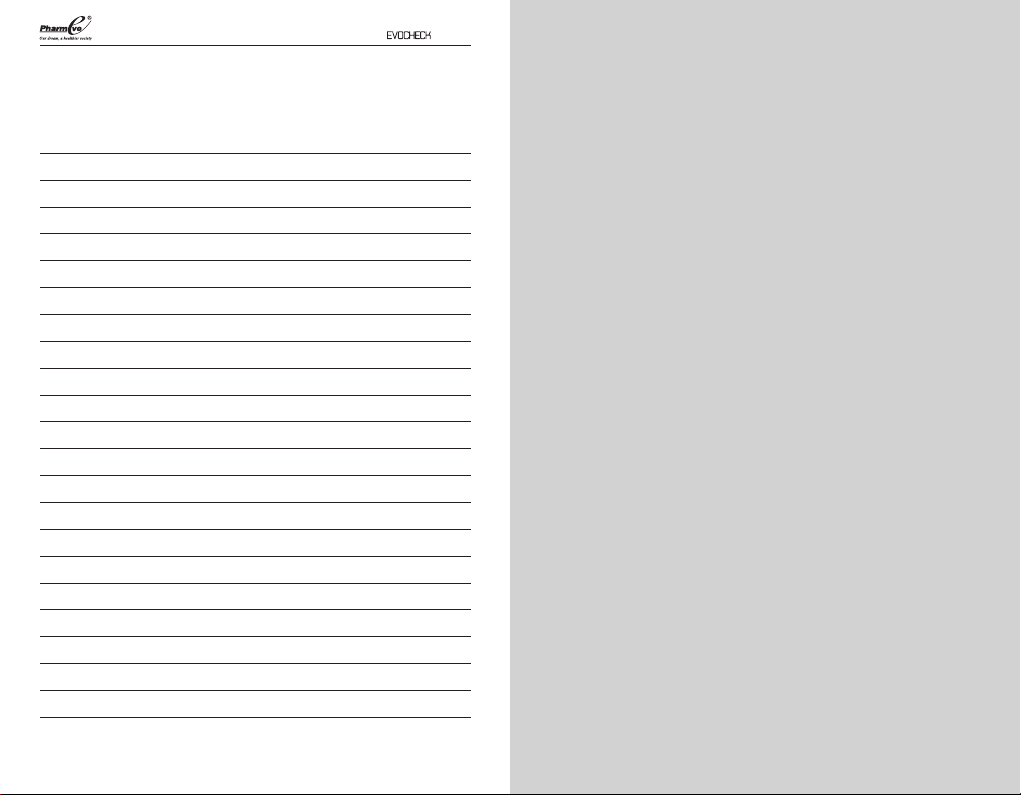

Note
20
