Evolution Powersports X3 User manual

Rev_021221
X3 Replacement Fuel Pump, Grams 265LPH
SKU(s): 500FC0003
NOTE: It is best to syphon all fuel out of the tank prior to starting this job.
NOTE: The fuel pump relay harness must be installed prior to powering up the dash or
starting the vehicle–failure to do so will damage your ECU.
Step 1: Remove plastics covering fuel tank. See picture below for location
Step 2: Unplug electrical connector going into the top of the pump.
Step 3: Unhook fuel hose by removing the red clip from the connection. Then push down on
the fitting while pushing in on the back side of the fitting – then lift the fitting off the pump
assembly.
Step 4: Rotate pump assembly cap counterclockwise and remove. Remove assembly. (see the
pictures on the next few pages for clarification)

Rev_021221
Step 5: With the fuel pump on a workbench and the fuel drained out of the pump assembly,
press in on the tabs to release the housing covering the tank.
Step 6: Below is what the assembly looks like with the housing off.
TABS
Keep rubber grommet
in place.

Rev_021221

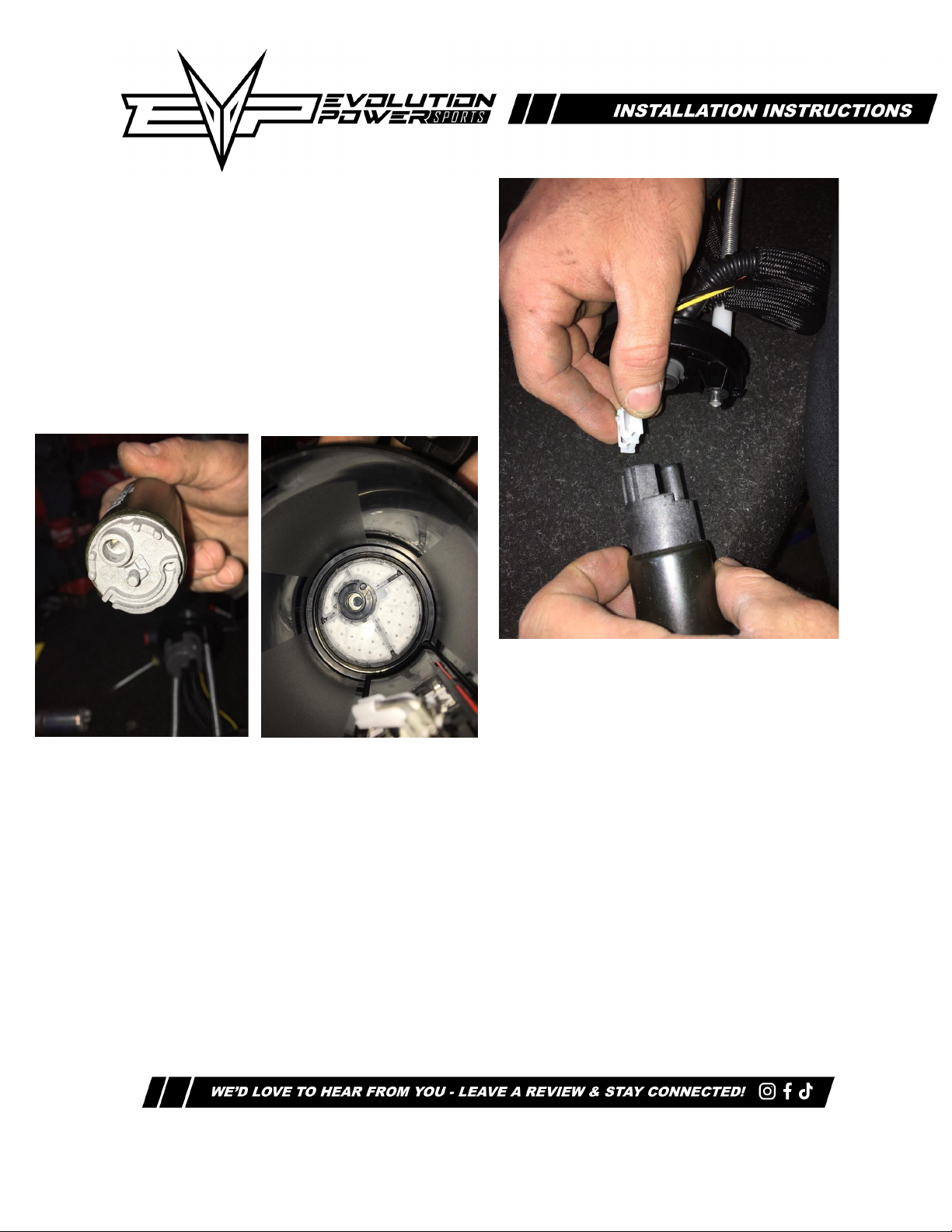

Step 7: Pull the pump out of its seat and
disconnect the electrical connection.
Step 8: Install the EVP supplied fuel pump into
the plastic housing that was removed.
Make sure the pump is oriented and fitted
correctly into the bottom of the housing -
when properly oriented, the pump will
drop into place and it will not rotate.
Step 9: Plug the electric connection into the pump.
Step 10: Carefully align the tabs and reinsert the cap into the housing – do not force it – if it
does not fit in with moderate pressure, something is not correct – Recheck.
Step 11: Reinstall pump assembly
Step 12: Install EVP plug n play fuel pump relay harness.
Step 13: Connect the yellow wire with the ring terminal and the relay to one of the bolts that
secure the fuel pump protector strap to the frame. Make sure the ring terminal is
grounded to the frame.
Step 14: Replace OEM fuel pump fuse with the supplied 20 amp in location F5.

Rev_021221
Thank you for choosing Evolution Powersports products. If you require further assistance, please call our Tech
Support @ [phone]
