2 WT.050.810.040.DE.IM.0519
DEPOLOX® 5 E flow cell
Please note
Original instruction manual!
Simone

DEPOLOX® 5 E flow cell Contents
3
Contents
1. Introduction 5
1.1 Documentation 5
1.2 Conventions 6
2. Safety 7
2.1 Intended use 7
2.2 General safety instructions 8
2.3 Specific operating phases 9
2.4 Warranty conditions 10
2.5 Disclaimer 10
3. Description 11
3.1 General 11
3.2 Versions 12
3.3 Design and functions 17
3.4 Optional accessories 20
3.5 Technical Data 21
4. Installation 25
4.1 Scope of supply 25
4.2 Transport and storage 27
4.3 Ambient conditions 27
4.4 Mechanical installation 29
4.5 Commissioning 47
4.6 Shutting down 47
4.7 Recommissioning 48

4 WT.050.810.040.DE.IM.0519
Contents DEPOLOX® 5 E flow cell
5. Maintenance 49
5.1 Maintenance intervals 49
5.2 Maintenance parts kit 50
5.3 Checking for leakage 50
5.4 Checking electrode cleaning sand 51
5.5 Checking electrolyte solution level 51
5.6 Checking diaphragms 51
5.7 Replacing or cleaning electrode cleaning sand,
electrolyte solution, reference electrode and
diaphragms 52
5.8 Cleaning or replacing the fine filter 54
5.9 Cleaning flow rate monitor and check valve 55
5.10 Cleaning 55
6. Retrofit kits, spares and accessories 57
6.1 Retrofit kits 57
6.2 Spare parts 62
6.3 Accessories 69
7. Declarations and certificates 71
7.1 Declaration of Conformity 71
7.2 Certificate of CSA 73
8. Index 77

DEPOLOX® 5 E flow cell Introduction 1.
5
1. Introduction
1.1 Documentation
1.1.1 Target groups
This instruction manual provides the information for installation, operat-
ing and maintenance personnel. It is required for operation and mainte-
nance of the DEPOLOX® 5 E flow cell (module type D01).
All persons working with the DEPOLOX® 5 E flow cell must have read
and understood the instruction manual, in particular, the safety instruc-
tions it contains.
1.1.2 Documentation Structure
This instruction manual is intended for operators of the DEPOLOX® 5 E
flow cell. It contains important information for safe, trouble-free, and effi-
cient operation of the DEPOLOX® 5 E flow cell. Observing these instruc-
tions will help prevent risks, reduce repair costs and downtimes, and
increases the reliability and service life of the DEPOLOX® 5 E flow cell
Chapters Installation, Commissioning, and Maintenance are intended
only for trained and authorized service personnel. These chapters con-
tain important information on the assembly, configuration, commission-
ing and start-up, maintenance and repair of the DEPOLOX® 5 E flow cell
that should only be performed by this target group.
Please consult the table of contents and the index to quickly find the infor-
mation you require.

6 WT.050.810.040.DE.IM.0519
Introduction DEPOLOX® 5 E flow cell
1.
1.2 Conventions

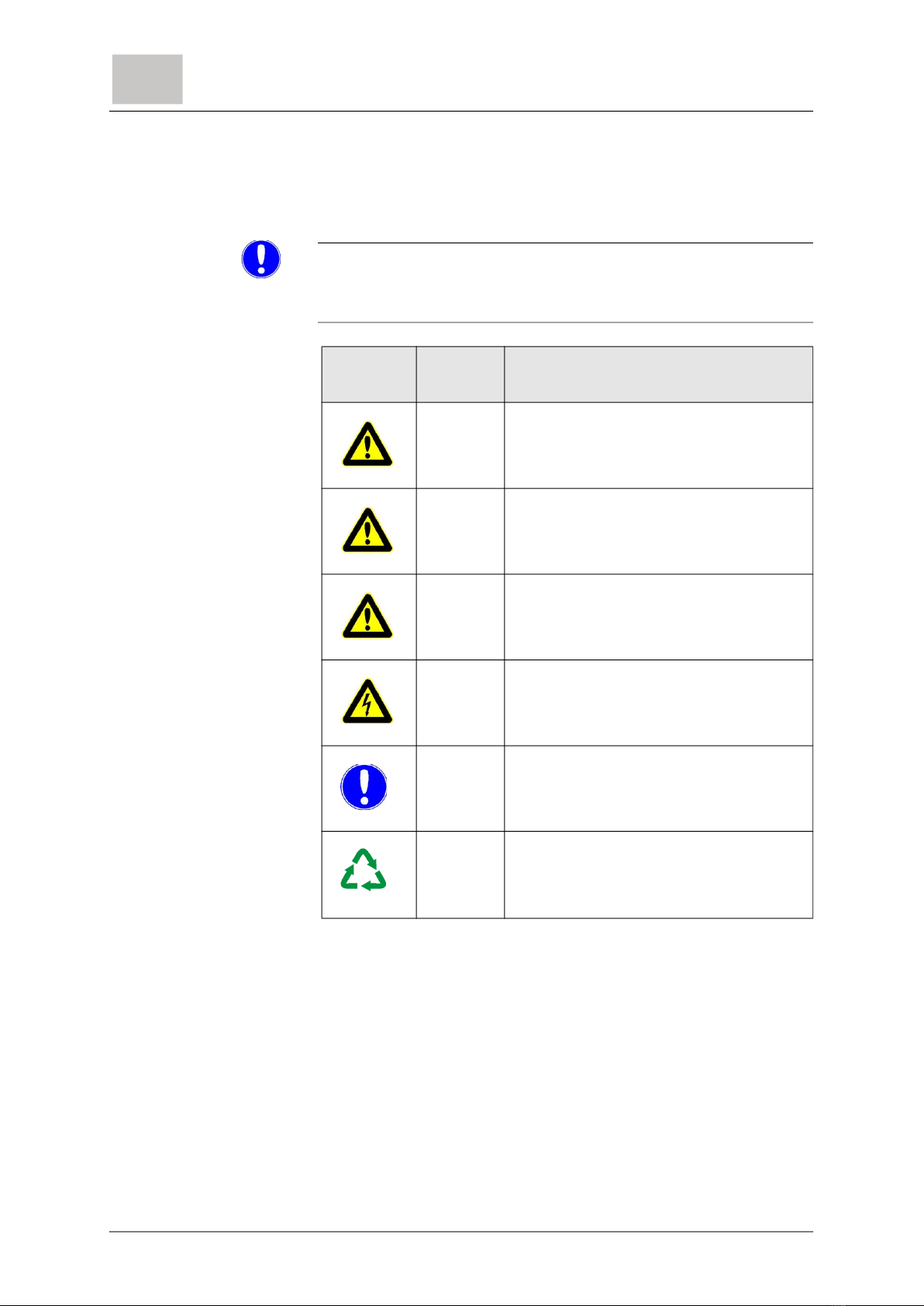

Please note
This instruction manual contains notes with different priorities that are
marked with symbols.
Pictogram Please
note Meaning
Danger! Immediate danger to life and limb! If the
situation is not corrected, death or serious
injury will result.
Warning! Danger to life and limb! If the situation is
not corrected, death or serious injury can
result.
Attention! If this note is not observed, moderate or
minor injury or damage to material can
result.
Warning! Electrocution hazard.
Please
note
These notes indicate a material risk or
provide useful information to make work-
ing with the device easier.
Attention! Environmental hazard!
Do not throw away or burn the batteries!
Batteries must be disposed of at a collec-
tion point.

DEPOLOX® 5 E flow cell Safety 2.
7
2. Safety
2.1 Intended use
The DEPOLOX® 5 E flow cell (module type D01) in combination with the
installed sensors and the 700 P electronics module (module type E01) or
700 M electronics module (module type E01) is intended only for mea-
surement and control in the treatment of drinking water, process water,
industrial water, wastewater, and swimming and bathing pool water.
The operational safety of DEPOLOX® 5 E flow cell is guaranteed only if
it is used in accordance with its intended application. It may only be used
for the purpose defined in the order and under the installation, operating
and ambient conditions specified in this instruction manual.
All inspection and maintenance work must be carried out in accordance
at the specified intervals.
Compliance with the intended use also includes reading this instruction
manual and observing all the instructions it contains.
The operator bears full and sole responsibility if this unit is put to any use
which does not comply strictly and exclusively with this intended use.
Warning!
Risk of injury or death!
The device must not be used with flammable liquids.

8 WT.050.810.040.DE.IM.0519
Safety DEPOLOX® 5 E flow cell
2.
2.2 General safety instructions
The manufacturer places great value upon safety when working with the
unit. This was already taken into account in the design of the system, by
the integration of safety features.
Safety regulations The safety instructions in this documentation must be observed. Addi-
tional industry-wide or in-house safety regulations also continue to apply.
Safety warnings on the
unit
All safety instructions attached to the unit itself must be observed. These
instructions must always be clearly legible and complete.
State-of-the-art
technology
The unit has been constructed in accordance with state-of-the-art tech-
nology and the accepted safety regulations. However, if the unit is used
by persons who have not been adequately instructed, risks to life and
limb of such persons or third parties and damage to the unit itself or to
other property cannot be ruled out. Work not described in this instruction
manual must be performed only by authorized personnel.
Personnel The operator of the overall system must ensure that only authorized and
qualified specialized personnel are permitted to work with and on the unit
within their defined scope of authority. "Authorized, specialized person-
nel" refers to trained technicians employed by the operator, the manufac-
turer, or, if applicable, the service partner. Only qualified electricians
must perform work on electrical components.
Spare parts / components Trouble-free operation of the unit is only guaranteed if original spare
parts and components are used in precisely the combination described
in this instruction manual. Failure to observe this instruction may incur the
risk of malfunction or damage to the unit.
Extensions and conver-
sions
Never attempt to perform any modifications, extensions or conver-sions
on the unit that could have an adverse affect on safety with-out the writ-
ten approval of the manufacturer.
Electrical power During normal operation, the controller must remain closed. Connect the
power cables in accordance with the wiring diagram.
Warning!
Risk of injury or death!
External voltages can be connected even with the operating voltage
switched off.

DEPOLOX® 5 E flow cell Safety 2.
9
IT security The manufacturer offers IT security mechanisms for its products to sup-
port secure system operation. We recommend checking on a regular
basis to see what information is available regarding IT security develop-
ments for your products. Information on this can be found on the Internet.
For the safe operation of an installation, it is furthermore necessary to
integrate the automation components into a holistic IT security concept
which comprises the entire system and is in accordance with latest state
of the art technology. In the process, implemented products deriving from
other manufacturers should be taken into account.
Disposal Ensure safe and environment-friendly disposal of agents and replaced
parts.
Attention!
Dispose of the electronics waste in accordance with valid local and
national regulations.
2.3 Specific operating phases
Normal operation Never employ any working methods which could affect safety!
The device must not be used with flammable liquids.
Inspect the DEPOLOX® 5 E flow cell at least daily for externally visible
damage and faults! Inform the responsible person/authority immediately
of any detected changes (including any changes in the operating perfor-
mance)!
Have malfunctions remedied immediately!
Installation and
maintenance work
Do not use aggressive cleaning agents (e.g., alcohol, abrasive cleaners)!
We recommend a damp cloth moistened with a commercially available
neutral detergent.

10 WT.050.810.040.DE.IM.0519
Safety DEPOLOX® 5 E flow cell
2.
2.4 Warranty conditions
The following must be observed for compliance with warranty conditions:
• Installation and commissioning by the manufacturer or trained and
authorized specialists, e.g. of contractors
• Intended use
• Observation of the operational parameters and settings.
• The unit may only be operated by trained personnel.
• An operating log book must be kept (only in the public sector).
• Only approved calibration chemicals may be used
• The unit must not be exposed to frost.
• Maintenance work must be executed
• Use of genuine spare parts
If any of the above conditions are not met, the warranty is void.
2.5 Disclaimer
We are not liable for any damages incurred during installation or use of
these hardware and software components. This applies specifically to
trouble-free interaction with the software and hardware components you
choose.
We are not liable for buyer damages (in particular, lost profits, lost infor-
mation and service interruptions), which arise when using the
DEPOLOX® 5 E flow cell, nor for other damages. You are solely respon-
sible for the installation!
The contents of the instruction manual has been checked to make sure
that it matches the detailed hardware and software. Deviations can nev-
ertheless not be ruled out and we therefore assume no liability for full
conformity. The details in this instruction manual are checked regularly
and any necessary corrections are included in subsequent issues.

DEPOLOX® 5 E flow cell Description 3.
11
3. Description
3.1 General
The DEPOLOX® 5 E flow cell (module type D01) is part of the Pool Man-
agement System DEPOLOX® 5 E 700 P and the measuring and control
unit DEPOLOX® 5 E 700 M.
The DEPOLOX® 5 E flow cell (module type D01) is a special flow cell
adapter for sample water. In combination with the 700 P electronics mod-
ule (module type E01) or 700 M electronics module (module type E01)
and the integrated sensors, the DEPOLOX® 5 E flow cell measures and
controls parameters free chlorine, pH value, redox voltage and tempera-
ture. To determine parameters total chlorine, combined chlorine and con-
ductivity, further sensors can e installed.

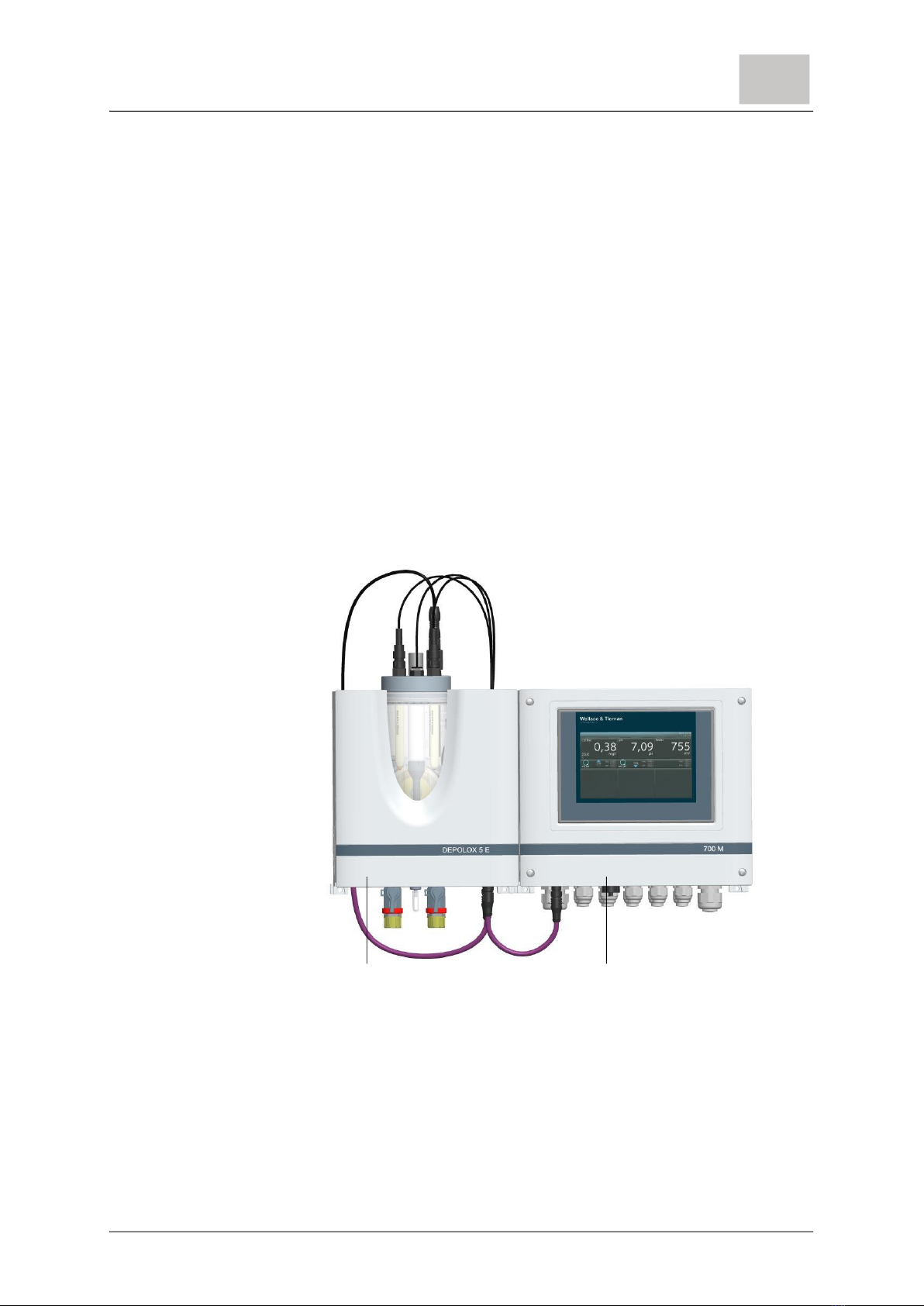

Image 1 Pool Management System DEPOLOX® 5 E 700 M with sensors
(example)
A DEPOLOX® 5 E flow cell, pressurized with sensors
B 700 M electronics module
AB

12 WT.050.810.040.DE.IM.0519
Description DEPOLOX® 5 E flow cell
3.
DEPOLOX® 5 E flow cell is available in both a non-pressurized and a
pressurized version. The two versions differ in the number of sensors that
can be installed and in the design of the sample water outlet. The pres-
surized version can be retrofitted with the total chlorine membrane sen-
sor TC3 CAN. Please note that the standard cell body cover must be
replaced by an optional cell body cover, part no. W3T417351. The non-
pressurized version is characterized by a free sample water outlet. With
the pressurized version, the sample water is returned into the system’s
circuit.
The for sensors required for the measurement tasks (optional) and the
LED glow stick are inserted or screwed into the mounting hole in the cell
body cover.
The maintenance-free flow control valve is the main hydraulic part of
DEPOLOX® 5 E flow cell. It has the task of keeping the sample water flow
constant, irrespective of fluctuations in operating pressures.
The multi-sensor monitors the correct flow and records the temperature
of the sample water. The metallic sensor housing guarantees good sam-
ple water earthing. The continuous hydromechanical cleaning of the
electrode of the three-electrode measuring cell effectively prevents natu-
ral contamination of the electrode surfaces and ensures long-term stable
chlorine measurement.
DFMe electronics module converts the analog sensor signals for digital
transmission to 700 P electronics module or 700 M electronics module. If
a membrane sensor for total chlorine TC3 CAN (optional) is used, this is
connected directly to DFMe electronics module or routed through the
CAN connection on conductivity module SiDiSens (optional) to DFMe
electronics module. The conductivity sensor (optional) is connected to
DFMe electronics module through conductivity module SiDiSens.
3.2 Versions
The DEPOLOX® 5 E flow cell (module type D01) can be comined with
700 P electronics module (module type E01) or 700 M electronics module
(module type E01). The following versions are available:
• Pool Management System DEPOLOX® 5 E 700 P
• Measuring and control unit DEPOLOX® 5 E 700 M

DEPOLOX® 5 E flow cell Description 3.
13
3.2.1 Pool Management System DEPOLOX® 5 E 700 P
The DEPOLOX® 5 E flow cell (module type D01) is factory-configured
according to the customer’s specific requirements with the 700 P elec-
tronics module (module type E01) according to the variant code. The
scope of delivery differs in the versions of DEPOLOX® 5 E flow cell, the
sensors, electronics components and accessories. The variant code con-
sists of 12 digits and is printed on both the type plate and packaging
sticker.
Example: 5 P M N L 4 R L B EN O O
Selection of sensor measuring module for free chlorine
C
Sensor measuring module DEPOLOX ® Pool E
5
Sensor measuring module DEPOLOX® 5 E
Selection of sensor measuring module for pH value
P Sensor measuring module pH value
O No sensor measuring module pH value
Selection of sensor measuring module for Redox voltage
M Sensor measuring module Redox voltage
O No sensor measuring module Redox voltage
Selection of sensor measuring module for total chlorine
N Sensor measuring module total chlorine TC
O No sensor measuring module total chlorine
Selection of sensor measuring module for con-
ductivity
L Sensor measuring module conductivity
O No sensor measuring module conductivity
Selection of analog output
4 4-way mA analog output
O No mA analog output
Selection of relay board
R Additional relay board 4-way
O No additional relay board
Selection of DEPOLOX®5 E flow cell
L
DEPOLOX
® 5 E flow cell, non-pressurized
FDEPOLOX®5 E flow cell, pressurized
Selection of LED lighting
B LED glow stick for flow cell
Selection of language for instruction manual
DE Instruction manual in German
EN Instruction manual in English
FR Instruction manual in French
D2 Instruction manual in German/Englisch
Not used
Not used

14 WT.050.810.040.DE.IM.0519
Description DEPOLOX® 5 E flow cell
3.
3.2.2 Measuring and control unit DEPOLOX® 5 E 700 M
The measuring and control unit DEPOLOX® 5 E 700 M is available in var-
ious versions. They mainly differ in the versions of the DEPOLOX® 5 E
flow cell (module type D01) (non-pressurized or pressurized) as well as
the sensors. The measuring and control unit DEPOLOX® 5 E 700 M con-
sists of the following:
• 700 M electronics module (module type E01)
• DEPOLOX® 5 E flow cell (module type D01) with 3-electrode mea-
suring cell for free chlorine (chlorine dioxide or ozone)
• Non-pressurized or pressurized version
• LED glow stick
• 4-way mA output card
• Eight relay outputs
Optional:
• pH reference electrode
• Redox reference electrode
• Membrane sensor for total chlorine TC3 CAN
• Conductivity sensor
DEPOLOX® 5 E 700 M
Non-pressurized version
The non-pressurized version of the measuring and control unit
DEPOLOX®5 E 700 M is available in following versions:
Part no.
3-electrode measuring cell for free chlorine
(chlorine dioxide or ozone)
pH reference electrode
Redox reference electrode
Membrane sensor for
total chlorine TC3 CAN
Conductivity sensor
W3T371112 X
W3T371113 X X
W3T371114 X X X
W3T371115 X X X X
W3T371116 X X X X X

DEPOLOX® 5 E flow cell Description 3.
15
DEPOLOX® 5 E 700 M
Pressurized version
The pressurized version of the measuring and control unit DEPOLOX®5
E 700 M is available in following versions:
Please note
The pressurized version can be retrofitted with the total chlorine mem-
brane sensor TC3 CAN. Please note that the standard cell body cover
must be replaced by an optional cell body cover, part no. W3T417351.
Part no.
3-electrode measuring cell for free chlorine
(chlorine dioxide or ozone)
pH reference electrode
Redox reference electrode
Membrane sensor for
total chlorine TC3 CAN
Conductivity sensor
W3T370967 X
W3T370968 X X
W3T370969 X X X
W3T370970 X X X X

16 WT.050.810.040.DE.IM.0519
Description DEPOLOX® 5 E flow cell
3.

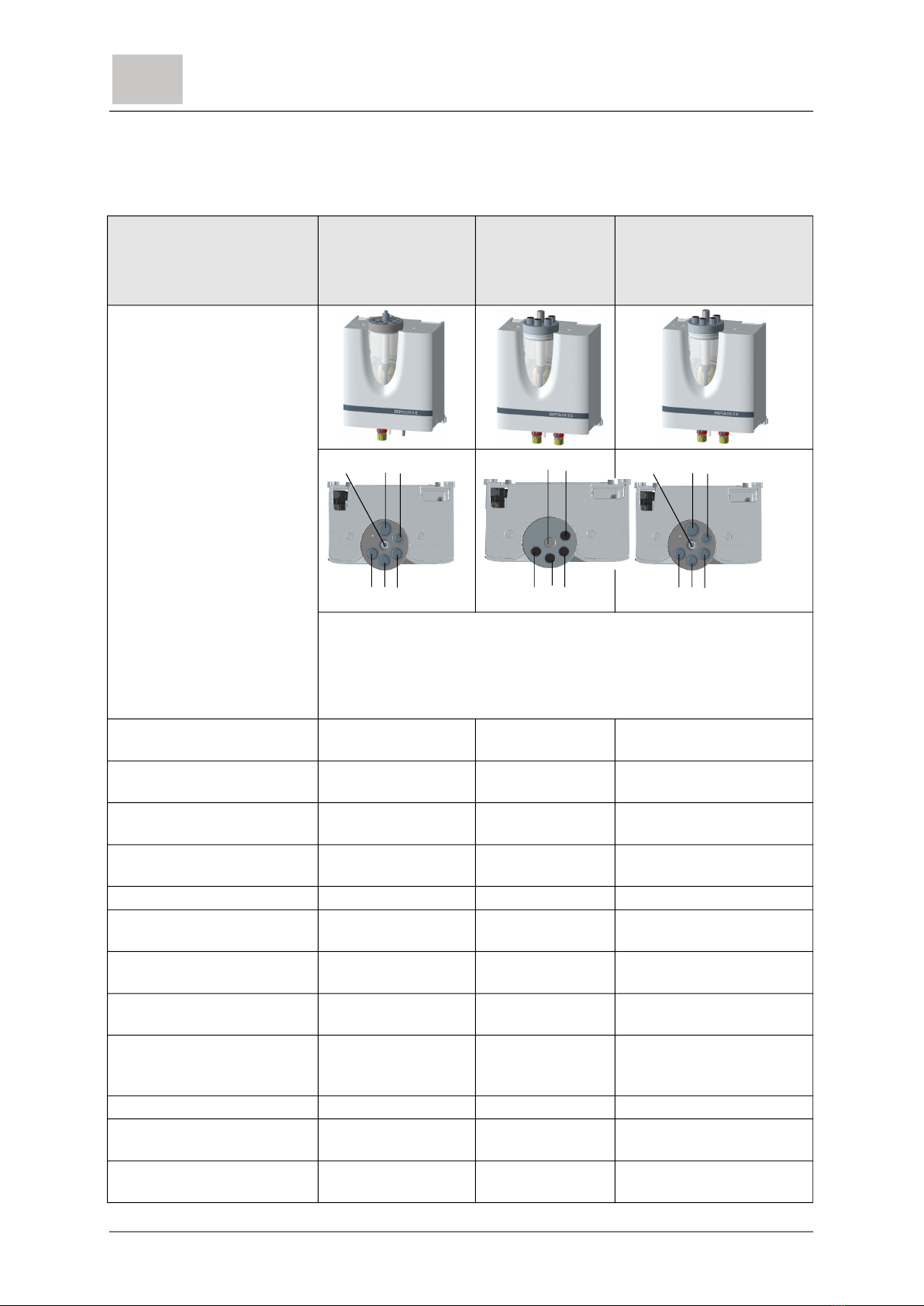

3.2.3 Configuration options
Designation
DEPOLOX® 5 E
Non-pressurized
version
DEPOLOX
®
5 E
pressurized
version
DEPOLOX® 5 E
pressurized version with
cell body cover
W3T417351 (optional)
A 3-electrode measuring cell (free chlorine)
B Membrane sensor for total chlorine TC3 CAN
C Conductivity sensor
D Redox combined measuring and reference electrode
E LED glow stick
F pH combined measuring and reference electrode
3-electrode measuring cell
(free chlorine)
X X X
Membrane sensor for total
chlorine TC3 CAN
X - X
pH combined measuring and
reference electrode
X X X
Redox combined measuring
and reference electrode
X X X
Conductivity sensor X X X
Sample water temperature
(multi-sensor)
X X X
Flow rate monitor (multi-sen-
sor)
X X X
Sample water earthing
(multi-sensor)
X X X
Sample water fine filter (fine
filter)
(X)
Only when using
membrane sensors
- (X)
Only when using
membrane sensors
LED glow stick X X X
Shut-off ball valve at sample
water inlet
X X X
Shut-off ball valve at sample
water outlet
- X X
AB
D
EF
CAC
F E D
AB
D
EF
C

DEPOLOX® 5 E flow cell Description 3.
17
3.3 Design and functions
3.3.1 Overall design
The DEPOLOX® 5 E flow (module type D01) cell has the following
design:

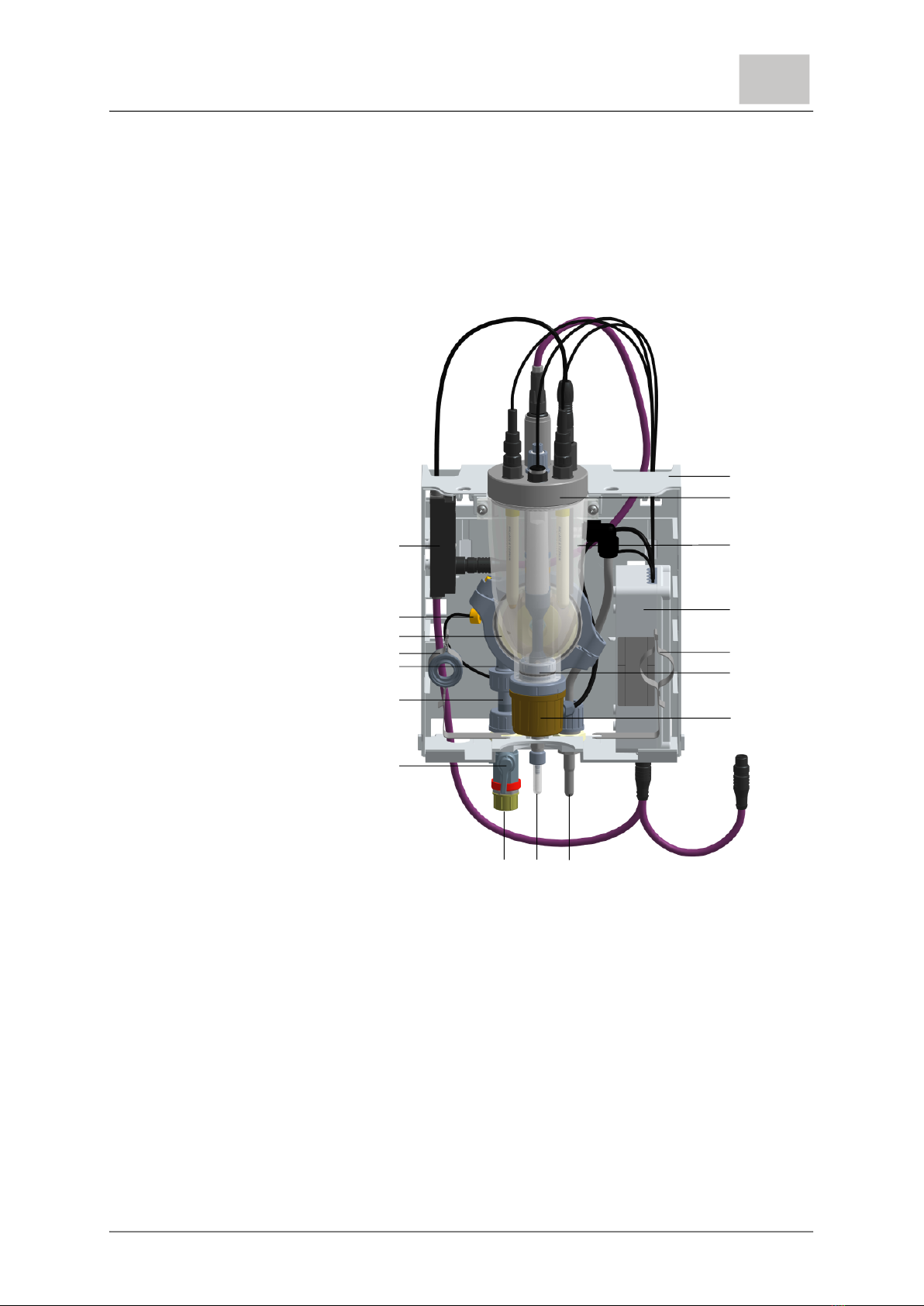

Image 2 DEPOLOX® 5 E flow cell, non-pressurized (cover removed)
A Plastic housing with removable housing cover
B Cover for holding the sensors and LED glow stick
C Cell body
D DFMe electronics module
E Calibration holding clip
F 3-electrode measuring cell with electrolyte tank
G Cap of the 3-electrode measuring cell
H Sample water outlet, in pressurized version also with ball valve
I Sample taking unit (drain)
J Sample water inlet
K Shut-off ball valve
L Filter unit
M Check valve housing
N Flow control valve
O Multi-sensor
P Module SiDiSens conductivity (optional)
A
B
C
D
E
F
G
HIJ
K
L
M
E
N
O
P

18 WT.050.810.040.DE.IM.0519
Description DEPOLOX® 5 E flow cell
3.

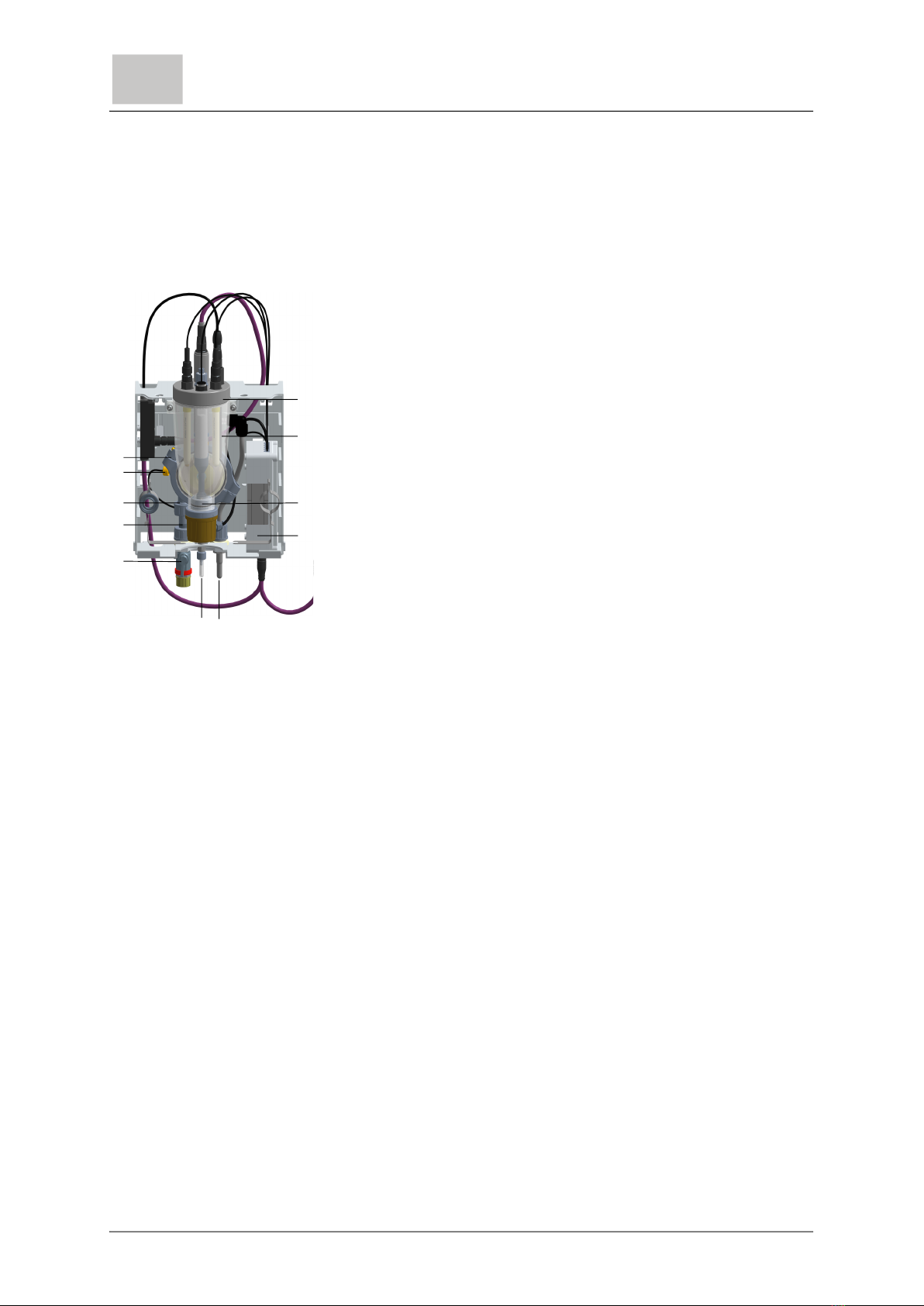

3.3.2 DEPOLOX® 5 E flow cell
The function description of DEPOLOX® 5 E flow cell is described below
from the sample water inlet to the sample water outlet.
The sample water is connected on the input side to the shut-off ball valve
(A) via the G1/2” connection. The input pressure must be around 0.25 to
3.0 bar. To guarantee a constant flow, the minimum input pressure must
not be less than 0.25 bar. Otherwise, an optional booster pump must be
used. If the admission pressure exceeds 3.0 bar, an optional pressure
reducing valve must be used.
The sample water flows in the flow direction to the check valve housing
(C) through the filter unit (B) or through the built-in fine filter (membrane
sensors only). In the filter unit a stainless steel fine filter (sample water
fine filter) with a mesh size w=500 µm can be installed. The fine filter is
only used in conjunction with the membrane sensors.
The check valve housing (C) provides a kick-back function and guides
the ball for monitoring the flow rate.
The multi-sensor (D) monitors the correct flow by the float principle with
reed switch and measures the temperature with the Pt1000. The large-
surface transducer grounding is through the stainless steel sensor hous-
ing.
The flow control valve (E) ensures a flow of the sample water that is not
dependent on the operating pressure. The correct sample water flow of
33 l/h is factory-preset, checked and logged. If the admission pressure
rises, the valve ball moves towards the closing direction; if the admission
pressure drops, the ball moves towards the opening direction.
In the cell body (G) the 3-electrode measuring cell (H) with external
potentiostatic control circuit and refillable electrolyte tank is fitted. Work-
ing and counter electrodes are designed as half-ring electrodes and con-
sist of a special platinum alloy. The reference electrode is a silver–silver
chloride electrode, which is connected to the sample water via two mem-
branes. The reference electrode immerses in an electrolyte solution and
can also be refilled during operation.
The sample water that flows tangentially into the 3-electrode measuring
cell (H) ensures continuous hydromechanical cleaning of the sensor
electrodes with special cleaning sand, thereby preventing natural soiling
of the electrode surfaces. Clean electrode surfaces and a constant flow
of sample water are decisive criteria for a qualitative good oxidizing agent
measurement and quick response.
The 3-electrode measuring cell (H) is connected to 700 P electronics
module or 700 M electronics module through DFMe electronics
module (I) (DES sensor module for 3-electrode measuring cell). The
adjustable cell voltage Upot is output through the potentiostatic control
circuit. A measuring cell current (µA signal) that is proportional to the dis-
infectant concentration in the sample water is evaluated with the 700 P
electronics module or 700 M electronics module.
A
B
C
D
E
F
G
H
I
J
K

DEPOLOX® 5 E flow cell Description 3.
19
The cell body (G), which can be lit, holds the sensors and is designed to
allow convenient cleaning and servicing. These additional sensors are
installed in the mounting hole of the cell body cover (F) with standard
thread connections or in special sensor mounts.
The LED glow stick is fitted in the cell body cover for visual inspection of
the sensors, sand cleaning and for color indication of messages or faults.
The sample water runs off directly through the top cell body outlet (J)
through an outlet nozzle for hoses with inner diameter 6 mm. In the case
of the pressurized version, the sample water runs off through a shut-off
ball valve with G 1/2” A-connection. With the pressurized version, a max-
imum back pressure of 1.5 bar is permitted here.
For calibration, a sample taking unit (K) is fitted. It is used to draw sample
from the cell body through the low-pressure side of the flow control valve
and to drain the cell body for servicing.
Two calibration holding clips are attached in the cover of the DEPOLOX®
5 E flow cell. For hands-free calibration of the sensors with buffer solution
and calibration solution (bag or cup) the two calibration mounting brack-
ets are inserted on the side at the back of the main housing.
3.3.3 DFMe electronics module
DFMe electronics module consists of a spray-water tight housing with
built-in sensor electronics and is integrated in the main housing of the
DEPOLOX® 5 E flow cell. The sensor cables are prefabricated and are
splash-proof to IP66. The motherboard holds the sensor input for the 3-
electrode measuring cell, the LED glow stick and the evaluation electron-
ics for the multi-sensor. Optionally, the motherboard contains two addi-
tional slots for the pH and redox combined measuring and reference
electrode. To the integrated CAN socket the CAN connection cable to
700 P electronics module or 700 M electronics module is connected. Fur-
ther optional sensors, such as for total chlorine and/or conductivity mod-
ule SiDiSens can be connected through a second CAN connection
socket (optional).

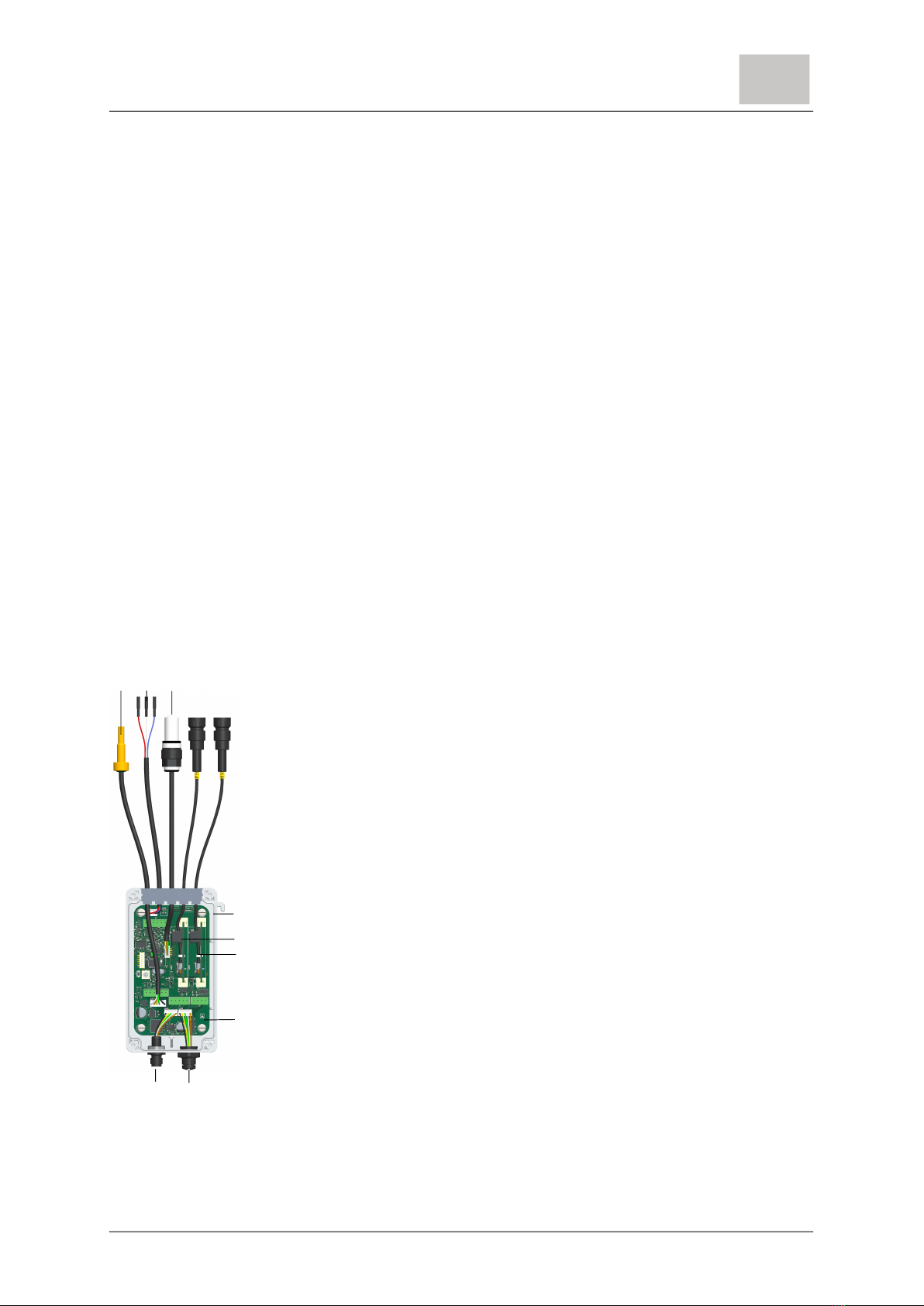

Image 3 Cross-section, DFMe electronics module
A Multi-sensor
B Sensor cable DFMe - DES for 3-electrode measuring cell
C LED glow stick
D Housing of DFMe electronics module
E Sensor module pH (optional)
F Sensor module redox (mV) (optional)
G DFMe motherboard with measurement input Cl2
H CAN extension socket (optional)
I CAN connection socket for 700 P electronics module or 700 M
electronics module
A B C
E
F
D
H
I
G

20 WT.050.810.040.DE.IM.0519
Description DEPOLOX® 5 E flow cell
3.
3.3.4 Module SiDiSens LF (optional)
To measure the conductivity, conductivity module SiDiSens LF (optional)
is installed in DEPOLOX® 5 E flow cell. The SiDiSens LF module con-
tains the sensor electronics for conductivity sensor LF325 (4-conductor
measurement). Through the CAN interface the SiDiSens LF module is
connected with 700 P electronics module or 700 M electronics module.
In addition, the optional membrane sensor for total chlorine TC3 CAN can
be connected via the CAN socket.
Image 4 Module SiDiSens LF
A Sensor cable to conductivity sensor
B SiDiSens LF module
C CAN socket for connecting the membrane sensor
D CAN connection cable with plug
3.4 Optional accessories
The DEPOLOX® 5 E flow cell (module type D01) can optionally be
equipped with the following sensors.
• pH combined measuring and reference electrode
• Redox combined measuring and reference electrode
• Conductivity sensor with conductivity module SiDiSens
• Membrane sensor for total chlorine TC3 CAN
Please find order numbers in chapter 6.3.1 “Sensors”. Please follow the
relevant instruction for the ”Total chlorine membrane sensor TC3 CAN”.
A
B
C
D
