EWheels Medical REMO AUTO-FLEX User manual

REMO AUTO-FLEX Instruction Booklet
MOBILITY SCOOTER
MOBILITY SCOOTER
MOBILITY SCOOTER

Instruction BookletREMO AUTO-FLEX
TABLE OF CONTENTS
01.INTRODUCTION
02.IMPORTANT PRECAUTIONS
2-1 BEFORE DRIVING SCOOTER
2-2 CAUTIONS WHEN DRIVING
2-3 CAUTIONS WHEN FOLDING / UNFOLDING SCOOTER
2-4 CAUTIONS WHEN DRIVING ON INCLINE
2-5 CAUTIONS WHEN CLIMBING
2-6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS
2-7 SAFETY WARNING AND INSTRUCTION LABELS
03.IDENTIFICATION OF PARTS
04.INTRODUCTION & OPERATION OF SCOOTER
4-1 IDENTIFICATION & OPERATION OF CONTROL PANEL
4-2 OPERATION OF MAIN SWITCH
4-3 OPERATION OF THROTTLE
4-4 OPERATION OF FREE-WHEELING (N-D LEVER)
4-5 TILLER HEIGHT ADJUSTMENT
4-6 SEAT ADJUSTMENT / DISMANTLE
05.FOLDING / UNFOLDING YOUR SCOOTER
06.BATTERY GAUGE & CHARGING THE BATTERIES
6-1 DISASSEMBLING BATTERY BOX
6-2 CAUTIONS FOR BATTERY & CHARGER
6-3 BATTERY GAUGE
6-4 OPERATING THE CHARGER
07.CARE AND MAINTENANCE
7-1 INSPECTION CHECKS
7-2 CLEANING AND MAINTENANCE
08.TROUBLE SHOOTING
09.OTHER INFORMATION
9-1 OPTIONS
10.TECHNICAL SPECIFICATIONS
.........................................................................................1
......................................................................2
2
3
4
5
5
6
7
......................................................................8
.........................................9
9
11
12
12
12
12
..............................................13
..................................15
15
16
17
17
......................................................................19
19
20
..............................................................................22
.............................................................................24
24
.................................................................25

Instruction BookletREMO AUTO-FLEX
1
1.INTRODUCTION
Thank you and congratulations on purchasing your new Ewheels Medical mobility
scooter.
It is designed to provide the transportation ability indoors and outdoors for person whose
ability to walk is impaired, but who are still in terms of their eyesight and physically and
mentally able to operate an electric scooter.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction. We sincerely hope you enjoy your Ewheels Medical mobility scooter.
Please read and observe all warnings and instructions provided in owner’s manual before
your operate the various functions of this scooter. Also, please retain this booklet for future
reference.
If you have any questions, you can contact:
or your local dealer:
Ewheels Medical
6242E Greenway
Parkway #100
Scottsdale, Arizona
85254, U.S.A

Instruction BookletREMO AUTO-FLEX
2.IMPORTANT PRECAUTIONS
2
2-1 BEFORE DRIVING SCOOTER
•Before take the first trip with mobility scooter, you should familiarize yourself well with the
operation of mobility scooter and with the operation elements. Please take your time
to read this introduction booklet.
•Before driving, please evaluate the personal condition, and fully understand the operation
of mobility scooter.
•Before charging the scooter, please release the Circuit Breaker on battery box first to
activate the system (see section 3)
•Scooter is shipped with 30% of battery charge only, batteries should be fully charged
before your journey for maximum performance and longevity (see section 6 ).
•Scooter is equipped with certain type of battery (lithium or optional lead-acid), if you want
to change it, please contact dealer to reset the battery system such as charging port
and controller setting. Only one type of batteries can be used on scooter, do not mix
the batteries and charge, or it may result dangers
•The maximum load of the scooter is 115KG. Do not exceed the maximum permissible
load. Exceeding the max.weight rating may result in injury to yourself.
•The mobility device is only designed for use by a single occupant whose maximum weight
does not exceed the maximum permissible load of the device. Never use the mobility
device to transport more than one person (including children).
•You should not assemble, maintain, and operate the mobility scooter before you read
this instruction booklet.
•Do not attempt to modify or dismantle the battery box or carry out any maintenance work
that is not described in this user manual.
•Do not change, modify, remove any parts (seat, shroud) from products especially safety
protected parts such as anti-tippers.
•Completely deflate the tires (air tires) before dismantling the rim or attempting.
•Materials and assemblies of scooter are flame resistant.
•Always keep battery box installed on scooter to avoid short-circuit, do not attempt to
remove battery box at all possible.
•Always keep the tiller screw knob fasten at whole time except when adjusting the tiller
height.
•Do not sit or stay on scooter when scooter is on moving transport vehicles to avoid
dangers
•Turn the power (key) off before getting on or off. (see section 4-2)
•Do not drive your scooter if you are under the influence of alcohol or medication that
may affect your ability.
•Do not turn off the power while driving. Doing so will bring the scooter to an abrupt stop
and danger.
•Please observe all relevant rules and regulations pertaining to pedestrians and road
users at all times when you are driving the scooter.
•Mobility device may only be used on the traffic routes for which it is approved in accordance
with the relevant national legislation.
•Always be aware of pedestrians and situations which might require extra care when
using your scooter on public walk ways and footpaths.
•Avoid driving scooter in dark or in conditions of bad weather and visibility for safety
•Do not turn the power on before you get in and sit securely on the seat.

Instruction BookletREMO AUTO-FLEX
3
•If you are new to driving a scooter, it is a good idea to practice in a clear, safe space
on an flat level surface. (I.e. Park, Playground).
•Basic functions to practice：Wig wag accelerate /Wig wag release /Stop /Reverse /Turn
/Ramp proceeding.
•Set the speed control to its lowest speed, slightly increase the speed when you are
getting familiar with the scooter.
•Practice operating your scooter in the presence of an attendant. Remember
that only with practice will you become a competent driver.
•Practice these basic functions until you feel that you have control of your scooter.
•Be certain that the power is turned off when get in, get out. This will eliminate
the possibility of accidentally activating the wigwag controls and causing injury.
•Keep your weight toward the middle of the deck. Putting most or all of your
weight on the edge of the deck may cause an unstable condition.
•Do not use hose pipe or splash water directly onto the scooter or store the
scooter in a humid condition such as rain or show as this may cause damage
to electronics.
•Do not remove safety protected parts such as anti-tipper from scooter.
•Do not use the unauthorized parts such as battery or charger on the scooter.
Use the accessories supplied from original dealer only.
•Do not exceed the maximum permissible load of scooter or it may cause
unbalance.
•Please stop operating the scooter and contact your dealer if you find the sign
of scooter malfunction.
•Please pay more attention when driving the scooter, the emergency stop may
encounter (ex. out of power, EMI interference)
•Keep the RF sensor key (Remote) carefully. Please contact dealer if the key
is lost.
Practice Tips：
Accessories Contents for Your Scooter :
•Auto-folding version : control remote x 1 / RF sensor x 1
•Manual-folding version : key x 1 / spare key x 1
2-2 CAUTIONS WHEN DRIVING
•Please do the daily check before your journey always. (See section 7-1)
•Do not stretch your body out on the scooter.
•Do not use the mobile phone and wireless mobile devices while driving.
•Do not use the batteries of mobility scooter to charge any other electric devices, except
the accessories from original manufacturer.
•Do not drive on a slope which is over the limit. (See section 2-4)
•Please bypass, do not drive to across the obstacle over the limit (See section 2-5 )
•Do not attempt to drive the scooter under below hazardous road condition. If necessary,
please drive it in the presence of an attendant:
- Dark, bad weather such as in rain, snow, mist, storm, and poor visibility.
- Narrow paths, level crossing, and uneven terrain.
- Wet grass, sand, gravel, or any other potentially hazardous condition.
•Please stop operating the scooter if the batteries have drained, continuous operation
may damage the scooter.
•Do not drive when the seat lock is positioned in folding point (red). Scooter can be operated
only when the seat lock is in the fixation point (green). (see section 4-6)

Instruction BookletREMO AUTO-FLEX
4
•Reduce speed when descending to prevent any danger. Increase speed when
ascending (see section 4-1)
•Do not turn off the power while driving.
•Do not operate on staircases or escalators.
•
Do not attempt to climb curbs greater than limitation show on Technical Specification.
•Do not make S turns or sharp turns while driving. This may cause the scooter
to tip.
•Never place the scooter in freewheel mode (Neutral) when on any sort of an
incline or decline to avoid rollaway. .
•
When the scooter is parked, the lever for engaging and disengaging the motors
must be locked firmly into the “DRIVE” position. (see section 4-4)
•
Do not conduct any adjustment such as tiller / light setting / control panel setting
while driving.
•
Do not pull the seat springs while driving to avoid dangers. (see section 4-6)
•When turning, reduce your speed and maintain a stable center of gravity. This greatly
reduces the possibility of a tip or fall.
•Do not bounce or jam on the footplate.
•Please always set the speed control to its lowest speed when you start to drive, and
observe all relevant rules and regulations pertaining to pedestrians and road users at
all times.
2-3 CAUTIONS WHEN FOLDING/UNFOLDING SCOOTER
•When folding or unfolding, you must place the scooter on a flat ground to avoid tip-over,
rollaway, or dangers. Never operating the folding/unfolding process on a slope
•Please read through the section 5 for folding / unfolding operation before you operate
the scooter.
•Turn off the power before you fold / unfold the scooter. (see section 4-2)
•Folding/unfolding actions will stop if any malfunctions are detected.( see section 8)
•Please make sure the lever for engaging and disengaging the motors must be locked
firmly into the “DRIVE” position before you fold / unfold the scooter. Never proceed the
folding/unfolding under freewheel mode “Neutral” position (see section 4-4)
•Scooter can be charged when it’s folded or unfolded. However, scooter will not respond
to folding / unfolding commands when charger is plugged. To operate the folding / unfolding,
please unplug the charger from the scooter (see section 6-4).
•Please remove all the accessories, such as armrests or bags out before folding / unfolding
the scooter
•Please observe environment surround you for safety before folding/unfolding the scooter.
•When the folding or unfolding is processing, please pay attention to the movement of
tiller for your safety.
•When the folding or unfolding is processing, do not sit or interrupt the process or it may
cause damage or danger to the scooter and yourself.
•Please double check and make sure the procedure of folding/unfolding is completed
before you get on the scooter.
•Do not turn on the power when the scooter is folded.
•Scooter can be rolled by front wheels and supporting
castors when it’s folded (refer to Right picture).
•Do not sit or stay on folded/unfolded scooter when scooter is on moving transport vehicles.
•Do not store the scooter in a humid condition such as rain or show as this may cause
damage to electronics. (see section 7-2 )
•The brake does not apply when the scooter is in folded and standing position. Do not
place the standing folded scooter on a slope to avoid roll-away and danger (Fig.1)
Supporting
Wheels Front Wheels

Instruction BookletREMO AUTO-FLEX
115kg / 6 degree
•When folding or unfolding, you must place and lay down the scooter on a flat ground
(Fig. 2)
5
•Do not place scooter on a slope
when scooter is folded and standing. •Place and laydown the scooter before unfolding.
On flat road On slope
2-4 CAUTIONS WHEN DRIVING ON INCLINE
•The scooter has been rated to a maximum climbable height, obstacle height, and gap.
(see section 10)
•Never drive on a slope that exceeds the rated slope.
•For maximum stability, lean forward in your body while proceeding up ramps, inclines,
curbs, or any low rise. (please refer to following picture)
2-5 CAUTIONS WHEN CLIMBING
•The maximum height of obstacle and curb that scooter can
climb is up to 5 cm (A).
•The maximum gap that scooter can drive over is 10 cm (B).
•When driving scooter on ramp, adjust body center of gravity
for scooter stability (see section 2-4).
•The weight capacity limit at different ramp degree (please refer to above picture).
•Your scooter’s ability to travel up inclines is affected by your weight, your scooter’s speed,
your angle of approach to the incline, and your scooter setup.
•Please avoid to driving on a long ramp or any uneven terrain to prevent any danger from
motor defected.
•When driving down a ramp or uneven terrain, keep the scooter’s speed adjustment
set to the slowest to ensure a safely controlled driving.
•If the speed is too fast, release the throttle control lever, let the scooter stop.
When you feel that you again have control of your scooter, push the throttle
control lever forward and continue safely driving.
•To prevent any danger, do not make turns on ascending, descending ramp.
•The batteries voltage normally will go up when driving on descending road.
If the battery voltage becomes too high, the over-voltage protection will be
activated by slowing the speed till the scooter stops. (error light indicator will
flash 3 times). Please pull over the scooter to the safe area, release the wigwags
and restart the scooter again.
Even though your scooter has been rated with maximum
climbable, we suggest not driving through an obstacle.
(A)
(B)
Figure 3
Figure 1 Figure 2

Instruction BookletREMO AUTO-FLEX
6
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie
talkie," security, fire, and police transceivers, mobile phones, and other personal communication
devices.
2.
Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances,
and taxis. These usually have the antenna mounted on the outside of the vehicle; and
3.Long-range transmitters and transceivers such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
2-6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS
It is very important that you read this information regarding the possible effects
of Electromagnetic Interference on your mobility scooter.
Mobility scooters may be susceptible to electromagnetic interference (EMI), which is interfering
electromagnetic energy (EM) emitted from sources such a radio stations, TV stations,
amateur radio (HAM) transmitters, two-way radios, and mobile phones. The interference
(from radio wave sources) can cause the mobility scooter to release its brakes, move by
itself, or move in unintended directions. It can also permanently damage the mobility
scooter control system. The intensity of the interfering EM energy can be measured in volts
per meter (V/m). Each mobility scooter can resist EMI up to certain intensity. This is called
its "immunity level." The higher the immunity level, the greater the protection. At this time,
current technology is capable of achieving at least a 20 V/m immunity level, which would
provide useful protection from the more common sources of radiated EMI. The immunity
level of this mobility scooter model is not known.
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not apparent
and exposure is unavoidable. However, we believe that by following the warnings listed
below, your risk to EMI will be minimized.
Some mobile phones and similar devices transmit signals while they are ON,
even when not being used
Other types of hand-held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, and cassette players, and small appliances,
such as electric shavers and hair dryers, so far as we know, are not likely to cause
EMI problems to your mobility scooter.
The sources of radiated EMI can be broadly classified into three types :
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur
radio (HAM) transmitters, two-way radios, and mobile phones can affect mobility scooters.
Because EM energy rapidly becomes more intense as one move closer to the transmitting
antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of
special concern. It is possible to unintentionally bring high levels of EM energy very close
to the motorized scooter control system while using these devices. This can affect mobility
scooter movement and braking. Therefore, the warnings listed below are recommended
to prevent possible interference with the control system of the mobility scooter.
Mobility Scooter Electromagnetic Interference：
Warnings：

Instruction BookletREMO AUTO-FLEX
Hot Surface.
CAUTION
Do not touch.
1.Please read the instruction Booklet carefully before using your scooter.
2.Do not drive the scooter on slippery surfaces or on slopes over 6°~10°
3.Do not drive on highways, crowded roads, or unfamiliar areas.
4.Do not tum at high speed in either forward or reverse.
5.Do not wash with water or leave scooter in a humid Environment since
water can damage the electric parts.
6.Always re-engage the emergency freewheel drive after use.
7.Always switch off the scooter before dismounting or roating the seat.
7
Following the warnings listed below should reduce the chance of unintended brake release
or mobility scooter movement which could result in serious injury.
1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band
(CB) radios, or turn ON personal communication devices, such as mobile phones, while
the mobility scooter is turned ON;
2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them;
3.If unintended movement or brake release occurs, turn the mobility scooter OFF as soon
as it is safe;
4.Be aware that adding accessories or components, or modifying the mobility scooter, may
make it more susceptible to EMI; and
5.Report all incidents of unintended movement or brake release to the distributor listed
on the inside front cover of this manual. Note whether there is a source of EMI nearby.
1.20 volts per meter (V/m) is a generally achievable and useful immunity level against
EMI (as of May 1994). The higher the level, the greater the protection.
2.The immunity level of this product is at least 20/Vm.
Important Information：
There is no easy way to evaluate their effect on the overall immunity of the
mobility scooter.

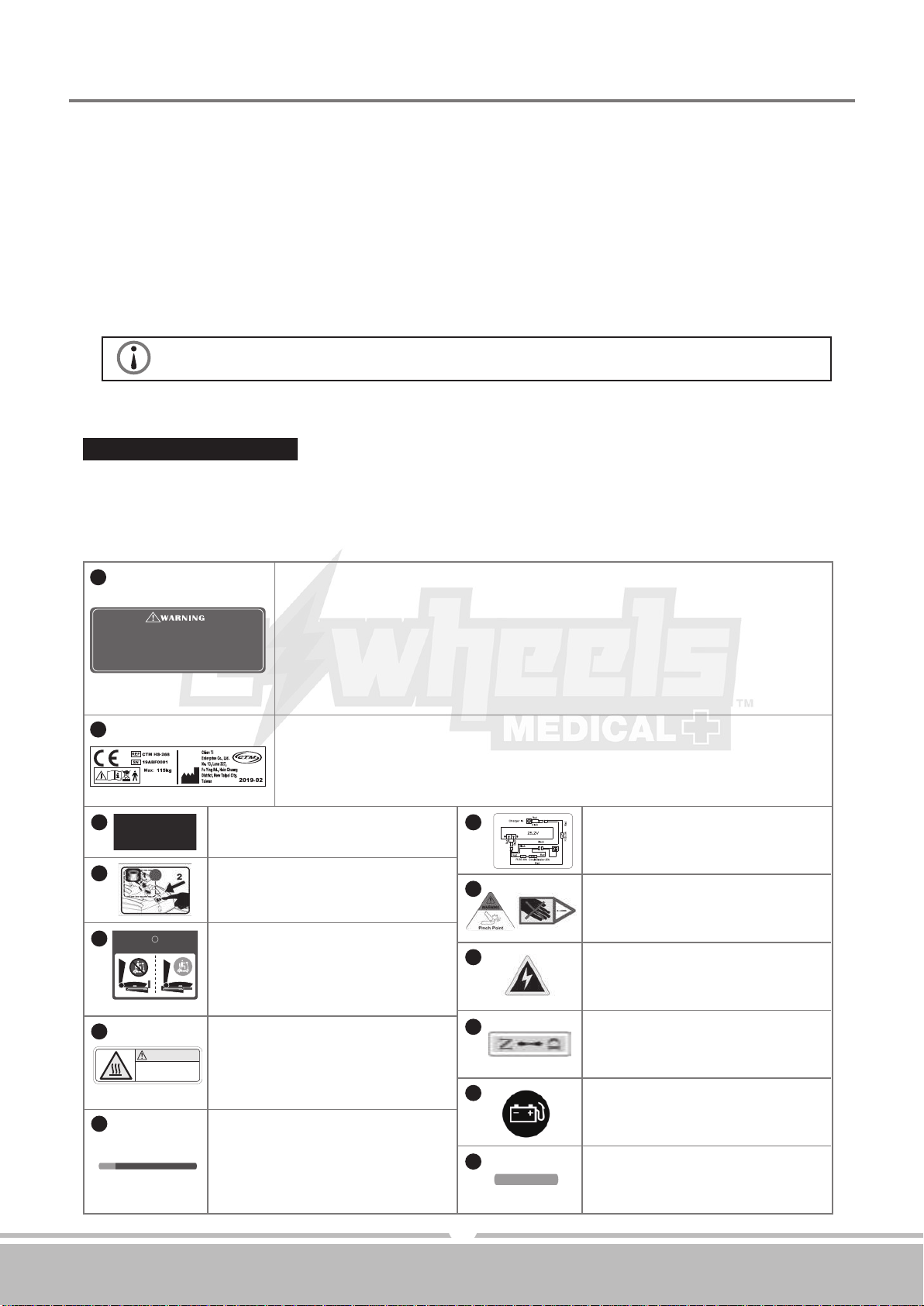

2-7 SAFETY WARNING AND INSTRUCTION LABELS
Warning Sticker
1.Please read the instruction booklet carefully before using your scooter.
2.Do not drive the scooter on slippery surfaces or on slopes over 6~10 degrees limit.
3.Do not drive on highway, crowded roads, or unfamiliar areas.
4.Do not turn at high speed in either forward or reverse.
5.Do no wash with water or leave scooter in humid environment since water can
damage the electronic parts.
6.Always re-engage the emergency device after use
7.Always switch off the scooter before demounting or rotating the seat
N-D Lever Adjustment label
Instructs freewheel mode
operation. (see section 4-4)
Pinch point warning label
Keep hands away
Wiring diagram for batteries
Fixation point reminder
Sit only when the seat slide is
fixed to green point
Seat position warning plate
Do not get on the scooter if the seat is
not fixed. Push the seat forward until
the seat locks to its position (green),
you will hear a click sound.
Seat position indication label
Seat latch is locked when the seat
positioned in green. Seat latch is
released when the seat positioned
in red. Do not sit if seat is positioned
in red
Heat caution warning label
Be aware that the motor may
normally become hot during
operating. Please avoid skin
contact.
Charge port cap sticker
Instruction of battery lock
nut (circuit breaker) label
Power warning label
European representative
label
Scooter information label
States the date of manufacture and serial number of the scooter. This product has been
supplied from an environmentally aware manufacturer. It may contain substances that
could be harmful to the environment. Recycling must be carried out in accordance with
the respective national legal provisions.
1
2
3
4
5
6
7
8
9
11
10
12
13

Instruction Booklet
*Above is only for reference, actual product may vary.
REMO AUTO-FLEX
8
1
2
3
4
5
7
8
9
13
12
14
15 16
17
18
19 20
21
22
ITEM
Steering
Tiller Height Adjustment
Head Light
Front Wheels
Footplate Cover
Seat Springs
Supporting Wheels
Rear Wheels
Charging Port (upper)
Control Panel / Power Switch
Throttle
ITEM
Seat
Seat Backrest
Seat Knob
Battery Box
Battery Box Handle
Charging Port (battery box)
Circuit Breaker
Folding / unfolding light indicator / buttons
Tail light / Brake light
N-D Lever
Anti-Tippers
3. IDENTIFICATION OF PARTS
6
10
11
No.
01
02
03
04
05
06
07
08
09
10
11
No.
12
13
14
15
16
17
18
19
20
21
22
Figure 4

Instruction BookletREMO AUTO-FLEX
9
4-1 IDENTIFICATION & OPERATION OF CONTROL PANEL
4.INTRODUCTION & OPERATION OF SCOOTER
ITEM
Speed Deceleration
Power Switch
Speed Acceleration
Digital Lock (number pad)
Head-light / Tail-light Switch
Battery Gauge / Error Light Indicator
Horn
Digital Lock (enter key)
FUNCTION
Press to decrease speed
Press to turn on / off the power
Press to increase speed
Set a password to lock the scooter
Press to turn on headlight and taillight.
Showing battery status or errors
Press to sound warning tone when necessary
Press Enter when password is confirmed
No.
1
2
3
4
5
6
7
8
1 2 3
5 6 7
8
Figure 5 - REMO AUTO-FLEX Control Panel
4
•Please keep the panel clean, away from water, oil, and dust as the RF reading range
may be reduced or malfunction may result.
•When operating the panel, always press on the center of the button to ensure the
button press is detected.
•Do not place any objects on the panel or it may disrupt the touch screen or cause
damage to the scooter.
•Battery / Error Indicator will be flashing if there is error, please stop operating the
scooter if indicator is flashing (see section 8).
•Press the button to turn on/off the power
•Power standby (locked) - Red light
•Power on (unlocked) - Green light
•Power off - Light off
Power Switch：
Auto-power off :
Power will automatically be off in 30 seconds
if no activity is detected during power standby
(locked, red light) period to prevent tap error. Figure 6

Instruction BookletREMO AUTO-FLEX
•Press the power switch to get the scooter on power
standby (red light on), then press and hold both
acceleration [ ] / deceleration [ ] buttons for 2
seconds. The panel light will be all on when scooter
is ready for backlight setting. (Figure 9)
•Press [ ] to increase level of backlight. Press [ ]
to decrease level of backlight.
•Press the power switch to save the backlight setting
•Panel backlight can be adjusted under power standby mode (red light), user doesn’t have
to unlock the scooter.
10
•Press the power switch, the power (red light) will be
on standby for you to unlock.
•To unlock, enter your password on the number pad (D),
light indicator (C) will light up each time when the number
is entered. Press (E) on the pad when password entering
is finished. (Figure 7)
•The power light will turn green when the scooter is
successfully unlocked.
Digital Unlock Your Scooter：
Factory Default Password : 1234
If there is enter error, press the (E) key or power switch button again to re-enter
the password.
•Once scooter is unlocked (power green light on), press and hold the (E) key for 3 seconds,
the pad light will be flashing three times.

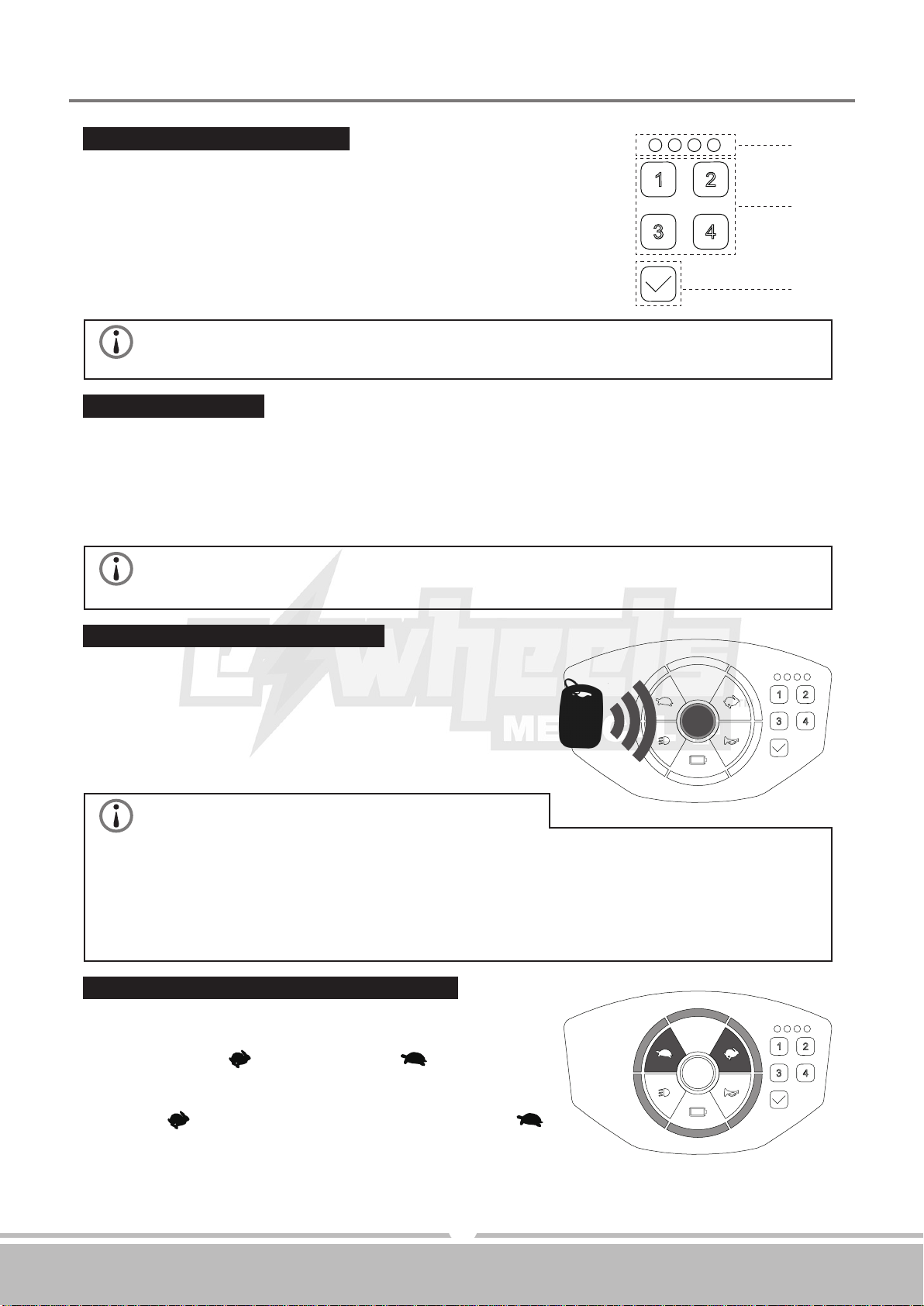

•Enter your password on number pad (D), the password can be 1-4 digits number, digits
can be repeated. Light indicator (C) will light up each time when the number is entered.
•Press (E) on the pad when password entering is finished, pad light will be flashing three
times.
Password Setting：
If there is enter error, press power switch button again or wait for 30 seconds to
re-enter the password. Scooter must be unlocked before reset the password. If
you forget the password, please unlock the scooter by RF sensor key.
Figure 7
(C)
(D)
(E)
•Press the power switch, the power (red light) will be
on and standby for you to unlock.
•To unlock, place the RF sensor tag to the panel (spot
near power switch for best reading result) ( Figure 8)
•The power light will turn green when the scooter is
successfully unlocked.
RF Sensor Unlock Your Scooter：
•The sensor transmit is up to 20mm, however,
please keep the distance between RF sensor
and panel as close as possible.
•Do not dissemble the RF remote, the inner sensor chip may be damaged.
•Do not turn off the power while unlocking the scooter, no matter it’s Digital Unlock
or RF Sensor Unlock. User will need to turn the power back on and re-unlock
again if unlocking is interrupted.
•Scooter cannot be operated unless it’s unlocked (green light on).
Figure 8
Panel Backlight Adjustment (Five levels)：
Figure 9

Instruction BookletREMO AUTO-FLEX
11
The light will be showing the battery status or errors of
scooter. If scooter has errors, the light indicator will be
flashing (see section 8). This light indicator is also the
indication of battery status (see section 6-3). (Figure 10)
(1) (2) (3)
Battery / Error Light Indicator：
•Press acceleration [ ] / deceleration [ ] button
to increase / decrease speed.
•There are 3 different speeds of adjustment
fastest 3 > 2 > 1 slowest. (Figure 11)
Speed Adjustment：
Figure 10
Figure 12
Figure 11
•Do not set the speed at maximum when operating
the scooter.
•Adjust the speed at maximum when inclining
a slope, and adjust to minimum speed when
declining.
Press horn button to sound the buzzer. Buzzer sound
and light will last until you release the horn button
(Figure 13)
Horn：
•Press power button to turn on/off (Figure 14)
(see section 4-1 for details)
Main Switch (Touch Screen Version)：
•Turn the key clockwise to turn on,
counterclockwise to turn off (Figure 15)
Main Switch (Key Version)：
•Scooter will go into sleep mode with
one long beep warning sound if no
throttle activity is detected for
programmable time period. (Default
programmable time is 10 mins.)
•When scooter is in sleep mode, all
lights on the control panel will be off,
and the scooter will not respond to commands.
•To wake up the scooter, turn the power (key) switch off and then on again.
Sleep Mode：
Figure 13
•Press button [ ] once to switch on the head-light
and tail - light, the [ ] will be lighted on the panel.
•Switch off by pressing the button again, the [ ]
light will be off on the panel (figure 12)
Head-light / Tail-light：
Tail-light will be on anyway when the brake is
engaged and when the scooter speed is reduced.
4-2 OPERATION OF MAIN SWITCH
Figure 15Figure 14

Instruction BookletREMO AUTO-FLEX
12
•Do not pull both right and left throttle at the same time; you might not able to
control the scooter.
•Turning the scooter OFF whilst driving will bring the scooter to an abrupt stop
and danger.
•Pull the right throttle (F) to move scooter forward. Pull the
left throttle (G) to move scooter backward. This can be
reserved if required by local dealer. (Figure 16)
•These are also your accelerator. The further you depress
them, the faster you go. (Subject to the level of speed
adjustment)
•Releasing both left/tight throttles will automatically operate
the brakes to slow down and stop.
Throttle：
4-3 OPERATION OF THROTTLE
Figure 16
(G) (F)
Loosen (counterclockwise) the screw knob to adjust the tiller
height, tighten (clockwise) screw knob again to lock at a desired
position.
There is a stop point on tiller, the height cannot exceed the
stop point (approx. 20cm) (Figure 19)
4-5 TILLER HEIGHT ADJUSTMENT
Figure 19
•Freewheel operation is only recommended on flat surfaces. Never leave your
scooter on gradient with its motors disengaged.
•When adjusting N-D lever, do not sit on the scooter.
•It’s not able to drive the scooter when the lever is in Neutral. You must turn off
the scooter first and switch to D lever, then turn on and drive scooter.
•When lever is in Drive (D) position,
the scooter can be driven. Normal
position is in D (Figure 17)
•When lever is Neutral (N) position,
the scooter can be moved manually
without power (Figure 18)
Free-wheeling (N-D Lever)：
4-4 OPERATION OF FREE-WHEELING (N-D LEVER)
Figure 18Figure 17
•Please refer to section 5 for scooter folding / unfolding.
•When scooter is being folding, the seat latch will
automatically release and seat will move backwards.
•After unfolding, the seat shall automatically move forwards.
However, please always double check and push the seat
to its locked position) manually if not.
•Do not get on the scooter if the seat is positioned in red
point(H).Get on the scooter only if the seat is locked in its
position green point ( Fig.20)
4-6 SEAT ADJUSTMENT / DISMANTLE
Figure 20
(H)

Instruction BookletREMO AUTO-FLEX
•Buttons on scooter (Figure 23)
- Press folding button (N) once to auto-fold; please
make sure the scooter is fully expanded before
folding.
- Press unfolding button (O) once to auto-unfold,
please make sure the scooter is fully folded before
unfolding.
- Press (N) / (O) again to fold / unfold if folding /
unfolding process is interrupted.
•Buttons on remote (Figure 24)
- Press folding button (P) once to auto-fold, please make
sure the scooter is fully expanded before folding.
- Press unfolding button (Q) to auto-unfold, please make
sure the scooter is fully folded before unfolding.
- Press (P) / (Q) again to fold / unfold if folding /
unfolding process is interrupted. 13
•Do not conduct any adjustment (tiller / seat / armrest) while driving the scooter.
•Do not get on the scooter until the seat firmly locks in the position (green point).
•Except for removing seat, do not operate the seat sides spring if no necessary.
•When pulling the seat springs, please grab and hold down both sides springs,
this helps user to easily release the seat latches. The latches may not be release
if the holding point of seat springs is incorrect.
1.Loosen the screws (L) by hex wrench (Fig.21)
2.Remove the springs (K) connected on the seat slide bracket.
3.Pull down and hold the seat springs (I) and push the seat by thumbs towards the back
of scooter to release the seat from latch (J).
4.When the seat is released from latch, grab the seat and push it towards the back of
scooter to remove the seat.
* When putting the seat back, insert the seat back to seat slide bracket. Push the seat
towards to the front of scooter (green point), fasten the screws (L) and insert the springs
(K) back to seat slide bracket.
* Please make sure to follow the direction of Fig.21 shown when putting springs(K) back
to the bracket.
Seat Dismantle (Figure 21.22)：
•When the scooter is placed on a flat ground and in lay down position.
•
When the scooter is power off and on standby for folding / unfolding, the folding / unfolding
light indicator (M) on scooter will be orange. (Figure 23)
•When the seatback is flip down.
Folding / unfolding your scooter only when the scooter is under below circumstances：
Figure 22Figure 21
(L)
(K) (J)
(I)
5.FOLDING / UNFOLDING YOUR SCOOTER
Folding / Unfolding Buttons：
(M)
(N) (O)
(P)
(Q)
Figure 24
Figure 23
(J)

Instruction BookletREMO AUTO-FLEX
14
•The remote is not designed to be water-proof, please keep it away from humid
environment.
•Best transmit range of remote is within 10m. (The reading range will be affected
due to the environment, barrier, and weather).
•The scooter may not be folded / unfolded if the battery is low, please re-charge
the scooter by upper tiller charging port immediately and operate the folding /
unfolding later when the scooter is fully charged. (see section 6-4)
•Keep the remote carefully, it’s highly recommended to chain with RF sensor key.
Please contact dealer if the key is lost.
•Scooter will go into sleep if no throttle activity is detected for programmable time period.
(Default programmable time is 3 mins.)
•Please wake up the scooter before folding / unfolding. There are 3 ways to get the scooter
back on standby for folding/unfolding:
1.Press power switch button and turn off the power.
2.Press and hold the folding button (N) or unfolding button (O) on scooter for 3 seconds
to wake up the scooter, the light indicator (M) will be orange.
3.Press and hold the folding button (P) or unfolding button (Q) on remote for 3 seconds
to wake up the scooter.
How to wake up the scooter：
1.Turn off the power
2.Flip down the seatback
3.Press folding button on the remote or on scooter once to auto-fold the scooter. The seat
will automatically moving backwards during folding.
4.The seat laches will automatically release and seat will move backwards.
How to fold the scooter (Figure 25)：
1.Place the scooter to a flat ground and lay down the scooter
2.Make sure the scooter is power off, however is awake for unfolding (the light indicator
M will be orange).
3.Press unfolding button on the remote or scooter once to auto-unfold
the scooter.
4.When folding and unfolding, the seat shall automatically shift to its position, however,
please double check and push seat to its locked position (green) manually if not.
5.Flip up the seatback and double check if lock is all in its position before you get on the
scooter.
How to unfold the scooter (Figure 26)：
Figure 25
1 2 3
4 5 6

Instruction BookletREMO AUTO-FLEX
15
•Please turn off the power before folding / unfolding, the scooter can only be
folding / unfolding when it is power off, the folding / unfolding
light indicator will be orange.
•There is protection for tapping error; scooter cannot be unfolding when it is in
standing position.
•Actions will stop if any foreign objects are detected during folding / unfolding
process. Please remove the objects and conduct the actions again.
•When operating the remote, please stand beside the scooter for best receiving
signal.
•When operating the folding / unfolding buttons on scooter, please reach the
buttons from the back of scooter. User may get pinched if reaching buttons from
other sides of scooter.
•The scooter may not be folded / unfolded if the battery is low, please re-charge
the scooter by upper tiller charging port immediately and operate the folding
/ unfolding later when the scooter is fully charged. (see section 6-4)
•Check and replace the battery for remote control if the scooter is not able to
fold / unfold.
•When putting battery box back to scooter, gently press battery box downward
to make sure it is firmly connected to the scooter.
•Do not disassemble battery box and open sealed parts by yourself to prevent
electric shock and damage the battery.
•Maintenance & repair must only be carried out by a competent engineer or
authorized dealer. Please contact dealer if you need to replace internal battery.
Figure 26
1 2 3
4 5 6
•Each battery box contains one lithium battery or (2) lead-acid
batteries (optional).
•To remove the battery box from scooter, grab the battery
box handle, and pull it upwards as Figure.27 shown.
•It’s highly recommended not to remove battery box out if
no necessary. Always keep battery box installed on scooter.
•For any reason to remove the battery box, please make
sure the connectors are in sequence and in position when
put it back to scooter.
6.BATTERY GAUGE & CHARGING THE BATTERIES
6-1 DISASSEMBLING BATTERY BOX
Figure 27

Instruction BookletREMO AUTO-FLEX
16
•Only certain type and voltage of battery can be used on the scooter. Your scooter may
supply with standard lithium battery or optional lead-acid battery.
•Scooter can be charged when it’s folded or unfolded
•Only use the lithium battery charger (under 4 Amps) supplied with your scooter for lithium
battery.
•Do not switch off, unplug or interrupt the recharge cycle until the charging cycle has
completed (charger indicator turns green)
•If storing your scooter for a prolonged period (1 month or more), storage the batteries
at 30%-50% state of charge at least. Batteries must be recharged once every three
months at least if storing for more than six months. On returning, make sure to charge
them again before using scooter.
•Store the scooter in a dry, well-ventilated environment. Do not store your scooter where
it will be exposed to source of direct heat, damp, oil, acid, alkaline, or where Ozone
could be possibly generated. All of the above will minimize scooter’s lifetime.
•Recommended range of storage : Temperature : 20-30oc, Humidity : 25% ~ 85%, out
of this range might affect the performance of the charger and battery.
•Rough handling operations, throwing, rolling, crushing, shaking, overly strong impact
and extrusion to batteries should be avoided, to prevent battery casing broken or internal
structure damage.
•It’s highly recommended to have your scooter inspected for battery every six month
despite how often you use the scooter. Please contact your dealer.
•Batteries are subject to disposal and recycling regulations that vary by country and region.
Always check and follow your applicable regulations before disposing of any battery.
Lithium Battery：
•Only certain type and voltage of battery can be used on the scooter. Your scooter may
supply with standard lithium battery or optional lead-acid battery.
•Only use the lead-acid battery charger (under 8 amps) supplied with your scooter for
lead-acid battery
•Adding acid electrolyte to battery is prohibited
•Batteries will only give maximum performance after scooter has been used and batteries
have been recharged several times.
•The minimum time needed to recharge will vary depends on the depletion of the batteries.
Excessive or short period charging will be detrimental to battery life.
•Charge the batteries after each trip. Do not turn the key on while scooter is in charging.
•Please charge the scooter in 0°c ~ 40°c, out of this range might affect the performance
of the charger and battery.
•If storing your scooter for a prolonged period, batteries must be recharged once every
three months at least
•For longest life, your batteries should be recharged regularly. Please recharge the batteries
before they run down to 20%.
•It’s highly recommended to have your scooter inspected for battery every six month
despite how often you use the scooter. Please contact your dealer.
24V/12A Lead-Acid Battery (optional)：
•Do not leave charger plugged into your scooter with charger switched off as this may
discharge your batteries. Always unplug the cables when finishing charging.
•Inspect the battery charger before each use, make sure connectors are dry and clean.
Do not attempt to use an extension cord to plug in your battery charger.
Chargers( lithium / lead-acid)：
6-2 CAUTIONS FOR BATTERY & CHARGER

Instruction BookletREMO AUTO-FLEX
17
•Check battery capacity before driving. Recharge
the battery immediately when the red light is flashing
as the remaining power can only keep scooter going
for buffering 2 km or less
•Displayed segments on panel are for reference
only. Please refer to LED indicator of charger for
more accurate charging status.
•The scooter may not be able to fold/unfold when
the battery capacity status is less than 3 segments,
please recharge the battery immediately.
•Touch screen version : 6 segments
•Key Switch version : 5 segments
•When battery gauge light trends to right (green), it indicates sufficient power capacity.
•When battery gauge light trends to left (red), it indicates insufficient power capacity.
Batteries must be charged before using the scooter for the first time and should be recharged
after each day use.
Your scooter may come with standard lithium 24V/2A charger, or optional bigger 24V/4A
charger if you upgrade the lithium battery to 17.4Ah . Your scooter may come with 24V/2A
lead-acid charger if you optionally choose lead-acid battery for your scooter.
Do not alternatively use lead-acid charger to charge lithium battery, they are not compatible
and may cause damages and dangers if doing so.
There is an indicator shows battery capacity status (Figure 28)：
6-3 BATTERY GAUGE
•Output Voltage: 100V~240V (Figure 29)
1.Charger output cable, 4pins connector (R)
2.AC power cord (S)
3.LED Indicator (T)
- RED LIGHT ON : Pre-charging
- ORANGE LIGHT ON : Normal Charging
- GREEN LIGHT ON: Fully Charged.
Lithium Battery Charger：
6-4 OPERATING THE CHARGER
Figure 28
Figure 29
(T)
(R)
(S)
• Lead-acid battery charger cannot be alternatively used on lithium battery. Please
only use specific lithium battery charger for your lithium battery. Lead-acid battery
charger can be used only if your scooter comes with lead-acid batteries (optional).
(Please see section 9-1 for details)
•If you want to change to optional lead-acid batteries, please contact dealer to
reset the battery system such as charging port and controller setting.
•Please keep the above cautions in mind. Any battery / charger faults due to the
unauthorized maintenance, dismantle, misuse or accidental damage is not
covered by the manufacturer’s warranty.
•Be aware that the battery charger case may become hot during charging. Please avoid
skin contact.
•Do not cover charger by any objects. Use the charger in a well-ventilated area. Do not
smoke as explosive gases may be generated while charging the batteries
•Keep the charger stored in a well-ventilated area, do not drop the charger.

Instruction BookletREMO AUTO-FLEX
18

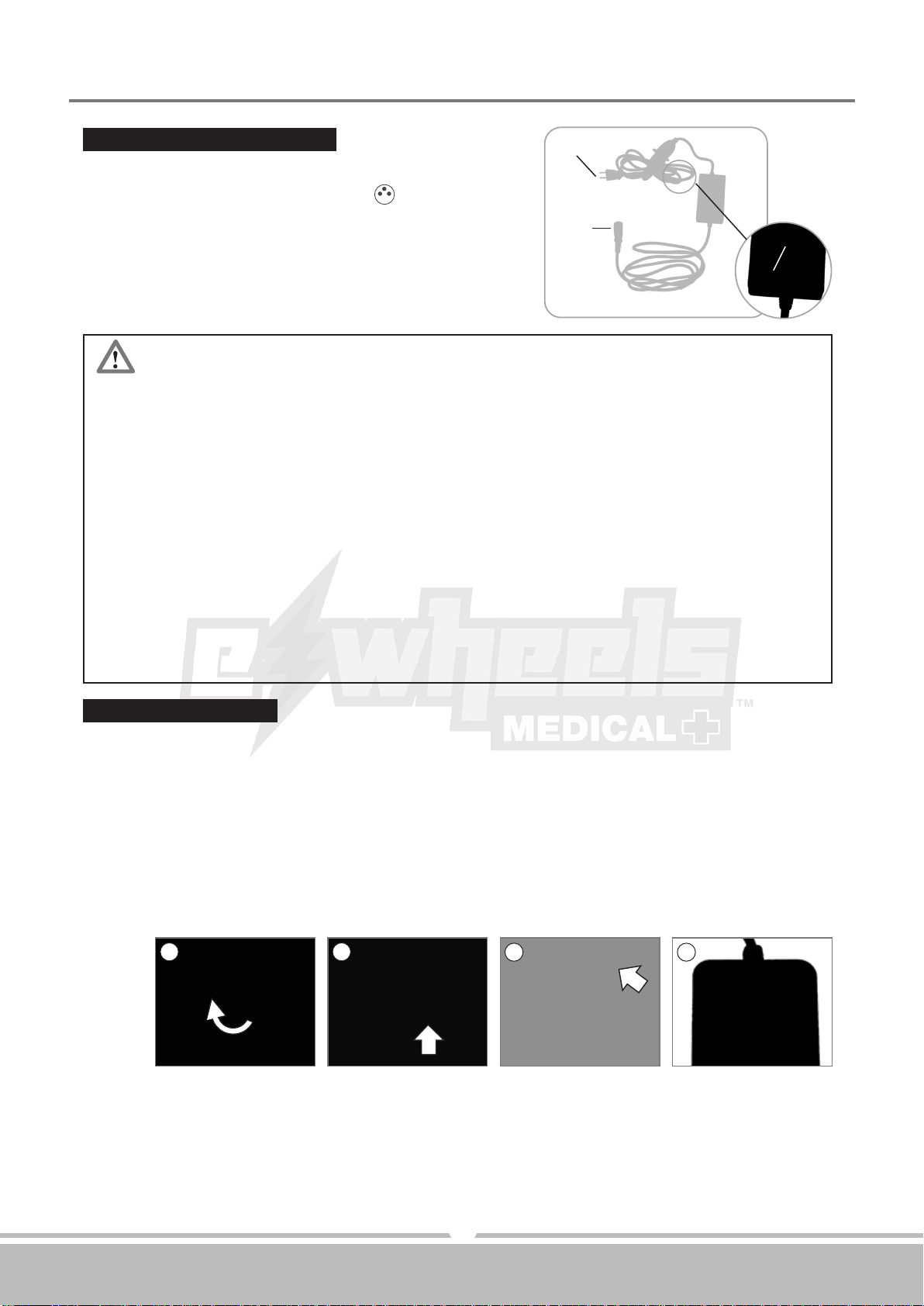

There are two charging ports, one is on upper of scooter, and the other is on battery box.
Upper Charge Port (Figure 31)
•Open the charge port cap
1.Insert the charger output cable into the charge port
2.Plug the AC cord into a standard electrical outlet on the wall
3.Check the charger LED indicator; make sure it’s in normal charging. During charging,
LED will indicate orange light.
4.When unplug, please make sure to remove the AC cord from the wall first, and then
charger output cable from the charge port.
•Battery Box Charge Port (Figure 32)
1.Remove the battery box from the scooter and place it on a flat ground.
2.Open the charge port cap and connect the charger output cable into the charge port
3.Plug the AC cord of charger into a standard electrical outlet
4.Check the charger LED indicator; make sure it’s in normal charging. During charging,
LED will indicate orange light.
1 2 3 4
Charging Operation：
Figure 31
•Each country may supply different charger. The charging procedure may be
different from below. Chargers for lithium battery and lead-acid battery (optional)
are different.
•The charger LED light should indicate red when pre-charging. If not, please
contact your authorized dealer.
•Inspect the battery charger before each use, make sure connectors are dry and
clean. Do not attempt to use an extension cord to plug in your battery charger.
•Do not use other brand of charger to charge the scooter, only use the charger
equipped with originally
•The battery charger is equipped with cooling fan. If the fan does not appear to
be working correctly, please turn off the charger immediately as it may be
overheated. Please contact your authorized scooter dealer.
•Do not leave charger plugged into your scooter with charger switched off as this
may discharge your batteries. Always unplug the cables when finishing charging.
•Be aware that the battery charger case may become hot during charging. Please
avoid skin contact.
•Keep the charger stored in a well-ventilated area, do not drop the charger.
•Output Voltage: 100V~240V (Figure 30)
1.Charger output cable, 3pins connector (U)
2.AC power cord (V)
3.LED Indicator(W)
- RED LIGHT ON : Pre-charging
- ORANGE LIGHT ON : Normal Charging
- GREEN LIGHT ON: Fully Charged.
Lead-acid Battery Charger：
Figure 30
(W)
(U)
(V)
