INTRODUCTION
1
Thank you and congratulations on purchasing your new Ewheels Medical Mobility
Scooter. It is designed to provide you with transportation ability indoors and outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure
your complete satisfaction. We sincerely hope you enjoy your Ewheels Medical Mobility
Scooter.
Please read and observe all warnings and instructions provided in owner's manual before
you operate the various functions of this scooter. Also, please retain this booklet for future
reference.
If you have any question, you can contact :
or your local dealer:
Ewheels Medical
1

Instruction BookletEW-M40•EW-M39
IMPORTANT PRECAUTIONS
2
•Only one person at a time could ride a Ewheels Medical Mobility Scooter.
•Maximum load is 136 kg / 300 Ibs pounds.
•Turn key off before getting on or off.
•Always drive carefully and be aware of others using the same area.
•Always use pedestrian crossings wherever possible. Take extreme care when crossing
roads.
•
Do not drive on slope exceeding 8 degree, and take extreme care when turning on slope.
•Do not use full power when turning to sharp corner.
•Take great care and drive in low speed when backing up, riding downhill or on uneven
surface, and climbing curb.
•Please use the lowest speed when driving through the descending road or uneven terrain.
If speed is too fast, leave your hand off the handle bar, let the scooter stop. Make sure
safety and start again.
•A slow speed must always be used when ascending, descending or traversing aslope
or incline and also on uneven terrain, ramps and soft or loose surfaces, such as gravel
or grass.
•To prevent any danger, do not turn around at high speed on ascending, descending ramp.
•Scooter may not operate well in high humidity.
•Do not leave the powered scooter in a rain storm of any kind.
•Do not use the powered scooter in a shower.
•Direct exposure to rain or dampness will cause the scooter to malfunction electrically
and mechanically; may cause the powered scooter to prematurely rust.
•Never put scooter in neutral when staying on slopes.
•Follow traffic laws when riding outside.
•When scooter on moving transport vehicles, do not sit or stay on scooter.

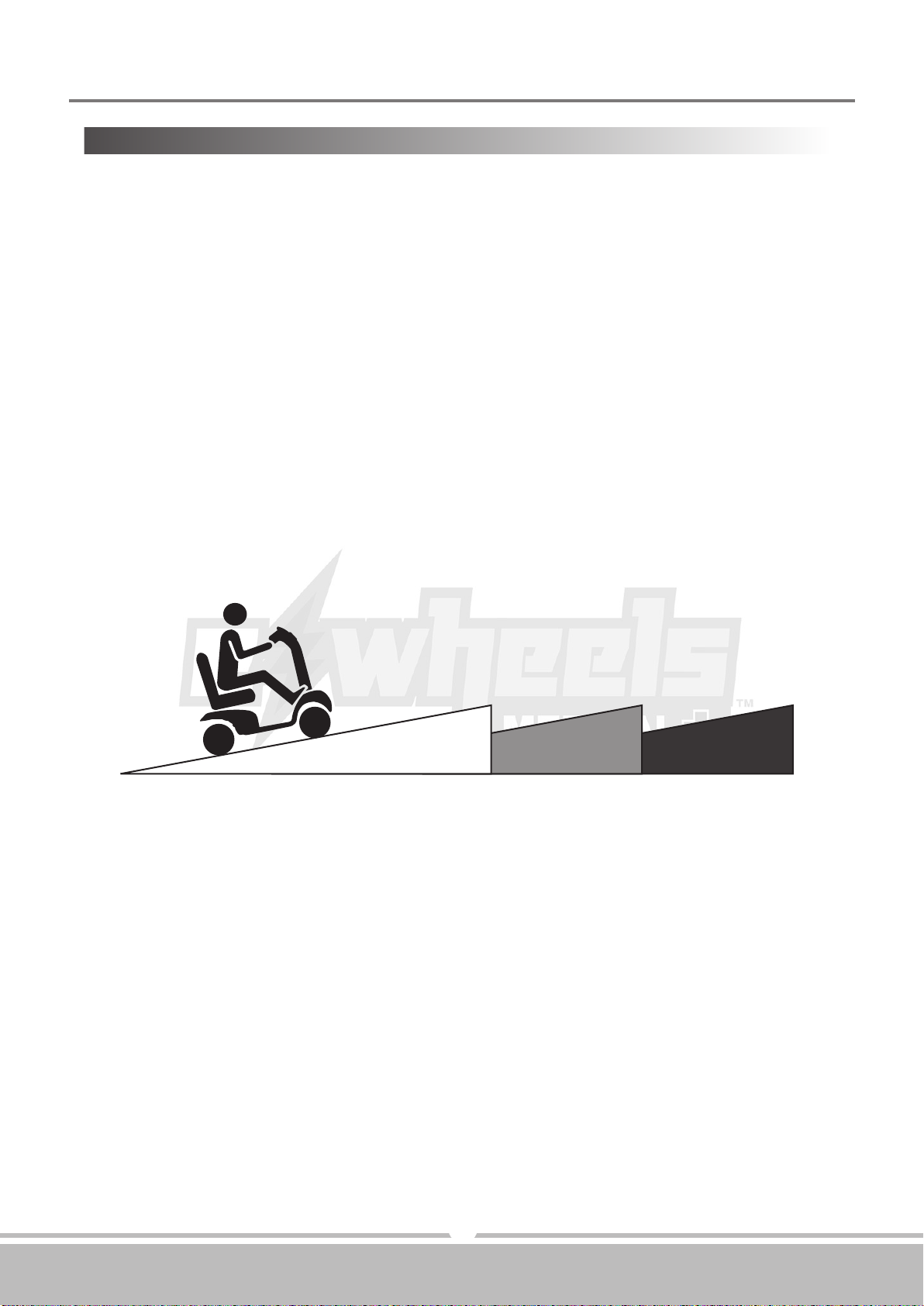

•The weight capacity limit at different ramp degree (please refer to following picture).
•The grade climbing degree will be affected by weight capacity, driving speed, and ramp degree, and scooter parameter.
•To prevent any danger from motor defected; please avoid to drive on long ramp or any uneven terrain.
45kg /
8 degree 70kg / 6 degree 136kg / 4 degree

Instruction BookletEW-M40•EW-M39
3
SAFETY INFORMATION ON
ELECTROMAGNETIC INTERFERENCE (EMI)
CAUTION : It is very important that you read this information regarding the possible
effects of Electromagnetic Interference on your motorized scooter.
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios,
and cellular phones. The interference (from radio wave sources) can cause the motorized
scooter to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the motorized scooter control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each motorized scooter can resist
EMI up to certain intensity. This is called its "immunity level." The higher the immunity
level, the greater the protection. At this time, current technology is capable of achieving
at least a 20 V/m immunity level, which would provide useful protection from the more
common sources of radiated EMI. This immunity level of this motorized scooter model
is 20 V/m.
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not apparent
and exposure is unavoidable. However, we believe that by following the warnings listed
below, your risk to EMI will be minimized.
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie
talkie," security, fire, and police transceivers, cellular telephones, and other personal
communication devices;
2.Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of the
vehicle; and
3.Long-range transmitters and transceivers such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
The sources of radiated EMI can be broadly classified into three types :
Some cellular telephones and similar devices transmit signals while they
are ON, even when not being used.
Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players,
and small appliances, such as electric shavers and hair dryers, so far
as we know, are not likely to cause EMI problems to your motorized
scooter.

Instruction BookletEW-M40•EW-M39
There is no easy way to evaluate their effect on the overall immunity
of the motorized scooter.
4
Motorized Scooter Electromagnetic Interference :
Because EM energy rapidly becomes more intense as one move closer to the transmitting
antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of
special concern. It is possible to unintentionally bring high levels of EM energy very close
to the motorized scooter control system while using these devices. This can affect motorized
scooter movement and braking. Therefore, the warnings listed below are recommended to
prevent possible interference with the control system of the motorized scooter.
Warnings :
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur
radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized scooters.
Following the warnings listed below should reduce the chance of unintended brake release
or motorized scooter movement which could result in serious injury.
1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band
(CB) radios, or turn ON personal communication devices, such as cellular phones, while
the motorized scooter is turned ON;
2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them;
3.If unintended movement or brake release occurs, turn the motorized scooter OFF as
soon as it is safe;
4.Be aware that adding accessories or components, or modifying the motorized scooter,
may make it more susceptible to EMI; and
Important Information :
1.20 volts per meter (V/m) is a generally achievable and useful immunity level against
EMI (as of May 1994). The higher the level, the greater the protection.
2.The immunity level of this product is 20 V/m.
5.Report all incidents of unintended movement or brake release to the distributor listed
on the inside front cover of this manual. Note whether there is a source of EMI nearby.

Instruction BookletEW-M40•EW-M39
Figure 2 - EW-M39 Top Control Panel Figure 3 - EW-M39 Back View
Figure 1 - EW-M39 Front View
IDENTIFICATION OF PARTS
5
Before attempting to drive this scooter on your own, it is important that you familiarize
yourself with the controls, and how to operate them.
Horn Button
Throttle
Main Key Switch
Battery Gauge
Self-Diagnostic
Warning Light
Speed Dial
Knob
Reflectors
Anti-Tip Wheels
Free-
Wheeling
Lever
Armrest
Adjustment
Knob
Easy-To-Operate Control
Panel & Delta Handlebar
Option :
LED From Head Light
Flip-Up Armrests
Front Basket
Padded
Foldable Seat
Solid Tires
Tiller Angle
Adjustment
Circuit
Breaker
Seat Rotation
Lever
Release Lever
Reflector
Charging Socket

Instruction BookletEW-M40•EW-M39
Always ensure that the scooter is switched
off before getting on or off the scooter and
before removing any items of the scooter.
Turning the scooter OFF whilst driving will
bring the scooter to an abrupt stop
6
FUNCTION OF PARTS：
Main Key Switch (C)
1.Turn the key to the right
Turn the scooter on.
2.Turn the key to the left
Turn the scooter off.
Option : LED Front head light
※Turn the key to the left and
LED head light on.
Before driving the scooter, set the speed to low speed by turning the
knob towards turtle icon.
Drive in high speed when encounter an up slope, and drive in low speed
when encounter a down slope.
Releasing the throttle engages the automatic brake, but will taxi for a short
buffering distance, please keep safe distance when stopping to prevent any
danger.
Speed Dial Knob (D)
The rabbit icon indicates fast or high speed. The turtle icon indicates slow or low speed.
By turning this Knob (D) towards chosen icon you can control overall speed of the scooter.
Figure 5
Horn Button (E)
Press Horn Button (E) once to sound warning tone when necessary.
Battery Gauge (F)
The LEDs represents an approximation of battery capacity. If the charge is full, all LEDs
are lit. When only red and orange LEDs are lit, the batteries are consuming and should
be charged soon. When only red LEDs are lit, charge the batteries immediately.
Self Diagnostic Warning Light (G)
Flashing light indicates there is a problem within scooter. See page 11 for more information.
Throttle (H) (H1)
To move forward by pulling the right side of Throttle (H). To move backward by pulling the
left side of Throttle (H1). (The movement directions can be reversed by local dealers if
required.) Releasing the throttle to engage automatic brake. These are also your accelerator,
the further you pull it, the faster you go. (Subject to the position of the Rabbit/Turtle control).
Figure 4
Before operation, please remove the
Lock Nut (A) and press button of Circuit
Breaker (B) to activate the system.
(C)
(B)
(H)(H1)
(E)
(D)
(F)(G)
(A)
OPERATING YOUR SCOOTER
(C)
(C)

Instruction BookletEW-M40•EW-M39
1.Turn the Cap (I) outward upward to disengage the pin.
2.Simultaneously, adjust the tiller fore-and-aft to the most comfortable angle.
Release Cap (I) and ensure the pin is fully engaged to lock the tiller in position.
1.Lift the Lever (J) upward to disengage the pin.
2.Simultaneously, rotate Seat (K) to the most comfortable angle.
To lock the seat in position by Releasing Lever (J) and ensure the pin is fully engaged.
If scooter's circuit system malfunctions or over loaded, the circuit breaker will trip and
automatically shut down the power to ensure driver's safety. After shut down the power,
press button of Circuit Breaker (B) to reactive the circuit system.
The scooter can be pushed, when the Free-Wheeling Lever (L) is disengaged.
To engage the Free-Wheeling Lever (L) - Pull up the free-wheeling lever.
To disengage the Free-Wheeling Lever (L) - Push down the free-wheeling lever.
7
Tiller Angle Adjustment :
Seat Rotation Adjustment :
Figure 7 (J)
(K)
Figure 6
(I)
Circuit Breaker :
Free-Wheeling Lever :
Figure 9
(L)
Figure 8
(B)

Instruction BookletEW-M40•EW-M39
8
Basket assembling and disassembling :
1.Place the Front Basket (M) to the bracket on the tiller.
2.Remove the Front Basket (M) and place it aside.
Armrest assembling and angle adjustment :
1.Adjust armrest to most comfortable length, then lock
the Knob (N).
2.Adjust Screw (O) height to preferable armrest's angle
Seat Height adjustment :
1.Remove the seat, then screw, nut and washer from seat post.
2.Adjust seat post to desired height, then attached tightly with screw, nut and washers.
3.Assemble the seat back to its original position.
4.Seat height adjustability EW-M40 490mm / 515mm / 540mm.
EW-M39 485mm / 510mm / 535mm.
Figure 11
(O)
(N)
Figure 10
(M)
Figure 12

Instruction BookletEW-M40•EW-M39
Keep in mind these rules：
•Fully charge batteries at least once a month, or more if you use scooter regularly.
Charge after each trip exceeding 3 kilometers.
•If storing your scooter for some time (1 month or more), make sure that batteries are
fully charged, and on returning, charge them again before using scooter.
•
Batteries will only give maximum performance after scooter has been used, and batteries
have been recharged up to 10 times. A bit like breaking in a new car.
Please be aware that the travelling range of your mobility scooter is impacted by how fast the batteries
are discharged. This will depend on many circumstances, such as ambient temperature, condition of the
surface of the road, tyre pressure, weight of the driver, driving environment (inclines etc.) and utilisation
of your lighting system if fitted. We recommend that you test your local ride with a family member to
ensure a safe journey.
The time needed to recharge will vary depending on the depletion of the
batteries. Charging for longer than necessary will not harm the batteries.
They can not be overcharged.
9
CHARGING THE BATTERIES
Your Ewheels Medical scooter is equipped with two sealed, maintanence free 12V. 18Ah.
rechargeable batteries and one 2A On-board charger. Batteries must be charged before
using scooter for first time and should be recharged after each day's use. Be sure power
switch is in OFF position and free-wheeling lever is not in freewheel mode.
For safety reasons, only sealed non-spillable batteries that meet DOT CFR 173.159(d),
IATA Packing Instructions, and IATA Provision A67 shall be installed in the scooters. If you
need new batteries, contact your dealer. Only 12V. 18Ah Valve-regulated LeadAcid batteries
should be used.
1.Insert battery charger cord into Charging Socket
(P) on battery pack.
2.Plug other end of Power Cable (Q) into a standard
electrical wall outlet.
3
.The charging indicator will normally be red or yellow
at this point.
4.Allow batteries to charge until charging indicator
turns green.
5.After indicator turns green, unplug battery charger
from scooter and wall outlet.
6.Do not charging simultaneously with battery box socket and
optional charging socket, this will cause serious risk.
7.If at any time battery charger light flashes green over 40 minutes, this indicates abnormal
charging occurred.
You should check the following :
‧Charger plug is correctly positioned
‧Scooter is turned off
‧If none of these are the problems, contact your local authorized dealer.
Figure 13
(P)
(P)
(Q)

Instruction BookletEW-M40•EW-M39
When assembling Battery Pack (T), make sure to aim for the battery
terminal connection for proper electricity conductivity.
10
DISASSEMBLING YOUR SCOOTER
I. Seat Disassembling :
Remove seat by lifting Seat Rotation Lever (J). Then rotate Seat (K) and lift up away from scooter.
II. Battery Pack Disassembling :
As indication, pull Battery Pack Handle (R) to remove Battery Box (S) from scooter.
Caution : Battery Box is heavy. When lifting, please use correct lifting posture to avoid injury.
Ask for assistance if necessary.
III. Front &Rear Frame Disassembling :
Hold front & rear frame with Release Lever (T) to disassemble front and rear frame.
Figure 17
Figure 16
(T)
Figure 15
Figure 14
(K)
(R)
(T)
(S)
(J)
Re-assembling your scooter by vise versa above disassembling procedures.
Figure 19
Figure 18
(I) (U)
Turn the Cap (I) to fold down the Tiller (U) to the lowest position as shown in Figure 18.
When the Tiller (U) is in the lowest position it can be locked by the pin of tiller angle
adjustment.
Tiller Fold Method :
The Scooter can be disassembled into 7 main parts as shown in Figure 19.
Completion of Disassembling:

Instruction BookletEW-M40•EW-M39
11
Figure 20
Figure 21
Figure 22
Before operation, please remove the Lock Nut (A)
and press button of Circuit Breaker (B) to activate
the system.
(B)
(A)
FOR OPTIONAL 18Ah Only
If scooter's circuit system malfunctions or over loaded,
the circuit breaker will trip and automatically shut down
the power to ensure driver's safety. After shut down the
power, press button of Circuit Breaker (B) to reactive
the circuit system.
Circuit Breaker :
Charging The Batteries :
(B)
Your Ewheels Medical scooter is equipped with
two sealed, maintanence free 12V. 18Ah.
rechargeable batteries and one 2A Off-board
charger. Batteries must be charged before
using scooter for first time and should
be recharged after each day's use. Be
sure power switch is in OFF position and
free-wheeling lever is not in freewheel mode.
For safety reasons, only sealed non-spillable batteries that meet DOT CFR 173.159(d),
IATA Packing Instructions, and IATA Provision A67 shall be installed in the scooters.
If you need new batteries, contact your dealer. Only 12V. 18Ah Valve-regulated Lead Acid
batteries should be used.
1.Ensure two Battery Boxes are connected together before charging.
2.Insert battery charger cord into Charging Socket (P) on battery pack.
3.Plug other end of Power Cable (Q) into a standard electrical wall outlet.
Figure 23
(P)
(P) (Q)
When assembling Battery Pack (T), make sure to aim for the battery
terminal connection for proper electricity conductivity.
II. Battery Pack Disassembling :
As indication, pull Battery Pack Handle (T) to remove
Battery Box (S) from scooter.
Caution : Battery Boxes are heavy. When lifting, please
use correct lifting posture to avoid injury.
Ask for assistance if necessary.
(R)
(T)
(S)

Instruction BookletEW-M40•EW-M39
12
TROUBLESHOOTING
Flash Description Meaning
1Battery Low The batteries are running low.
•Recharge the batteries
2Low Battery Fault The batteries have run out of charge.
•Recharge the batteries.
3High Battery Fault Battery voltage is too high. This may occur if
overcharged &/or traveling down a long slope.
•If traveling down a slope, reduce your
speed to minimize the amount of
regenerative charging.
•Check the battery and associated
connections and wiring.
4Current Limit Time-out The motor has been exceeding its maximum
current rating for too long. This may be due
to a faulty motor.
•Check the motor and associated
connections and wiring.
•Turn the controller off, leave for a few
minutes and turn back on again.
5Park Brake Fault Either a park brake release switch is active
or the park brake is faulty.
•Check the park brake and associated
connections and wiring.
•Ensure any associated switches are in their
correct positions.
6Throttle OONAPU The Throttle is out of neutral when turning the
controller on.
•Ensure the throttle is in neutral when turning
the controller on.
•The Throttle may require re-calibration.
7Speed Pot Fault The throttle, speed limit pot or their associated
wiring may be faulty.
•Check the throttle and speed pot and
associated connections and wiring.
8Motor Voltage Fault The motor or its associated wiring is faulty.
•Check the motor and associated
connections and wiring.
9Other error The controller may have an internal fault.
•Check all connections & wiring.

Instruction BookletEW-M40•EW-M39

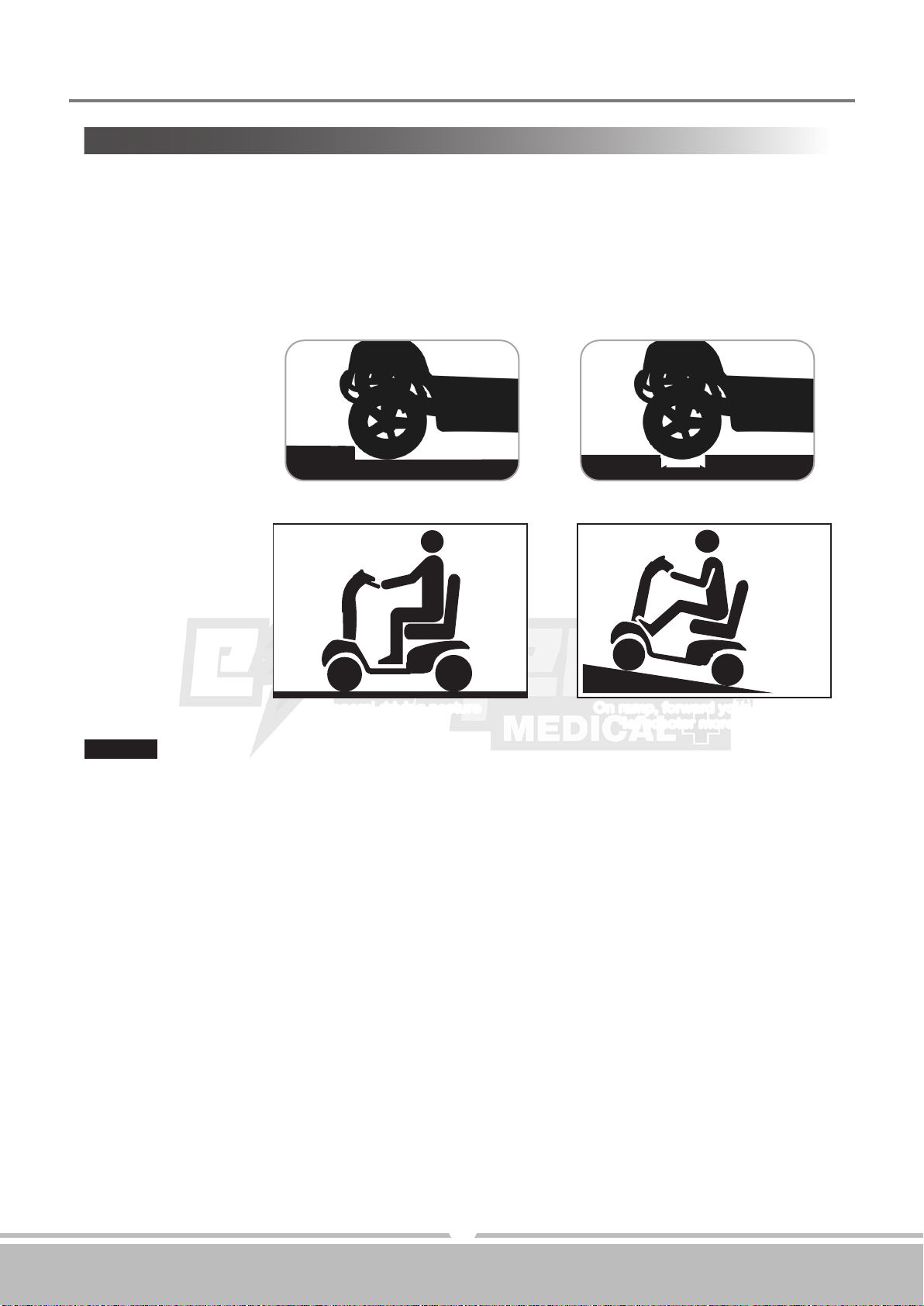

1.Obstacle Climbing :
Your scooter can climb obstacles and curbs of up to 50mm / 2" in height. Never attempt
to overcome an obstacle when on an uphill or downhill gradient!
Always approach obstacles straight on! Ensure that the front wheels and rear wheels
move over the obstacle in one stroke, do not stop halfway!
2.The maximum gap the scooter can drive over is 100mm / 4",
1.Charge the batteries after each trip. If the scooter is not used for some time, batteries
may lose their charge. Batteries should be charged at least once a month.
2.Check the battery gauge before driving to prevent power depletion.
3.Batteries will have an aging phenomenon, where the storage capacity will gradually
decrease. If batteries are damaged, please wrap them in a plastic bag and contact your
local dealer for proper disposal.
4.Do not disassemble battery and open sealed parts by yourself to prevent electric shock
and burns from acid leakage,
5.Adjust speed to a slow speed when starting off to prevent sudden acceleration.
6.Never attempt to drive downhill backwards.
7.Try not to drive scooter at night or in rain or bad weather.
8.If storing your scooter for a long time (1 month or more), make sure that battery are fully
charged, then disconnect the two batteries plugs (W), and store the scooter in a dry
location.
9.Front basket, weight capacity 3kgs (6.5lbs).
13
CAUTION
Others :
•When driving scooter on ramp, adjust body center of gravity to keep scooter more safety.
General driving posture On ramp, forward your body will
let scooter more safety.

Instruction BookletEW-M40•EW-M39
SPECIFICATION
14
SPECIFICATION
SPECIFICATIONS
Overall Length
Overall Width
Overall Height
Front Wheels
Rear Wheels
Weight W/ Batteries
Weight Of Heaviest Piece
Max. Speed
Weight Capacity
Ground Clearance
Grade Climbable
Curb Climbable
Turning Radius
Brake
Seat Type
Seat Width
Motor Size
Battery Size
Battery Weight
Travel Range
Battery Charger
Electronics
EW-M40
40.2"
20"
35"
8"
8"
88.4 lbs
30 lbs
5 mph
300 lbs
1.6"
8 degree
2"
41.7"
16.7"
200W 4650 r.p.m
(2) 12V. 18Ah
20.9 lbs
9.9 Miles
2A Off Board
EW-M39
40.2"
20"
34"
8"
8"
93.7 Ibs
35.3 lbs
5 mph
300 lbs
1.6"
8 degree
1.2"
45.3"
16.7"
200W, 4650 r.p.m
(2) 12V. 18Ah
20.9 lbs
9.9 Miles
2A Off Board
Electro-Mechanical
Swivel Padded Foldable
On / Off Key Switch, Battery
Level Indicator, Speed Control Knob
*Subject to change without notice. ( Rev. 2, 2019/02/18 )
