Excalibur 196 Series User manual

OPERATING
INSTRUCTIONS
Slim Line Bagel And
Specialty Toaster
Model No. 196 and 296 Series
Toasters
355 East Kehoe Blvd. lCarol Stream, IL 60188
Tel: [phone] lFax: [phone]
Toll Free: 1-800-PCASTLE
TABLE OF CONTENTS PAGE
Installation ......................................................................2
Operating .................................................................... 2-3
Adjustments and Cleaning............................................3
Troubleshooting .............................................................4
Parts List..................................................................... 4-7
Wiring Diagram ..............................................................7
PRODUCT SPECIFICATIONS
Electrical:
Model No. Volts Hz Watts KW Amps
196/296 110/120 60 1500 1.5 12.5
LIMITED WARRANTY
This product is warranted to be free from defects in
materialand/orworkmanshipfora periodoftwo (2)
years from date of original installation, not to ex-
ceed 30 months from date of shipment from our
factory. Any part or component which proves to be
faulty in material and/or workmanship within the
warranty period will be replaced or repaired(at the
option of Prince Castle, Inc.)without cost to the
customer for parts or labor
Thiswarrantyis subject tothefollowing exceptions/
conditions:
lService must be performed by an authorized
Prince Castle Service Center.
lAny use of non-genuine Prince Castle spare
parts voids this warranty.
lThis equipment is portable; charges for on
location service (e. g., trip charges, mileage)
are not include in the provisions of this war-
ranty.
lAll labor shall be performed during regular work-
inghours.Overtimepremiumwillnotbecovered.
lDamage caused by carelessness, neglect, and/
or abuse (e.g., using wrong current, dropping,
tamperingwithoralteringelectricalcomponents,
orimpropercleaning)isnotcoveredbytheterms
of this warranty. Equipment damaged in ship-
ment, by fire, flood or an act of God is not
covered.
lNormal adjustments as outlined in this manual
are not covered under warranty.
196-500

4. Place the conveyor housing into the conveyor guide
and lower making sure that all four conveyor slides
are inside the conveyor guide. (Figure 3)
Figure 3
4. Turn the heater switch to the “on” position (the
orange indicator light will come on). Allow 30
minutes for platen to reach operating temperature.
(Figure 4)
5. Turn the motor switch to the “on” position (the
orange indicator light will come on). (Figure 4)
Figure 4
Note: Turn the Motor switch off when not in use to
conserve energy
6. Check the conveyor chain to ensure that it is turning
freely.
7. Place a sample run of the product being toasted into
the top of the conveyor housing, with the cut side
facing the platen. (Figure 5)
Figure 5
8. The toasted product should appear on the crumb
tray in 30-35 seconds on model 196 and in 15-18
seconds on model 296.
2
Release
Sheet
Holding
Bracket
3
Inch
Over
Hang
Conveyor
Guides
Crumb
Tray
Conveyor
Guides
Conveyor
Guides
INSTALLATION
1. After removing the toaster from the carton, promptly
inspect the unit for signs of damage. If there is
damage to the unit:
- Notify carrier within 24 hours of receipt.
- Save carton and packing material for
inspection purposes.
- Contact the Prince Castle Customer Sales
Department at 1-800-722-7853 to arrange for
a replacement to be sent.
2. Verify that all parts were received.
- The Line Cord is separate from the toaster
and can be found folded at the bottom of the
box.
- The Teflon sheets are located in a 14” box
located in the bottom of the toaster box.
- The Crumb tray is attached by nylon tape to
the front of the conveyor. Remove and install
it to the bar located below the conveyor assy.
3. Lift conveyor off conveyor guide rails. Remove
packing material (nylon tape, foam block and black
rubber packaging spacers) from conveyor and
conveyor guides. Set conveyor aside. (Figure 1)
Figure 1
4. Plug unit into a 110-120 volt grounded receptacle.
OPERATION
1. Place the teflon release sheet over the top of the
platen housing, making sure there are three inches
of overhang. (Figure 2)
Figure 2
2. Firmly place the holding bracket on top of the platen
housing to securely hold the release sheet in place.
(Figure 2)
Power
Switch
11
00
Motor
Switch

3
ADJUSTMENTS
Bun Compression
The toaster platen can be adjusted to provide the
necessary compression needed on various products.
Turn the two platen adjustment knobs clockwise to
compensate for use on thicker bread products, counter
clockwise for thinner products. (Figure 6)
Figure 6
Platen Temperature:
The temperature of the platen can be adjusted to
compensate for darker or lighter toasting require-
ments. Turn the thermostat adjustment knob clockwise
for darker toasting, counter clockwise for lighter. Allow
10 minutes for toaster to stabilize whenever the
thermostat is adjusted. (Figure 6)
Factory Setting:
The 196 Series Toaster thermostat is set at # 7
The 296 Series Toaster thermostat is set at # 9
Conveyor and Motor Gears:

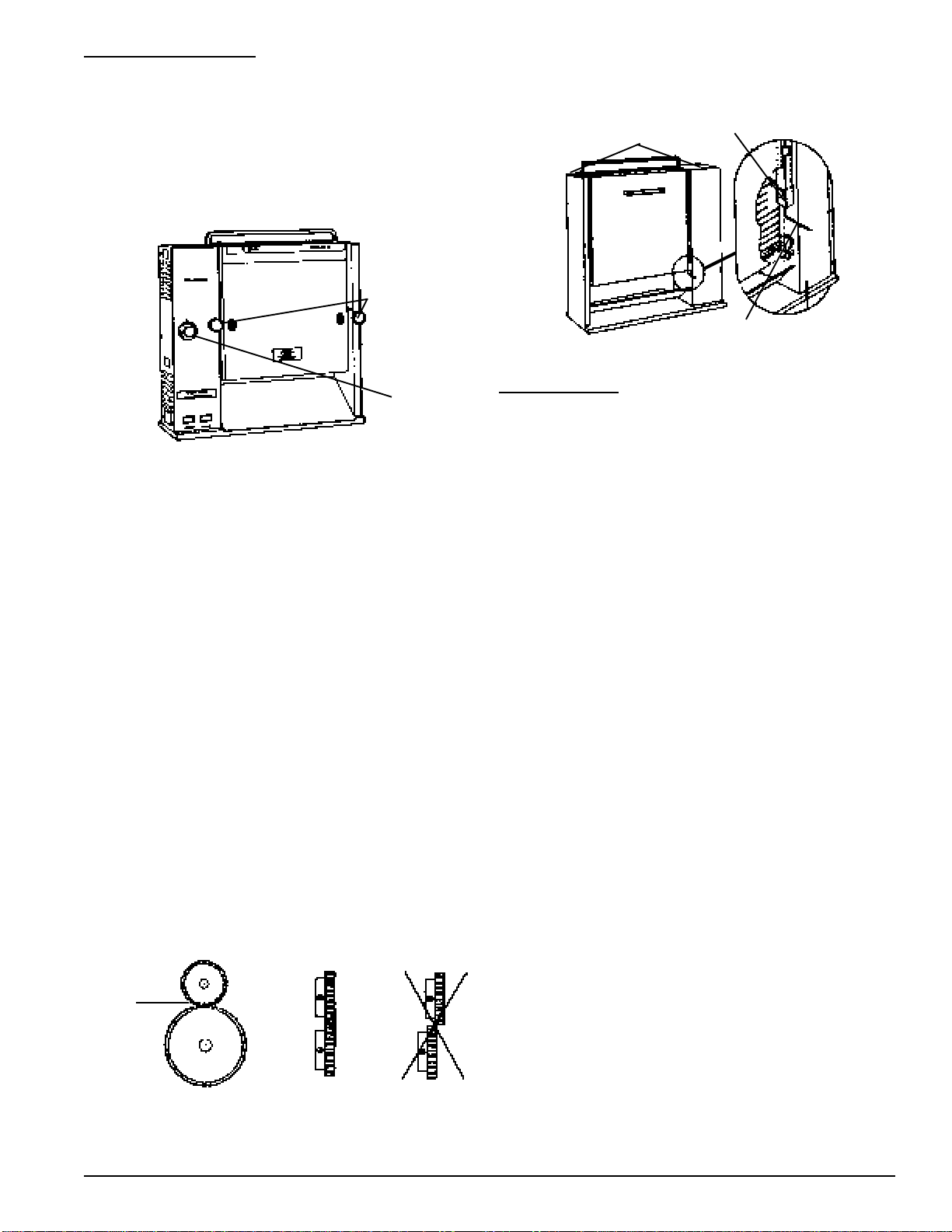

The top of the conveyor housing should be even with
the tops of the end housings and there should be a
1/64” clearance between the conveyor and motor gear
when aligned properly. To adjust the conveyor hous-
ing, use the 3/32 Allen wrench on the adjustment
screws located on the bottom on both sides of the
conveyor guide, turn clockwise to raise the conveyor
housing, counter clockwise to lower. (Figures 7 & 8)
Figure 7
Platen
Adjustment
Knobs
Thermostat
Knob
Figure 8
CLEANING
1. Turn off both the heater and motor switches and
unplug the toaster.
2. Allow platen to cool before proceeding.
3. Remove the conveyor assembly.
4. Immerse the conveyor housing into sink with hot
water and detergent. A soft bristle brush can be
used on hard to clean spots. Rinse thoroughly and
allow to air dry.
5. Remove the teflon sheet and lay it on a flat surface.
Thoroughly clean both sides with a damp cloth
making sure all carbon build up is removed. Allow
to air dry.
Note: Rotate two sheets daily for longer life. Sheets
last 4-6 months based on care and volume of
product toasted.
6. Use a damp cloth to remove any carbon build up on
the platen surface.
Note: Do not use sharp objects, scotch brite pads,
scouring pads, or abrasive cleaners on the
platen, or teflon release sheets as it will cause
irreparable damage.
End
Housing
Top of the
#10-32 Set Screw
Both Sides
3/32 Hex Head Key
1/64”
Clearance Gears
Properly
Mesh

FRONT VIEW PARTS LIST
TROUBLE SHOOTING
Problem Cause Solution
1. Unit will not heat up. A. No Power. Ensure Power Cord is Connected to
Power Rocker Switch Light Off. Proper Receptacle. And the Power Inlet.
B. Inoperable Power Cord. Replace Power Cord.
C. Loose Connection on Switch. Tighten Power Switch Connections.
D. Inoperable Power Switch. Replace Power Switch.
2. Unit will not heat up, A. Inoperable Thermostat. Replace Thermostat.
Power Rocker Switch Light On. B. Inoperable Platen. Replace Platen.
3. Unit Heats up but the A. Loose Motor Switch Connection. Tighten Motor Switch Connection.
conveyor does not run. B. Inoperable Motor. Replace Motor.
C. Stripped Drive Gear. Replace Drive Gear.
D. Loose Chain Sprockets. Adjust and Tighten Sprockets.
E. Gears Not Meshing. Adjust Conveyor Set Screws (See
Conveyor Adjustments Page 3).
F. Inoperable Motor Switch. Replace Switch.
4. Unit over and under A. Inoperable Thermostat. Replace Thermostat.
heats ( does not
respond to thermostat
adjustments).
5. Buns under or over A. Check Platen Adjustment. Adjust Platen for Proper Compression
done. (See Platen Adjustments Page 3).
B. Check Platen Temperature. Adjust Thermostat for Proper Tempera
ture (See Thermostat Adjustment Page 3).
4
1
2
3
4
5Item Part Number Description
1 78-184S Power and Motor Lighted Rocker Switch
2 197-185S Platen Adjustment Knob (Pkg of 2)
3 70-012 Thermostat Knob
4 197-232 Foot
5 197-124 Conveyor Guide
* 197-402 Release Sheet Conversion Kit (196, 296 and 196-SP)
* 196-13 Release Sheet Conversion Kit (196-JACK)
* 197-260 Release Sheets (Pkg of 2) (3 Mil) (196, 296 and 196-SP)
* 196-12 Release Sheets (Pkg of 2) (5 Mil) (196-JACK)
*NOT SHOWN

1
2
3
4
5
5
6
6
6
6
7
89
9
10
11
12

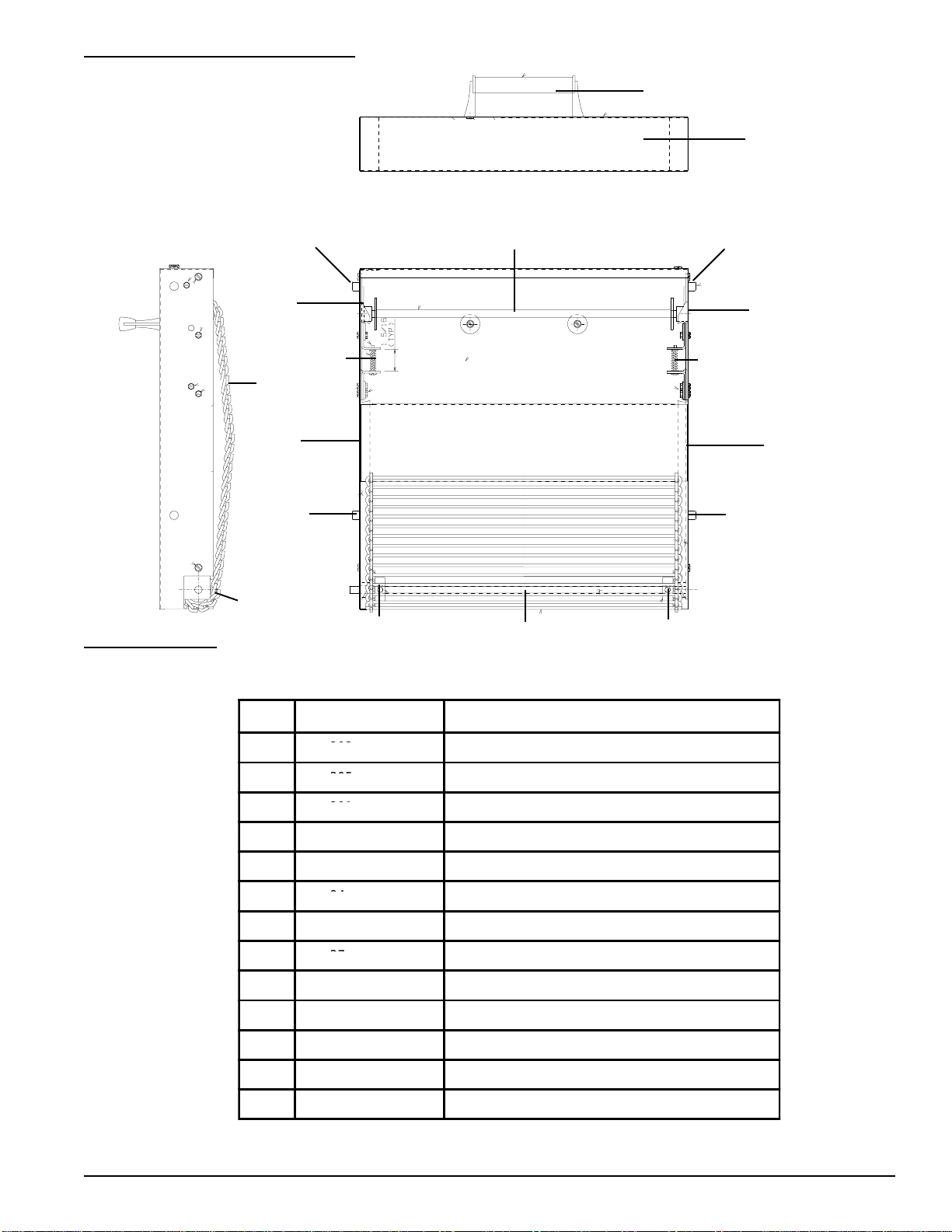

CONVEYOR ASSEMBLY
PARTS LIST
5
13
Item Part Number Descrption
1 197-393 Right Side Shaft Carrier Assy.
2 197-395 Left Side Shaft Carrier Assy.
3 197-391 Right Side Shaft Carrier Adjustment Assy.
4 197-388 Left Side Shaft Carrier Adjustment Assy.
5 81-015 Compression Spring
6 197-94 Conveyor Slide
7 197-280 Shaft Assy.
8 197-37 Driven Shaft
9 197-302 Sprocket Kit (Pkg of 2)
10 89-684 Complete Chain Assy.
11 89-590 Single Conveyor Chain Link
12 346-5 Black Handle With Screw
13 197-322S Complete Conveyor Assy.
461
463
459
457
467
465

1
2
3
4
56
7
8
9
10
15
12 13
14 11
16
17
6

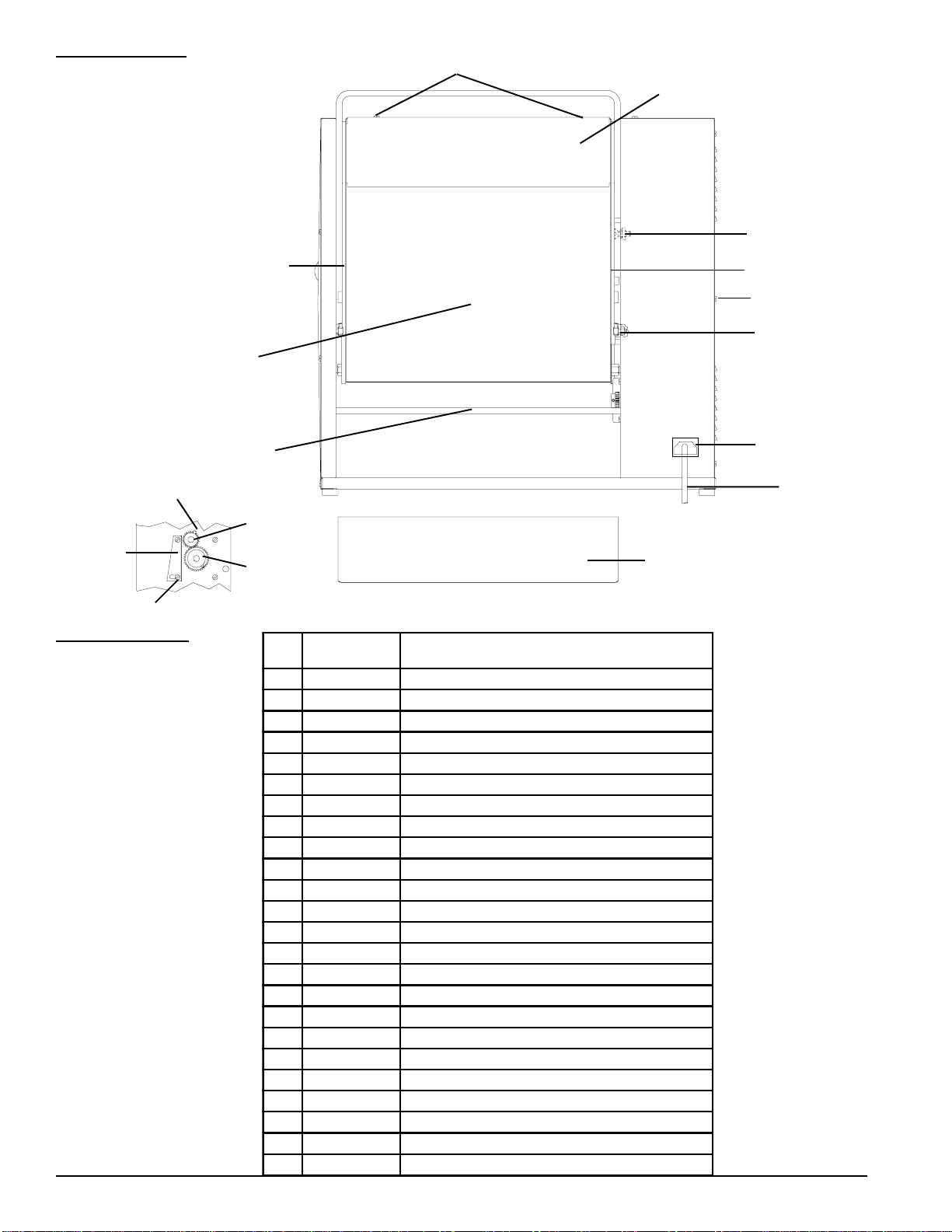

REAR VIEW
PARTS LIST Item Part Number Description
1 197-176 Small Gear 24 Teeth (196, 296, And 196-JACK)
196-9 Small Gear 28 Teeth (196-SP)
2 197-177 Large Gear 36 Teeth (196,and 296)
196-10 Large Gear 48 Teeth (196-SP and 196-JACK)
3197-279 Pin
4 76-225 Slotted Pan Head Screw
5 197-131 Guard
6 197-33 Crumb Tray
7 88-591 Power Inlet
8 73-007 Hex Nut
197-16 Conveyor Stop
76-165 Set Screw
9 76-640 Screw
10 197-96 Left Side Bun Fence
11 73-008 Self Locking Hex Nut
73-030 Hex Nut
79-016 Flat Washer
76-033 Slotted Flat Head Screw
12 76-640 Screw
13 197-13 Lead Pan Weldement
14 197-97 Right Bun Fence
15 196-1S Platen
16 197-95 Tray Support
17 72-200-13S Line Cord

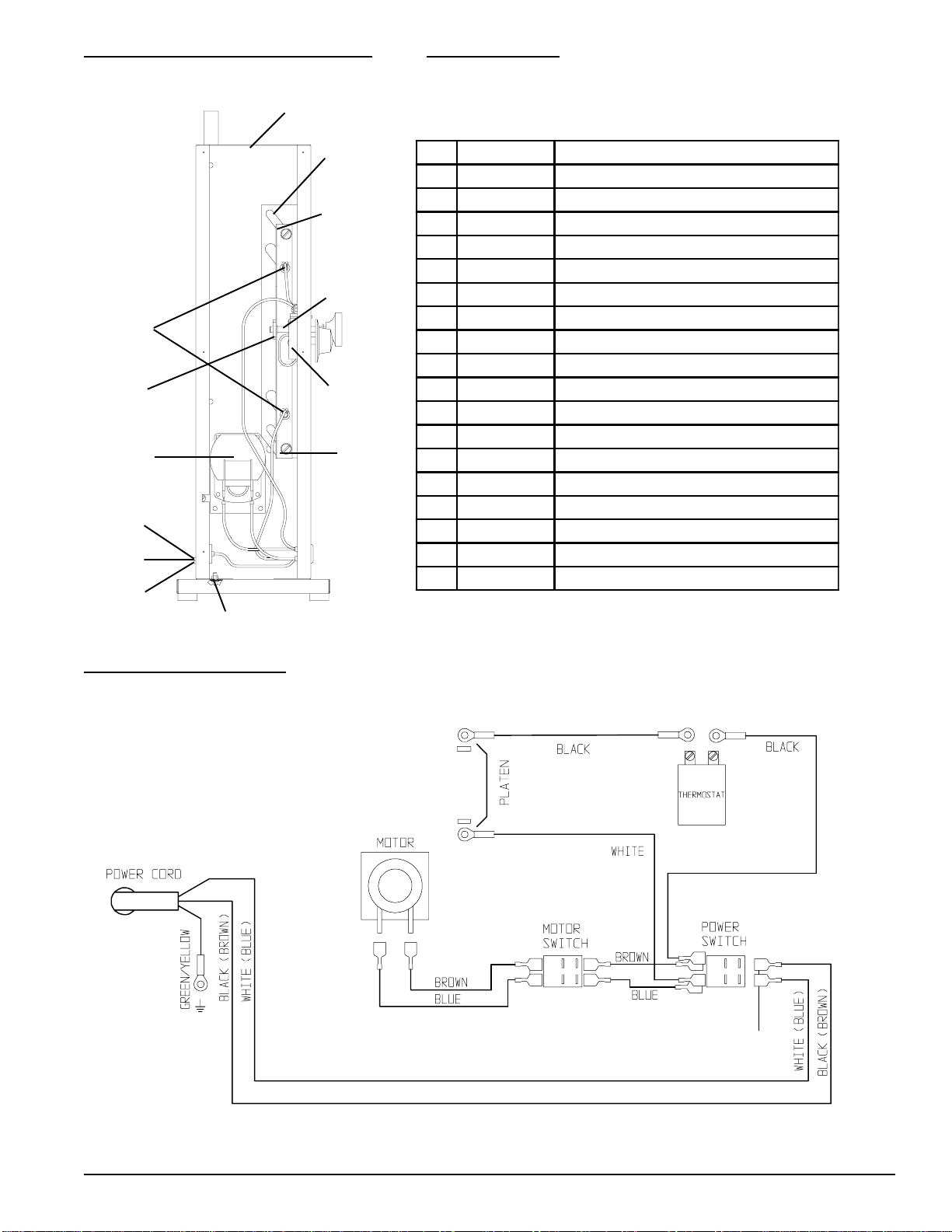

WIRING DIAGRAM
7
INTERNAL COMPONENTS PARTS LIST
Item Part Number Description
1 76-300 Slotted Pan Head Screw
2 197-83 Motor (120 Volt)
3 73-031 Hex Nut
4 79-033 Washer
5 76-051 Slotted Binder Head Screw
6 79-055 Flat Washer
7 76-040 Slotted Binder Head Screw
79-017 Split Lock Washer
73-030 Hex Nut
8 76-150 Slotted Pan Head Screw
79-094 Flat Washer
9 79-016 Flat Washer
76-095 Slotted Binder Head Screw
10 197-90 L. H. Side Plate Weldement W/ Adjustment Screw
197-89 R.H. Slide Plate Bracket W/Adjustment Screw
11 197-87 Baffle
12 197-371 Housing
13 197-140 Thermostat With Knob
1
2
3
4
5
6
7
8
9
10
11
12
13
87-029S

8
