Operation Manual
for model XR2625
Part No. A14687 Rev. 0 1/4/06
IMPORTANT
Please make certain that the person who is to use this equipment carefully
reads and understands these instructions before operating.
Pressure Washer
Table of Contents
Safety Guidelines/Definitions..................2
Consumer Saftey Information................2
Important Safety Instructions..............2-7
Specifications..........................................7
Carton Contents......................................8
Assembly Instructions....................... 8-10
Operating Instructions .................... 10-15
Maintenance.................................... 15-16
Storage ............................................ 16-17
Accessories...........................................17
Repairs...................................................18
Trouble Shooting Guide.................. 18-19
Warranty.................................................20
Français ........................................... 21-40
Español............................................ 41-61
Record All Information and attach sales
receipt here for future reference:
Purchase Date:__________________________
Serial #: ________________________________
Questions? 1-800-888-2468
Learn more about your pressure washer,
get answers to frequently asked questions,
and register on line at
www.excellpressurewasher.com

2- ENG
A14687
This product may not be equipped with a spark arresting muffler.
If the product is not equipped and will be used around flammable
materials, or on land covered with materials such as agricultural crops, forest, brush,
grass, or other similar items, then an approved spark arrester must be installed and
is legally required in the state of California. It is a violation of California statutes
section 130050 and/or sections 4442 and 4443 of the California Public Resources
Code, unless the engine is equipped with a spark arrester, as defined in section 4442,
and maintained in effective working order. Spark arresters are also required on some
U.S. Forest Service land and may also be legally required under other statutes and
ordinances. This product contains chemicals, including lead, known to the State
of California to cause cancer, and birth defects or other reproductive
harm. Wash hands after handling.
CONSUMER SAFETY INFORMATION
SAFETY GUIDELINES - DEFINITIONS
Indicates an imminently
hazardous situation
which, if not avoided, will result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in minor
or moderate injury.
Used without the safety
alert symbol indicates a
potentially hazardous situation which, if not
avoided, may result in property damage.
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT
PROBLEMS. To help you recognize this information, we use the symbols below. Please
read the manual and pay attention to these symbols.
IMPORTANT SAFETY INSTRUCTIONS
Do not operate this unit until you have read and understand this
Operators Manual and the Engine Owners Manual for Safety,
Operation, and Maintenance Instructions.
READ AND SAVE THESE INSTRUCTIONS
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline and it’s vapors
can become ignited from cigarette
sparks, electrical arcing, exhaust
gases and hot engine components
such as the muffler.
• Shut off engine and allow it to cool
before adding fuel to the tank.
• Use care in filling tank to avoid
spilling fuel. Move pressure washer
away from fueling area before
starting engine.
• Heat will expand fuel in the tank
which could result in spillage and
possible fire explosion.
• Fill tank to 1/2" (12.7 mm) below
bottom of filler neck to provide space
for fuel expansion.

3- ENG A14687
RISK OF EXPLOSION OR FIRE (CONTINUED)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Operating the pressure washer in an
explosive environment could result
in a fire.
• Operate and fuel equipment in
well-ventilated areas free from
obstructions. Equip areas with fire
extinguisher suitable for gasoline
fires.
• Materials placed against or near the
pressure washer can interfere with
its proper ventilation features caus-
ing overheating and possible
ignition of the materials.
• Never operate pressure washer in an
area containing dry brush or weeds.
• Muffler exhaust heat can damage
painted surfaces, melt any material
sensitive to heat (such as siding,
plastic, rubber, vinyl or the pressure
hose, itself), and damage live plants.
• Always keep pressure washer a mini-
mum of 4' (1.2m) away from surfaces
(such as houses, automobiles or live
plants) that could be
damaged from muffler exhaust heat.
• Improperly stored fuel could lead to
accidental ignition. Fuel improperly
secured could get into the hands
of children or other unqualified
persons.
• Store fuel in an OSHA-approved
container, in a secure location away
from work area.
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with
this product could result in serious
injury or death.
• Do not spray flammable liquids
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Breathing exhaust fumes will cause
serious injury or death! Engine
exhaust contains carbon monoxide,
an odorless and deadly gas.
• Operate pressure washer in a well-
ventilated area. Avoid enclosed
areas such as garages, basements,
etc.
• Never operate unit in a location
occupied by humans or animals.
• Some cleaning fluids contain sub-
stances which could cause injury to
skin, eyes or lungs.
• Use only cleaning fluids specifically
recommended for high-pressure
washers. Follow manufacturers
recommendations. Do not use
chlorine bleach or any other
corrosive compound.

4- ENG
A14687
RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Your pressure washer operates at
fluid pressures and velocities high
enough to penetrate human and
animal flesh, which could result in
amputation or other serious injury.
Leaks caused by loose fittings or
worn or damaged hoses can result
in injection injuries. DO NOT TREAT
FLUID INJECTION AS A SIMPLE
CUT! See a physician immediately!
• Inspect the high-pressure hose
regularly. Replace the hose
immediately if it is damaged,
worn, has melted from contacting
the engine, or shows any signs
of cracks, bubbles, pinholes, or
other leakage. Never grasp a high-
pressure hose that is leaking or
damaged.
• Never touch, grasp or attempt to
cover a pinhole or similar water
leak on the high-pressure hose.
The stream of water IS under high
pressure and WILL penetrate skin.
• Never place hands in front of nozzle.
• Direct spray away from self and
others.
• Make sure hose and fittings are
tightened and in good condition.
Never hold onto the hose or fittings
during operation.
• Do not allow hose to contact muffler.
• Never attach or remove wand
or hose fittings while system is
pressurized.
• Injuries can result if system pressure
is not reduced before attempting
maintenance or disassembly.
• To relieve system pressure, shut off
engine, turn off water supply and
pull gun trigger until water stops
flowing.
• Use only hoses and accessories
rated for pressure higher than your
pressure washer's PSI.
RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
• High-velocity fluid spray can cause
objects to break, propelling particles
at high speed.
• Light or unsecured objects can
become hazardous projectiles.
• Always wear ANSI-approved Z87.1
safety glasses. Wear protective
clothing to protect against
accidental spraying.
• Never point wand at or spray people
or animals.
• Always secure trigger lock when
wand is not in service to prevent
accidental operation.
• Never permanently secure trigger in
pull-back (open) position.

5- ENG A14687
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your pressure
washer could lead to serious injury
or death to you or others.
• Do not use chlorine bleach or any
other corrosive compound.
• Become familiar with the operation
and controls of the pressure washer.
• Keep operating area clear of all
persons, pets and obstacles.
• Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all
times.
• Never defeat the safety features of
this product.
• Do not operate machine with
missing, broken or unauthorized
parts.
• Never leave wand unattended while
unit is running.
• If proper starting procedure is not
followed, engine can kickback
causing serious hand and arm injury.
• If engine does not start after two
pulls, squeeze trigger of gun to
relieve pump pressure. Pull starter
cord slowly until resistance is felt.
Then pull cord rapidly to avoid
kickback and prevent hand or arm
injury.
• The spray gun/wand is a powerful
cleaning tool that could look like a
toy to a child.
• Keep children away from the
pressure washer at all times.
• Reactive force of spray will cause
gun/wand to kickback, and could
cause the operator to slip or fall
or misdirect the spray. Improper
control of gun/wand can result in
injuries to self and others.
• Do not overreach or stand on an
unstable support.
• Do not use pressure washer while
standing on a ladder.
• Grip gun/wand firmly with both
hands. Expect the gun to kickback
when triggered.

6- ENG
A14687
RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Fuel or oil can leak or spill and could
result in fire or breathing hazard. Seri-
ous injury or death can result. Fuel or
oil leaks will damage carpet, paint or
other surfaces in vehicles or trailers.
• If pressure washer is equipped with
a fuel shut-off valve, turn the valve to
the OFF position before transporting
to avoid fuel leaks. If pressure washer
is not equipped with a fuel shut-off
valve, drain the fuel from tank before
transporting. Only transport fuel in an
OSHA-approved container. Always
place pressure washer on a protective
mat when transporting to protect
against damage to vehicle from
leaks. Remove pressure washer from
vehicle immediately upon arrival at
your destination.
RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Over inflation of tires could result in
serious injury and property damage.
• Use a tire pressure gauge to check
the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate tires
can fill small tires similar to these very
rapidly. Adjust pressure regulator on
air supply to no more than the rating
of the tire pressure. Add air in small
increments and frequently use the tire
gauge to prevent over inflation.
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Contact with hot surfaces, such as
engines exhaust components, could
result in serious burn.
• During operation, touch only the
control surfaces of the pressure
washer. Keep children away from
the pressure washer at all times.
They may not be able to recognize
the hazards of this product.

7- ENG A14687
RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with
this product could result in serious
injury or death.
• Do not use acids, gasoline, ker-
osene, or any other flammable
materials in this product. Use only
household detergents, cleaners and
degreasers recommended for use in
pressure washers.
• Wear protective clothing to protect
eyes and skin from contact with
sprayed materials.
RISK OF
ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray directed at electrical outlets or
switches, or objects connected to
an electrical circuit, could result in a
fatal electrical shock.
• Unplug any electrically operated
product before attempting to clean
it. Direct spray away from electric
outlets and switches.
RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Serious injury can result from
attempting to lift too heavy an
object.
• The pressure washer is too heavy
to be lifted by one person. Obtain
assistance from others before lifting.
READ AND SAVE THESE INSTRUCTIONS
SPECIFICATIONS
Model XR2625
PSI Max* 2600
Operating PSI 2340
GPM Max* 2.5
Operating GPM 2.25
* Water flow and maximum pressure ratings determined in accordance with PWMA
standard PW101.

8- ENG
A14687
ASSEMBLY INSTRUCTIONS
CARTON CONTENTS
Engine Frame and
Wheel Assembly
High Pressure
Hose
Spray Gun
Gatling Spray Wand Handle
Chemical
Hose
Bagged Parts
Engine
Manual
Operation
Manual
1. Locate and remove all loose parts
from the carton.
2. Cut four corners of the carton from
top to bottom and lay the panels
flat.
3. Place the panel as shown and
align
the screw bosses on the panel
with the large holes in the handle.
Secure handle to panel assembly
with four screws supplied.
Large holes
Panel
Screw
Bosses
Accessory
Storage Panel
Cover
Screws
"J" Bolts Knobs
Panel Assembly
Cleaning Tool

9- ENG A14687

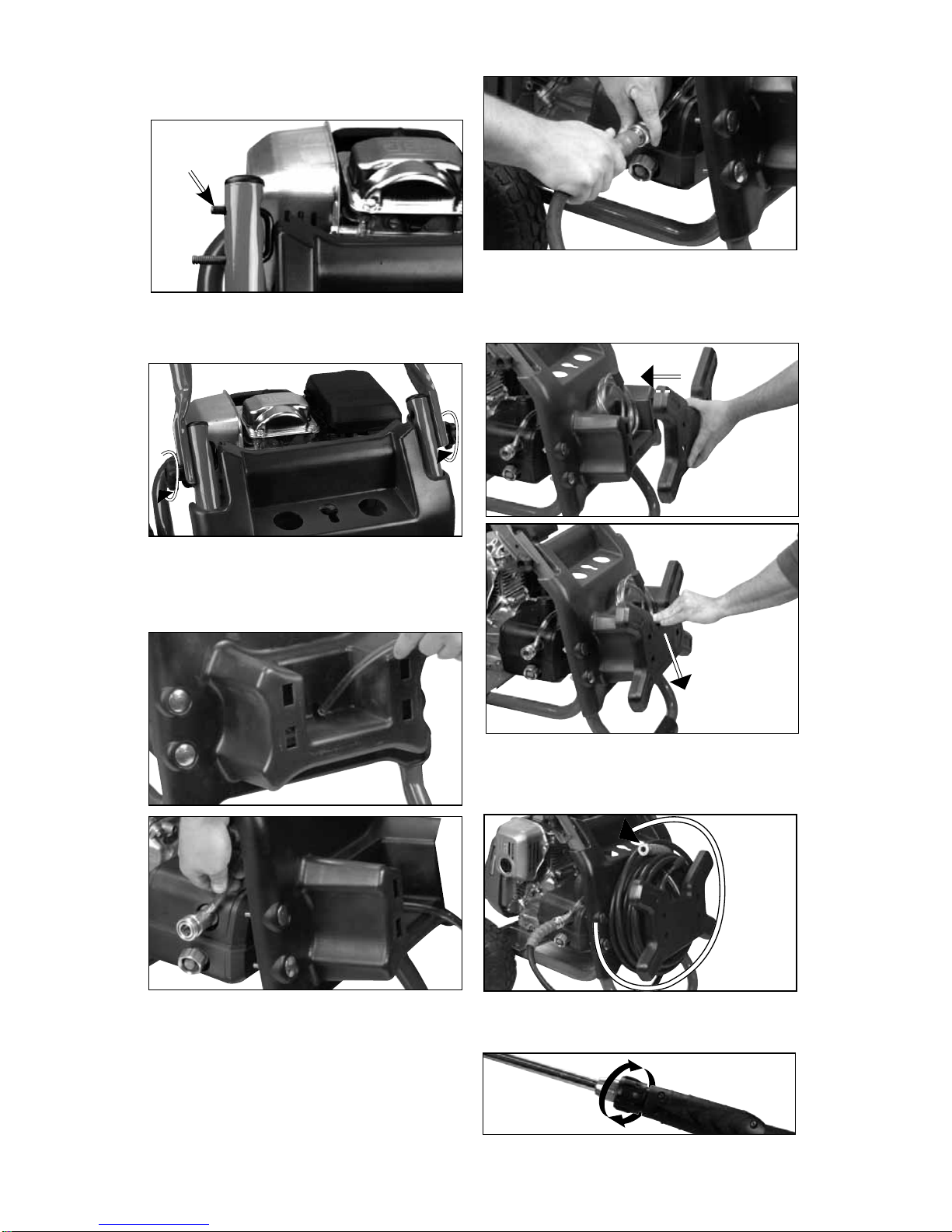

9. Align tabs on accessory storage
panel cover with holes in
accessory storage panel and slide
down until it locks into place.
10. Wind high pressure hose around
hose reel of the accessory
storage panel.
11. Connect wand to gun. Tighten
securely.
4. Assemble a "J" bolt through
frame as shown (both side).
5. Slide handle onto "J" bolts and
attach with knobs (both sides) .
Tighten securely.
6. Feed end of chemical hose
(without filter) through front panel
and press onto barbed fitting of
chemical injector.
7. Roll the unit off the carton and
discard carton.
8. Connect high pressue hose to
pump outlet.

10- ENG
A14687
OPERATING INSTRUCTIONS
Compare the illustrations with your unit to familiarize yourself with the location
of various controls and adjustments. Save this manual for future reference.
Engine
High
Pressure
Hose
Spray
Gun
Gatling
Spray
Wand
12. Attach high pressure hose to gun.
NOTE: The pump on this unit is
maintenance free and requires no oil,
if there is a problem with the pump
contact an Authorized Service Center.
Risk of bursting.
Use a tire pressure
gauge to check the tires pressure
before each use and while inflating
tires; see the tire sidewall for the
correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate
tires can fill small tires similar to
these very rapidly. Adjust pressure
regulator on air supply to no more
than the rating of the tire pressure.
Add air in small increments and
frequently use the tire gauge to
prevent over inflation.
Accessory
Storage
Panel
Chemical
Hose
Accessory
Storage
Panel Cover

11- ENG A14687
BASIC ELEMENTS OF A
PRESSURE WASHER
High Pressure Pump (located inside
the shroud, not shown): Increases
the pressure of the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray Gun: Connects with spray
wand to control water flow rate,
direction, and pressure.
Gatling Spray Wand: Allows the
user to quickly change high-pressure
nozzles. See How To Use Spray Wand
instructions in this section.
Chemical Hose: Feeds cleaning
agents into the pump to mix with the
water. See How To Apply Chemicals/
Cleaning Solvents instructions in this
section.
BASIC ELEMENTS OF AN
ENGINE
Refer to the engine manual for location
and operation of engine controls.
Choke Control: Opens and closes
carburetor choke valve.
Starter Grip: Pulling starter grip
operates recoil starter to crank engine.
Engine Switch: Enables and disables
ignition system.pressure washer
terminology
PRESSURE WASHER
TERMINOLOGY
PSI: Pounds per Square Inch. The
unit of measure for water pressure.
Also used for air pressure, hydraulic
pressure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied
by PSI. GPM x PSI = CU
Bypass Mode: Allows water to
re-circulate within pump when the gun
trigger is not pulled.
Allowing the unit to
run for more than
two minutes without the gun trigger
pulled could cause overheating and
damage to the pump.
Chemical Injection System: Mixes
cleaners or cleaning solvents with
the water to improve cleaning
effectiveness.
Water Supply: All pressure washers
must have a source of water. The
minimum requirements for a water
supply are 20 PSI and 5 gallons per
minute.pressure washer operating
features
PRESSURE WASHER
OPERATING FEATURES
PRESSURE ADJUSTMENTS
The pressure setting is preset at the
factory to achieve optimum pressure
and cleaning. If you need to lower the
pressure, it can be accomplished by
these methods.
1. Back away from the surface to
be cleaned. The further away you
are, the less the pressure will be
on the surface to be cleaned.
2. Change to the 40º nozzle - this
nozzle delivers a less powerful
stream of water and a wider spray
pattern. DO NOT attempt
to increase pump
pressure. A higher pressure setting
than the factory set pressure may
damage pump.
TO USE SPRAY WAND
The nozzles for the spray wand are
stored in the gatling spray wand. See
chart to choose the correct nozzle for
the job to be performed.
CHANGING NOZZLES ON SPRAY
WAND
Risk of fluid
injection. Do not
direct discharge stream toward
persons, unprotected skin, eyes or
any pets or animals. Serious injury
will occur.

12- ENG
A14687
Risk of fluid
injection. Do Not
attempt to change nozzles while
pressure washer is running. Turn
engine off before changing nozzles.
1. Press turret release button to
release turret.
2. Rotate turret to chosen nozzle.
3. Push turret onto nozzle and lock
into place. 0º 15º 40º Soap
Spray Pattern
Uses powerful
pinpoint for
very intense
cleaning
intense
cleaning of
small areas
intense
cleaning of
larger areas
applies
cleaning
solutions
Surfaces * Metal or
concrete
DO NOT use
on wood
metal,
concrete, or
wood
metal,
concrete, or
wood
metal,
concrete,
wood, or vinyl
* The high pressure spray from your pressure
washer is capable of causing damage to surfaces such as wood, glass,
automobile paint, auto striping and trim, and delicate objects such as
flowers and shrubs. Before spraying, check the item to be cleaned to
assure yourself that it is strong enough to resist damage from the force
of the spray.
HOW TO APPLY CHEMICALS
AND CLEANING SOLVENTS
Applying chemicals or cleaning
solvents is a low pressure operation.
NOTE: Use only soaps and chemicals
designed for pressure washer use. Do
not use bleach.
To Apply chemicals:

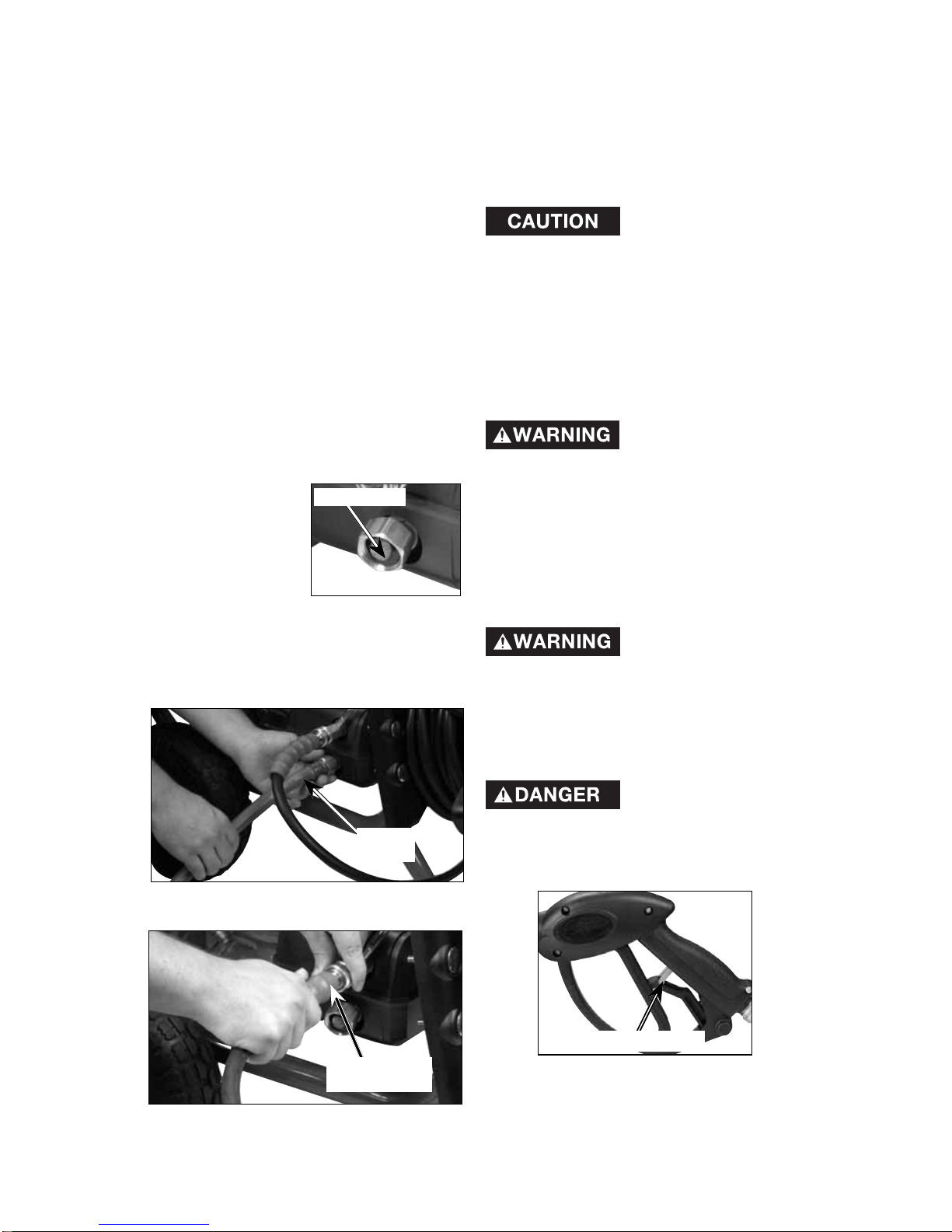

1. Make sure the
Barbed
Fitting
chemical hose
is pressed
onto the
barbed fitting
located near
high pressure
hose
connection of pump as shown.
2. Place other end of chemical
hose with filter on it into container
holding chemical/cleaning
solution. NOTE: For every 7
gallons of water pumped 1 gallon
of chemical/cleaning solution will
be used.
3. Select the soap nozzle on the gatling
spray wand, see o Use Spray Wand
paragraph in this section.
4. After use of chemicals, place
chemical hose into container of
clean water and draw clean water
through chemical injection system
to rinse system thoroughly. If
chemicals remain in the pump
it could be damaged. Pumps
damaged due to chemicals will
not be covered under warranty.

13- ENG A14687
To reduce the risk of injury, read the pressure washer
instruction manual and the engine instruction manual before
starting pressure washer.
Risk of fluid injection and laceration. When using the high-pressure
setting, DO NOT allow the high-pressure spray to come in contact
with unprotected skin, eyes, or with any pets or animals. Serious injury will occur.
• Your washer operates at fluid pressures and velocities high enough to penetrate
human and animal flesh, which could result in amputation or other serious injury.
Leaks caused by loose fittings or worn or damaged hoses can result in injection
injuries. DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a physician
immediately!
Risk of Fire, Asphyxiation and Burn. NEVER fill fuel tank when
engine is running or hot. Do not smoke when filling fuel tank.
• NEVER fill fuel tank completely. Fill tank to 1/2" below bottom of filler neck to
provide space for fuel expansion. Wipe any fuel spillage from engine and equipment
before starting engine.
• NEVER run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust
contains carbon monoxide, an odorless and deadly gas.
• DO NOT let hoses come in contact with very hot engine muffler during or
immediately after use of your pressure washer. Damage to hoses from contact with
hot engine surfaces will NOT be covered by warranty.
Risk of property damage. NEVER pull water supply hose to move
pressure washer. This could damage hose and/or pump inlet.
• DO NOT use hot water, use cold water only.
• NEVER turn water supply off while pressure washer engine is running or damage to
pump will result.
• DO NOT stop spraying water for more than two minutes at a time. Pump operates in
bypass mode when spray gun trigger is not pressed. If pump is left in bypass mode
for more than two minutes internal components of the pump can be damaged.
If you do not understand these precautions, please call 1-800-888-2468 to speak to a
service representative for further instructions.
NOTE: Chemicals and soaps will not
siphon when spray wand is in the high
pressure setting.

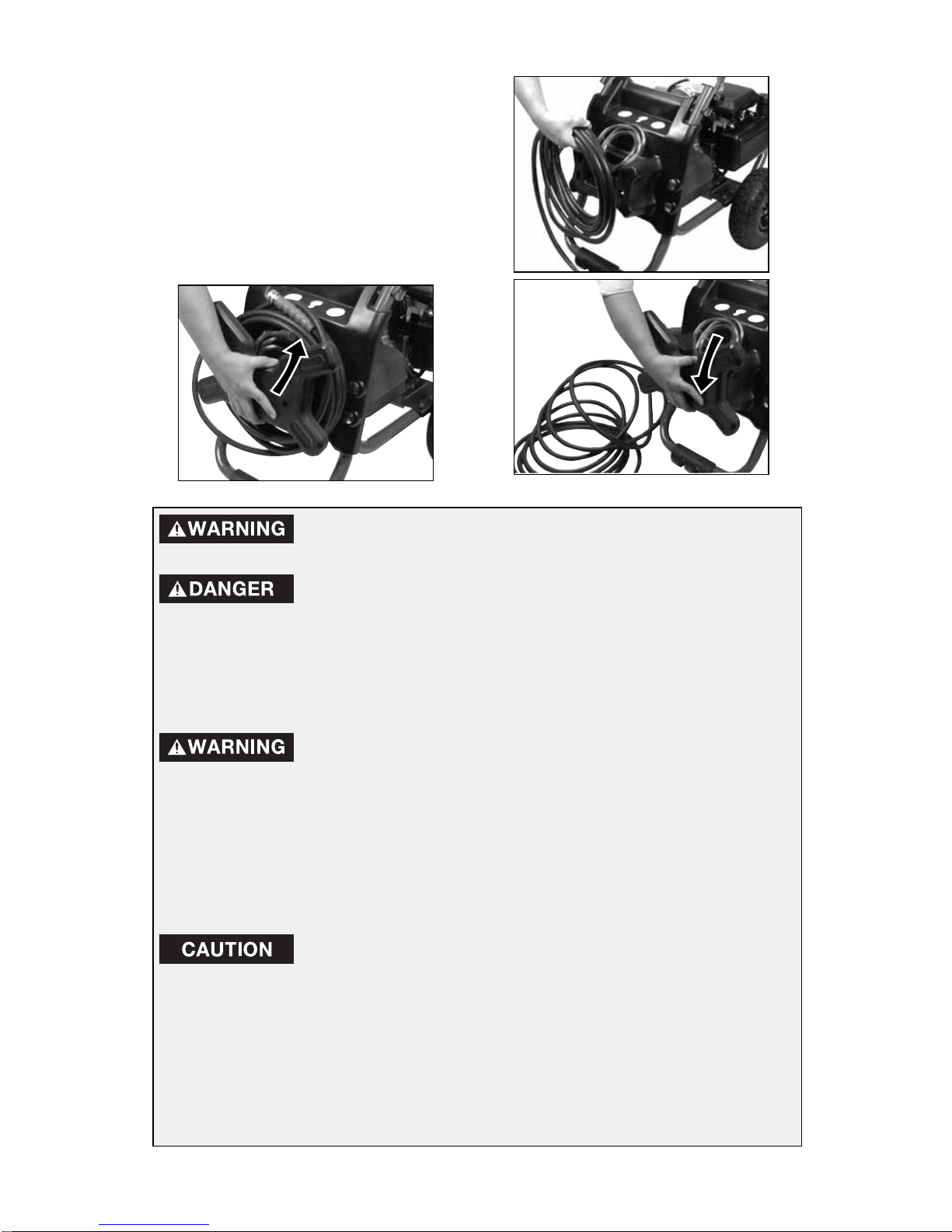

TO EASILY REMOVE HOSE
1. Remove the accessory storage
panel cover.
2. Remove hose from hose reel and
replace accessory storage panel
cover.

14- ENG
A14687
STARTING
Prior to starting, refer to your engine
manual for proper starting procedure.
1. In a well ventilated outdoor
area add fresh, high quality,
unleaded gasoline with a pump
octane rating of 86 or higher. Do
not overfill. Wipe up spilled fuel
before starting the engine. Refer to
Engine Owners Manual for correct
procedure.
2. Check engine oil level. See
Engine Owners Manual for correct
procedure.
3. Connect the water hose to the
water source. Turn the water source
on to remove all air from the hose.
When a steady stream of water is
present, turn the water source off.
4. Verify the
filter screen
is in water
inlet of pump.
NOTE: Cone
side faces
out.
5. Connect water source to pump
inlet. NOTE: Water source must
provide a minimum of 5 gallons
per minute at 20 PSI.
6. Connect high pressure hose to
pump outlet.
7. If applying a chemical or
cleaning solution, see How
To Apply Chemicals/Cleaning
Solvents instructions in this
section.
8. Turn water source on.
Risk of property
damage. Failure to
do so could cause damage to the
pump.
9. Remove all air from the pump
and high pressure hose by
depressing trigger until a steady
stream of water is present.
10. Start engine. See Engine Owners
Manual for correct procedure.
Risk of unsafe
operation. If engine
does not start after two pulls,
squeeze trigger of gun to relieve
pump pressure. Pull starter cord
slowly until resistance is felt. Then
pull cord rapidly to avoid kickback
and prevent hand or arm injury.
11. Depress trigger on gun to start
water flow. Risk of unsafe
operation. Stand on
a stable surface and grip gun/spray
wand firmly with both hands. Expect
the gun to kick when triggered.
12. Release trigger to stop water
flow. Risk of injury from
spray. Always
engage the trigger lock when gun
is not in use. Failure to do so could
cause accidental spraying.
13. Adjust nozzle spray for the task
being performed. See How To Use
Wand instructions in this section.
Trigger Lock Engaged
Filter Screen
Water
Source
High Pressure
Hose Hook-up

15- ENG A14687
SHUTTING DOWN
1. After each use, if you have applied
chemicals, place chemical hose
into container of clean water and
draw clean water through chemical
injection system to rinse system
thoroughly. Risk of property
damage. Failure
to do so could cause damage to the
pump.
2. Turn engine off. See Engine
Owner’s Manual.
Risk of property
damage. NEVER
turn the water off with the engine
running.
3. Turn water source off.
4. Pull trigger on spray gun to relieve
any water pressure in hose or spray
gun.
5. See Storage section in this manual
for proper storage procedures.

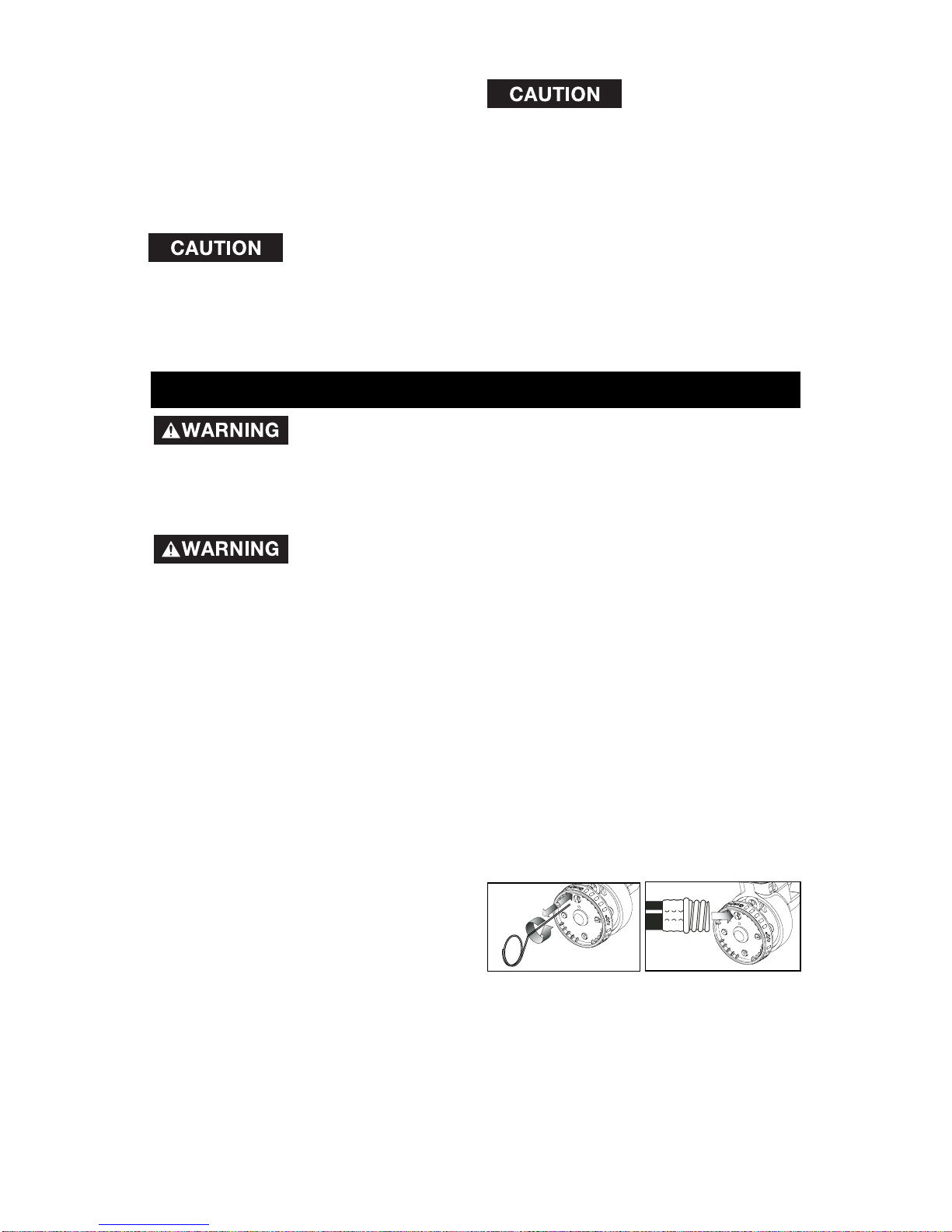

NOZZLE CLEANING
If the nozzle becomes clogged
with foreign materials, such as dirt,
excessive pressure may develop. If
the nozzle becomes partially clogged
or restricted, the pump pressure will
pulsate. Clean the nozzle immediately
using the nozzle kit supplied and the
following instructions:
1. Shut off the pressure washer and
turn off the water supply.
2. Pull trigger on gun handle to
relieve any water pressure.
3. Disconnect the spray wand from
the gun.
4. Release the gatling turret.
Remove any obstructions with the
nozzle cleaning tool provided and
backflush with clean water.
5. Direct water supply into nozzle to
backflush loosened particles for
30 seconds.
6. Choose nozzle and lock turret into
place.
7. Reconnect spray wand to gun
and turn on water supply.
8. Start pressure washer and place
spray wand into high pressure
setting to test.
MAINTENANCE
Risk of burn
hazard. When
performing maintenance, you may
be exposed to hot surfaces, water
pressure or moving parts that can
cause serious injury or death.
Risk of fire hazard.
Always disconnect,
spark plug wire, let the engine
cool and release all water pressure
before performing any maintenance
or repair. The engine contains
flammable fuel. Do not smoke
or work near open flames while
performing maintenance.
To ensure efficient operation and
longer life of your pressure washer, a
routine maintenance schedule should
be prepared and followed. If the
pressure washer is used in unusual
conditions, such as high-temperatures
or dusty conditions, more frequent
maintenance checks will be required.
ENGINE
Consult the Engine Owners
Manual for the manufacturer's
recommendations for any and all
maintenance. NOTE: The frame is
equipped with an oil drain hole to help
make changing the engine oil easier.
PUMP
The pump on this unit is maintenance
free and requires no oil, if there is a
problem with the pump contact an
Authorized Service Center.

16- ENG
A14687
3. Connect length of garden hose
to water inlet of pump.
4. Add RV antifreeze or windshield
washer fluid to hose as shown.
5. Pull engine starter rope slowly
several times until antifreeze/
washer fluid comes out of high-
pressure hose connection of
pump.
6. Remove garden hose from water
inlet of pump.
7. Reconnect spark plug wire.
HOW TO CLEAN THE WATER
INLET FILTER
This screen filter should be checked
periodically and cleaned if necessary.
1. Remove
filter by
grasping end
and removing
it from water
inlet of pump
as shown.
Filter Screen
STORAGE
ENGINE
Consult the Engine Owners
Manual for the manufacturer's
recommendations for storage.
PUMP
The manufacturer recommends using
a pump protector/winterizer, such as
DP80, when storing the unit for more
than 30 days and/or when freezing
temperatures are expected. If a pump
protector/winterizer is not available, RV
antifreeze or windshield washer fluid
needs to be run through the pump as
outlined in the steps below.
NOTE: Using a pump protector/
winterizer, RV antifreeze or windshield
washer fluid is to provide proper
lubrication to the internal seals of the
pump regardless of temperature or
environment.
1. Obtain a funnel, 6 oz. of RV
antifreeze or windshield washer
fluid, and 16–36" of garden hose
with a male hose connector
attached to one end.
Risk of property
damage. Use only
RV antifreeze. Any other antifreeze
is corrosive and can damage pump.
2. Disconnect spark plug wire.
2. Clean filter by flushing it with
water on both sides.
3. Re-insert filter into water inlet of
pump. NOTE: Cone side faces out.
NOTE: Do not operate pressure
washer without filter properly installed.

17- ENG A14687

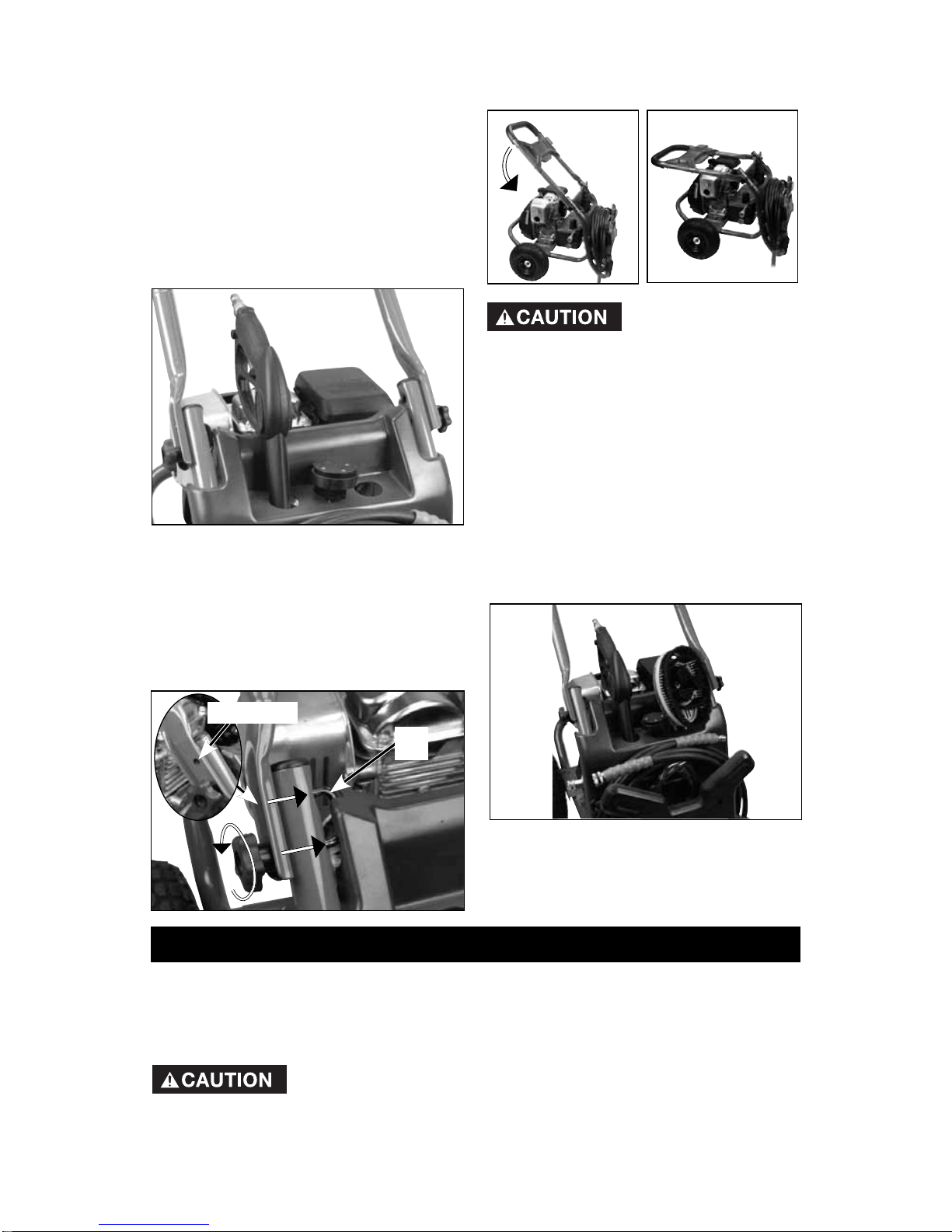

5. Fold the handle as shown.
Risk of personal
injury. Avoid
placing hands between handle and
frame when assembling to prevent
pinching.
PRESSURE WASHER
1. Drain all water from high pressure
hose and disconnect from pump
outlet.
2. Drain all water from spray gun
and wand by holding spray gun
in a vertical position with nozzle
end pointing down and squeezing
trigger. Store in accessory storage
panel.
3. Store chemical hose so it is
protected from damage in storage
panel.
4. If space is needed, fold handles.
Loosen and push knobs inward
so the "J" bolts slide out of the
top holes of the handle.
"J"
Bolt
Top Hole
ACCESSORY STORAGE
PANEL
The accessories panel was designed
to hold several accessories that can
be purchased separately at the store
where this pressure washer was
purchased.
ACCESSORIES
Recommended accessories for use with your pressure washer are available
for purchase from your local retailer or authorized service center. If you need
assistance in locating any accessory for your tool, please call 1-800-888-2468 or
visit our website www.excellpressurewasher.com.
The use of any other accessory not recommended for
use with this tool could be hazardous. Use only EXCELL
branded accessories rated equal to or greater than the rating of the pressure
washer.

18- ENG
A14687
TROUBLE SHOOTING GUIDE
PROBLEM
Engine will
not start (see
Engine Manual
for further
engine
troubleshooting)
CAUSE CORRECTION
No fuel. Add Fuel.
Pressure builds up after two pulls
on the recoil starter or after initial
use.
Squeeze gun trigger to relieve
pressure.
Spark plug wire not attached. Attach spark plug wire.
Choke lever in the "Choke"
position on a "hot" engine or an
engine that has been exposed to
thermal heat for a long period of
time.
Move choke to the "No Choke"
position.
Choke lever in the "No Choke"
position. Move choke to the "Choke"
position.
Engine ON/OFF switch in OFF
position. Place engine ON/OFF switch in
ON position.
No or low
pressure
(initial use)
Spray wand not in high pressure. See How to Use Spray Wand
instructions in the Operation
Section.
Low water supply. Water supply must be at least
5 GPM @ 20 PSI.
Leak at high pressure hose fitting. Repair leak. Apply sealant tape
if necessary.
Nozzle obstructed. See Nozzle Cleaning instructions
in the Maintenance section.
Water filter screen clogged. Remove and clean filter.
Air in hose. Turn off the engine, then the
water source. Disconnect the
water source from the pump inlet
and turn the water source on
to remove all air from the hose.
When there is a steady stream
of water present, turn water
source off. Re-connect water
source to pump inlet and turn on
water source. Squeeze trigger to
remove remaining air
High pressure hose is too long. Use high pressure hose under
100 feet.
Choke lever in the “Choke” position. Move choke to the “No Choke”
position.
REPAIRS
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment
should be performed by an Authorized Warranty Service Center. Always use identical
replacement parts. For the location of the nearest Authorized Warranty Service
Center call 1-800-888-2468 or visit our website www.excellpressurewasher.com.

19- ENG A14687
Water
leaking at
pump
Water leaking
at gun/
spray wand
connection
No or low
pressure
(after period
of normal
use)
Spray wand not in low pressure. See How to Use Spray Wand
paragraph in the Operation
Section.
Chemical screen not in cleaning
solution.
Clean filter.
Chemical too thick. Dilute chemical. Chemical should
be the same consistency as water.
Pressure hose is too long Lengthen water supply hose
instead of high pressure hose.
Chemical build up in chemical
injector. Have parts cleaned or replaced
by AWSC.
Worn seal or packing Have replaced by AWSC.
Worn or obstructed valves. Have replaced by AWSC.
Worn unloader piston. Have replaced by AWSC.
Check and replace.
Loose hose connection.
Loose connections.
Tighten.
Piston packings worn. Have replaced by AWSC.
Worn or broken o-rings. Have replaced by AWSC.
Pump head or tubes damaged
from freezing. Have replaced by AWSC.
Will not draw
chemicals
Make sure end of chemical hose
is fully submerged into cleaning
solution.
Chemical filter clogged.
Worn or broken o-ring.
Tighten.
Nozzle obstructed. See Nozzle Cleaning paragraph in
the Maintenance section for the
correct procedure.
Pump
Pulsates
CAUSE
PROBLEM CORRECTION
AWSC = Authorized Warranty Service Center

20- ENG
A14687
LIMITED WARRANTY
ONE YEAR LIMITED WARRANTY ON PRODUCT COMPONENTS EXCLUDING IC2 PUMP
Black & Decker (U.S.) Inc. warrants to the original purchaser that the frame, wheels,
gun, hose, wand, spray nozzle(s) and other components (excluding the IC2 pump) of the
Excell pressure washers covered under this warranty are free from defects in material and
workmanship for one year from the date of purchase.
TWO YEAR LIMITED WARRANTY ON IC2 PUMP
Black & Decker warrants to the original purchaser that the IC2 pump of the Excell pressure
washers covered under this warranty is free from defects in material and workmanship
for two years from the date of purchase. The two year limited warranty applies to the IC2
pump only.
Black & Decker will repair or replace, at Black & Decker option, products or components
which have failed within the above warranty periods. Service will be scheduled according
to the normal work flow and business hours at the service center location, and the
availability of replacement parts. All decisions of Black & Decker with regard to this limited
warranty shall be final.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
RESPONSIBILITY OF ORIGINAL PURCHASER (Initial User):
• To process a warranty claim on your Excell pressure washer, return it to the place of
purchase.
• Retain original cash register sales receipt as proof of purchase for warranty work.
• Use reasonable care in the operation and maintenance of the product as described in
the Owners Manual(s).
THIS WARRANTY DOES NOT COVER:
• Merchandise sold as reconditioned, used as rental equipment, or floor or display
models.
• Merchandise that has become damaged or inoperative because of ordinary wear,
misuse, cold, heat, rain, excessive humidity, freeze damage, use of improper
chemicals, negligence, accident, failure to operate the product in accordance with the
instructions provided in the Owners Manual(s) supplied with the product, improper
maintenance, the use of accessories or attachments not recommended by Black &
Decker, or unauthorized repair or alterations.
• Repair and transportation costs of merchandise determined not to be defective.
• Costs associated with assembly, required oil, adjustments or other installation and
start-up costs.
• Expendable parts or accessories supplied with the product which are expected to
become inoperative or unusable after a reasonable period of use, including but not
limited to springs, nozzles, o-rings, washers, and similar accessories.
• Merchandise sold by Black & Decker which has been manufactured by and identified
as the product of another company, such as gasoline engines. The product
manufacturer’s warranty, if any, will apply.
• ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR
EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION
OF THE PRODUCT IS NOT COVERED BY THIS WARRANTY. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
• IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM
THE DATE OF ORIGINAL PURCHASE. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitations may not apply to you.
