Explore Scientific PMC-Eight iEXOS 100 User manual

iEXOS 100
InstructIOn Manual
Art. No. 0456100

2
WELCOME TO THE WORLD
OF EXPLORATION.

3
Contents
This documentation is valid for the products with the article numbers listed below:
0456100
Manual version: v0219
Manual description: Manual_0456100_iEXOS-100-PMC-Eight_en_EXPSC_v022019a
With any service inquiries, please state these information.
DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere Informationen
zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu finden.
GB
Visit our website via the following QR Code or web link to find further information on this product or
the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le lien
correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over dit
product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma determinado?
Entonces visite nuestra página web utilizando el siguiente enlace (código QR) para ver las versioneAs
disponibles.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specifica? Venga a
visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni disponibili.
www.explorescientific.de/pmc-eight
Table of Contents
MAIN FEATURES
THANK YOU
GUARANTEE
QUICK START
iEXOS 100 MOUNT ASSEMBLY
CONNECT THE PMCEIGHT
POLAR ALIGNMENT PROCESS
EXPLORESTARS APP
ASCOM
PROGRAMMERS
SHARE THE SKY
SERVICE
PROPER CARE
4
5
6
7
8
14
16
18
21
24
24
25
26

4
The night sky is full of possibilities, and
so is the PMC-Eight. In an unprecedented
move, we have made the coding that
powers our precision motion control
system open source. By putting the
building blocks into the hands of
programmers, we believe we will unlock
the full potential of the
PMC-Eight OpenGOTO and discover
unexplored uses. We don’t want to set
limits and force users to conform to our
vision. Instead, we want to give you the
access you need to make this system
your own.
LIMITLESS
Although we offer our own operating
app, the PMC-Eight is all about providing
options – not only in what you view but in
how you get there. To meet the versatile
needs of our astronomy community, we
have made the PMC-Eight compatible
with the industry standard ASCOM
interface. Our specific driver allows you
to use the ASCOM-powered planetarium
software of your choosing to run the
PMC-Eight either wirelessly or through
a wired connection. Through ASCOM,
you can access a number of outstanding
resources including the American
Astronomical Society’s acclaimed
WorldWide Telescope.
VERSATILE
Si
The PMC-Eight has taken GOTO
technology to a whole new level by
utilizing a smart electronic design that
transcends the industry standard single
processor. The PMC-Eight has eight
CPUs that operate independently of one
another to focus on defined functions.
This delegation of tasks among the
processors results in a system that offers
superior responsiveness, efficiency
and reliability. This multiple processor
approach is a revolutionary one that pays
off with exceptional performance.
REVOLUTIONARY
Created specifically for the PMC-Eight,
the ExploreStars app streamlines the
observing experience and serves as an
ideal introduction to the many benefits
of our OpenGOTO system. ExploreStars
is all-encompassing and has an intuitive
nature that makes it simple and quick
to align your telescope, navigate the
stars and learn specifics about tens
of thousands of celestial objects. This
dynamic app is fueled by a database that
is routinely updated to ensure it remains
a relevant resource.
INTUITIVE
MAIN FEATURES

5
www.explorescientific.com/pmc-eight
We would like to thank you for choosing Explore Scientific®’s PMC-Eight™Open
GOTO system to be your personal guide to the universe.
Powered by open source software, this revolutionary precision motion control system was engineered
to meet the diverse needs of the astronomy community. For beginners, the intuitive design works
hand-in-hand with our ExploreStars app to make it easy to smoothly navigate and learn about the
night sky. For more advanced users and programmers, the open source coding allows for a fully
customizable experience.
We are thrilled to share the PMC-Eight and its open source code with you, and we want to ensure that
you have the experience you deserve. Please do not hesitate to contact our Customer Service Center
with your questions or suggestions at www.explorescientific.de
Clear skies,
Your Explore Scientific Service Team
THANK YOU

6GUARANTEE
The regular guarantee period is 2 years and begins on the day of purchase. Please retain
the sales receipt (till receipt or purchase/invoice) carefully as proof of purchase.
During the guarantee period defective devices will be accepted on the spot by your specialist
retailer or you can send them back directly. Shipment must in all events be at your expense.
If the defect is covered by guarantee the postage costs will be reimbursed to you. You will
then receive a new or repaired device back free of charge. We are responsible for deciding
whether the device will be repaired or exchanged.
The guarantee shall expire if defects that have developed on the purchase item can be
traced back to the following circumstances:
• inappropriate use
• negligent or intentional damage due to personal negligence and/or unauthorised third
parties repairs or alteration undertaken by a third party without our instructions
• changes or damage resulting from force majeure (storm, hail, fire, power failure, lightning
strike, flood, snow damage, frost action and other influences by animals etc.)
The guarantee shall also expire if a damaged and/or illegible or incomplete proof or
purchase is presented.
The rights resulting from the guarantee exist independently of the statutory guarantee
entitlements.
The warrantor is BRESSER GmbH, Gutenbergstr. 2, 46414 Rhede, Germany
After the expiry of the guarantee period you also have the option of sending a defective
device back for repair. Any repairs needed after the expiry of the guarantee period are
chargeable. We will send you an estimate of the cost before undertaking the repair.
In the event of a product return please note the following:
Please ensure that the article is packed carefully and use the original packaging as far as
possible. Complete the returns form below and include this in the parcel with your proof of
purchase. We are unable to accept non-prepaid parcels.
Guarantee
Returns Form
Surname, First name.............................................................................................................
Street, House no. ...................................................................................................................
Postcode, City ........................................................................................................................
Telephone ..............................................................................................................................
e-mail.....................................................................................................................................
Product name ........................................................................................................................
Transaction/RMA no.* ...........................................................................................................
Date of purchase....................................................................................................................
Short description of defect
................................................................................................................................................
................................................................................................................................................
Signature................................................................................................................................


7
iEXOS 100 WITH PMC-Eight™System Quick Start Guide
Although the iEXOS 100 with PMC-Eight is a complex precision motion control system,
it is simple to set up.
Contents
• iEXOS 100 Mount (With built-in PMC-Eight system)
• Tripod
• Battery compartment with bracket
• RJ-12 WiFi Channel Switch Dongle
• One motor cable
• Two 1.0 kg counterweights
• Set-up manuals
Step 1: Choose Your Platform
Before using the PMC-Eight, you will need to select and load your operating program of choice to your
device. Our intuitive ExploreStars app can be downloaded for free from the Microsoft Store or Google
Play for Android devices and the App Store for iOS devices. The iOS install requires no further action.
For Windows and Android, once installed, you will simply download the object database from
www.explorestars.com and you are ready to go. For those that already have a favorite third-party
planetarium program, the PMC-Eight has an ASCOM driver.
For more information on the ExploreStars app or the ASCOM driver, please see the individual
manuals. For video tutorials on installing the app and/or driver,
visit
www.explorescientific.com/pmc-eight/
Step 2: Assemble the iEXOS 100 Mount and connect the PMC-Eight
Assemble the tripod and insert the mount into the top of the central column. Secure the mount to
the tripod by twisting the tension knob until snug. After assembling the mount, attach and balance
your telescope. Once that is completed, attach the motor cable to the appropriate ports. Install 8 C
batteries into the power pack and insert the pack into its holder on the tripod leg. Attach the cord
running from the power supply into the appropriate PMC-Eight port. Connect to the PMC-Eight
wirelessly through your device. For more information on connecting the PMC-Eight, please see the
full manual. For a video tutorial on the set-up process, visit
www.explorescientific.com/pmc-eight/.
Additional power options are available through Exlore Scientific.
Step 3: Align Your Telescope
Before using the PMC-Eight, you will need to align your telescope. You can do this using a traditional
physical, manual alignment process or by using the virtual 2, or 3-star alignment procedure in the
ExploreStars app. It is important to remember that the better your physical alignment is, the better
the system will perform. For a video tutorial on the alignment process,
visit
www.explorescientific.com/pmc-eight/
Step 4: Choose an object and start exploring!
Additional Support
If you have questions about operating the PMC-Eight, please do not hesitate to contact our Customer
Service Center for an online chat at www.explorescientificusa.com or by calling
[phone]. For Frequently Asked Questions about the PMC-Eight, visit the Knowledge Base page
at www.explorescientific.com/knowledgebase and open the PMC-Eight Questions folder.
QUICK START
Google Play and the Google Play logo are trademarks of Google LLC.Apple and the Apple logo are trademarks of Apple Inc., registered in
the U.S. and other countries. App Store is a service mark of Apple Inc.,
registered in the U.S. and other countries.

8
iEXOS 100 Mount Set Up
1)
3)
5)
4)
6)
2b)
2c)
2a)
iEXOS 100 MOUNT ASSEMBLY

9
10)
7) 8) 9)
iEXOS 100 MOUNT ASSEMBLY

10 iEXOS 100 MOUNT ASSEMBLY
Checking The Parts
Remove all the parts from their respective boxes and place them on a flat, clear work area. A large
floor space is ideal. When setting up your iEXOS 100 mount you must start with the tripod and work
from there. To insure proper assembly, each task must be performed in the specific order as defined
by these instructions.
Assembling The Tripod
The tripod comes fully assembled. Stand the tripod up and spread the legs until they are evenly
distributed. To raise or lower the tripod legs, unlock the large knobs at the bottom of each leg and lift
the interior leg to the desired height and re-lock the large knobs until snug. It is recommended that
you set the tripod height to the desired level you plan to use the mount and scope together. It is also
recommended to level the tripod before adding the mount. When the tripod is assembled, lock the tray
in place for added stability and easy accessory storage.
Attaching The Equatorial Mount
After the tripod is set up, you are ready to attach the equatorial mount. This is the platform to which
the telescope attaches and allows you to direct it anywhere in the sky. The mount is also adjustable so
you can orient the axis of rotation to make it parallel with the Earth’s axis of rotation (see the section
on Physical Polar Alignment). To attach the equatorial mount to the tripod:
1. Insert the base of the equatorial mount into the top of the central column.
2. Tighten the knob to hold the equatorial mount in place.
3. Level the tripod with the equatorial mount installed using the bubble levels on the base of the
equatorial head.

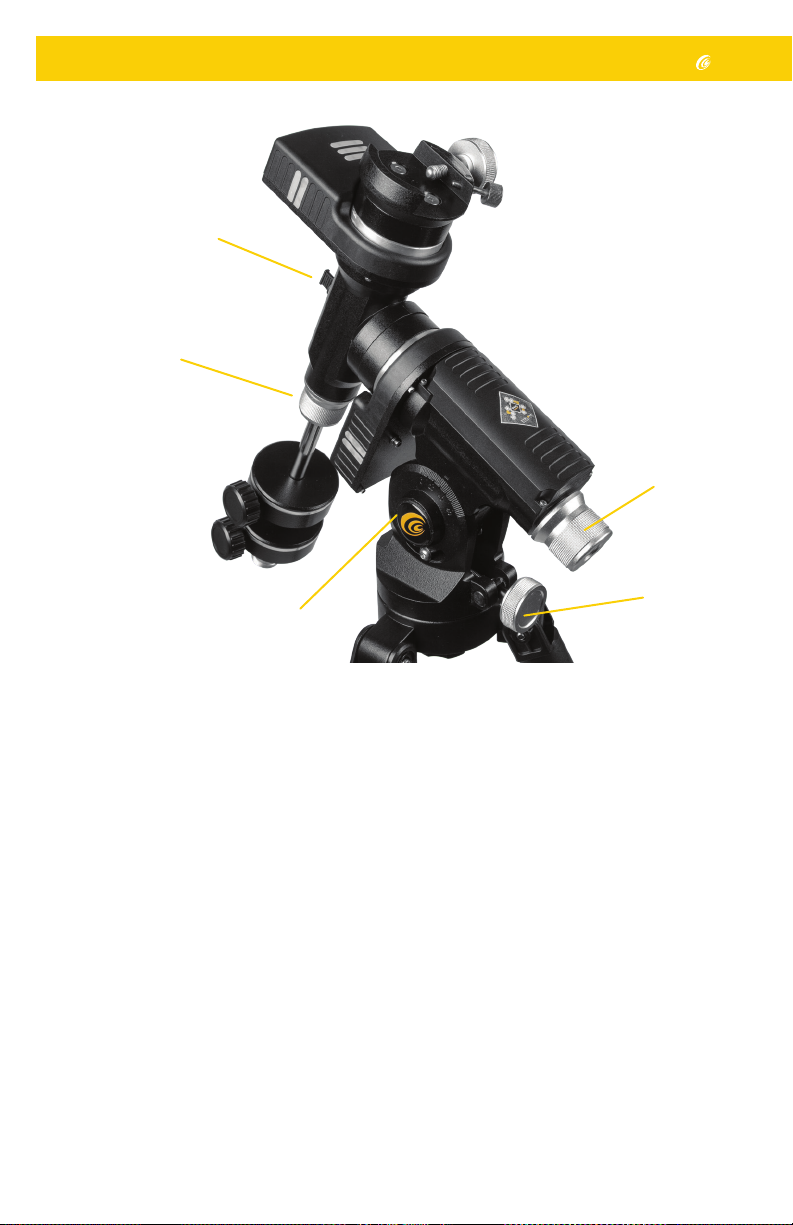

Parts List
1. iEXOS 100 Mount
(With built-in PMC-Eight system)
2. 8 C Battery DC power supply with cable
(batteries not included)
3. Battery pack mounting bracket
4. ST4 (RJ-12) WiFi Channel Switch Dongle
5. DB9 to RJ-25 DEC Cable
6. Two 2.2 pound counterweights
7. Glow in the dark indicators
6
7
1
54
3
2
