Expobar PULSE 65 User manual

USER MANUAL
R
UM_EN
MB27A
05/2018
Original Instructions

2
R
CONTENT
NOTIFICATIONS ....................................................................3
Introduction ...................................................................................................4
Warnings ........................................................................................................4
Precautions ...................................................................................................5
Intended use .................................................................................................6
OVERVIEW OF COMPONENTS ............................................8
DIMENSION SKETCH
INSTALLATION AND START-UP .............................................9
Positioning .....................................................................................................9
Electrical connection ...................................................................................9
Starting the grinder .....................................................................................10
OPERATION ........................................................................11
Grinder fneness adjustment ..................................................................... 11
Spout orientation adjustment dispensing ................................................11
Filter holder fork height adjustment ..........................................................12
Maintenance of the grinder ...................................................................... 12
CLEANING AND CARE ......................................................12
Daily cleaning - clean the dispensing spout ..........................................13
Weekly cleaning - bean hopper ..............................................................13
Weekly cleaning - clean with Grindz ....................................................... 14
PROGRAMMING ................................................................15
Grinder setting ............................................................................................15
Appliance switch-on .................................................................................. 15
Dose dispensing and setting (display) ..................................................... 15
“Manual Mode” dispensing mode activation ......................................... 16
Resetting dose counters ............................................................................16
Function block ............................................................................................ 16
Enter service menu .................................................................................... 16

3
R
NOTIFICATIONS
Important:
Alerts against unsafe practices. Observe to ensure drink quality, machine performance, food safety, to prevent
minor personal injury or damage to the machine.
WARNING!
Indicates a potentially hazardous situation which, if not avoided, could result in scalding, serious injury and
even death.
DANGER!
Indicates a imminently hazardous situation which, if not avoided, will result in serious injury
and even death.
Note:
Gives additional information which may be helpful during the cleaning procedure or operation of the machine.
i

4
R
Read the user manual before using the
machine.
This guide contains important
instructions for using the grinder
correctly and safely.
Always keep this manual close at hand
for future reference.
This guide must be looked after with
care for the entire working life of the
coffee grinder.
This guide refect the current state of
the grinder technology and shall not
be considered obsolete solely because
update at a later date on the basis of
acquired experience. The manufacturer
reservestherighttomakemodifcations
to this manual with no obligation to
update previous version (except in
exceptional cases).
Never touch the machine with damp or
wet hands.
Never use the machine when barefoot.
Never attempt to unplug the machine by
pulling the power cord or the machine
itself.
Do not use the machine outdoors so it
can be exposed to weather (rain, snow,
frost). It will cause material damage to
the machine.
The appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
the use of the appliance by a person
responsible for their safety.
Always use the appliance on a fat,
steady surface that is able to support its
weight.
Always unplug the machine from the
power supply before performing any
cleaning or maintenance operations.
Do not use water jets or non-suitable
detergents for cleaning.
In the case of machine breakdown or
malfunction switch the machine off and
do not tamper with it.
For repairs contact an authorized
service center and request the use of
original spare parts.
Not observing of the above precautions
may make the machine unsafe for future
use.
Do not leave the machine switched
on when it is not in use. Unplug the
machine when not in use.
Do not obstruct the ventilation and/
or heat dissipation openings and/or
slits nor introduce water or any other
liquids into same.
Introduction
Warnings
Thank you for choosing the EXPOBAR Pulse
We hope you enjoy it!
NOTIFICATIONS

5
R
Always handle the machine with care to
avoid the risk of machine failure.
The packing materials (carton,
cellophane, staples, polystyrene, etc..)
can cut, wound or create hazards if used
improperly or handled carelessly. Store
such materials out of reach of children
and persons with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge.
This symbol on the appliance
or package means that
the appliance must not
be considered as normal
household refuse. It must
be handed over to an appropriate
collection centre for recycling of
electric and electronic appliances. Make
sure that this appliance is disposed of
correctly and you will be making your
contribution to the prevention of
negative health effects and harm to the
environment. Recycling materials helps
to preserve our natural resources.
For more information about how to
recycle this product, you can contact
your local council offce, local refuse
disposal service or the retailer from
whom you purchased the appliance.
Before carrying out any installation or
adjustment work, make sure to read and
thoroughly understand the warnings in
this manual.
The company cannot be held liable
for any damage to people or property
resulting from failure to respect
the instructions concerning safety,
installation and maintenance enclosed
in this manual.
If the power cord of this appliance is
damaged, switch off the appliance and
contact a professional and qualifed
technician for having it replaced.
Should you decide to no longer use
this appliance, we recommend that you
make it inoperative by unpluging the
appliance from the mains socket and cut
off the power cord.
All defects and/or abnormal machine
behaviour shall be reported immediately
to an authorized installation and/or
maintenance technician.
Precautions
NOTIFICATIONS
Never insert spoons, forks or other
utensils into the pouring lip, or into
the hopper for any reason whatsoever
while the appliance is operating.
Always switch off the appliance before
removing blockages from the pouring
lip.
Never immerse the machine, plug or
mains cable in water or another liquid.
. Should a foreign object stop the motor,
switch the machine off immediately and
contact an authorized service center.

6
R
This grinder dispenser has been
designed for professional use by trained
personnel.
The grinder/dispenser must be used
only for the application for which it was
designed; that is, grinding roasted coffee
beans. Any other use are considered
improper and potentially dangerous.
The manufacturer shall not be held
responsible for damages deriving from
improper or erroneous use of the
machine.
The appliance must not be used by
children or people with reduced,
physical, sensorial or mental abilities.
It must also never be used by people
without the necessary skills and
experience unless under supervision or
during training.
Do not allow children to play with this
equipment at any time.
The machine is not designed for use in
environmental conditions outside the
-5 °C to +40 °C range.
The user must respect the general safety
regulations in force in the country in
which the machine is installed and shall
be responsible for ensuring that periodic
machine maintenance is correctly done.
The persons installing and using the
machine and doing machine maintenance
shall inform the manufacturer of any
defects or damages due to wear that
might jeopardize the original safety
features of the machine.
The installer shall be responsible for
checking that the machine is installed
and operated in a suitable environmental
condition thus not creating health
or safety hazards for those using the
machine.
Before connecting the machine, check
that the electrical power supply
corresponds to the specifcations on
the data plate.
Should the machine plug not be
compatible with your socket, have the
plug replaced with a suitable type by
a qualifed technician, who should also
check that the power outlet is suitable
for the machine power requirements.
Avoid the use of multiple-plug adapters
and extension cords.
The ground wire must be connected;
the electrical system must meet the
standards set by local safety laws and
regulations.
The machine must be installed by
authorizedandqualifedpersonnel.
Check that the machine components
have suffered no damage during shipping.
In the case defects or abnormalities are
found, abort the installation and request
a replacement.
Intended use
NOTIFICATIONS

7
R
Note.
Machines with the “EL MOTOR WITH THERMAL PROTECTION” sign are equipped
with a device which protects the motor from overheating.
When this device is activated, do not attempt to operate the machine: isolate the machine
from the power supply and eliminate the cause of the problem before re-starting.
Note:
In order to identify the appliance, read the code after “MATRICOLA” (serial number) on the label
applied on this manual or on the appliance itself and select the corresponding voltage.
i
DESCRIPTION PULSE 65 PULSE 75
HIGH SPEED
Voltage (V) 220/240 110/120 220/240 110/120
Frequency (Hz) 50/60 60 50/60 60
Current (A) _ _ 4 _ _ 6,2
Power consumption (W) 350 900
Motor power (W)* 246 250
RPM 1290 1650 1400 1700
Productivity (g/s) 2,7/3,7 4,5/5,5
Weight when empty (kg) 11,5 11,5
(*) The value given is for the actual revolutions of the grinding discs.
i
Any responsibility deriving from
components manufactured and installed
on the machine shall be assumed by the
respective manufacturers; responsibility
attributable to the persons authorized
to use the machine shall be assumed by
the customer.
The machine is designed for 24-hour
intermittent service. The machine
components are designed and built to
ensure at least 1000 hours’ operation.
Good cleaning and maintenance also
contribute to ensure long machine life.
NOTIFICATIONS

8
R
OVERVIEW OF COMPONENTS
Hopper lid
Bean hopper
Grinding adjustment knob
Tab to open/close the hopper
LCD display
Increasing key
Decreasing key
1 coffee dose key
Manual grinding key
2 coffee doses key
Filter folder fork
Grinding start key
ON/OFF switch

9
R

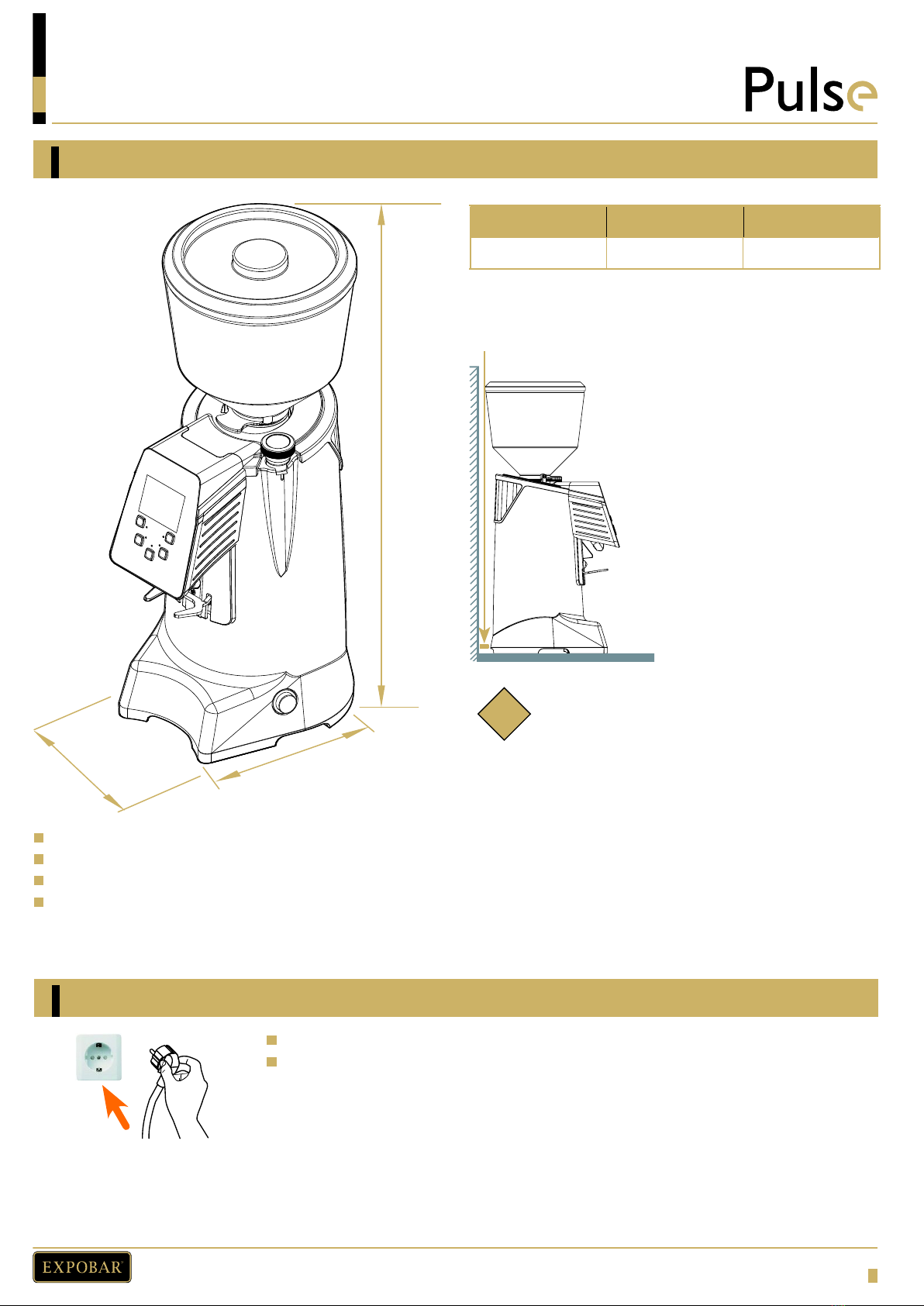

DIMENSION SKETCH
INSTALLATION AND START-UP
The minimum dimensions for the place of the machine must be 230 mm wide x 270 mm depth x 600 mm high.
Positionthemachineonafatandstablesurface, awayfromwaterandsourcesofheat.
It should be located in a dry environment, since excessive humidity will affect the machine negatively.
Donotcoverthemachinewithplasticflmorcloths.
Note:
Make sure that air is able to circulate behind
the machine (minimum 10 cm).
i
Positioning
L H Z
221 mm 554 mm 264 mm
H
Z
L
Only connect the machine to a grounded power supply.
Check the correct voltage and frequency on the technical data plate.
Electrical connection
MIN. 10 cm

10
R
Remove the cover from the hopper and fll it with
coffee beans.
Connect the machine to the mains socket and pull the
tab at the bottom of the hopper to open it.
Select single or double dose by pressing the
corresponding keys or .
After havingflled thehopper,switchONthegrinderonthe
ON/OFF switch.
〳
〴
〵
〶
Insert the hopper into its seat; positioning it so that
the hole lines up with the screw on the back part of
grinder.
Tighten the lock screw.
Starting the grinder
〱
〲
INSTALLATION AND START-UP
