ExpoDisplays MultiQuad MQX-F42 User manual

Page 1
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
10x20 MULTIQUAD ®
ASSEMBLY INSTRUCTIONS COVER SHEET
AMERICAN IMAGE DISPLAYS
10 x 20 Custom MultiQuad®
R
ASSEMBLE EACH COMPONENT SEPARATELY
BUILD THE DESIRED LAYOUT
COVER YOUR MULTIQUAD LAYOUT WITH QUADS
WHEN ASSEMBLING
R
REMEMBER YOUR ABC’s...

TOP VIEW
120"
240"
60"
12"
60"
12"
36"
Job #: 73328
10x20 MULTIQUAD ®
Project Title
Page 2
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Sheet Title

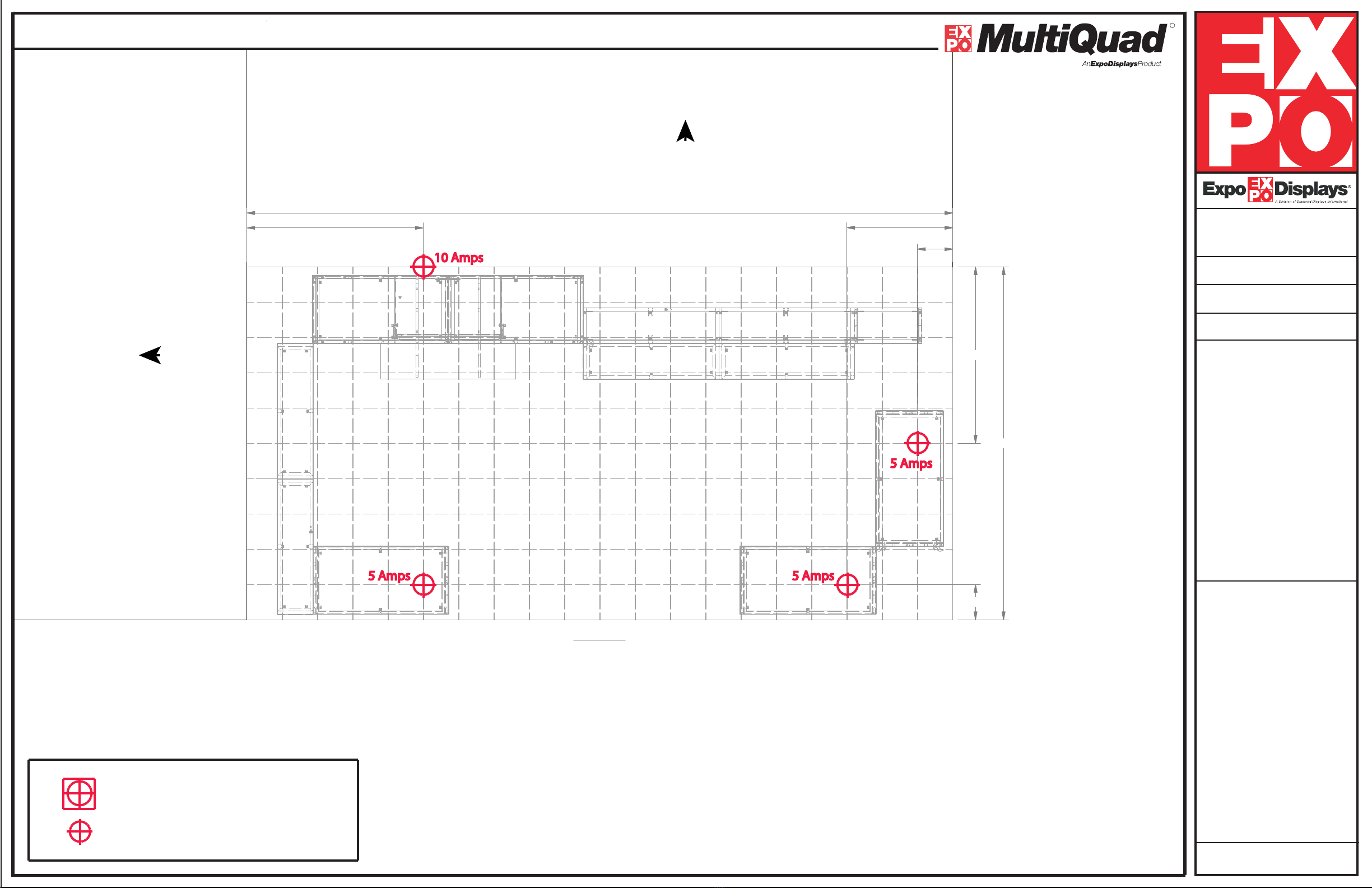

ASSEMBLY INSTRUCTIONS ELECTRICAL PLAN
R
FRONT OF DISPLAY
------ OPEN AISLE ------
------ OPEN AISLE ------
1 Square = 1’- 0”
MAIN ELECTRICAL DROP
ELECTRICAL OUTLET
BOOTH # __________
BOOTH #__________
SHOW:___________________
BOOTH:_____________
S3333
S3233
S3231
IBS 2018
ELECTRICAL PLAN
10 Amps
5 Amps 5 Amps
5 Amps

Job #: 73328
10x20 MULTIQUAD ®
Page 3
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
R
ASSEMBLY INSTRUCTIONS STANDARD PARTS
MAX FRAME
(SEE APPENDIX L) MAX FRAME
(SEE APPENDIX L)
MAX FRAME
(SEE APPENDIX BB)
STANDARD FRAME
(SEE APPENDIX D)
STANDARD FRAME
(SEE APPENDIX B)
STANDARD FRAME
(SEE APPENDIX B)
ASSEMBLE ALL FRAMES LISTED USING APPENDIX PAGES
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
MAX FRAME
(SEE APPENDIX W-3)
MAX FRAME
(SEE APPENDIX W-3)
MAX FRAME
(SEE APPENDIX W-3)

Job #: 73328
10x20 MULTIQUAD ®
Page 4
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
R

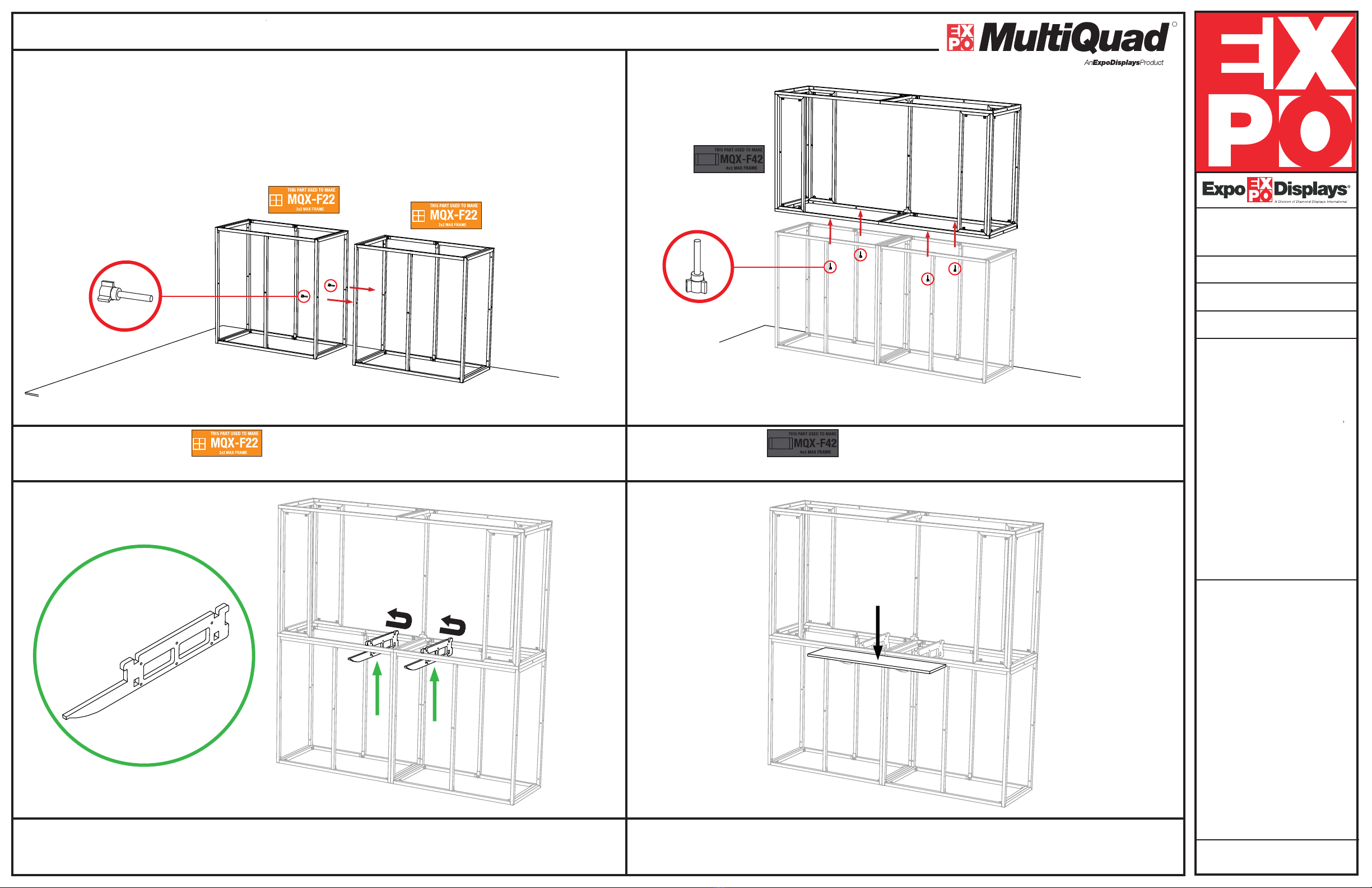

ASSEMBLY INSTRUCTIONS MAIN TV TOWER ASSEMBLY
MAIN TV TOWER ASSEMBLY
MAX FRAME
(SEE APPENDIX BB)
JOIN ( 2) --------- WITH RED THUMBSCREWS
IN DIRECTION SHOWN
ATTACH 12X46 COUNTERTOP TO
SHELF BRACKETS WITH VELCRO AS SHOWN
INSERT ( 2 ) SHELF BRACKETS INSIDE TOWER DIAGONALLY
THEN TURN AND ALIGN WITH FRONT AND BACK BARS AS SHOWN
JOIN --------- TO TOP OF JOINED FRAMES
WITH RED THUMBSCREWS IN DIRECTION SHOWN
MAX FRAME
(SEE APPENDIX L) MAX FRAME
(SEE APPENDIX L)

Job #: 73328
10x20 MULTIQUAD ®
Page 5
ASSEMBLY INSTRUCTIONS MAIN TV TOWER ASSEMBLY
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
R
ASSEMBLY INSTRUCTIONS MEDIA MOUNT & STANDARD WALL ASSEMBLY
MEDIA MOUNT & STANDARD WALL ASSEMBLY
STANDARD FRAME
(SEE APPENDIX D)
STANDARD FRAME
(SEE APPENDIX B)
STANDARD FRAME
(SEE APPENDIX B)
ASSEMBLE MEDIA MOUNT INSIDE ---------
( SEE APPENDIX J-7 )
HANG 55” TV ON MEDIA MOUNT
WITH ATTACHED HARDWARE
JOIN LISTED FRAMES WITH
RED THUMBSCREWS IN DIRECTION SHOWN

Job #: 73328
10x20 MULTIQUAD ®
Page 6
ASSEMBLY INSTRUCTIONS MEDIA MOUNT & STANDARD WALL ASSEMBLY
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
R
ASSEMBLY INSTRUCTIONS MAIN WALL & RETURN COUNTER ASSEMBLY
MAIN WALL & RETURN COUNTER ASSEMBLY
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
STANDARD FRAME
(SEE APPENDIX E)
JOIN ( 2) --------- WITH RED THUMBSCREWS IN DIRECTION SHOWN
THEN ATTACH JOINED FRAMES TO BACK WALL WITH ( 2 ) PRESSURE CLAMPS
JOIN ( 2) --------- WITH RED THUMBSCREWS IN DIRECTION SHOWN
THEN PLACE JOINED FRAMES AT CORNER OF TV TOWER WITH ( 2 ) PRESSURE CLAMPS

COUNTERTOP & RIGHT PODIUM ASSEMBLY
Job #: 73328
10x20 MULTIQUAD ®
Page 7
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
ASSEMBLY INSTRUCTIONS COUNTERTOP & RIGHT PODIUM ASSEMBLY
R
PLACE ( 4 ) 12X46 COUNTERTOPS
ON TOP OF --------- AS SHOWN
WITH ATTACHED REGISTER BLOCKS
PLACE ( 2 ) --------- JOINED AT EDGE
IN RIGHT CORNER OF FLOORSPACE
AS SHOWN
MAX FRAME
(SEE APPENDIX W-3)
MAX FRAME
(SEE APPENDIX W-3)

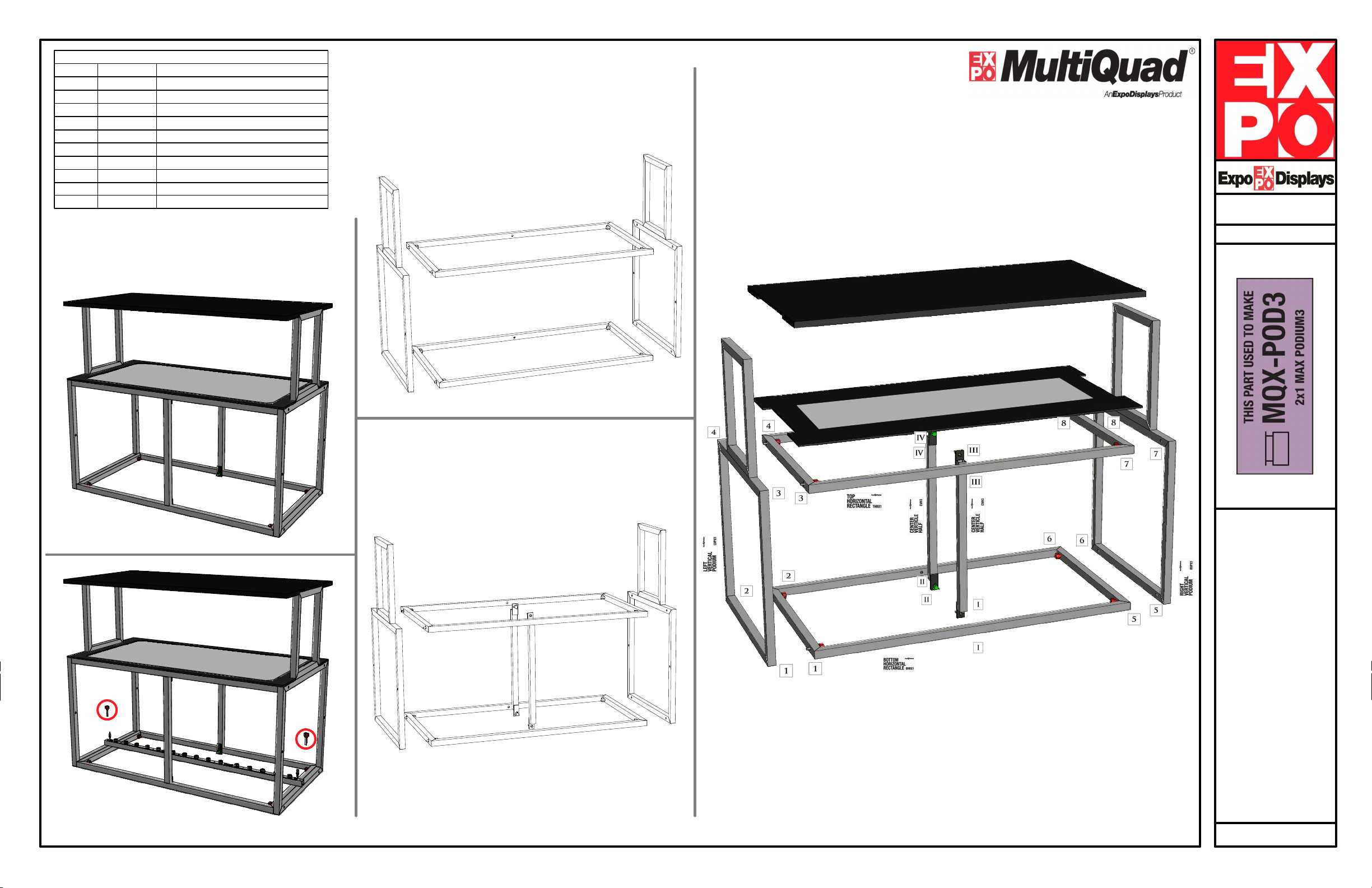

LEFT PODIUM ASSEMBLY & DESIRED LAYOUT
Job #: 73328
10x20 MULTIQUAD ®
Page 8
ASSEMBLY INSTRUCTIONS COUNTERTOP & RIGHT PODIUM ASSEMBLY
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
ASSEMBLY INSTRUCTIONS LEFT PODIUM ASSEMBLY & DESIRED LAYOUT
R
SEE GRAPHIC LAYOUT ON NEXT PAGE
TO ADD QUADS TO ASSEMBLED FRAMES
PLACE ---------
AGAINST RETURN
--------- AS SHOWN
MAX FRAME
(SEE APPENDIX W-3)

ELECTRICAL REQUIREMENTS
Job #: 73328
10x20 MULTIQUAD ®
Page 9
ASSEMBLY INSTRUCTIONS LEFT PODIUM ASSEMBLY & DESIRED LAYOUT
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
ASSEMBLY INSTRUCTIONS ELECTRICAL REQUIREMENTS
R
POWER ADAPTER CORD
POWER DROP
TV POWER CORD
EXTENSION CORD
POWER “SQUID”
CONNECT LIGHTBARS TO POWER DROP
CONNECT TV POWER TO POWER DROP

GRAPHIC LAYOUT
Job #: 73328
10x20 MULTIQUAD ®
Page 10
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Project Title
Sheet Title
ASSEMBLY INSTRUCTIONS GRAPHIC LAYOUT
R
TOP VIEW
1
2
3
4
5
36
37
31
32
33
34
35
MQ-F24
MQX-POD3 10
8
6
9
7
11
13
15
18 1917
16
20
14
12
MQ-F24
MQ-F22 MQ-F22
MQ-F14
MQX-POD3
MQX-POD3
MQ-F22MQ-F22
MQX-F42
MQX-F22 MQX-F22
24
26
29
25
21 22
30
27 28
23
38
240"
120"
39
40

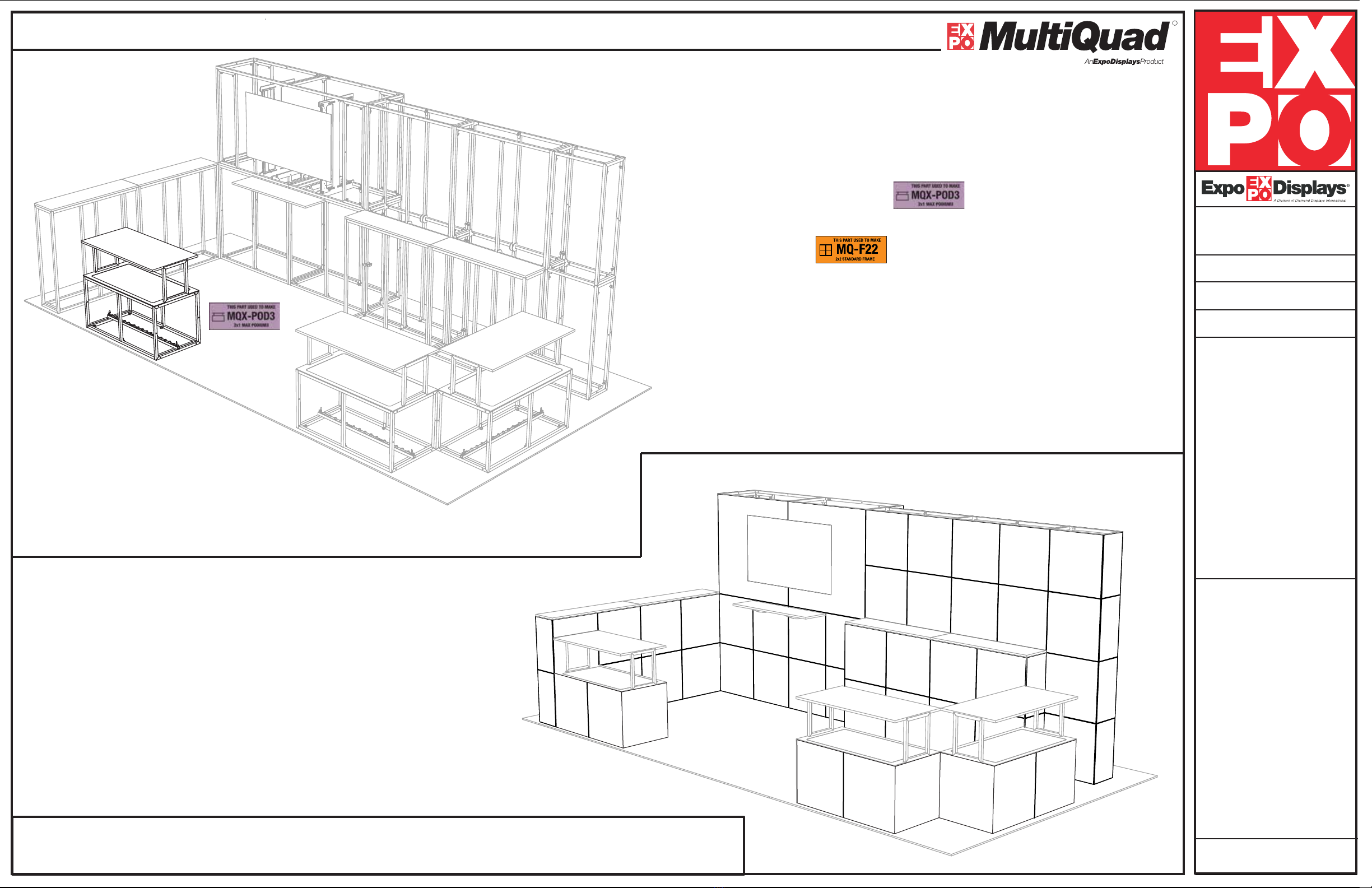

PERSPECTIVE VIEW

VIEW17
SCALE 1/2"=1'
A
C
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: AKHIII

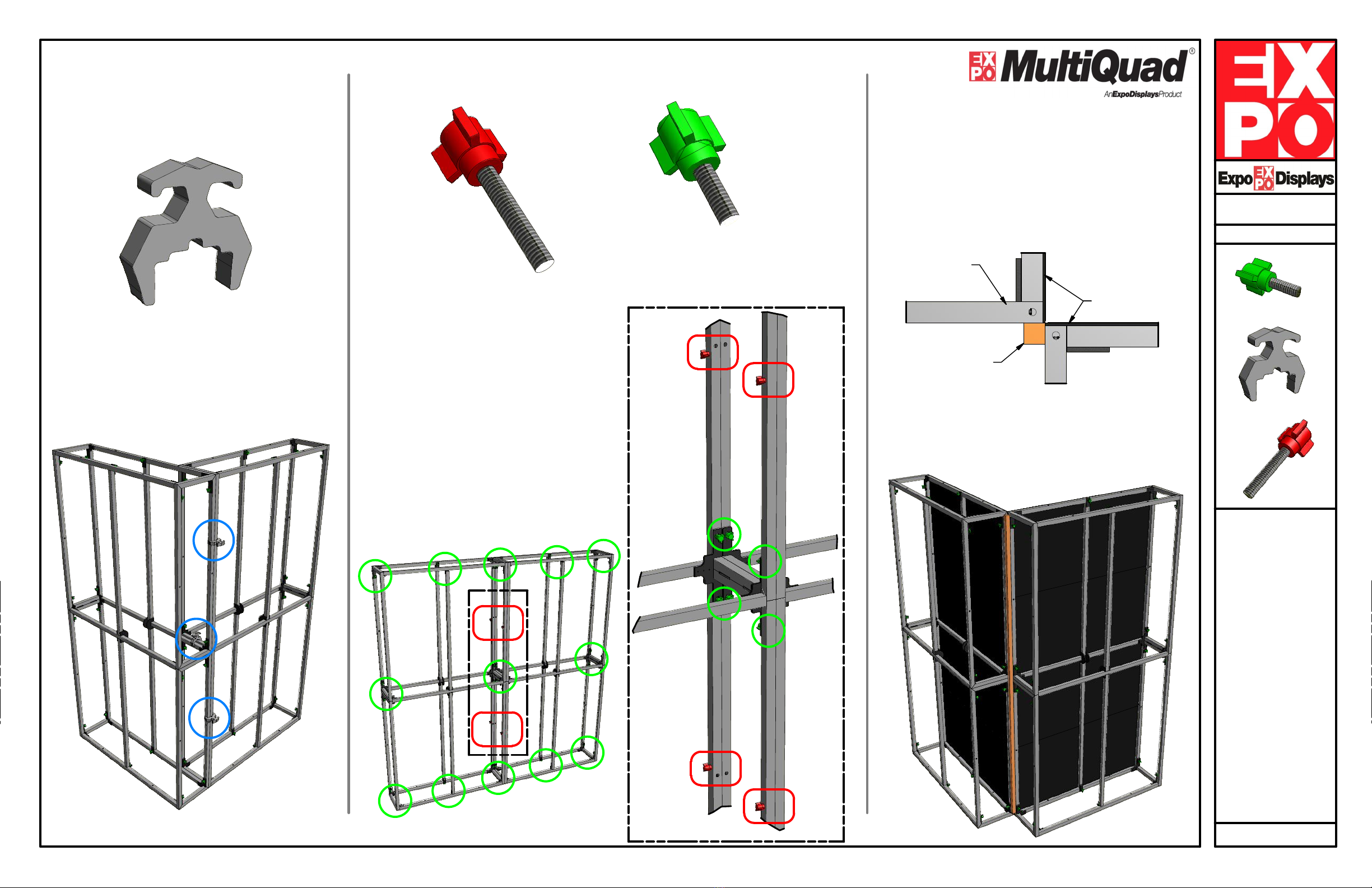

CONNECTORS&ALIGNMENTTOOLS
APPENDIX A
ASSEMBLY
INSTRUCTIONS
THUMB SCREW INSTRUCTION
MQ-TSR2 / MQ-TSG1
THE 2" RED THUMB SCREW IS
USED TO CONNECT MULTIQUAD
FRAMES TO OTHER MULTIQUAD
FRAMES. EACH FRAME HAS
RIVET NUT ON ONE SIDE AND A
HOLE ON THE OTHER TO
ALLOW FRAME TO FRAME
CONNECTION
THE 1" GREEN THUMB SCREWS
ARE USED WHEN ASSEMBLING
1x4 AND 2x4 FRAMES. SEE
APPENDIX PAGES
DUE TO THE RIVET NUTS, ALL
FRAMES HAVE A LEFT AND RIGHT
SIDE. VERIFY FRAME ORIENTATION
TO ALLOW FRAME TO FRAME
CONNECTION
FRAME CLAMP INSTRUCTION
MQ-CLMP
(NOT REQUIRED IN EVERY CONFIGURATION)
THE MQ-CLMP IS A FRICTION-FIT CONNECTOR /
ALIGNMENT TOOL THAT DOES NOT REQUIRE
TOOLS. THEY ARE TO BE USED IN ABNORMAL
MULTIQUAD FRAME CONFIGURATIONS OR AS
ADDITIONAL FRAME SECURITY IN SPECIAL
SITUATIONS
(NOT REQUIRED IN EVERY CONFIGURATION)
CORNER CONNECTOR INSTRUCTION
MQ-BTW
THE MQ-BTW CORNER ALIGNMENT TOOL IS
DESIGNED TO AID IN THE ALIGNMENT OF
FRAMES AS NEEDED IN SOME MULTIQUAD
CONFIGURATIONS.
AFTER TWO MULTIQUAD FRAMES ARE SET
"CORNER-TO-CORNER" THE MQ-BTW SIMPLY
ATTACHES TO THE EXISTING MAGNETS ON
THE FRAME
CORNER
CONNECTOR
MULTIQUAD
FRAME
QUAD

3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: AKHIII

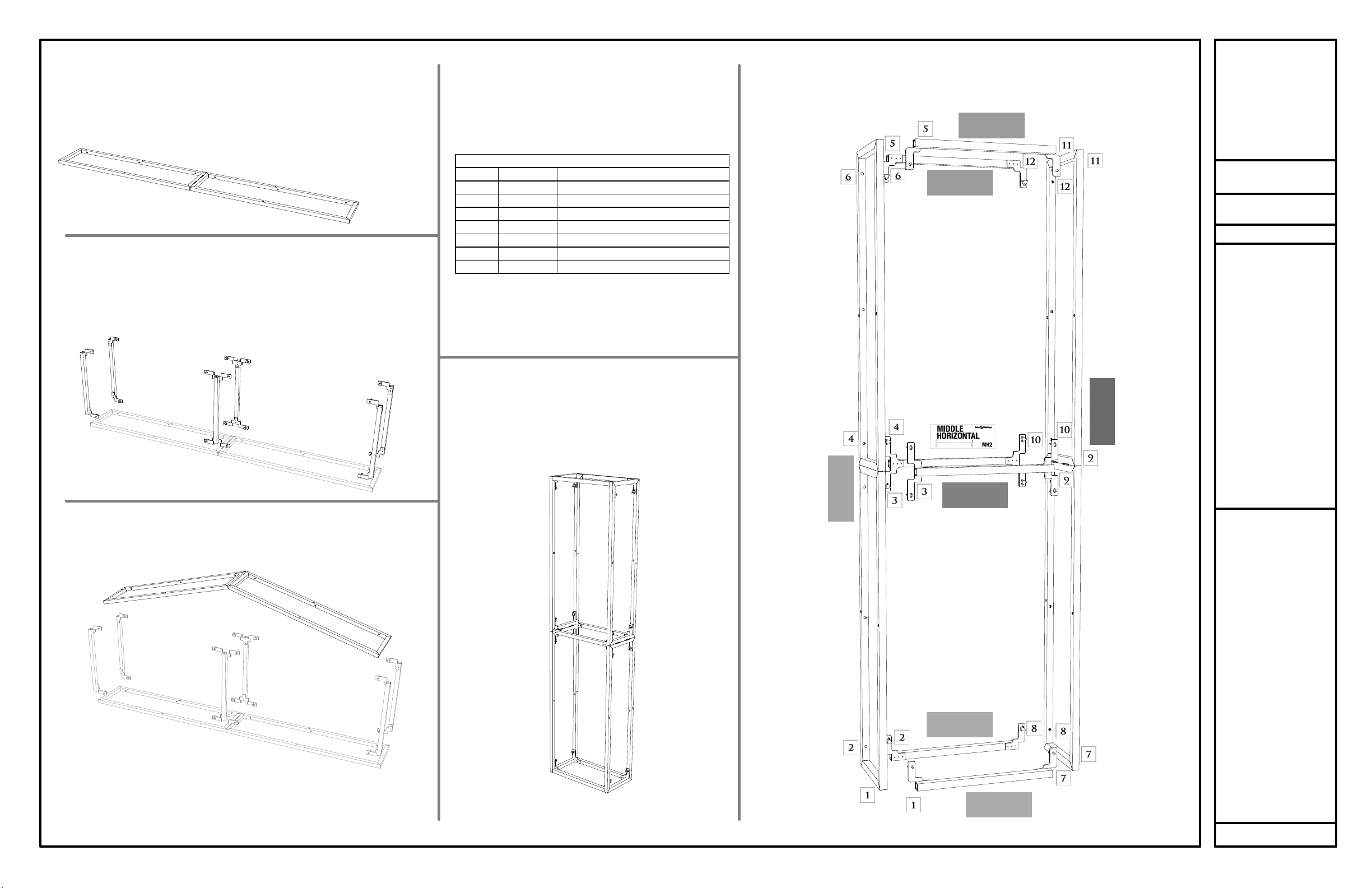

2x4STANDARDFRAME
MQ-F24
APPENDIX B
ASSEMBLY
INSTRUCTIONS
*MATCH NUMBERS TO CONSTRUCT
PARTS LIST
QNTY LABEL NAME
1 LVH1 LEFT VERTICAL HINGED
1 RVH1 RIGHT VERTICAL HINGED
2 BH1 BOTTOM HORIZONTAL
2 MH1 MIDDLE HORIZONTAL
2 TH1 TOP HORIZONTAL
2 CVH1 CENTER VERTICAL HINGED
20 GRN 1" GREEN THUMB SCREW
4 RED 2" RED THUMB SCREW
1st Step)
START WITH THE LEFT VERTICAL HINGED
(LVH1) ON THE GROUND
2nd Step)
ATTACH THE (2) TOP HORIZONTAL (TH1),
THE (2) MIDDLE HORIZONTAL (MH1), AND
THE (2) BOTTOM HORIZONTAL (BH1)
3rd Step)
ATTACH THE RIGHT HINGED SIDE (RVH1)
4th Step)
ATTACH THE (2) CENTER VERTICAL HINGED (CVH1)
AND STAND UP-RIGHT

APPENDIX BB
ASSEMBLY INSTRUCTIONS 4x2 MAX FRAME MQX- F42
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: SH
Sheet Title
1st Step)
CONNECT THE TWO (2) THRX2 AND THE TWO (2)
BHRX2 USING THE RED THUMB SCREWS.
2nd Step)
PLACE THE LVRX1 ON THE GROUND AND CONNECT
THE THRX2 AND BHRX2 FROM STEP 1 USING THE RED
THUMB SCREWS.
3rd Step)
ATTACH THE FOUR (4) THR1-BHR1 PIECES USING THE
RED THUMB SCREWS.
ATTACH ( 1 ) CENTER MH1 PIECE
USING ( 4 ) GREEN THUMBSCREWS
*MATCH NUMBERS TO CONSTRUCT.
ASSEMBLED VIEW
PARTS LIST:
#LABEL NAME
1
LEFT VERTICAL RECTANGLE
LVRX1
1 RIGHT VERTICAL RECTANGLE
RVRX1
1 BOTTOM HORIZONTAL RECT.
BHRX2
1 TOP HORIZONTAL RECTANGLE
THRX2
4 VERTICAL RECTANGLE
THR1
1 MIDDLE HORIZONTAL
MH1
24
4
2”THUMB SCREWS
1”THUMB SCREWS
RED
GREEN
1
2
5
5
4
4
6
6
12
12 10
10
7
7
98
8
9
11
11
2
1
3
3
MQX-F42
4x2 MAX FRAME

3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: AKHIII
1x4STANDARDFRAME
MQ-F14
APPENDIX D
ASSEMBLY
INSTRUCTIONS
*MATCH NUMBERS TO CONSTRUCT
PARTS LIST
QNTY LABEL NAME
1 LVH1 LEFT VERTICAL HINGED
1 RVH1 RIGHT VERTICAL HINGED
2 BH2 BOTTOM HORIZONTAL
2 MH2 MIDDLE HORIZONTAL
2 TH2 TOP HORIZONTAL
16 GRN 1" GREEN THUMB SCREW
4 RED 2" RED THUMB SCREW
1st Step)
START WITH THE LEFT VERTICAL HINGED
(LVH1) ON THE GROUND
2nd Step)
ATTACH THE (2) TOP HORIZONTAL (TH2),
THE (2) MIDDLE HORIZONTAL (MH2), AND
THE (2) BOTTOM HORIZONTAL (BH2)
3rd Step)
ATTACH THE RIGHT HINGED SIDE (RVH1)
4th Step)
STAND UP-RIGHT

3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: AKHIII

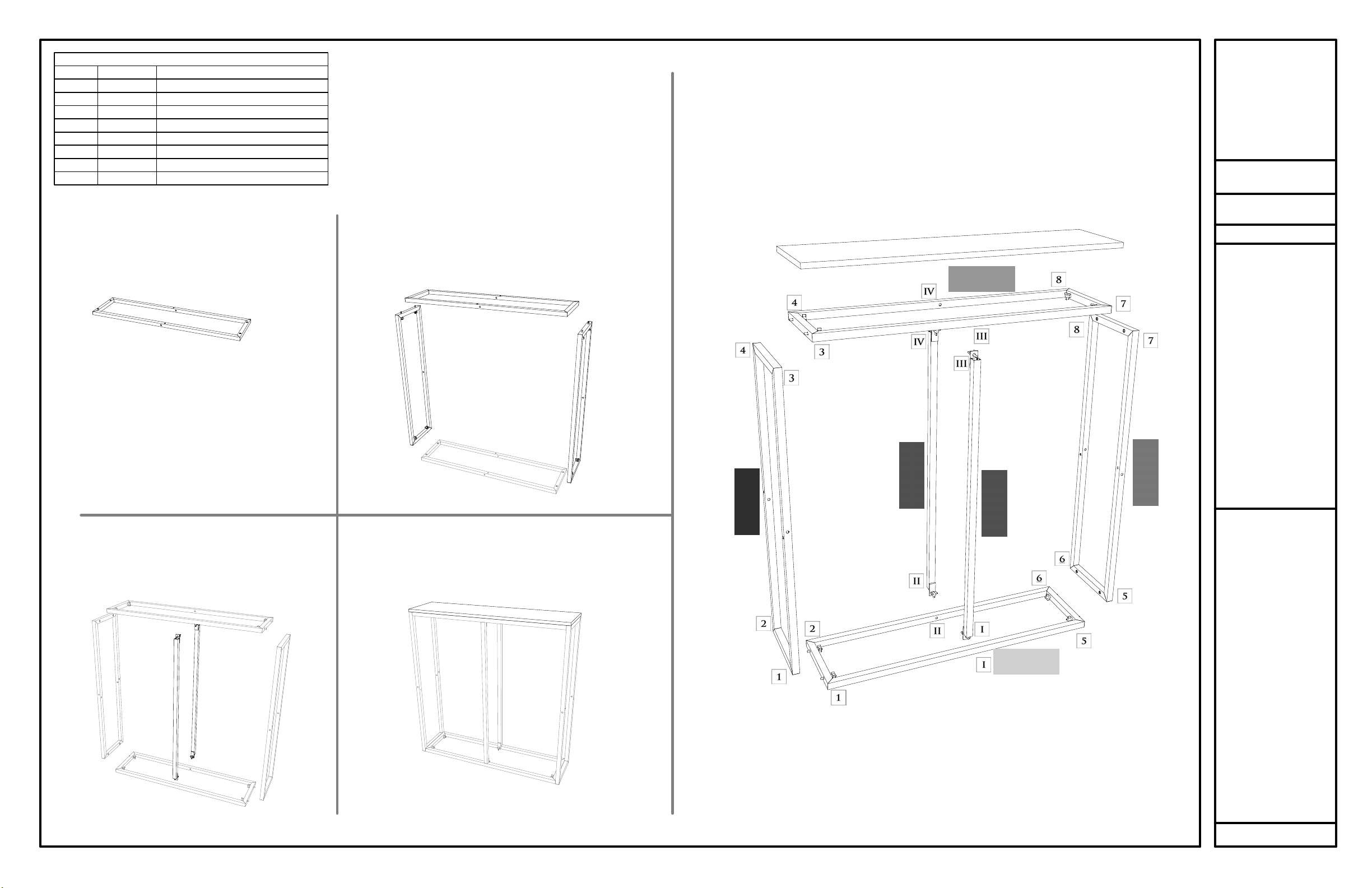

2x2STANDARDCOUNTER
MQ-F22C
APPENDIX E
ASSEMBLY
INSTRUCTIONS
*MATCH NUMBERS TO CONSTRUCT
PARTS LIST
QNTY LABEL NAME
1 LVR1 LEFT VERTICAL RECTANGLE
1 RVR1 RIGHT VERTICAL RECTANGLE
1 BHR1 BOTTOM HORIZONTAL RECT.
1 THR1 TOP HORIZONTAL RECT.
2 CVH2 CENTER VERTICAL HALF
20 GRN 1" GREEN THUMB SCREW
4 RED 2" RED THUMB SCREW
1 CT1246 MQ-F22C COUNTERTOP
1st Step)
START WITH THE LEFT VERTICAL
(LVR1) ON THE GROUND
2nd Step)
ATTACH THE TOP HORIZONTAL (THR1),
THE BOTTOM HORIZONTAL (BHR1), AND
THE RIGHT VERTICAL (RVR1)
3rd Step)
ATTACH THE (2) CENTER VERICAL (CVH2)
4th Step)
ATTACH THE COUNTERTOP

4th Step)
REPEAT THE PREVIOUS STEP
SECURING THE ARMS TO THE
FRAME.
APPENDIX J2
ASSEMBLY INSTRUCTIONS MQX-SH46 MULTIQUAD SHELF 46IN
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: NRIMSAND
Sheet Title
PARTS LIST:
#LABEL NAME
12X4 MAX FRAME
MQX-F24
2 46 INCH SHELF ASSEMBLY
MQX-SH46
1st Step)
STARTING WITH AN ASSEMBLED 2X4 MAX FRAME
(MQX-F24) ARRANGE (2 OR 4) SHELF ARMS
(MQXP-SA46) TO THE MIDSECTION OF THE FRAME.
ON THE GROUND.
2nd Step)
PLACE THE MQ MEDIA SHELF ARMS (MQXP-SA46)
ONTO THE FRAME CLAMPING DOWN ON THE FRONT
AND BACK OF THE FRAME.
3rd Step)
IN ORDER TO MAKE ROOM FOR THE 2ND
SET OF ARMS (MQXP-SA46) - PUSH THE
EXISTING ARMS TO THE SIDES OF THE MQ
FRAME (MQX-F24)
5th Step)
ADD THE SHELF (MQP-SCT46)
ONTO THE ARMS.
MQX-SH46
THIS PART USED TO MAKE
MQ-MAX SHELF 46”

APPENDIX J7
ASSEMBLY INSTRUCTIONS SINGLE - SIDED MAX MEDIA MOUNT
3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: JW
Sheet Title
PARTS LIST:
#LABEL NAME
1MAX MEDIA MOUNT
MQ-LM4QD
SINGLE SIDED
MEDIA MOUNT
DOUBLE SIDED
CONVERSION
KIT
MQ-LM4 Q MQ-LM4QC
1st Step)
THIS SET OF ASSEMBLY INSTRUCTIONS FOCUSES
ON THE SINGLE - SIDED MOUNT (MQ-LM4QD).
THE SAME PROCEDURES APPLY WHEN SETTING
UPTHE DOUBLE SIDED (MQ-LM4Q) AND THE
DOUBLE SIDED CONVERSION KIT (MQ-LM4QC)
2nd Step)
AN M10 HEX KEY WILL BE INCLUDED WITH
THE MOUNT THAT WILL BE USED TO FASTEN
THE EXTRUSIONS TOGETHER.
USE THE M10 HEX KEY TO TIGHTEN
THE LOCKS THAT ATTACH THE VESA TV
MOUNT TO THE ARMS.
ATTACH THE ASSEMBLED ARMS TO THE
“I” SHAPED CENTER VERTICAL SUPPORT
USING THE PROVIDED RED THUMBSCREWS
AND WING NUTS.
NOTE: EXPODISPLAY’S® WILL OFTEN ADD ARROWS ON
THE EXTRUSIONS TO INDICATE THE IDEAL LOCATION OF
THE MONITORS. SIMPLY CONNECT THE ARROWS.
M10 HEX KEY
4th Step)
LINE THE MONITOR’S CENTER WITHIN
THE CENTER OF THE FRAME. THEN
GENTLY HOOK THE UNIT’S BACK
ONTO THE FRAME
THE “I ” SHAPED CENTER HOOKS ON TO
THE B ACK OF THE M QXF24 F RAME.
THE CIRCLES
REPRESENT THE
EXTRUSION
LOCKS.
TIGHTEN THE
LOCKS USING
THE HEX KEY BY
TURNING IT
CLOCKWISE
UNTIL THE
MECHANISM
LOCKS INSIDE
THE CHANNEL .
5th Step)
CHECK TO MAKE SURE MONITOR BRACKET IS
LEVEL USING BUBBLE INDICATOR ON FRONT

3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: AKHIII
2x2MAXFRAME
MQX-F22
APPENDIX L
ASSEMBLY
INSTRUCTIONS
*MATCH NUMBERS TO CONSTRUCT
PARTS LIST
QNTY LABEL NAME
1 LVRX1 LEFT VERTICAL RECTANGLE
1 RVRX1 RIGHT VERTICAL RECTANGLE
1 BHRX1 BOTTOM HORIZONTAL RECT.
1 THRX1 TOP HORIZONTAL RECT.
2 CVH2 CENTER VERTICAL HALF
4 GRN 1" GREEN THUMB SCREW
8 RED 2" RED THUMB SCREW
1 CT2346 COUNTERTOP FOR MQX-F22C
ATTACH THE TOP HORIZONTAL (THR1),
THE BOTTOM HORIZONTAL (BHRX1), AND
THE OTHER RIGHT VERTICAL (RVRX1)
2nd Step)
4th Step)
ATTACH THE COUNTERTOP IF NEEDED
ROTATE AND ATTACH THE (2) CENTER
VERICAL (CVH2)
3rd Step)
START WITH THE LEFT VERTICAL
(LVRX1) ON THE GROUND
1st Step)

3401 Mary Taylor Road
Birmingham, Alabama 35235
[phone]
Drawn By: JW
2x1 MAX PODIUM 3
MQX-POD3
APPENDIX W3
ASSEMBLY
INSTRUCTIONS
*MATCH NUMBERS TO CONSTRUCT
PARTS LIST
QNTY LABEL NAME
1 LVPX1 LEFT VERTICAL RECTANGLE
1 RVPX1 RIGHT VERTICAL RECTANGLE
1 BHRX1 BOTTOM HORIZONTAL RECT.
1 THRX1 TOP HORIZONTAL RECT.
2 CVH3 CENTER VERTICAL BAR
1 SSPODX3 SHELF
1
1
CTPODX2 PODIUM COUNTER TOP
10 RED 2" RED THUMB SCREW
4 G
ELB
REEN 1
46” EXPOLIGHT BAR
" GREEN THUMB SCREW
1st Step)
START WITH THE BOTTOM HORIZONTAL
(BHRX1) ON THE GROUND. ATTACH THE
LEFT VERTICAL (LVPX1), AND THE RIGHT
VERTICAL (RVPX1). THEN ATTACH THE
TOP HORIZONTAL (THRX1)
2nd Step)
CONNECT (2) CENTER VERTICAL BARS
(CVH3) TO CENTERS OF THRX1 AND
BHRX1 FRAMES. ATTACH THE PODIUM
COUNTERTOP AND THE PODIUM SHELF
COUNTER TOP
UPLIT
SHELF
Uplight Shelf
USE UPLIGHT SHELF AND PLEXI FOR THIS
APPLICATION. INSTALL (1) 46” EXPOLIGHT BAR
WITH (2) RED THUMBSCREWS ON BOTTOM AS
SHOWN. PLUG INTO POWER SOURCE.
