Extron electronics MediaLink IPI 200 Series User manual

1

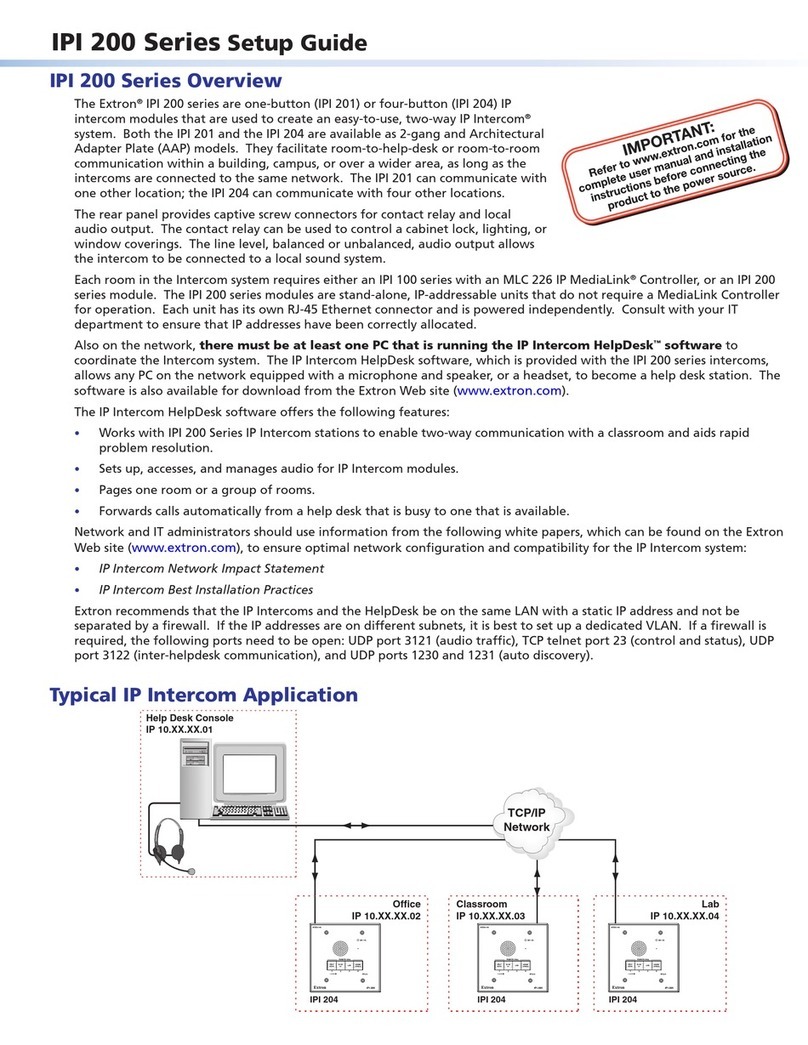

IPI 200 Series • Installation Instructions
IPI 200 Series Installation Instructions
IPI 200 Series Overview
The Extron IPI 200 series are one- (IPI 201) or four- (IPI 204) button IP intercom
modules that are used to create an easy-to-use, two-way IP Intercom®system. Both
the IPI 201 and the IPI 204 are available as 2-gang and Architectural Adapter Plate
(AAP) models. They facilitate room-to-help-desk or room-to-room communication
within a building, campus, or even over a wider area, as long as the intercoms are
connected to the same network. The IPI 201 can communicate with one other location;
the IPI 204 can communicate with four other locations.
The rear panel provides captive screw connectors for contact relay and local audio output. The contact relay can be used
to control a cabinet lock, lighting, or window coverings. The line level, balanced or unbalanced, audio output allows the
intercom to be connected to a local sound system.
Each room in the Intercom system requires either an IPI 100 series, with an MLC 226 IP MediaLink® Controller or an IPI 200
series module. The IPI 200 series modules are stand-alone, IP-addressable units that do not require a MediaLink Controller for
operation. Each unit has its own RJ-45 Ethernet connector and is powered independently. Consult with your IT department to
ensure that IP addresses have been correctly allocated.
Also on the network, there must be at least one PC that is running the IP Intercom HelpDesk™software to coordinate the
Intercom system. The IP Intercom HelpDesk software, which is provided with the IPI 200 series intercoms, allows any PC
on the network equipped with a microphone and speaker, or a headset, to become a help desk station. The software is also
available for free download from the Extron Web site (www.extron.com).
The IP Intercom HelpDesk software offers the following features:
Works with IPI 200 Series IP Intercom stations to enable two-way communication with a classroom and ensure rapid•
problem resolution.
Sets up, accesses, and manages audio for IP Intercom modules.•
Pages one room or a group of rooms.•
Forwards calls automatically from a help desk that is busy to one that is available.•
Network and IT administrators should use information from the following white papers, which can be found on the Extron
Web site (www.extron.com), to ensure optimal network configuration and compatibility for the IP Intercom system:
IP Intercom Network Impact Statement•
IP Intercom Best Installation Practices•
Extron recommends that the IP Intercoms and the HelpDesk be on the same LAN with a static IP address and not be separated
by a firewall. If the IP addresses are on different subnets, it is best to set up a dedicated VLAN. If a firewall is required,
the following ports need to be open: UDP port 3121 (audio traffic), TCP telnet port 23 (control and status), UDP port 3122
(inter-helpdesk communication), and UDP ports 1230 and 1231 (auto discovery).
Typical IP Intercom Application
TCP/IP
Network
Help Desk Console
IP 10.XX.XX.01
Office
IP 10.XX.XX.02
IPI 204
Classroom
IP 10.XX.XX.03
IPI 204
Lab
IP 10.XX.XX.04
IPI 204
68-1170-51
Rev A
05 09
IPI 200 Series • Installation Instructions
2
IPI 200 Series Installation Instructions, cont’d
Installation
Before installing your IPI 200, read the following publications, which can be found on the Extron Web site (www.extron.com):
IPI 100 Series and IPI 200 Series User’s Manual•
IP Intercom System Frequently Asked Questions•
WInstallation and service must be performed by authorized personnel only. These products must be used with
UL approved grounded electrical boxes.
The front panel of the IPI 204 is shown above, at left. The front panel for the IPI 201 is the same, except there is only one
button. The rear panels for both units are identical and are shown above, at right.
1. Determine which rooms will have IP Intercoms and HelpDesk PCs and where, in each room, they will be located. Ensure
there is a network connection for each intercom and each HelpDesk PC.
2. Connect the LAN port to the local network, using a standard network cable, with an RJ-45 connector.
3. Connect power, and, if required, contact relay and local audio output, using the rear panel
captive screw connectors (see figure at right).
4. Mount each IPI 200 into furniture, an AAP wallplate, mounting bracket for 2-gang
wallplates, or device faceplate. The AAP versions must be secured by attaching a clamp
bracket to the back of the intercom after it has been inserted through the front of the AAP
plate.
5. Ensure the HelpDesk PC(s) is connected to the network and power it on.
6. Install the Extron IP Intercom HelpDesk software, which is on the disk that shipped with the unit and is also available for
download from the Extron Web site (www.extron.com)
7. Use the IP Intercom HelpDesk software to configure all intercom units in the system. Full instructions can be found in
the IPI 100 Series and IPI 200 Series User’s Manual and also in the software’s Help File.
When the front panel button(s) light amber, the unit is correctly installed and configured. If the button(s) light red the unit
has not been correctly configured and you should check the IPI 100 Series and IPI 200 Series User’s Manual or the software’s
Help File.
Extron USA - West
Headquarters
+800.633.9876
Inside USA / Canada Only
+1.714.491.1500
+1.714.491.1517FAX
Extron USA - East
+800.633.9876
Inside USA / Canada Only
+1.919.863.1794
+1.919.863.1797FAX
Extron Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656FAX
Extron China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
Speaker Microphone On LED
Microphone
Push To Talk ButtonsConfig Port
Extron IPI 204 AAP Intercom (front panel)
POWER RELAY
CNO
AUDIO OUT
LAN
Power
Contact
Relay
Audio Out
IPI 204 AAP, IPI 201 AAP(rear panel)
LAN Port
AAP Mounting
Screws (4)
POWER RELAY
CNO
AUDIO OUT
