Eye Vac EVP User manual

2
IMPORTANT SAFETY INSTRUCTIONS
This electrical appliance must alwaysbe used according tothefollowing safetyinstructions. Savethese
instructions as this manual contains important safety and operating information. When using an
electrical appliance,basic pre caution should always be followed, including thefollowing:
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS APPLIANCE:
To reduce the risk of fire, electric shock or injury:
1. Always turn the control dial to the OFF position before unplugging EyeVac Pro.
2. Always unplug the appliance before cleaning or servicing it. Do not unplug by pulling the
cord; to unplug, grasp the plug, not the cord.
3. Do not let the EyeVac Pro be used as a toy. Close attention is necessary when used near
children. Do not use in AUTO Mode or leave appliance plugged in near children, infants or
small animals.
4. Do not pull or carry the appliance by the cord. Do not run the appliance over the cord, close
a door on the cord, or pull the cord around sharp edges or corners. Keep the cord away
from heated surfaces.
5. Do not use the appliance if the cord or plug is damaged.
6. Do not handle the plug or appliance with wet hands or use on wet surfaces.
7. Do not use appliance to dispose of water or damp materials such as mud, tile grout, plaster
filler, or caulking. Do not use to pick up anyliquid or wet objects.
8. Do not use appliance to vacuum up flammable or combustible liquids, such as gasoline. Do
not use in areas where these liquids may be present.
9. Do not use this appliance to vacuum up burning or smoking materials, such as cigarettes,
matches or hot ashes.
10. Keep hair,loose clothing, and all parts of the body, especially fingers, away from openings
and moving parts.
11. Do not put any objects into appliance openings or use with any openings blocked or
plugged.
12. Do not use this appliance to pick up hard or sharp objects or other large surface litter. Pick
these up by hand before vacuuming.
13. Do not operate without the Lid and Filters properly in place.
14. Use the appliance only as described in this Use and Care Guide.
15. Turn appliance off and unplug before removing or replacing the Canister or Filter.
16. Unplug appliance before cleaning or maintenance.
17. If the appliance is not working as it should, call for instructions where to send for repair. Do
not attempt to repair, as it will invalidate your warranty.
18. When cleaning the outside of the appliance, wipe with a damp cloth to reduce the static
electricity on the outer surface.
19. Never operate EyeVac without the Exhaust Filter and Filter Holder properly in place.
20. Other than cleaning the Pre-Motor Filter and Exhaust Filter, replacing them as described
in this Owner Manual, this EyeVac Prois not user serviceable. There are no user serviceable
parts inside the unit. Servicing is required by JPaulJones, LP to avoid damage to internal
components.
WARNING! To reduce the risk of electric shock, do not use on wet surfaces. Do not
expose to rain. Store indoors
ENGLISH

3

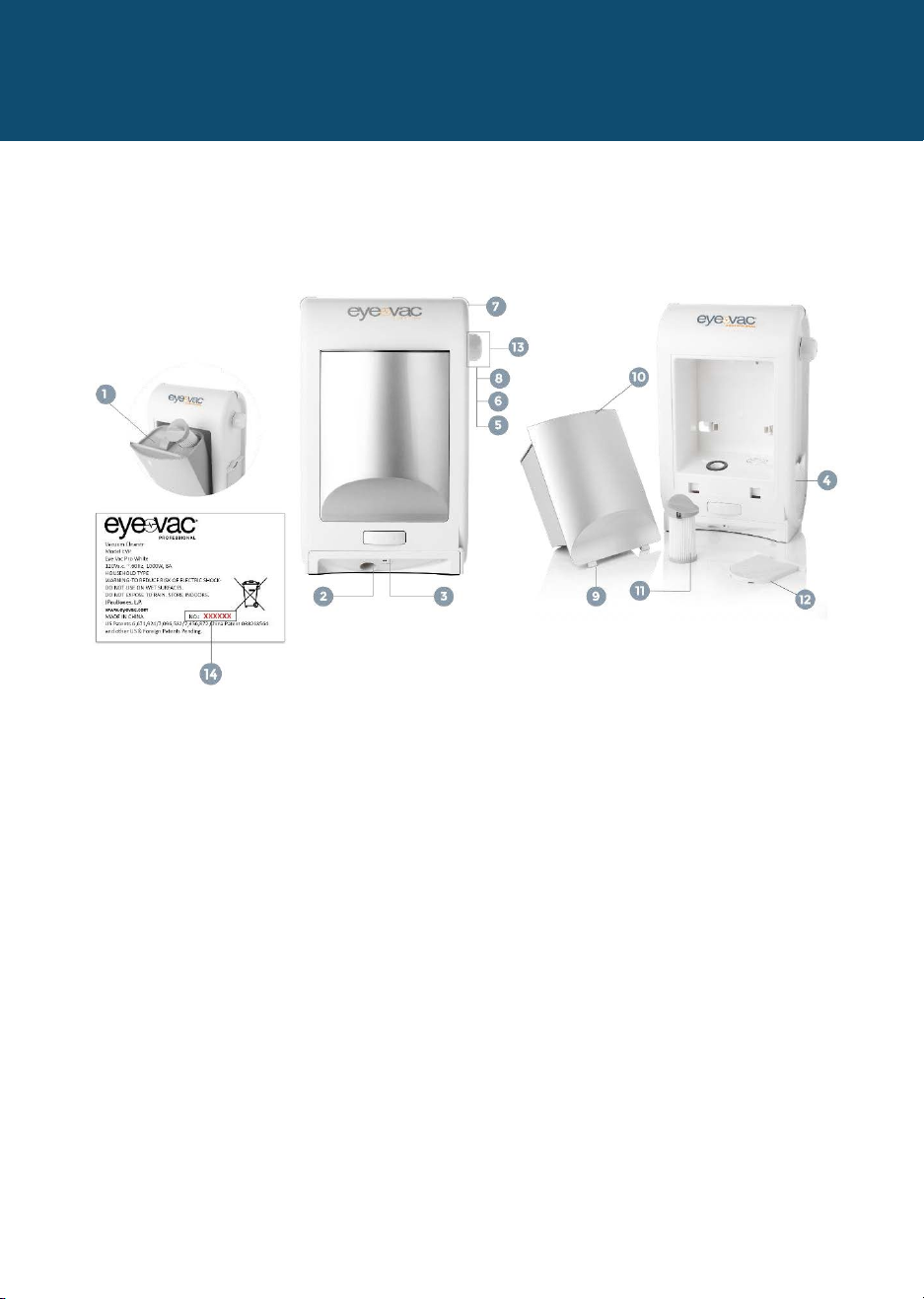

DESCRIPTION OF EYEVAC PRO
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
1. Canister Lid
2. Inlet
3. Sensors
4. Exhaust Filter Housing
5. Auto Mode
6. Manual Mode
7. Canister Full Indicator
8. Manual Activation
9. Canister Tabs
10. Canister
11. Pre-Motor Filter
(and screen)
12. Exhaust Filter
13. Control Dial
(located on side of unit)
14. Serial Number
(located on back of unit)

4
BEFORE USING FOR THE FIRST TIME
1. Remove EyeVac Pro from packaging and set upright on any non-carpeted flooring.
Remove packing tape from Exhaust Filter on the side of the unit.
2. Plug unit into any standard 120V(US) AC electrical outlet.
NOTE: EYEVAC PRO CANNOT BE USED WITH A CONVERTER OR ADAPTER
3. Turn the control dial to the MAN position for manual operation or to the AUTO position for
automated use. The POWER INDICATOR LIGHT will illuminate when the control dial is in
either of these positions. Your EyeVac Pro is now ready for use.

5
5

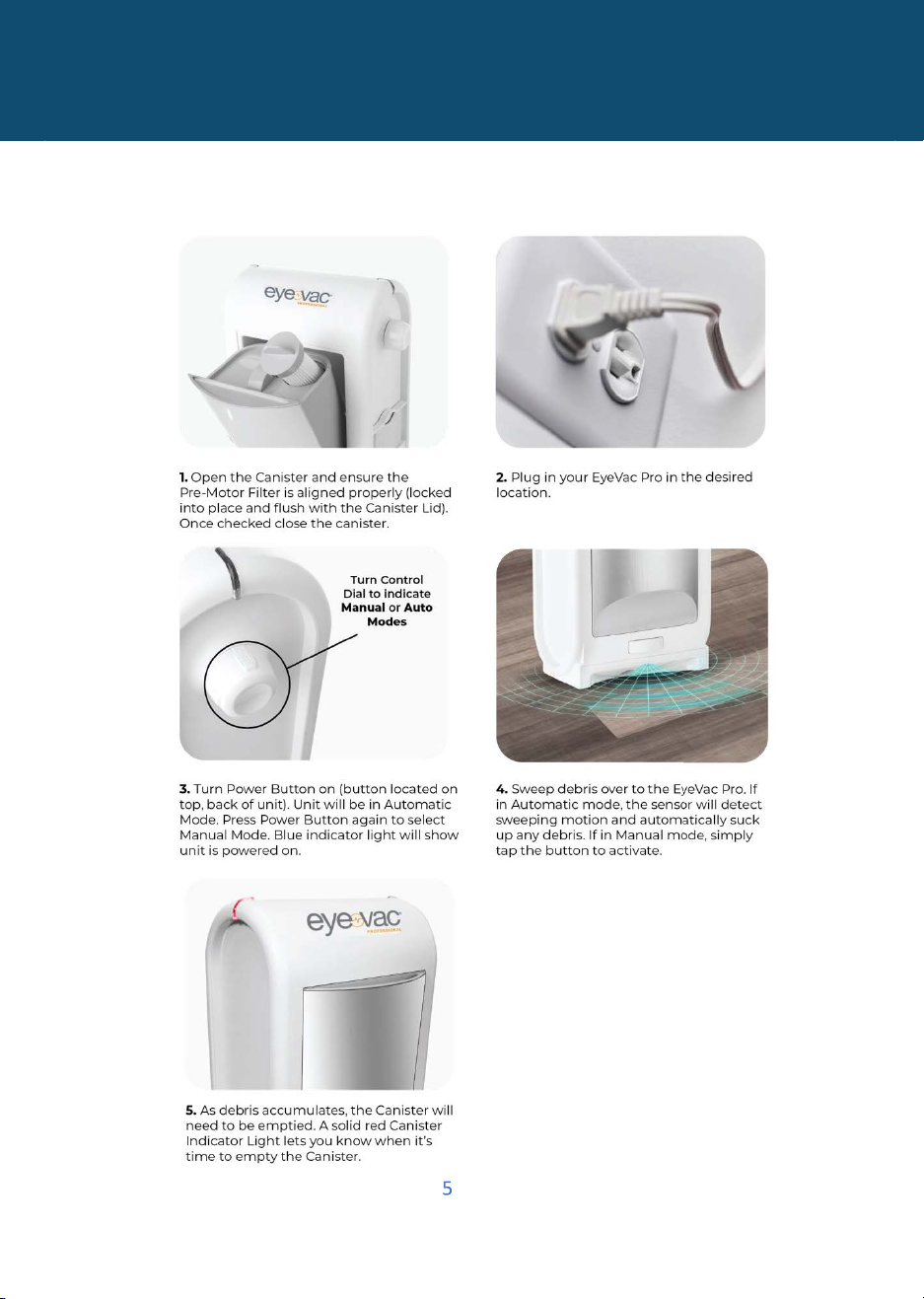

OPERATING INSTRUCTIONS
NOTE: EYEVAC PRO cannot operate when the Control Dial is in the OFF position.

6
USER MAINTENANCE INSTRUCTIONS
1. To empty the EyeVac Pro Canister, turn the control dial to the OFF position and unplug the
unit.
2. Pull the Canister outward from the front of the Bin Cavity. Grasp the Canister Grip firmly
and lift it out and away from the EyeVac Pro Main Unit.
3. Holding the Canister firmly with one hand, grasp the Canister Lid Handle with the other
hand and pull the Lid straight up and out to remove.
4. Turn the Canister upside down over a trash can. Make sure you empty all dirt and debris
from inside and below the Bin. To ensure that all the dirt spills out, tap the side of the
Canister gently against the edge of the trash can. Re-attach the Canister Lid to the top of
the Canister.
5. Clean Sensors, Dirt Inlet area, Canister, Canister Lid and Canister Cavity with a damp rag or
towel. Do not use soap or alcohol to clean sensors.
6. After all parts are fully dried, insert the assembled Canister with Lid fitted snugly into
position and Pre-Motor Filter locked into place and flush with Canister Lid. The 2 grooves in
the bottom of the Bin fit easily over the rod in the front of the unit. Grasp the Canister Grip
and lock the Canister back into position.
NOTE: Make sure all parts are completely dry before reassembly.
HEALTH TIP: If you suffer from allergies or asthma, take the Canister outdoors to empty.
As you empty the dirt into the trash can, gently tap the Canister against the side of the
can to remove loose debris.
CLEANING THE PRE-MOTOR FILTER
To maintain optimal performance, the Pre-Motor Filter will need cleaning whenever the suction is not
strong. The Pre-Motor Filter must be clean and free of elements, which might hinder the flow of air.
1. Turn the control dial to the OFF position and unplug the unit.
2. Pull the Canister outward from the front of the Bin Cavity. Grasp the Canister Grip firmly
and lift it out and away from the EyeVac Pro Main Unit. Locate the Pre-Motor Filter Handle.
Before washing the Pre-Motor Filter, please remove the screen and rinse with warm water,
leave it out to dry, and replace the screen before operating.
3. Remove the Pre-Motor Filter by grasping the Filter Handle and turn counter-clockwise to
the unlock position. Pull Filter straight up and out of the top of the Canister. Rinse under
running water to clean. If needed a mild soap and soft bristled brush can also be used.
IMPORTANT! Dry thoroughly before use.
4. Slide the Pre-Motor Filter back into the top of the Canister. Rotate clockwise to the "lock"
position. Put the Canister back into place.
5. If a new Filter is needed, replace with standard filter cartridges. Make sure that it fits snugly
in the Filter Holder. Replacement Filters are available through the Customer Service
Department.
IMPORTANT! NEVER OPERATE THE EYEVAC PRO WITHOUT THE PRE-MOTOR FILTER
PROPERLY IN PLACE.

7
CLEANING THE EXHAUST FILTER HOLDER
1. The Exhaust Filter Holder slides up and out of its housing on the side of the unit.
2. Gently pull the Filter out of the Filter Holder.
3. Tap Filter gently against trash container to free and eliminate excess dirt and debris.
4. To clean the Filter, wash in mild soap and water; rinse and dry thoroughly before assembly
5. Slide the Holder back into the unit with the Filter facing outwards.
CLEANING THE CANISTER
The Canister should be washed periodically.
1. Wash the Bin in warm water using a mild soap. Avoid harsh or abrasive cleaners or
sponges. Rinse thoroughly.
TO AVOID DAMAGE, DO NOT PLACE CANISTER IN THE DISHWASHER .
2. Let it air dry. Make sure the Canister is completely dry before putting it back into the
EyeVac Pro.
3. Insert the assembled Canister following the instructions outlined in the USER
MAINTENANCE INSTRUCTIONS.
STORAGE
1. Unplug unit and clean Canister and all Filters beforestoring.
2. Store EyeVac Pro indoors, in a clean, dry place.
3. Never store EyeVac Pro while it is still plugged in. Never wrap cord tightly around the
appliance,use theCordStorageareaon thebackof the EyeVac Pro unit. Donot put any
stress on thecord where it enters the unit, as it could cause the cord to break.
WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT USE OUTDOORS OR ON
WET SURFACES.

8
TROUBLESHOOTING
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmentally safe recycling.
This appliance is a dry pick-up, Canister type vacuum cleaner for household and indoor use. Also, it is
a general-purpose vacuum cleaner, which can be used for hard floor cleaning.
Problem
Possible cause
Possible Solution
EyeVac Pro
will not turn on/no power
1. Not firmly plugged in
2. Unit is in OFF position
3. Pre-Motor is not in
position
4 . Broken switch
1. Plug in firmly
2. Turn control dial to MAN or AUTO position
3. Ensure that Pre-Motor Filter is locked and flush
with Canister Lid
4 . Remove Canister to check switch inside cavity
above where Pre-Motor Filter is positioned. If
switch is broken or missing, fill out a :service
Request Form”at “EyeVac.com/connect
Does not pick up debris 1. Dirt inlet is blocked
2. Container is full
3. Debris may be too large
for inlet
1. Turn control dial to OFF position
2. Clean path of dirt inlet
3. Em pty Canister
4. Clear large debris
EyeVac Pro sensors do not
activate
1. Unit is not in AUTO mode 1. Turn control dial to AUTO position
Suction is not strong 1. Filters may be dirty 1. Turn control dial to the OFF position
2. Clean Pre-Motor or Exhaust filter when needed
Status indicator light
blinking
1. EyeVac Pro sensors have
been shut off for 30
seconds which caused
power to the motor to be
shut off
1. Turn control dial to the OFF position
Canister Indicator Light is
ON
1. Canister is full 1. Turn control dial to the OFF position
2. Empty the Canister
3. Clean all filters
Debris at inlet before unit is
powered on
1. Turn control dial to the MANUAL position
2. Activate unit manually

9
LIMITED W ARRANTY
One-Year Limited Warranty. What is covered: JPaulJones, LP
TM
warrants to the first retail purchaser of this EyeVac Pro
that should this product or any part be proved defective in materials or workmanship from the date of proof of
purchase for a period of one (1) year, then it will be subject to the terms of this one-year limited warranty. Such
defects will be replaced, or credit issued at JPaulJones, LP's option, without charge for parts or labor directly related to
the defect. Limitations and Exclusions: This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. This warranty does not apply to any cost incurred for removal or re -installation, or to
any product or part thereof which has suffered through normal wear and tear, alteration, improper installation,
physical abuse, misuse, neglect or accident. Nor does it cover defects caused by shipment to JPaulJones, LP or repair or
service of the product by anyone other than JPaulJones, LP. Damage resulting from an unforeseen circumstance
including but not limited to fire, flood, earthquake, and other natural causes will be excluded. This Limited warranty is
in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise,
including, but not limited to any implied warranty of merchantability or fitness for a particular use. JPaulJones, LP does
not authorize any other person to assume any liability beyond the warranty herein described. In no event, whether
based in contract or tort shall be liable for incidental, inconsequential, indirect, special or punitive damages of any kind
from the use of this product. In no event shall be liable for damage in excess of the purchase price. EyeVac Pro is for
commercial use.
For Warranty Service, submit a Service Request at http://eyevac.com/connect/ or contact: JPaulJones, LP, 7500 Rialto
Blvd., Bldg. 1, Suite 122, Austin, TX 78735 or call 512-485-3050.
©2014 JPaulJones, LP Intellectual Property. All rights reserved, JPaulJones, LP, JPaulJones, LP logo and all other marks
contained herein are trademarks of JPaulJones, LP Intellectual Property and/ or JPaulJones, LP affiliated companies.
JPaulJones, LP
7500 Rialto Blvd, Bldg. 1 STE. 122
Austin, TX. 78735
[phone]
For service and general inquiries please visit www.eyevac.com/connect
