1 System Overview
keyEyes is a Luminance Keyer Unit mostly used for keying captions and
graphics. These units are commonly used in transmission and post production.
The main features are as follows:
• Full 10 Bit luminance Keying.
• Auto Transition (Timed Fade-in) control.
• Key Gain and lift controls.
• Multiplicative, Additive, Self Key and colour fill modes.
• Key Mix and 8 Wipe Transitions.
• Up to +/-27.6uS user definable synchronisation window for Inputs
• Transparent to all embedded signals
• Automation controllable
• 6 user memories
• GPI inputs to enable take to A or take to B
• Relay outputs to indicate on air status

- 5 -
eyeheight Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH
Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]
2 Installation
2.1 Connections to a keyEyesHDi

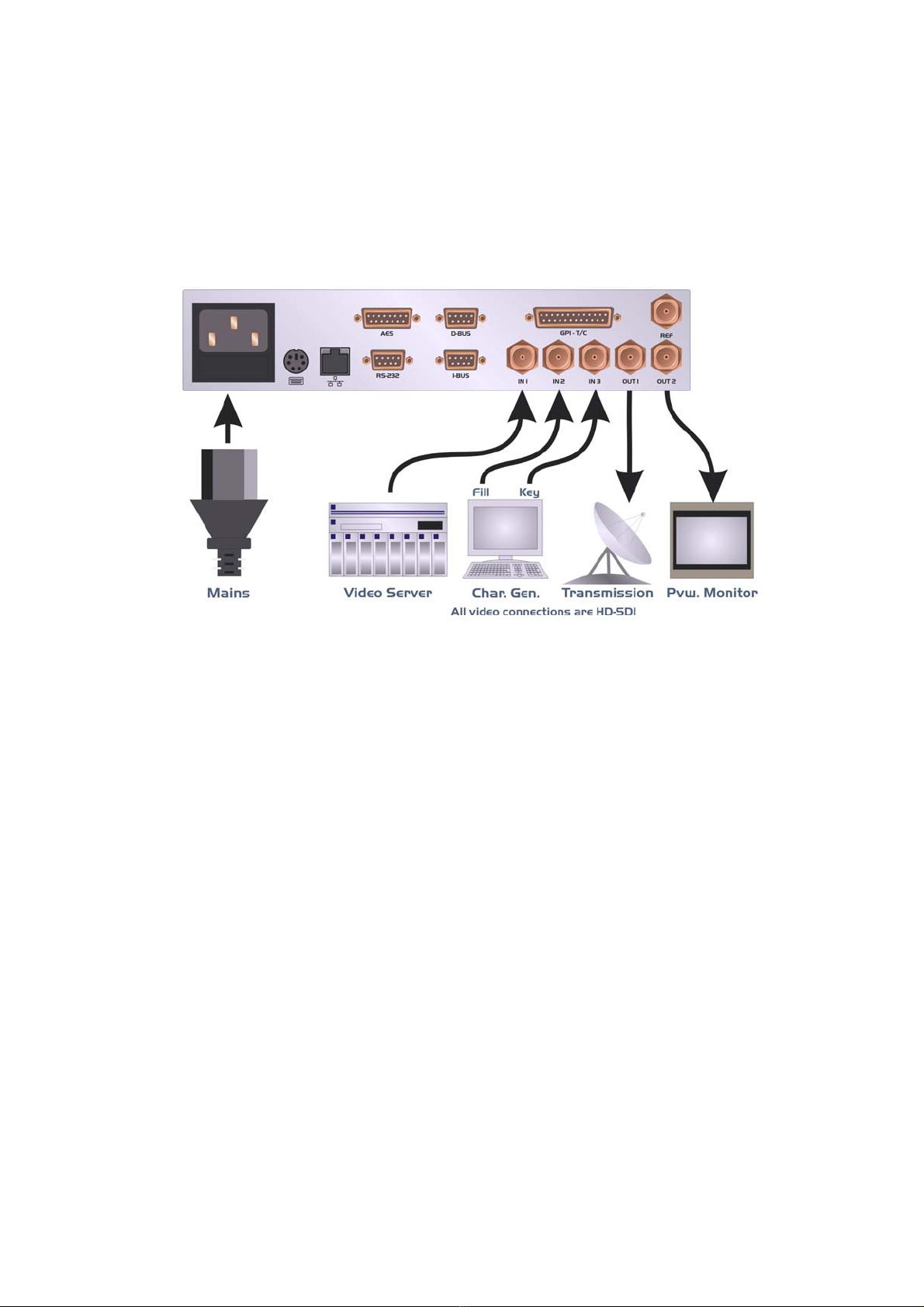

The diagram below shows the typical connections to the keyEyesHDi.
Figure 1 - Typical Connections
2.2 Applications for keyEyesHDi
Applications for keyEyesHDi include the following:
• Down Stream and Up Stream keyers in transmission systems.
• Offline Captioning.
• Presentation and Master Control systems (Eyeheight PresTX).
• Bug Keying.
keyEyesHDi will be used in a situation where a device such as a caption
generator is required to overlay captions onto a video background.
2.3 Associated Equipment for the keyEyesHDi
The keyEyesHDi in the evolutionDT platform is fully self-contained. The
evolutionDT can optionally be rack mounted in with 1 or 2 units in a 19” rack
using the optional FF-6 rack mounting. This is a factory-installed option and
should be ordered with the product. Rack mounted units should be supported
with suitable chassis supports.

- 6 -
eyeheight Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH
Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]
3 Control Panel
Figure 2 shows the control panel of the evolutionDT platform.
1 - Power/Status LED
Green – Normal operation
Green Flashing – Version Information Display
Orange – Product is initialising
Flashing Red – Product is in Field Reprogramming Mode
2 - Menu Display/Button (1 of 4)
Displays Menu Information. The colour of the menu button indicates the function.
Green – adjustment menu. Pressing the menu or using the associated digipot(6)
will adjust the menu value.
Yellow – information menu, no adjustment possible.
Blue – navigation menu. Pressing the button will take you up or down the menu
hierarchy.
Red – multiple variable menu. Pressing the button will “open” the menu assigning
one digipot(6) to each variable. The active LED(5) will light above the digipots
associated with each variable.
3 - Next Menu Button
Within a layer of the menu hierarchy there may be more than four menus and
where this is the case the “next” button will illuminate to show that further menus
are available. Pressing the “next” button moves you to the next set of menus.
4 – Previous Menu Button
Within a layer of the menu hierarchy there may be more than four menus and
where this is the case the “prev” button will illuminate to show that previous
menus are available. Pressing the “prev” button moves you to the previous set of
menus.
5 – Digipot Active LED (1 of 4)
Illuminates to indicate that the digipot below is active for adjustment of the
associated menu variable.
6 – Digipot (1 of 4)
Allows for rapid adjustment of the associated menu variable. Pressing a digipots
returns the associated variable to its default value.
7 – Next Device Button
It is possible to control more than one device from a single evolutionDT control
panel. Where more than one device is assigned to the panel the “next dev” will
move control to the next device in the device list.
In setup mode this button will pick up a free device and assign it to this panels
device list. The button will flash to indicate that a free device is selected.
8 – Previous Device Button

- 7 -
eyeheight Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH
Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]
Where more than one device is assigned to the panel the “prev dev” will move
control to the previous device in the device list.
In setup mode this button will remove a device owned by this panel from this
panels device list. The button will flash to indicate an owned device is selected.
9 – Info Button
This button displays all hardware, software and firmware version information for
the currently selected product and this panel.
In setup mode where a free evolutionDT device is selected this button will flash
indicating that the network address (box & slot) can be changed. Pressing this
button will take you to the adjustment menus.
10 – Setup Button
Press and hold this button for four seconds to enter setup mode.
Figure 2 - evolutionDT Control Panel

- 8 -
eyeheight Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH
Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]
4 Operation
4.1 Manual control of the keyEyesHDi
The keyEyesHDi is controlled using a set of MENUS. Each of these menus
contains up to 3 parameters that are adjusted using the rotary digipots. The
Menus define all of the adjustable operational parameters in the keyEyesHDi.
See chapter 4 Control Panel Operation for details of the control panel operation.
See section 3 of this chapter for the full list of menus.
4.2 Automation Control of the keyEyesHDi
Automation of the evolutionDT products is achieved either via the RS232 port
(currently not implemented) or via the I-Bus Port using an optional DG-9 (RS232
to I-Bus dongle). Automation control of the keyEyesHDi is performed using the
geNETics Automation Protocol.
Genetics protocol is described in detail in the “geNETics User Guide” section
titled “Automation Protocol on the geNETics Platform”. The menu list in section 3
of this chapter contains the data information for the protocol.
Please refer to the “User guide for the DG-9 eyeheight dongle and set-up
software.
4.3 Operational Menus for the keyEyesHDi
Menus 00-03 Top Level Menus
Menu Num. Heading Automation Function
00 PLAY none Go To the main Play menus (4-7)
01 SETUP none Go To the main Set-up menus (84-87)
02 MEMS none Go To the Memory menus (16-47)
03 UTIL none Go To the main Utility menus (108-
111)

- 9 -
eyeheight Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH
Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]
Menus 04-07 PLAY Menus
TAKE
ON
TIME
=25Fd
Menu Num. Heading Automation Function
04 TAKE 1=take off
2=take on This Causes the Auto Transition to occur. The On/Off state is also
indicated in the window.
05 TIME 1-200 This is the Key Transition time. The
time taken for the key to fade on or off
in auto transition mode
06
07 BACK none Go To the Top Level Menus
Menus 08-11 System set-up menus (For Automation use only)
Menu Num. Heading Automation Function
08 K.GAIN 0-511
(Default is 299) This sets the key gain. 100%
represents unity key gain (default).
09 K.LIFT -128-511
(Default is –64)
This sets the key lift. 0% represents no
lift (default)
10 KEY: 0=normal
1=invert key This inverts the key signal.
11 BACK none Go To the Top Level Menus

- 10 -
eyeheight Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH
Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]
Menus 12-15 System set-up menus (For Automation use only)
Menus 16-19 Memory 1Æ3 menus (NEXT to navigate)
------
MEM 13
Recall
------
MEM 14
Recall
------
MEM 15
Recall
next->
*BACK*
prev->
Menu Num. Heading Automation Function
16 MEM13 1=Recall Pressing this will recall Memory
number 13.User Names can be
programmed in to the memories using
a keyboard. See “geNETics User
guide”, section “Giving product
Memories names”
17 MEM14 1=Recall Pressing this will recall Memory
number 14.
Menu Num. Heading Automation Function
12 BG POS Level A
0-15.
Default=7
Level B
0-15.
Default=7
When this button is pressed to
"Green”, the window indicates shows
two options, which can be changed
by adjusting the two rotary digipots A
and B.
Digipot A moves the position of the
background picture relative to the key
and the foreground.
Digipot B moves the position of the
key relative to the foreground and the
background.
13 L=
H=
S=
Menu Level “A”
0-255 (L)
Menu Level “B”
0-255 (H)
Menu Level “C”
0-255 (S)
Press this button and the three
digipots indicated by the lit LED’s will
change the Luma, Hue and
Saturation of the Matte colour.
14 KEYING 0=normal
1=additive
2=self key
3=colour Fill
This changes the keying mode.
“Normal” is the default mode.
“Additive” is selected for an Additive
Key mode. “Self” is selected for Self
Key mode where the key is derived
from the foreground input. Colour Fill
mode provides an internal Matte Fill.
15 BACK none Go To the Top Level Menus
