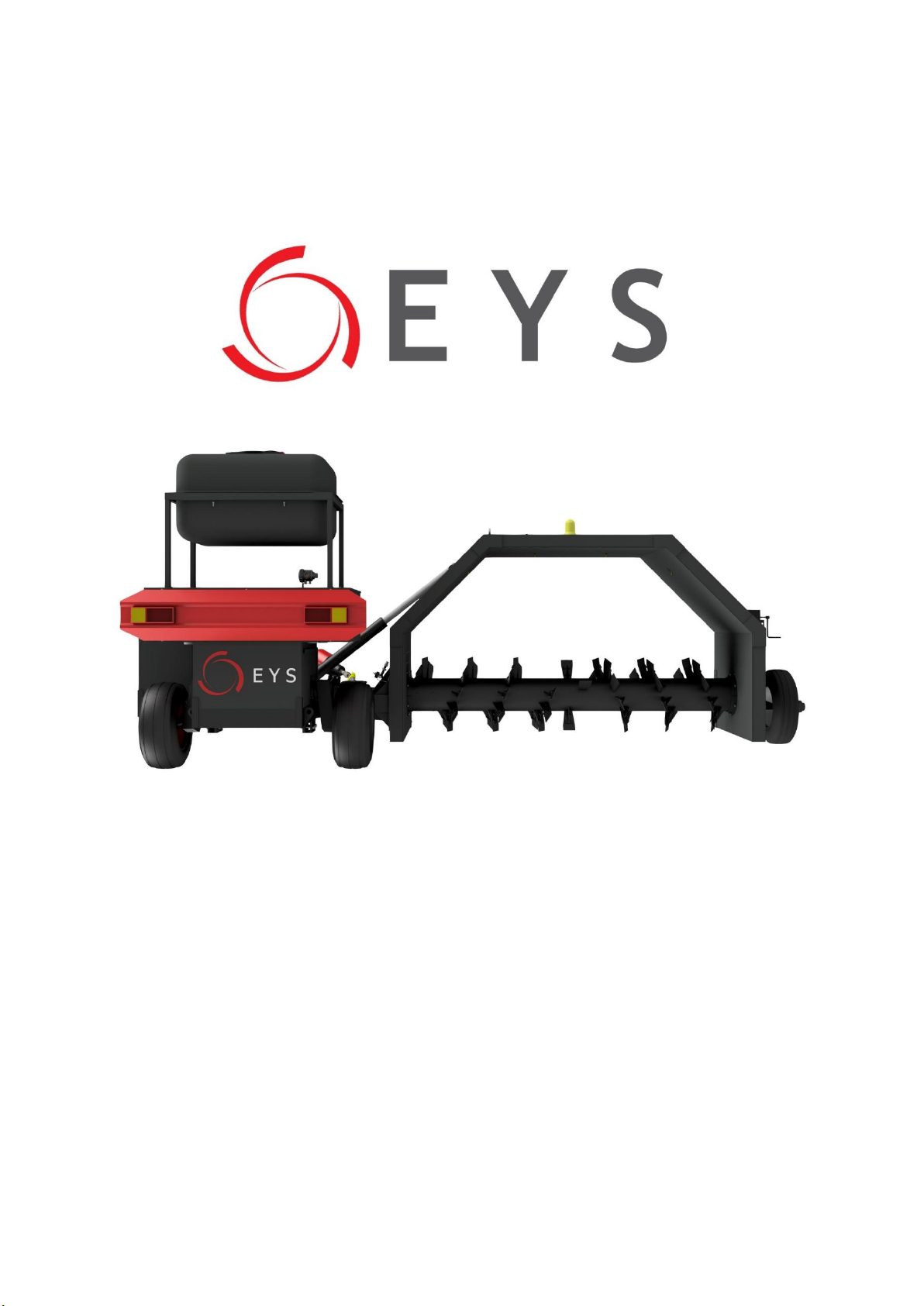

EYS GK3000 User manual

1/28
USER MANUAL
EYS COMPOST TURNER
GK3000
March 2021

2/28

3/28
INTRODUCTION
We are glad that you chose EYS compost turner for your compost solutions and are confident that you
will be more than satisfied with your purchase.
This manual is intended to provide basic information about the operation of the EYS windrow turner,
and to point out to main areas of consideration while operating and maintaining the machine. Please
read this manual carefully before operating the machinery, and keep it in an easily accessible place for
future reference. If any of your questions or concerns are not covered in this manual, please contact
the respective dealer who had installed the machinery. Your dealer’s contact information is:
If you are not able to reach your dealer and in need of immediate support, then please contact EYS
directly at:
This user manual is an important part of the EYS Compost Turner. It is recommended that
the suppliers of Compost Turner provide the machine together with this manual to the
customer.
Please make sure that the operator in charge of operating and/or maintaining this product has full
access to this manual and that he/she has read it entirely prior to running or servicing the machine.
Also please record your product model number and serial number from the machine’s info-tag to the
following section. These info will be necessary and useful when ordering replacement parts in the
future.
Congratulations again on your purchase of the EYS Compost Turner!

4/28

5/28
PRODUCT INFO
Product : COMPOST TURNER
Model :  GK3000
Serial Number :
Dealer :
Adress :
Tel :
Fax :
Installation Date :
Manufacturer :
Customer :
Address : ______
Telephone : ___ ______
Fax :
Please keep serial number of your machine in a safe place and specify model and serial number when
you contact with your dealer or manufacturer.

6/28

7/28
HAND-OVER FORM (TO BE SIGNED OFF BETWEEN THE DEALER AND THE CUSTOMER)
Product : COMPOST TURNER
Model :  GK3000
Serial Number :
Dealer :
Customer :
Installation Date :
This form confirms that the product installation and start-up has been completed
successfully. Basic training has been provided and this manual has been handed over to
the responsible personnel below.
Responsible person on behalf of
the dealer/distributor
(date and sign)
Responsible person on behalf of
the customer
(date and sign; please print name)
Manufacturer’s warranty is not valid unless this form is signed and dated
upon installation!
NOTE

8/28

9/28
WARRANTY AND SERVICE
This manual is valid for GK3000 compost turner.
Provided that the principles, warnings and standards contained in this manual are followed, EYS
GmbH/EYS Metal San.ve Tic.Ltd.Şti. grants 1 (one) year warranty against material and manufacturing
defects for compost turners.
The warranty conditions are specified in the warranty certificate, which is supplied with the compost
turner in accordance with the provisions of the relevant law. Please read this information carefully.
The product warranty document is signed by the point of sale along with the product and sent to you.
You must keep your warranty certificate in a safeplace so that it canbe presented to authorized service
personnel so that warranty work can be carried out during the service process.
Guarantee transactions only apply to transactions made by persons authorized by EYS GmbH/EYS
Metal San.ve Tic.Ltd.Şti. EYS GmbH/EYS Metal San.ve Tic.Ltd.Şti. is not responsible for any interference
with the product by unauthorized, non-professional induviduals. If you have any problems with the
product, please contact EYS GmbH/EYS Metal San.ve Tic.Ltd.Şti. Our customer service is always
available.
EYS Compost Turner has technological and high-quality materials that can serve you for many years
without any problems. The minimum lifetime specified by the Ministry of Customs and Trade for
separator is 10 (ten) years. Under the current law, the manufacturer undertakes to maintain compost
turner and to provide spare parts within this period.
GENERAL INSTRUCTIONS
Qualified Operators should be properly trained in their assigned area of responsibility, be
knowledgable about general machinery handling precautions and related hazards/risks, capable of
foreseeing and preventing potential damages to the machine before they happen, and be able to apply
necessary first-aid practices as necessary.
Operational Responsibility
Responsibility of operating the machine in accordance with its intended purposes lies with the
customer. The manufacturer is not in anyway responsible for any damages that may be caused by
inappropriate handling of the waste streams resulting form the operation of the product. Likewise, the
manufacturer can not be held responsible for any damages resulting from the use of un-approved
and/or non-original spare parts on the machine.
Second-hand Ownership
In the case of transfer of ownership of the product to a new customer, the original owner is responsible
for handing over this user-manual to the new owner. New owner must be informed and trained about
the basic operation of the product accordingly.
Operational Liability
The entire liability of operating the product properly lies with the customer. The customer is
responsible for making sure that the product is used in accordance with the guidelines set forth in this
document, plus other general machinery operating rules that may not be covered here but are
expected to be known by any machinery operator. The maximum liability of the manufacturer in any
event can not exceed the monetary value of the product itself.

10/28
Purpose of Use
EYS compost turners are produced to mix separated solids/composts for maturation. Operations apart
from the structure mentioned above are considered as inappropriate use. The manufacturer is not
responsible for the results occured of inappropriate use. The damages which will be resulted of the
inappropriate use will be the buyer’s responsibility. The purpose of the operation of the machine at
the same time covers the confirmity with the start of the machine, maintenance and service
instructions. EYS Compost Turners should be used by only staff who are able to cope with the damages
which may occur from the machine. The prevention of the accidents and all first aid rules should be
analyized carefully. Any change that will be done on the machine by unathorized staff will make the
manufacturer not to be responsible for the possible damages.

11/28
INDEX
1SAFETY INSTRUCTIONS................................................................................................13
2GENERAL INFORMATION..............................................................................................15
3DELIVERY, HANDLING AND INSTALLATION ..........................................................16
3.1. Delivery........................................................................................................................16
3.2. Installation ....................................................................................................................17
4PRELIMINARY PREPARATIONS BEFORE START-UP...............................................20
5STARTING AND STOPPING THE MACHINE ............................................................... 21
5.1. Starting The Machine ...................................................................................................21
5.2. Stopping The Machine..................................................................................................21
6TROUBLESHOOTING ......................................................................................................22
7MAINTENANCE................................................................................................................22
7.1. Lubrication ...................................................................................................................22
7.2. Cleaning........................................................................................................................24
7.3. Emptying Water Pump .................................................................................................24
7.4. Deactivating Water Pump.............................................................................................24
8LONG TERM STORAGE...................................................................................................25
9TECHNICAL DETAILS.....................................................................................................25
9.1. Technical Specifications...............................................................................................25
9.2. Overall Dimensions......................................................................................................26
9.3. Identification Label.......................................................................................................27
9.4. Warning Labels.............................................................................................................27
10DECLARATION OF CONFORMITY ...............................................................................28

12/28
Table of Figures
WARNING
This warning box is used to highlight safety related precautions
throught the document. Remember that there is risk of personal
injury with every “warning” sign topic and it is of utmost importance
to understand and follow the contained information.
CAUTION
Failure to follow instructions can result in damage to a par tor the
whole of the machine, possibly putting the machine out of
commission.
NOTE
It is especially important to understand and implement the
instructions highlighted therein fort he successful long-term
operation of the machine.
All control panels must be grounded.
Freezing hazard.
Read the instructions.
Use your personal protective equipment.
Danger of explosion.
Before starting the machine, check electric cables against damages.
Danger of fire.
Electrical shock or burn hazard.
Do not use the machine without checking all parts.
In case of leakage of oil or protective materials, prevent contact with
skin.
Provide sufficient lightning in the area.
All electrical and safety connections must be done according to local
regulations.

13/28
1 SAFETY INSTRUCTIONS
FOR CORRECT AND SAFE USAGE
It’s strictly forbidden for untrained, unauthorised personnel to montage,
maintain and operate the machines and to be around the machine.
EYS compost turner can not be used except of it’s intended use.
Usage Information
Keep remote controller in a dry place and don’t expose directly to weather conditions.
When power take-off is active, do not turn tractor/machine to left or right. Disconnect power
take-off and lift tunnel. Then manoeuver to left or right.
For all failures/breakdowns and assistance, contact EYS Metal/EYS GmbH or your supplier.
Check conformance with safety instructions prior to each start-up!
1. In addition to the specific instructions contained in this document, general machinery
operating rules and precautions must be followed!
2. Safety related signs are marked on the product as necessary. These signs and stickers
are important for personal safety, so do not remove them!
3. Do not operate the machine before replacing/installing all safety and protection
related parts/covers!
4. Make sure you understand the general functioning principle of the machine before
operation!
5. Put on relatively snug operational outfit when operating the machine. Loose outfits
and long sleeves can get caught by the moving parts during operation and servicing.
6. Slurry can emit flammable gases under certain conditions; so avoid smoking or carrying
open fire near the machine!
7. Machine should be installed at a properly ventilated area. Avoid spending long periods
of time in poorly ventilated areas around the slurry!
Electric Driven Equipment
1. All electrical work except standard maintenance must be carried out by a professional
electrican!
2. Malfunctionedor defect plug, socket etc.must be replaced by a professional electrician!
3. If there is an application including plug and socket (hoist, modular control panel etc.)
never unplug cables. Firstly make sure the machines are not running and main power is off. A
damaged electric cable may cause leakage of electricity and cause short circuit. Never cut electric
cables (to pass the cable through wall etc.). pull the plug not cable.
4. extention cables which are connected to main power line or extention cables which
will be used for main power line must only be used for a short time! Never should
be a long term solution!
5. If extention cables are to be extended on a road, they must be connected from 5
meters height minimum.
6. Then executing any operation on the machine, make sure the main power is off.
7. Before starting the machine always check cables for damages, cuts etc. protect cables from direct
sunlight, sharp edges and oil. Replace unusable cables before starting the machine.
8. If there is not enough precautions against moisture and dust in sticky or fire risky area, don’t use
electrical equipment.
9. Covering electric motors can prevent proper cooling and can cause heat consistence and can
cause harm to the equipments, even fire!
NOT

14/28
Make sure all the malfunctions are solved when the power take-off is back
on.
Check electric cables regularly. This process must be done after the main
power is cut off.
Maintenance
1. Never perform any maintenance, service or cleaning before fully stopping the machine and the
other system components.
2. Always check and verify that the bolts/nuts on the machine are securely tightened.
3. Always wear work gloves when handling sharp and metal objects during maintenace.
4. Always observe local regulations when disposing of lubricants/grease, etc.
5. Never work on the control panel and/or electrical connections without fully cutting off
the power first.
6. Only manufacturer approved spare parts must be used for repairs and replacements.

15/28
2 GENERAL INFORMATION
EYS compost turner is designed to mix separated or compost bovine and pig manure and organic waste.
Manure should be mixed frequently with the machine to complete maturation over time. This process
will also decrease moisture of material. Compost turner is driven by tractor power take-off. Control of
pistons, nozzle system, rotation of drum etc. are carried out from tractor.
When the machine is running (power take-off active), do not turn
tractor or the machine to left/right. Firstly disconnect power take-off
and lift tunnel in parking position. Then manoeuver to left/right.
When rotation monoeuver is completed, lower tunnel and start
machine in working mode and continue operation. If left/right
manoeuver is done when power take-off is active, possible damages
will not be covered by warranty!
In order to make proper piles, the suface must be flat and concrete. Material should be stacked by a
truck, loader etc. before compost turner starts operation. When compost turner goes over stacked
material, it reshapes piles based on it’s dimensions. Piles with 3 meters width are created. In order to
allow passage for tractor, there must be 3 meters distance between each pile.
EYS compost turner is designed to work on a flat and concrete surface.
In order to maximize life time of your machine, make sure the surface
is completely flat and made of concrete.
WARNING
ATTENTION
Nozzle System
Water Tank
Jack
Drum Housing
Water Pump
Hydraulic Unit
Gearbox
Drum
Wing

16/28
3 DELIVERY, HANDLING AND INSTALLATION
3.1. Delivery

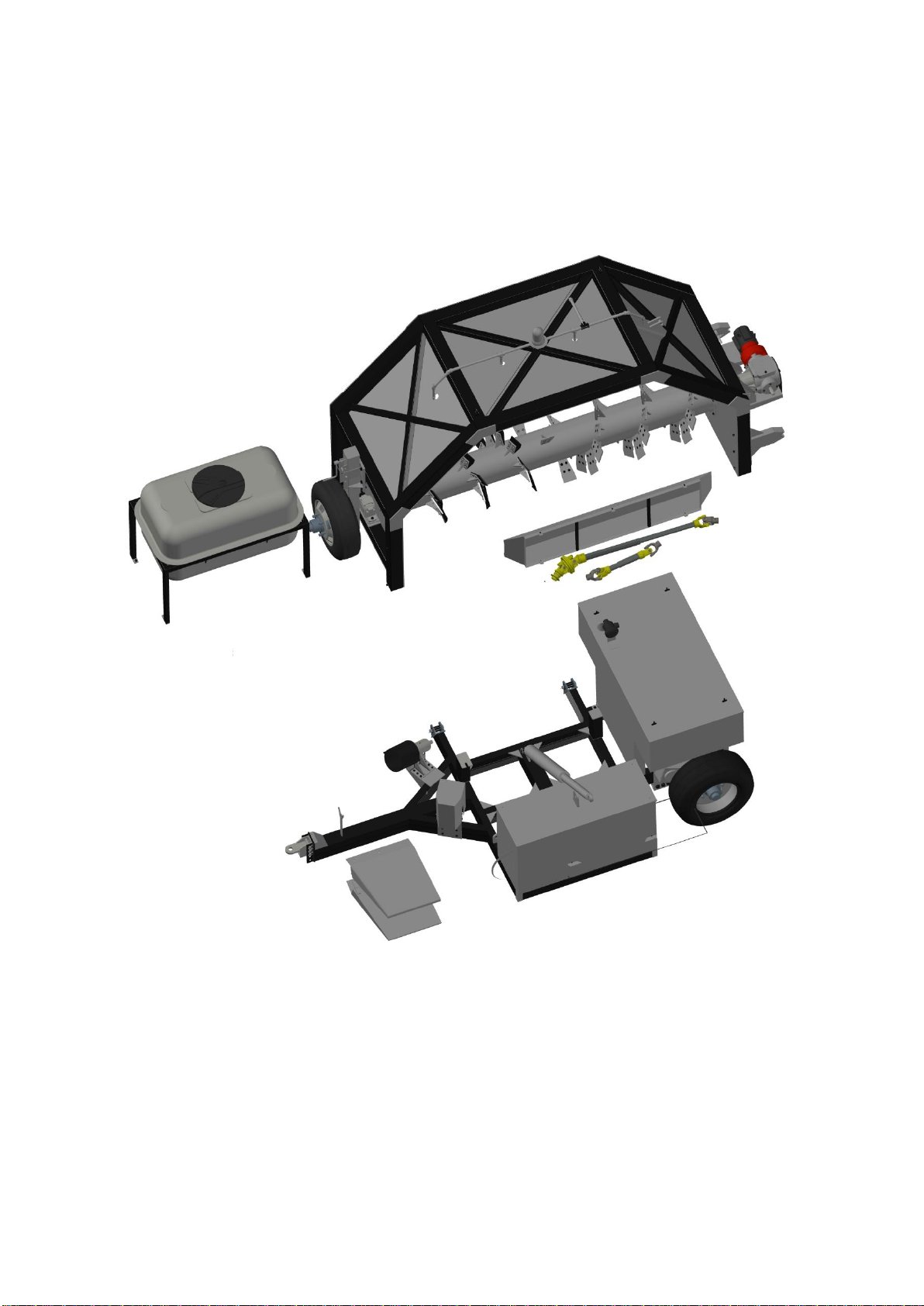

EYS compost turner is delivered as 9 parts. All parts are available in below image. Please make sure all
the parts are available while receiving the machine.
Make sure to use a suitable forklift to lift and assemble the parts of EYS compost turner. Total machine
weight is 6500 kg. Depending on custom drum, total machine weight can vary. Contact manufacturer
or your supplier for detailed information.
Water Tank
Weight Tank
Top Plate
Chassis, Pump
and Concrete
Weights
Left and Right
Wings
Long and
Short Shaft
Rear Bumper
Tunnel

17/28
3.2. Installation
You will need wrench set, sling ropes and a forklift to assembly EYS Compost Turner.
Firstly place top plate of weight tank
as shown in right image but do not fix
it yet. After placing water tank on
weight tank, top plate will be fixed by
using M12x40 screws.
Connect 2x rope slings to lifting eyes available in marked points in below image and lift the tunnel
slowly (1). Then bring tunnel closer to chassis and place it on marked points as shown in below image
(2). Place hinge pin (red) and spring pin (yellow) for connection between tunnel and chassis.
Conne
2
1
1

18/28
Connect rear bump to weight tank
as shown in right image and fix it by
M8x16 screws and M8 nuts. Screws
will be fixed to marked parts in
right image.
Left and right wings will be connected on tunnel. Use M12x25 mm screws for connection.
Connect rope slings to water tank and lift
it slowly by forklift. Top plate is placed on
weight tank in first step of installation.
Now place water tank and fix it by M12
nuts. Afterwards connect water hoses to
water tank.
Connection of watering system is available in next page.

19/28
1 -
Nozzle inlet line
5 -
Top bypass outlet (returns to top of tank)
2 -
Pressure adjustment screw
6 -
Additional outlet
3 -
Pressure control lever
7 -
Pump Outlet
4 -
Bottom bypass outlet (returns to tank)
8 -
Pump inlet
During a normal operation, nozzle inlet line (1), bottom bypass line (4), top bylass line (5) and pressure
control lever (3) should be open. If pressure control lever (3) is closed, water won’t reach nozzles.
Pressure control lever is currently open in above photo. If it’s rotated 90°then it will be closed.
Additional outlet (6) should only be opened if an additional water source is required. A hose can be
connected to this outlet to clean machine etc.
Gray pump inlet hose (8) is connected between pump and filter. Same hose is also used between filter
and water tank’s outlet.
Nozzle inlet line (1) is already connected before shipment. Both bypass lines and gray hoses should be
connected before first run.
When pressure adjustment screw is rotated clockwise, it closes. When it’s rotated counter-clockwise,
it opens.
Working pressure should be 20-40 Bar under normal working conditions!
WARNING

20/28
Slowly turn piston as shown
in right image and connect
piston and lifting eyes on
tunnel by using pin.
Now connect short and long
shafts. Short shaft will be
connected between gearbox
and tractor link adapter. In
order to connect short shaft,
first remove link adapter by
removing it from chassis. To
do so first remove four
screws which holds bottom
plate of link adapter. Connect
short shaft to gearbox and
then connect other end of
short shaft to link adapter.
Finally install link adapter
back to it’s place and tension
screws. Long shaft will be connected between tractor link adapter and power take-off.
Finally connect hydraulic hoses to tractor. One end of hoses are already connected to hydraulic unit
on compost turner chassis. Then place remote controller in tractor. Lifting/lowering tunnel and axle
will be done by remote controller.
4 PRELIMINARY PREPARATIONS BEFORE START-UP
Make sure water tank is full.
Make sure all bearings are greased.
Check all hydraulic connections and hoses against damages.
Check tractor connection and make sure the tractor is sufficient for the machine.
Tractor Connection Adapter
