EzCAP VHSDigi ezcap180 User manual

ezcap180
VHSDigi
manual

1
Thanks for purchasing ezcap180 VHSDigi VHS Digitizer with 4.3 inch screen. Please read
this manual before use and keep it in a safe place for future reference.
You can use this machine:
Convert VHS and all Composite video to digital file, and save in Micro SD card or USB
flash drive. Convert analog audio to digital MP3 file. Play video and music directly.
Overview
In the Box
ezcap180 VHSDigi x1, Manual x1, Type C to Type A power data cable x1, 3.5mm to 3RCA
AV adapter cable x1

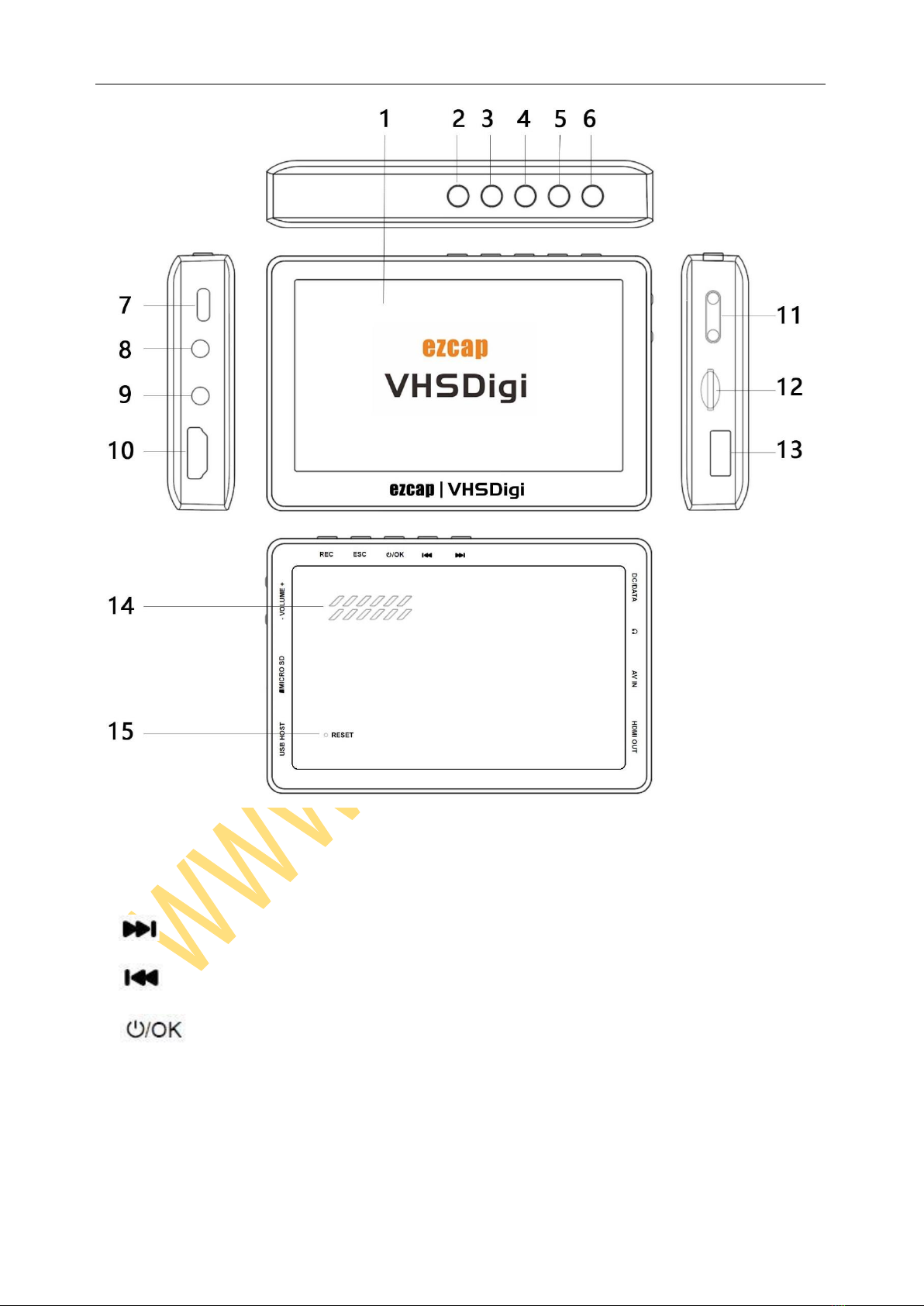

Product Overview

2
1, 4.3 inch TFT screen (480 x 270)
2, –LEFT direction button to operate the menu. For playback, press to Previous,
long press to Fast Rewind.
3, –RIGHT direction button to operate the menu. For playback, press to Next,
long press to Fast Forward.
4, –Long press to power on and off. OK direction button to operate the
menu. For playback, press to play and pause.

3
5, ESC –Back to the previous menu.
6, REC –In TV IN preview the video mode, press to record video, press again to stop
and save file.
7, DC/DATA –Supply 5V/2A DC power with Type-C cable to charge battery, connect to
computer to manager files.
8, –Connect earphone to listen the audio.
9, AV IN –AV input connection with AV Cable.
10, HDMI OUT –Connect to TV monitor displaying.
11, VOLUME –Press the upper button to increase the volume, and press the lower
button to decrease the volume.
12, Micro SD –Plug Micro SD card to save recording file or play the file in card.
13, USB HOST –Plug USB flash drive to save recording file or play the file in it.
14, SPEAKER –With speaker inside, can listen to the sound directly.
15, RESET –Click to reset to factory default setting.
Preparation Before Use
Connections

4
Power, Charge and Data
To charge the battery of this device, use Type-C cable to connect with 5V DC or PC, will
see the charge status on screen.
Connect it to PC, will see 3 options: Power & Data, Charge, Charge & Play. Just choose
one you want and click OK. When you choose Power & Data, you can copy the file out
or in to the Micro SD card (Only for Micro SD card, not for USB flash drive).
Micro SD Card / USB Flash Drive
Plug Micro SD card into the slot with right direction as picture, the screen will prompt
Card In when plugged, and a card icon will be displayed in the upper right corner.

5
Un-plug Micro SD card from device, the screen will prompt Card Out, and the icon will
be disappeared.
Plug USB flash drive into the slot, the screen will prompt External Memory In when
plugged, and a USB stick icon will be displayed in the upper right corner. Un-plug USB
flash drive from device, the screen will prompt External Memory Out, and the icon will
be disappeared.
For file safety, It is best to empty and format the Micro SD card and USB flash drive
before using. Support FAT32, exFAT (does not support NTFS), MAX 32GB.
Note: It is not recommended to connect Micro SD card and USB flash drive at the same
time, if they are connected at the same time, the device will use the first inserted
memory as the recording memory. But can play all files in Micro SD card and USB flash
drive.
AV Input
Use the 3.5mm to 3RCA cable (come with the device in box) connect to the video source,
such as VHS, DV, etc. The 3.5mm connector plugs to the AV IN of device.
The RCA connectors to VHS, yellow = video, white = audio left channel, red = audio
right channel.
When connect ok, at TV IN will see the playing video. Can record the video now. At
Recorder, can listen to the audio of the playing video, can record the audio with this
connection.
Use a 3.5mm to 3.5mm audio cable, connect to AV IN port of device and other audio

6
source, you also can record audio at Recorder.
HDMI Output
Use HDMI cable to connect with HDMI OUT, and another side connects to TV or
monitor. When connected, the screen of ezcap180 VHSDigi and TV will display the
video at the same time.
When previewing and recording video under the TV IN menu, or when recording audio
under the Recorder menu, there will be no audio output from the TV, only the speaker
or earphone output of the device has sound output. While playing video under the
Videos menu, or playing music under the Music menu, there will be no sound from the
speaker and earphone of the device, and only the TV has sound output.
Please do not plug or unplug HDMI cable when playing (playback video or audio,
recording video or audio), otherwise will caused problems.
Earphone Output
Connect earphone or speaker to earphone port, can listen the sound of ezcap180.
When you playback with own screen, plug earphone, the audio will cut off from speaker
of ezcap180 and switch to earphone. When you playback with HDMI OUT, plug
earphone, the audio will keep playing on TV, does not play at earphone.

7
Start Work
Basic Menus on Screen
Long press to power on ezcap180 (You may need to charge it if it is out of
battery), will see:
1, Time –Shows current time.
2, Function Menu, use direction button to choose icons, press OK to enter:
Videos –Enter to playback recorded videos.
Music –Enter to playback recorded audios.
Pictures –Enter to playback pictures.
TV IN –Enter to preview input video, and record.
Recorder –Enter to preview input audio, and record.
Setting –To set time, language, etc.
3, USB flash drive in

8
4, Micro SD card in
5, Capacity of battery
Record Video
Enter TV IN, will preview the connecting video, press REC button to record video, press
again to stop recording and save file. While recording, screen will display the recording
time and remaining recordable time in the memory in the lower left corner. After you
finish recording, press ESC button to back to the previous menu.
Note: If you enter TV IN and find the preview video is black and white, or flashing,
please go to Menu: Settings - TV Rec, and switch TV system from PAL to NTSC, or
NTSC to PAL. Press LEFT/RIGHT button to switch PAL and NTSC, press OK to finish.
Record Audio
Enter Recorder, will preview the input audio, press REC button to record audio, press

9
again to stop recording and save file. After you finish recording, press ESC button to
back to the previous menu.

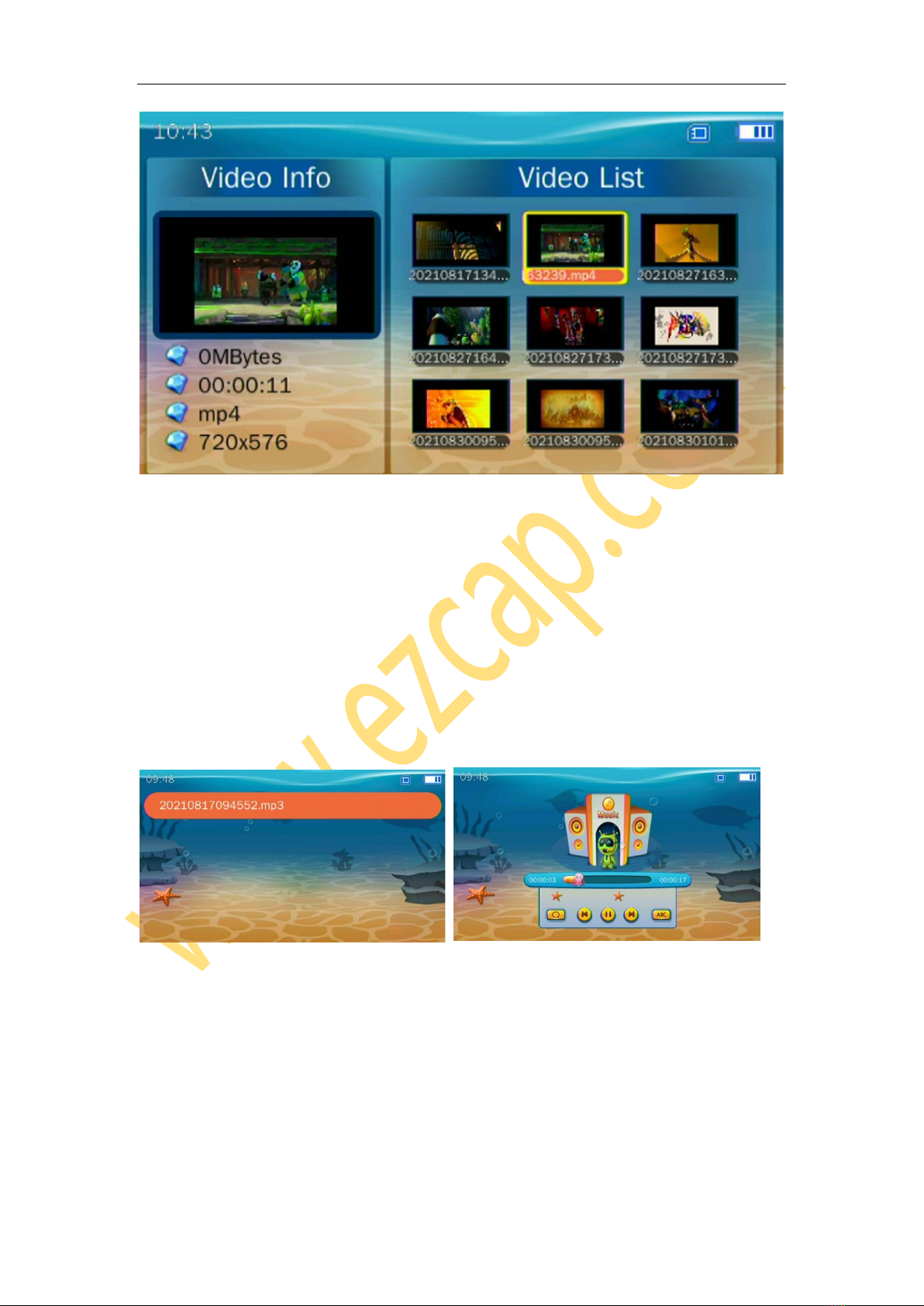

Video Playback
Enter to Videos, will see the recorded videos, choose file with direction buttons, press
OK to play. When playing, press VOLUME button to set audio level, press LEFT/RIGHT
button to play Previous / Next, and keep press to Fast Rewind / Fast Forward, and
release to resume normal playback. Press ESC button to back to the previous menu.

10
Audio Playback
Enter to Music, will see the recorded audios. Choose file with direction buttons, press
OK to play. When playing, press VOLUME button to set audio level, press LEFT/RIGHT
button to play Previous / Next, and keep press to Fast Rewind / Fast Forward, and
release to resume normal playback. Press ESC button to back to the previous menu.
Picture Playback
ezcap180 VHSDigi does not capture still image, but you can copy pictures into Micro SD
card or USB flash drive to view. Enter Pictures menu to choose and view.

11

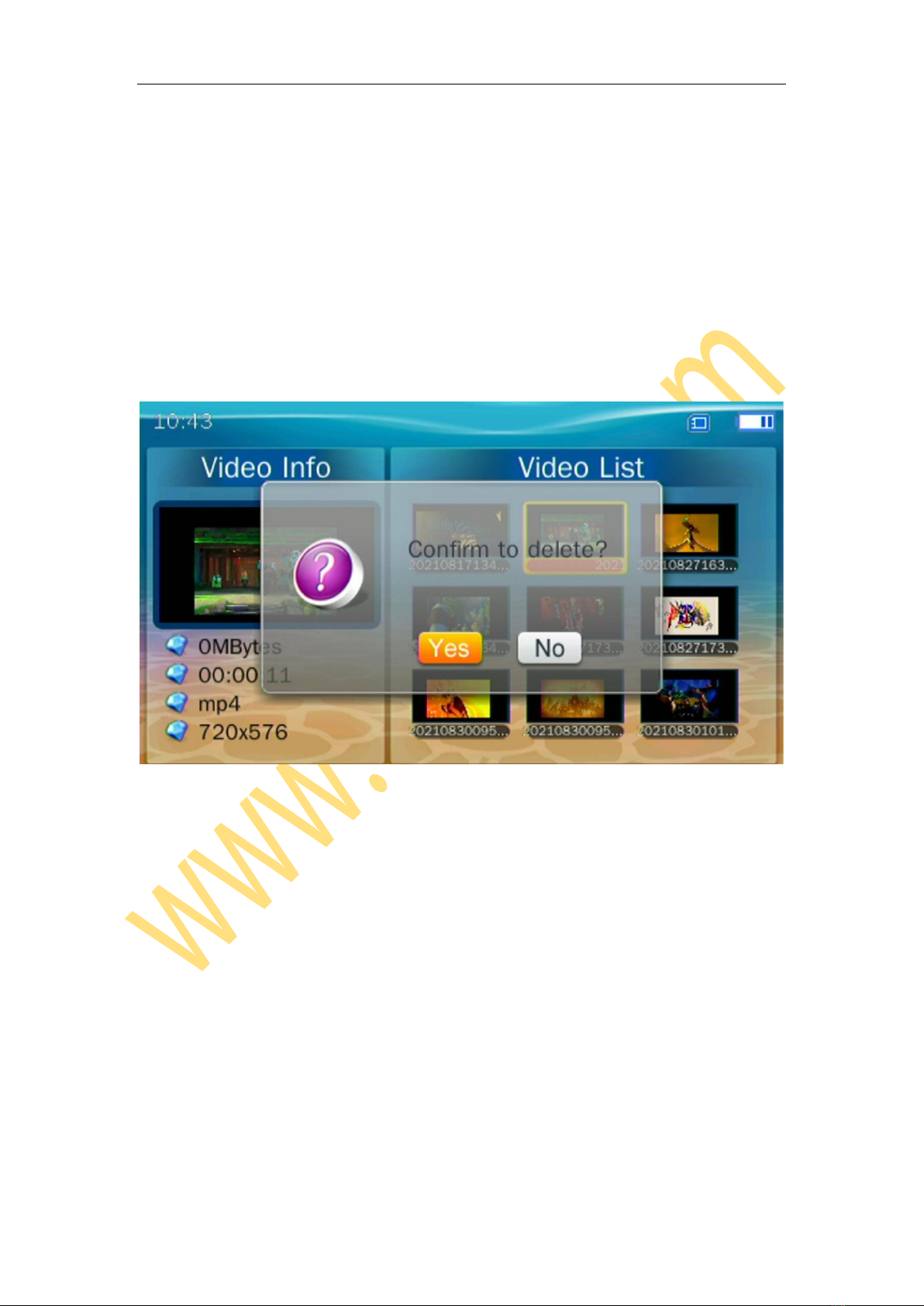

Delete File
If you want to delete the video, music or picture file, please find the file under Videos,
Music or Pictures menu firstly. Press LEFT/RIGHT button to choose the file you want to
delete, and long press REC button, you will see window –Confirm to Delete? –Yes -
No, please select Yes and press OK to delete the file.
Card Reader
ezcap180 VHSDigi can work as a card reader. Connect Type-C cable with device and
USB port of your computer, and please press LEFT/RIGHT button to choose Power &
Data on device screen. Your computer system will pop up the VHSDigi folder, and you
can find the recorded video and audio files in the folder VIDEO --- TVIN and MUSIC.
You can copy them to your computer, and also can copy video and music to Micro SD
card to play on ezcap180 VHSDigi directly.

12
Note: Please un-plug Type-C connector from device and re-plug into until show you
Power & Data selection。Select it, and you can manage the data in Micro SD card on
your computer right now.

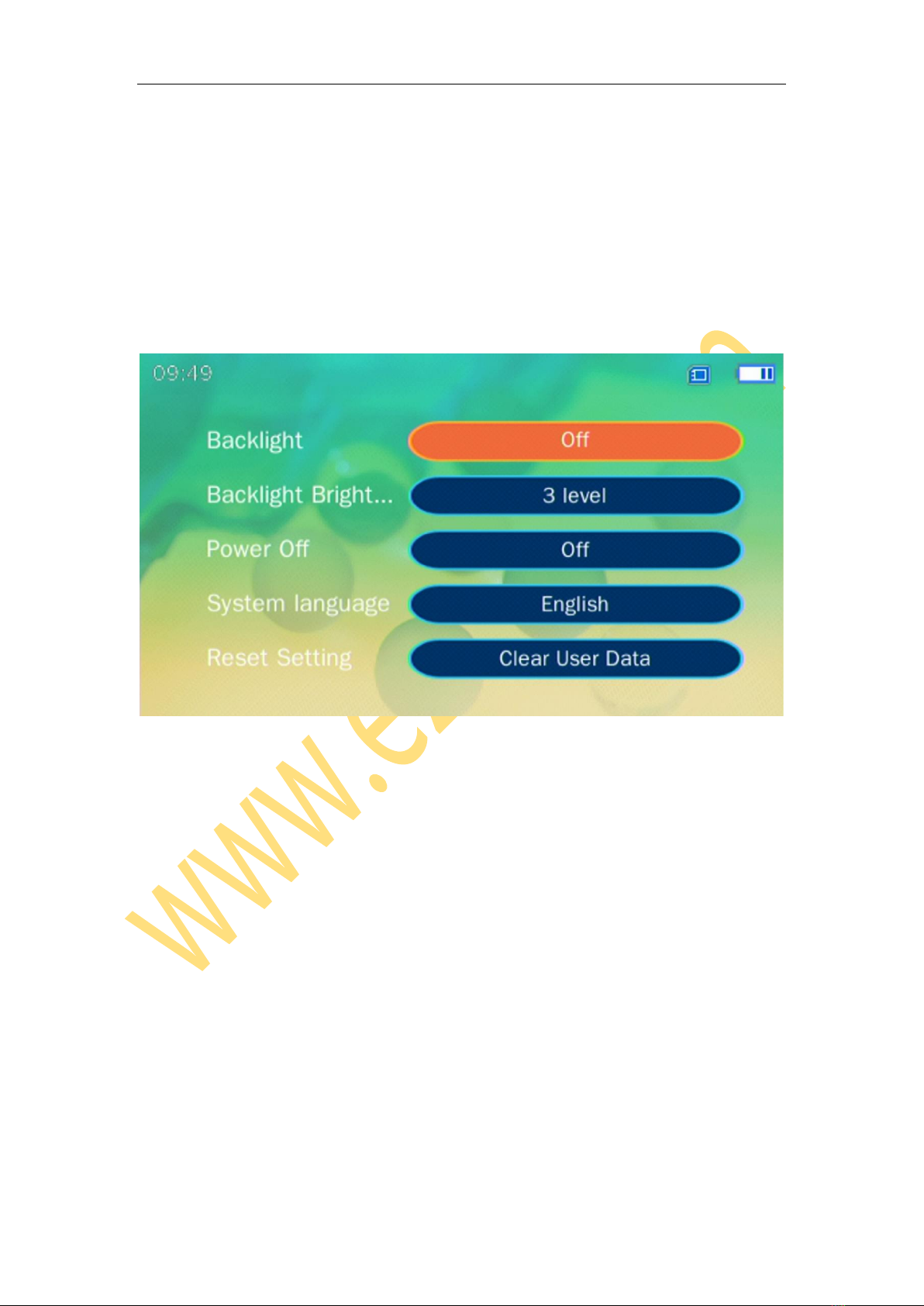

Setting
Backlight –Set Backlight time, for saving energy. After the screen off, press OK button
to wake up screen.
Backlight Brightness –Set backlight brightness level from 1 to 5, and 1 to 5 means dark
to brightest.
Power Off –set idle time and sleep time, for saving energy.
System Language –set language of menu
Reset Setting –Clear user data, back to factory default setting
Version: Firmware version
Clock Time –Press VOLUME button to select Hour and Minute, and press LEFT/RIGHT

13
button to adjust Hours and Minutes, Press OK to finish.
Date –Press VOLUME button to select Year, Month and Date, and press LEFT/RIGHT
button to adjust them, Press OK to finish.
TV In –Set TV system as same as video source. Press LEFT/RIGHT button to switch PAL
and NTSC, press OK to finish.
Specifications
Interface
USB 2.0
Video Input
Composite video by 3.5mm to 3RCA AV cable
Audio Input
Analog L/R audio by 3.5mm to 3RCA AV cable or 3.5 audio cable
Video Output
HDMI: 480p60
Audio Output
HDMI, 3.5mm earphone port, Speaker inside
User Interface
Button: OK/POWER, LEFT, RIGHT, ESC, REC, VOLUME.
4.3 inch TFT screen, Speaker inside, 1500mAh lithium battery inside.
Storage Media
Micro SD card and USB flash drive, supports FAT32 and exFAT, does not
support NTFS format, Max 32GB.
Record Format
Video: .mp4, Audio: .mp3
Record Quality
480@15fps, NTSC: 720 x 480, PAL: 720 x 576
Record File
Video: about 4.2MB/Minute, 250MB/Hour. Audio: 1.2MB/Minute
Play Format
Video: avi, mov, mkv, webm, mp4, m4v, flv, 3gp, 3g2, 3gpp, dat, vob, evo,

14
mpg, asf, trp, ts, m2ts, mts.
Audio: mp3, ogg, ape, flac, wav, amr, aiff, mpc
Working Time
About 2.5 hours to charge separately, about 2 hours for fully charged
working.
Power Supply
1500mAh lithium battery inside, Type-C to USB power cable (Not include
5V2A power adapter)
Dimensions
116(L) × 78(W) × 18(H) mm
Weight
132g

ezcap180
视频录制盒
说明书

感谢您购买 ezcap180 VHSDigi 4.3 寸屏 AV 录制盒。 请在使用前阅读本手册并将其保存在安全的地方以
备将来参考。 你可以使用这台机器： 将VHS 和所有复合视频转换为数字视频文件，保存在 TF 卡或 U 盘
里。将模拟音频转换为数字 MP3 文件。 本机播放视频和音乐文件。
概览
包装内容
ezcap180 VHSDigi 4.3 寸屏视频录制盒 x1, 说明书 x1, Type-C 转USB 电源数据线 x1, 3.5mm 转3RCA
AV 线x1
产品示意图

1, 4.3 寸TFT 显示屏 (480 x 270)
2, –向左方向键操作菜单，播放文件时按下为播放上一首文件，长按则为快退。
3, –向右方向操作菜单，播放文件时按下为播放下一首文件，长按则为快进。
4, –长按开机关机。OK 键操作菜单确认。播放文件时按下开始播放，再按停止播放。
5, ESC –返回上一级菜单。
6, REC –视频输入预览视频时，按下开始录制视频，再次按下停止录制并保存文件。
7, DC/DATA –用Type-C 线5V/2A 直流电供电及给电池充电，连接电脑还可以管理 TF 卡里的文件。

8, –连接耳机聆听音频。
9, AV IN –用配备的 AV 线连接设备和视频源。
10, HDMI OUT –连接电视显示视频。如无必要无需连接，因为自有 4.3 寸显示屏。
11, VOLUME –音量调节键。按下上方按键增加音量，按下下方按键降低音量。
12, Micro SD –插入 TF 卡用于保存录制文件或播放卡内文件。
13, USB HOST –插入 U盘用于存储录制文件，或播放 U盘内文件。
14, SPEAKER –内置扬声器，无需连接耳机直接聆听。
15, RESET –用针状物按下后恢复出厂设置并重启设备。
使用前准备
连接示意图

电源，充电和数据
用配备的 Type-C 线连接设备和 5V 电源，即可给设备充电，显示屏上会出现充电状态。
连接到电脑，您会看到设备屏幕有三个选项: 供电及数据传输，充电，后台充电. 根据需要选择并按 OK 即
可。 选择供电及数据传输，你可以管理 TF 卡里的文件。(仅对 TF 卡有效，对 U盘无效。)
TF 卡/ U 盘
按照正确方向插入 TF 卡，屏幕会提示卡插入，同时右上角会出现一个 TF 卡标识。拔出 TF 卡，屏幕会提示
卡拔出，同时 TF 卡标识从显示屏消失。
插入 U盘，屏幕会提示外部存储器插入，同时右上角会出现一个 U盘标识。 拔出 U盘，屏幕会提示外部存
储器拔出，同时 U盘标识从显示屏消失。
