Ezee Glow MZEFTCEL36 User manual

Celestial 36”, 50”, 60”& 72”Electric Fire Range
OWNERS MANUAL
ModelNumbers:MZEFTCEL36,MZEFTCEL50,MZEFTCEL60,MZEFTCEL72
AC 220-240V,50Hz1400-1600W
WARNING
Please read the entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so couldresultin fire,
electric shock, or serious personal injury.
CAUTION
Keep the owner’s manual for futurereference.If you sell or give thisproduct
away, make sure this manual accompanies this product.
@ezeeglow
@ezeeglowelectricfires
Rev G
Be sure to upload your fire image using #ezeeglow and tag Ezee
Glow on Facebook or Instagram to feature on our social media!

2
IMPORTANT SAFETY INFORMATION!
WARNING
When using electrical appliances basic precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including the following:
⚫Read all instructions beforeusing thisheater.
⚫This heater is hotwhen in use.To avoid burning,donot touch hotsurface.If provided, use
handleswhenmovingthisheater.Keep combustiblematerials, such as furniture,pillows,
bedding,paper, clothes,andcurtainsat least 1 m from thefront of theheater and keep them
away from the sides andrear. In order to avoidoverheating,do not cover theheater.
⚫Extreme caution isnecessary when anyheaterisused nearchildren orthe infirmand
wheneverthe heateris left operatingand unattended.
⚫Alwaysunplugheaterwhen notin use.
⚫Do not operate any heaterwith a damaged cord/ plug,after the heater malfunctionsorhas
been damaged in anymanner. Return heaterto authorizedservicefacilityfor examination,
electrical/ mechanical adjustment,andrepair.
⚫Indoor useonly,do notuse outdoors.
⚫This heater is notintendedforusein bathrooms, laundryareasor similar indoorlocations.
Never locate heater whereit may fall into a bathtubor other water container.
⚫Do not run cord undercarpeting.Do not cover cord with throw rugs, runners,or similar
coverings.Arrange cord away from trafficareas, whereit willnotbe tripped over.
⚫To disconnectheater,turn controls to off,then remove plug from outlet.
⚫Do not insertobjects to enter anyventilation or exhaustopenings,as this may cause an electric
shock, fire, or damage to theheater.
⚫To prevent a possible fire, do not blockair intakesor exhaustin anymanner.Do not use on soft
surfaceslike a bed, where openingsmay become blocked.
⚫The heater hashot, arcingparts inside.Do not useit in areas whereflammableliquidsare
used/ stored.
⚫Use thisheater onlyas described in the manual.Anyotherusenot recommended by the
manufacturermaycause fire, electric shockor injuryto persons.
⚫DANGER - HIGH Temperatures may be generated undercertain abnormal conditions.Donot
partially or fullycover/ obstruct thefront of thisheater.
⚫Do not install heaterdirectly below a power socket outlet.
⚫This applianceisnotintendedforuse by persons(includingchildren)with reducedphysical/
sensorycapabilities or by those with a lack of experience/knowledge,unlesstheyareprovided
with supervision and instruction concerninguseof the applianceby a person responsiblefor
their safety.
⚫CAUTION: In order to avoid a hazard dueto inadvertentresetting of the thermal cut-out, this
appliancemustnot be suppliedthrough an external switchingdevice,such as a timer, or
connectedto a circuit that is regularlyswitchedon/ off by theutility.

3
WARNING
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater
in small rooms when they are occupied by persons not capable of leaving the room on their own, unless
constant supervision is provided.
Children less than 3 years old should be kept away from the appliance. Children aged from 3 –8 years shall
only switch on the appliance, provided it is properly installed, have been given instruction on how to use it
and understand the hazards involved. Children aged 3 –8 shall not plug in, clean, or perform maintenance
tasks on the appliance.
· CAUTION —Some parts of this product can become very hot and cause burns. Particular attention
must be given when children and vulnerable people are present.
ELECTRICAL CONNECTIONS –UK PLUG WIRING INSTRUCTION
• If the plug must be changed because it is not suitable for yoursocket, or due to damage, please
follow the wiring instructions shown below.
• The wires in the mains lead are coloured in accordance with the following code:
BROWN: LIVE (L)
BLUE: NEUTRAL (N)
GREEN/YELLOW: EARTH (E)
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, please see below:
• The BLUE wire is the NEUTRAL and must be connected to the
terminal which is marked with the letter N orcoloured BLACK.
• The BROWN wire is the LIVE and must be connected to the
terminal that is marked with the letter L or coloured RED.
• The GREEN/YELLOW must beconnected to the terminal which
is marked E or the earth symbol or coloured GREEN or
GREEN/YELLOW.
• Always ensure that the cord grip is positioned and securely
fastened.
• WARNING: THIS APPLIANCE MUST BE EARTHED.
• If a 13A (BS1363) fused plug is used it must be fitted with
a BS1362 13A fuse. If in doubt consult a qualified
electrician.
IMPORTANT SAFETY INFORMATION!

4
Install preparation
This product includes a GLASS panel. Use extreme caution when handling. Failure to
do so couldresultin personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check
the parts list to make sure you have all the parts you need. Please recycle all packaging material at
your local recycling center.
You will need the following tools (not included): Phillips screwdriver,drill and drill-bitset.

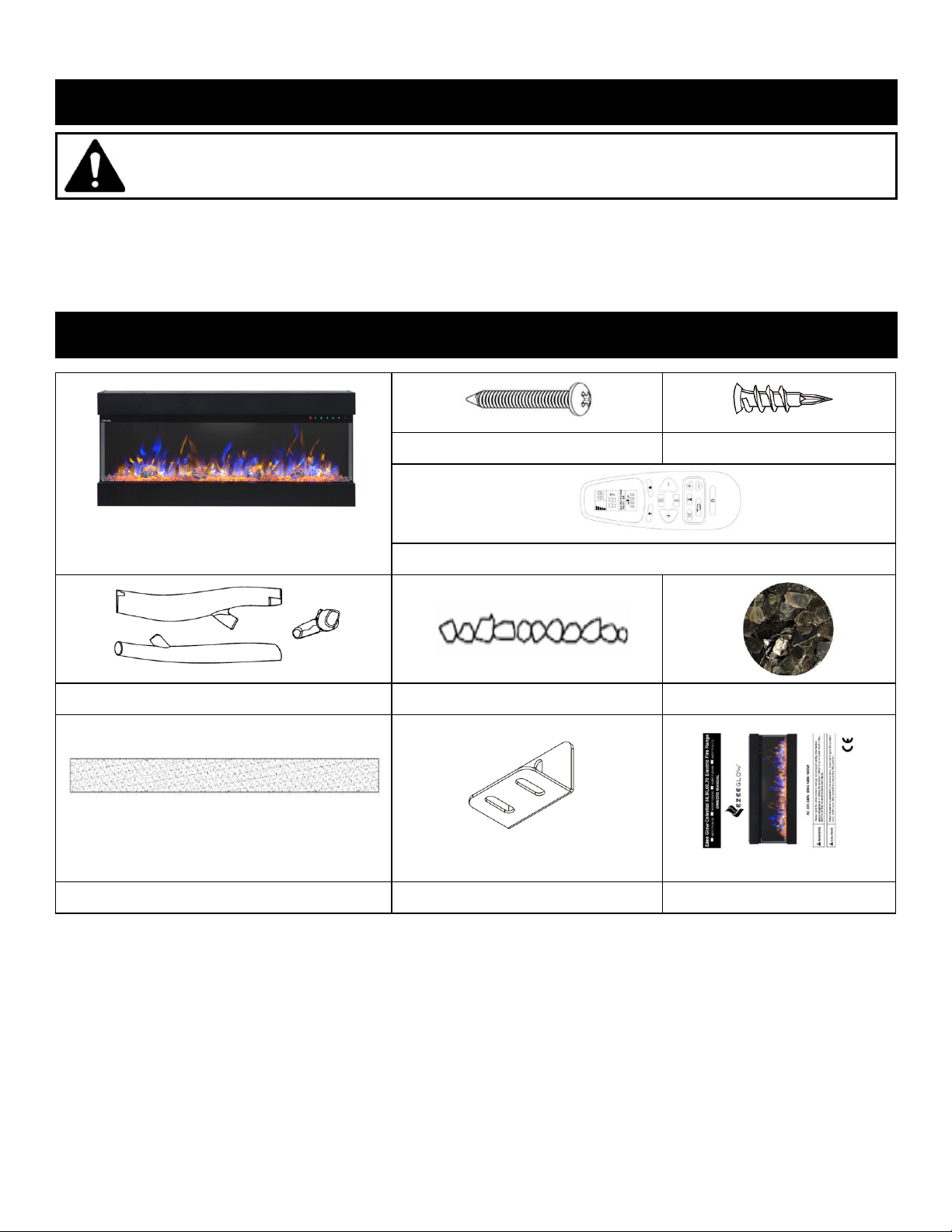

Parts and Hardware
A –Fireplace
B –Wood Screws
C –Drywall anchors
D- Remote Control
E-Artificial logs
F- Decorative Crystals
G- Charredwood pieces
H –Fuel-bedtray
I- ‘L shape’metal bracket
J- Instruction Manual

5

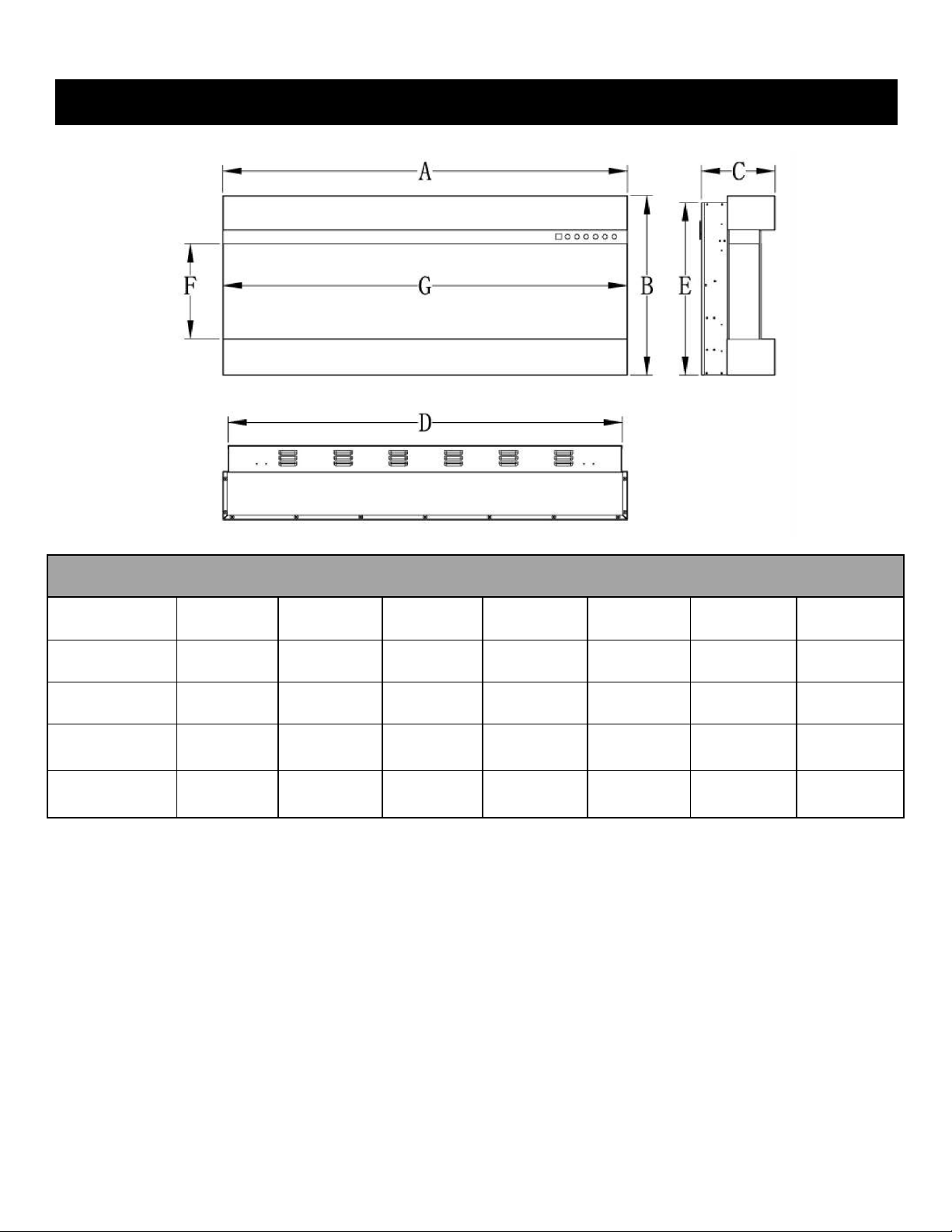

Dimensions
PRODUCT DIMENSIONS
Model Number
A
B
C
D
E
F
G
MZEFTCEL36
36.6"
93cm
19.1"
48.4cm
7.9"
20cm
35.5"
90.2cm
18.3"
46.56cm
10.1"
25.61cm
36.4"
92.57cm
MZEFTCEL50
50"
127cm
19.1"
48.4cm
7.9"
20cm
48.9"
124.2cm
18.3"
46.56cm
10.1"
25.61cm
49.8"
126.57cm
MZEFTCEL60
60"
152.4cm
19.1"
48.4cm
7.9"
20cm
58.9"
149.6cm
18.3"
46.56cm
10.1"
25.61cm
59.8"
151.97cm
MZEFTCEL72
72"
182.8cm
19.1"
48.4cm
7.9"
20cm
70.9"
180cm
18.3"
46.56cm
10.1"
25.61cm
71.8"
182.37cm

6
InstallationOverview
Yourappliancefacilitatesthree differentinstallation configurations:three-sided, two-sided, and
single-sided.

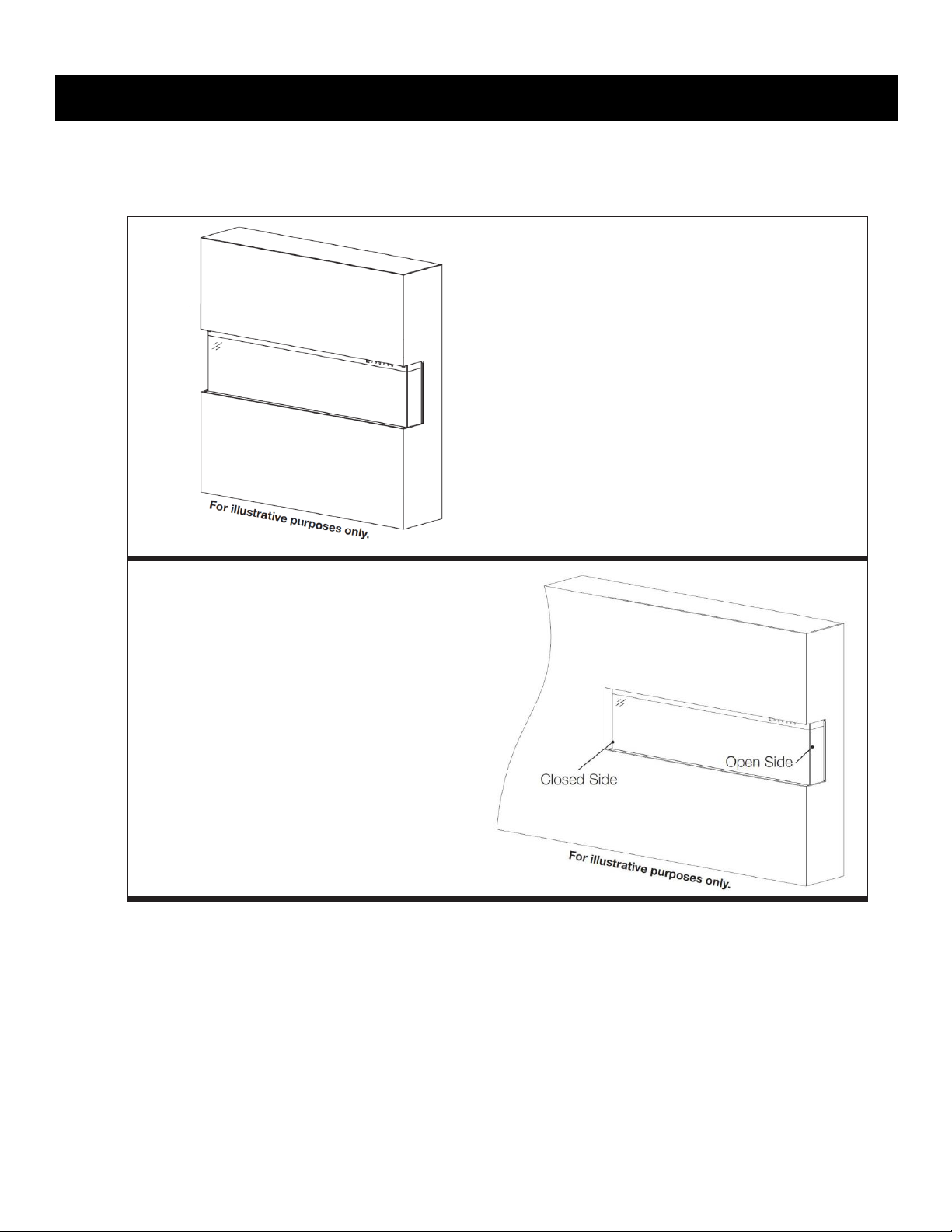

Three-sided installation
• Glass exposed on front, left, AND rightsides.
• Appliance isfullyrecessedintothewallwith
both sides open.
• See pages9 and 10 formore info.
Two-sided installation
• Glass exposedonfront ANDleft OR right sides.
• Appliance isfullyrecessedintothewallwith
onesideopen.
• See pages9 and 10 formore info.

7

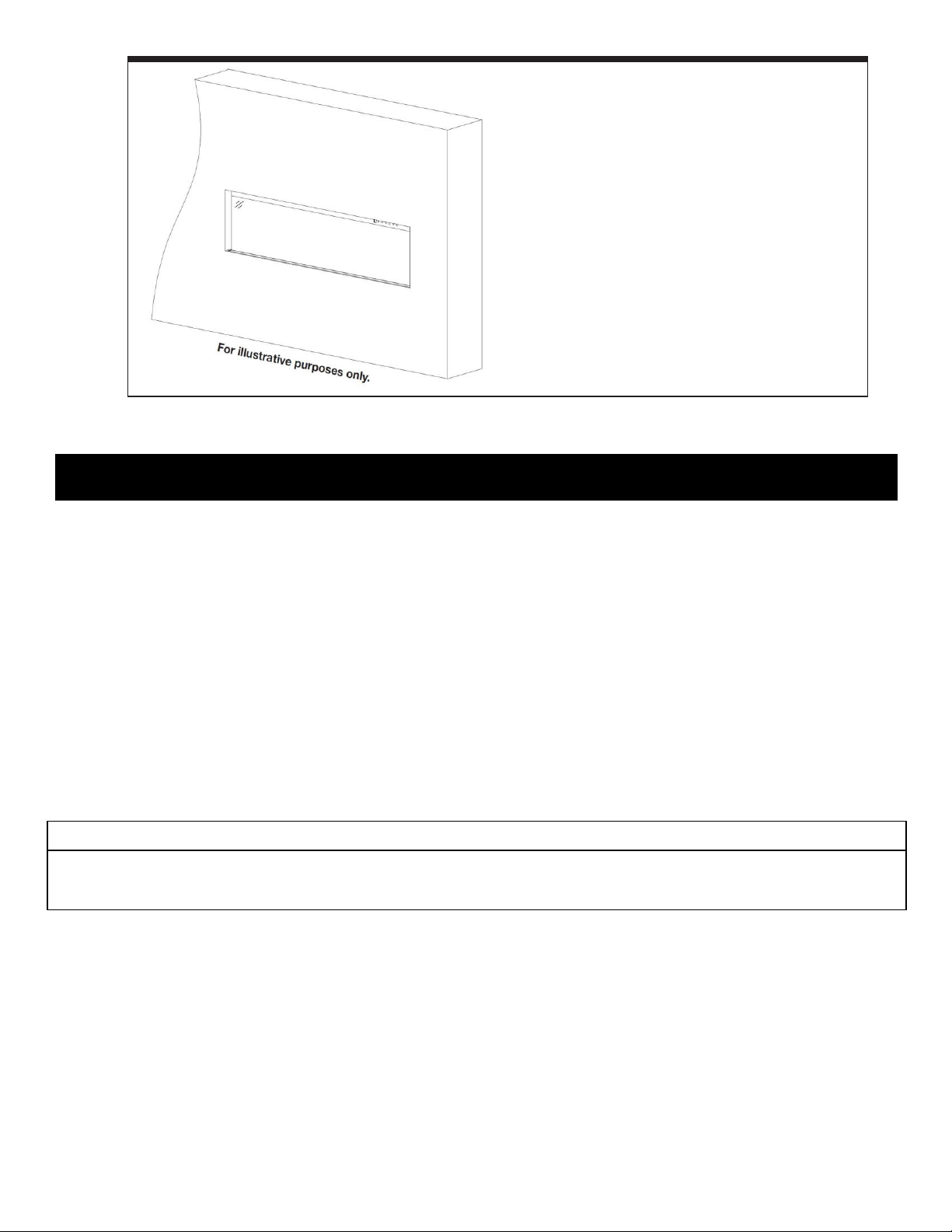

Single-sided installation
• Glass exposed on frontONLY.
• Appliance isfully recessed into the wall.
• See pages9 and10 formore info.
Installation/ MinimumClearance
Yourapplianceisa recess installedappliance.Selecta suitable location thatis not susceptibleto
moisture build-up.It must be located enough distanceawayfrom curtains,furniture,andhigh traffic
areas. See below for more info.
NOTE:Follow all local andnational electrical regulations/ codes.
NOTE: A timber/ metal frame can be constructed that is flush with the fire unit on the top,
bottom and sides, as long as the vents on the fire unit are not obstructed and the frame is
hollow to allow for airflow.
NOTE:We recommend you don’t place soft furnishings directly in front of the heater outlet.
MINIMUMCLEARANCES
All measurements taken from front, measuring from perimeter of glass screen
Bottom 0" Top 3.95" (10cm)
Sides 0" Front 7.9”(20cm)
Back 1.2" (3cm)

8
Installation- RoughFraming
ModelNumber
W
D
H
MZEFTCEL36
36.6"
93.5cm
8.27"
24.5cm
19.25"
48.9cm
MZEFTCEL50
50"
127.5cm
8.27"
24.5cm
19.25"
48.9cm
MZEFTCEL60
60"
152.9cm
8.27"
24.5cm
19.25"
48.9cm
MZEFTCEL72
72"
183.2cm
8.27"
24.5cm
19.25"
48.9cm
Note:
Appliance is NOT load-bearing. Carefully consider weight of finishing materials when constructing rough framing.
Ensure installation complies with all local building codes and requirements.
The framing dimensions above apply to all three types of installation. The illustration represents the 3 sided
installation, but if 1 or 2 sided installation is preferred, simply extend the frame further on the closed glass side.

9
Installation- Plasterboard
ModelNumber
W
D
H
MZEFTCEL36
36.6"
96cm
8.27"
14.6cm
19.25"
29.4cm
MZEFTCEL50
50"
130cm
8.27"
14.6cm
19.25"
29.4cm
MZEFTCEL60
60"
155.4cm
8.27"
14.6cm
19.25"
29.4cm
MZEFTCEL72
72"
185.7cm
8.27"
14.6cm
19.25"
29.4cm
Note:
Dimensions assume plasterboard of 12.5mm thickness is used.

10
Pre-installation
1.Remove the 8 screws from the top and bottom of the appliance (Fig. 3-1).
2.Install the 4 metal brackets (supplied) using the 8 screws previously removed (Fig. 3-2).
3. Remove the side trims and side panels from both sides of the appliance by removing the 12 screws
(Fig.3-3). Set the side trims, side panels, and screws aside.

11

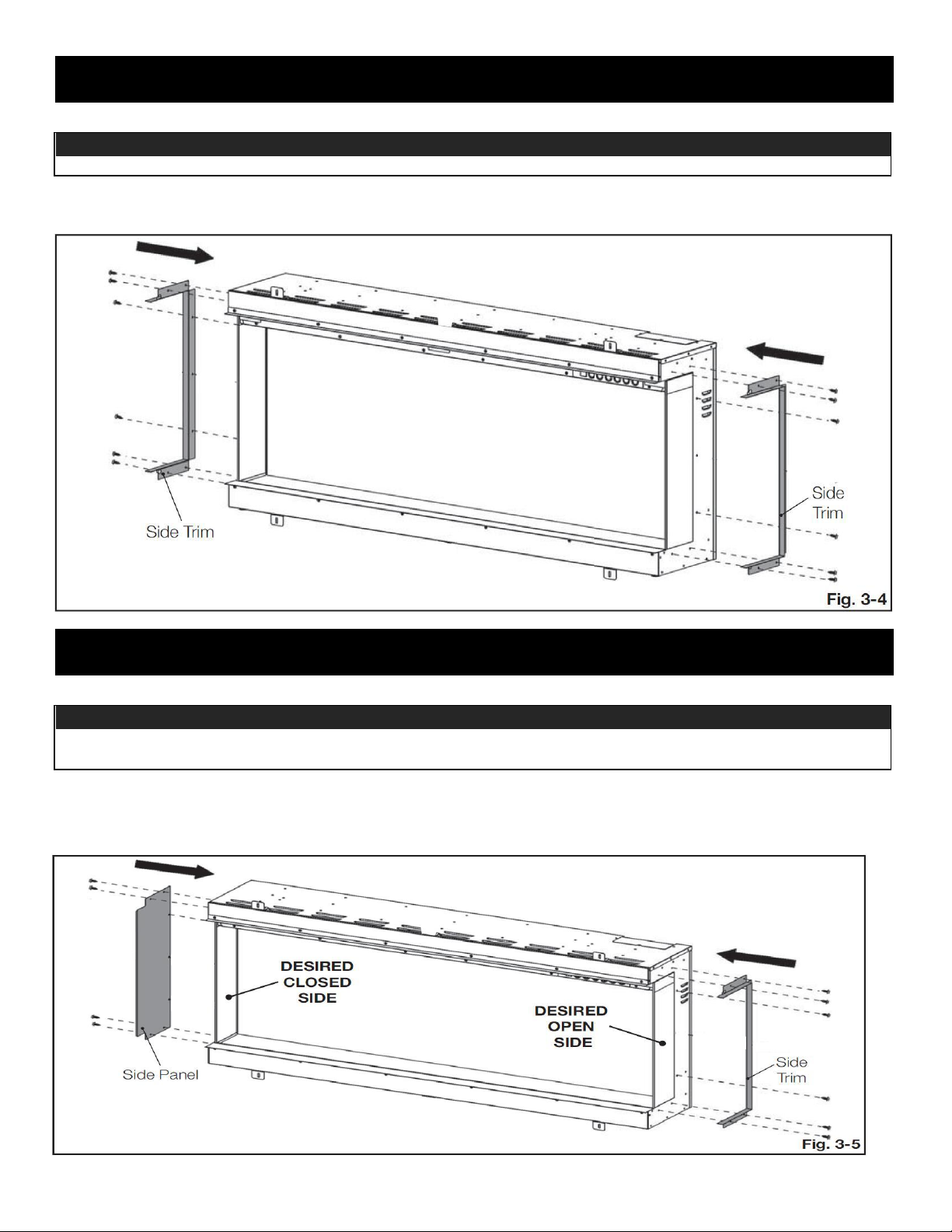

Three-sidedViewingInstallation
1.Re-secure both side trims usingthe12 screws previouslyremoved (Fig. 3-4).
Two-sidedViewing Installation
1.For desired open side, re-secure the side trim usingthe6 screws previouslyremoved (Fig. 3-5).
2.For desired closedside, re-secure theside panel usingthe4 screws previouslyremoved (Fig. 3-5).
Note:
When installed with both sides open, the appliance will have a front view, as well as left and right-side views.
Note:
When installed fullyrecessed into the wall with one side open, the appliance will have a front view and left-
or right-sided view,depending on your desired open side.

12
Single-sided ViewingInstallation
1. Re-secureboth side panelsusing the 8 screws previouslyremoved (Fig. 3-6).
Note:
When installed fully recessed into the wall with both left and right sides covered,the appliance will have a
frontview only.

13

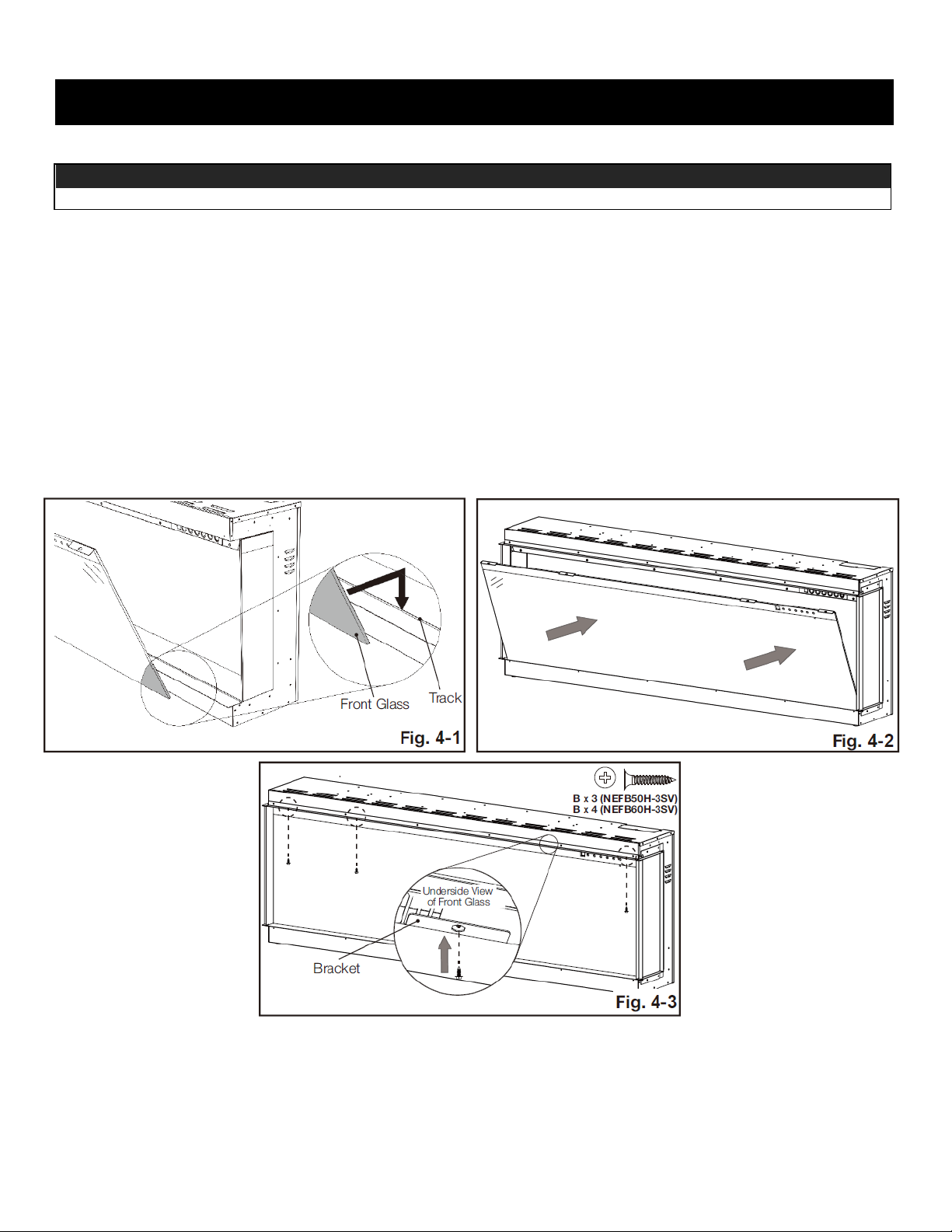

FrontGlass Installation/ Removal
1. Ensuringtheglassmetal bracket is fitted to the top of thefront glass, place the front glass into the
track located insidethefirebox (Fig. 4-1).
2. Tilt theglass forwards andintoplace. (Fig. 4-2).
3. Securethe fourflathead screws (supplied)through the bracket holeson the top, underside of the
glass metal bracket (Fig. 4-3).
4. Reverse thesesteps to remove thefront glass.
Note:
Support the front glass through the entireprocess to avoidbreakage.

14

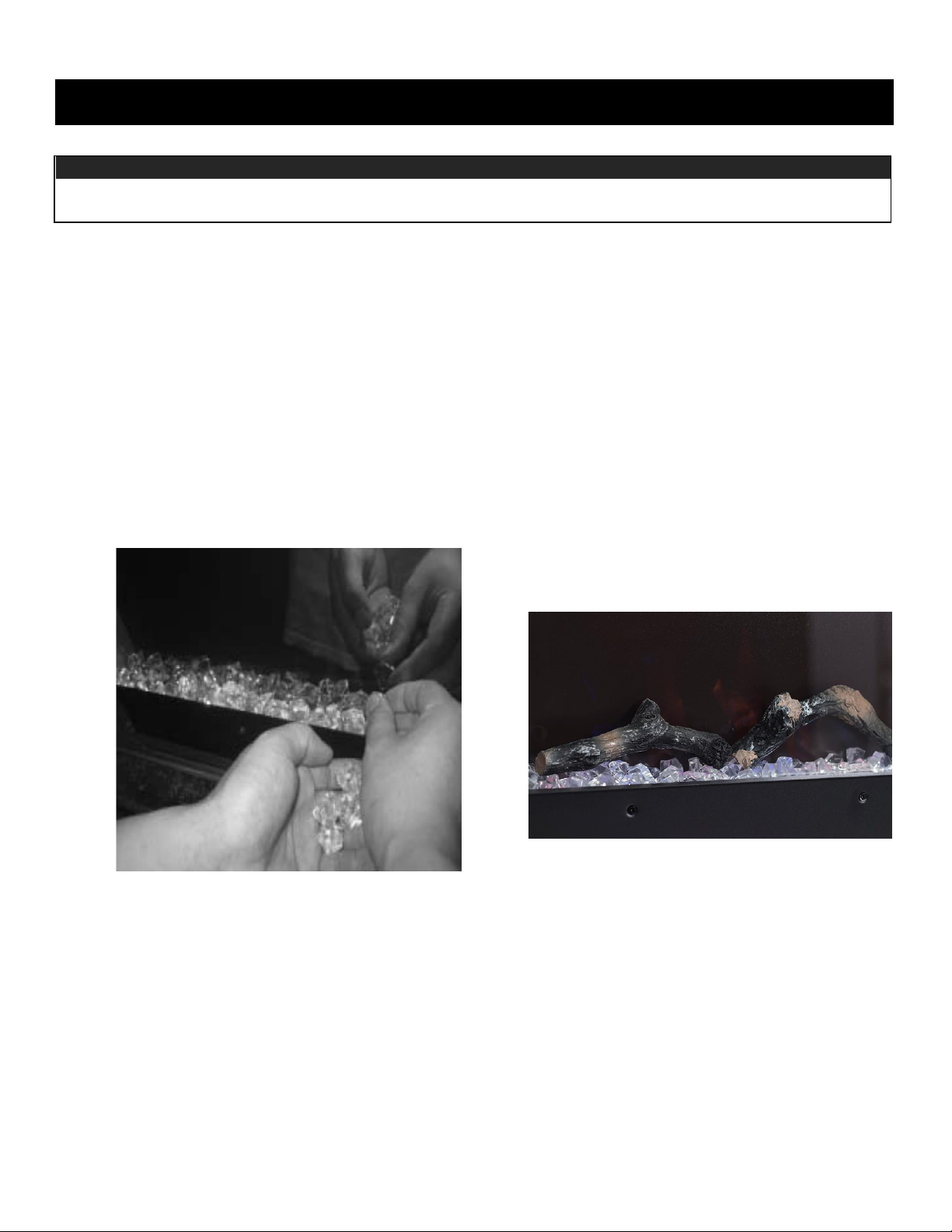

Fuel-bedEffect Installation
1. Whilesupportingtheglass,remove the screws holdingthefrontglassscreen in place. Remove
the glass andsafelystore it to one side for now. See page 12.
2. Disperse the crystals evenlyon the fuel-bedtray in a side-to-side motion. Figure 1. Next, using
the same side-to-side technique,dispersemost of the charred flakesonto the surfaceof crystals.
Save some for later.
3. Place theartificial logs on the surface of thecrystals, leavinga gap underneath sothefireeffect
is visible.Figure 2. To enhancethe bedfurther, disperse theremainder of the charred wood flakesin
andaroundeach log.
4. Finally,when contentwith yourfuel-bed,re-fit theglass screen See page 12, switch the fireon
andrelax.
Figure 1. Figure 2.
Note:
The appliance mustbe installedin its final location before thecrystals, artificial logs and charred
wood piecesare installed.

15
Operation
Please read the entire owner’s manual, including all safety information, before
plugging in or using this product.Failure to do so could result in fire, electric shock, or
serious personal injury.
Power
Plug the power cord into a 220-240V 50Hz outlet (see IMPORTANT SAFETY INFORMATION on
Pages 2 and 3). Make sure the outlet is in good condition and the plug is not loose. NEVER exceed
the maximum amperage for the circuit. DO NOT plug other appliancesintothesame circuit.
Methods of Operation
The electric fire can be operated by the control panel located on the front of the unit or the remote
control. See figures below.
Before operating,please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3.
Front View
\
Heat Vents
Control Panel
Control panel
Remote control

16

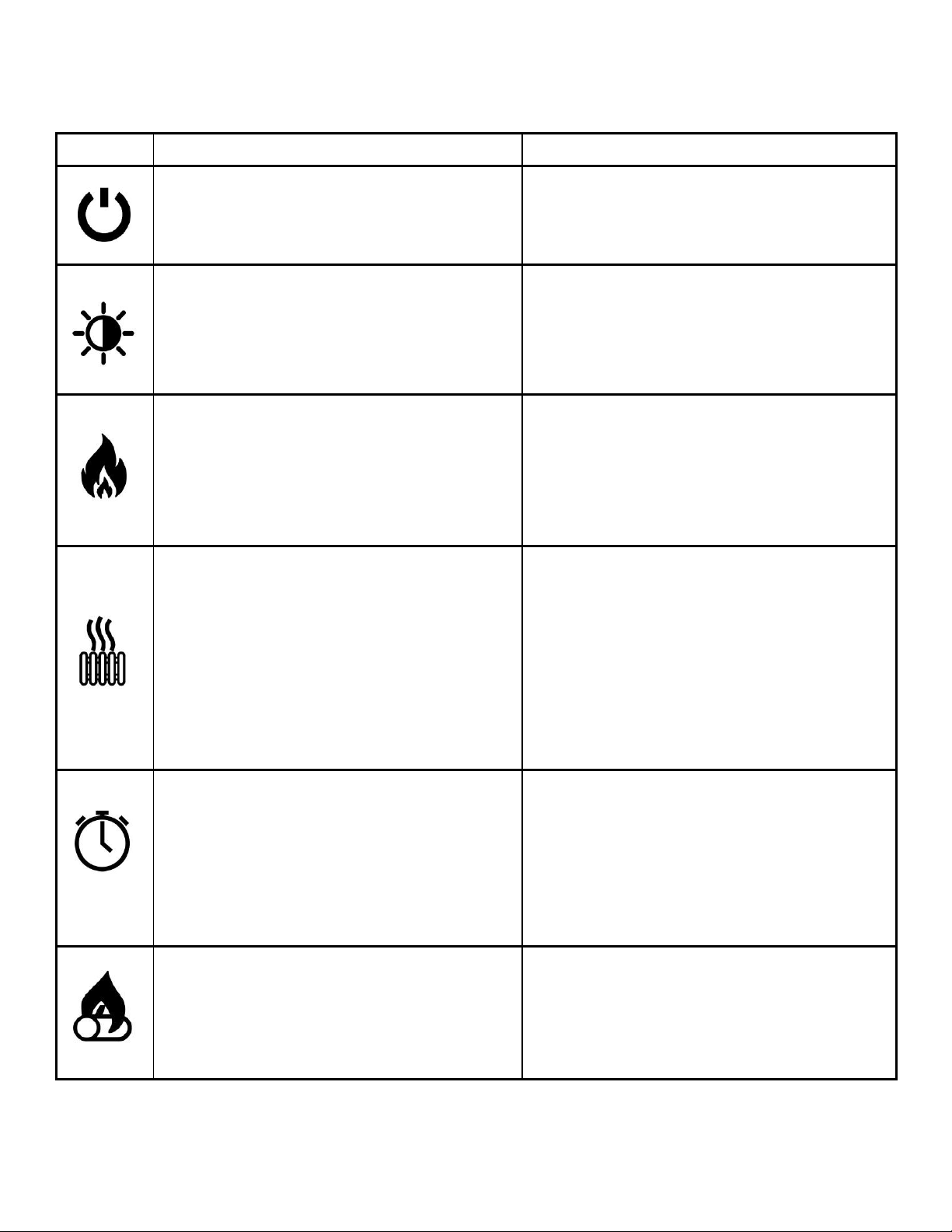

Control Panel Operation
BUTTON
FUNCTION
ACTION & INDICATION
ON: Enables control panel functions and
remote control. Turns on flameeffect.
OFF: Disables control panel functionsand
remote control. Turns off flame effect.
1. Press once, Indicator lightturnson.
Power turns on.All functionsenabled.
2. Press again, Flame effect turnsoff.
Power and all functionsturn off.
BRIGHTNESS button:Adjusts brightness.
1. Press once, Indicator lightturnson.
Brightnesschanges.
1. Press again, until desired brightness is
selected.
FLAME button:Adjusts flame colour.
NOTE:Flame effectstays on until power
button is turnedoff.Flame effectmust be
on for heater to turn on.
1. Press once, Indicator lightturns on.
Flame colourchanges.
2. Press again, until desiredcolouris
selected.
HEATER button:Turns heater on andoff.
NOTE:The heater onlyworks when the
flame effectis on. If the flameeffect is off,
the heater will notturn on.
NOTE:To prevent overheating,theheater
blowscool air for 10 secondsbefore the
heater turnson, andafter it turnsoff.
NOTE:Heater overrides room temp
control.
1. Press once, Indicator lightturnson.
Fan blowscool air for 10 seconds.Low
heater (H1) turnson andblowswarm air.
2. Press again, Indicatorlightremains on.
High heater(H2) turnson andblows hot
air.
3. Press again, Indicatorlightturnsoff.
The fan blowscool air for 10 seconds,
then turnsoff.
TIMER button: Turns heaton for a certain
time period.
P 1. Press once, Indicator lightsup.
Heat on time goes to 30 minutes.
2. Press again, until desiredtime length is
reached.
FUEL-BED button: Adjusts fuel-bed
colour.
NOTE:Fuel-bedcolor effect stays on until
power button is turnedoff.
1. Press once, Fuel-bedcolor changes.
2. Press again, until desired colouris
reached.

17
Remote Control Operation
BUTTON
FUNCTION
ACTION & INDICATION
ON: Enablescontrol panel functions and
remote control. Turns on flameeffect.
OFF: Disables control panel functionsand
remote control. Turns off flameeffect.
1. Press once, Indicator lightturnson.
Power turns on.All functionsenabled.
2. Press again, Flame effect turnsoff.
Power and all functionsturn off.
FLAME button:Adjusts flame colour.
NOTE:Flame effectstays on until power
button is turnedoff.Flame effectmust be
on for heater to turn on.
1. Press once, Indicator lightturnson.
Flame colourchanges.
2. Press again, until desired colouris
selected.
BRIGHTNESS button:Adjusts brightness.
1. Press once, Indicator lightturnson.
Brightnesschanges.
2. Press again, until desiredbrightness is
selected.
HEATER button:Turns heater on andoff.
NOTE:The heater onlyworks when the
flame effectis on. If the flameeffect is off,
the heater will notturn on.
NOTE:To prevent overheating,the heater
blowscool air for 10 secondsbefore the
heater turns on, and after it turnsoff.
NOTE:Heater overrides room temp
control.
1. Press once, Indicator lightturnson.
Fan blowscool air for 10 seconds.Low
heater (H1) turnson andblowswarm air.
2. Press again, Indicatorlightremains on.
High heater(H2) turnson andblows hot
air.
3. Press again, Indicatorlightturnsoff.
The fan blowscool air for 10 seconds,
then turnsoff.
TIMER SETTINGS ON REMOTE CONTROL
: Timer: Displays currentday, time, andweek. Press to
enter or confirmtimer settings.
: Settings: Press to move to next step. Press to confirm
week timer.
: Back: Press to clear currentsettings. Press to return to the
previousstep.
: Up and Down:Press to increase/decrease certain settings.

18
LCD Screen
Weekday
Mon, Tues, Wed, Thurs, Fri, Sat, Sun
Note: The functionscan
onlybe adjusted when the
related letters or digits are
flashing.
Note: Calibrate the timer
to currenttime before
enteringtheweekly
settings.
Time Display
CurrentTime / Timer From 00:00 to 24:00
NOTE: 00-12:00 isAM / 13:00-24:00 is PM
THERMO-STAT button:Turnsheater on
and off to maintain room at a certain
temperature.
NOTE:Press & Holdthe button for 5
seconds, thetemperature setting will
switch from ℃to ℉. Same way from ℉
to ℃.
P 1. Press once, Indicator lightsup.
Temperature goes to 18 ℃
2. Press again, until desired setting is
reached. Digital display shows setting
circles as below:
1 Set current day and time
1. Press once.When “MON” (Monday)beginsflashing, usetoselect the current day.
2. Press . When the hourdigits begin flashing, use to select the current hour.
3. Press again. When the minute digitsbegin flashing, use to select the current minute.
4. Press again. The current time is nowset.
2 Set ON/OFF time and temperature on a weekly cycle
1. Press . When “MON” begins flashing, press 3 times.When “ON” begins flashing,use to selectthe
desired hourand minute to turn on the heater. Press at any time to clear the digits and shut down “ON”
timer.
2. Press . When “OFF” begins flashing,use to selectthe desired hour and minute to turn offthe heater.
Press at any time to clear the digits and shut down “OFF” timer.
3.
Press again. When “18” begins flashing, use to select the desired temperature for Monday.
4. Press again. When “TUES” appears onthe screen and “ON” beginsflashing, use to select the desired
hour and minute to turn on the heaterforTuesday.
5.
Press again. When “OFF” begins f lashing,use to select the desired hourand minute to turn off the
heater forTuesday.
note:
The timer can only be adjusted in 30-minute intervals (i.e. 00:00- 00:30; 00:30- 01:00, etc.)
note:
If the temperature was previously set, those digits will be shown instead of“18”.

19
6.
Press again. When “18” beginsflashing, use to select the desired temperature forTuesday.
7. Repeat steps 1 to 6 to set the “ON/OFF” time and temperature for Wednesday, Thursday,Friday,
Saturday,and Sunday.
8.
Press or to finish, ensuring to aim the remote control at the receiver, located in the middle of the
appliance. The appliance will “beep” once to confirm your settings have been saved successfully.
Open window warning
If the room temperature decreasesby 10 degreeswithin 3 minutes,the appliance will assume there is an open window
nearby. In order to conserve energy, the heater will automatically switch fromHigh Heat toLowHeat, or if the heateris
already at LowHeat, itwill turn off completely.
When switching from High Heat toLow Heat, the appliance will beep 3 times and the digital display will flash “88” 3 times
before displaying the existing heating status.
When switching fromLow Heat toOff, the appliance will beep 3 times and the digital displaywill flash “88” continuously.
To reset the heating f unction, see “operating remote control” section.
NOTICE
When the heater is first turned on, a slight odour may be present. This is normal
and won’t occur again unlesstheheateris un-usedfora longperiod of time.
NOTICE
To improve operation, aim the remote control at the front of the fire unit. DO NOT
press the buttons too quickly. Give theunittime to respondto each command.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplugthepowercord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANELto OFF. Wait 5 minutes.
3. Inspect the fireunit and make sure all vents are free from dust or lint. If they are clogged, use a
vacuumto clean the ventareas.
4. With the POWER switch in the OFF position,plugthe power cord back into theoutlet.
5. If the problem continues,haveyouroutletandwiring inspectedby a professional.
Remote Control Battery Information
•This remote control uses Two AAA batteries (NOT included).
NEVERdisposeof batteries in fire. Failureto observe this precaution mayresult in
explosion.Disposeof batteries at your local hazardous material processing center.

20
Care and Maintenance
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving the fire unit. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
•Buffusing asoft cloth, slightlydampenedwith a citrusoil-based product.
•DO NOT usebrass polish orhouseholdcleanersasthese products willdamage themetal trim.
Glass:
•Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-freecloth.
•NEVER use abrasive cleansers,liquidsprays, or any cleanerthat couldscratch the surface.
Vents:
•Use a vacuumor duster to remove dust anddirt from the heater andventareas.
Plastic:
•Wipe gentlywith a slightlydamp cloth and a mild solution of dish soapandwarm water.
NEVER useabrasive cleansers,liquidsprays, or any cleanerthat couldscratch the surface.
Maintenance
Risk of electric shock! DO NOT OPEN any panels. No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving the fire unit. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
•The fan motors are lubricated at the factory and will notrequire lubrication.
•Electrical componentsare integratedin the fire unitandare notserviceable by the consumer.
