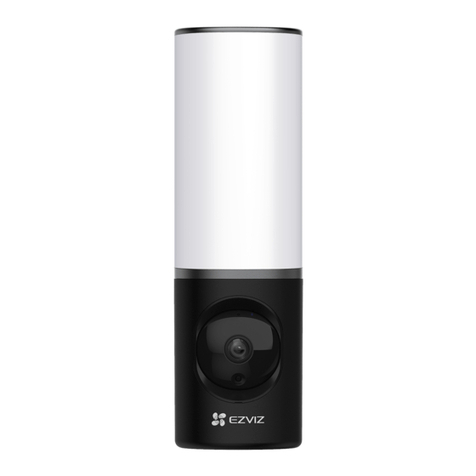

Ezviz LC3 User manual

1
Package Contents
Camera (x1) Drill Template (x1)
Screw Kit (x1) Quick Start Guide (x1)
Basics
LED Indicator
Lens
Reset Button
Light Module
MIC
Speaker
Camera Module
Name Description
LED Indicator • Solid Red: Camera starting up.
• Slow-ashing Red: Wi-Fi connection failed.
• Fast-ashing Red: Camera exception
(e.g. memory card error).
• Solid Blue: Video being live viewed in the EZVIZ app.
• Slow-ashing Blue: Camera running properly.
• Fast-ashing Blue: Camera ready for Wi-Fi
connection.
Lens The lens can be adjusted 15 degrees downwards.
Camera Module The camera module can be rotated 10 degrees left
and right.
Reset Button Hold for 4 seconds to restart and reset all parameters
to default.

2
Installation
• Recommended installation height: 6-7 ft (1.8-2.2 m) above the
ground.
• The camera has a built-in memory card for video storage. There is
no need to install an additional SD card.
1. Shut off the electricity at the breaker.
• If you don’t know where your breaker is or how to turn off power,
please consult with a licensed electrician.
• Keep the breaker off at any time during the installation process.
2. Separate the mounting base from camera.
Unscrew the base screw using screwdriver (not included in the package)
and pull the mounting base off the camera.
Base Screw
Mounting Base
3. Install the mounting base.
-Place drill template onto the surface you have chosen to mount the base.
-(For cement wall only) Drill screw holes according to the template and
insert anchors.
-Take the wires from the wall through the drill template and the rubber of
the mounting base.
-Use screws to x the mounting base.

3
Mounting BaseDrill Template
Anchor Screw
4. Connect the wires.
-Connect the Neutral wire (N) and Live wire (L) one by one.
-Secure them using screwdriver.
1Live wire (L)
2Neutral wire (N)
5. Insert the camera to the mounting base.
-Buckle the bottom of the mounting base into the camera.
-Press the mounting base and camera together.
-Tighten the base screw located on the top of the camera.

4
Mounting Base
Base Screw
6. Adjust camera module's angle.
You can adjust the horizontal and vertical angle of the camera module as
needed.
7. Restore power at the breaker.
8. Conrm the camera has power.
After restoring power, the camera will be ready for setup when the light
is on and the LED Indicator on the front of the camera fast ashes blue.
LED Indicator

5
Setup
1. Get the EZVIZ app
-Connect your mobile phone to Wi-Fi.
-Download and install the EZVIZ app by searching “EZVIZ” in the
App Store or Google Play StoreTM.
-Launch the app and register an EZVIZ user account.
2. Add camera to EZVIZ
-Log in to your account using the EZVIZ app.
On the Home screen, tap “+” on the upper-right corner to go to the Scan
QR Code interface.
-Scan the QR code on the Quick Start Guide cover or on the body of the
camera.
-Follow the EZVIZ app wizard to nish Wi-Fi conguration.
If you want to change your camera's Wi-Fi, press and hold the
reset button for 4s and repeat the steps above.
EXPOSURE TO RADIOFREQUENCY RF
The frequency bands and the nominal limits of transmitted power (radiated
and/or conducted) applicable to this radio device are the following:
Band Wi-Fi 2.4 GHz
Frequency From 2.4 GHz to 2.4835 GHz
Power transmission (EIRP) 100 mW
For detailed information, please refer to www.ezviz.com.
