EZY SWITCH SMS-T2 User manual

EZY SWITCH
LIMITED

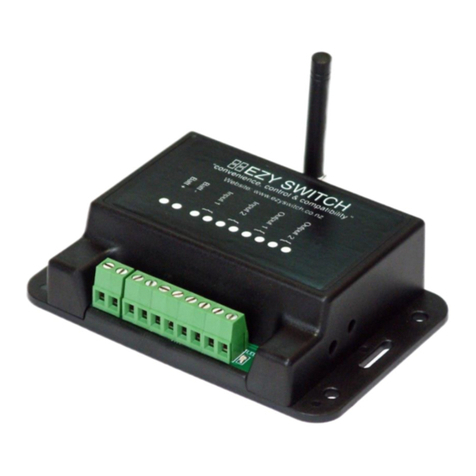

SMS-T2
System Monitor
Installation Manual

2
Table of Contents
Features 3
System / Connections 4
Outputs 5
Inputs 6
COMMANDS
Getting Started –Setting Up Initial Owner 7
Adding a Master 8
Removing a Master 8
Adding an Administrator 8
Removing the Administrator 9
Get a list of all the Masters 9
Turn programmed numbers look-up on or off 9
Text all programmed numbers on or off 9
Turn All Texts OFF and Disable Inputs 10
Turn All Texts ON and Enable Inputs 10
Testing 10
Get a List of the Inputs 10
Get a List of the Outputs 10
Naming Inputs/Outputs and Changing Names 11
Change the Input Delays 11
Change Input to Normally Open or Normally Closed 12
Set Input as a latched Input 12
Set Input as a non-latched Input 12
Reset latched Input 12
Link an Input to an Output 13
Get linked information 13
Setup Input Tick off 13
Programming the Input reply message 14
Turn an Output ON or OFF 15
Turn an Output ON for a set time 15
Invert Output 15
Make an Output Pulse On and Off 16
Clear Output Pulse (Set to non-pulsed) 16
Turn Output response On / Off 17
Save Output Status 17
Set Battery Alarm trigger voltage 17
Link Battery Alarm to Output 18
Check Battery Supply Voltage 18
Latching / Non-latching battery alarm 18
Reset Latched Battery Alarm 18
Setting Tank information 19
Clearing linked alarms 20
Get tank level 20
Set tank usage feature 20
Get Firmware Version 22
Resetting Unit 22
Get Signal Strength 22
Reset Unit to Factory Defaults 22
Tank-Setup 23
Warranty 25
Appendix One
Table of User Selected Input and Output Names 26
Detailed Explanation of Input Delays 27
Trouble Shooting Guide 27

3
•Receive text messages on your cell phone alerting you to potential
problems anywhere in the world
•Send commands to control lights, pumps, appliances, air conditioning, etc.
via text message from your cell phone
•Module= Model A = 2G, B = 3G, C=3G/4G
•Up to 5 cell phones may be designated as “masters” to send commands
and receive alert text messages
•All set-up and changes made via text (no need for a computer)
•Control up to two (2) devices using text message commands
•Monitor up to two (2) devices that use switched contacts (switching Inputs
which use contacts that open or close upon activation such as a float
switch):
oProgrammable Input delays (max 99 minutes)
oProgrammable for Latching or Non-Latching Inputs
oProgrammable for Normally Open or Normally Closed Inputs
oProgrammable for Normally Open or Normally Closed Outputs
•Inputs and Outputs names are user programmable via text command –
up to 20 characters
•Link any Input to any Output (Example: Link intruder sensor or smoke
detector [input] to light or alarm horn [output])
•Monitors battery supply voltage and sends alarm message if low battery
is detected at below the programmed alarm setting
•On-demand updates via text message to interrogate status of:
oCurrent battery voltage
oStatus of all Inputs
oStatus of all Outputs
oList of all designated “masters”
•Compact Size for wall or horizontal surface mounting:
o117mm x 78mm x 30mm
Features - Model SMS-T2
Monitor:
•Shore power disconnect
•Pumps running
•High water alarms
•Security & alarms
•Entry alerts
•Smoke alarms
•And much, much more
Control:
•Battery charger
•Fridge/Freezer
•Air Conditioning/Heating
•Lighting
•Hot water systems
•Irrigation systems
•Or any other device
Ezy Switch SMS-T2 Installation & Operation Manual

Signal LED:
If the LED flashes once every 1 second, this indicates the cellular network cannot be
found (out of GSM coverage range). Remedy = Re-locate the device or use a longer
aerial or signal booster.
If the LED flashes once every 3 seconds, this indicates the cellular network has been
found (all ok).
Electrical Specifications:
Ezy Switch Ltd
System
Ezy Switch SMS-T2 Installation & Operation Manual
SIM Card
Supply Voltage
Quiescent Current
Data Retention
Outputs
Max Input voltage
12 to 30 Volts DC @ 800mA
40 Milli-amps
10 years (without power)
Relay = 3 A resistive @ 125VAC
30vdc
SMS-T2 Terminal Electrical Specifications
Terminal 1 = Batt +
Terminal 2 = Batt -
Terminal 3 = +5vdc supply for sensor Terminal 7 = Ouput 1 ( N/O )
Terminal 4 = Variable voltage in from sensor Terminal 8 = Output 1 ( Com )
Terminal 5 = Input 2 Terminal 9 = Output 2 ( N/O )
Terminal 6 = Input 2 Terminal 10 = Output 1 ( Com )
Signal LED
SIM Card
Terminal 1

5
The SMS-T2 has two (2) Outputs. The Outputs are Relays rated at 3 A resistive @ 125VAC
Relay 1 Connection
Internal Relay
Relay
Terminals
7-8
Outputs
Ezy Switch SMS-T2 Installation & Operation Manual
!! Important Note !!
A registered electrician must be used when connecting
to the 120/240v main supply voltage.
Relay 2 Connection
Internal Relay
Relay
Terminals
9-10

6
The SMS-T2 has two (2) Inputs.
Input 1 is a standard digital input and can be connected as per Fig 2a or Fig 2b
The Analog input is a 0 to 5vdc input, connections shown in Fig 1
Inputs
Ezy Switch SMS-T2 Installation & Operation Manual
SMS-T2
Input 1
Terminal 6
Switch
+10 - 30vdc
Fig 2a
SMS-T2
Terminal 3
Terminal 4
Terminal 2
Pressure sender
+5vdc = Red
Fig 1
Sensor In = Green
GND = Black
SMS-T2
Fig 2b
Switch / Input2
Terminal 5
Terminal 6
Terminal 3 = +5vdc supply for the sensor
Terminal 4 = variable voltage from the sensor

7
Setting up system for the first time:
Please ensure the SIM card does NOT have a PIN number or is locked has been
ACTIVATED with the network provider, insert into SIM slot on the back (see
page 4) and power the unit up.
When the unit is first powered ON a mobile (cell phone) number must be set for
initial programming. This phone number is called the “Initial Owner”.
You must wait for the LED to be slowing flashing (EVERY 3 seconds) before
sending any commands. Please wait a few minutes, as the unit will set auto-
band and other details for the country.
IMPORTANT:
For all text commands, spelling and spaces must be strictly followed.
Country Code:
?? Is the country code and XXXXXXXX is the mobile number without the preceding 0.
Examples:
New Zealand = 64 (+64 and the number without the preceding 0)
If the users number is 0211893070 then Command = add user [phone]
Australia = 61 (+61 and the number without the preceding 0)
If the users number is 0412882900 then Command = add user [phone]
Singapore =0065 (+65 and the number without the preceding 0)
If the users number is 0412882900 then Command = add user [phone]
USA & Canada = 001 (+1 and the Area Code & Number)
If the users number is 412-555-1234 then Command = add user [phone]
!! IMPORTANT !!
Ezy Switch SMS-T2 Installation & Operation Manual
!! NOTE !!
If a user sends a text message to the system, which is not an exact match with the
commands, the system responds with:
Sorry either that device does not exist or the message format is not understood, please
check the spelling and try again
If anyone other than a programmed user sends a text message to the system, the
system responds with:
Sorry you are not permitted to access this device
Setting up the first user (Once only command)
Command: Set user
Note: the unit will pick up the users number from the incoming text.
When the Initial user setup has been successful the system responds with:
“ Your number has just been added to the user list”
Note: The initial user could be the installer who would set the system up, add other users (Add
user page 8) and then remove his number (Remove user page 8).

8
Adding a User (Note: Setting up the first user page 7 must be done first)
Command: Add user +??XXXXXXXX (see Country Code page 7)
If the master is already in the list, the system responds with:
Sorry +??XXXXXXXX is already active and cannot be added twice, please check
the number and try again
If the number does not fit the checks, to confirm it is a valid number (all digits must be
numbers excluding the leading +), the system responds with:
+??XXXXXXXX does not appear to be a valid number, please check that there
are no letters or symbols in the number and try again
If the number does not lead with a +, the system responds with:
??XXXXXXXX does not appear to have the country code in international format
(e.g. +??...) please check this and try again
However if everything is fine, the system responds with:
The user number +??XXXXXXXX has been added to the user list
Removing a User
Command: Remove user +??XXXXXXXX (see Country Code page 7)
If you try to remove the only master, the system responds with:
Cannot delete the only master; if you would like to change masters add the new
one before removing the old
If the number sent is not currently on the list, the system responds with:
+??XXXXXXXX is not currently on the masters list so cannot be removed,
please check the number and try again
If everything is ok, the system responds with:
The user number +??XXXXXXXX has been removed from the user list
Adding a Administrator
Command: Add admin +??XXXXXXXX (see Country Code page 7)
The system responds with:
The number +??XXXXXXXXXXX has been set as the system administrator
If the admin has already been set, the system responds with:
The administrator number +??XXXXXXXXXXX has already been set
If an administrator number is set then this is the only number the system will except
commands from. Other user will be sent texts but CAN NOT send any commands.
Commands
Ezy Switch SMS-T2 Installation & Operation Manual

9
Removing a Administrator
Command: Remove admin
The system responds with:
The administrator number and feature has been removed
Note: this completely removes the administrator from the user list, it does NOT move the user down
a security level to normal “user” unless the administrator is the only number in the system in which
case it will move the user from administrator to user.
The system responds with: This number has been changed from administrator to a user
Get a list of all the Masters
Command: User list
The system responds with:
User list is: +??XXXXXXXX +??XXXXXXXX … (up to 5 numbers inc owner)
If there are too many numbers to display in one txt, a second txt will be sent showing
the last two numbers
First text followed by:
+??XXXXXXXX +??XXXXXXXX +??XXXXXXXX …
Turn programmed numbers lookup on or off
Command: User lookup on (or) off (System default = On)
If User lookup is On the SMS-T2 will only respond to numbers that have been programmed
into the unit using the Master Add command as per above.
If User lookup is Off the SMS-T2 will respond to any number that sends the correct
command.
The system responds with:
The user lookup list feature has been turned on and the unit will only except
commands from programmed users
OR The user lookup list feature has been turned off and the unit will only except
commands from any users
PLEASE NOTE: Input changes will only be sent to users that have been programmed into the unit.
Text all programmed numbers on or off
Command: Text all on (or) off (System default = On)
If Text all is On the SMS-T2 will text all user that have been programmed into the unit with the
reply to the command.
If Text all is Off the SMS-T2 will only text the number that initiated the command with the
reply.
The system responds with:
All users in the list will now receive notification texts ( On )
OR Only the number sending the text command will receive notification text ( Off )
PLEASE NOTE: This command does not affect the inputs all Input changes will only be sent
to users that have been programmed into the unit.
Ezy Switch SMS-T2 Installation & Operation Manual

10
Turn all Input Text’s OFF
With alerts turned off the device will NOT text every time any Input changes but the Inputs are
still active so you can send a “Input status” query at any time.
Command: Alerts off
The system responds with: Alerts have been disabled (this is saved to memory and will still
be disabled even after the unit is reset or rebooted)
Turn all Input Text’s ON
Command: Alerts on
The system responds with: Alerts have been enabled (this is saved to memory and will still
be disabled even after the unit is reset or rebooted)
Testing
Command: test
The system responds with: Battery is currently ??.? volts, signal strength is ?? % , run test
now. The unit will now test the inputs and outputs and waits for the inputs to be triggered.
When input1 is turned on output1 will turn on, when input1 is turned off output1 will turn off
When input2 is turned on output2 will turn on, when input2 is turned off output2 will turn off
Test finished
Get a list of the Inputs
Command: Input status
Currently, INPUT NAME is ??, INPUT NAME is ??
Where ?? is either On or Off
If an Input is a latching input and on:
Currently the latching Input INPUT NAME is on and latched
If an Input is a latching input and off:
Currently the latching Input INPUT NAME is of
Get a list of the Outputs
Command: Output status
The system responds with:
Currently, Output Name is ??, Output Name is ??
Where ?? is either On of Off
Ezy Switch SMS-T2 Installation & Operation Manual
