FAAFTECH FT-TV-1SEG IV User manual

USER MANUAL
REV 161117

Summary
1
Presentation
Package Contents
Overview
Connections
Remote Control
Channel Search
Channel List
Setup Menu
Technical Specs
Troubleshooting
Warranty
2
3
4
5
6
7
8
9
10
11
12

Presentation
2
• Congratulations for purchasing the FT-TV-1SEG IV TV receptor, compatible
with the Brazilian ISDB-T System.
• Please, read this manual carefully before installing your new device.
• Keep this manual with you to check the functioning procedures and the
security information.
• To avoid any hazard risks and any potential law violation, the TV function
must never be used while the vehicle is moving.
• We recommend that a professional, with experience in the field of installation
of vehicle devices, is the one to install this interface.
• Beware: disconnect the battery’s negative pole before installing.
• Beware to connect the wires appropriately, according to the charts on this
manual. Incorrect plugging may result on a poor behavior or damages to the
device and to the vehicle’s electrical components.
• Beware to the original manufacturer’s components, such as the on-board
computer. Do not use their connectors to plug in the device. When you connect
on a terminal with a fuse, check to see if the current will plug all the devices.
Malfunctions on the energy supply may cause the device to misbehave.
• Make sure that the vehicle’s cables do not touch the surface of the device. As
the vehicle moves, the motion may cause the wires to break, creating a
short-circuit. Remember to leave room for the wires to pass and do not allow
for the device’s cables to touch the original vehicle’s cables.

Package contents
3
5Remote control
4IR extensor
3Installation whip
Manual do Usuário
1FT-TV-1SEG IV Device
2Glass antenna
6User manual

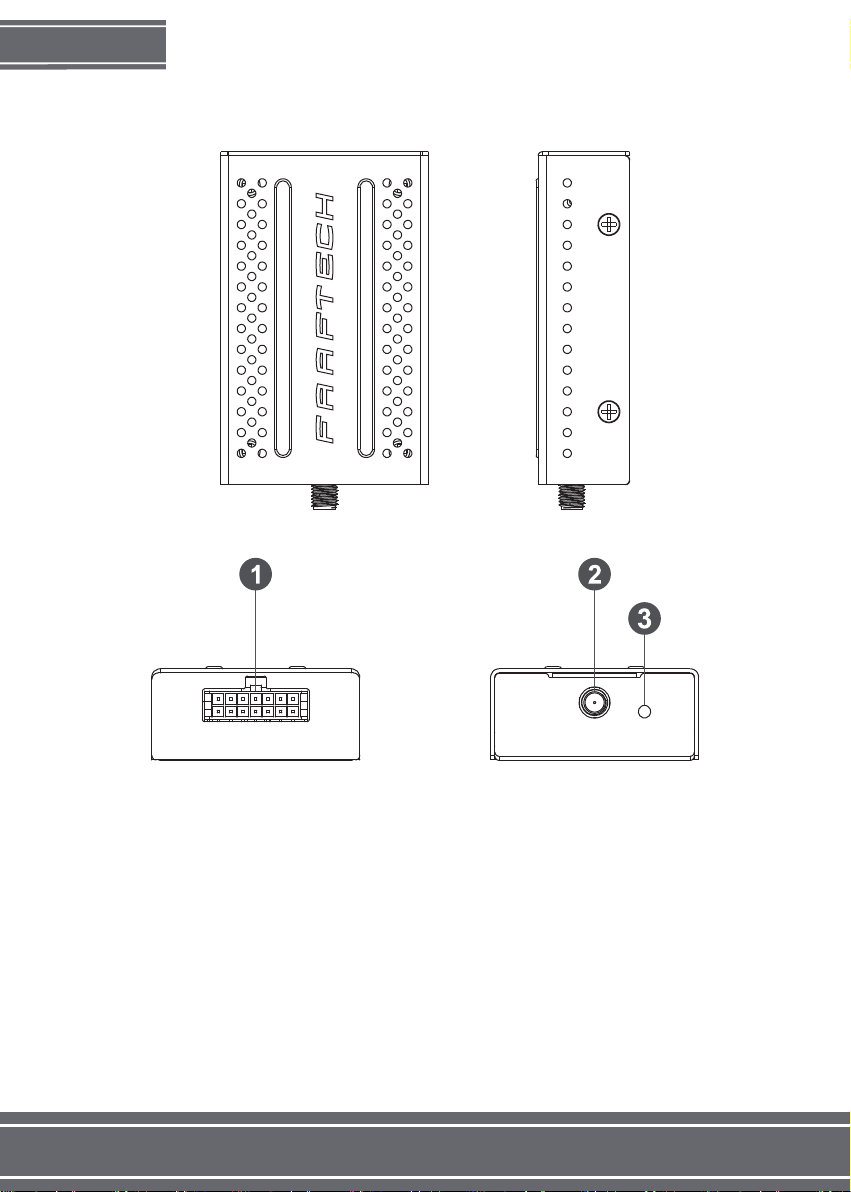

Overview
4
6
1. Power plug connector, AV output and IR input
2. Antenna plug
3. LED (turns on when the device is plugged in)

Conexões
5
Antenna
Fixate on the front view glass
GND
Plug in to the ground connection
ACC
Plug in to the Post-Key
AV output
Plug in to the AV output on the
multimedia or on the video interface
Video output
Plug in to the back-seat screens
IR Receptor
Fixate on a spot easy
to use the remote control
ACC
Sensor IR
Saída AV Saída de
Vídeo
GND

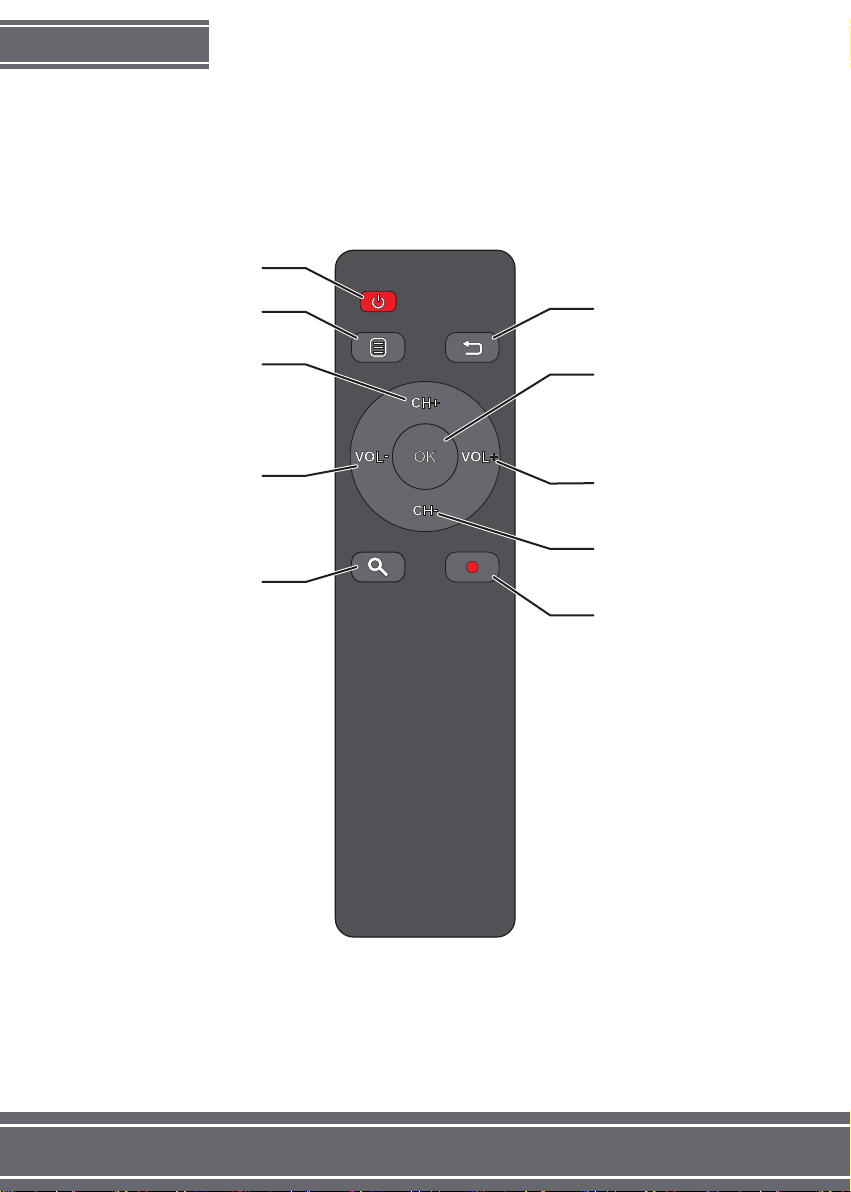

Remote Control
6
Closed captions
Volume up
Volume down
Turn the TV on/off
Access menu Return
Channel list
and selection
Channel forward
Channel back
Channel search

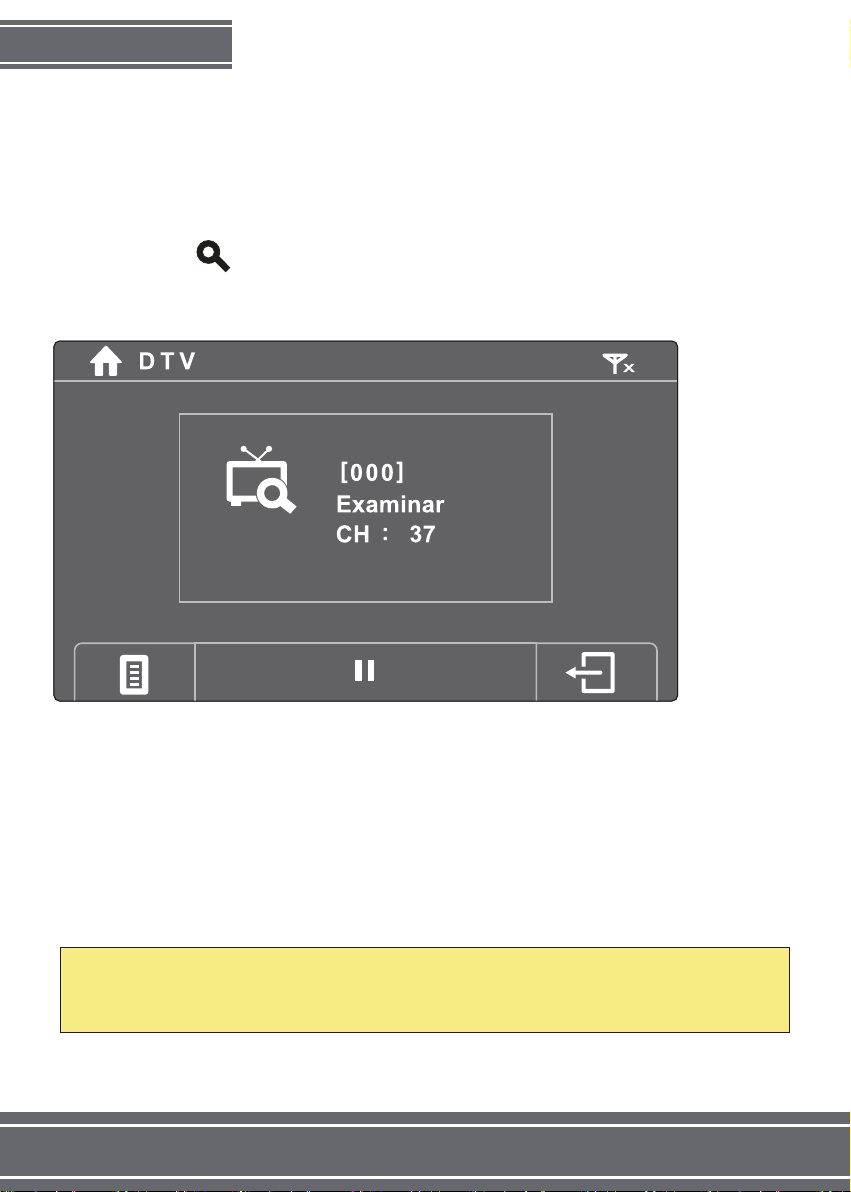

Channel search
7
When you connect the FT-TV-1SEG IV device for the first time, it will require the
channel search, in order to memorize your region’s channels.
The channel search must be done anytime you relocate to a new city.
Just press the screen on the remote control to make the channel search.
Then, wait until the device memorize all the available channels..
Important Notice: To get a better channel reception, you should make the
CHANNEL SEARCH on an open space, with good signal quality.

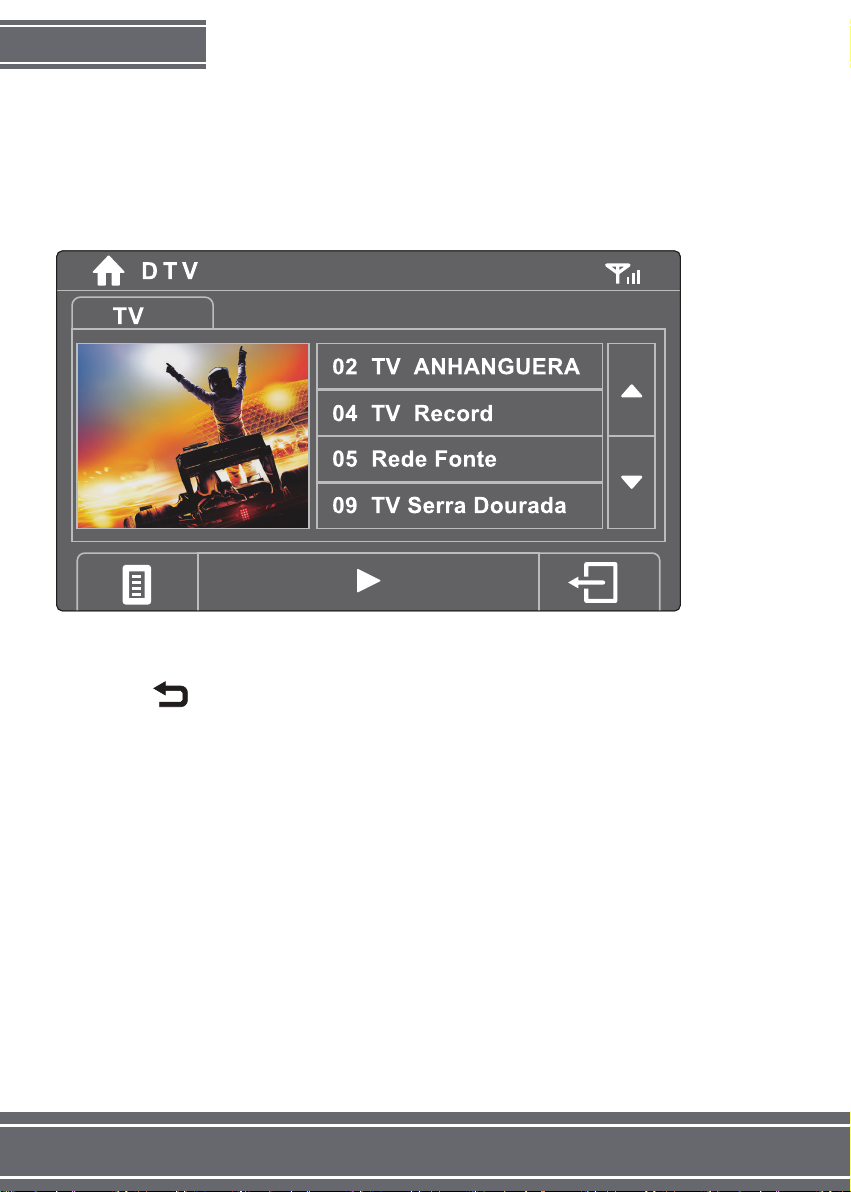

Channel List
8
Press the OK button on the remote control to open the channel list. Then,
use the CH+ or CH- buttons to flip between channels and press the OK
button to choose the channel you wish.
Press the button on the remote control to leave the channel list.

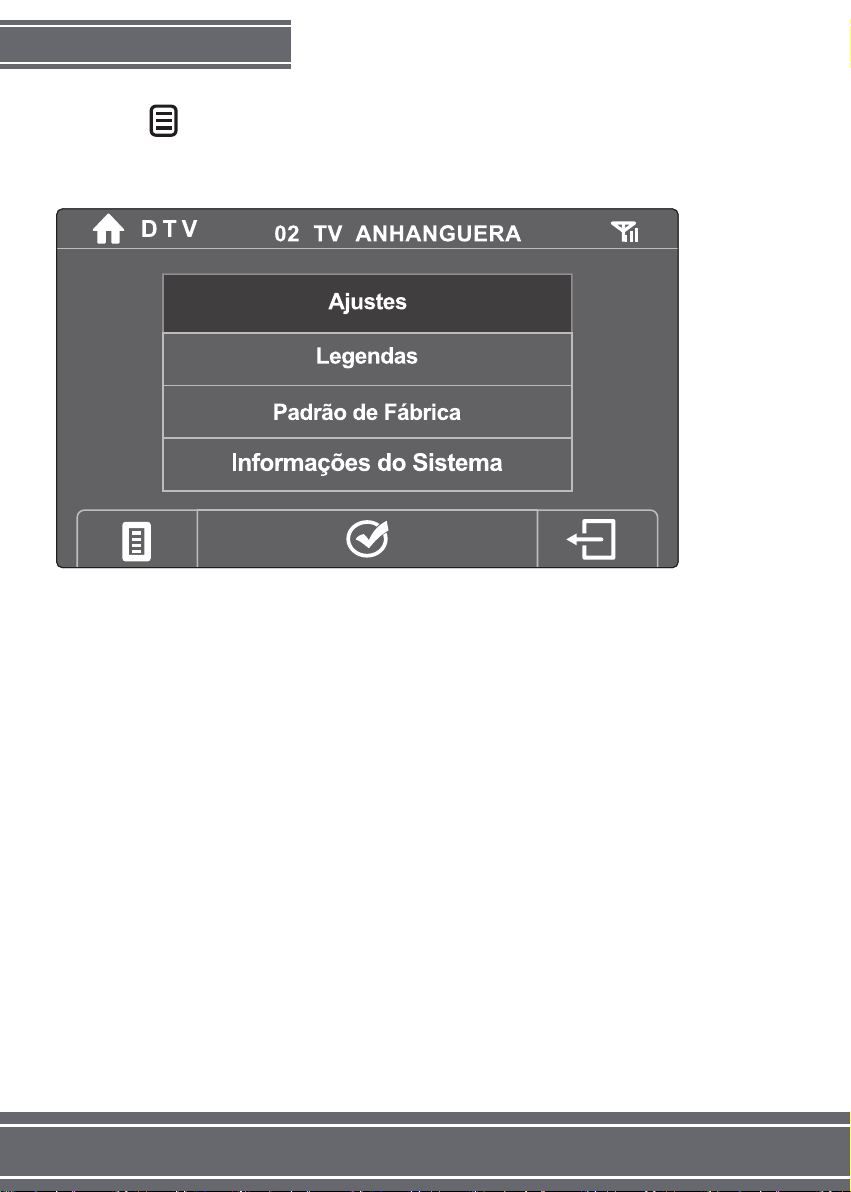

Setup Menu
9
Press the button on the remote control twice to access the Digital TV Setup
menu.
Subtitles (Legendas)
Use this to turn the subtitles (Closed Captions) on and off. This depends on the
channel’s availability.
Factory Default (Padrão de Fábrica)
Resets all settings to the factory default.
System Information (Informações do Sistema)
Access this menu to view the Software and Hardware versions.

Technical Specs
10
Technical Specs
Input frequency
Antenna impedance
473.143 ~ 803.143 MHz
50 Ohm
Sensibility ≤-96 dBm
Video decoding MPEG-1/2/4, H2.64, WMV9
Video amplitude 1 Vp-p / 50 Ohm
Technical Specs
Operation Tension
7 ~ 18V
200mA
Power 2,5W
Operation temperature -30 ~ 80°C
Storage temperature -40 ~ 85°C
Video output CVBS, NTSC
Audio decoding MP3, AAC, MPEG4-AAC, MPEG-BSAC
Central dimensions 80x50x22,5 mm

Trouble Solving
11
Problem
Possible Cause
Solution
Device’s LED is
turned off
TV is not being powered
Use a multimeter to check
the voltage on the power
wires (black and red)
“NO CHANNEL”
message
No channel has been
memorized on the TV
Make the channel search
by using the SCAN button
on the remote
TV shows no video
and plays no audio
RCA cables are
disconnected or loosely
plugged in
Check the RCA
connections
TV receptor is on stand-by
mode
Press the POWER button
on the remote
When I select a
channel, it shows
“NO SIGNAL”
Antenna connection
Check the antenna’s
connection and its cables
Antenna is installed on a
spot with poor reception
Find a better spot to install
the antenna
Image is showing,
but there is no
audio
Audio RCAs are not
connected
Check the connection on
the audio RCA cables
TV’s volume is too low or
on MUTE
Adjust the volume using
the remote control and
make sure the TV is not on
MUTE
Remote is not
responding to my
commands
Remote is not being
pointed towards the TV IR
sensor
Use the remote control
pointing it to the TV’s IR
sensor
Remote’s battery is low
Replace remote battery

Warranty
12
FAAFTECH assures their clients a 01 (one) year period against defects in materials
and workmanship, proved by presenting both the receipt of purchase from the
reseller to the costumer and the present Warranty Certificate filled, observing the
following:
1. FAAFTECH will null the warranty if Faaftech or their authorized technical
assistance concludes that the equipment suffered from damage caused by poor
usage, by inadequate installing, by accidents (crashes, falls, and others), or if there
are any signs of the product having been violated, adjusted or fixed by
non-authorized personnel;
2. The Warranty Certificate is only valid when filled and presented together with the
receipt from the reseller to the costumer, as well as the attendance number that is
generated by our Technical Support, which can be reached from the numbers: +55
0800 603 2330 (landlines only) or [phone]. From Mondays to Fridays, from
8 a.m. to 6 p.m. (GMT -03:00).
3. Any repairs and maintenances of the equipment still covered by the warranty will
be exclusively handled by FAAFTECH.
4. This warranty will not cover any products with unreadable or adulterated serial
code numbers.
5. The expenses with shipping, securing and packaging are not covered by this
warranty, and they are the full responsibility of the owner of this equipment.
WARRANTY CERTIFICATE
EQUIPMENT: FT-TV-1SEG IV 1 YEAR
BUYER’S NAME:
PHONE NUMBER: ( ) CITY: STATE/PROVINCE:
ADDRESS:
DATE OF PURCHASE: RECEIPT NUMBER:
SERIAL NUMBER: ATTENDANCE NUMBER:
Attention: This Warranty Certificate is only valid when filled and presented together with
the receipt from the reseller to the costumer. Keep this in a safe place.

0800 603 2330 or (62) 3241-4600
[email protected]
www.faaftech.com.br
Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time
TECHNICAL SUPPORT Follow us on social media!
