FabiaTech FD7851 Series User manual

Version 1.0 FD7851 Series User’s Quick Reference Page 1/2
www.fabiatech.com ©2008 FabiaTech Corporation
1. Brief
The FD7851x is a 15-inch TFT LCD monitor with OSD and touch screen device (FD7851T). This user’s
quick reference provides its outlook information and I/O outlets description.

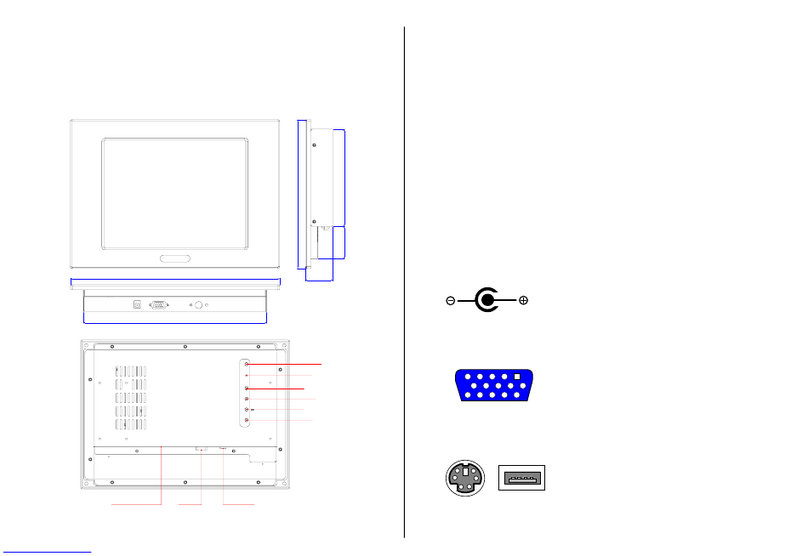

2. Dimensions (in mm) and Rear Panel Information
Auto
Menu
On/Off
Touch PanelVGA DC12V
3. Packing List
1 FD7851x industrial LCD monitor.
1 AC to DC12V power adapter and 1 AC power code cable.
1 VGA adaptor cable with 1.8M length.
1 pack of 6 pair mounting screws
1 touch pen and 1 USB adapter cable for touch screen (FD7851T only)
1 Compact Disc including user’s manual and touch screen drivers.
4. Features
* Aluminum front panel with 15-inch color TFT LCD panel.
* Supports up to XGA 1024x768 with 16M colors.
* Build-in OSD functions with LED indicator and 5 operation keys.
* 5-wire analog resistive touch screen device with USB interface. (FD7851T only)
* Power requirement: External 100~240V AC adapter, output +12V DC, 1.5A maximum.
* Weight: 4.6Kg.
* Dimensions: 48mm(D) x 400mm(W) x 307mm(H)
5. I/O outlets and LED Indicator
A. Power Connector
B. VGA Connector (15-pin D-sub)
C. Touch Screen Connector ( FD7851T only)
DC +12V, 1.8Aminimum
DC Plug-In Connector
15
VGA
(
D-sub 15
)
11
15
Pin 1: Red Pin 12: VGA-SDA
Pin 2: Green Pin 15: Panel On/Off
Pin 3: Blue Pin 10: Digital Ground
Pin 13: Hsync Pin 4, 5, 6,7,8, 11: Analog Ground
Pin 14: Vsync Pin 9: No Connection
Please use the included USB cable to connect this one to
USB keyboard connector on CPU boards.

Version 1.0 FD7851 Series User’s Quick Reference Page 2/2
www.fabiatech.com ©2008 FabiaTech Corporation
D. LED Indicator (on the rear side)
This LED indicates the status of FD7851x as following:
Green: Normal operation
Amber: Power saving mode or disconnected signal cable.
6. Installation
A. Driver Installation (FD7851T only)
Please refer to the driver installing documentaion in the included Compact Disc for installing proper
driver to the touch screen device.
B. Wall Mounting and Mounting Dimensions
WALL
Cut Out Dimension = 342 * 265 mm
Auto
Menu
On/Off
Touch Panel
VGA DC12V
Cut out dimension 342 x 265 mm
End of Document
Step 1 Step 2
