Fabuletta FSV101 User manual
FSV101
24
1
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
These warnings apply to the appliance, and also where applicable, to all tools,
accessories, chargers or mains adapters.
This Fabuletta appliance can be used by children aged from 10 years and above
and persons with reduced physical, sensory or reasoning capabilities, or
lack of experience and knowledge, only if they have been given supervision
or instruction by a responsible person concerning use of the appliance in a
safe way and understand the hazards involved. Cleaning and user maintenance
should not be performed by children without supervision.
Do not allow to be used as a toy.
Close attention is necessary when used by or near children. Children should be
supervised to ensure that they do not play with the appliance.
Use only as described in this Fabuletta Operating Manual. Do not carry out any
maintenance other than that shown in this manual,
or advised by the Fabuletta Support.
Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces.
BEFORE USING THIS APPLIANCE READ
ALL INSTRUCTIONS AND CAUTIONARY
MARKINGS IN THIS MANUAL AND ON THE APPLIANCE
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY:
1.
2.
3.
4.
Do not handle any part of the plug or appliance with wet hands.
5.
Do not use with a damaged cable or plug.
If the supply cable is damaged it must be replaced by Fabuletta, its service agent or
similarly qualified person in order to avoid a hazard.
6.
If the appliance is not working as it should, has received a sharp blow, has been
dropped, damaged, left outdoors, or dropped into water, do not use and contact
the Fabuletta Support.
7.
When using an electrical appliance, basic precautions should always be followed,
including the following:
1
2
IMPORTANT SAFETY INSTRUCTIONS
Contact the Fabuletta Support when service or repair is required.
Do not disassemble the appliance as incorrect reassembly may
result in an electric shock or fire.
Do not stretch the cable or place the cable under strain.
Keep the cable away from heated surfaces. Do not close a door on the cable,
or pull the cable around sharp edges or corners. Arrange the cable away
from traffic areas and where it will not be stepped on or tripped over. Do not run
over the cable.
Do not unplug by pulling on the cable. To unplug, grasp the plug, not the
cable. The use of an extension cable is not recommended.
8.
9.
10.
Do not use to pick up water.
11.
Do not use to pick up flammable or combustible liquids, such as petrol, or use
in areas where they or their vapours may be present.
12.
Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
13.
Keep hair, loose clothing, fingers, and all parts of the body away from openings
and moving parts, such as the brush bar. Do not point the hose, wand or
tools at your eyes or ears or put them in your mouth.
14.
Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair and anything that may reduce airflow.
15.
Use only Fabuletta recommended accessories and replacement parts.
16.
Do not use without the clear bin and filter in place.
17.
Unplug when not in use for extended periods and before maintenance
or servicing.
18.
Use extra care when cleaning on stairs.
19.
Do not install, charge or use this appliance outdoors,
in a bathroom or within 3 metres (10 feet) of a pool. Do not use on wet
surfaces and do not expose to moisture, rain or snow.
20.
Use only Fabuletta chargers for charging this Fabuletta appliance.
Use only Fabuletta batteries: other types of batteries may burst, causing
injury to persons and damage.
21.
FIRE WARNING – Do not place this product on or near a cooker or any other
hot surface and do not incinerate this appliance even if it is severely damaged.
The battery might catch fire or explode.
22.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE
INSTRUCTIONS
3
Always turn ‘OFF’ the appliance before
connecting or disconnecting the motorised brush bar.
FIRE WARNING – Do not apply any fragrance or scented product to the filter(s)
of this appliance. The chemicals in such products are known to be flammable and
can cause the appliance to catch fire.
23.
24.
READ AND SAVE THESE INSTRUCTIONS
THIS MACHINE IS INTENDED FOR HOUSEHOLD
USE ONLY.
Do not use
near open
flames.
Do not
store near
heat
sources.
Do not put
hands
near the
brush bar
when the
machine
is in use.
Donotpick
up water or
liquids.
Donotpick
up burning
objects.
USING YOUR MACHINE
PLEASE READ THE “SAFETY INSTRUCTIONS”
IN THIS OPERATING
MANUAL BEFORE PROCEEDING OPERATION.
•Do not use outdoors or on wet surfaces or to vacuum water or other
liquids –electric shock could occur.
• Ensure the machine remains upright in use. Dirt and debris may be
released if it is turned upside down.
• Do not operate while checking for blockages as doing so could result in
personal injury.
• For domestic indoor and car use only. Do not use it while the car is in
motion or while driving.
• Use appropriate mounting hardware for your wall type and ensure that
the docking station is mounted securely. Ensure no pipe work (gas,
water, air) or electrical cables, wires or ductwork are located directly
behind the mounting area.
SAFETY INSTRUCTION
4
Long Crevice Flexible Hose
Dust Brush Cleaning ToolMini Power Brush Wall Mount
Speed button
Battery release button
Telescopic alloy tube
Metal tube
release button
Motorized brush
release button
Motorized brush
Dust cup
On/off button
Battery indicator
LED display
Dust release button
Product parts introduction
Stand lock
Adapter
PRODUCT INSTRUCTIONS
5
HEPA Filter
1）Mini Power brush
High-frequency vibration helps flap
out 99% embedded dust and acarids
with aller-gens from your bedding
and sofa.
2）Long crevice
Use a hand vacuum or attach to the
metal tube with this tool to clean the
crevice, curtains, stairs.
3）Flexible hose
Flexible hose can be combined with the
long crevice or the brush, offers additional
reach to hard-to-reach areas such as cars,
corners, drawers, or bookshelf, etc.
5）Cleaning Tool
Used to clean the tangled hair of the
roller brush and the dust of the HEPA filter.
6）Wall mount
Used to store vacuum cleaners and
some accessories.
4）Dust brush
Used for cleaning bookcases, stairs,
keyboards and so on.
PRODUCT INSTRUCTIONS
6
Low suction level
Middle suction level
High suction level
Please clean brush roller
Please clean dust bin, HEPA filter
and mesh cover immediately
Speed button
Product Installation
I. Use as stick vacuum cleaner.

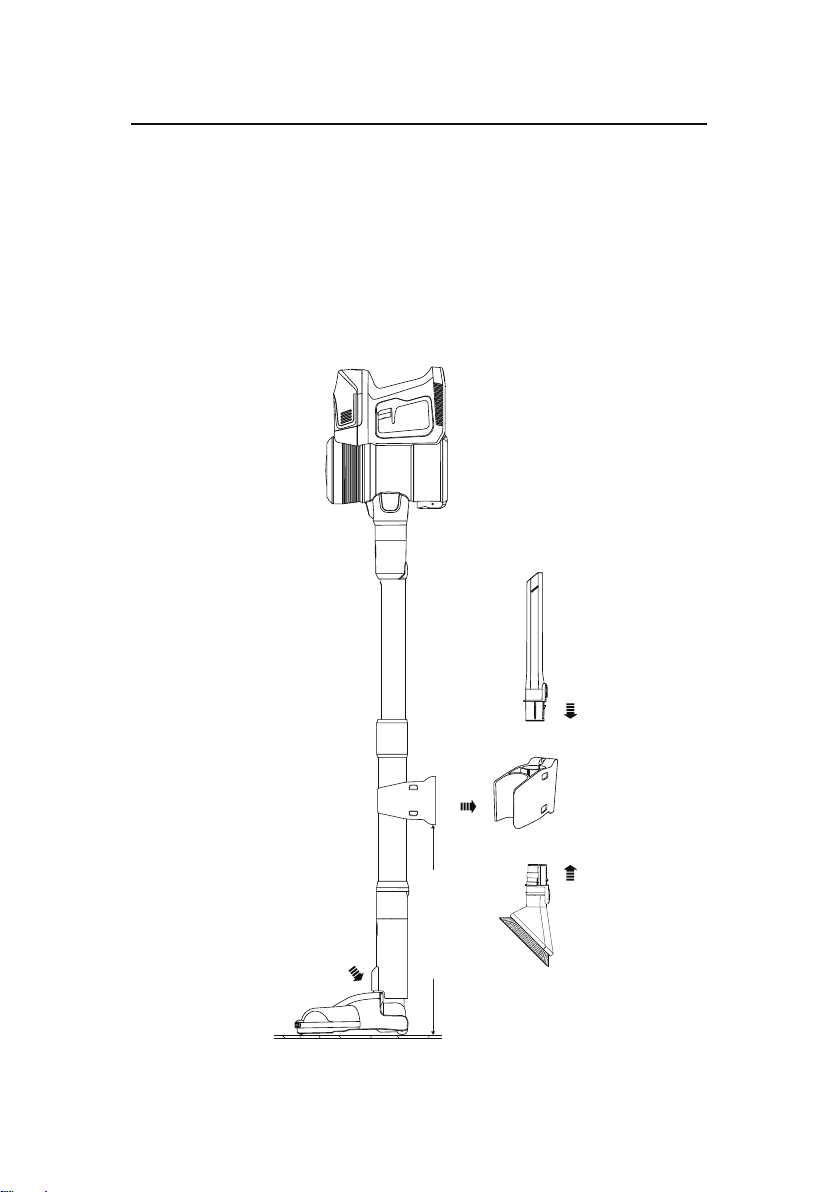

1. Insert the metal tube into the body until you hear a “click”.
Insert the motorized brush to the head of the metal tube until you hear a “click”.
PRODUCT INSTRUCTIONS
click
click
7
a) Press the speed button, the machine will work at high suction level,
switch to low and middle suction level by pressing SPEED button again.
b) When the machine is working at any suction, press the ON/OFF button,
the machine will stop working.
2. Press ON/OFF button, the machine will start work at middle suction level.
II. Use as handy vacuum

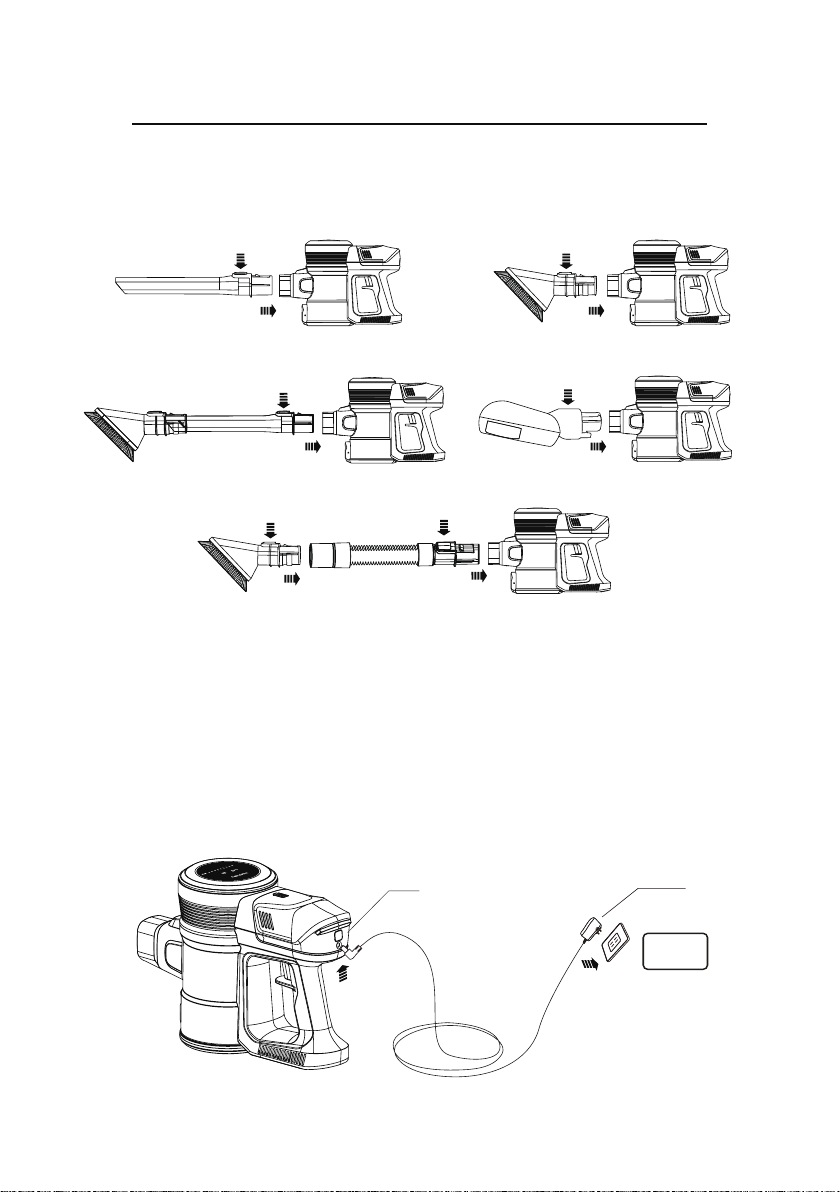

Insert the accessory to body until you hear a click.
III. Battery charging
1) When the power indicator flashes for seconds and turns off, indicating that the power has
been used up. Please plug the charger adapter into household socket for charging.
2) When the green light on the machine starts to flash, indicating the machine is in charging.
3) When the power indicator is always on and no longer flashing, it means that the machine
is fully charged.
PRODUCT INSTRUCTIONS
Charging mode : directly insert into the charging socket of the battery pack to charge.
Charging socket Adapter
Wall socket
8
Product storage
Fix the wall mount to the wall with screw;
Lock the floor brush and fix the machine to the wall mount;
Attach cleaning accessories to wall mount.
PRODUCT INSTRUCTIONS
Stand locked
The Wall mount installs
about 15 inch above the ground
15 inch（40cm）
9
IV.How to empty the dust cup
1）Press the dust release button.
2）Take out filter and filter cover as below.
DEMOLITION INSTRUCTIONS
10

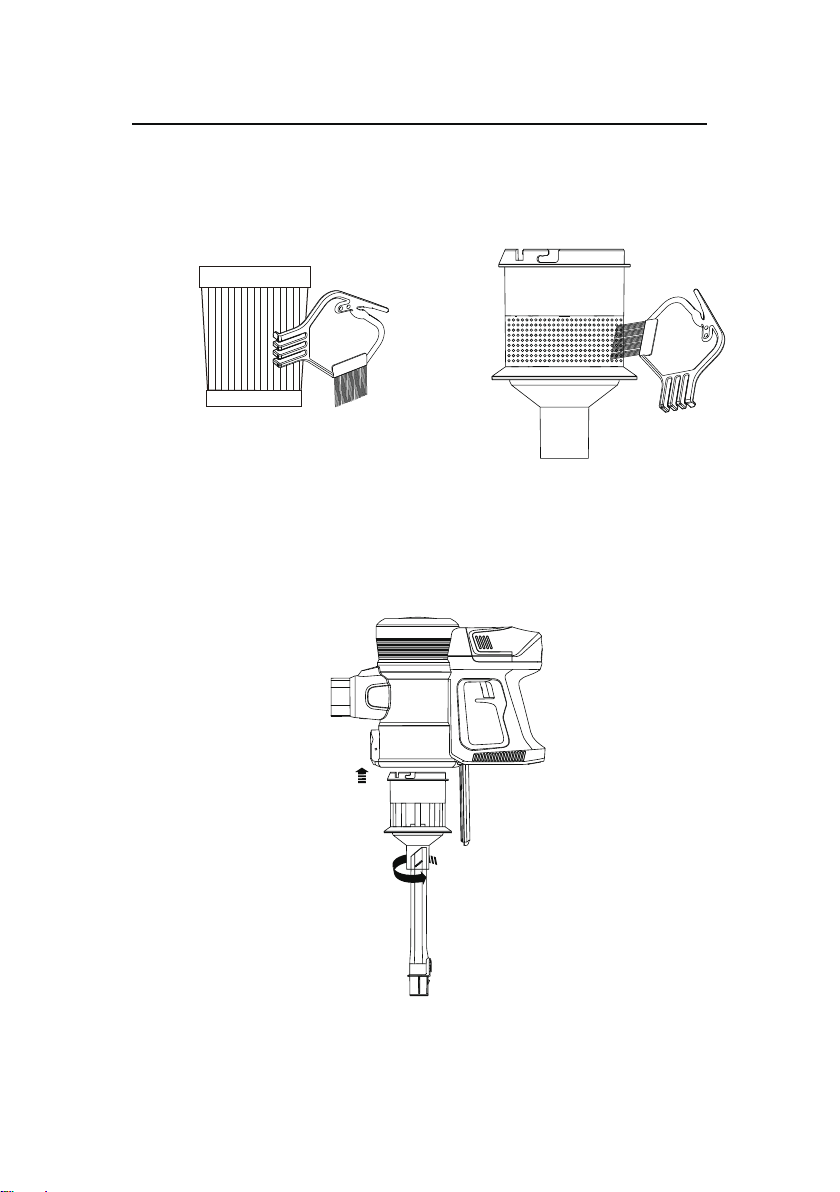

3）Clean the Hepa with cleaning tool. 4）Clean the filter with cleaning tool.
5）Put the filter back into the dust cup and lock in place.
DISMANTLE INSTRUCTIONS
11

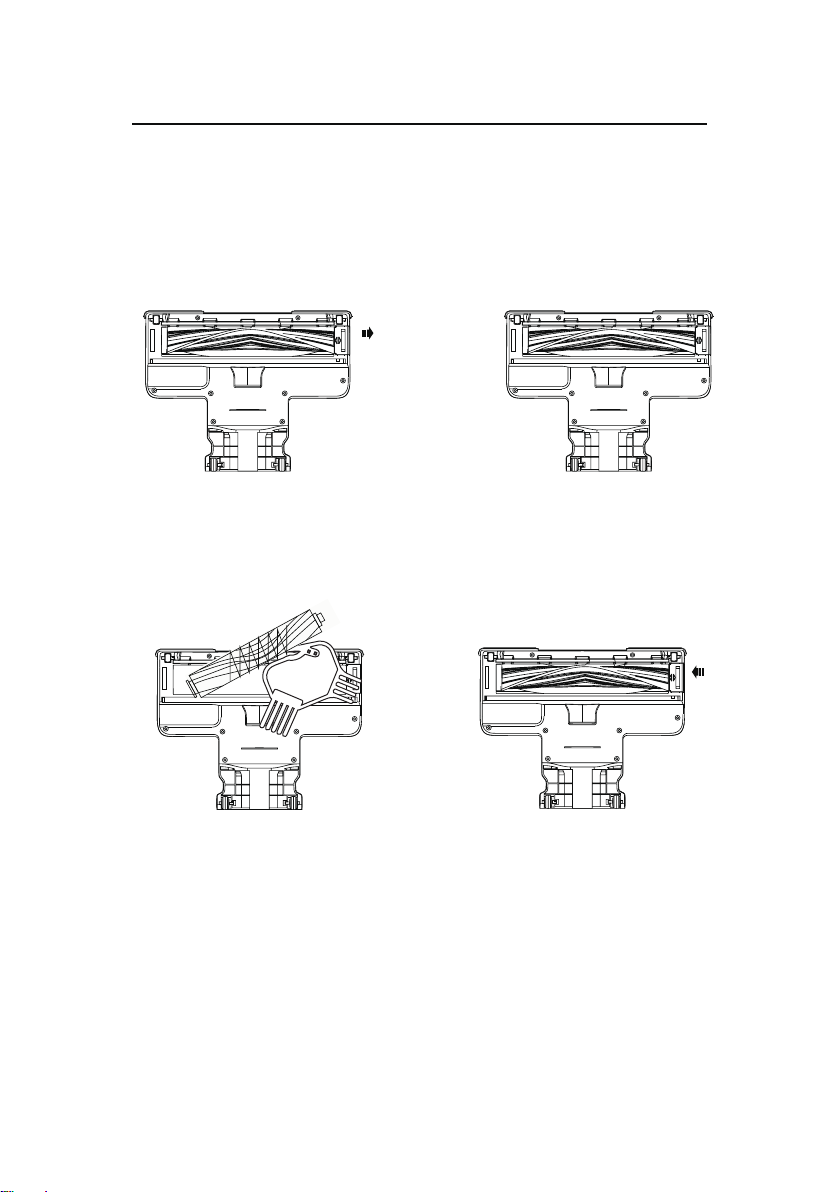

V.Removal method of roller brush
1）Disconnect the power supply and slide the
brush lock to the right as shown in the figure.
3）Take out the roller brush and clean the hair
and other foreign matters on the roller brush.
2）Slide the brush latch to the
unlocked state.
4）Install the roller brush back into the floor brush
and slide the lock to the left until it is locked.
DISMANTLE INSTRUCTIONS
12
VACUUMING
• Do not use without the dust bin and filters in place.
• Fine dirt such as plaster dust or flour should only be vacuumed in very
small amounts.
• Do not use the machine to pick up sharp hard objects, small toys, pins,
paperclips, etc. They may damage the machine.
• When vacuuming, certain carpets may generate small static charges in
the dust bin or wand. These are harmless and won 't cause any eletrical
hazards. To minimize any effect from this, do not put
your hand or insert any object into the dust bin unless you have first
emptied it. Clean the dust bin with a damp cloth only.
CARPETS OR HARD FLOORS
• Before vacuuming your flooring, rugs and carpets, check the
manufacturer's recommended cleaning instructions.
• Before vacuuming highly polished floors, such as wood or linoleum, first
check that the underside of the floor tool and its brushes are free from
foreign objects that could cause marking.
MACHINE MAINTENANCE
• Do not carry out any maintenance or repair work other than that shown
and described in this Operating Manual.
• Store the machine indoors. Do not use or store it below 37.4°F (3°C).
Ensure the machine is at room temperature before operating.
• Clean the machine only with a dry cloth. Do not use any lubricants,
cleaning agents, polishes or air fresheners on any part of the machine.
SAFETY INSTRUCTION
13
• Use extra care when cleaning on stairs.
• Do not rest the machine on chairs, tables, etc.
• Do not press down on the nozzle with excessive force when using the
machine as this may cause damage.
• Do not leave the cleaner head in one place on delicate floors.
• On waxed floors the movement of the cleaner head may create an
uneven luster. If this happens,wipe with a damp cloth, polish the area
with wax, and wait for it to dry.
EMPTYING THE DUST BIN
• To make emptying the dust bin easier, it is advisable to remove the
wand and floor tool.
• To minimize dust/allergen contact when emptying, encase the dust bin
tightly in a plastic bag to empty.
• Remove the dust bin carefully from the bag.
• Seal the bag tightly, dispose as normal.
CLEANING THE DUST BIN
• Ensure the machine is disconnected from the charger before removing
the dust bin.
• Remove the wand and floor tool.
• Clean the dust bin with a damp cloth only.
• Do not use detergents, polishes or air fresheners to clean the dust bin.
• Do not put the dust bin in a dishwasher.
• Ensure the dust bin is completely dry before replacing.
• To replace the dust bin, align the tabs on the dust bin with the grooves
on the main body and slide upwards into place until the catch clicks.
WASHABLE PARTS
Your appliance has washable parts, which require regular cleaning. Follow
the instructions below.
SAFETY INSTRUCTION
14
WASHING THE FILTERS
• Wash the filters at least once a month
• The filter unit may require more frequent washing if vacuuming fine dust or
frequent used.
WASHING FILTER
• Ensure the machine is disconnected from the charger before removing
the filter.
• Check and wash the filter regularly according to instructions to maintain
performance.
• The filter may require more frequent washing if vacuuming fine dust.
• To remove the filter, lift it out of the top of the machine.
• Wash the filter with cold water only.
• Run water over the outside of the filter until the water runs clear.
• Squeeze and twist with both hands to make sure the excess water is
removed.
• Lay the filter on its side to dry. Leave to dry completely for a minimum of
24 hours.
• Do not put the filter in a dishwasher, washing machine, tumble dryer,
oven,microwave or near an open flame.
• To refit, place the dry filter back into the top of the machine. Make sure it
is seated properly.
CHARGING AND STORING
• Do not charge the machine and then move it to an area with a
temperature below 37.4°F (3°C) for storage purposes.
• To help prolong battery life, avoid recharging immediately after a full
discharge. Allow to cool for a few minutes.
• Avoid using the machine with the battery flush to a surface. This will help
it run cooler and prolong battery run time and life.
SAFETY INSTRUCTION
15
TECHNICAL SPECIFICATION
Battery
Charging period
Input
Net. weight
Motor power
Vacuum
Airflow
25.9V/2200mAh
4~5hours
31V/500mA
1.8kg
250W
MAX. 24KPA
22dm³/s
TROUBLE SHOOTING
Not cleaning well
Stop or doesn’t work
Battery not charge
Power brush doesn’t work
1.Empty the dust bin
2.Checked dust bin is correctly assembled
3.Check the filter is correctly fitted
4.Clean the filter
1.Check connections with power cord
2.Check wall socket
1.Make sure dust cup assembled correctly
& locked
2.Make sure power brush
& metal tube connected tightly
3.Check the brush blocked or not
1.Charge battery
2.Clean the filter
3. Check battery istallation
TROUBLESHOOTING & TECHNICAL SPECIFICATION
16
The One-Year Limited Warranty is valid for products purchased from
our Fabuletta only, starting from the date of original retail
purchase against defects in quality and materials under normal,
non-commercial use.
According to the requirements outlined in this instruction manual, subject to
the following conditions and exclusions.
The repair or replacement of your Fabuletta appliance if your Fabuletta
appliance is found to be defective due to faulty materials, workmanship or
function within one year of purchase or delivery (if any part is no longer
available or out of manufacture, Fabuletta will replace it with a functional
replacement part).
This warranty provides, at no extra cost to you, all labor and parts neces-sary
to ensure your machine is in proper operating condition during the
warranty period.
WHAT IS COVERED
Under your Fabuletta guarantee, Fabuletta shall not be liable for costs
of repair or replacement of a product incurred as a result of:
Accidental damage, faults caused by negligent use or care, misuse,
neglect, careless operation or handling of the Fabuletta appliance which is
not in accordance with this Fabuletta Operating Manual
Machines purchased from an unauthorized dealer.
Use of parts and accessories other than those produced or recommended
by Fabuletta.
Repairs or alterations carried out by unauthorized parties or agents.
Use of the machine other than for normal domestic purposes within the
United States, e.g. for commercial or rental purposes.
Reduction in battery discharge time due to battery age or use.
WHAT IS NOT COVERED
17
If you have a query about your Fabuletta appliance, please contact the
Please inform us your model name/number, purchase date ,order number,
machine problem and your requirement.
Your model number can be found on rating plate. For information on your
rating plate see the inside front cover.
Please keep your purchase receipt in a safe place to ensure you have this
information.
Service under this warranty will not extend the period of this warranty.
WARRANTY SERVICE
Fabuletta ONE-YEAR WARRANTY
If you have any questions about our products, please contact our
customer support team.
*Please have your invoice and order ID ready before contacting Customer
Support.
Thanks for your purchase!
Hope you will love it as much as we do.
18
We’re Here to Help!
Start your fabulous life with Fabuletta
www.Fabuletta.com
Table of contents
