Factor HD100BaseT-Balun TX User manual

1
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
4159 McConnell Drive Burnaby B.C.
Canada V5A-3J7
Toll free 855-204-1388 www.factorelectronics.com
Toll free 855-204-1388 www.factorelectronics.com

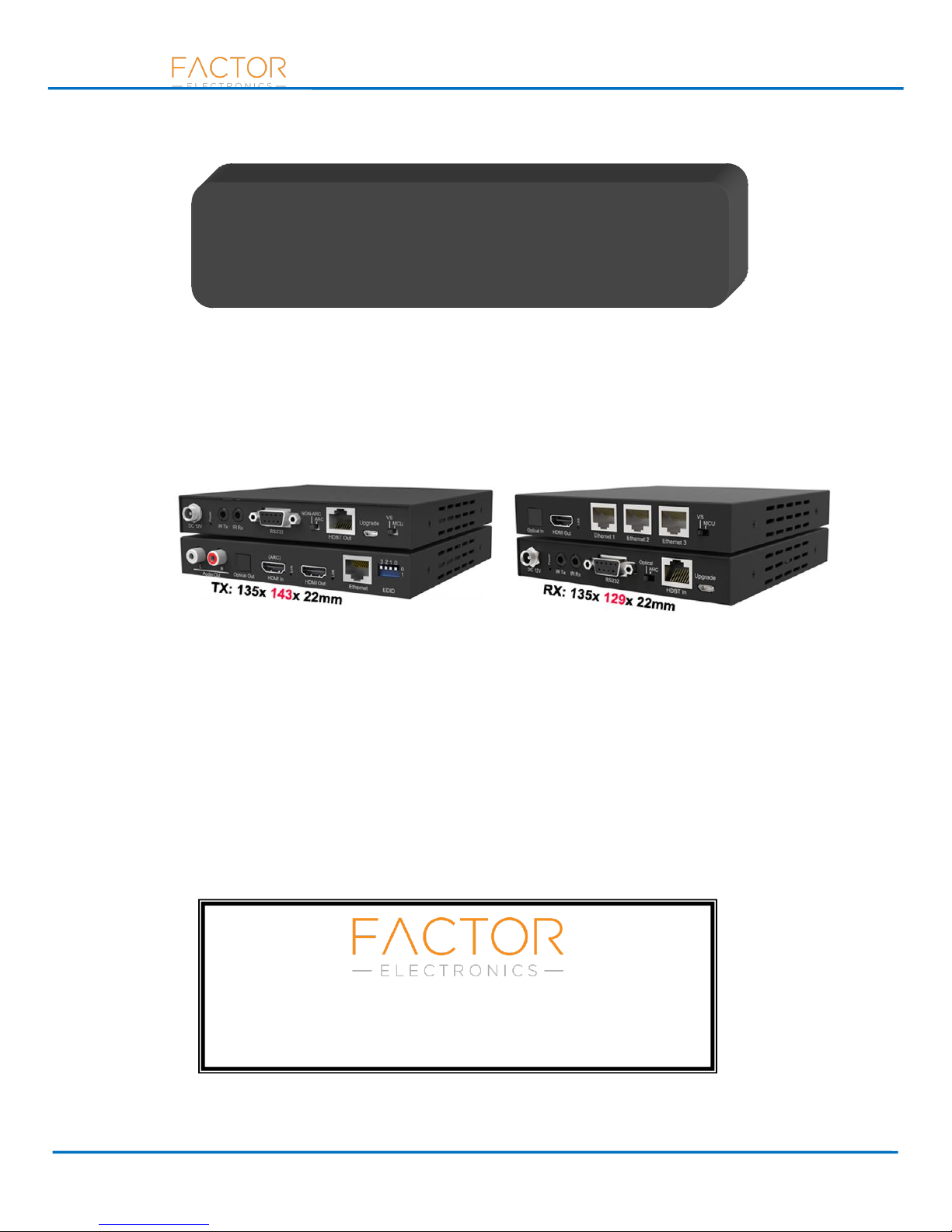

HD100BaseT-Balun Kit
HDBaseT 2.0 HDMI Extender With ARC

2
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
SAFTY AND NOTICE
1. The transmission distances of HDMI over UTP cables are measured using TE
CONNECTIVITY 1427071-6
2. EIA/TIA-568-B termination (T568B) for CAT cables is recommended for better
performance.
3. DO NOT use 568A/568B standard mixed CAT cable (cross-over cable) because there are
2 pairs swapped, this will make POE OVER-CURRENT and damage POE components.
Please use straight-through CAT cable (both RJ45 headers are 568A or 568B standard).
4. It is recommended that power up the device after connections of source, sink and CAT
cable.
5. To reduce the interference among the unshielded twisted pairs of wires in CAT cable, do
not run HDBaseT / Zone Cat5e/6/6a cabling with or in close parallel proximity to mains
power cables. Shielded CAT cables can be used to improve EMI problems, which is
worsen in long transmission.
6. Because the quality of the CAT cables has the major effect on how long the transmission
limit can achieve and how good is the received picture quality, the actual transmission
range is subject to one’s choice of CAT cables.
7. Do not substitute or use any other Power Supply other than the enclosed unit, or a Factor
Electronics approved Replacement Part. Doing so will void the warranty and potentially
expose the user to dangerous voltages resulting in an electrical shock.
8. Do not disassemble the device for any reason. Doing so will void the manufacturer’s
warranty. Also, our unique case is an integral part of the design of this unit and is
responsible for cooling and circuitry shielding. Any modifications to this case will
potentially cause malfunction and product failure.
9. Do not expose the device to water, moisture, or liquids. Possible electric shock may result
as well as failure of the unit to operate.

3
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Table of Content
Introduction ....................................................................................................................4
Features..........................................................................................................................4
Panel Descriptions..........................................................................................................5
HD100BASET-BALUN Front Panel............................................................................5
HD100BASET-BALUN Rear Panel ............................................................................5
HD100BASET-BALUN Front Panel............................................................................6
HD100BASET-BALUN Rear Panel ............................................................................7
Application Diagram.......................................................................................................8
Instruction of the Position Switchers..............................................................................8
TV and AVR support ARC .........................................................................................8
TV Supports ARC, and AVR doesn’t ..........................................................................8
TV and ARC don’t support ARC. ................................................................................8
Specifications.................................................................................................................9
ET0102-GP1 ............................................................... Error! Bookmark not defined.
ET0101-GP2 ............................................................... Error! Bookmark not defined.
Package Contents......................................................................................................... 10
Maintenance ................................................................................................................. 11
Warranty Policy ............................................................................................................ 11
Limitations of Warranty ................................................................................................ 11
Exclusive Remedies...................................................................................................... 12
RMA Policy ................................................................................................................... 12
Standard Replacement............................................................................................ 12
Once you have obtained an RMA number ................................................................ 13
Please note: ........................................................................................................... 13

4
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Introduction
The HD100BASET-BALUN(TX) HD100BaseT-Balun (RX) is an HDBaseT 2.0 HDMI Extender
featured ARC and 4 Port Ethernet Switch. It transmits 1080p@60Hz via single Cat5e up to 100
meters and 4K@60Hz (4:2:0) to 90 meters. Bi-directional IR, RS232 and Ethernet can also be
transmitted over the same Cat5e/Cat6 cable. With support of POH, only one power supply is
needed at either TX or RX side. Toslink input receiver can work with legacy products for audio
return to audio surround receiver. Besides, audio from ARC can also be extracted via both
Toslink and L/R at TX side. The extender can also be used stand-alone as an Audio extender.
Excellent performance for control and signal transmission makes the HD100BaseT-Balun is
deal in the custom installation industry, IT computer space, signal monitoring, big screen
displays, conference systems, television broadcast, education, banking and security
institutions etc.
Features
Audio Return Channel (ARC) supported backwards Toslink input.
Audio extractor for ARC at TX side via Toslink and L/R.
Supports HDMI 1.4 1080p@60Hz and HDMI 2.0 4K@60Hz (4:2:0).
HDCP 2.2/HDCP 1.X and DVI compliant
Withbuilt-in 4 port Ethernet Switch.
WithHDMI loop out at TX unit.
Supports 1080p@60Hz or VESA: 1920x1200@60Hz video transmission up to 100m/328ft,
and 4K@60Hz (4:2:0) to 90m/295ft.
Transmission distance for ARC up to 100m using STP (TE CONNECTIVITY 219420-2).
Dolby TrueHD and DTS-HD master audio pass through HDMI output
Bi-Directional IR, RS232 and Ethernet pass through.
POH (Power over HDBaseT) supported, only one power supply needed at either
Transmitter or Receiver side.
With ESD Protection.
Note:
The POH function is designed for powering compatible TX or RX unit of Factor Electronics
ONLY. DO NOT connect it with any third party Power Over Ethernet devices. Damage may
result.

5
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Panel Descriptions

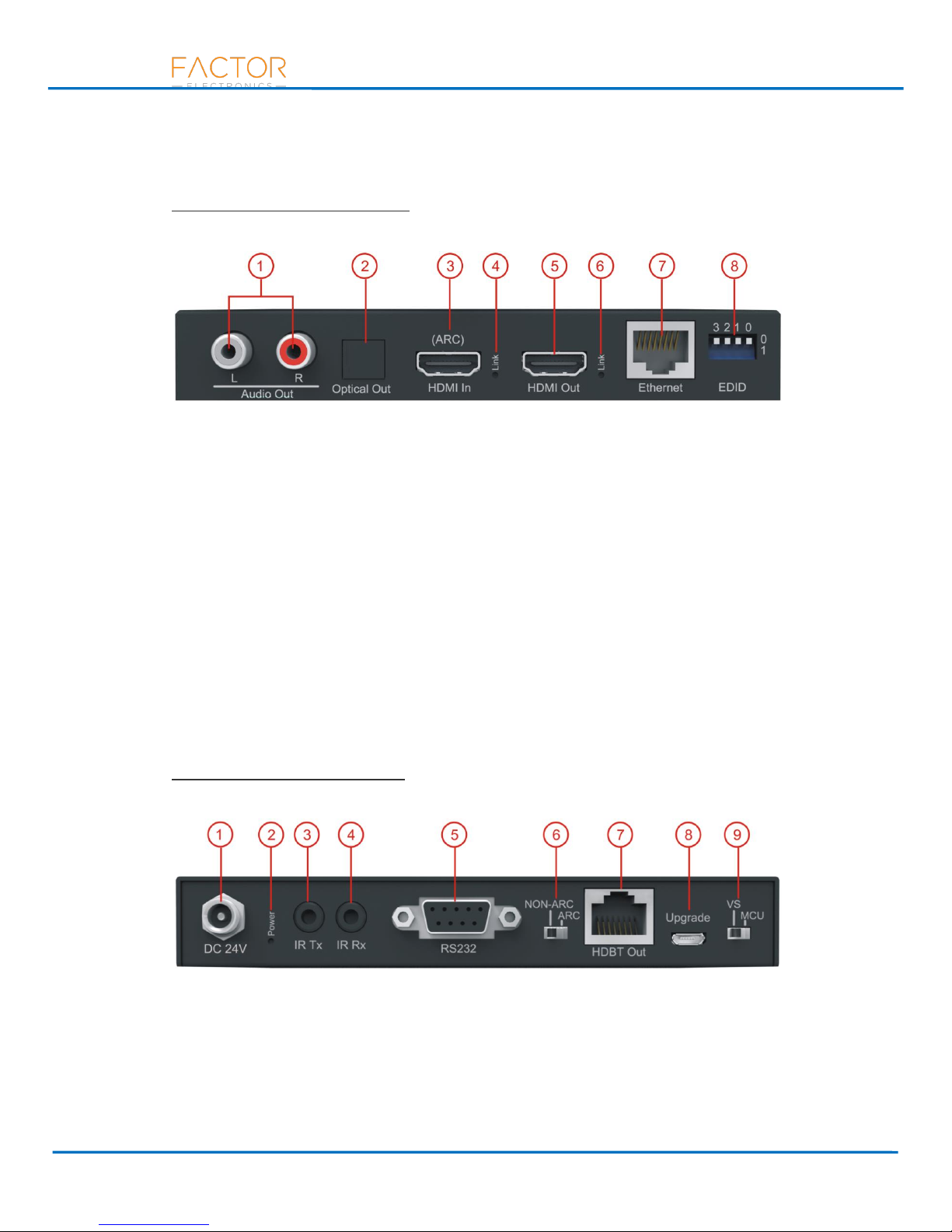

HD100BASET-BALUN Front Panel
①Left & Right channel of L/R audio out - RCA connector.
②Optical audio out - S/PDIF audio out, connect to AV Receiver.
③HDMI In - Connect to HDMI source device.
④HDMI link indicator - Lit when source connected.
⑤HDMI Output - Connect to local monitor.
⑥HDMI link indicator –Lit when monitor connected.
⑦Ethernet port –Connect to router.
⑧DIP switch –EDID management.
HD100BASET-BALUN Rear Panel
①Power port - Use included 24V/1A DC adaptor to power the unit.
②Power LED indicator - Lit when getting power.
③IR Tx port - 3.5mm stereo phone-jack, connect to IR transmitter cable.

6
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
④IR Rx port - 3.5mm stereo phone-jack, connect to IR receiver cable.
⑤RS232 port - DB9 female connector, connect to a DTE or DCE.
⑥Position Switcher - Switch between ARC and NON-ARC modes. ONLY when both TV
connects to receiver and audio surround receiver connects to transmitter support HDMI
(ARC), the mode selection will be at ARC position, otherwise at NON-ARC position.
⑦HDBT out - RJ45 connector, connect to HDBT in port of the receiver side via cat5e/6.
⑧Micro USB port –for firmware upgrading.
⑨Position Switcher - Switch between VS and MCU modes. VS for Valens firmware upgrade
and MCU for MCU upgrade.

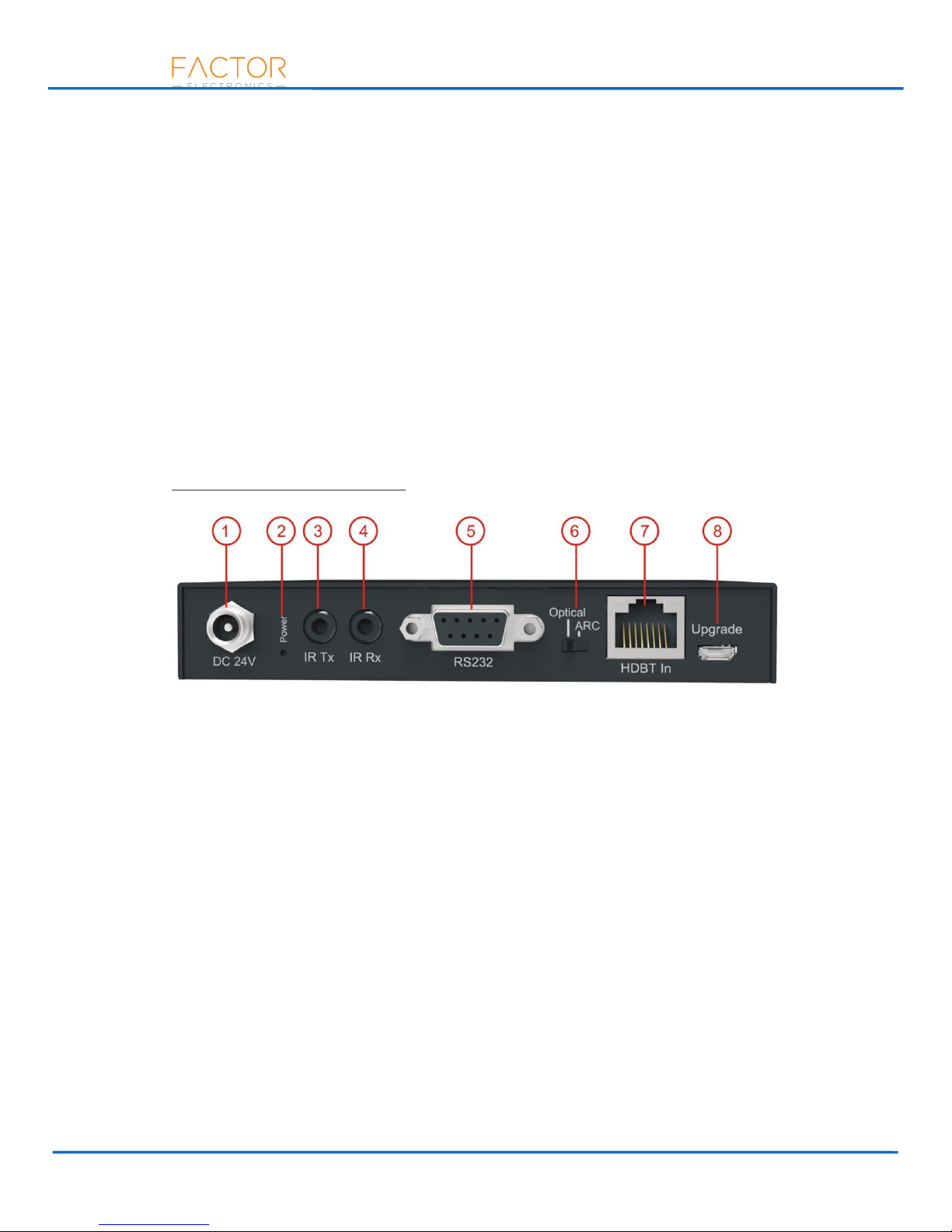

HD100BASET-BALUNFront Panel
①Power port - Use included 24V/1A DC adaptor to power the unit.
②Power LED indicator - Lit when getting power.
③IR Tx port - 3.5mm stereo phone-jack, connect to IR transmitter cable.
④IR Rx port - 3.5mm stereo phone-jack, connect to IR receiver cable.
⑤RS232 port - DB9 female connector, connect to a DTE or DCE.
⑥Position Switcher - Switch between ARC and NON-ARC modes. ONLY when both TV
connects to receiver and audio surround receiver connects to transmitter support HDMI
(ARC), the mode selection will be at ARC position, otherwise at NON-ARC position.
⑦HDBT in - RJ45 connector, connect to HDBT out port of the transmitter side via cat5e/6.
⑧Micro USB port –for firmware upgrading.

7
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
HD100BASET-BALUNRear Panel
①Optical audio in - S/PDIF audio in, connects to the optical out of the TV.
②HDMI Out - Connect to HDMI sink device.
③HDMI link indicator –Lit when HDMI sink device connected.
④Ethernet port 1 to 3 - Ethernet access 1 to 3
⑤Position Switcher - Switch between VS and MCU modes. VS for Valens firmware upgrade
and MCU for MCU upgrade.

8
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics

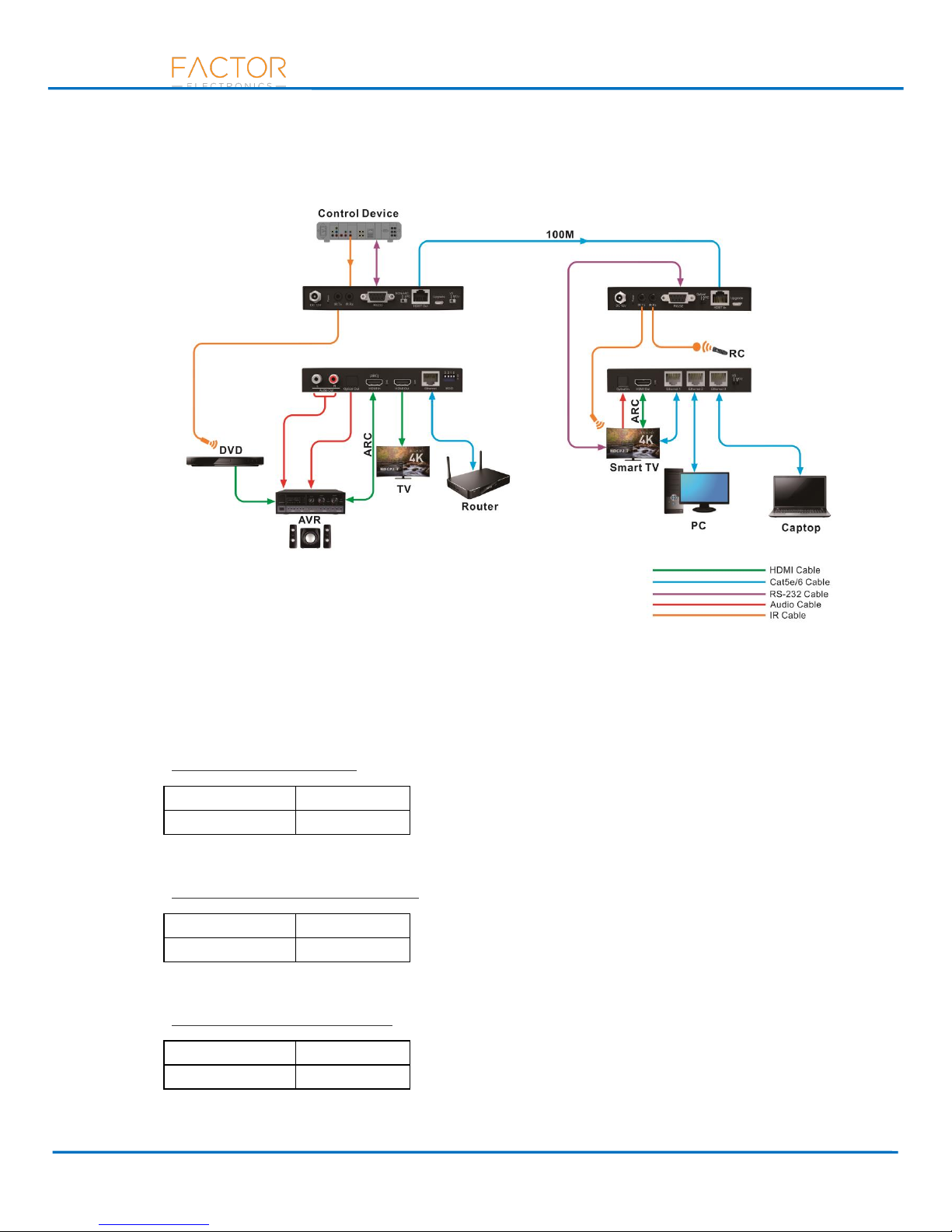

Application Diagram
Instruction of the Position Switchers
TV and AVR supports ARC
ET0102-GP1
ARC
ET0101-GP2
ARC
TV Supports ARC, and AVR doesn’t
ET0102-GP1
NON-ARC
ET0101-GP2
ARC
TV and ARC don’t support ARC.
ET0102-GP1
NON-ARC
ET0101-GP2
Optical

9
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Specifications
HD100BaseT-Balun TX
Bandwidth：
10.2Gbps
Video Input Connectors:
1x HDMI Type A female
Video Output Connectors:
1x HDMI Type A female, 1x RJ45
Audio Output Connectors:
2x RCA (L/R), 1x Toslink (S/PDIF)
Ethernet Input:
1x RJ-45
RS-232 serial port:
1x DB9, female
IR Input ports:
1x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
Rack-Mountable:
2x Rack-mount ears
Dimensions (W x H x D):
135mm x 143mm x 22mm , without feet
Shipping Weight:
508g
Operating Temperature:
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
24V/1A DC, Screw Connector
HD100BaseT-Balun RX
Bandwidth：
10.2Gbps
Video Input Connectors:
1x RJ45
Video Output Connectors:
1x HDMI Type A, female
Audio Input Connectors:
1x Toslink (S/PDIF)
Ethernet Input:
3 x RJ-45
RS-232 serial port:
1x DB9, female
IR Input ports:
1x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
Rack-Mountable:
2x Rack-mount ears
Dimensions (W x H x D):
135mm x 129mm x 22mm , without feet
Shipping Weight:
468g
Operating Temperature:
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
24V/1A DC, Screw Connector

10
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Package Contents
1. 1x HD100BaseT-Balun TX &, 1x HD100BaseT-Balun RX
2. 1x 24V/1A DC Power Supply
3. 1x IR Emitter Cable
4. 1x IR Receiver Cable
5. 1x Rack-mount Ears

11
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this
unit.
Warranty Policy
Factor Electronics products are warranted against defects in material and workmanship for two
years from the date of shipment. During the warranty period, Factor Electronics will, at its
option, repair or replace products that prove to be defective. Repairs are warranted for the
remainder of the original warranty or a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to Factor Electronics and all
related customs, taxes, tariffs, insurance, etc. Factor Electronics is responsible for the freight
charges only for return of the equipment from the factory to the owner. Factor Electronics will
return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was
sent to Factor Electronics.
All equipment returned for warranty repair must have a valid RMA number issued prior to
return and be marked clearly on the return packaging. Factor Electronics strongly
recommends all equipment be returned in its original packaging.
Factor Electronics’s obligations under this warranty are limited to repair or replacement of
failed parts, and the return shipment to the buyer of the repaired or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed, altered, repaired,
or misused in any way that, in the opinion of Factor Electronics, would affect the reliability or
detracts from the performance of any part of the product, or is damaged as the result of use in
a way or with equipment that had not been previously approved by Factor Electronics.
The warranty does not apply to any product or parts thereof where the serial number or the
serial number of any of its parts has been altered, defaced, or removed.
The warranty does not cover damage or loss incurred in transportation of the product.
The warranty does not cover replacement or repair necessitated by loss or damage from any
cause beyond the control of Factor Electronics, such as lightning or other natural and weather
related events or wartime environments.
The warranty does not cover any labor involved in the removal and or reinstallation of
warranted equipment or parts on site, or any labor required to diagnose the necessity for repair
or replacement.

12
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
The warranty excludes any responsibility by Factor Electronics for incidental or consequential
damages arising from the use of the equipment or products, or for any inability to use them
either separate from or in combination with any other equipment or products.
A fixed charge established for each product will be imposed for all equipment returned for
warranty repair where Factor Electronics cannot identify the cause of the reported failure.
Exclusive Remedies
Factor Electronics’s warranty, as stated is in lieu of all other warranties, expressed, implied, or
statutory, including those of merchantability and fitness for a particular purpose. The buyer
shall pass on to any purchaser, lessee, or other user of Factor Electronics’s products, the
aforementioned warranty, and shall indemnify and hold harmless Factor Electronics from any
claims or liability of such purchaser, lessee, or user based upon allegations that the buyer, its
agents, or employees have made additional warranties or representations as to product
preference or use.
The remedies provided herein are the buyer’s sole and exclusive remedies. Factor
Electronics shall not be liable for any direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any other legal theory.
RMA Policy
When returning product to Factor Electronics for any reason, the customer should fill out the
official RMA form to obtain a RMA number. Without the permission or approval, Factor
Electronics will be no responsible for any return.
This can be initiated by emailing or calling your related sales.
All requests are processed within 48 hours.
Standard Replacement
For customers that agree to return defective product to Factor Electronics first, a Standard
Replacement option is available.
An RMA number must first be issued by sales. This RMA number will need to be referenced on
the outside of the return shipment.
Upon receipt of the defective product, Factor Electronics will, at its discretion, either repair or
replace the product and ship it out in the most expeditious manner possible. Subject to
availability, the replacement product will be shipped on the business day following receipt of
the defective product.

13
www.factorelectronics.com
HD100BaseT-Balun UserManual
Factor Electronics
In the event the product returned to Factor Electronics has been discontinued (i.e. the product
is no longer being manufactured by Factor Electronics but is still under warranty), Factor
Electronics will, at its discretion, either repair or replace with recertified product.
Once you have obtained an RMA number
After obtaining an RMA number from Factor Electronics, you must send the product - freight
prepaid - to Factor Electronics Technology Co., Ltd. The Factor Electronics RMA number must
be prominently displayed on the outside of your package. If you send your product to Factor
Electronics without the RMA number prominently displayed on the outside of the package, it
will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. Factor Electronics
does not accept responsibility for any lost shipments unless proof of delivery to Factor
Electronics is provided.
Please note:
Product shipped to Factor Electronics must be properly packaged to prevent loss or damage in
transit.
Shipping your RMA to Factor Electronics using regular mailing envelopes is not acceptable, as
they do not protect the product from damage during shipping.
Factor Electronics will not repair or replace a module that is shipped in such a way that the
product is not properly protected.
Factor Electronics will not accept any product that has been damaged as a result of accident,
abuse, misuse, natural or personal disaster, or any unauthorized disassemble, repair or
modification.
