Fagerhult e-Sense Series User manual

e-Sense Customised Stand-alone
Lorem ipsum

Subject to change without notice. Version1_20180621
e-Sense Customised Stand-alone sensors – basic functions ..................................................................................... 3
Installation ................................................................................................................................................................................... 4
Mechanical cut-o, functions ............................................................................................................................................... 4
Preset functions............................................................................................................................................................................6
Choice of sensor technology.....................................................................................................................................................7
Programming with remote control ......................................................................................................................................8
Programming for personal settings ..............................................................................................................................9–10
Reduced power, Standby dimming level............................................................................................................................. 11

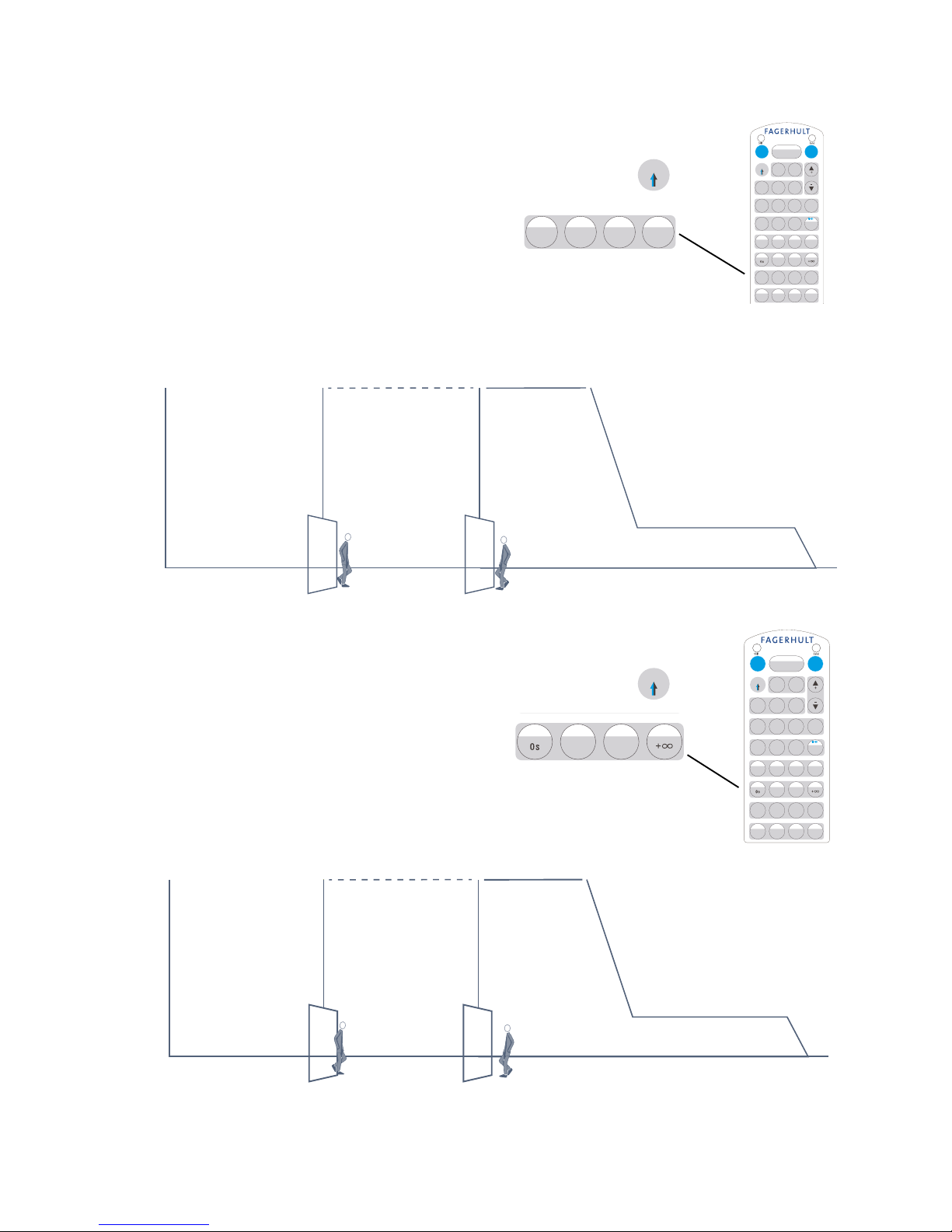

Delay times, Standby time ..................................................................................................................................................... 12
On/O, Auto Mode ......................................................................................................................................................................13
Lux Threshold ............................................................................................................................................................................. 14
Shift button, Test function, Manual switch-on...............................................................................................................15

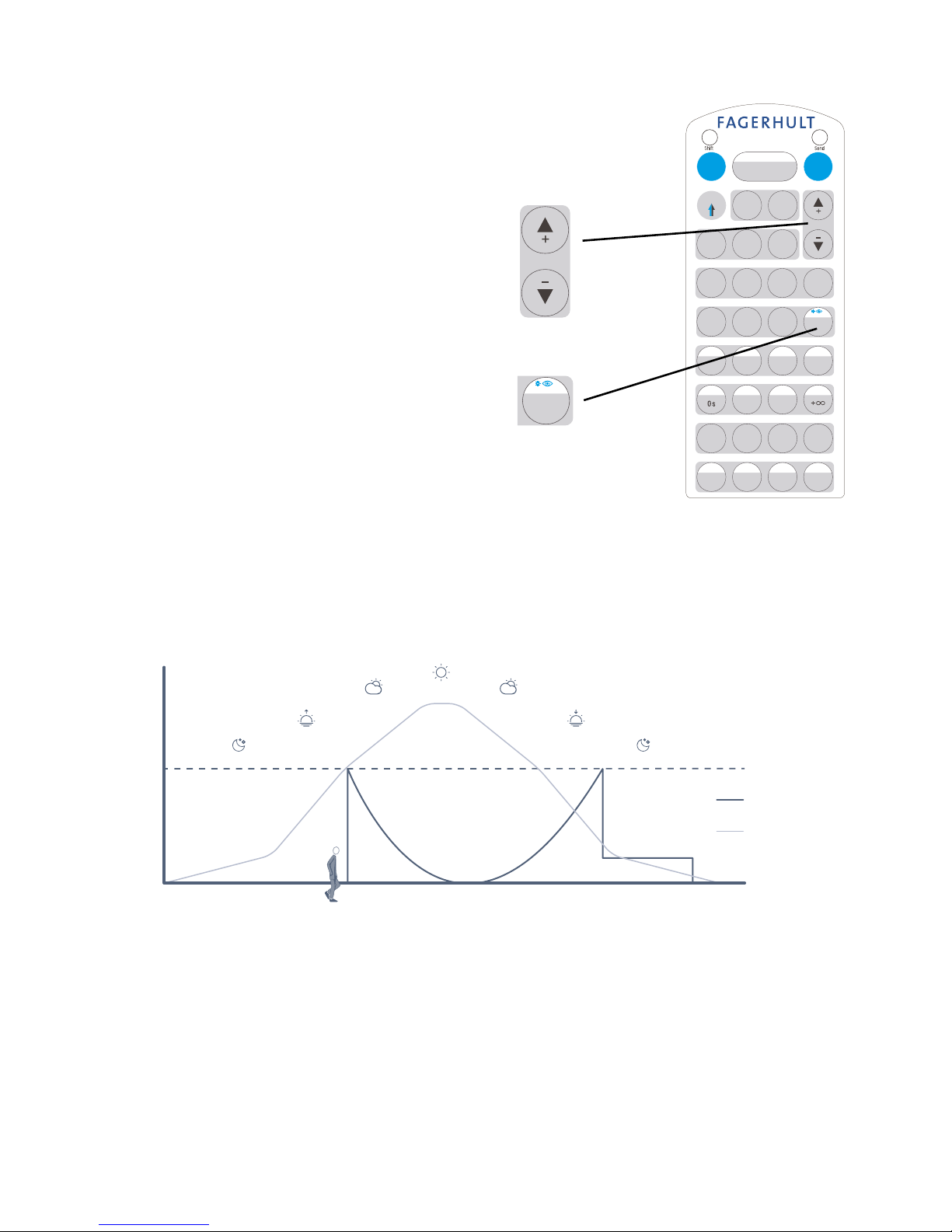

Daylight control ......................................................................................................................................................................... 16
Dual sensor technology ....................................................................................................................................................17–18

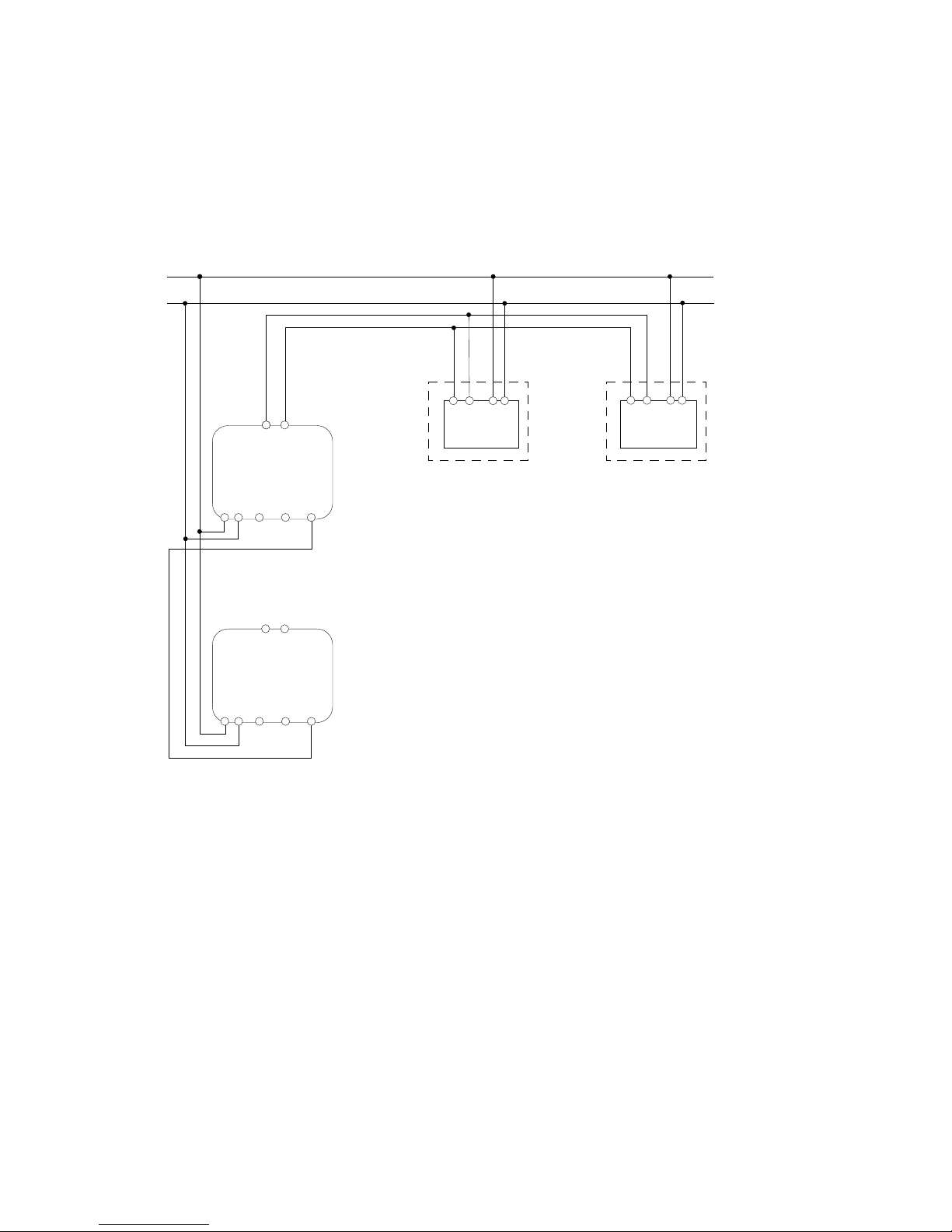

Wiring examples ..................................................................................................................................................................19–21
Technical specication ...........................................................................................................................................................22
Contents

3
Subject to change without notice. Version1_20180621
86370 and 86371 are sensors for individual installation in ceilings. 86370 is most suitable for surfaces with a ceiling height
of max. 6 metres, while 86371 can detect higher heights up to 12 metres. 86371 also has two lenses for the best detection
with the PIR sensor.
The sensor has a range of settings in order to optimise all functions:
• Choice of detection PIR or Microwave sensor, or a combination of these.
• Integrated power supply for connecting 20 DALI loads.
• Sync where several sensors can work together e.g. in a corridor.
• Pushbutton connection for manual control of light level.
• Daylight sensor for adjustment according to incident daylight.
• Lux threshold prevents the light from switching on when the lighting conditions have already been met.
• Choice of 16 dierent xed function combinations on the sensor.
• Choice of sensor technology on the sensor.
• Programming with remote control 86368.
• Quick programming of all function selections with 86368.
• Installation in ceiling panel (A-socket) or surface mounted in the accompanying socket.
• Lens for limiting the PIR detection range.
• Setting the sensitivity of the microwave sensor’s detection range.
• For installation with socket in the ceiling panel use accessory 86393.
e-Sense Customised Stand-alone sensors – 86370 and 86371

4
Subject to change without notice. Version1_20180621
Sensor can be placed on a suitable base or surface moun-
ted or recessed. When using the microwave sensor, a
stable base is important.
The sensor is supplied with an installation socket for sur-
face mounted installation. Four lead-in throughs.
If you remove the socket, the sensor can be installed re-
cessed in standard A-socket for 60 mm holes.
Installation

5
PIR
Photocell
LED indicator
Sensor mode selection
Rotary switch preset
HF Sensor module
Infrared receiver
Subject to change without notice. Version1_20180621
The sensor is also supplied with mechanical cut-o which
can limit the detection range. NOTE! Only if you use the
PIR sensor.
e-Sense Stand-alone is a exible sensor that has several
options to optimise the function.
• PIR sensor for detecting reected heat (people).
• Microwave sensor that detects movement even th-
rough walls and glass.
• Light sensor for setting the lux threshold and/or
daylight level.
• IR receiver for programming with remote control.
• Mode switch for selection of sensor technology
• Rotary switch for setting the nished functions ac-
cording to the table.
Mechanical cut-o
Functions

6
Subject to change without notice. Version1_20180621
The rotary switch on the sensor is for selecting a nished
package with presets. The functions are according to the
table below. The functions can always be changed in detail
with remote control 86368. If you then use the rotary
switch again, it is that setting that applies. The sensor is
supplied with setting mode 0 which 5 min after the last
presence is detected adjusts to 10%, and 5 min until it
switches o.

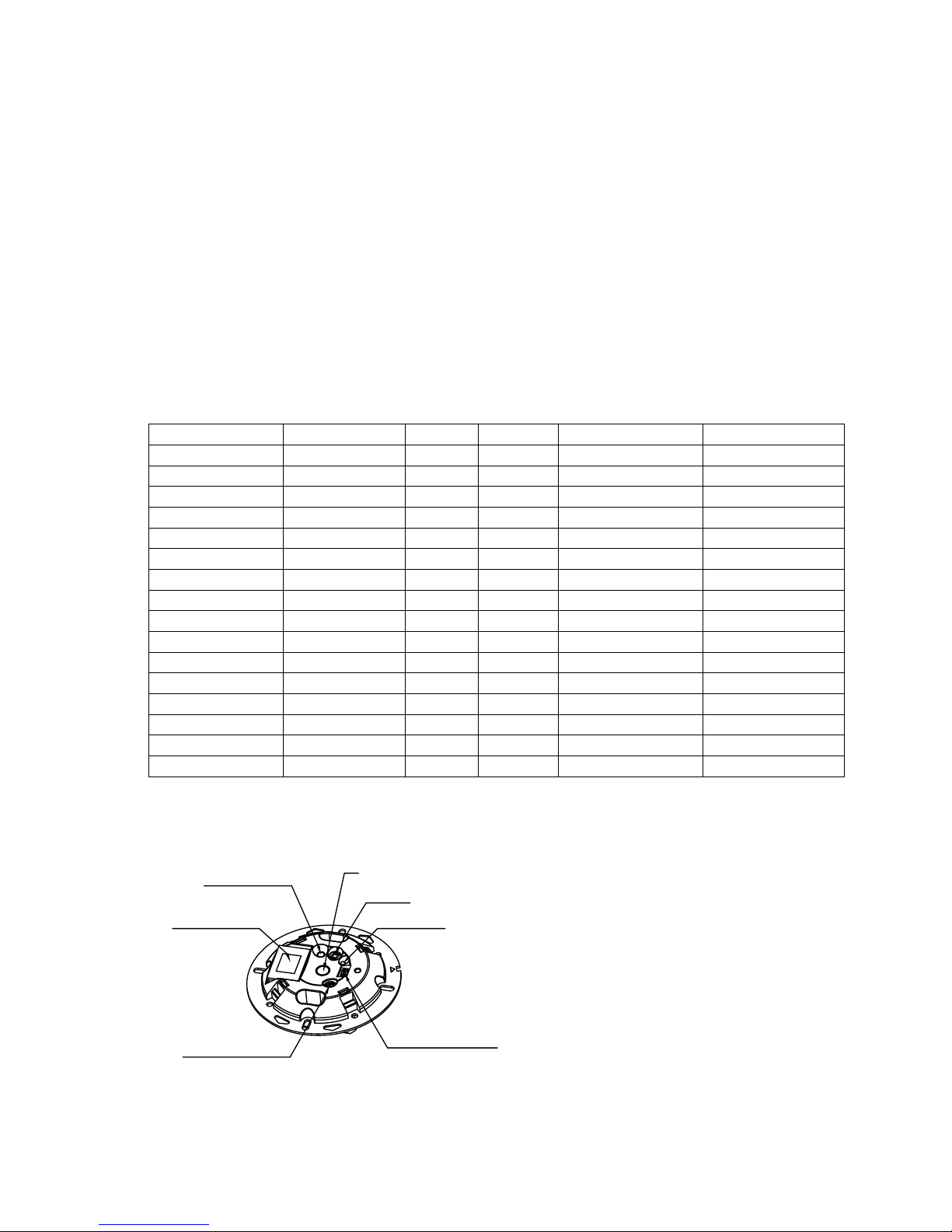

Preset functions
Settings rotary switch on 86370 and 86371
Selection of preset 1-F Detection Delay time Standby time Standby dimming level Daylight Threshold
0 100 % 5 min 5 min 10 % Disabled
1 100 % 5 sec 10 s 10 % Disabled
2 100 % 5 min 10 min 10 % Disabled
3 100 % 5 min + ∞10 % Disabled
4 100 % 5 min + ∞10 % Disabled
5 100 % 5 min + ∞30 % Disabled
6 100 % 10 min 30 min 10 % Disabled
7 100 % 10 min + ∞10 % LOW
8 100 % 10 min + ∞10 % LOW
9 100 % 10 min + ∞30 % MID
A 100 % 20 min 1 h 10 % Disabled
B 100 % 20 min + ∞30 % MID
C 100 % 30 min + ∞10 % Disabled
D 100 % 30 min + ∞30 % MID
E 100 % 30 min + ∞50 % HIGH
F 100 % 5 sec 10 s 10 % HIGH
PIR
Photocell
LED indicator
Sensor mode selection
Rotary switch preset
HF Sensor module
Infrared receiver

7
Subject to change without notice. Version1_20180621
Sensors 86370 and 86371 have the option to select two
dierent technologies to detect presence. The microwave
sensor does not generally just detect movement from
people and it can detect through walls and glass. The PIR
sensor only detects infrared heat radiation (human heat)
in motion. Choosing one of the sensor technologies or a
combination of the sensors provide great opportunities to
easily optimise control functions.
Using the red mode switch on the sensor, you can select
the sensor technology function – PIR sensor or Microwave
sensor. It is also possible to perform two combinations of
both technologies. If you use the remote control, you can
use it to change the settings.
I Both of the switches in the ON position:
Microwave sensor
II Switch 2 in ON position: Only PIR sensor
III Switch 1 in ON position: Microwave sensor + PIR
sensor (both of the sensors must detect in order for
the light to switch on).
IV Both of the switches in the OFF position: Microwave
sensor/PIR sensor (either of the sensors switches the
light on).
Choice of sensor technology

8
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE
DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Subject to change without notice. Version1_20180621

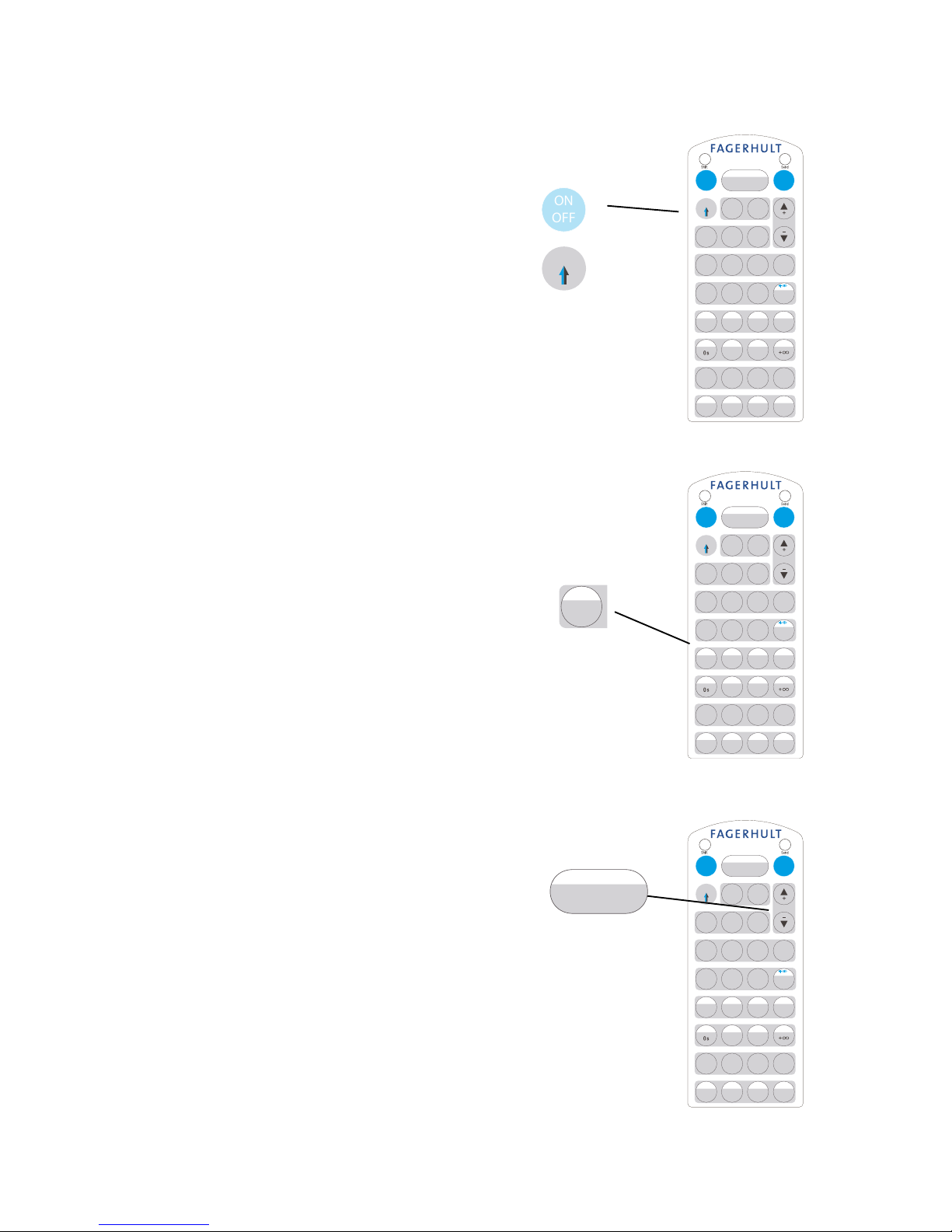

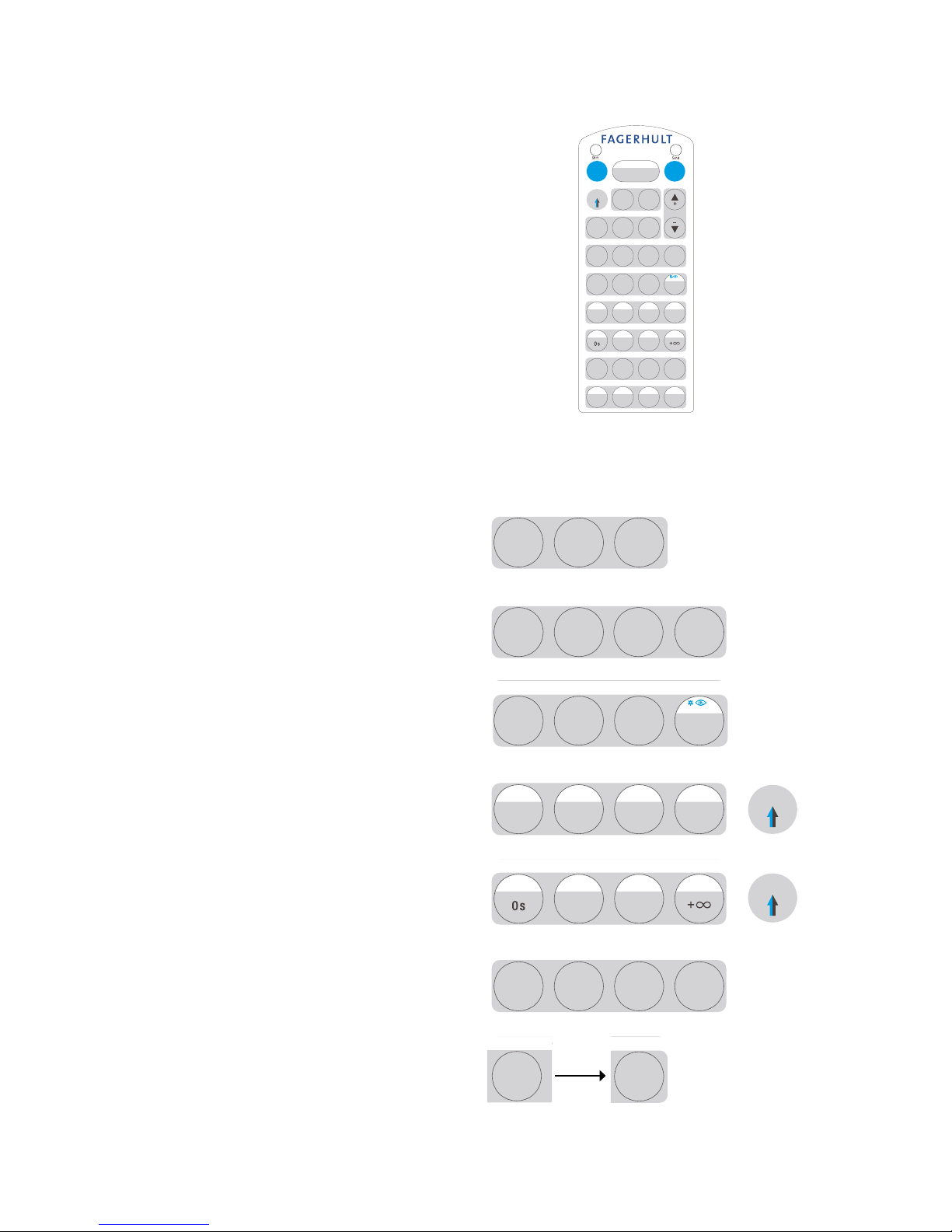

Simple programming functions
Sensors 86370 and 86371 can be programmed remotely
using a remote control without needing to set any fun-
ction in the sensor. This makes it easy to perform quick
changes in all functions.
The following pages describe the dierent procedures to
complete an installation.
Certain functions on the remote control have no function
in this system, and cannot aect the end result of the
programming.
A dierence between 86370 and 86371 is that 86371 indi-
cates with a ashing light source when a signal is received
from the remote control. This is due to installation at a
high height. 86370 has an integrated red LED that indica-
tes the same thing.

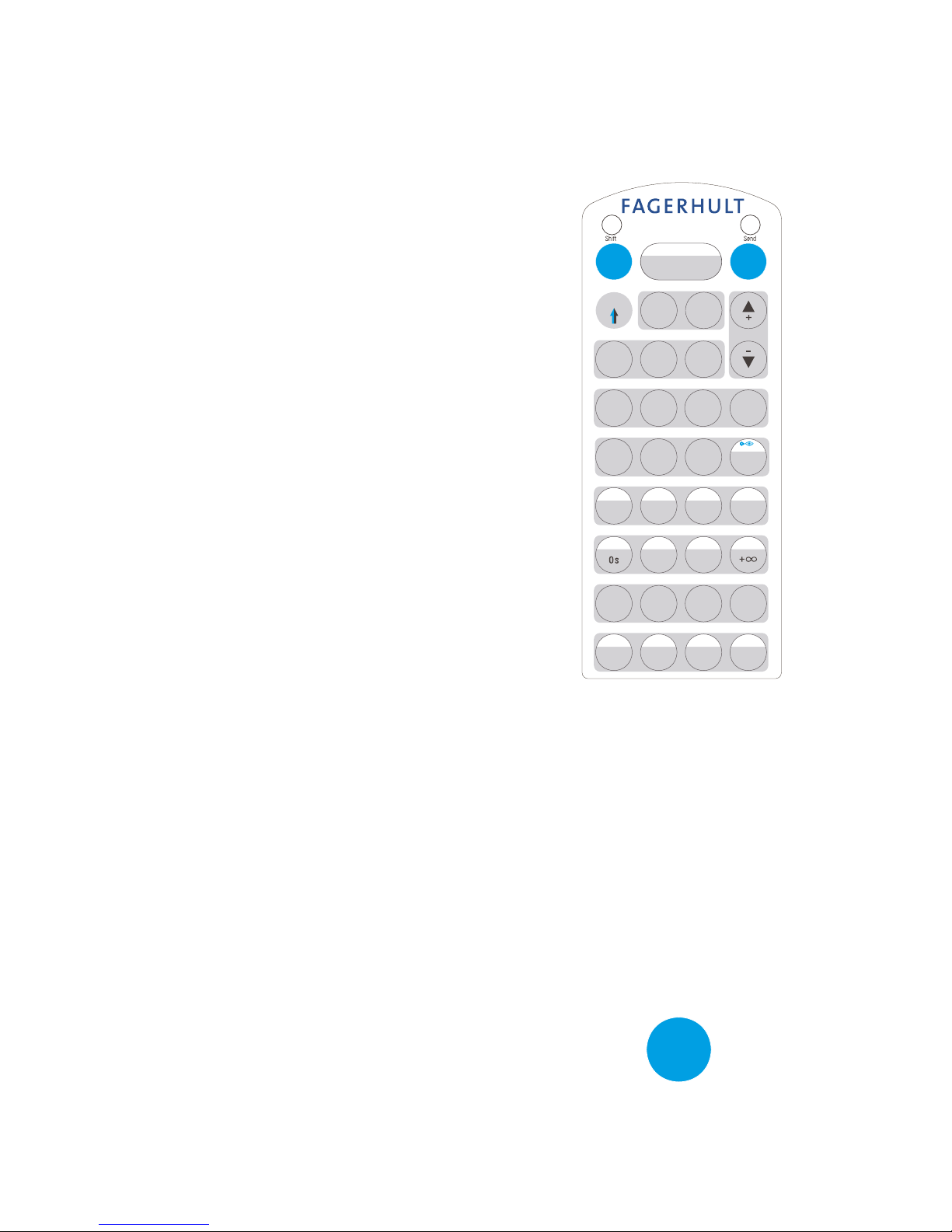

Programming with remote control 86368
On delivery, the sensor has a standard setting that is also
very easy to use as start for the installation. The default
settings are:
Delay time: 5 min.
Standby time: 5 min.
Standby dimming level: 10%
Daylight Threshold: Disabled
Sensor active: PIR and Microwave

Regardless of which settings are made, it is always easy to
reset the presets using the DEFAULT button.
On delivery the rotary switch on the sensor is set to 0
which gives the settings above. If the switch is changed to
another position, that will be the standard setting.

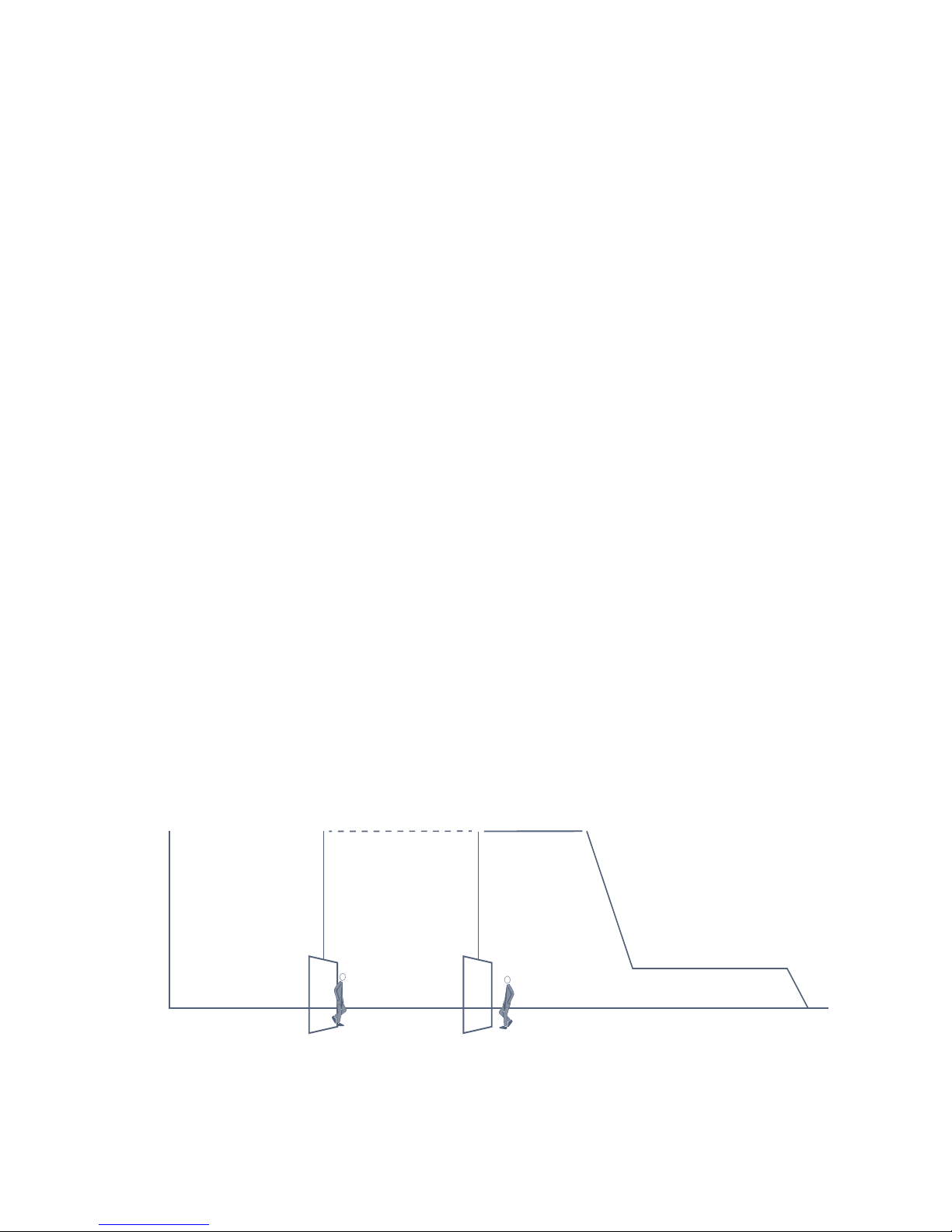

Default setting of the sensor

9
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10
s3
0 mi
n1
h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE
DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE
DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Subject to change without notice. Version1_20180621

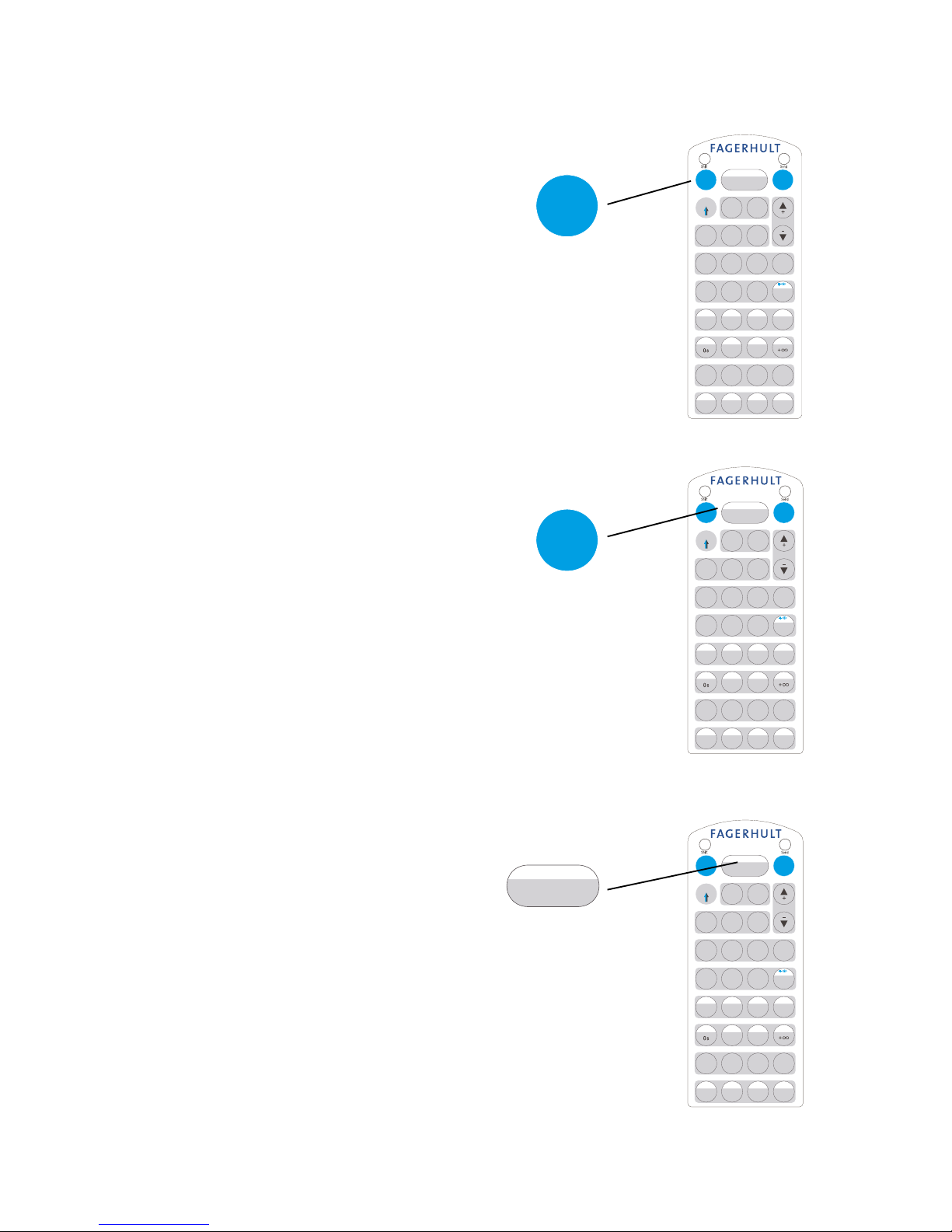

It is possible to download all settings in the remote before
transmitting the package to a sensor. Go through the steps
as described below.
The settings that can be part of a package is:
Detection range (micro wave Sensor only)
Daylight Threshold
Delay time (after last movement detected)
Standby Time (time at dimmed low level)
Standby dimming level (Low level before OFF)
Pre-set Scenes
Select Detection Range (If Microwave sensor is used).
Select Daylight Threshold or Disable the function
Select Delay Time (use Shift Button to alternate to BLUE
functions).
Select Standby Time (use Shift Button to alternate to Blue
functions).
Select Standby Dimming Level.
Memory for saving settings. And use Apply to sensing
information to sensor (The luminare will blink to conrm
the received information.).
Press Start.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.
Shift
ON
OFF AUTO MODE DEFAULT
Start
LOW MID
Save Apply
10% 50% 75%
POWER
100%
POWER
80%
100%
Disable
20 min
HIGH
MANUAL ON MODE
MANUAL SETTING
10 min1 min
Test
2 S
30 min15 min5 min30 s
1 min
20% 30% 50%10%
10 min
RX
STBY%
MW/PIR
RX
100%
MW+PIR
Send
PIR
Learn/
Erase
MW
5 min10 s30 min1h
Delay Time
Brightness
Standby Time
Standby Dimming Level
Dual Sensor Tech. & RF Mode
Detection Range Microwave Sensor
Daylight Threshold
Scene prog.

10
Närvaro
Närvaro Frånvaro
100 %
0 %
Hålltid Standby tid
Standbydimningsnivå % 20 %
Subject to change without notice. Version1_20180621
Delay Time
Time after last presence detected. After time has elapsed,
light will dim to Standby Dimming level.
Standby Time
How long light will remain on low level before turning o.
The o function can be avoided by selecting +∞ (innity
button).
Standby Dimming Level
How bright the light will be during the Standby Period. 10,
20, 30 or 50 % light level can be selected.

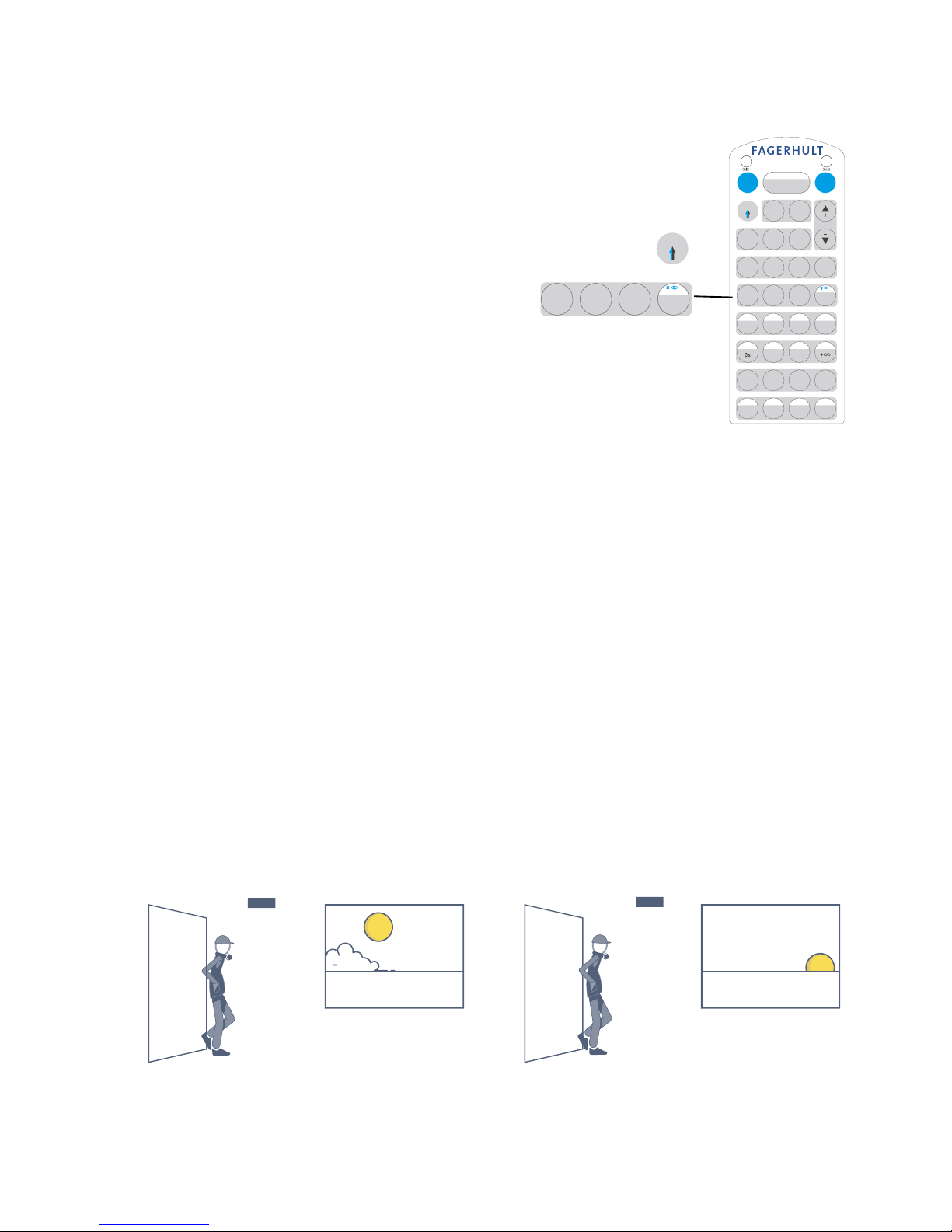

Daylight Threshold
If daylight is brighter than the set value, light will not turn
on when presence is detected.

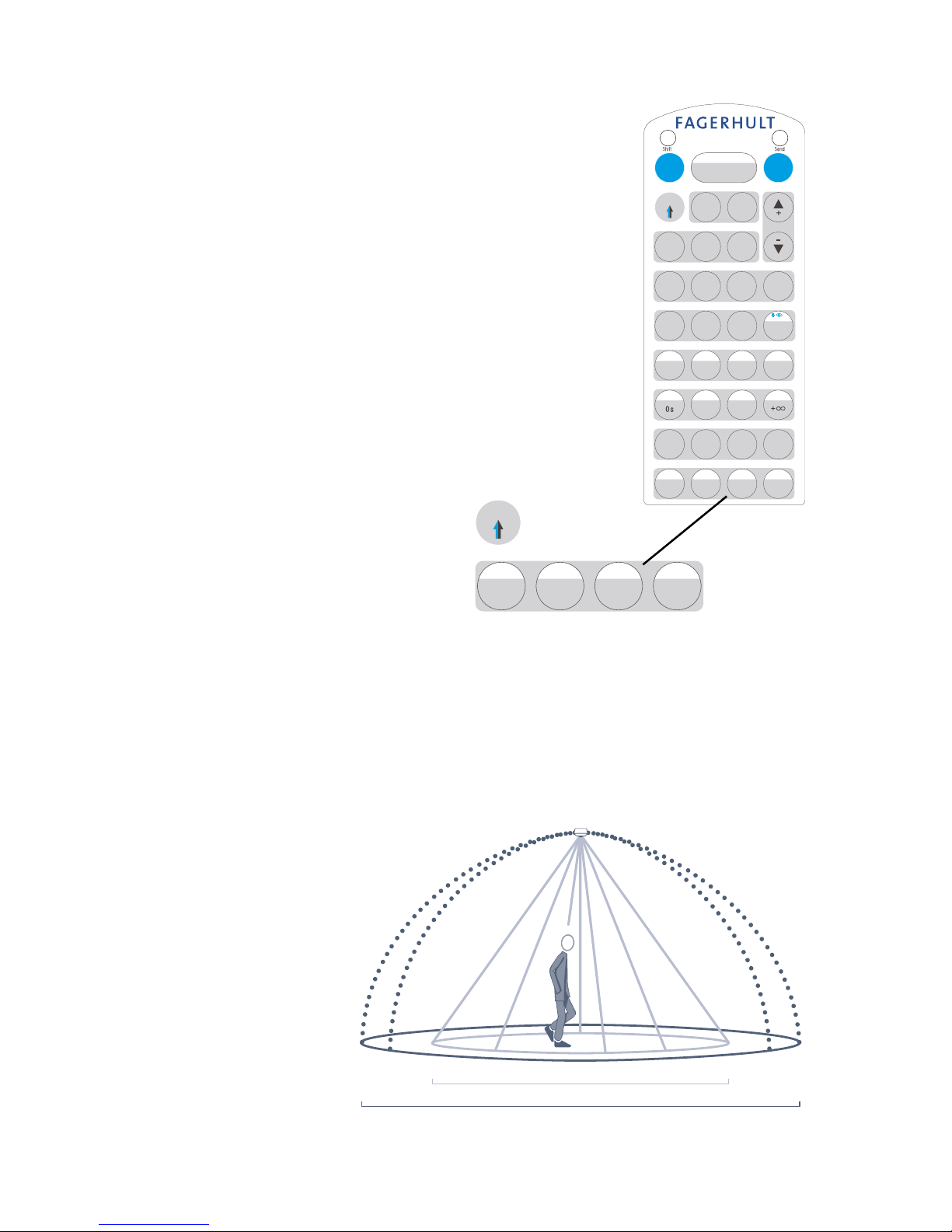

Detection Range for Microwave Sensor
Depending on height and setting, the detection range can
be seen on pages 17–18. PIR sensor can be restricted by
covering part of the lens.
Programming of personal settings
