Faraday RSE-300 User manual

Faraday, LLC / 805 South Maumee Street / Tecumseh, Michigan 49286
Phone [phone] Fax [phone]
Copyright 2000, Faraday, LLC, All Rights Reserved
P/N 315-099082FA-2
RSE-300
REMOTE SIGNAL EXPANDER
Owner’s Manual
15073
P/N 447179
Issue 1 Rev. A
3/01
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A i
Table of Contents
CONTROL UNIT LIMITATIONS .........................................................................................iii
INSTALLATION AND WARRANTY INFORMATION............................................................ iv
PREFACE .........................................................................................................................v
1. DESCRIPTIONS ................................................................................................................1
1.1 GENERAL DESIGN FEATURES...................................................................................1
1.2 REGULATORY STANDARDS.......................................................................................2
1.3 GENERAL SPECIFICATIONS ......................................................................................3
2. INSTALLATION .................................................................................................................5
2.1 PARTS SUPPLIED.......................................................................................................5
2.2 CONTROL UNIT MOUNTING .......................................................................................5
2.3 WIRE ROUTING ..........................................................................................................6
2.4 TERMINAL DESCRIPTIONS AND ELECTRICAL RATINGS ...........................................7
2.5 WIRING THE 15073.....................................................................................................8
2.5.1 AC Wiring ....................................................................................................................9
2.5.2 Battery Connection.....................................................................................................10
2.5.3 Style Y (Class B) Input/Output NAC Wiring ..................................................................11
2.5.4 Style Z (Class A) Input/Output NAC Wiring ..................................................................12
2.5.5 Auxiliary Power Supply Output ....................................................................................13
2.5.6 Trouble Relay ............................................................................................................13
3. CONNECTION TO CONTROL UNITS ...............................................................................15
4. SAMPLE APPLICATIONS ................................................................................................21
4.1 NOTIFICATION APPLIANCE POWER APPLICATIONS ...............................................21
4.2 DOOR HOLDER APPLICATIONS ...............................................................................27
5. PROGRAMMING.............................................................................................................29
5.1 DIP SWITCH SETTINGS............................................................................................29
5.1.1 Selecting the Input/Output Configuration......................................................................30
5.1.2 Setting the Auxiliary Output.........................................................................................31
5.1.3 Setting the Input’s Control of their NACs ......................................................................32
5.1.4 Setting the AC Power Fault Reporting Delay ................................................................33
5.2 JUMPER SETTINGS..................................................................................................34
6. REFERENCE DATA.........................................................................................................35
6.1 WIRE SELECTION GUIDES.......................................................................................35
6.1.1 Resistance of Solid Copper Wire.................................................................................35
6.1.2 Notification Appliance Circuit Wire Selection Guide ......................................................35
6.2 BATTERY SIZE CALCULATIONS ...............................................................................36
7. COMPATIBLE DEVICES ..................................................................................................37
7.1 DEVICES FOR NOTIFICATION APPLIANCE CIRCUITS..............................................37
7.1.1 Notification Appliances ...............................................................................................37
7.1.2 Accessory Devices .....................................................................................................40
7.2 DEVICES FOR AUXILIARY POWER OUTPUTS ..........................................................41
7.2.1 Door Holders .............................................................................................................41
7.2.2 Relays.......................................................................................................................41
7.2.3 Accessory Devices .....................................................................................................41
7.2.4 Four-Wire (Separately Powered) Smoke and Heat Detectors ........................................42
8. TROUBLESHOOTING......................................................................................................43
8.1 LED INDICATORS .....................................................................................................43
8.2 IMPROPER OPERATION...........................................................................................43
8.3 TROUBLE CONDITIONS............................................................................................44
9. GLOSSARY .....................................................................................................................45
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A ii
This page is intentionally blank.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A iii
CONTROL UNIT LIMITATIONS
This control unit will not show an alarm condition without compatible initiating devices (smoke detectors,
etc.) and notification devices (horn, lights, etc.) connected to it. Electrical ratings of the initiating and
notification appliances must be compatible with the electrical ratings of the control unit and must be
properly interconnected. The wiring used for interconnection must be large enough to carry the total
current by all appliances without excessive voltage drop.
This control unit must be connected to a dedicated primary electrical source that has a high degree of
reliability and adequate capacity for this control unit. The only means of disconnecting this power source
shall be available only to authorized personnel and clearly marked “Fire Alarm Circuit Control.”
This control unit must also have connected to it, a battery set (24V) that has enough capacity to properly
operate the system for 4, 24 or 60 (depending on system type) hours standby and 5 minutes alarm per
NFPA 72 (chapter 1). These batteries do lose capacity with age. Batteries must be replaced when they
fail to provide the control unit with the required standby and alarm power or after 4 years, whichever
happens first. These batteries must be checked for performance at least two (2) times per year or more
often if local requirements dictate it.
Fire alarm control units cannot last forever. Even though this control unit was made to last for the
expected life of the Fire Alarm Systems, any part could fail at any time. Therefore, a regular test program
should be followed and documented to make sure that each part of the system is tested as per Chapter 7
of NFPA 72 or more often if dictated by local code requirements. Units that have malfunctioned must be
replaced or repaired immediately by factory authorized service personnel.
Note: This control unit is designed to show an alarm condition when the initiating devices connected to it
detect specific conditions. These conditions may or may not represent a life threatening condition (i.e.,
burnt toast may not be a life threatening condition but may cause an initiating device to indicate an alarm
condition). Also, evacuation of a building or area may unnecessarily subject individuals to an
unnecessary hazard. Therefore, it is most important that building owner, manager or representative
promulgate, distribute and/or post instructions describing steps to be taken when the fire alarm control
unit signals an alarm condition. These instructions should be developed in cooperation and conformance
with representatives of the local authority having jurisdiction.
As a backup or precautionary measure, it is strongly suggested that one of these steps should be to notify
the local fire department of an abnormal condition even where the city tie option (or similar device) is
included in the system.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A iv
INSTALLATION AND WARRANTY INFORMATION
Warranty Information:
Faraday (the Manufacturer) provides a limited warranty to the Original Purchaser of this product. The
Original Purchaser is the party to whom the Manufacturer issued its Sales Order, Generally, the
Manufacturer’s distribution. In order to preserve this warranty, it is important that the product be serviced
only by persons who have been properly trained and authorized by the Manufacturer.
Other parties involved in the installation of this product may have also provided a warranty, which may be
different than that of the Manufacturer. The Manufacturer will only be responsible to the Original
Purchaser and only for the Manufacturer’s own warranty. For further information regarding the
Manufacturer’s warranty, contact the Original Purchaser.
Owner’s Manual:
The owner’s manual does not purport to cover all the details or variations in the equipment described, nor
does it provide for every possible contingency to be met in connection with installation, operation and
maintenance. All specifications subject to change without notice. Should further information be desired
or should particular problems arise which are not covered sufficiently, the matter should be referred to the
Installer or Original Purchaser listed below.
Installer Information:
Company: ___________________________ Installer: _________________ Phone: _______________
Address: _____________________________ City: _____________________ State: ____ Zip: _______
Date Installed: ___________________ Installer’s Signature: __________________________________
Original Purchaser Information:
Company: ____________________________________________________ Phone: ________________
Address: ____________________________ City: ____________________ State: ____ Zip: ________
Purchaser’s Purchase Order Number: _____________________________________________________
Date of Purchase: ____________________________________________________________________
Faraday Sales Order Acknowledgment Number: ____________________________________________
Original Purchaser’s Signature: __________________________________________________________
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A v
PREFACE
Along with the use of this Owner’s Manual, the appropriate following standards and the manufacturers’
instructions for initiating and signaling devices should be used to install and maintain a functioning Fire
Alarm Signaling System.
NFPA 70-1996 National Electrical Code
NFPA 72-1999 National Fire Alarm Code
NFPA 101-1997 Life Safety Code
Other Standards -Contact the authority having jurisdiction for other standards that may apply.
For Publications, contact:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A vi
This page is intentionally blank.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 1
1.1. DESCRIPTIONSDESCRIPTIONS
The 15073 is a notification and auxiliary power expander that provides up to 6 amps of 24 volts for
powering notification appliances and auxiliary devices. The 15073 provides its own AC power
connection, battery charging circuit, and battery connections. Used with a fire alarm control unit, this
enables you to connect and distribute power to many more devices than your control unit may normally
allow.
1.1 GENERAL DESIGN FEATURES
Inputs
The 15073 has two optically isolated inputs that provide the connection from the fire alarm control unit
notification appliance circuit to the 15073. The inputs also provide a connection for returning a trouble
condition to the control unit NAC.
The fire alarm control unit supervises its notification appliance circuit used for communicating with the
15073 the same way it supervises ordinary notification appliance circuits. The inputs on the 15073
monitor the polarity of the voltage coming from the fire alarm control unit’s notification appliance circuits to
determine when to operate the notification appliance circuit outputs. The 15073 emulates the trouble
behavior of a notification appliance circuit by opening the EOL supervision current for trouble conditions.
Note that the 15073 will sense the polarity of the fire alarm control unit’s notification appliance circuits to
drive the outputs whether or not the supervision connection is intact.
The following situations will open the EOL supervision at the inputs indicating a trouble condition:
No or Low AC power.
No and Low battery condition.
Ground fault to the output wiring.
Auxiliary Power Supply output over-current condition.
NAC output open, shorted and over-current condition on outputs associated with its input.
Notes:
If input 1 controls all four outputs, a fault on any output will cause input 1 to indicate trouble. The fault
does not affect input 2.
If input 1 controls outputs 1 and 2, and input 2 controls outputs 3 and 4, a fault condition on output 3 or 4
will cause input 2 to indicate trouble. The fault does not affect input 1.
Once the inputs are driven with forward polarity to activate the outputs, the fire alarm control unit will not
be able to sense trouble conditions through its notification appliance circuit connected to the 15073 input
circuits. Use the 15073 trouble relay when it is necessary to monitor trouble conditions and active alarm
conditions at the same time.
Notification Appliance Circuit Outputs
The 15073 has four dedicated, power-limited, NAC outputs that can be configured as two Style Z (Class
A) or four Style Y (Class B) circuits.
The 15073 provides three configuration options that will drive outputs as slaves that will follow the input or
if the inputs are on constant as ANSI temporal code or Sync strobe/horn operation.
Each of the four outputs is rated at 3 amps, though you can only draw a total of 6 amps from the 15073
outputs. The yellow Output LEDs (DS1-DS4) will indicate an open, shorted or over-current condition on
its associated NAC Output.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 2
You can select which input controls which output, and which inputs are Style Z (Class A) and Style Y
(Class B) using the 10 position DIP switch on the printed circuit board. Refer to Section 5 for DIP switch
settings.
Auxiliary Power Output
The 15073 has a dedicated, power-limited, auxiliary output that can be configured in two different ways.
The auxiliary output can either be non-resettable (always on), or configured to switch off when the AC
power goes off to conserve the battery standby power. When the auxiliary power is configured to switch
off, there is a 30-second delay before the auxiliary power is turned off after the AC power goes off.
The Auxiliary Power Output is rated at 3 amps. Only a total of 6 amps maximum can be drawn from the
15073 outputs. The yellow Aux PS LED (DS5) will indicate an over-current condition on the output.
Trouble Relay
The 15073 includes a form C trouble relay that will de-energize for the following trouble conditions:
No or Low AC power.
No and Low battery condition.
Ground fault to the output wiring.
Auxiliary Power Supply output over-current condition.
NAC output open, shorted and over-current condition.
Battery Charging and Supervision
The 15073 provides a battery charging circuit for charging sealed lead-acid batteries. The unit also
supervises for no and low battery conditions.
Ground Fault Detection
The 15073 monitors for ground faults to the output wiring. When detected, the unit lights the yellow
GRND LED (DS6) and de-energizes the trouble relay and the input supervision relays.
Environmental
All hardware is suitable for use in an interior or protected location.
Power Limiting
The AC power and battery wiring are not power limited. All other circuits leaving the control unit are
power limited, provided the proper installation rules are maintained.
Transient Protection
Transient protection devices are provided where needed to meet the requirements of UL864.
1.2 REGULATORY STANDARDS
The 15073 meets the requirements of industry and government regulatory agencies as noted.
Federal Communications Commission
The 15073 meets the class A requirements of the Code of Federal Regulations (CFR 47), Part 15,
subpart J, for electromagnetic field emissions.
Underwriters Laboratories
The 15073 control unit is listed under UL Standard 864 for compliance to NFPA Standard 72 for fire
service.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 3
1.3 GENERAL SPECIFICATIONS
Operating specifications for the 15073 are as follows:
Environmental
•Operating temperature
32 -120°F (0 -49°C)
•Relative humidity
Up to 85% @ 86°F (30°C)
Primary Supply
•Primary Input Voltage: 120 VAC (50/60 Hz) nominal
•Maximum primary input current: 2.5A.
Secondary and Trouble Power Supply
•24 volt lead-acid battery set:
•Maximum Charge Voltage: 27.8 VDC.
•Maximum Charge Current: 3.3 A.
•Maximum Input Current: 6.1A.
•Battery capacity: 7 to 15.0 A.H. (over 7 A.H. requires separate enclosure)
Input Circuits
•Two Input circuits
•For Power limited source
•Supervised
•Voltage Range: 18-30VDC/VFW
•Maximum Input Current: 6.0 mA
Notification Appliance Circuits
•Four Class B, Style Y circuits or two Class A, Style Z circuits
•Power limited
•Supervised
•Maximum Standby Current: 1.0 mA
•Alarm Voltage: 24 VDC nominal
•Maximum Alarm Current: 3.0 A.
•Maximum Ripple: 100 mVAC.
•Maximum Loop Drop Voltage: 1.5 VDC.
Auxiliary Power Output
•Current:
3 amp maximum for auxiliary power output.
(See battery calculations for limitations based on the battery size.)
•Power limited
•Not Supervised
•Voltage: 24 VDC nominal
•Ripple: 0.1 VAC maximum
Trouble Relay
•Contact Rating:
2.5 A, 30 VDC/VAC maximum, resistive
•Form “C” Contact
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 4
This page is intentionally blank.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 5
2.2. INSTALLATIONINSTALLATION
CAUTIONS:
It is recommended that the printed circuit boards be removed for any procedure that may
cause dust, metal shavings, grease or any such matter that may affect the circuit boards
and/or parts.
There may be several sources of power into the control unit. Each source must be
disconnected prior to installing or connecting or disconnecting wiring.
Each output circuit is rated at 3 amps. DO NOT OVERLOAD. Overloading a circuit will
cause it to shut down (power limit).
2.1 PARTS SUPPLIED
15073 Remote Signal Expander
447179 Owners Manual
942667 Resistor, 24K ohm 1/2 W, 5% (4)
2.2 CONTROL UNIT MOUNTING
The fire alarm control unit must be mounted in a properly accessible location as required by applicable
codes. Any auxiliary battery box or other accessory not connected through a protective device or a circuit
designed for remote connection must be within the same room and connected through electrical conduit.
Installation is to be done only by qualified personnel who have thoroughly read and understood these
instructions.
When mounting on interior walls, use appropriate screw anchors in plaster. When mounting on concrete,
especially when moisture is expected, first attach a piece of ¾-inch plywood to the concrete surface.
Attach the 15073 to the plywood.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 6
2.3 WIRE ROUTING
Notes:
All high voltage and non-power limited wiring must be kept separate from power limited
wiring. A ¼” separation must be maintained, with high voltage and non-power limited
wiring running in separate conduit openings from power wiring.
To avoid induced noise (transfer of electrical energy from one wire to another), keep
input wiring isolated from high current output and power-limited wiring. Improper wiring
installation may cause improper operation. Avoid pulling one multi-conductor cable for
the entire system. Instead, separate high current input/output from low current.
Wiring within the cabinet should be routed around the perimeter of the cabinet. It should
not cross the printed circuit board where it could induce noise into the sensitive
microelectronics or pick up unwanted RF noise from the switching power supply circuit.
A. Non-power Limited -High Voltage (AC power) or B
B. Non-power Limited -High Voltage (AC power) or A
C. Power limited (or E)
D. Non-power limited –(Battery wiring, if separate enclosure required)
E. Power limited (or D)
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 7
2.4 TERMINAL DESCRIPTIONS AND ELECTRICAL
RATINGS
Table 2-1. Terminal Descriptions
Terminal # Description Ratings
TB1
1Earth Ground
2AC (white-"neutral") 120 VAC 50/60 Hz, 2.5A max.
3AC (black -"hot)
TB2
1Input 1 (+)
2Input 1 (-) 18 -30 VDC/VFW, 6mA max.
3Input 1
4Input 2 (+)
5Input 2 (-) 18 -30 VDC/VFW, 6mA max.
6Input 2
7Normally Open contact
8Common 2.5 A @30 VDC/VAC, resistive
9Normally Closed contact
10 NAC 1 Output (+) 24 VDC nominal, 3.0A max. Even though
11 NAC 1 Output (-) each output is
12 NAC 2 Output (+) 24 VDC nominal, 3.0A max. rated for 3 amps,
13 NAC 2 Output (-) the total
14 NAC 3 Output (+) 24 VDC nominal, 3.0A max. current draw
15 NAC 3 Output (-) from the 4 NAC
16 NAC 4 Output (+) 24 VDC nominal, 3.0A max. outputs and the
17 NAC 4 Output (-) auxiliary power
18 Auxiliary Power Output (+) 24 VDC nominal, 3.0A max. output must not
19 Auxiliary Power Output (-) exceed 6 amps.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 8
2.5WIRING THE 15073
Figure 2-2 shows the general layout of the 15073 PC board. This section also provides specific wiring
details for accessories. Consult your control unit manual for specific wiring information on the control unit
being used. If you are using a Faraday control unit, see Section 3 for connections.

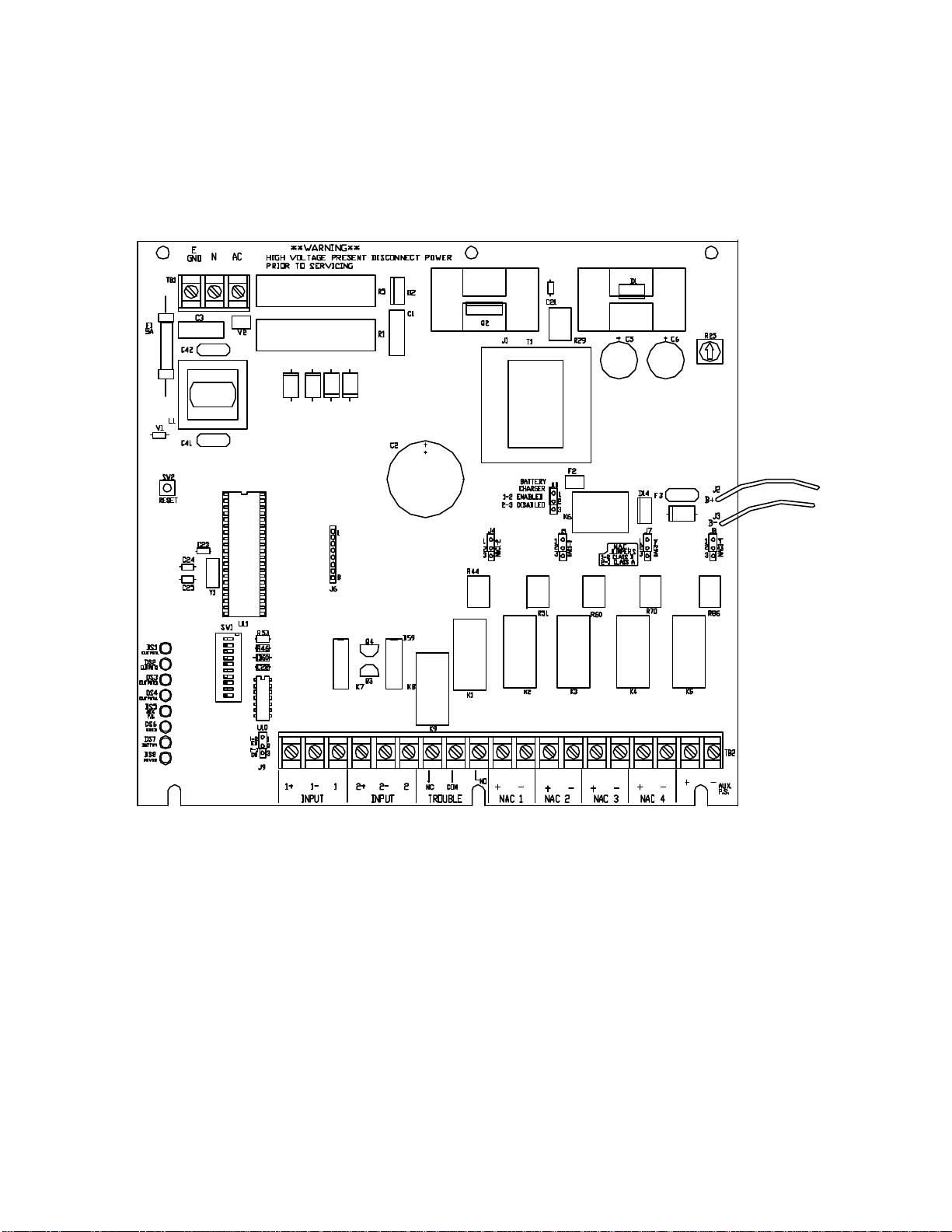

Figure 2-2. 15073 PC Board Layout
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 9
2.5.1 AC Wiring
Figure 2-3. AC Wiring
SUPERVISED, NON-POWER LIMITED
120 VAC 60Hz. 2.5A MAX.
**WARNING**
Note: Branch current
must be protected by
a 15A overcurrent
device.
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 10
2.5.2 Battery Connection
The 15073 requires a 24V sealed lead-acid battery set. The battery capacity can be from 7 to 15.0A.H.
For battery sets larger than 7A.H., a separate enclosure is required.
The following steps and diagram explain how to connect the Faraday 14047, 7A.H. battery set.
1. Connect black wire to the negative (-) side of battery #2.
2. Connect jumper wire from the positive (+) side of battery #2 to the negative side of battery #1.
3. Connect red wire to the positive (+) side of battery #1.
Figure 2-4. Battery Installation
Figure 2-5. Battery Wiring
BATTERY
CHARGER
1-2ENABLED
2-3DISABLED
1-2 CLASS B
2-3 CLASS A
J10
J4 K6
F2
F3
D14 B+
B-
N.A.C.
JUMPERS
J2
J3
J8J7J5
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
24V BATTERY SET
(7 TO 15.0 AH)
SUPERVISED
NON-POWER LIMITED
INPUT CURRENT (MAX.) : 6.1A
CHARGE VOLTAGE (MAX.) : 27.8VDC
CHARGE CURRENT (MAX.) : 3.3A
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 11
2.5.3 Style Y (Class B) Input/Output NAC Wiring
Figure 2-6 shows how to wire for Style Y (Class B) input and output supervision. Use in/out wiring
methods for proper supervision. Compatible notification appliances are listed in Section 7.
Style Y (Class B) Output Notification Circuits
Figure 2-6 shows four, 1.5 amp devices wired as Style Y (Class B) circuits.
Place a 24K ohm EOL resistor (provided) at the end of each loop to enable notification output supervision
when using all output as Style Y (Class B) notification circuits. The 24K EOLs must be wired to the
terminals whether or not you are using all output terminals.
Style Y (Class B) Supervised Input Circuits
Figure 2-6 shows Style Y (Class B) supervised wiring from a fire alarm control unit to the 15073 board.
Use an EOL resistor as shown to enable notification input supervision.

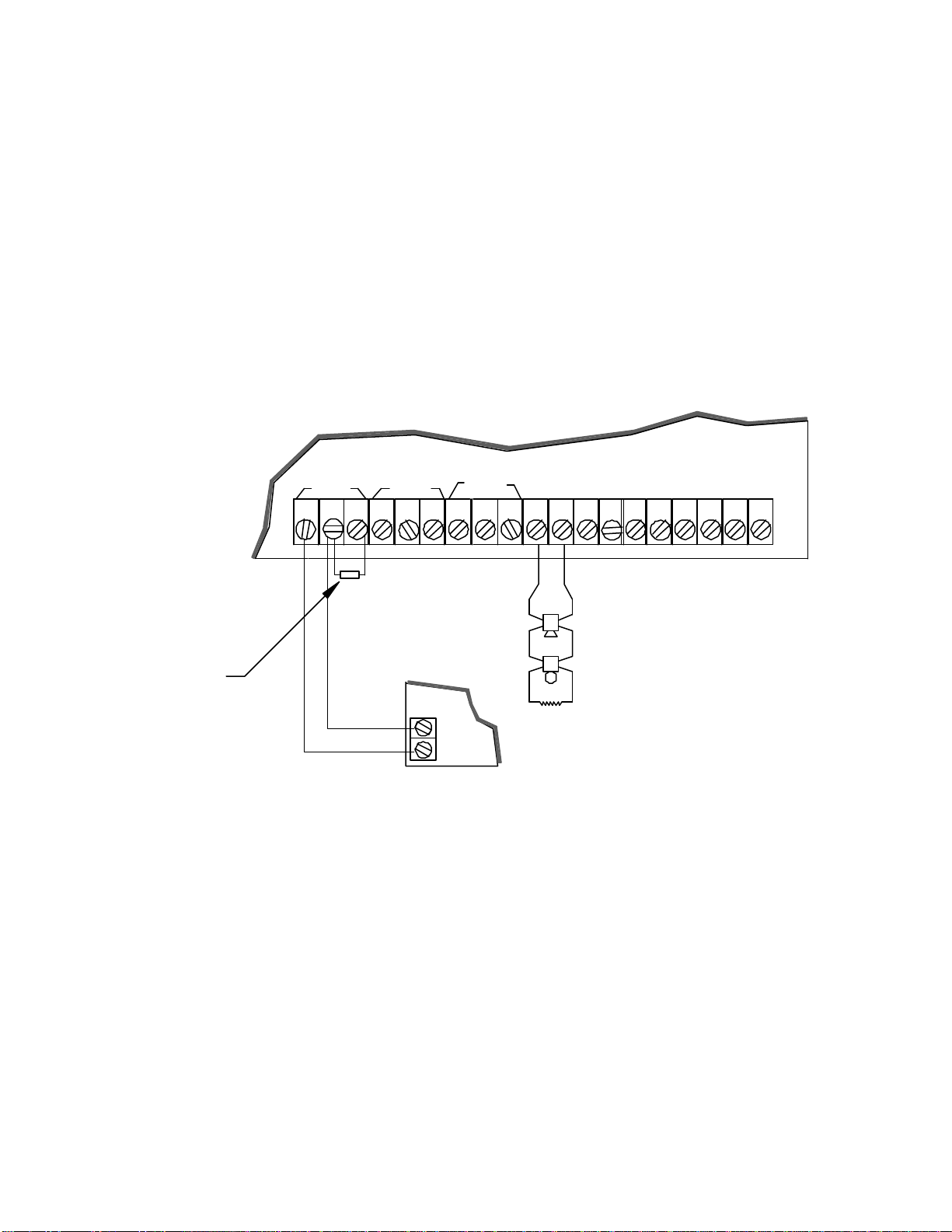

Figure 2-6. Style Y (Class B) Supervised Input/Output Connections
6 7 8 9
2
13
Input 1
54
Input 2 AUX
18
NAC
12
Trouble
Relay NAC
10 11 15
14
13
NAC NAC
17
16
+-
19
-
+
Class B notification
output from fire panel
EOL
(SEE CONTROL UNIT
INSTALLATION
INSTRUCTIONS) 24K 1/2W
P/N 10807
FARADAY
See Owner's Manual for
Supervised, Power Limited
Notification Appliance Circuit
+
+
Compatible Devices
Style Y, Class B
-
-
MAX. STANDBY CURRENT: 1.0mA
MAX. WIRE VOLTAGE DROP: 1.5VDC
MAX. ALARM CURRENT: 3A
ALARM VOLTAGE: 24VDC NOMINAL
MAX. RIPPLE: 0.1 VAC
NAC RATINGS:
Polarity shown in
activated condition.
UNIT, POWER LIMITED
FIRE ALARM CONTROL
SUPERVISED BY
6mA MAX.
18-30VDC / VFW
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 12
2.5.4 Style Z (Class A) Input/Output NAC Wiring
Figure 2-7 shows how to wire for Style Z (Class A) input and output supervision. Use in/out wiring
methods for proper supervision. Compatible notification appliances are listed in Section 7.
Style Z (Class A) Output Notification Circuits
The configuration shown in Figure 2-7 shows two, 3-amp devices wired as Style Z (Class A) circuits.
When you are using the outputs as Style Z (Class A) circuits, loop the wiring back to the corresponding
circuit pair. For Style Z (Class A) wiring, no external EOL is necessary since it is built into the board.
Style Z (Class A) Supervised Input Circuits
The configuration shown in Figure 2-7 shows Style Z (Class A) supervised wiring from a fire alarm control
unit to the 15073 board. Pay close attention to the polarities when wiring the unit and follow these
requirements:
When wiring to terminal 2 and 5 on TB2, you must use two separate wires. Do not loop a single wire or
twist two conductor wires together.
Do not use notification appliances on Style Z (Class A) circuits connected for input. The 15073 will detect
voltage across the input circuits, but is not designed to pass the added current load from notification
appliances.
Figure 2-7 Style Z (Class A) Supervised Input/Output Connections
6 7 8 9
2
13
Input 1
54
Input 2 AUX PS
18
NAC
12
Trouble
Relay NAC
10 11 151413
NAC NAC
1716
+-
19
In
Out
+
-
-
+
2
Correct
22
Twisting
Two wires
Looping
single wire
Incorrect Class A notification
outputs from fire panel
Two separate
wires +-
UNIT, POWER LIMITED
FIRE ALARM CONTROL
SUPERVISED BY
6mAMAX.
18-30VDC / VFW
Style Z, Class A
NOTE: THIS STYLE USES
activated condition
Polarity shown in
Compatible Devices
Supervised, Power Limited
See Owner's Manual for
+-
2 NAC CIRCUITS
Notification Appliance Circuit
+-
MAX. STANDBY CURRENT: 1.0mA
MAX. WIRE VOLTAGE DROP: 1.5VDC
MAX. ALARM CURRENT: 3A
ALARM VOLTAGE: 24VDC NOMINAL
MAX. RIPPLE: 0.1 VAC
NAC RATINGS:
firealarmresources.com

15073 OWNER’S MANUAL
447179 Issue 1 Rev. A 13
2.5.5 Auxiliary Power Supply Output

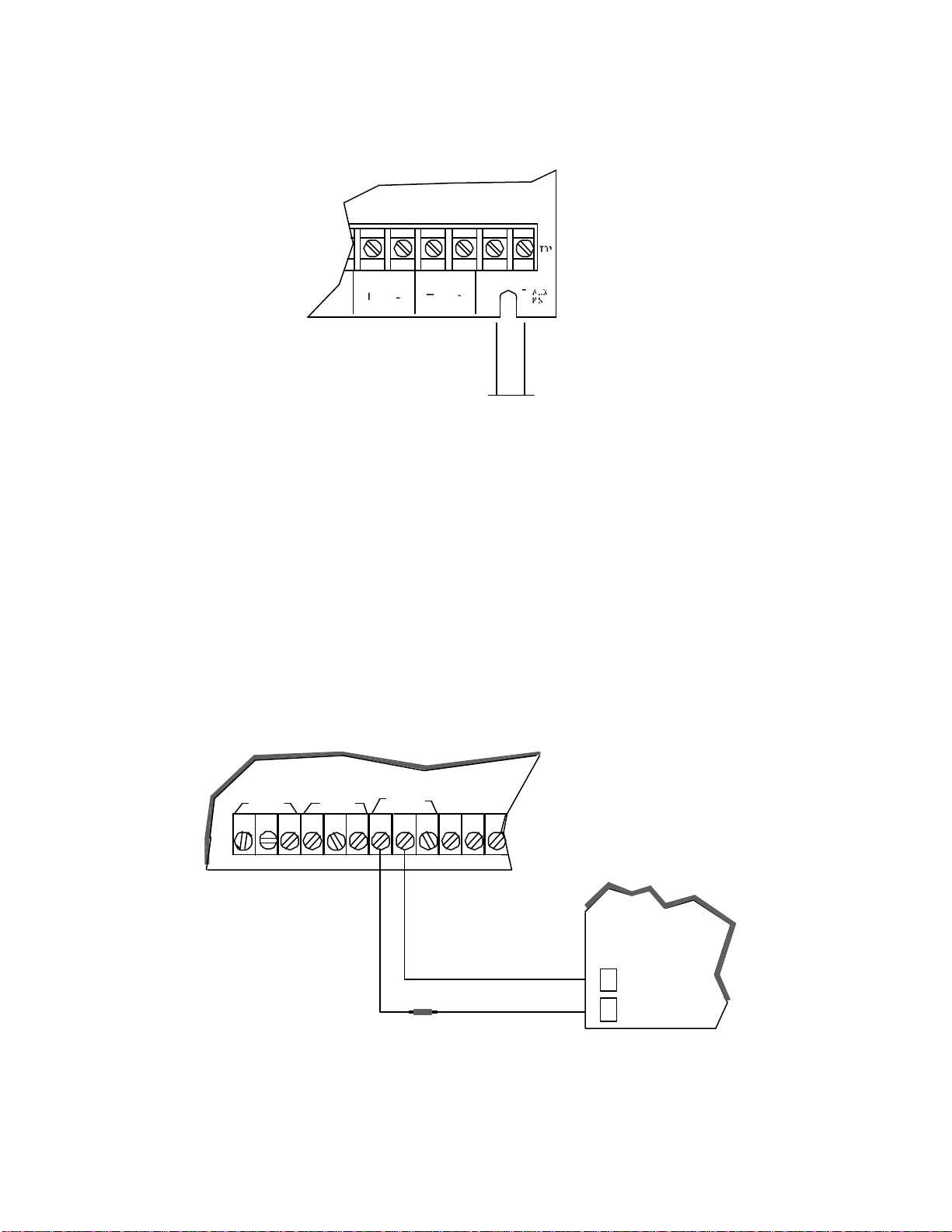

Figure 2-8. Auxiliary Power Supply Output Connection
2.5.6 Trouble Relay
The 15073 board has a Form C trouble relay built into terminals 7-9 of TB2. The trouble relay will de-
energize under a trouble condition.
A typical application of the trouble relay is to connect the 15073 normally closed (N.C.) contacts in series
with an EOL of a spare IDC or NAC or monitor input from a fire alarm control unit. This will cause a
trouble on the fire alarm control unit when the 15073 opens its trouble contacts.
Note: The N.C. contact is the relay contact that is closed when the 15073 has power and there are no
trouble conditions.
Figure 2-9. Trouble Relay Connection Example
6 7 8 921 3
Input 1
54
Input 2
12
Trouble
Relay NAC
10 11
+
-
N.O.COMN.C.
IDC EOL
INITIATING CIRCUIT
CONTROL UNIT
IDC
CONNECTION
(SEE CONTROL UNIT
INSTALLATION INSTRUCTIONS)
UNSUPERVISED
LIMITED SOURCE
RESISTIVE FOR POWER
5A @ 30VDC/VAC,
STANDBY CONDITION)
(SHOWN IN NORMAL
RELAY CONTACT
TROUBLE
UNSUPERVISED, POWER LIMITED
3A MAX. @ 24VDC NOMINAL
AUXILLIARY POWER OUTPUT
firealarmresources.com
