LGD Display
The following illustration shows the full segments of the LCD for description purposes onty and will not
appear like this during normal operation and use.
B.B.Effi '@E--7
>hr----9.
HIAL 6 Gust Bire*l
4.
-t--
,
/@-e
]BqE-
1. Time alarm on icon
? ?9I icon (only avaitabte on WWVB version)
3. RCC tower icon for time reception
4. Date of the weeUtime zone
5. Date
6. Wind direction alarm
7. General Max. record
B. Wind direction
9. General Min. record
10. Rainfall high alarm
11. lndoor temperature high alarm and low alarm
'12. Temperature unit
13. lndoor temperature
'14. lndoor humidity high alarm and low alarm
15. lndoor humidity
16. Rainfall unit
17. Outdoor temperature high alarm and low alarm
1 8- Outdoor temperature
19. Outdoor reception signal
20. Outdoor Humidity
21. Outdoor transmitter low battery indicator
22. Outdoor humidity high alarm and low alarm
23. Rainfall
24. Rainfall t h,24h, week; month or total display
25. Wind speed
26. Wind speed unit
27.Wind speed high alarm
28. Time
IVofg; The presence of the "Alarm-On icon" in the section means that the particular alarm has been
enabled.

2-
3.

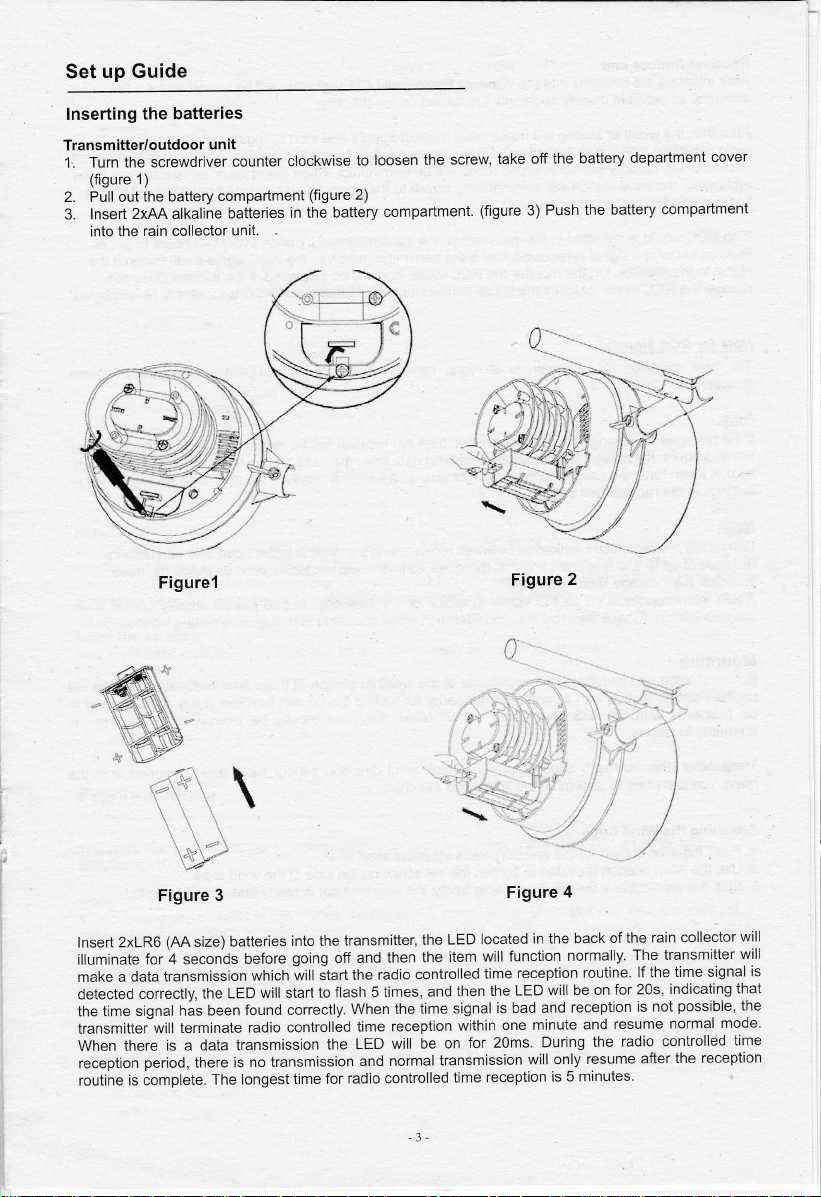

Set up Guide
lnserting the batteries
I*1=rilff1::lji3l,H'l"rr,er clockwise to toosen the screw, take orr the battery department cover
(figure 1 )
Pull out the battery compartment (figure 2)
lnsert 2xAA alkaline baiteries in the battery compartment. (figure 3) Push the battery compartment
into ihe rain collector unit.
Figurel Figure 2
Figure 4
d6\e
-m
\\A\UA} P
W
tr \\/fl\
\\ \
\d2
Figure 3
lnsert 2xLR6 (AA size) batteries into the transmifter, the LED located in the back of the rain collector will
illuminate for 4 seconds before going off and then the item -will function normally. The transmitter will
make a data transmission which will start the radio mntrolled time reception routine. lf the time signal is
detected correctly, the LED will start to flash 5 times, and then the LED will be pn for 20s, indicating that
the time signal his been found conectly. When the time signal is bad and reception is not possible, the
transmitteiwill terminate radio controlled time reception within one minute and resume normal mode.
When there is a data transmission the LED will be on for 20ms. During the radio controlldd time
reception period, there is no transmission and normal transmission wilt only resume after the reception
routine is complete. The longest time for radio controlled time reception is 5 minutes.

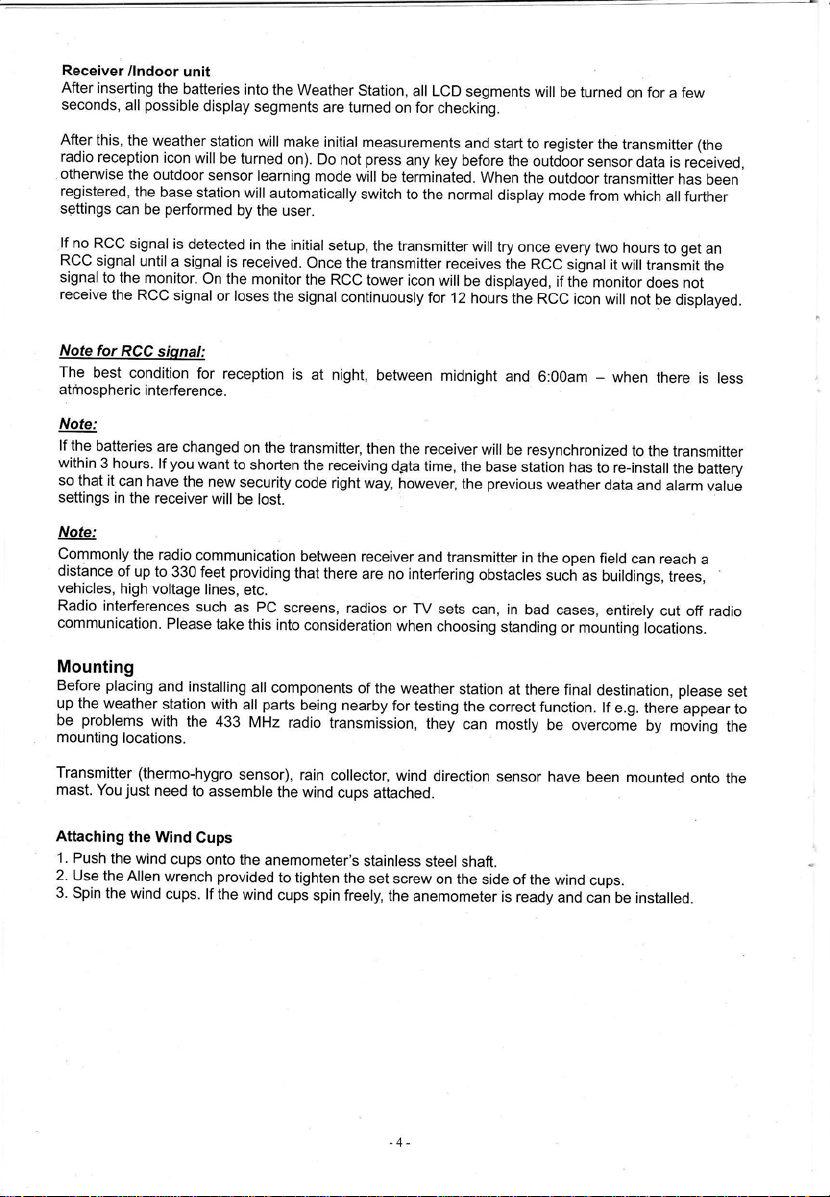

Receiver /lndoor unit
After inserting the batteries into the Weather Station, all LCD segments will be turned on for a few
seconds, all possible display segments are turned on for checking.
After this, the weather station will make initial measurements and start to register the transmitter (the
radio reception icon will be turned on). Do not press any key before the outdoor sensor data is received,
otherwise the outdoor sensor learning mode will be terminated. When the outdoor transmitter has been
registered, the base station will automatically switch to the normal display mode from which all fu(her
settings can be performed by the user.
lf no RCC signal is detected in the initial setup, the transmitter will try once every two hours to get an
RCC signal until a signal is received. Once the transmitter receives ine RCC signal it will transmit the
signal to the monitor. On the monitor the RCC tower icon will be displayed, if the monitor does not
receive the RCC signal or loses the signal continuously for 12 hours the RCC icon will not be displayed.
Note for RCC siqnat:
The best condition for reception is at night, betvveen midnight and 6:00am - when there is less
atmospheric interference.
Note:
lf the b_atteries are changed on the transmitter, then the receiver will be resynchronized to the transmitter
within 3 hours. lf you want to shorten the receiving dpta time, the base stati-on has to re-install the battery
so that it can have the new security code right way, however, the previous weather data and alarm value
settings in the receiver will be lost.
Nofe.'
Commonly the radio communication between receiver and transmitter in the open field can reach a
distance of up to 330 feet providing that there are no interfering obstacles such as buildings, trees,
vehicles, high voltage lines, etc.
Radio interferences such as PC screens, radios or TV sets can, in bad cases, entirely cut off radio
communication- Please take this into consideration when choosing standing or mounting locations.
Mounting
Before placing and installing all components of the weather station at there final destination, please set
up the weather station with a1l parts being nearby for testing the correct function. If e.g. there appear to
be problems with the 433 MHz radio transmission, they can mostly be overcom-e by moving the
mounting locations.
Transmitter (thermo-hygro sensor), rain collector, wind direction sensor have been mounted onto the
mast. You just need to assemble the wind cups attached_
Attaching the Wind Gups
1. Push the wind cups onto the anemometer's stainless steel shaft.
2. Use the Allen wrench provided to tighten the set screw on the side of the wind cups.
3. Spin the wind cups. lf the wind cups spin freely, the anemometer is ready and can be installed.

I
I
I
I
I
l
l
l
Tighten screw
with Allen wrench
Push cups onto
stainless steel
shaft Figure5
Note
On the edge of wind direction sensor, there are four letters "N","E","S"and "W' representing the
direction of North, East, South and West, The wind direction sensor has to be adjusted so that the
directions on the sensor are matching with your real location. Permanent wind direction error will be
introduced when the wind direction sensor is not positioned correctly during installation.
Level the sensors
Use the bubble level on the rain sensor as a guide to verify that sensors are level.
Program Mode
The base station has five keys for easy operation: SET key, + key, HISTORY key' ALARM key'
MIN/MAX key
No{e;
When setting certain units in the manual.setting mode, hold the + or MIN/MAX key for 2 seconds will
increase/decrease digits in greater steps.
The setting procedure can be exited at any time by either pressing the HISTORY key or waiting for the
30-second time-out to take effect.
Quick Display Mode
- While in normal display, Press.the SET key to enter the Quick Display Mode as follows:
. Wind speed / Gusi speed (press the + key or MIN/MAX key shifts the display between the wind
speed and gust speed)

' t hour I 24 hour lweek / month / total rainfall quantity (press the + key or MIN/MAX key shifts the
display between the selectable rainfall quantities), while the rainfall total quantity is displayed,
pressing the SET key for 2 seconds will reset the rainfall total value to zero.
' Outdoor Temperature / Wind chill / Dew point {press the + key or MIN/MAX key shifts the display
between outdoor temperature, wind chill and dew point)
Press the SET key to accept the change and advance to the next display mode. Continue to press the
SET key to toggle through the display mode until it returns to the normal Mode
Setting Mode
- Press the SET key for 2 seconds while in normal mode to enter ihe Setting mode, The LCD contrast
digits will start flashing. You can skip over any setting by pressing the SET ke!. Press + key or MIN/MAX
key to select the units or scroll through the values. Holding the i key or MIN/MAX key tor'2 seconds will
increase/decrease the digits in greater steps. To exit the Setting mode at any time, press the HISTORY
key.
. Time Zone Seiting (-12)12)
Note: At Europe, 0 for GMT+1 time zone, I for GMT+2 time zone, -1 for GMT time zone. At America,
-4 for Atlantic Time zone, -5 for Eastern Time zone, -6 for Central Time zone, -7 for Mountain Time
zone, -8 for Pacific time zone, -9 for Alaska time zone, -10 for Hawaii time zone.
. 12124h time display setect.
. Manual time setting (hours/minutes)
. Select DD-MM or MM-DD format.
. Calendar setting(year /month/ date)
. Wind speed and gust display units in km/h, m/s, bft, mph, knots
. Wind direction
. Rainfall display units in mm or inch
. Temperature display unit degree Celsius or Fahrenheit
Calibration Mode
- Press the HISTORY key for 8 seconds while in normal mode to enter the Calibration Mode, and the
wind factor digits will start flashing. You can skip over any setting by pressing the SET key. press +
key or MIN/MAX key to select the units or Scroll through the values. Holdinglhe + key or tvttN/n4eX
key for 2 seconds will increase/decrease the digits in great steps. To exit the-Calibration mode at any
time, press the HISTORY key.
. Wind Speed Calibration (defautt is 1.0, adjustment rang 0.75 to 1 .25)
. Rainfall data Calibration (default is 1.0, adjustment rang 0.75 to 1.25)
. History rainfall Calibration
. Outdoor humidity Calibration
. Outdoor temperature Calibration
. lndoor humidity Calibration
. Indoor temperature Calibration
Wind Speed Calibration
Wind speed is the most sensitive to installation constraints. The weather station should not be located
close to buildings, trees or other obstructions.
Many installations are not perfect and installing the weather station on a roof can be difficult..Thus, you
can calibrate for this error with a wind speed multiplier.
ln addiiion to the installation challenges, wind cup bearings (moving parts) wear over time.
Without a calibrated source, wind speed can.be difficult to measure. We recommend using a calibrated
wind meter and a constant speed, high Spebd fan.

Tem perature Cal ibrati on
Temperature errors can occur when a sensor is placed too close to a heai source (such as a building
structure, the ground and when placed in direct sunlight without proper shielding in hot weather
environments).
To calibrate temperature, we recommend a mercury or red spirit (fluid) thermometer. Bi-metal (dial)
other digital thermometers are not a good source and have their own margin of error. Using a local
weather staiion in your area is also a poor source due to changes in locaiion, timing (airport weather
stations are only updated once per hour) and possible calibration errors (many official weather stations
are not properly installed and calibrated).
Place the sensor in a shaded, controlled environment next to the fluid thermometer, and allow the sensor
to stabilile for 48 hours. Compare this temperature to the fluid thermometer and adjust the console to
match the fluid thermometer.
Humidity Calibration
H.umidity is a difficult parameter to measure accurately and drifts over time. Humidity errors can occur
When placed too close to the ground, near grass or other sources of humidity.
The hygrometer sensor utilizes a capacitol which varies as a function of humidity. Due to manufacturing
tolerances, the accuracy of the sensor is + 5%. To improve on this accuracy, the indoor and outdoor
humidity readings can be adjusted or calibrated from the display console.
To calibrate humidity, you will need an accurate source, such as a sling psychrometer or Humidipaks
One Step Calibration kit.
Rainfatl calibration
The Rain Collector is calibrated at the factory so the bucket tips (and records rainfall) foi each 0.01" (or
0.3 mm) of rain. To calibrate rainfall, we recommend a tube type rain gauge. Use a rain gauge with an
aperture of at least 4 inches. Any smaller and the readings obtained may not be accurate. Place the tube
type rain gauge directly next to the rain collector. Compare the totals on three storms. Based on ihis,
develop an average for how far off the readings are.
Do not compare rainfall readings to reading obtained from television, radio, newspapers, or neighbours'
readings. Such readings are not located in your specific environment and therefore are not an accurate
measurement of the weather readings taking place in your surroundings. The rain collector is carefully
tested at the factory to conform to the specifications lisied in the back of this manual.
The history rainfall calibration factor is applied to ihe running total, not individual tips. All of the rainfall
figures are calculated from the total number of tips recorded by the station since it was reset. The total is
multiplied by 0.3 to get a total in mm. This is then converted to inches if necessary by multiplying by
0.0393700787. The calibration multiplier is then applied to this, and this is the figure that remembers and
compares each time a new total is read from the station.
History Modes
- While in Normal Mode, press the HISTORY key to enter the History Mode.
- In the history mode, prgssing SET key will trigger the history clear procedure: the word "CLEAR" will
flash, hold the SET key for 2 seconds to clear all the history records.
- ln the history mode, press the MIN/MAX key to select the record over the past 24hours at increments
of-3 hours, -6 hours, -9 hours, -'12 hours, -'15 hours, -18 hours, -21 hours, -24 hours.
Press the HISTORY key or key idle 30 second to return to Normal Mode

Alarm Modes
- While in Normal Mode press the ALARM key to enter the High Alarm Mode, press the ALARM key
again to enter Low Alarm mode, press the ALARM key the third time to retuin the Normal Mode.
Remark: after the initial pressing.of ALARM key, the display will be refreshed to show current high, low
alarm values. Normal alarm value will be displayed only for those already activated, all other not
activated values will be displayed with "- - r,or,- -,instead.
-ln the High Alarm Mode press the sET key to serect the foilowing ararm modes:
1. Time alarm
2. Wind speed high atarm (0-50m/s)
3. Gust speed high alarm (0-50m/s)
4- Wind direction alarm
5. l Hour rain high alarm (0-999.9mm)
6. 24 hour rain high alarm (0-999.9mm)
7. Outdoor humidity high alarm (1%_S9o/.)
8 Outdoor temperature high alarm (-40'C-60"C)
9. Wind chitt high alarm (-40'C--60.C)
10. Dew point high alarm C40'C-60"C)
'11. lndoor humidity high alarm (1%-99%)
12" lndoor temperature high alarm G9.9.C_60.C)
-ln the Low Alarm Mode press the sET key to serect the foilowing ararm modes:
1. Time alarm
2. Outdoor humidity low alarm (1%-99%)
3. Outdoor temperature low alarm (-40"C_60"C)
4- Wind chitt tow atarm (-40'C--60'C)
5. Dew point tow atarm (-40'C--60.C)
6. lndoor humidity low alarm (1%-99%)
7 - lndoor temperature low alarm (-9.9"C__60"C)
- ln the alarm modes, press + key or MIN/MAX key to change or scroll the alarm value.
!9t! tne + key or MIN/MAX key for 2 seconds will increaie/decrease digits in greai steps. press the
ALARM key to select the alarm on or off (if alarm is enabled, the speaker i6on onihe LCD will be turned
on indicating the alarm function has been enabled).
- Press the gE.'T lel to toggle through each alarm mode until it returns to the normal disptay mode.
- Press the HISTORY key or key idle 30 second at any time, the alarm mode will return to Normal Mode
Canceling the Temperature Alarm While Sounding
a. When a set weather alarm condition has been triggered, that particular alarm will sound for 120
seconds and flash until the weather condition doesn't meet the user set level. Press any key to mute the
alarm' When weather alarm condition is activated again within 3 hours, the alarm will not sound but will
continue to flash until weather conditions have become more steady. This feature is useful to avoid
repeated triggering for the same alarm value.
b. The alarm will reactivate automatically once the value has fallen below the set value.

Min/Max Mode
- While in Normal Mode, press the MIN/MAX key to enter the maximum mode
- Press the MIN/MAX key again to enter the minimum mode
- Press the MIN/MAX key again to return the Normal Mode.
- ln the maximum reading Mode, press the + key to display the following maximum values together with
the time and date stamp when these values were recorded, if the SET key is held down for 3 seconds in
tfre tottowing headings, the individual maximum value will be reset to current reading together with the
current time and date.
1. Wind speed maximum
2. Gust sPeed maximum
3. l Hour rain maximum
4- 24 iour rain maximum
5. Week rainfall maximum
6. Month rainfall maximum
7. Outdoor humidity maximum
8. Outdoor temPerature maximum
9. Wind chill temperature maximum
10. Dew point temperature maximum
11. lndoor humidity maximum
12- lndoor temPerature maximum
- ln the minimum reading Mode, press the + key to disptay the following mlnimum values together with
the time and date at whiCh these values were retorded, if the SET key is held down for 3 seconds in the
following, individual minimum values will be reset to current reading together with the current time and
date. 1. Outdoor humiditY minimum
2. Outdoor temperature minimum
3. Wind chill temPerature minimum
4. Dew point temPerature minimum
5. lndoor humiditY minimum
6. lndoor temPerature minimum
- press the HISTORY key or key idle for 30 seconds, and the MIN/MAX mode will return to Normal Mode
Reset To Factory Default Settings
While in normal display, press anJ hold the + key for 20 seconds to reset all settings to the
manufacturers default setting
-9-

Specifications
Outdoor data
Transmission distance in open field : 100m(300 feet)
Frequency : 868MHz
Temperature range : -40'C-65'C (-40"F to +149T)
Accuracy : +l-1"C
Resolution : 0.1'C
Measuring range rel. humidity : lok-99o/o
Accuracy : +l- sok
Rain volume display : 0 - 9999mm (show -- if outside range)
Accuracy . +l-10o/o
Resolution : 0.3mm (if rain volume < 1000mm)
1mm (if rain volume > 1000mm)
Wind speed : 0-180km/h (0-1 10mph) (show -- if outside range)
Accuracy: +L 1m/s (wind speed< 10m/s)
' +l-1Oo/o (wind speed > 10m/s)
Measuring interval thermo-hygro sensor: 48 sec
Water proof level : lPX3
lndoor data
Measuring interval temperature/humidity : 30 sec
Indoortemperature range : -9.9'C-60'C (14"F to + 140"F) (show-- if outside range)
Resolution : 0.1'C
Measuring range rel. humidity : 1%-99%
Resolution : 1o/o
Alarm duration : 120 sec
Power consumption
Base station
Remote sensor
Battery life
Notes:
When the outdoor temperature is lower than -20'C, make sure the correct type of batteries are used to ensure
that the device can get enough power to maintain its function properly. Normal alkaline batteries are not to be
used when the outdoor temperature is lower than -20 "C, because the batteries discharging capability is
greatly reduced.
When out of the temperature range of 10-35t, the transmrtteis low battery indicator may show up abnormally
even if you change to new batteries because the low voltage test point will rise along with the temperature
drop under 10r. ln this case, you do not need to change thetransmitter batteries. The low battery
indicator will work normal when the outdoor temperature rises to 10-35c.
\H Please help in the preseruation of the environment and return used batteries to an authorized depot
,,ni.
I
All rights reserued. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using elecironic,
mechanical or chemical procedures without written permission of the publisher.
This handbook may contain misiakes and printing errors. The information in this handbook is regularly checked and corrections made in
the next issue. We accept no liability for technical mistakes or printing errors, or their consequences-
All trademarks and patents are acknowledged.
: 3XAA 1.5V LR6 Alkaline batteries
: 2xAA 1.5V LR6 Alkaline batteries
: l\/inimum 12 months for base station
Minimum 24 months for thermo-hygro sensor

How to rePlace the sensor

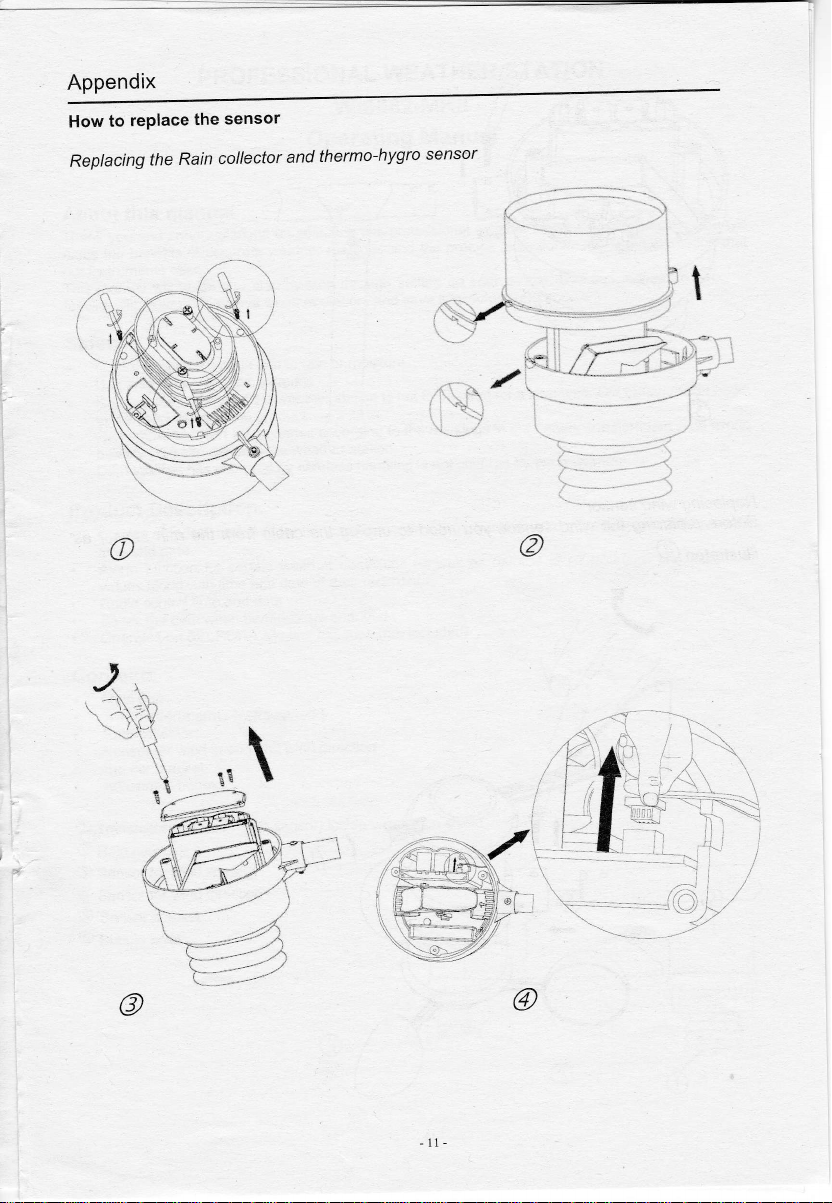

Replacing the Rain cotlector and thermo-hygro sensor
@

@
Replacing wind sensor
Before replacing the wind senso/:, you need to unptug the cable from the rarn sensor as
iltustrated @
