FastTT Aero Bar Installation Guide - TKP Pre-Drilled
[Designed for Speed]
Carbon Aero Bar
INSTALLATION GUIDE
www.FastTT.bike
MODEL: Track Pursuit Aero Bar
PRE-DRILLED
BOLT & RIDE

2
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
Congratulations on purchasing your FastTT Aero Bars!
The following pages will guide you through the installation process. Please read the
instructions from start to finish BEFORE commencing installation. It is important to follow the
installation sequence.
INTRODUCTION

3
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
NOTE: The 4x 16mm bolts should NOT be used for mounting the TT bars. These are only used
for FastTT Tri bars.
SECTION A - GETTING STARTED

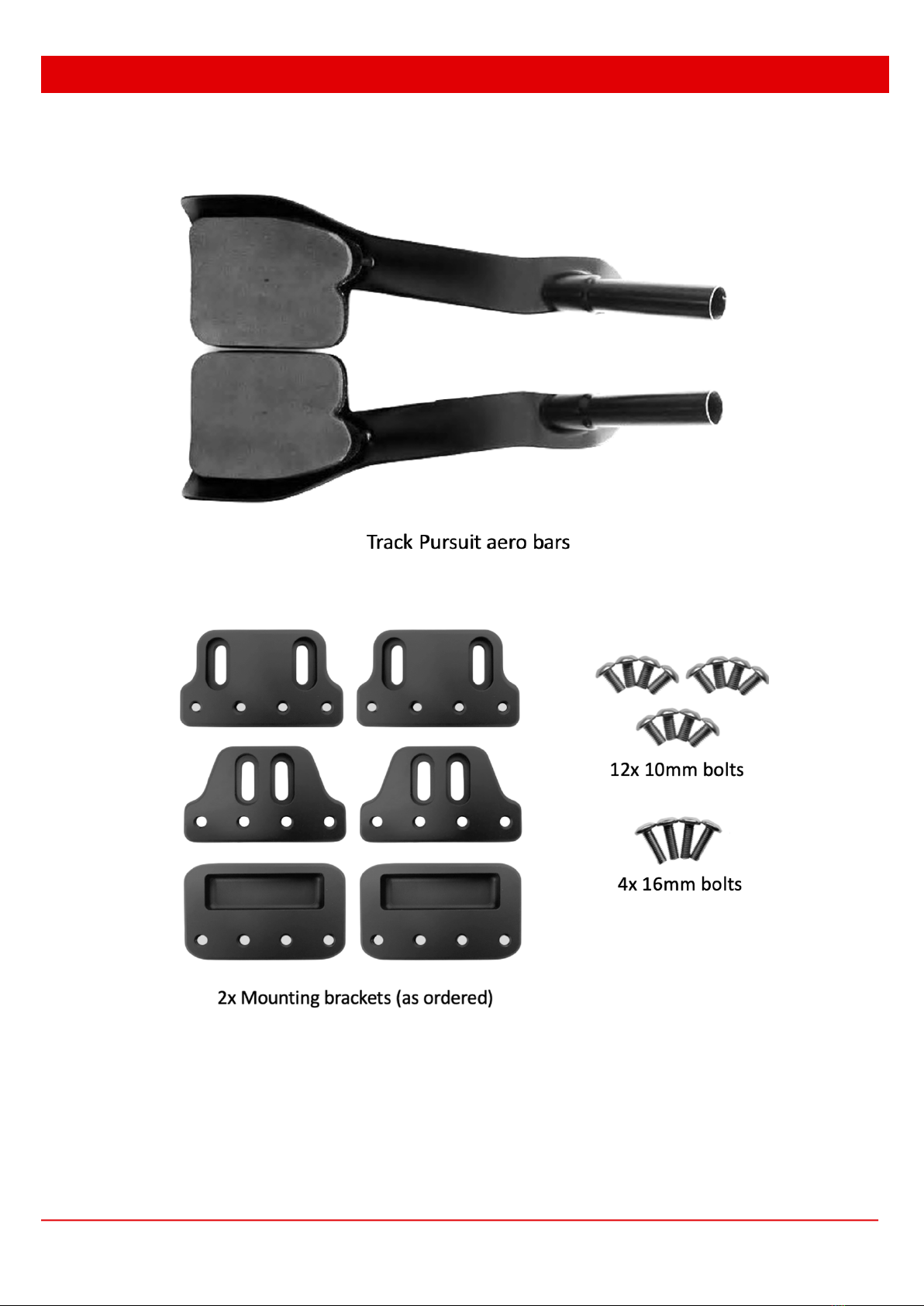

PARTS INCLUDED

4
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
MEASURING YOUR CURRENT SETUP
Before you start installation, take a full set of measurements of your existing bar setup for later
reference and UCI compliance.

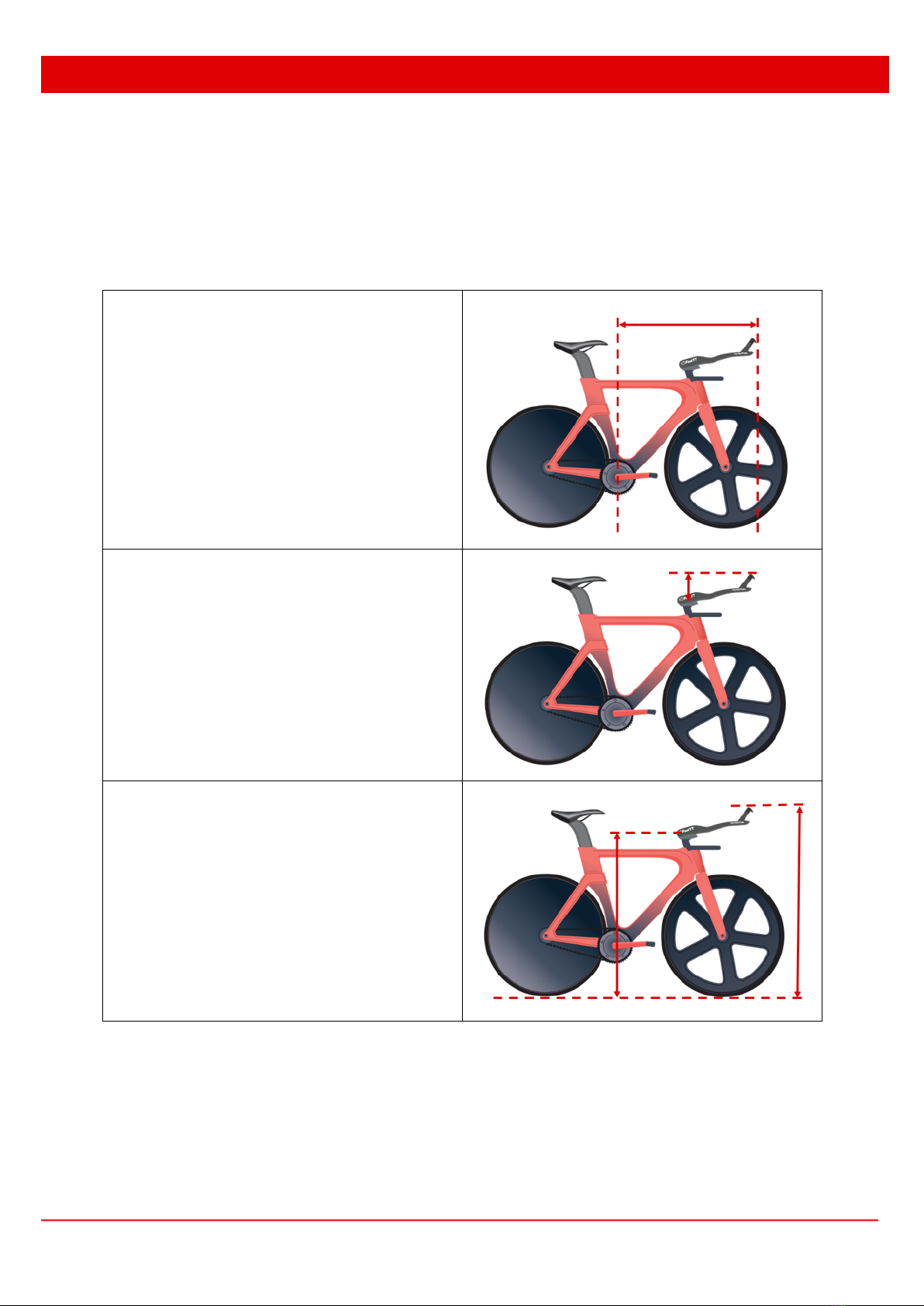

Key measurements to take are:
Length from centre of bottom bracket to bar
tip end.
Height difference from top of elbow pad
(measured at the fore/aft centre) to top tip
of bar end.
1. Height of top of elbow pad from the
ground (measured at fore/aft centre).
2. Top of bar end from the ground.
SECTION A - MEASURING

5
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
Distance between outside edges of elbow
pads. Note the distance where you
measured relative to the bottom bracket so
you can repeat the same measurement for
your FastTT bars.
Width between bar ends.
Once measured, remove your old extension bars, but leave the brackets mounted to the base
bars (if applicable).
Elbow pad measurements for UCI compliance should be taken at the fore/aft centre of the
pad. Please refer to the UCI website for measurement rules based on rider height:
https://www.uci.org/equipment/bh2JJzw1eB0n876rX2iB1
SECTION A - GETTING STARTED
SECTION A - GETTING STARTED
SECTION A - MEASURING

6
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
SETTING UP FOR UCI RULES
For UCI legal setup you need to measure the distance from the centre of the bottom bracket to
the tip of the bars or finger hook. You will also need to measure the height from the centre of
the elbow pad to the top of the bars or finger hooks. If you don't have access to a measuring jig
you can use a vertical wall as suggested in the diagram below, but ensure the wall is exactly 90°
vertical (check with a spirit level).
Please refer to the UCI website for measurement rules based on rider height -
https://www.uci.org/equipment/bh2JJzw1eB0n876rX2iB1
SECTION A - MEASURING

7
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
TRIMMING THE BAR ENDS
Hold the bar end as you would when
riding, resting the bottom of your hand
on the top surface of the extension.
It should be a snug fit with NO GAPS
between the base of your arm/hand and
the bar extension.
Measure how much bar end you require
including the finger hook.
Mark the top of the bar ‘A’ including finger
hook length. Deduct the length of the finger
hook from ‘A’ and mark position ‘B’. The
difference between ‘A’ and ‘B’ should equal
the length of the finger hook (excluding the
insertable section).
Trimming the bar ends to the correct length is essential for accurately measuring the UCI
dimensions and MUST BE COMPLETED BEFORE MOVING TO THE NEXT STEP. When measuring,
the bar end plugs must be inserted and included in the measurements for UCI compliance.
Measure twice, cut once! Use a hacksaw or Dremel cutting tool to trim off the unwanted bar
end.
A
B
SECTION B - TRIMMING THE BAR ENDS
SECTION C - MEASURING FOR INSTALLATION
SECTION A - GETTING STARTED

8
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled

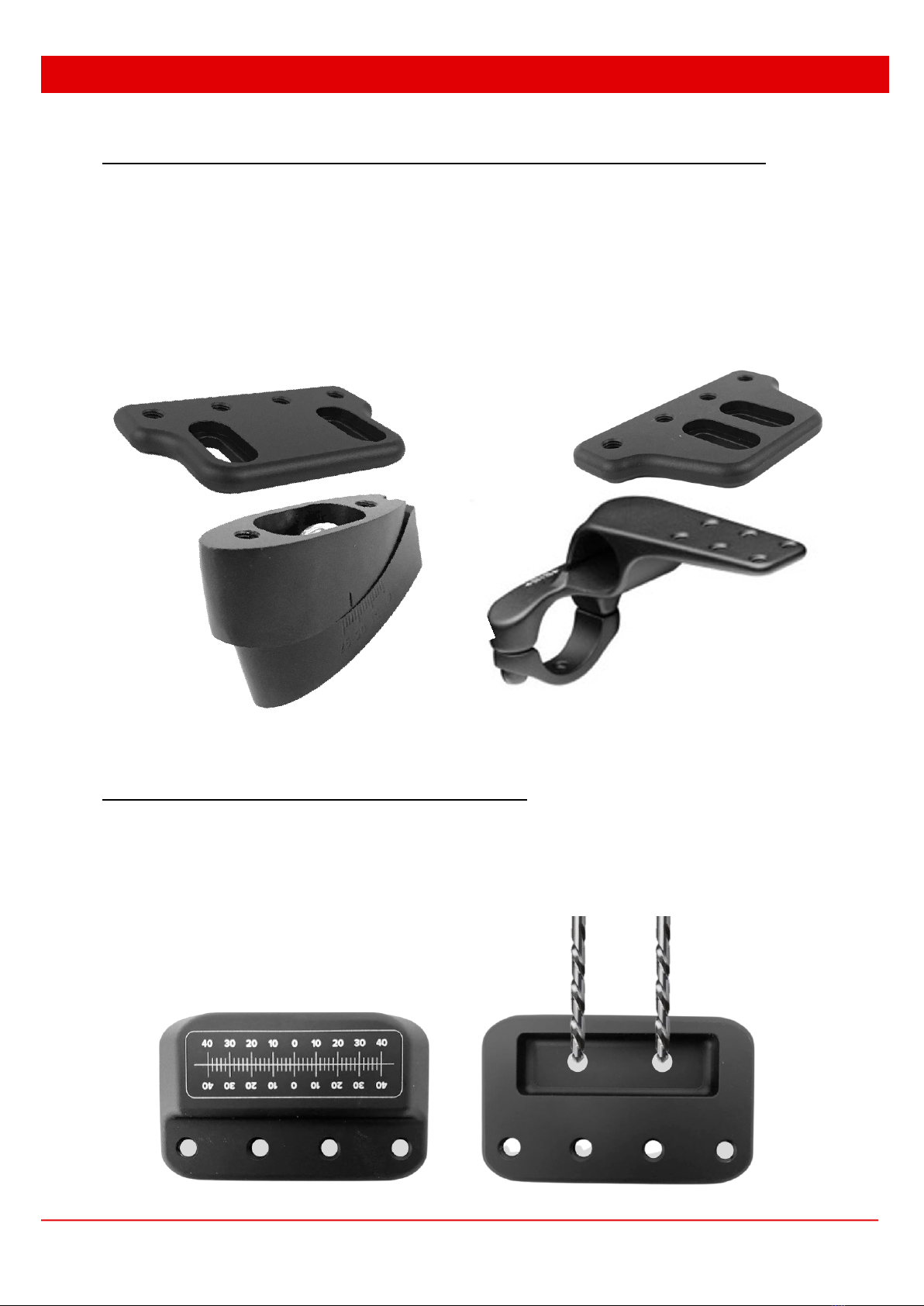

Placement options
FastTT aero bars offer a wide range of bolt holes
and bracket placement options for you to find your
preferred setup.
Fitting adjustable angled risers
If fitting FastTT adjustable angled risers, bolt the
bottom blocks of the risers to your base bar or
spacer stack. Tighten to maximum 6Nm.
Add the top block to the bottom block and
insert the M6 locking bolt. Adjust to your
preferred angle and tighten the bolt to a
maximum torque of 12-13Nm.

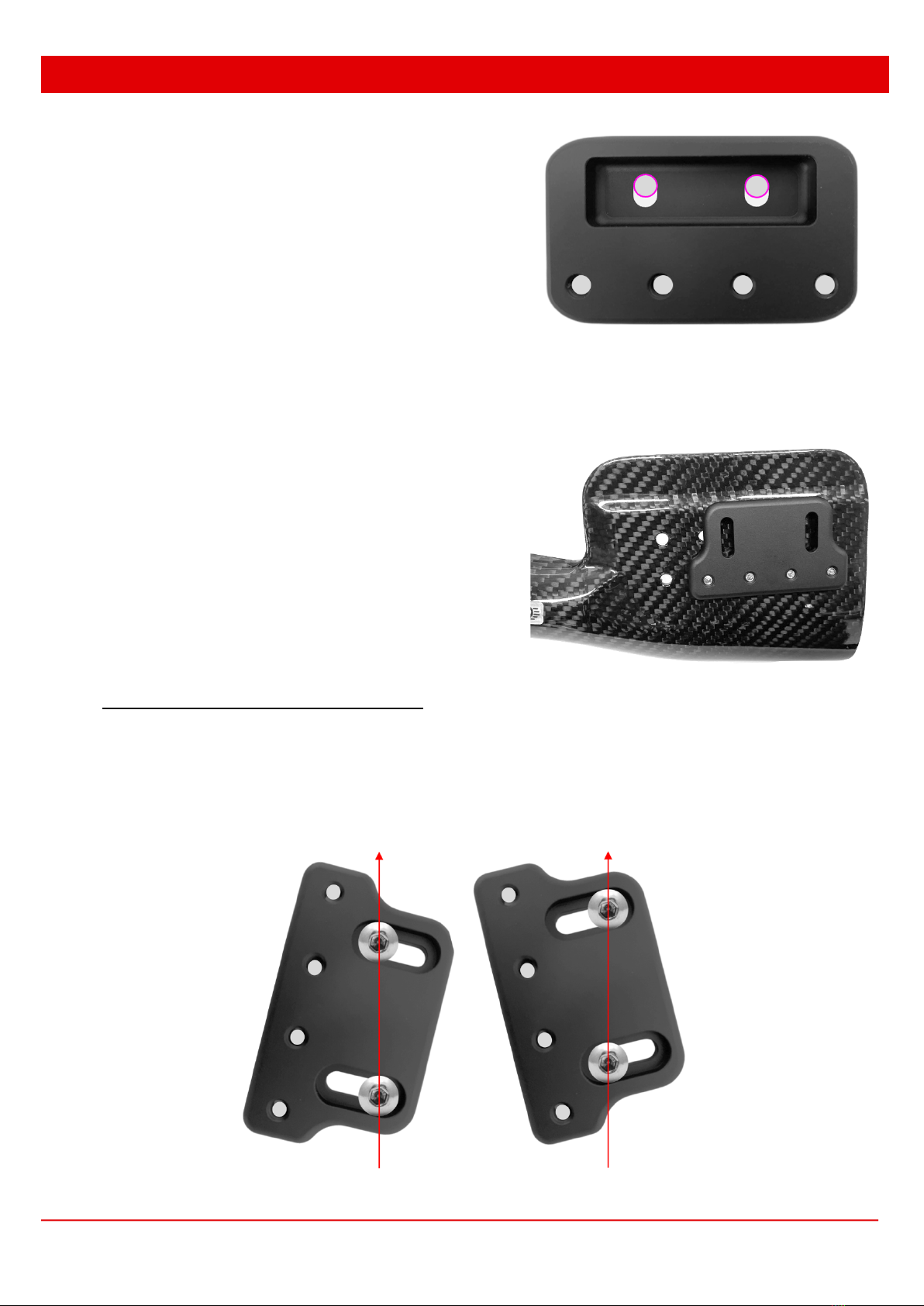

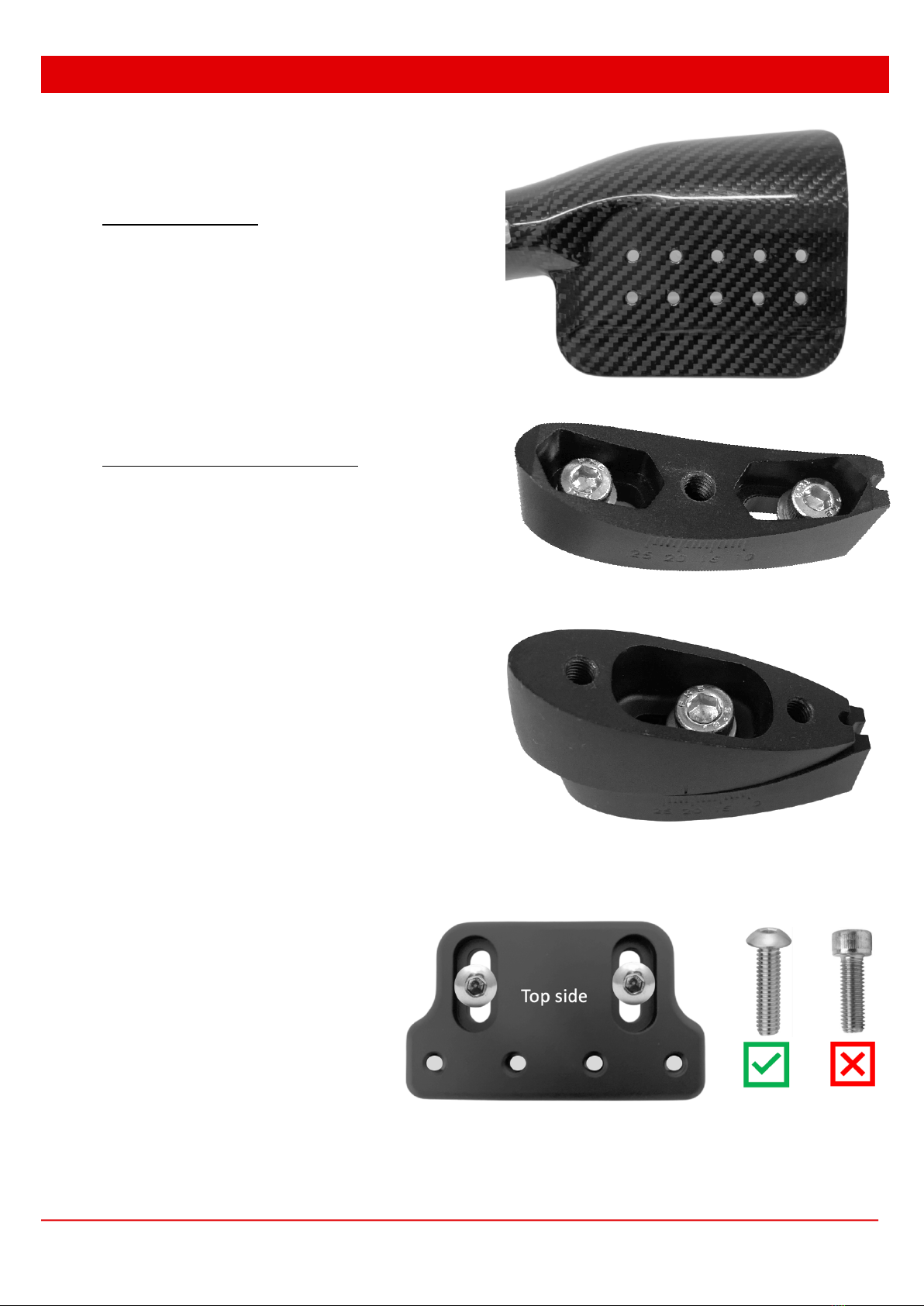

Insert two 10mm bolts into the
slots in the top side of the
mounting bracket. Only button
head bolts can be used. If you
replace them with hex cap screws
the bracket WILL NOT sit flush with
the bar base.
SECTION C – MOUNTING THE BARS

9
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
Fitting the mounting brackets to FastTT angled riser and Profile Design brackets
Using the supplied M5 button head bolts, attach the bracket to the top block of the FastTT
Adjustable angled riser or to the Profile Design wing bracket, depending on the mounting
option you selected. At this stage only tighten the bolts enough to be able to move them with
a little effort. This will make the inwards/outwards angle adjustment easier. You MUST fully
tighten to bolts after adjusting the bars.
Fitting to all other bikes with the Universal bracket
If you selected the Universal mounting option, you need to drill bolt holes in the bracket
matching the bolt pattern of your mounting element (NOTE: DRILLING IS ONLY REQUIRED FOR
THE UNIVERSAL BRACKET). The Universal bracket has a measurement grid on the underside to
assist you.
SECTION C – MOUNTING THE BARS

10
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
Select the appropriate size drill bit based on the
diameter of the mounting bolts you are using.
Installation is easier if you drill the holes 0.5mm wider
than the bolt threads. Once drilled, bolt the bracket to
your mounting pad or stack. Inwards/outwards angle
will be determined by where you drill the holes. If you
want to make small adjustments to the angle you can
modify the holes slightly with a file or Dremel.
Unless you ordered FastTT long bolts you will need to provide the correct length and thread
diameter bolts for your bike. Tighten the bolts to the torque specified by the bolt supplier or
your owner’s manual.
Bolt the bracket to the base of the bar in your
preferred position. You can easily make changes by
removing the bracket and repositioning it. There are 4
holes in the bracket. A MINIMUM of 3 bolts should be
used on each side for safety and strength (4 bolts are
recommended).
Adjusting inwards/outwards bar angle
With the bars bolted to the bracket, you can adjust the inwards/outwards angle to suit. There
is up to 40° of adjustment available. Once adjusted to the correct position, remove the bars
and tighten the 2 bolts that fix the mounting bracket to the angled riser, Profile Design bracket
or your mounting pad to a maximum of 6Nm.
SECTION C – MOUNTING THE BARS

11
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
If you are using spacers you will need to purchase stainless steel or zinc coated cap screws of
an appropriate length and thread diameter (M5 or M6) to suit your setup. Most cap screws are
available from a nut and bolt supplier. We also stock a comprehensive range of long mounting
bolts: https://www.fasttt.bike/product-category/mounting-bolts/
If you are using the FastTT adjustable angled riser,
or our spacers/wedges, they have a channel in the
rear to fit the shifter wires.
Refit the bars to the bike and tighten the bolts to a maximum torque of 6Nm. A MINIMUM of 3
bolts should be used on each side for safety and strength (4 bolts are recommended).
SECTION D - MARKING AND DRILLING THE MOUNTING HOLES
SECTION C – MOUNTING THE BARS

12
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
IMPORTANT!
Whilst every care has been taken to ensure the information in this installation guide is accurate
and correct, UCI regulations and rules are reviewed and updated from time to time. It is the
customers sole responsibility to ensure that you are familiar with the latest rules and
regulations regarding the use and fitment of aero bars and associated components. UCI
technical equipment rules are available here:
https://www.uci.org/equipment/bh2JJzw1eB0n876rX2iB1
UCI/ISO CERTIFICATION
FastTT aero bars have been tested and certified to the ISO-
4210 standard required for use in UCI sanctioned events.
The certification sticker with test reference number is on
the underside of each bar. DO NOT remove this sticker.
IMPORTANT!
Whilst every care has been taken to ensure the information in this installation guide is accurate
and correct, UCI regulations and rules are reviewed and updated from time to time. It is the
customers sole responsibility to ensure that you are familiar with the latest rules and
regulations regarding the use and fitment of aero bars and associated components. UCI
technical equipment rules are available here:
https://www.uci.org/equipment/bh2JJzw1eB0n876rX2iB1
IMPORTANT SERVICE NOTE!
After a few rides we recommend that you check and retighten the mounting bolts on your FastTT
Aero Bars. The bolts can become slightly loose after initial riding due to natural bedding in of the
bolts into the carbon mounting base. This can potentially cause a small amount of lateral movement
in the bar. If this occurs, please retighten to a maximum of 5nm. If at any stage you notice lateral
movement of the bar you should retighten the bolts.
SECTION D - MISCELLANEOUS

13
www.fastTT.bike
FastTT Aero Bar Installation Guide - TKP Pre-Drilled
WARRANTY
FastTT Aero Bars are lightweight carbon competition units. In the event of a fall or harsh
impact, please check the bars carefully for any visible damage. Whilst carbon fibre is
exceptionally strong, it does not tolerate impacts, and damage that is invisible to the naked
eye can occur. This could result in unexpected breakage and injury, even death. If in doubt,
please have your bars checked by a reputable carbon repair company.
The manufacturer (Bold Horizon Ltd t/a FastTT) assumes no responsibility or liability for any
injury, loss or damage caused as a result of using this product under any conditions. FastTT
Aero Bars are supplied with a 24-month manufacturers defect warranty. Any damage caused
by misuse, incorrect installation, modification, accident, or any other cause is not covered by
the manufacturer’s warranty.
In the event of a warranty claim the manufacturer reserves the right to replace, repair or credit
the full purchase price excluding shipping (where applicable). In the event of a replacement or
repair, the cost of returning the unit to the manufacturer will be paid by the customer. The
manufacturer will pay for shipping of the repaired or replacement unit to the customer.
SPECIFICATIONS AND INSTALLATION INSTRUCTIONS
Specifications and installation instructions are subject to change without notice. To the best of
our knowledge, all information is correct at time of publishing The manufacturer is not
responsible for changes to UCI technical regulations. It is the customer’s responsibility to
remain informed of any rule changes and to make the necessary changes to bike setup for
compliance.
CRASH REPLACEMENT COMMITMENT
If you're unfortunate enough to have a crash and damage your FastTT aero bars where they're
no longer safe to use, send them back to us and we'll replace them with a brand new set at
50% off the current retail price, including free shipping. It's tough enough crashing, but at least
we can help a little to ease your pain.
Contact us via email: [email protected] or message us on Instagram: @fastTT.bike
Copyright © 2022 FastTT - The Sports Product Division of Bold Horizon Ltd
SECTION E – WARRANTY AND DISCLAIMER
