FAW J6 Jiefang IV Series User manual

1
Jiefang
Truck
Operation Manual
J6 China IV, China V series
FAW Co., Ltd.

2
Foreword
Welcome to use J6 Jiefang IV, Jiefang V series trucks!
This series of vehicles include trucks, tractors, dump trucks, cement mixers and various refitted trucks. They are equipped with CA6DL, CA6DM2, CA6DM3, CA6DN1,
BF6M1013, CA6DK1 series of National IV and National V electronic diesel engines; BOSCH or self-propelled SCR post-processing system; 12-gear, 10-gear, 9-gear,
8-gear transmission; R13T457, R13D457, R13D485, R13T485, R13D498, R13440, R11T435, R13T440, R13T290, R16T230W drive axles; and J6 Series Cab.
For J6 pilotage tractor, the three assembles such as engine, box and bridge are maintained in a long oil changing period.
When you receive a new vehicle, we hope you take the time to read the Operation Manual carefully. It will help you get familiar with the vehicle as soon as possible, and
guide you to use it correctly. Careful use of your vehicle will help carry you to ride north and south easily.
All the contents of this manual are latest information when they are printed. If there is any change, it will be revised in the second edition. If the instructions are
inconsistent with the products, please contact us timely, and we will do our best to serve you.
Wish you a pleasant driving!
June, 2016

1
Content
J6 China IV Series.................................................................................................1
Driving Required Reading....................................................................................2
Information to the driver .........................................................................................2
Vehicle nameplate and vehicle identification code..........................................2
Engine nameplate and cylinder number ..........................................................2
Fuel..................................................................................................................2
Urea solution ...................................................................................................4
Vehicle inspection............................................................................................4
New vehicle running-in ...................................................................................5
Correct operation ..................................................................................................6
Instrument and alarm lamp..................................................................................6

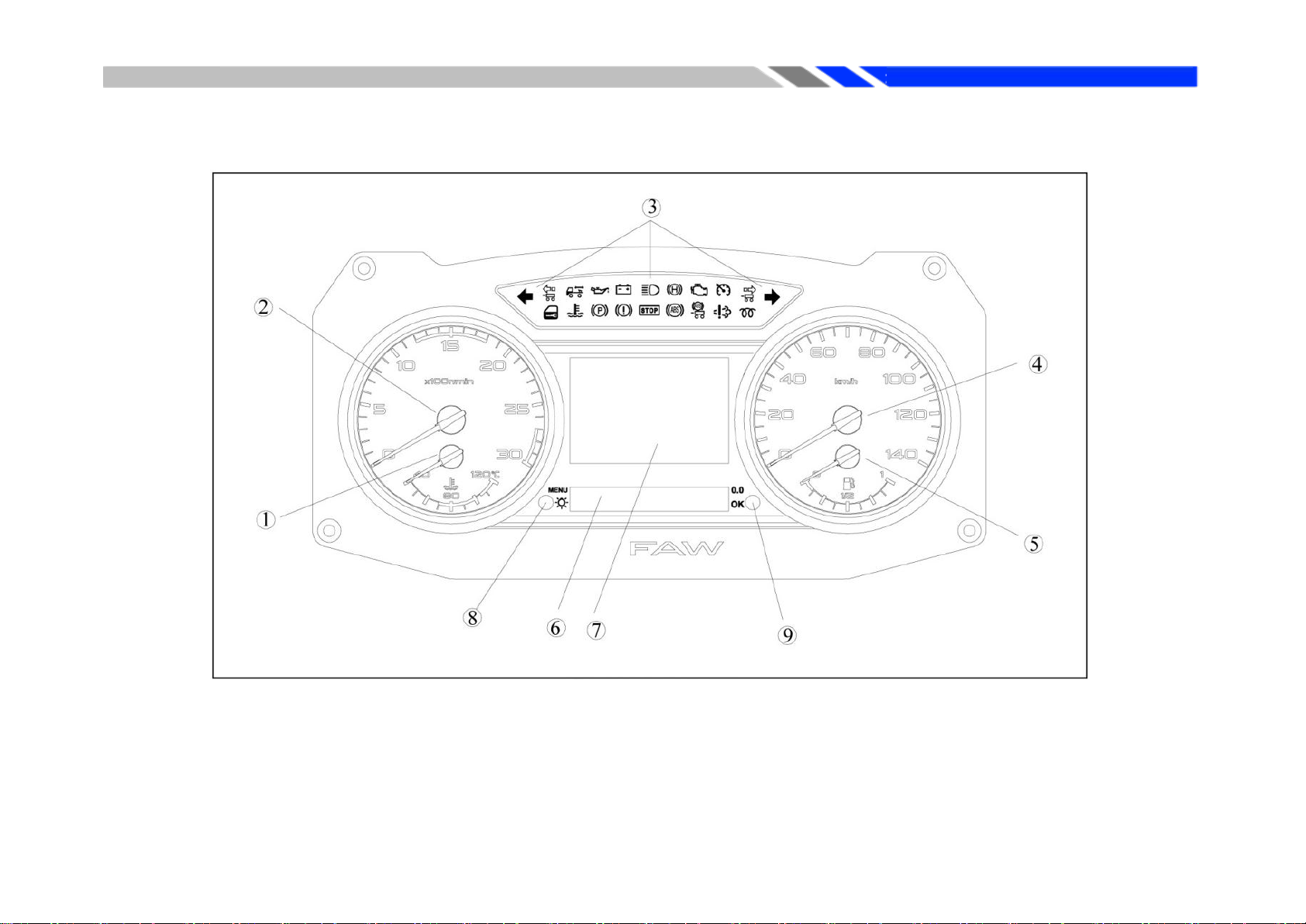

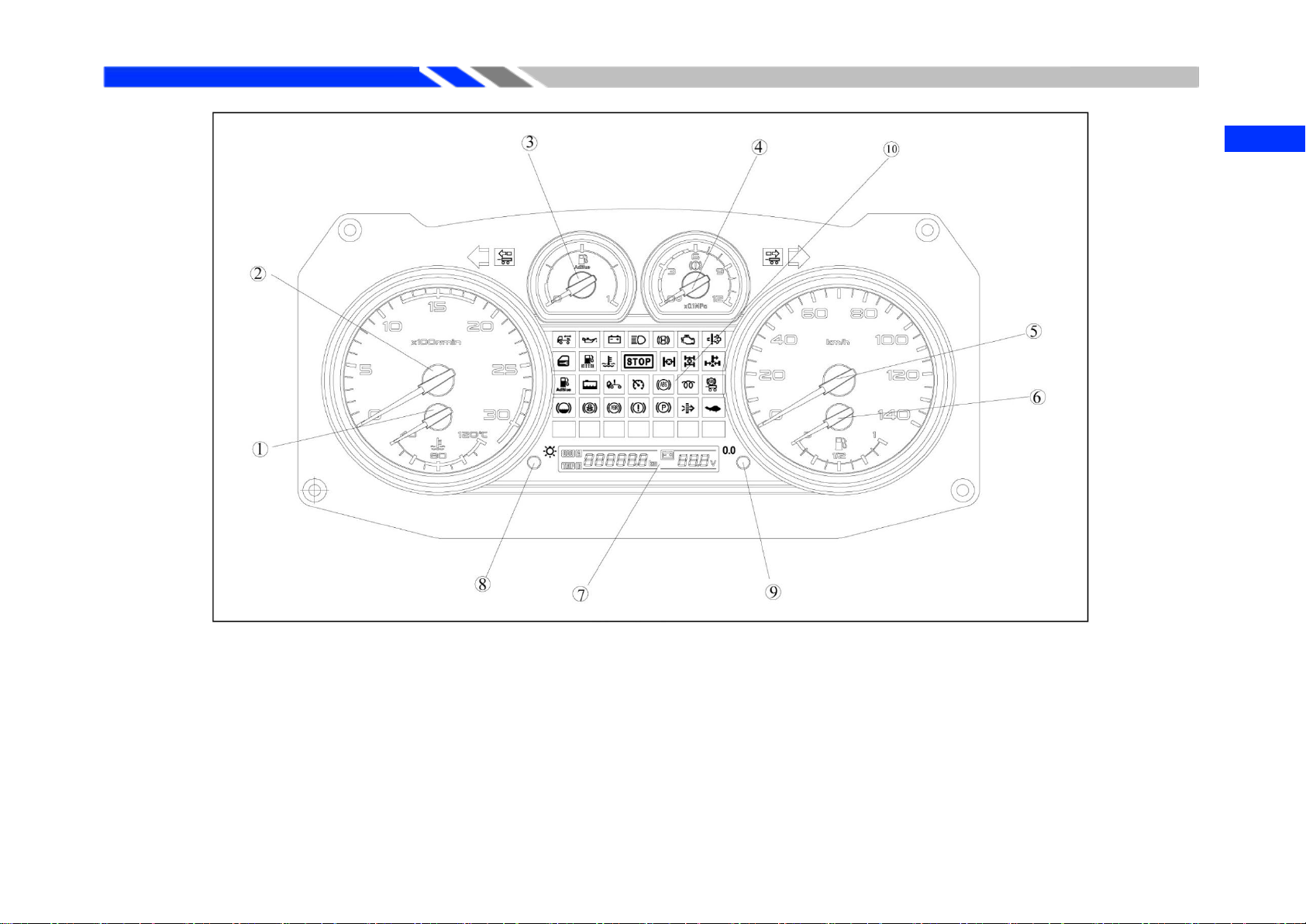

Instrument diagram..........................................................................................6
Speedometer....................................................................................................9
Engine tachometer...........................................................................................9
Fuel gauge .......................................................................................................9
Water thermometer........................................................................................10
LCD screen (J6P) ..........................................................................................10
Main LCD screen in high configuration........................................................11
Secondary LCD screen in high configuration ...............................................12
Main menu.....................................................................................................12
Main LCD screen in standard configuration .................................................13
Secondary LCD screen in standard configuration.........................................13
Urea level meter(low configuration) .............................................................13
Barometer (Low Configuration)....................................................................14
Barometer (J6M) ...........................................................................................14
LCD screen in high configuration (J6M).......................................................14
Main menu (J6M)..........................................................................................15
Instructions for warning lamp and indicator lamp.........................................16
Oil pressure alarm lamp.................................................................................20
Indicator lamp for electrical charging............................................................20
Engine fault alarm lamp.................................................................................21
Coolant level alarm lamp...............................................................................21
Coolant temperature alarm lamp....................................................................21
STOP fault indicator lamp.............................................................................22
Brake system fault alarm lamp ......................................................................22
Cab turnover alarm lamp ...............................................................................22
Engine preheating indicator lamp..................................................................23
ABS alarm lamp ............................................................................................23
Lighting fault indicator lamp.........................................................................24
Emission fault alarm lamp.............................................................................24
Auxiliary brake indicator lamp......................................................................24
ASR fault alarm lamp (high configuration)...................................................25
ECAS fault alarm lamp (high configuration).................................................25
ECAS Height Indicator (High Configuration)...............................................25
Switches Buttons Handles .................................................................................26
Remote control ..............................................................................................26
Main switch of power supply ........................................................................26
Ignition switch...............................................................................................27
Combination switch.......................................................................................27
Function switch..............................................................................................32
Cigarette lighter.............................................................................................35
24V Power supply socket ..............................................................................35
Steering wheel lock handle............................................................................36
Parking brake valve (referred to as manual valve) ........................................36

2
Trailer brake valve.........................................................................................37
Door opening/closing ....................................................................................37
Window regulator..........................................................................................38
Driver's seat...................................................................................................39
Seat safety belt...............................................................................................40
Ventilation and air conditioning unit.................................................................41
Cab ventilation...............................................................................................41
Air conditioning unit .....................................................................................41
Receiver.............................................................................................................44
Mechanical tuning receiver (J6P)..................................................................44
Electronic tuning receiver (J6P)....................................................................45
Receiver (J6M)..............................................................................................46
Driving record ...................................................................................................47
Overturn mechanism of the cab.........................................................................48
Electric cab flip forward................................................................................49
Electric cab fall- back....................................................................................50
Manual front turning and fall-back of cab.....................................................50
Body accessories ...............................................................................................52
Electric exterior rearview mirror...................................................................52
Sun visor........................................................................................................52
Opening of front outer panel .........................................................................52
Use of license plate and front tow hook........................................................53
Spare tire regulator............................................................................................54
Spark extinguisher switch (dangerous chemicals).............................................54
Correct driving ..................................................................................................55
Normal engine start-up..................................................................................55
Engine cold start warm-up.............................................................................55
Notes for winter operation.............................................................................56
Vehicle driving...............................................................................................56
Hill driving ....................................................................................................56
Vehicle parking..............................................................................................57
Economic driving...........................................................................................57
Towing tractor....................................................................................................58
Dump truck........................................................................................................60
Concrete mixer truck.........................................................................................61
Maintenance.........................................................................................................62
Regular maintenance .........................................................................................62
Check before driving .....................................................................................62
Check during driving.....................................................................................63
Check after receiving the vehicle...................................................................63
Simple inspection and maintenance...................................................................64
Coolant...........................................................................................................64
Single-stage and double-stage air filters........................................................67
Desert filter....................................................................................................68
Oil bath filter .................................................................................................69
Primary diesel filter .......................................................................................70
Secondary diesel filter ...................................................................................71
Spin-on type oil filter.....................................................................................72
Compressed gas filter ....................................................................................72
Exhaust post-processor..................................................................................73
SCR post treatment system use and maintenance..........................................73
Fan clutch ......................................................................................................74
Precautions for operation of electric control system......................................74
Clutch.............................................................................................................74
Suspension maintenance................................................................................75
Determination of oil leakage fault of shock absorber....................................81
Adjustment of the front wheel toe-in.............................................................81
Regular rotation of the wheel.........................................................................82

3
Free rotation of the steering wheel................................................................83
Drum brake system maintenance...................................................................83
Air drying tank ..............................................................................................83
Replacement of friction plate ........................................................................84
Wheel brake clearance adjustment................................................................84
Use ofABS/ASR (optional) ..........................................................................85
Precautions of ABS/ASR...............................................................................86
Maintenance of the traction seat....................................................................86
Battery...........................................................................................................87
Fuse ...............................................................................................................87
Headlight light adjustment.............................................................................87
Lubricating oil...................................................................................................88
Change the lubricating oil..............................................................................88
Oil change cycle of each assembly................................................................89
Engine oil change..........................................................................................89
Change the lubricating oil of transmission....................................................90
Drive axle oil change.....................................................................................91
Oil change for steering system ......................................................................91
Emergency handling..........................................................................................94
Tire inflation..................................................................................................94
Replace tires (in a flat nut form)....................................................................94
Appendix and Data..............................................................................................96
Common faults ..................................................................................................96
On-board tools.................................................................................................105
Toolkit .........................................................................................................108
BOSCH EDC17 Electrical control system operation schematic diagram.......109
BOSCH EDC17 post treatment system structure schematic diagram.............110
Electrical control system operation schematic diagram ..................................111
Domestic air drive post treatment system structure schematic diagram..........112
J6 pilotage tractor..............................................................................................113
Correct operation...............................................................................................114
Switches Buttons Handles .........................................................................114
AMTAutomatic Transmission Operating System.......................................114
AMT Information LCD Display..................................................................114
AMT automatic transmission operating handle...........................................115
AMT Vehicle Driving Operation.................................................................117
Separate heater switch .................................................................................119
220V Power supply socket ..........................................................................120
On-board information service terminal........................................................120
ECAS System overview ..............................................................................124
Remote control of ECAS system.................................................................126
ECAS system function use ..........................................................................127
Retarder operating switch............................................................................129
LCD display of instrument for retarder .......................................................130
Use of inter-wheel differential lock (6 x 2 model).......................................133
Overturn mechanism of the cab.......................................................................134
Electric cab front turning.............................................................................135
Electric cab fall- back..................................................................................135
Manual front turning and fall-back of cab...................................................136
Maintenance.......................................................................................................137
Simple inspection and maintenance.................................................................137
Electronic control system of AMT automatic transmission.........................137
Inspection of drum-type brake friction plate ...............................................138
Maintenance and servicing of the Kangmai wheel hub...............................138
Lubricating oil .................................................................................................139
Engine oil change ........................................................................................139
Replace the Spin-On Oil Filters...................................................................141
Replace the centrifugal oil filter ..................................................................142

4
Replace the oil filter (CA6DK1 engine)......................................................142
Change the lubricating oil of transmission..................................................142
Replace lubricating oil for 12-gear automatic transmission........................143
Change the lubricating oil of drive axle ......................................................145
Change the lubricating oil of retarder..........................................................146
Appendix and Data............................................................................................148
Fault alarm and analysis..................................................................................148
12TA-AMT Electrical control system operation schematic diagram ..............158
J6 China V series...............................................................................................159
Correct operation ..............................................................................................160
Instrument and alarm lamp..............................................................................160
Instrument diagram......................................................................................160
Speedometer................................................................................................161
Engine tachometer.......................................................................................161
Fuel gauge ...................................................................................................161
Water thermometer......................................................................................162
LCD screen..................................................................................................162
Main LCD screen ........................................................................................163
Auxiliary LCD screen..................................................................................164
Main menu...................................................................................................164
Instructions for warning lamp and indicator lamp.......................................169
Switches Buttons Handles.........................................................................175
Multi-function steering wheel switch..........................................................175
Sleeper light switch Buttons........................................................................175
Indoor lighting switch..................................................................................176
Door open alarm light..................................................................................177
On-board information service terminal ...........................................................178
Fast plug-in vehicle data terminal ...................................................................183
Fleet management module...............................................................................186
Driver's seat .....................................................................................................190
Driver's seat (standard configuration)..........................................................190
Driver's seat (high configuration)................................................................192
Ventilation and air conditioning unit ...............................................................194
Cab ventilation.............................................................................................194
Air conditioning device ...............................................................................194
Functional button description ......................................................................195
Maintenance.......................................................................................................197
Simple inspection and maintenance.................................................................197
Air filter.......................................................................................................197
Air filter.......................................................................................................197
Suspension maintenance..............................................................................198
Lubricating oil .................................................................................................202
Engine oil change ........................................................................................202
Replace the Spin-On Oil Filters...................................................................204
Replace the centrifugal oil filter ..................................................................204
Change the lubricating oil of transmission ..................................................205
Change the lubricating oil of drive axle.......................................................206
On-board tools.................................................................................................207
Toolkit..........................................................................................................209

1
J6 China IV Series

2
Jiefang J6 China IV, China V series instruction
Driving Required Reading
Information to the driver
Vehicle nameplate and vehicle identification code
The nameplate is located near the front axle on
the left (right) side of the longitudinal beam of the
frame.
Vehicle model, main weight parameters, engine
model and VIN code are recorded on the nameplate.
Please carefully check whether VIN
identification code is consistent with the certificate
of conformity.
Engine nameplate and cylinder number
Engine nameplate and cylinder number are
shown in the figure.
Fuel
Fuel oil selection
- Diesel that satisfies GB19147 standard should be
used.
- Diesel that meets local temperature requirements
should be used in cold areas.
Atmospheric temperature
Diesel grade
Above 4℃
0 #
(4～-5)℃
-10 #
(-5～-14)℃
-20 #
(-14～-29)℃
-35 #

3
Jiefang J6 China IV, China V series instruction
Correct operation
Information to the driver
Warning
Do not fill fuel other than diesel to the diesel engine;
to prevent fire or explosion, and do not mix the
gasoline or alcohol in the diesel.
Warning
⊙It is forbidden to use fire to bake fuel supply
system (fuel tank, fuel line, fuel primary filter, fuel
secondary filter, injection pump, etc.).
⊙Before adding fuel, the engine must be stopped
and smoking, open flames, etc. are prohibited.
Add fuel
－Insert the key, hold the fuel tank cap exterior
margin by hand, rotate the key counterclockwise by
90 °and then rotate the fuel tank cap
counterclockwise by 120°approximately to take
it out.
－Do not allow the tank filter screen to be removed
when add fuel.
－Rotate the fuel tank cap clockwise by 120°
approximately. After fastening, hold the tank cap
and rotate the key clockwise by 90°to lock.

4
Jiefang J6 China IV, China V series instruction
Driving Required Reading
Matched gas drive system
Urea solution
Selection ofAdBlue
- Use the urea solution that meets GB 29518
standard.
Warning
⊙Do not use the unacceptable urea solution or fill
water to urea solution; otherwise it will result in the
engine under-power.
⊙Do not fill urea solution to the fuel tank.
Matched Bosch system
Notes for urea injection:
- Make sure to purchase urea aqueous solution for
vehicles in accordance with GB29518 standard at
regular filling stations or service stations.
- Flame must be extinguished before urea adding.
- In case of user decides to take a self-filling, please
use purpose-built filling pipe in the operation and
keep the filling pipe clean.
- In filling, impurities should be prevented from
falling into urea tanks.
- Stop filling after the liquid level reaches the filling
port.
Vehicle inspection
In order to give full play to vehicle performances
and prolong the service life, vehicle inspections and
maintenance must be carried out, and the following
inspections should be carried out regularly.
Inspection of new vehicles
- Please check carefully after receiving the new
vehicle, and then put it into use and ensure safety.
* Check the connection and fastening of each part.
* Hear any abnormal noise when the engine is
working. Check the installation of each accessory.
* Check the oil level of engine, transmission, drive
axle and steering tank.
* Check the oil filling condition of the lubrication
points.
* Check the operation of the braking system and the
steering system.
* Check the electrical equipment.
* Check the free stroke of clutch pedal.
* Check the tire pressure.
* Check whether the on-board tools are complete.

5
Jiefang J6 China IV, China V series instruction
Correct operation
Information to the driver
Check before driving
- In order to ensure the safe and comfortable driving
of the vehicle, the vehicle shall be checked before
driving every time.
Regular check and maintenance
－Periodically check and repair according to the
driving distance or time of use. The frequency of
checks should be increased when the vehicle is used
in harsh conditions.
New vehicle running-in
The running-in period is 2500km.
Requirements for running-in:
- It is within 200km in the initial running-in period,
the vehicle must be driven empty and must not be
loaded. The loading capacity within 1500 km
should not exceed 70% of the rated load, and
(1500-2500) km can be increased to 90% of the
rated load.
- The maximum speed of the engine shall be limited
to 1500r/ min or less within 1000km in the
running-in period.
- Special attention should be paid to the engine
coolant temperature and oil pressure during the
running-in period, which must be within the
specified range.
- During the running-in operation of new vehicles,
the fuel consumption of the engine is higher and the
oil level should be checked daily.
Perform the following items after the running-in
- Change the engine oil.
- Change the oil filter.
- Drain the diesel strainer filter, check and tighten
the fuel tank strap.
- Change the transmission oil, check and tighten
fixing bolts of transmission shaft.
- Change the drive axle oil.
- Change the power steering fluid and check the
steering gear fixing bolt.
- Check the fixing bolt of steering gear bracket.
- Check the connecting bolt between steering shaft
and steering gear.
- Check the fixing nut of steering arm.
- Check and tighten the wheel nuts.
- Check and tighten the leaf spring U-bolt.
- Check brake clearance and friction plate wear.
- Check and tighten the front and rear suspension
cushion retaining bolts of the cab.
Caution
⊙It is recommended that the fluid change should
be made in FAW service stations.
⊙Ensure to use the grease and oil recommended
by this instruction.
- When replacing the parts, use those bearing FAW
identifications, which can be purchased from the
special stores designated by FAW or FAW service
stations.

6
Jiefang J6 China IV, China V series instruction
Correct operation
Instrument and alarm lamp
Instrument diagram
Instruments in high and standard configurations (J6P)
①Water
thermometer
②Engine
tachometer
③Indicator and
alarm lamp
④Speedometer
⑤Fuel gauge
⑥Secondary
LCD
⑦Main LCD
⑧Button 1
⑨Button 2

7
Jiefang J6 China IV, China V series instruction
Correct operation
Information to the driver
Instruments in low configuration (J6P)
①Water thermometer
②Engine tachometer
③Urea level meter
④Barometer
⑤Speedometer
⑥Fuel gauge
⑦LCD screen
⑧Button 1
⑨Button 2
⑩Indicator and alarm lamp

8
Jiefang J6 China IV, China V series instruction
Correct operation
J6M Instruments
①Engine tachometer;
②Fuel gauge;
③Barometer;
④Water thermometer;
⑤Speedometer;
⑥LCD screen;
⑦Indicator and alarm lamp;
⑧Button 1
⑨Button 2.

9
Jiefang J6 China IV, China V series instruction
Correct operation
Information to the driver
Speedometer
Indicate the speed of the vehicle.
－The driving mileage is displayed on the LCD
screen.
Engine tachometer
The engine tachometer is better to control the
engine speed in the green zone ①, where the best
comprehensive performance of the engine can be
obtained.
The engine speed exceeds the red range ②,
which means that the engine speed exceeds the limit.
Long-time over-speed operation can cause damage
to the engine.
Fuel gauge
Indicates the amount of fuel in the fuel tank.
0: Indicates that the fuel tank is empty.
1: Indicates the fuel tank is full.
Caution
When the pointer is close to the red range, the fuel
shall be supplemented in time. Otherwise, the oil
supply system will allow the air to enter and an
exhaust is required again when starting again.

10
Jiefang J6 China IV, China V series instruction
Correct operation
Water thermometer
The water thermometer indicates the coolant
temperature of the engine.
After each cold start of the engine, the preheating
shall be carried out at low speed. When the
temperature of the coolant reaches more than 50°C,
start driving.
During driving, the normal temperature range of
the coolant is (75 ~ 95) ℃.
If the pointer exceeds 105°C, the warning lamp
will be on, indicating that the engine is overheated
at this time, and the vehicle shall be parked at a safe
place and run at a speed slightly higher than idle
speed in order to cool the engine.
After the pointer returns to the normal operating
position, stop the engine for the following checks:
- Check the radiator and the hoses for leaks.
- Check the amount of coolant and add if the
coolant is insufficient.
- Check whether there are sundries on the front of
the radiator.
Caution
Do not stop the engine immediately after stopping,
otherwise the engine cylinder block temperature
will rise sharply and cause the engine to be sintered.
LCD screen (J6P)
A LCD screen includes a main LCD screen and a
secondary LCD screen.
- The upper part is the main LCD screen.
- The lower part is a secondary LCD screen.
According to different configurations, LCD
screens can be divided into two types: high
configuration and standard configuration.
First automobile First partner
Instantaneous
fuel
Button 1
Button 2

11
Jiefang J6 China IV, China V series instruction
Correct operation
Information to the driver
Main LCD screen in high configuration
The interface of main LCD screens in high
configuration has three areas: upper, middle and
lower areas.
- Upper part: Displaying the First Automobile First
Partner in case of no alarm; In case of alarm, yellow
alarm is displayed on the left side, and red alarm is
displayed on the right side.
- Middle part: Oil consumption and subtotal
mileage display areas. Press Button 1 to switch
between the instantaneous fuel consumption, fuel
consumption and the subtotal mileage, average fuel
consumption and the subtotal mileage, totaling three
pages.
- Lower part 1: Status bar shows the brake air
pressure, and the circuit with relatively small air
pressure, between the front brake circuit and the
rear brake circuit.
Caution
⊙The brake pressure should be maintained in the
range of (0.7-0.9) MPa during driving.
⊙Stop the vehicle immediately and check if it is
less than 0.55MPa (i.e. the brake system fault alarm
lamp is on).
⊙The barometer displays the fault, please check
whether the air pressure sensor needs to be
replaced.
- Lower part 2: The state bar (or numerical value)
indicates the working pressure of the lubricant in
the engine and main oil duct.
It is required to observe the oil pressure during
driving. When the engine is running normally, the
oil pressure indication range is (0. 25-6.0) MPa.
If the pressure gauge pointer is less than 0.7, the
engine should be shut down immediately to find out
the cause of the fault.
First automobile First partner
Instantaneous
fuel
Upper part
Middle part
Lower part

12
Jiefang J6 China IV, China V series instruction
Correct operation
－Lower part 3: The value indicates the value of the
urea liquid level.
(0-10)%: indicating that the urea tank is empty.
(90-100)%: indicating that the urea tank is full.
Caution
⊙When the liquid level of urea is lower than 15%,
the liquid level alarm lamp of urea shall be on, and
the urea shall be supplemented in time.
⊙When the liquid level of urea is lower than 10%,
the emission fault alarm lamp is on.
⊙If the urea liquid level continues to decrease and
the engine limits the torque, urea should be
supplemented in time, and the engine torque limit
shall be relieved.
Secondary LCD screen in high configuration
The secondary LCD screen is divided into two
areas: left and right.
- Left side: Displays the subtotal mileage, total
mileage. Press key 2 to realize mileage switchover;
Long press key 2 to clear the mileage.
- Right side: Displays battery voltage value. The
reading range of the voltmeter is (16 ~ 32) V.
Normal voltage shall be between (24-28) V. If it is
lower than 22V or higher than 30V, the charging
system shall be checked and repaired in time.
Main menu
Only the LCD screen in high configuration has
the main menu operation function. It can only be
used when parking.
- The selection of the items on the LCD screen can
be realized by pressing button 1 and button 2.
Long press the button: the pressing time is longer
than 1.5s.
Short press the button: the pressing time is
50ms~1.5s.
- Long press button 1 to enter the main menu
interface, short press button 1 to select up and down,
and short press button 2 to enter the sub-menu or
select.
- The main menu is divided into two areas: upper
and lower. The upper part is the menu item display
area, and the lower part is the auxiliary area.
First Automobile First Partner
2 Historical information of fuel
consumption
3 Fuel leakage information
1 Engine Fault Information
The system is free of fault
