Lift-rite Pst23 Manual

Owner’s Manual, Operating

Instructions Manual, and

Replacement Parts Manual

Lift-Rite Hand Pallet Trucks

Model PST23

This publication, 1233611/001F, applies to the Lift-Rite Hand Pallet Truck, Model PST23 and to all subsequent

releases of this product until otherwise indicated in new editions. Changes occur periodically to the

information in this publication.

To order additional copies of this manual, part number 1233611/001F, contact your local authorized Lift-Rite

Sales and Service Center.

If you need assistance with your lift truck, contact your local authorized Lift-Rite Sales and Service Center.

For more information please visit www.liftrite.com.

TABLE OF CONTENTS

BEFORE YOU BEGIN 2

DELIVERY INSPECTION 2

OPERATING INSTRUCTIONS 2

SAFETY PROCEDURES 4

DAILY INSPECTION 4

MAINTENANCE 5

LUBRICATION 5

TROUBLESHOOTING 6

Chassis 7

Signs, Warnings, Decals 11

Hydraulic Module 13

Hydraulic Pump Module 17

RECYCLE YOUR OLD LIFT-RITE PARTS 20

HAND PALLET TRUCK WARRANTY 21

SELECTED OSHA REGULATIONS FOR LIFT TRUCKS 22

BEFORE YOU BEGIN

Always follow your facility’s rules regarding wearing Personal Protective Equipment such as safety

shoes and protective glasses whenever operating, working with, or assembling or dismantling

hand pallet trucks.

DELIVERY INSPECTION

Visually inspect the hand pallet truck frame components and hydraulic unit for damage during

shipment by the carrier. If damage is evident, notify the delivering carrier immediately and file the

necessary claims. Test the hand pallet truck pump for proper operation.

If the hydraulic pump does not respond to movement of the handle, an air lock may have

developed during shipping. To remedy this, go to the user friendly TROUBLESHOOTING

guide in this manual.

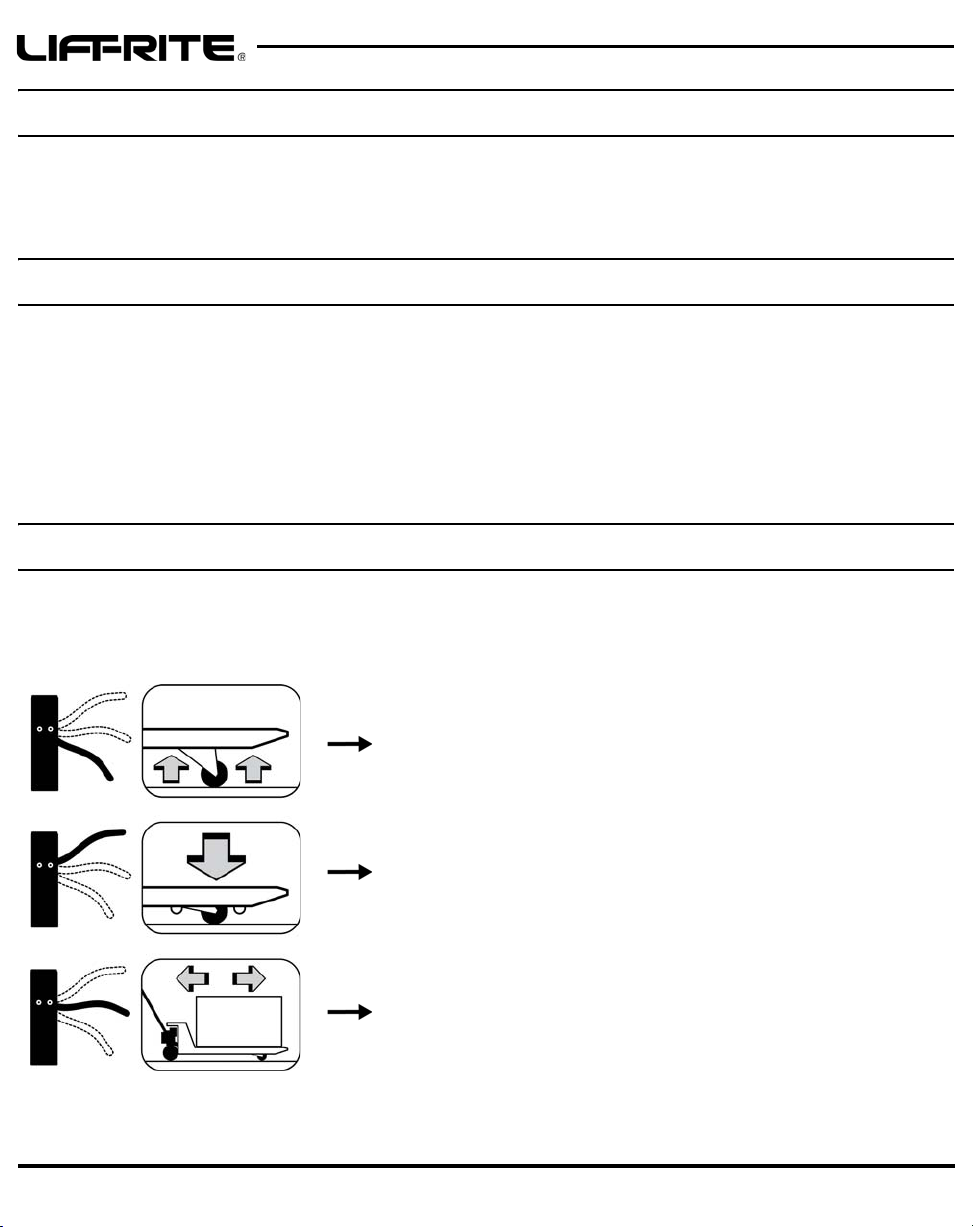

OPERATING INSTRUCTIONS

(Read and understand prior to using this product)

Do not use the PST23 in wet environments or in places with extreme temperature variations.

To raise the load, push

down on the fingertip

control. Pump the

handle to raise the load

from the floor.

NOTE:

The neutral position

disengages the pump from

the lifting mechanism. This

frees the handle, which

makes pulling loads easier.

In addition, the pump is not

subject to shock pressures

while the hand pallet truck is

in motion.

To lower the load, pull

up on the fingertip

control.

For free handle

movement, place the

fingertip control in the

neutral position.

1. Before using the hand pallet truck, make sure that the

assist wire [B] is free from damage.

2. When required, inspect the condition of the start

assist wire and adjust wire tension [C].

3. Prior to using the start assistance feature, set the

hydraulic lowering handle [Item 1] to the neutral

position.

4. Move the start assistance lever up or down [Item 2]

depending on the travel direction. When moving the

lever down, be sure to first release the catch [Item 3].

5. When not using this feature, set the start assistance

lever to the neutral position [Item 4].

WARNING! - Energy released in control handle.

Incorrect use may result in injuries and damage to the hand pallet truck.

Never use the start assistance feature to brake the hand pallet truck. When the

hand pallet truck is moving, never set the start assistance lever to the opposite

position of the travel direction.

Risk of pinching. Never put your finger under the locking catch.

Additionally, never hold the hands around the start assistance link arm.

6. Clean and lubricate the start assistance assembly inside in case of malfunction (blocking/

seizure of wheels and/or handle).

SAFETY PROCEDURES

(Read and understand prior to using this product)

• Read and obey all labels on this product. If you have any questions about these, ask your

supervisor.

• Do not operate this hand pallet truck unless you are authorized and trained to do so.

• Never overload your hand pallet truck. Stay within its rated capacity.

• Do not operate this hand pallet truck if damaged or not in proper working order.

• Distribute the load evenly on the forks. Do not concentrate loads at one point or load one fork

more than the other.

• When the load impairs visibility, the hand pallet truck should be pulled and not pushed.

•Alwayslook where you are operating. Keep a clear view.

• Only handle loads on flat level surfaces. Do not use a loaded hand pallet truck on inclines or

declines.

• Never carry passengers.

• Never put your feet, hands, or any other body part under the frame assembly.

• Always yield right of way to pedestrians.

• Do not allow your hand pallet truck to drop from one level to another. Even a drop of 1 in.

(25 mm) more than doubles the effective load momentarily and results in a loading that can

bend or break components.

• Move loads only with the hand pallet truck in its lowest position.

•Alwaysmake sure that the load is stable before moving to eliminate the opportunity for load

shift.

• Use extreme care when rounding corners. Too fast a speed could cause a hand pallet truck to

tip. If loaded, the load could shift and fall.

• When not in use, fully lower the forks.

DAILY INSPECTION

At the start of your shift, check the items listed below. Report any malfunction or unsafe conditions

to your supervisor. Do not use this product until it is repaired.

CHECK

POINTS Steering

Hydraulic

System Wheels

Chassis/

Handle

Lifting/

Lowering Labels

ACTION Check full

rotation

Check for

excessive oil

on exterior

and check for

function

Check for wear,

damage, and

remove debris

Check for

damage and

remove debris

Check for

function

Check for

readability

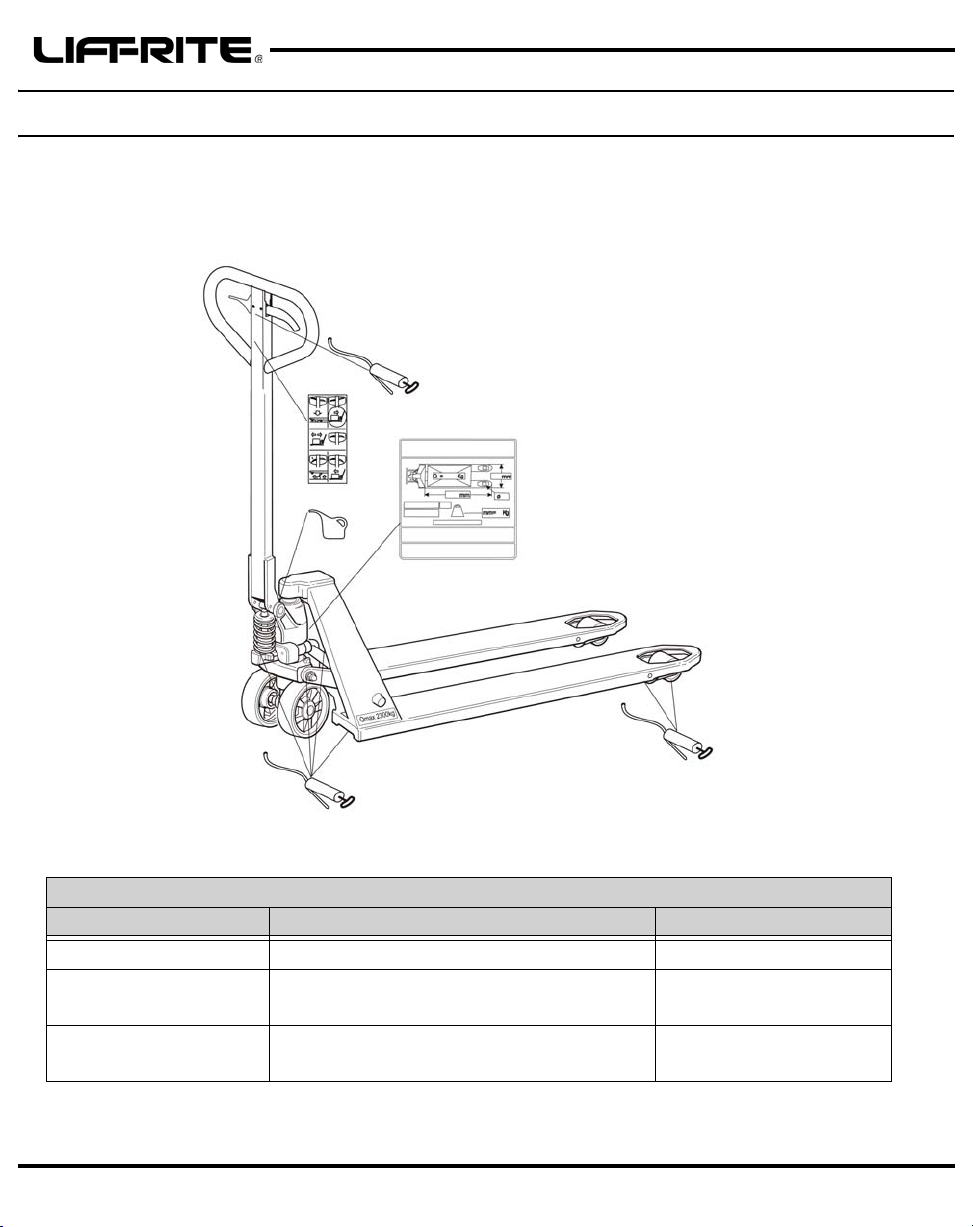

MAINTENANCE

LUBRICATION

Always lubricate the hand pallet truck after washing according to the example lubrication diagram

and table.

OIL AND GREASE SPECIFICATION

Lubricant Specification Product Name

Grease OKQ8 Rubens WB

Hydraulic Oil

(>5°F or >-15°C)

ISO-VG32 Hydraulic Oil 32

Hydraulic Oil

(<5°F or <-15°C)

ISO-VG27, 5 Statoil 131

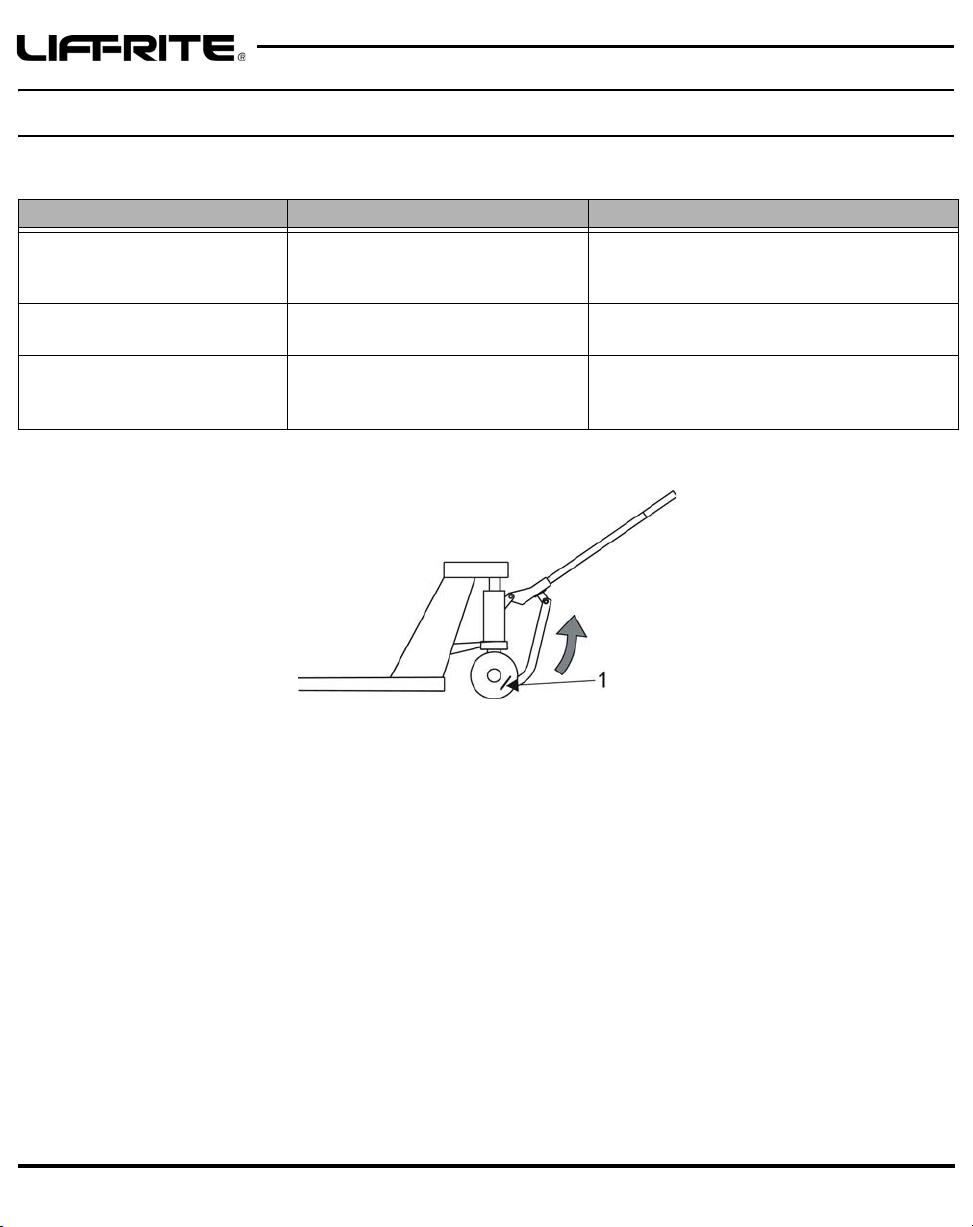

TROUBLESHOOTING

CONDITION POSSIBLE CAUSE ACTION

Lifting or the start assistance

feature does not work

satisfactorily

Lifting and start assistance have

both been selected

Reset the unneeded function (lifting or

start assistance) to the neutral position

Start assistance does not

engage when required

The wire has too much tension Adjust wire tensioning using the

adjustment screw

The start assistance wire is

broken

Overloading Return the clamp loop (1) to the neutral

position for emergency travel and

replace the wire

Chassis

Chassis (Cont’d.)

ITEM NO. QTY PART NUMBER DESCRIPTION

1 1 47156 Axle, Torsion Tube, (19 in./480 mm), (20.5 in./520 mm)

1 47157 Axle, Torsion Tube, (27 in./685 mm)

148053 Axle, Torsion Tube, (15 in./370 mm), (16 in./410 mm),

(18 in./450 mm)

2 1 22128Z Pin, Locking

3 2 134753 Ear

2 47135 Ear

4 2 134752 Ear

5 2 47110 Bracket

6 2 21385Z Screw

7 2 47151 Spacer

8 2 47150 Wheel

9 2 20433Z Nut

10 420014Z Pin, Locking

11 2 159208 Plate

12 1159209 Clamp

13 2 20404 Washer

14 220184Z Screw

15 2 47167 Bushing

16 220001 Pin, Locking

17 2 30018 Bushing

18 2166701 Bolt, Arm, Complete

19 7 27662Z Nipple, Grease

20 164180 Tube, Torsion, Complete, (20.5 in./520 mm) Wide Truck

1 64183 Tube, Torsion, Complete, (27 in./685 mm) Wide Truck

21 430023 Bushing

22 2 20013Z Washer

23 2109566-091 Rod, Push, Complete, (36 in./910 mm) Frame

2 109566-107 Rod, Push, Complete, (42 in./1070 mm) Frame

2157213 Rod, Push, Complete, (48 in./1220 mm) Frame

24 2 167600 Wheel, Complete, Nylon

2167609 Wheel, Complete, Polyurethane

25 4 PL-20214 Bearing

26 247133 Axle

27 2 47134 Axle

28 4254165Z Wheel, Complete

29 4 51805 Bushing

30 2149466 Wheel, Fork, Complete

31 4 20001 Pin, Locking

38 447117 Bushing

39 1 159845 Clamp, Complete

40 2126131 Axle

41 2 27662Z Nipple, Grease

ITEM NO. QTY PART NUMBER DESCRIPTION

THIS PAGE LEFT BLANK INTENTIONALLY

Signs, Warnings, Decals

Signs, Warnings, Decals (Cont’d.)

ITEM NO. QTY PART NUMBER DESCRIPTION

11 2PL-20501 Sign

12 1 212436 Sign

15 2177219 Sign

16 2 177215 Sign

17 2177097 Sign

Hydraulic Module

Hydraulic Module (Cont’d.)

ITEM NO. QTY PART NUMBER DESCRIPTION

Hydraulic Module (including Control Handle and Wheels)

1 1 7501909 Control Handle

2 2 208455 Wheel, Complete, Powerthane

11 1 214770 Handle

12 1211059 Axle

13 1 211057 Catch

15 423112Z Rivet

16 1 216338 Lock

18 220065Z Ball

19 1 54140 Sleeve

20 1218182 Spring

21 1 173765 Handle

24 1215775 Bar, Valve

25 1 20173Z Ring, Locking

26 121094Z Nut

27 1 7500086 Axle

28 220014Z Pin, Locking

30 2 20461Z Pin, Locking

31 147930 Axle

32 1 22108Z Bushing

33 120105Z Pin, Locking

34 3 22444Z Guide

35 1211402 Wire, Complete

36 2 20207Z Ring, Locking

37 222547Z Washer

38 1 212907 Axle

39 121706 Bushing

41 1 211396 Arm, Lever, Complete

42 220524 Pin, Locking

43 2 208454 Axle

44 228341Z Screw

45 1 212208 Bracket

46 225699Z Nut

47 2 211008 Bushing

48 1212584 Driver, Complete

49 2 211061 Clamp

50 2156623 Cover

51 10 20184Z Screw

53 422226Z Bearing

54 2 214750 Ring, Wheel

55 2227128 Lever, Direction

56 2 212777 Screw

57 8211083 Screw

58 2 212256 Spring

59 1202755 Roller, Complete

60 2 20896 Bushing

61 220019Z Ring, Locking

62 1 220310 Axle

63 1212436 Sign

64 1 227129 Hub, Complete, Right

1227130 Hub, Complete, Left

ITEM NO. QTY PART NUMBER DESCRIPTION

THIS PAGE LEFT BLANK INTENTIONALLY

Hydraulic Pump Module

Hydraulic Pump Module (Cont’d.)

ITEM NO. QTY PART NUMBER DESCRIPTION

Hydraulic Pump Module

12 1 227083 Hydraulic Unit

13 1215030 Piston

14 1 215092 Plate, Pressure

15 121737 Ring, Locking

16 1 27662Z Nipple, Grease

17 220001 Pin, Locking

18 1 213056 Ball, Bearing

19 1220312 Pin, Locking

20 1 20065Z Ball

21 1215288 Washer

22 1 22032Z O-Ring

24 147071 Spring

25 1 7500100 Wiper

27 17500116 Piston

28 1 20065Z Ball

29 1223935 Valve, Cone

30 1 39106 Spring

31 1235545 Washer

32 1 221586 Screw

33 1215866 Seal

34 1 21060Z Ring, Sealing

35 1215286 Piston

36 1 227090 Spring

37 1215282 Washer

38 1 20043Z Ring, Locking

39 1215803 Sleeve

40 1 20642 Ring, Locking

41 120066Z Seal

42 1 215867 Seal

54 121094Z Nut

55 1 220312 Pin, Locking

56 1215128 Arm, Lowering

64 1 20014Z Pin, Locking
