FAZUA RIDE 60 User manual

March 2022
SERVICE MANUAL
ENGLISH

Service Manual | English
. FAZUA RIDE ...................................................................................................................... 
. FAZUA RIDE .................................................................................................................... 
. FAZUA Services.................................................................................................................. 
. FAZUA error analysis.......................................................................................................... 
. Dangerous goods...............................................................................................................
. FAZUA Toolbox diagnostics software basics ...................................................................
. FAZUA Toolbox user interface...........................................................................................
. FAZUA Toolbox menus.......................................................................................................
. FAZUA App & Connectivity ................................................................................................. 
TABLE OF CONTENTS PART I – BASICS
TABLE OF CONTENTS PART II - FAZUA TOOLBOX ADVANCED

SERVICE HANDBOOK
ENGLISH
Fundamentals

Service Handbook | English
Main menu
3
TABLE OF CONTENTS
. FAZUA RIDE ........................................................................................................ 
. About FAZUA and RIDE  .................................................................................................... 
. The components of the RIDE  Drive System..................................................................... 
. RIDE  FAQs ....................................................................................................................... 
. FAZUA RIDE ...................................................................................................... 
. About RIDE .....................................................................................................................
. Advantages of the RIDE  Drive System ...........................................................................
. Use of the RIDE  Drive System ........................................................................................
. RIDE  FAQs ..................................................................................................................... 
. FAZUA Services.................................................................................................... 
. Your FAZUA Service ........................................................................................................... 
. Service handling ............................................................................................................... 
. Services for end customers.............................................................................................. 
. Responsibility for material defects .................................................................................. 
. Care, storage, and transport............................................................................................. 
. Service check at -month intervals ................................................................................ 
. Useful tips......................................................................................................................... 
. FAZUA error analysis............................................................................................
. Diagram for fault analysis................................................................................................. 
. Visual troubleshooting...................................................................................................... 
. Dangerous goods .................................................................................................
. Hazardous goods transport .............................................................................................. 
. Commercial storage of batteries ...................................................................................... 
. Handling faulty batteries.................................................................................................. 

4
English | Service Handbook
Main menu
1. FAZUA RIDE 60
1.1 About FAZUA and RIDE 60
FAZUAGmbHspecializesininnovative,compactdrivetechnologiesandconceptsforaesthetic,agileandlighte-bikes.
The company was founded in 2013 with the vision of establishing a new riding culture – through minimalist,
intuitive products that promote the natural feeling of riding and thus get more people excited about riding.
Today, more than 40 renowned bike manufacturers trust in the forward-looking technology of the young,
diverse FAZUA team. Development, design and production take place at the company's site in Ottobrunn near
Munich.
With the FAZUA RIDE 60, FAZUA GmbH presents an overall system that creates a particularly agile, natural
and virtually silent riding experience with its combination of power, intuitive operation and lightness. Across
all categories: RIDE 60 is the ideal support for smart commuters, enduring gravel bikers and demanding
e-mountain bikers.
The FAZUA RIDE 60 amplifies the muscle power dynamically and, at the same time, in optimum doses so that
the motor support blends in naturally with the motion sequence. The FAZUA driving experience is unique - and
this continues in the intuitive operation of the system.
THE HIGHLIGHTS OF THE FAZUA RIDE 60 DRIVE SYSTEM
Outstanding power-to-weight ratio – light and powerful
The FAZUA RIDE 60 DRIVE UNIT is particularly light, weighing just 1.96 kg for the motor, gearbox
and sensors, and very powerful with 60 Nm of torque, without sacrificing reliability. This
combination allows for handling as natural as you would expect from non-motorized bikes –
with all the benefits of an e-drive. The best of both worlds and therefore even more riding fun!
Natural driving feel – almost silent, smooth support
More sensors and optimized software enable the perfect symbiosis of driver:in and drive.
The FAZUA RIDE 60 Drive System is powerful enough to tackle the crunchiest climbs (easily)
and at the same time so natural that you quickly forget you're riding an e-bike.
Elegant integration – all components fit aesthetically and compactly into the overall system
FAZUA cooperated closely with bike manufacturers in the development of the RIDE 60 Drive
System. The primary goal was the perfect integration of the DRIVE UNIT into the respective
frame. This was achieved with a compact, rigid and stable motor mount. Less overall weight,
an elegant design and ultimately a better driving experience are the result!
Intuitive operation – minimalist, ergonomic control element
RIDE 60 is controlled via the minimalist FAZUA RING CONTROL on the handlebar. This fits
perfectly into the reduced design of the overall system, which gives all bike manufacturers
freedom of design. FAZUA does without a display, as all essential information can be read via
the elegantly integrated LED HUB in the top tube.
Sustainability – short distances
over 80% of the components come from the EU

Service Handbook | English
Main menu
5
FAZUA RIDE 60 IN NUMBERS
Torque: 60Nm
Peak power output: 450 W **
Weight (motor): 1.96kg
Weight battery (removable): 2.3 kg *
Weight of battery (fixed): 2.2 kg *
Battery capacity: 430Wh
Voltage: 43V
Interfaces: ANT+ / Bluetooth (BLE) / USB-C
Connectivity: FAZUA App for Android and iOS
Riding modes: 3
Walk assist: Yes
* Compatible with 3A charger
** only with boost function

6
English | Service Handbook
Main menu
FAZUA DRIVING MODES
Three preset riding modes can be selected to customize the support*. They are fully customizable via the
FAZUA App. With the boost function, the support can be increased to 450 watts for a short time, regardless
of which mode you ride in.
Breeze: Smooth and constant tailwind even at low pedaling power.
River: Progressive and very sporty mode. The strength of the support precisely follows the
pedaling power: The stronger the pedal, the stronger the support from the motor.
Rocket: Powerful support that helps to overcome the steepest climbs even with moderate
pedaling power.
* Basic settings depending on bike model
With medium support of 250 watts you get about 140 km or 1600 hm.

Service Handbook | English
Main menu
7

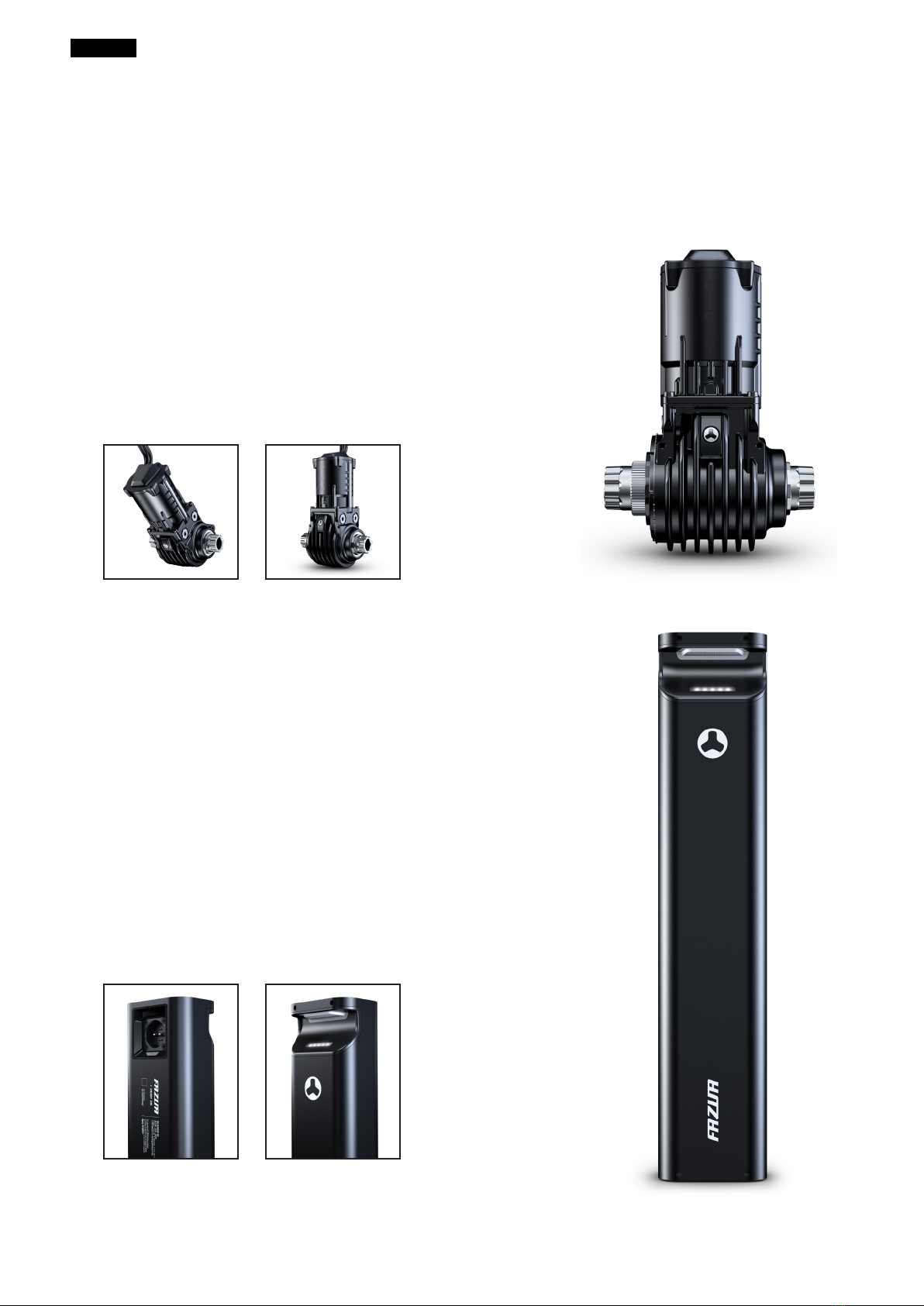

1.2 The components of the RIDE 60 Drive System
The RIDE 60 Drive System has been tailored to the needs of riders:in every detail.
The sum of the individual parts creates the particularly natural FAZUA driving experience.

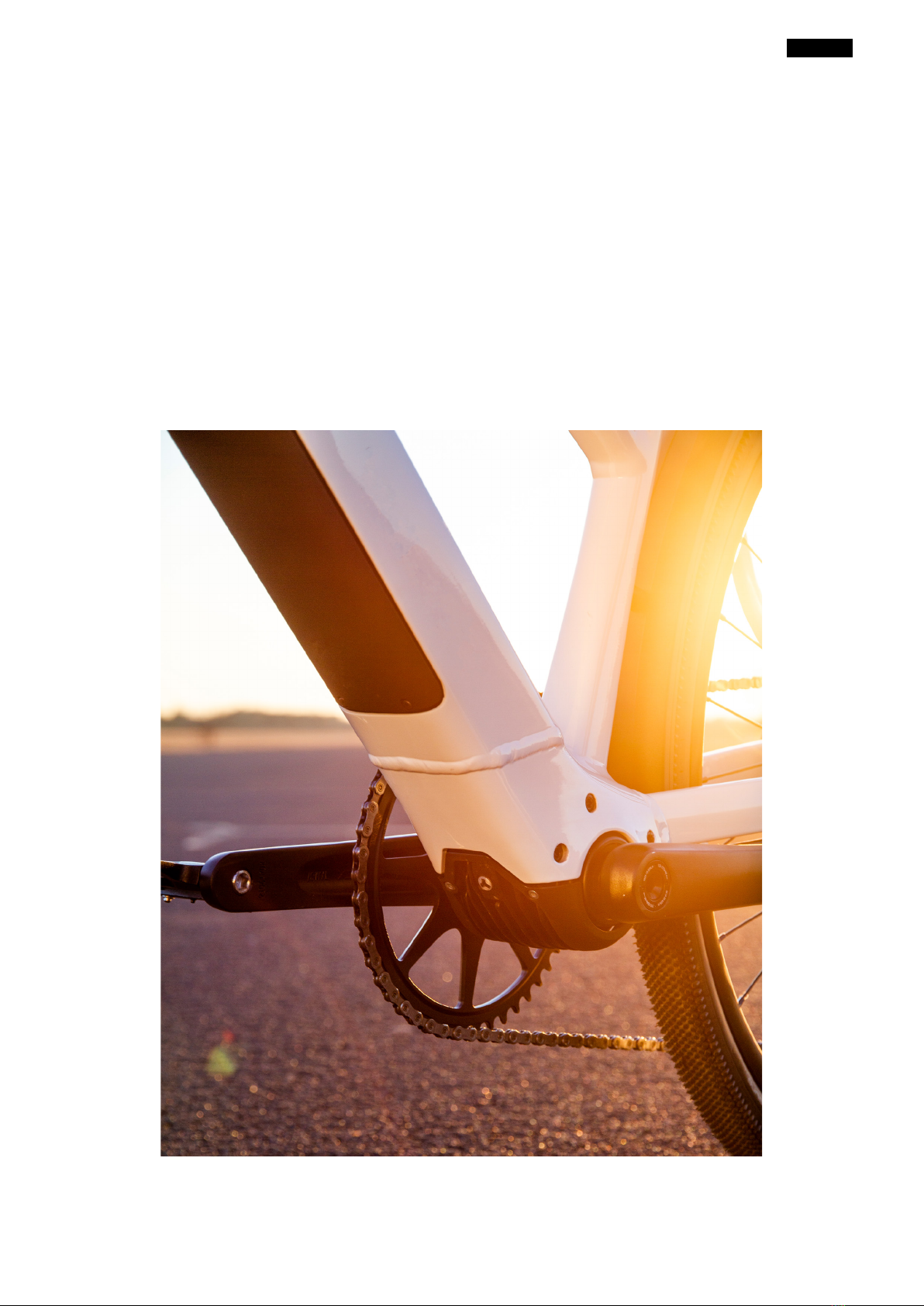

FAZUA RIDE 60 DRIVE UNIT
THE HEART
The RIDE 60 DRIVE UNIT is the heart of the system. It combines
motor, gearbox, bottom bracket and sensor technology. At the
same time, it is light and quiet, powerful and compact – and
inspires with its natural driving feel. The DRIVE UNIT weighs
just 1.96 kg and can be elegantly integrated into the frame
thanks to its compact dimensions.
FAZUA ENERGY 430
THE ENERGY STORAGE
An optimum cell arrangement in a chic casing results in a
compact battery for long tours. Weighing only 2.3 kg, the
removable 430 Wh energy storage unit has an integrated
handle for easy handling. The battery is held in the frame by
a lightweight and user-friendly stainless steel rack. When
moving the bike, the battery is automatically switched on
Weight
1.96 kg / 4.3 lbs
Weight
2.3 kg / 5.1 lbs
Energy storage
430Wh

8
English | Service Handbook
Main menu

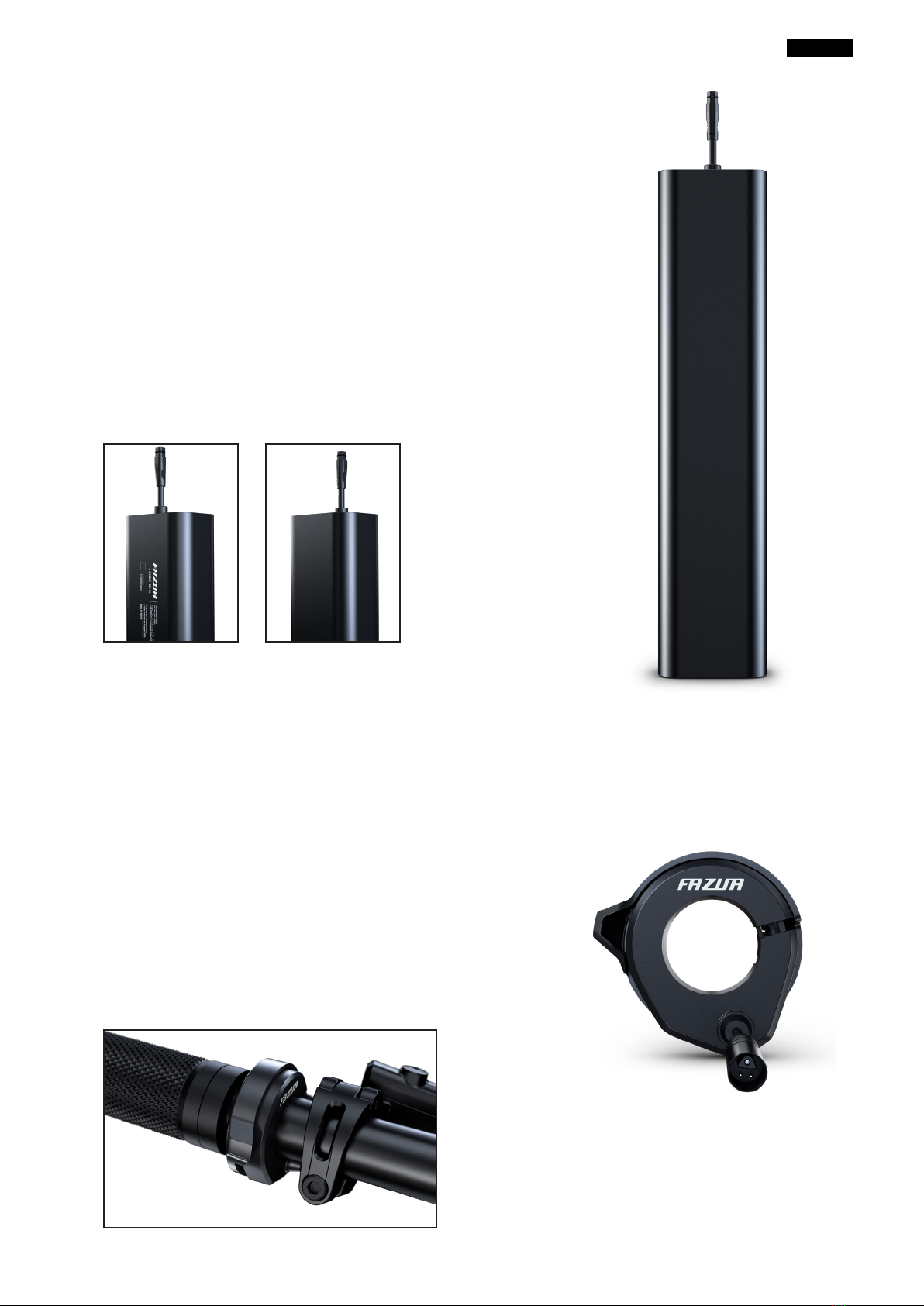

FAZUA ENERGY 430 FIX
THE ENERGY STORAGE
EvenmorecompactandlighterthantheEnergy430istheEnergy
430 fix. At only 2.2 kg, it allows for an even more integrated
frame solution. When moving the bike, the battery is
automatically switched on
FAZUA RING CONTROL
THE INTUITIVE OPERATION
The minimalist RING CONTROL on the handlebar can be operated
extremely intuitively. Here, the driver selects the driving
mode, operates the walk assist or switches on the light.
The view can thus always remain focused on the path.
The RING CONTROL can only be used in combination with the
LED HUB.
Weight
2.2 kg / 4.9 lbs
Energy storage
430Wh

Service Handbook | English
Main menu
9
FAZUA LED HUB
THE VERSATILE BAR
TheLEDHUBinthetoptubeinformswithfivecoloredLEDsnotonly
about the charging status and the selected riding mode. It also
hasaUSB-Cchargingoptionforthesmartphoneorbikecomputer.
The interface for ANT+ and Bluetooth (BLE) is also located
here.
FAZUA CONTROL HUB
THE SMART ALTERNATIVE
The CONTROL HUB combines the functions of the FAZUA LED
HUB and the FAZUA RING CONTROL. The ergonomic control
element allows you to adjust the driving modes, displays all
relevant information and has an ANT+, Bluetooth as well as
USB-C interface.
1.3 RIDE 60 FAQs
If you have any questions about the FAZUA RIDE 60 drive system, we have prepared a questionnaire HERE that
will clear up most of the inconsistencies.

10
English | Service Handbook
Main menu
2.FAZUA RIDE 50
2.1 About RIDE 50
The RIDE 50 drive is based on the idea of Johannes Biechele, founder and managing director of FAZUA. His goal
was to develop a kind of new drive system that makes it possible for e-bikes to look like classic bikes and
allows for a natural ride. Thanks to their talented international team as well as the support of a strong investor
community, FAZUA succeeded in further developing the RIDE 50 Drive System to the series production stage
within 3 years and entering the market with well-known manufacturers from the bike industry.
The modern and flexible FAZUA Drive System is constantly being optimized. RIDE 50 STREET and TRAIL is the
evolution of our EVATION drive and is 100% compatible with it. While the RIDE 50 EVATION is the one-fits-all
solution and the RIDE 50 STREET is made for the road, the RIDE 50 TRAIL is suitable for all off-road categories.
The new FAZUA RIDE 50 Drive System is a true performance update with 10% more power, increased engine
efficiency and a 6% weight reduction. The sound has also become more natural and pleasant. We also added
a screwless USB cap to our TRAIL and STREET DRIVEPACKs to simplify updates with FAZUA Toolbox Software.
We have adapted the cooling of the DRIVEPACKs to the respective terrain. The RIDE 50 STREET uses airflow
cooling while the RIDE 50 TRAIL uses radiant cooling.
RIDE 50 STREET
Air stream cooling
RIDE 50 TRAIL
Radiant cooling
Its innovative design means that, even when servicing is required, a bike fitted with a RIDE 50 drive can still
be used as a conventional bike. In addition, FAZUA provides a direct support service for end customers and
supports their retail partners with interactive tools in order to minimize maintenance and servicing work on
drives.
In new developments of the RIDE 50 product family, great importance is attached to backward compatibility.
As a result, the user is always able to upgrade their e-bike with the newest products. Moreover, product
quality is extremely important to FAZUA. They regard product quality as a holistic process. In addition to the
selection of high-quality materials and components, this also includes outstanding workmanship, which is
why the company specifically chose the Munich area for their location. The RIDE 50 Drive System’s production
facilities, as well as the development department, have been located on the company premises in Ottobrunn
since 2017.
2.2 Advantages of the RIDE 50 Drive System
WEIGHT
At only 4.4kg/9.7lbs. (EVATION with 4.6 kg / 10.2 lbs.), RIDE 50 is the lightest and most compact drive
system in its class. The system’s low overall weight means you get the same riding enjoyment and dynamics
of a bike without a motor.

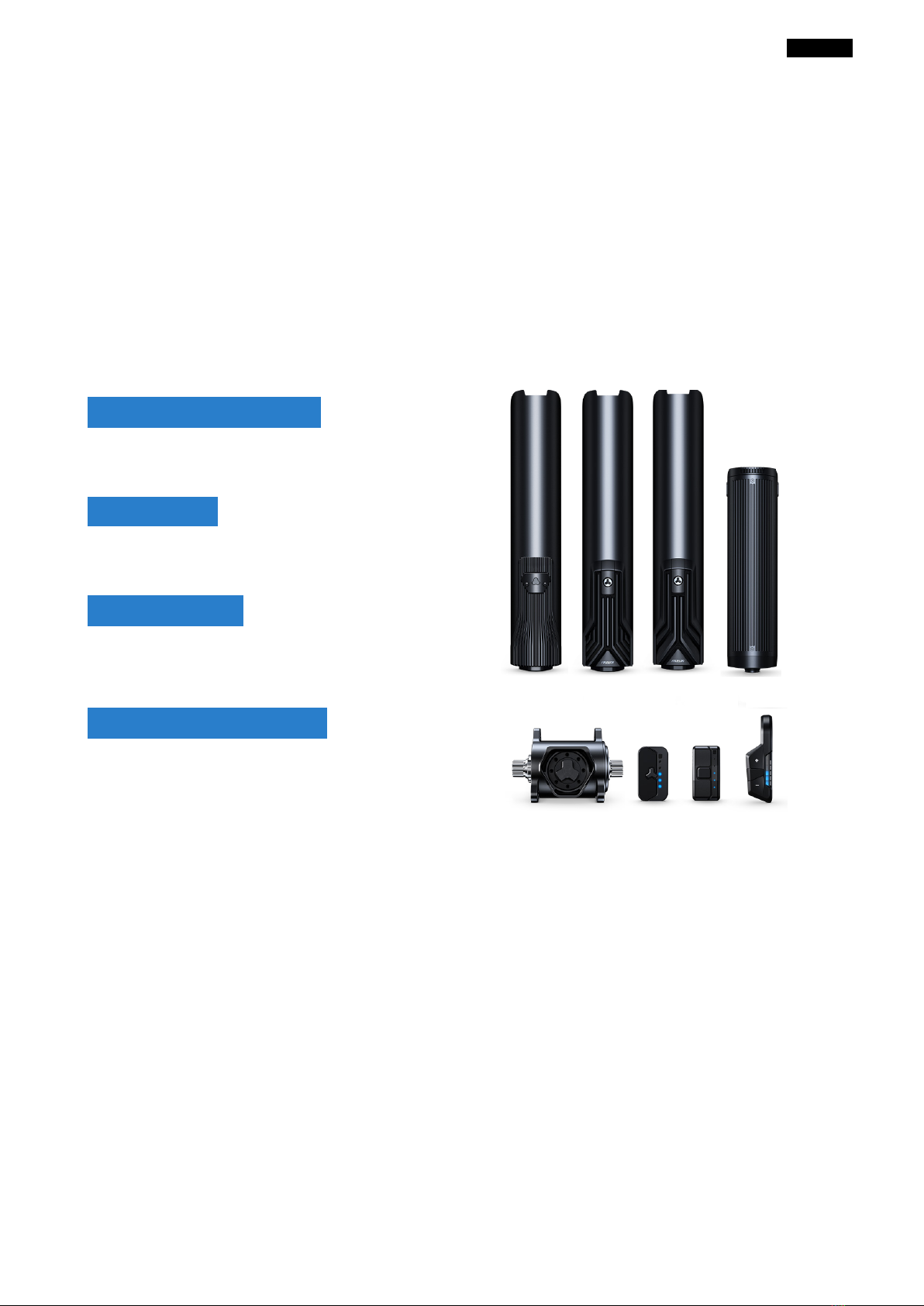

Dual-sided torque and cadence measurement
BOTTOM BRACKET G2
1.2 kg / 2.6 lbs
58Nm
DRIVEPACK
Removable motor and battery unit
1.8 kg / 4.0 lbs
250W
Replaceable lithium-ion battery
ENERGY 250X
1.4 kg / 3.1 lbs
252Wh
Three support levels
REMOTE FX / BX / RX
BREEZE
RIVER
Up to 350 W boost ROCKET
MODE

Service Handbook | English
Main menu
11
RIDE 50 STREET
Air stream cooling
RIDE 50 TRAIL
Radiant cooling
Its innovative design means that, even when servicing is required, a bike fitted with a RIDE 50 drive can still
be used as a conventional bike. In addition, FAZUA provides a direct support service for end customers and
supports their retail partners with interactive tools in order to minimize maintenance and servicing work on
drives.
In new developments of the RIDE 50 product family, great importance is attached to backward compatibility.
As a result, the user is always able to upgrade their e-bike with the newest products. Moreover, product
quality is extremely important to FAZUA. They regard product quality as a holistic process. In addition to the
selection of high-quality materials and components, this also includes outstanding workmanship, which is
why the company specifically chose the Munich area for their location. The RIDE 50 Drive System’s production
facilities, as well as the development department, have been located on the company premises in Ottobrunn
since 2017.
2.2 Advantages of the RIDE 50 Drive System
WEIGHT
At only 4.4kg/9.7lbs. (EVATION with 4.6 kg / 10.2 lbs.), RIDE 50 is the lightest and most compact drive
system in its class. The system’s low overall weight means you get the same riding enjoyment and dynamics
of a bike without a motor.

12
English | Service Handbook
Main menu
DESIGN
Thanks to its innovative design and the technology behind it, the drive system can be elegantly integrated
into the down tube. Therefore, the e-bike, at first glance, looks like an ordinary bike and is not recognizable
as an e-bike.
FEEL OF THE RIDE
FAZUA combines the natural feeling of riding with the advantages of an e-bike: The dual-sided torque and
cadence measurement in the bottom bracket ensure that the drive is fully adapted to the rider’s needs.
One step on the pedal and the motor starts! Direct response and tactful start. Depending on the mode, you
get a gentle push or a powerful starting aid to get you up to speed more quickly and easily.
Breeze: sensitive and smooth acceleration.
River: more powerful but still natural acceleration.
Rocket: strong and noticeable acceleration.
The motor automatically switches off over 25km/h (20mph). The integrated freewheel is designed in such
a way that you can reach top speeds on your own and without unnatural resistance. As soon as you fall
below the 25km/h (20mph) limit, the motor will automatically provide support once again.
With the Boost function , you can increase your power to 350W for a short time, regardless of which mode
you are in.
FLEXIBILITY
You can deactivate the system at the touch of a button and use it as a conventional bike without any
pedaling resistance. You can remove the DRIVEPACK and battery in one simple movement: This allows you
to quickly and easily convert the bike to a pedelec and back again. The down tube cover elegantly seals off
the gap in the down tube.
RANGE
The RIDE 50 software represents improved handling with more constant motor performance and increased
efficiency. The range of your battery depends on many factors and cannot be defined in generally applicable
values. The parameters of your own riding behavior, tire choice, external environmental influences, weight,
speed, and selected support mode all influence the range.
In River mode you could, for example, cover a fast road bike ride with 1400 Hm / 75 km or a
varied mountain bike tour with 600 m altitude difference / 50 km
In Breeze mode you could increase your road bike ride to 120 km.
In Rocket mode you could, for example, cover up to 850 Hm or a bike ride up to 30 km.
SOFTWARE
Our software is programmed in such a way that the motor provides gentle support when starting up.
The motor switches off just as smoothly at over 25 Km/h.

Service Handbook | English
Main menu
13
SERVICE
While the DRIVEPACK is being repaired, e-bikes with our down tube cover can still be used as ordinary bikes.
The components can be disassembled very quickly.
2.3 Use of the RIDE 50 Drive System
CADENCE
We have significantly optimized the cadence range: This provides you with noticeably more motorized
support even at higher cadence. No matter if you ride with 60 rpm on a steep uphill on a mountain bike or
with 100 rpm on a road bike, you will always get even support.
Cadence range: 55-125 rpm
TORQUE
Our drive system has torque measurement on both sides: This means the more power you apply to the
crank, the more support you get back.
INDIVIDUAL
With our Customizer (Toolbox or App), you can adjust the support relation, the ratio between rider
performance and motorized support, according to your customer’s wishes, so that the perfect mode is
available for a wide variety of terrain and riding situations.
Breeze: Gentle, constant and 100 W* strong tailwind even at low rider power.
River: Progressive and very sporty mode, for a smooth riding experience. The strength of the
support precisely follows your own power. If you ride casually, the motor only provide minor
support. If you pedal harder, the motor provides more support (210 W*).
Rocket: Aggressive support that helps you to tackle the steepest sections even with moderate
driver power (250 W*)
*Default setting

14
English | Service Handbook
Main menu
ENERGY 250X
We have deliberately kept our battery small and light: For a particularly long ride, you can simply pack a
replacement battery in the ENERGY bag.
After 8h, the ENERGY 250X will automatically enter a "deep sleep" mode, but can be conveniently
turned on and off via the FAZUA REMOTE BX, FX or RX (the ENERGY 250 must be manually turned
back on). It is no longer necessary to remove the battery to do this.
The ENERGY 250X can only be charged with the original FAZUA CHARGER.
At approx. 15-20% remaining capacity, support performance is deliberately reduced to prevent
you stopping abruptly.
2.4 RIDE 50 FAQs
If you have any questions about the FAZUA RIDE 50 drive system, we have prepared a questionnaire HERE that
will clear up most of the inconsistencies.
3.FAZUA Services
3.1 Your FAZUA Service
With our wide range of services, the FAZUA service team will ensure you’re well prepared for your customers.
With help from FAZUA, you’ll become an expert in dealing with our drive systems. We will help you personally
with any service requests during this time.
Thanks to our intuitive diagnostics software (FAZUA Toolbox), a personal contact person and short set-up
times for the system components, servicing can be carried out quickly and efficiently. Which means you are
able to use your valuable time for the day-to-day running of your store.

Service Handbook | English
Main menu
15
3.1.1 SERVICES FOR DEALERS
Maintenance
B2B dealer portal
Teleservice
Online shop
Newsletter
Field support
Training courses
Online tutorials
Remote diagnostics
MAINTENANCE
In the event of a drive system fault that cannot be solved by a firmware update or a simple repair in your
workshop, FAZUA will carry out the repair of the defective components. Before disassembling a component,
always consider the phases of service processing.
B2B DEALER PORTAL
You can easily access the dealer portal by registering your company on our website. Here you will find
information about our drive systems and of course all content about service, such as our contact form,
video tutorials, technical documents, and much more.
TELESERVICE
Contact the FAZUA service team to ensure that returns are handled smoothly and for help with any questions
related to the our drive systems. You can find our contact information in Chapter "3.2 Service handling"
ONLINE SHOP
If you would like to order spare parts, simply log in to our online shop (EU only; dealers from Switzerland
order directly from Ampere-Plus). You can access the online store via the B2B dealer portal on our website.
NEWSLETTER
Our newsletter is not a form of advertising, but rather a way to inform you about firmware updates and new
products so that your e-bike with one of our drive systems is always up to date. You are already registered
for the newsletter with your FAZUA B2B account.

16
English | Service Handbook
Main menu
FIELD SUPPORT
Our FAZUA Field Support experts are here to help you in the field. They conduct technical training, keep
you up to date on all things FAZUA and give you valuable sales tips. To make sure they come to your store,
simply go to our B2B portal & request a visit from your assigned Field Support representative.
IN-PERSON TRAINING COURSES / ONLINE TRAINING COURSES
To make dealing with our drive systems as easy as possible, we always offer you various training options:
With our in-person training courses we invite you to take part in our annual training tour. Here you will get
to know our drive systems in up close and personal with our service experts and therefore get all service-
relevant information. This way you too become an expert and can offer your customers first-class service.
Dates and training locations can be found online in the B2B portal. If you can’t find a suitable in-person
training course for your purposes, you can also become a certified FAZUA Certified Partner through an
online training course. You can find all the details on our offers on our website.
VIDEO TUTORIALS
In order to make assembly and disassembly of our drive components even easier, we offer various video
tutorials in addition to our written assembly instructions. These can be found in the FAZUA B2B portal. Here
you can follow the individual assembly processes step by step and improve your service handling.
TEAMVIEWER
If necessary, we can access your computer and the connected FAZUA Bike via TeamViewer and solve the
problem together with you.
3.1.2 CERTIFIED TRADING PARTNERS

Service Handbook | English
Main menu
17
Certified trading partners comprises all dealers who have completed an in-person or online training courses
and have been trained and certified by us. Become part of our dealer network and reap the benefits of being
promoted to our end customers.
As a FAZUA Certified Partner, you’ll enjoy a streamlined, hassle-free process when interacting with your
customers thanks to the Servicepartnership’s quick and easy approach to handling service cases. FAZUA
certified partners also receive a number of other benefits:
3.1.3 EXCLUSIVE ADDITIONAL BENEFITS FOR FAZUA CERTIFIED PARTNERS
Store included on the FAZUA dealer
map
FAZUA Toolbox - Advanced software
Dealer reimbursement
Exclusive promotional material
packages
Guaranteed repair turnaround time
at FAZUA of 48 h after arrival of the
component at FAZUA
FAZUA DEALER LOCATOR
As a FAZUA Certified Partner, you’ll be listed in our Dealer Locator with all your contact details. This
creates greater visibility for your business and we support you in both customer acquisition and
customer retention. It will therefore be easier for your existing and potential customers to find you
(https://fazua.com/en/support/dealer-locator/).
FAZUA TOOLBOX - ADVANCED
The FAZUA Toolbox is our diagnostics software, which plays a crucial role in the event of a fault. The software
allows you to:
Riding behavior characteristics can be set individually in the customizer. There are two
options: Simple selection of three presets per riding characteristic and an advanced option
for advanced users, where all settings can be adjusted precisely and transparently for each
riding mode.
Data transfer is exclusively available only in the Advanced toolbox. This allows e.g. the
exchange of service components and the update of the drive system to STREET / TRAIL
Adjusting the sensitivity of the touch surface of the REMOTE
View production data, usage data, live data, and settings
Run system checks and generate diagnostic reports
Implement firmware updates
Calibrate the torque sensor & motor control
You can find detailed instructions on how to use the FAZUA Toolbox in book section II. FAZUA Toolbox.

18
English | Service Handbook
Main menu
DEALER REIMBURSEMENT
To compensate you for your service costs, FAZUA will automatically transfer you a service allowance once
you‘ve sent us the defective component. The final amount of the dealer reimbursement depends on two
things: The actual component sent to us, and whether you‘re servicing an e-bike from your own store or
one from another dealer. This means that with FAZUA, it pays to work on e-bikes from other dealers, too!
For more information, please contact your local FAZUA service employee or visit the B2B portal.
SERVICE BUNDLE
As a FAZUA Premium Partner, you can get a service bundle via our online shop. This allows you to localize
defective components by carrying out a cross-check and these components can also be loaned to your
customers, meaning that they’ll still have a fully functioning e-bike while their components are being
repaired.
EXCLUSIVE PROMOTIONAL MATERIAL PACKAGES
After attending your training, as a dealer, you can purchase exclusive promotional material from our online
shop for your store. Visit the B2B portal for more information.
FAZUA PREMIUM PARTNER
Become a true FAZUA expert where your customers can expect top-notch service, in-depth product
knowledge and test drive opportunities.
We reward your commitment with many benefits: Among other things, we offer you a 5% discount in the
B2B store on all items, free promotional material and regular visits from our field service.
To provide your customers with the best possible service experience, you should meet the following
points**:
Test drive opportunities
Use of the free advertising material
Attendance of a live training 1x per year
Service offer for all e-bike brands with a FAZUA Drive System
At least 2 brands with FAZUA Drive System must be offered
Use of the Service Bundle (just RIDE 50)
**These requirements are necessary for obtaining the Premium Partnership.

Service Handbook | English
Main menu
19
3.1.4 OVERVIEW OF FAZUA’S SERVICES
OUR SERVICES FAZUA DEALER FAZUA CERTIFIED
PARTNER
FAZUA PREMIUM
PARTNER
Direct telephone contact via our
dedicated dealer hotline X X X
Regular online and in-person training
courses X X X
Repair turnaround time of 48 hours X X
Toolbox Software End customer
version
Certified Partner
version
Certified Partner
version
Business is displayed in the FAZUA
dealer map X X
Increased visibility in the FAZUA
dealer map X
5% discount on all items in the
online store X
Special conditions on advertising
materials 20% discount 100% discount
Service bundle 100% discount
Regular visits from Field Service X
Sponsored marketing campaigns X
3.1.5 BECOME A FAZUA CERTIFIED PARTNER
Log in to our dealer portal or create a new dealer account
Choose one of our two certification options:
LIVE TRAINING ONLINE TRAINING
Practical & theoretical parts
Registration required
Online training with videos & quizzes
Flexible learning
Sign the FAZUA Certified Partner Agreement and confirm your new certified trading partnership
Show your customers that you’re a FAZUA Certified Partner: Affix the FAZUA Certified Partner
sticker you receive from us to your store window so people can see the logo from the outside.
Your FAZUA Servicepartnership is valid for 24 months from the date of certification. After
this time, your B2B account will be automatically switched back. You can easily renew your
partnership by completing another in-person or online training course.
