FDS FD932DVD-LP-3 User manual

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 1 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Installation and Operation Manual
FD932DVD-LP-3
Low-Profile DVD/CD/MP3 Player
FD932DVD-LP-3-AV
Low-Profile DVD/CD/MP3 PLAYER with AUDIO/
VIDEO INPUTS

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 2 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Specification
DVD
FD932DVD-LP-3
FD932DVD-LP-3-AV
Technology
Low Profile DVD/CD/MP3 Player
Low Profile DVD/CD/MP3 Player
with Audio/Video Inputs
Native Resolution Refresh
Rate
>500 lines, horizontal
measurement
>500 lines, horizontal
measurement
Audio Outputs
Standard Left / Right 2X
Standard Left / Right 2X
Audio Outputs (Volts)
2V P-P
2V P-P
Video Signal
NTSC or PAL
NTSC or PAL
Video Output
(1) Composite
(1) Composite
Video Output Signal (Volts)
1.0V P-P
1.0V P-P
Playback Media
DVD/SVCD/VCD1.0, 2.0 (micro
laser Video/Audio disc), CD-DA
(common music laser CD), MP3
audio disc
DVD/SVCD/VCD1.0, 2.0 (micro
laser Video/Audio disc), CD-DA
(common music laser CD), MP3
audio disc
MPEG4 Support
Div X3.11/4.02/5.02/5.03/5.05/
Div X Pro/XviDSubtitles .srt.sub
Div X3.11/4.02/5.02/5.03/5.05/ Div
X Pro/XviDSubtitles .srt.sub
Video Format
MPEG1 and MPEG2
MPEG1 and MPEG2
Multiple Language Option
On Screen Menu (DVD Supports
up to 32 language captions)
On Screen Menu (DVD Supports
up to 32 language captions)
Power
Power
28 VDC
28 VDC
Inrush Current
2.0 Amps @ 700µS
0.35 Amps steady state After >2mS
2.0 Amps @ 700µS
0.35 Amps steady state After >2mS
Environmental
Conditions
Operating Temperatures
-10º- +60ºC
-10º- +60ºC
Storage Temperatures
-20º - +70ºC
-20º - +70ºC
Dimensions
External
7.09”(W)x1.00”(H)x7.82”(D)
7.09”(W)x1.96”(H)x7.82”(D)
External w/ Mounting
Brackets
7.96”(W)x1.00”(H)x7.82”(D)
8.73”(W)x1.96”(H)x7.82”(D)
Weight
2 lbs 9 oz.
2 lbs. 10 oz.
Materials
Aluminum, Steel
Aluminum, Steel
Features
Menu Control
Supplied Infrared Remote with
additional 3.5MM I.R. Cable
Assembly supplied for external
remote access.
Supplied Infrared Remote with
additional 3.5MM I.R. Cable
Assembly supplied for external
remote access.

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 3 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Connectivity
PRODUCT
CERTIFICATIONS
INPUTS
OUTPUTS
COMMUNICATION
PMA
VGA
Infrared Port
COMP
AUDIO
SD CARD
USB PORT
SDI
VGA
AUDIO
COMPOSITE
HDMI
DVI-D
SD-SDI
HD-SDI
3G-SDI
RS232
RS485
CONTROL
CAN
IR REMOTE
FD932DVD-
LP-3

1
1
1
1
1*
1
FD932DVD-
LP-3-AV

1
1
1
1
1
1
1*
1
* = NTSC or PAL (Depending on the Disc)
Qualified
Testing
RTCA DO-160
Section 21 Category B
Similarity Testing with Parent
Package
RTCA DO-160G
Section 4.5.3
Section 4.5.4
Section 4.5.2
Section 8.5.1, Cat S, Curve M
Section 7.2
Section 7.3.1
Section 26

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 4 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Table of Contents
General Information....................................................................................................5
Features .......................................................................................................................5
Additional Information............................................................................................ 5-6
Installation Instructions..............................................................................................6
Precautionary Statement............................................................................................6
Video Wiring ................................................................................................................7
Composite and Audio Wiring.....................................................................................7
Power and Ground Wiring..........................................................................................8
Remote Eye..................................................................................................................9

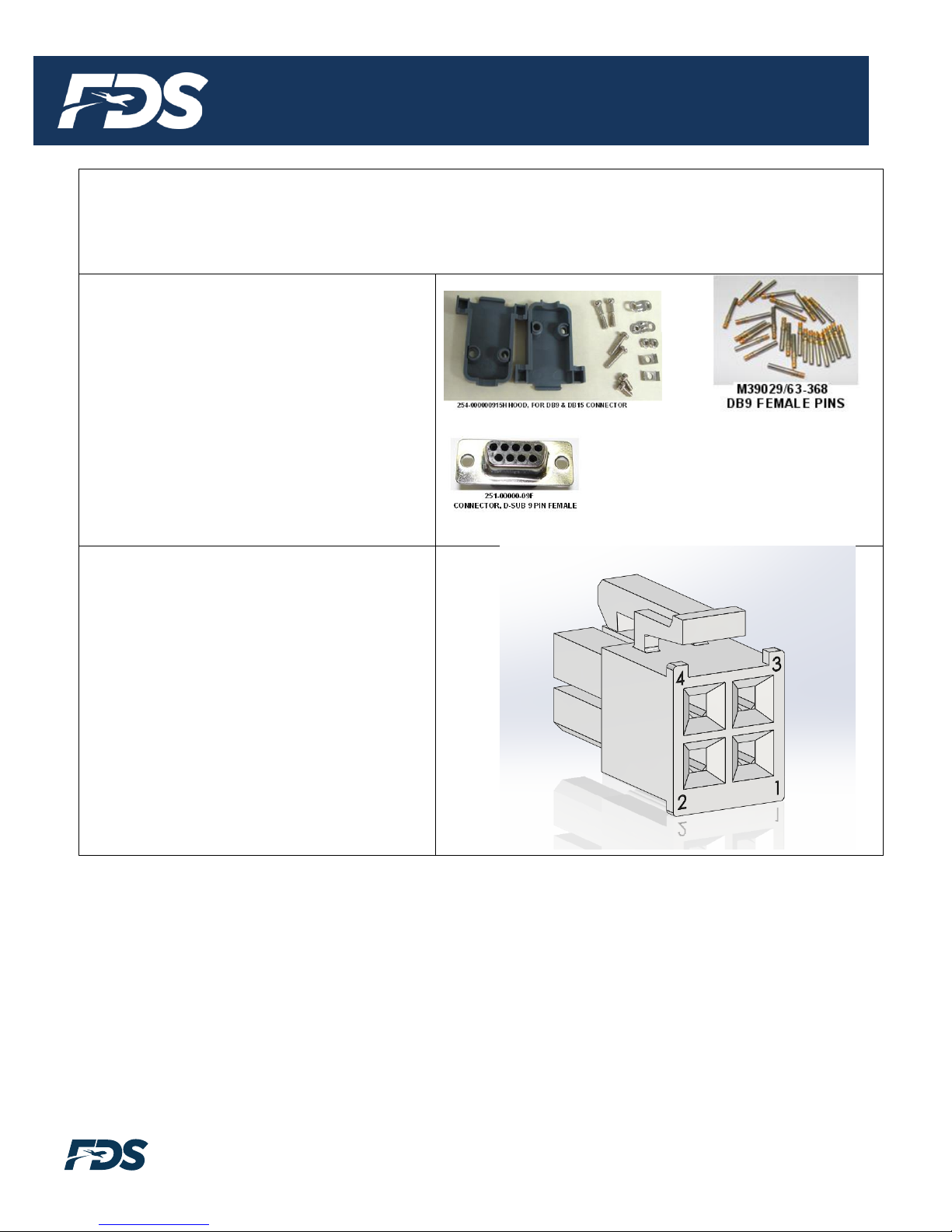

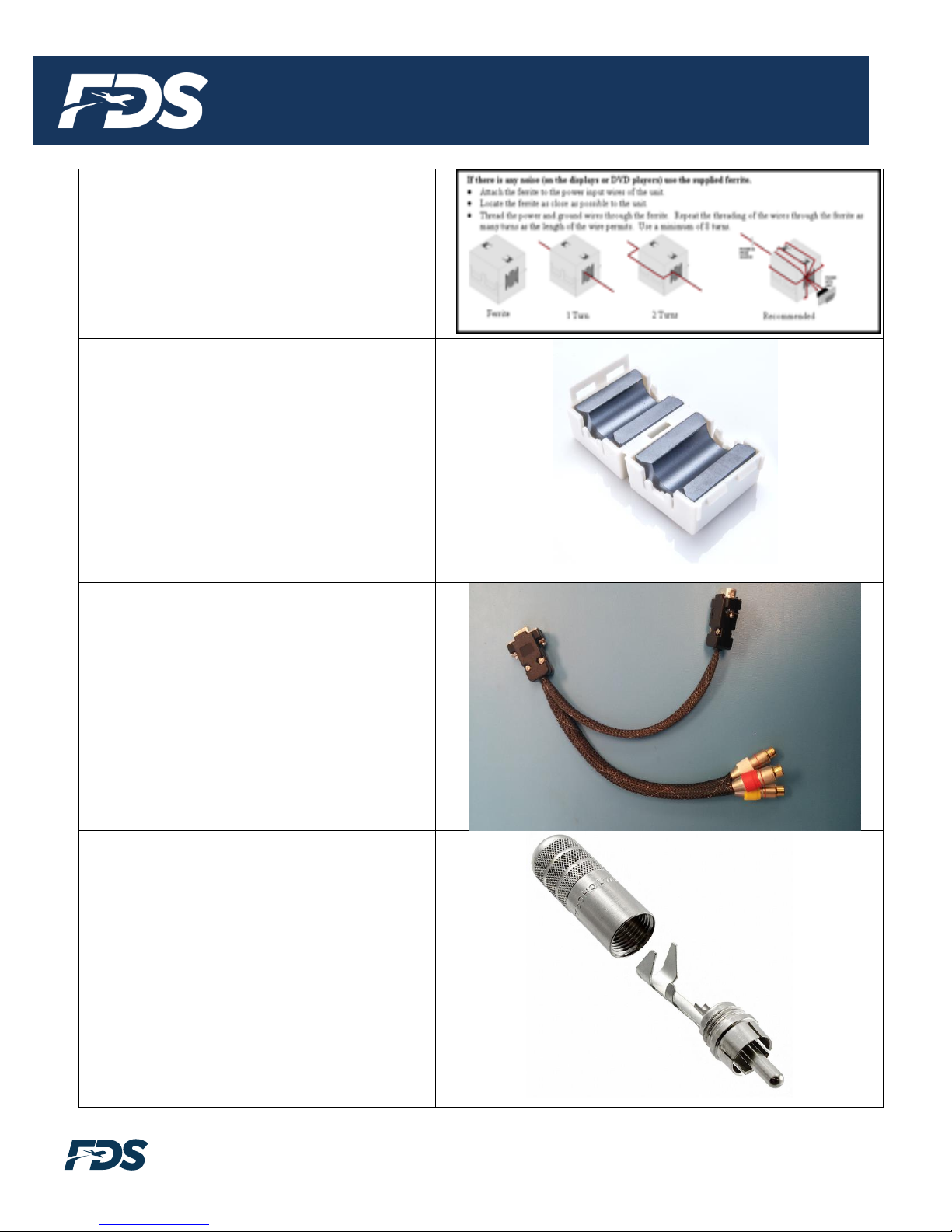

Ship Kit Items ...................................................................................................... 10-12
Operating Instructions..............................................................................................13

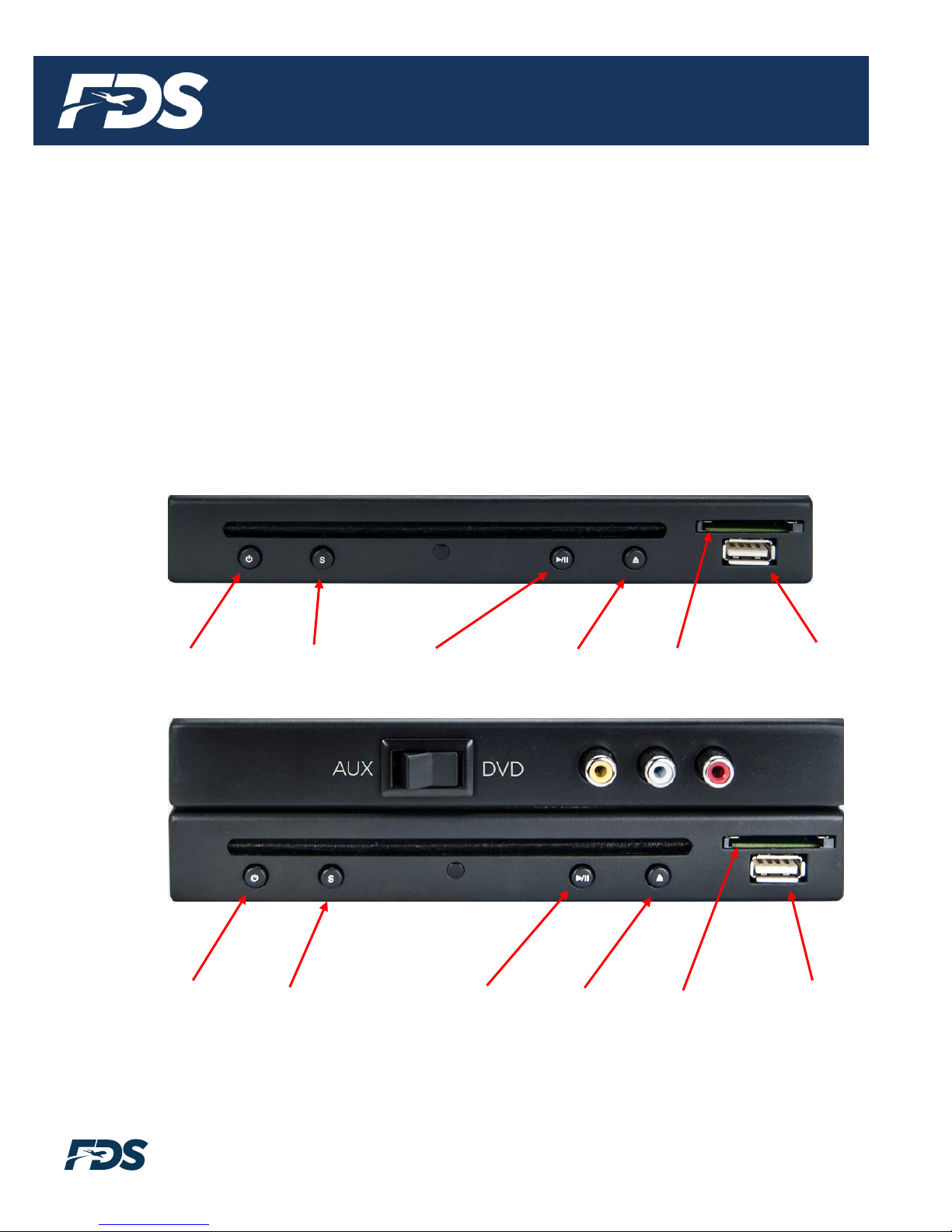

Device Button Controls ............................................................................................13
Remote Control Buttons...........................................................................................14
Remote Control Index......................................................................................... 15-16
Auxiliary Panel Switch..............................................................................................16
User Menu Screens (System Setup).................................................................. 17-22
Program Settings for a CD/MP3/Picture CD...................................................... 23-24
Program Setting for a DVD Disc......................................................................... 25-26
Program Setting for Audio, Picture, and Video ......................................................27
USB & SD Card Video Files......................................................................................28
Technical Drawing............................................................................................... 29-30
Technical Support/Airworthiness............................................................................31
Warranty.....................................................................................................................32
Log of Revisions .......................................................................................................33

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 5 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
General Information
The FD932DVD-LP-3 (-AV) are DVD players that play music and videos. In addition,
the unit also allows the user to view pictures and/or videos via the USB and SD Card
ports located on the front panel of the player. A switch on the front allows the user to
select between the DVDplayer and the auxiliaryinput. The selected source is then output
to a monitor, speakers or Cabin Management System via composite video and analog
stereo audio output.
Features
Compatible with DVD/CD/SVCD/VCD/MP3
Back-Lit Front Panel Buttons
USB/SD Media Player
Full Function Remote Control
The FD932DVD-LP-3-AV is designed as a replacement for the popular FDS Avionics
Corp. FD932DVD-4B. Like the FD932DVD-4B, AV inputs are provided on the front of
the unit for connecting an external video or audio source.
Drop in Replacement for obsolete FD932DVD-4B
Easy Acess RCA inputs (front panel or DB-9 Optional Breakout Cable)
Additional Information
The FD932DVD-LP-3(-AV) must be controlled with the included remote. Navigate by
utilizing the direction arrows and other buttons on the remote.
The FD932DVD-LP-3(-AV) can be used to charge small portable electronic devices
when the player is in USB mode. To enable this feature the user must plug in the USB
device and then use the remote control to select USB as the input device. The
FD932DVD-LP-3(-AV) cannot play a DVD while the device is charging a connected
USB device. The USB port can charge devices with up to a 5 Watt charge current
requirement (Apple iPhone, iPod, small Android, etc.). It will provide a slow/trickle
charge for 10W iPads. The FD932DVD-LP-3(-AV) can play music, video and pictures
from a thumb drive connected to the front panel USB connector. It cannot play
content stored on an iPad or other PED through the USB port.

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 6 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Additional Information (Cont)
FD932DVD-LP-3(-AV) will read the entire contents of the USB or SD card before
opening the file display window. This window will display all folders on the left and the
folder contents will be displayed on the right. The FD932DVD-LP-3(-AV) will always
play the first song on the SD Card or Thumb Drive upon starting. The unit will default to
the latest media plugged in (IE, If a thumb drive is plugged in after an SD Card, the
DVD player will default to the thumb drive or Vice Versa). It does not recognize the last
song played when turned off. The FD932DVD-LP-3(-AV) can support SD cards up to
2GB in size.
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-LP-3-AV, should be
installed on a non-essential bus and have a dedicated circuit breaker. It is necessary
that a switch be installed in the cockpit so that the pilot can de-energize the
entertainment system should it become necessary.
Precautionary Statement
In order to prevent damage to the FD932DVD-LP-3(-AV), please follow the following
precautions:
Do not open and/or disassemble the unit
Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD)
Do not use sharp objects (such as pens, pencils, ice pick, etc.) to operate the
buttons
9
1

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 7 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Video Wiring Suggestions
Avoid routing video wiring parallel to:
AC wiring
Strobe wiring
DC motor supply cables
Inverter cabling
Or any other potential noise source
Composite and SDI Video Wiring
The recommended cable for both composite and SDI is PIC 75 Ohm Coax, P/N
V75268. This is a lightweight, flexible, and low signal loss cable which meets FAA
flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well. Some aircraft
are prone to AC noise - we recommend adding to the composite source a 75 Ohm
video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1
(www.deerfieldlab.com, [phone]). In most cases this should be added to the
video output of the source.

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 8 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Power and Ground Wiring
The rated current of the equipment and associated voltage drop should be taken into
consideration when selecting wire gauge. The following example is based on an install with a
28VDC power system, 1.5 amp equipment load and a total of 50 feet of wire between the circuit
breaker, monitor and ground.
Example: 22awg wire has 16.2 Ohms per 1000 feet, this equates to .81 Ohms for 50 feet. 1.5
Amp of current on .81 Ohms will drop 1.22 Volts.
Resistance of Wire Type M22759/16-**
(** = Gauge)
Gauge (AWG)
OHMS/1000’
24
26.20
22
16.20
20
9.88
16
4.81
12
2.02
10
1.26
8
.701
Also, use short heavy gauge wire and a clean tight connection for ground.
It is the installer's responsibility to understand the product's requirements in order to install the
product in compliance with industry standards and safety.

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 9 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Remote Eye
The FD932DVD-LP-3(-AV) has an available remote IR sensor (“remote eye”) that
can be used to accept remote signals in addition to the main unit. For instance, the
remote eye can be mounted near a monitor, to allow both the monitor and the DVD
player to be controlled by pointing the remote at the same spot. Please note that the
IR Port on the front panel will remain functional whether or not you use the remote
eye.
The remote IR extension cable can be extended 5 feet from the FD932DVD-LP-3(-
AV).

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 10 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
SHIP KIT ITEMS
PRODUCT –FD932DVD-LP-3
PRODUCT –FD932DVD-LP-3-AV
SHIPPING MATERIALS
(1) SHIPKIT-DB9F-Connector
This shipkit contains:
(1) 254-00000-0915H Hood for
DB09 Connector
(1) 251-00000-09F Connector, D-
SUB, 9 Pin Female
(9) M39029/63-368 DB9 Female
Pins
(1) Label-PN –Part Number &
Description
(1) Connector Receptacle –4
positions, Dual Power
(251-00093-004)

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 11 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
(4) Contact, Female Terminal
18-24 AWG Tin
(252-00052-00)
(1) REMOTE CONTROL
(1) REMOTE IR EXTENSION
CABLE

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 12 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
(1) FERRITE INSTALL
(1) FERRITE
(240-2072-ND)
(1) Optional RCA Breakout
Cable
650-00056-01 (-AV Only)
(6) Connector RCA Plug with
Metal Backshell –Male
251-00011-00 (-AV Only)

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 13 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Operation Instructions
To power the unit up, press the power button. The unit will illuminate and an FDS
Avionics Corp. logo will be present on any attached monitor. Insert a CD or DVD into
the slot, with label side up (away from the controls, if mounted vertically). The CD or
DVD will load and automatically begin to play. The FD932DVD-LP-3(-AV) does not retain
the volume setting when powered down. When powered off either from the front panel
on/off button or from the aircraft, it powers to half volume.
Note: CDs and DVDs are recorded at different levels, so it is normal for DVDs to be
quieter than CDs at the same volume setting.
Device Button Controls
POWER SOURCE PLAY/PAUSE EJECT SD CARD USB
POWER SOURCE PLAY/PAUSE EJECT SD CARD USB

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 14 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Remote Button Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
REMOTE CONTROL INDEX
Menu PCB
1
While playing DVD, push this button to display the option menu included on this disc. This will
depend on type of disc being used. Push this button to shift PBC state. For DVD/SVCD disc,
when PCB is off, you should first push (stop) button, then (PCB) to switch to desired state.
Power
2
Push (Power) on the player, then insert a media disk.
Number
3
Number Buttons (0, 1-9) are used to enter numbers, e.g. No. of track, DVD chapter number,
time data, etc.
Subtitle
4
For DVD Discs, push (SUBTITLE) to select the language of caption, e.g. Press English once,
then the screen will display available language alternative.
Display
5
Push the button to display some data of time, e..g. the current playing time, remaining time,
etc.
Audio
6
Push this key to select the language of sound on the disc, push it once to change to another
language. (This operation works only for the disc with multi language audio).
USB
7
In DVD Mode, press (USB) button to select USB player, and press in again returns to original
status.
Setup
8
Press the setup button to enter SETUP menu. Highlight the desired ICON press ENTER
button to activate the setting sub menu.
Enter/Select
9
Push the ENTER button to execute the entered or the selected item.
Source
10
1. Push (SRC) button, the unit will turn to display the auxillary input. You can watch another
program or play a game console using this function.
2. Push (SRC) again, the unit will return to the DVD.
Volume
11
Push the volume buttons and to control the audio levels.

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 15 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Title
12
Push Title to display the title menu included in DVD disc. In the menu picture you can push
, , , , to move the cursor to define desired item, then push (ENTER) to select
the part to be played (or the sub-menu, this moment you can also push the same directional
buttons to move the cursors to define desired item, then (ENTER) to play).
Eject
13
Push the button once, the disc will be ejected from the slot; press it again and the disc will
be taken back into the slot.
Clear
14
Push the (CLEAR) button to erase any previous commands.
Slow
15
While playing, push (SLOW) to play the disc in slow motion. The (Slow) function has four
different speeds and can be both played forward or backwasrds. Push (SLOW) once, the
speed decreases by one shift, until finally it returns to normal state.
Program
16
Whether it works depends on the type of disc, push (PROGRAM) to enable users to change
the playing order.
Mute
17
Push (MUTE) to silence the sound of the player, press it again to return to normal state.
(Available to Analog Audio output signal only).
Repeat
18
Push this button to repeat chapter, Title & Disc.
Zoom
19
While playing a disc, use (ZOOM) to zoom in or out of the image. This function has six levels:
3x increasing, and 3x decreasing. The zoom function operates with each press of the button
x2, x3,x4 then ½, 1/3,1/4, then returning to normal size on the seventh pressing of the button.
Play/Pause
20
When the DVD player is in stop, pause, slow play, fast forward, fast reverse state, you can
push to resume normal playback. Push again,the DVD player will be paused, push again,
it will play normal speed.
Stop
21
While playing DVD, push the button once to pause playing. Push twice to completely stop
playing. Function works depending on type of disk.
Forward
22
Push this button to play fast forward. Press it once, the disc will forward at a new speed
and finally return to normal playing state.
Backward
23
Push this button to play fast backwards. Press it once, the disc will play backward at a new
speed and finally return to normal playing state.
Next
24
(Function depends on type of disc). While playing a DVD disc, push the button to skip to
the next chapter, while playing SVCD and other discs, push this button to skip to th next track.
Previous
25
While playing DVD disc, push the button to skip to previous chapter; while playing SVCD
and other discs, push this button to skip to previous track.

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 16 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Auxiliary Panel Switch
The FD932DVD-LP-3-AV has a toggle switch on the front panel. This switch allows the
user to source either the DVD player or the AUX input connections located on the front &
rear panels. Toggle the switch RIGHT to source the DVD player and LEFT to source the
AUX inputs. See Figure 1 below:
FD932DVD-LP-3-AV Toggle Switch AUX Inputs

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 17 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
User Menu Screens
Press the SETUP button on the remote to enter SYSTEM SETUP menu:
Main System Setup Menu

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 18 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
TV System –Select the correct TV System: NTSC - Used in the U.S. & Canada
PAL –Used in Europe & parts of Asia
AUTO –Auto detect correct system
While playing, if you find that the picture is not shown at full screen, partially
hidden, or black and white images occur, you will need to restart the
system. Please make sure you select the correct TV System.
Screen Saver –Can be turned off or on, user preference

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 19 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
HD TVs support both Interlace and Progressive scan methods
S-Video –Analog color video format
CVBS (Composite Video) –The connector is typically an RCA Jack (supplied)
TV Type –Adjusts the TV Aspect Ratio

Document Number:
MAN –FD932DVD-LP-3(-AV)
Rev:
C
Revision Date:
09/16/2016
Page 20 of 33
©2016 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Highlight “Password” selection, and press “enter” button. Type the 4 digit
password (0000) and “enter”. The rating lock is now released. Input the 4
digit new password. The password will be changed and the rating lock will
lock up after pressing the “enter” button.
Parental controls are set on this screen. The password must be known to
change the values.
