Quick Start Guide
Need help?
User Manual
See the user manual that came with your Philips recorder.
Online
Go to www.philips.com/support.
3Enjoy
Start playback
DVD Player/ Recorder DVDR3400
Connect
Set up
Enjoy
1
2
3
What’s in the box?
DVD Player/ Recorder
Remote Control
and 2 batteries
RF Coaxial Cable SCART Cable
User
Manual
PLAY/PAUSE
REC MODE
SOURCE USB
TOOLS
2006 © Koninklijke Philips N.V.
All rights reserved.
12 NC 3139 245 20781
www.philips.com
ARecording from the TV or an
external device (continued)
ETo end recording, press STOP . ‘UPDATE’
will be displayed on the recorder.
FTo playback the recording, press DISC MENU
DISC MENU
, select the title and press PLAY/PAUSE
.
BArchiving from a USB device
AInsert a recordable DVD disc in the tray.
BConnect the USB flash drive to the USB port on
the front panel of the recorder.
CPress TOOLS
TOOLS
to access the USB mode.
 Select { Copy to DVD } and press OK .
The USB content menu appears.
Archiving from USB to DVD
Directory Copy List
Japan trip
Bryan Bday
My songs
Hot Hits
Archiving from USB to DVD
Directory Copy List
Song1.mp3
Music.mp3
1
2
3
4
5
6
7
8
..\Move up directory
Music.mp3
1
2
CSelect the folder you want and press OK to
access the folder/ album.
DCreate a copy list, highlight the file you want to
copy and press SELECT .
The selected les will appear on the right
{ Copy List } screen.
To remove the le from the copy list, press
CLEAR
CLEAR
.
EOnce the copy list selection is complete, press
REC to start archiving.
A message will appear. Select
OK
in the
menu and press OK to proceed.
APress OPEN/CLOSE , load in a
disc and press OPEN/CLOSE
again.
BPress DISC MENU
DISC MENU
and use up S
or down Tkeys to select a title.
CPress PLAY/PAUSE to start playback.
DTo stop playback, press STOP .
Start Recording
ARecording from the TV or
an external device
AInsert a recordable DVD disc in the tray.
Types of discs for recording
DVD+R DL
BPress SOURCE repeatedly to select
the source to record from. (eg, TUNER,
CAM1, CAM2, DV, EXT1 or EXT2).
To record a TV programme, use
P+/-to scroll through the channels,
or press 0 -9 to select the
channel that you want to record.
CPress REC MODE repeatedly to select
the mode of record quality.
DPress REC to start recording, press
REC again to automatically record 30
minutes.

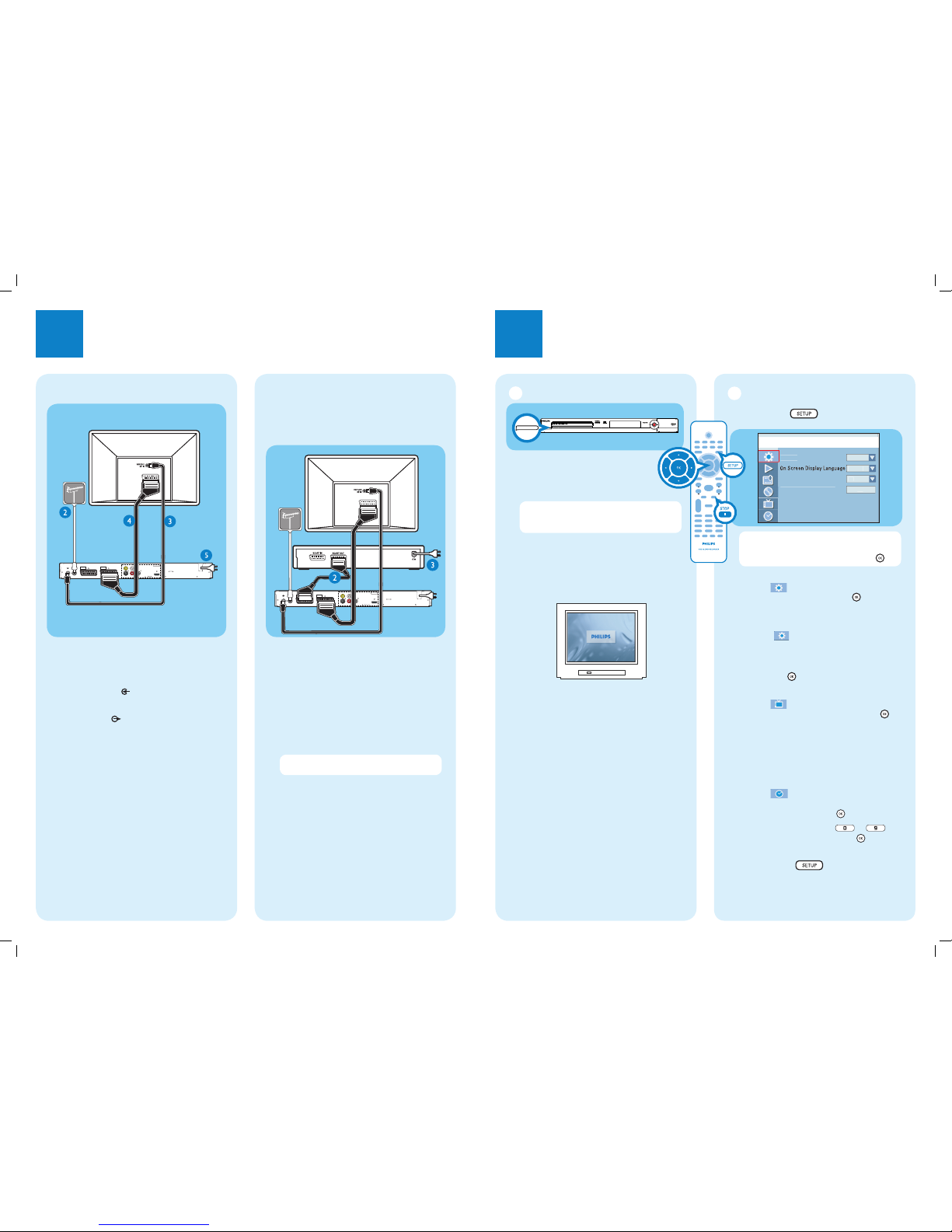

1Connect 2Set up
Start with the ‘Basic Connection.’
If you have a VCR, follow the instructions for ‘Connection with a VCR or similar device’.
COAXIAL
(DIGITALAUDIO)
VIDEO(CVBS)
S-VIDEO(Y/C) AUDIO
HDMI
R
L
~
MAINS
OUTPUT
OUT2
OUT3
OUT1
ANTENNA-IN
TV-OUT
TOTV - I/O
EXT1AUX- I/O
EXT2
SCART IN
Television (rear)
To antenna
or set-up
box
Philips recorder
(rear)
COAXIAL
(DIGITALAUDIO)
VIDEO(CVBS)
S-VIDEO(Y/C) AUDIO
HDMI
R
L
~
MAINS
OUTPUT
OUT2
OUT3
OUT1
ANTENNA-IN
TV-OUT
TOTV - I/O
EXT1AUX- I/O
EXT2
SCART IN
Philips recorder
(rear)
VCR or similar
device (rear)
AFollow the steps under ‘Basic Connections’
before you proceed to step Bbelow.
BUse another SCART cable (not supplied) to
connect the EXT2 AUX-I/O SCART socket
on this recorder to the SCART OUT socket on
the VCR.
CConnect the power cable from your VCR to an
AC power outlet.
Note In this setup, the VCR cannot record
TV programmes.
For additional connection diagrams, see
the accompanying User Manual.
Philips recorder (front panel)
AFinding the viewing channel
APress STANDBY-ON on the
recorder.
BSwitch on the TV set.
Note If connected to your VCR, make sure
it is switched off or in standby mode before
proceeding.
CIn case you do not see the recorder’s blue
wallpaper, press “0” and the Channel Down
button on the TV’s remote control repeatedly (or
AV, SELECT, °button) until you see this screen.
This is the correct viewing channel for the
recorder.
BInitial Installation
APress SETUP on the remote
control.
Countr
y
Screen Save
r
Restore Factor
y
Settin
g
s
Setu
p
Menu - Genera
l
German
y
En
g
lis
h
On
OK
Note Use up Sand down Tkeys to toggle
through the options. Select an item by pressing
right X. To conrm a setting, press OK .
BSelect the country of your residence.
Highlight and press right X.
Select { Country } and press OK to
confirm your selection.
CSelect the OSD language.

Remain in mode, select { On Screen
Display Language } and press right Xto
access the options.
Select the desired language option and
press OK to conrm your selection.
DSetup and install TV channels.
Highlight and press right X.
Select { Channel Search } and press OK
to start automatic TV channel search.
This process may take several minutes.
Once complete, the total number of
channels found and stored appears on the
TV.
ESet the date and time.

Highlight and press right X.
Select { Date (dd/mm/yy) } or { Time
(hh:mm:ss) } and press OK .
Use the numeric keypad 0 -9 to
input the date/time, then press OK to
conrm.
EPress SETUP to exit.
To AC
power
Basic Connection Connection with a VCR or
similar device
Your new Philips recorder replaces the VCR for your
recording needs. First, unplug all the connections from
your VCR.
STANDBY-ON
ABefore connecting, unplug the antenna cable
that is currently connected to your TV.
BConnect the antenna cable to the
ANTENNA-IN jack on the recorder.
CUse the supplied RF coaxial cable to connect
the TV-OUT jack on this recorder to the
Antenna In jack on the TV.
DUse the SCART cable to connect the EXT1
TO TV-I/O socket on this recorder to the
corresponding SCART input socket on the TV.
EConnect the power cable from the recorder to
an AC power outlet.
To AC
power
Television (rear)
To antenna
or set-up
box
