Installation and Operation Manual
FD932DVD-LP-2
Low-Profile DVD/CD/MP3 Player

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 2 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Table of Contents
General Information..................................................................................................3
Features.....................................................................................................................3
Front View.................................................................................................................3
Cautions....................................................................................................................3
Additional Information .............................................................................................4
Specifications ...........................................................................................................5
Installation Instructions...........................................................................................5
Power.........................................................................................................................5
Video Wiring Suggestions .......................................................................................6
S-Video/Composite and Audio Wiring....................................................................6
Power and Ground Wiring .......................................................................................6
Wiring .......................................................................................................................7
Option 1: Pinout for DB-9.........................................................................................7
Option 2: Molex Connector......................................................................................7
RCA Pinout............................................................................................................ 8-9
Remote Eye...............................................................................................................9
Ship Kit Items.................................................................................................... 10-11
Operation Instructions...........................................................................................12
Device Button Controls..........................................................................................12
Remote Button Controls........................................................................................13
USB & SD Cad Video Types...................................................................................14
Technical Drawing..................................................................................................15
Technical Support ..................................................................................................16
Instructions for Continued Airworthiness............................................................16
Warranty Information .............................................................................................17
Revisions Log.........................................................................................................18

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 3 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
General Information
Features
•Compatible with DVD/CD/SVCD/VCD/MP3
•Back-Lit Front Panel Buttons
•USB and SD card Media Player
•Full Function Remote Control
Front View
Cautions
In order to prevent damage to the FD932DVD-LP-2, please follow the following
precautions:
•Do not open and/or disassemble the FD932DVD-LP-2.
•Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD)
•Do not use sharp objects (such as pens, pencils, ice pick, etc.) to operate the
buttons

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 4 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Additional Information
The FD932DVD-LP-2 must be controlled with the included remote. Navigate by utilizing the
direction arrows.
The FD932DVD-LP-2 can be used to charge small portable electronic devices when the player
is in USB mode. User must plug in the USB device then use the remote control to select USB
as the input device. The FD932DVD-LP-2 cannot play a DVD while the device is charging a
connected USB device. The USB port can fast charge devices with up to a 5 Watt charge
current requirement (Apple iPhone, iPod, small Android, etc.). It will provide a slow/trickle
charge for 10W iPads. The FD932DVD-LP-2 can play music, video and pictures from a thumb
drive connected to the front panel USB connector. It cannot play content stored on an iPad
through the USB port.
FD932DVD-LP-2 will read the entire contents of the USB or SD card before opening the file
display window. This window will display all folders on the left and the folder contents will be
displayed on the right. The FD932DVD-LP-2 will always play the first song on the SD media
upon starting. It does not recognize the last song played when turned off. The FD932DVD-LP-
2 can support SD cards up to 2GB in Size.
The FD932DVD-LP-2 will always play the first song upon starting. It does not recognize the
last song played when turned off.
The SD card can read up to 2GB.

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 5 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Specifications
Material
Aluminum, Steel
Dimensions
7.160”(W) x 0.98 (H) x 7.09” (D)
Weight
2 lbs 8 oz
Playable Discs
DVD, VCD, Super-VCD, CD, and MP3
Video Output Resolution
>500 lines, horizontal measurement
Power
12VDC @ .50 AMPS
28VDC @ .25 AMPS
Video Signal
NTSC or PAL
Operating Temperature
0-50° C (32-122° F)
Video Output
(1) Composite
Audio Output
Standard Left/Right x2
Remote
IR, included
1/16” Jack for Wired Remote Sensor
Finish
Matte Black Finish
DO-160 Testing
SEC 21, CAT B
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-LP-2, should be installed on a
non-essential bus and have a dedicated circuit breaker. It is recommended that a switch
be installed in the cockpit so that the pilot can de-energize the entertainment system
should it become necessary.
Power
The FD932DVD-LP-2 requires 12VDC rated at a minimum of .50 Amps or 28VDC rated at
a minimum of .25 Amps to function.
The rated current of the equipment should be taken into consideration when selecting wire
gauge.
It is the installer’s responsibility to understand the product’s requirements and to install the
product in compliance with industry standards and safety.
9
1
7
1

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 6 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Video Wiring Suggestions
Avoid routing video wiring parallel to:
•AC wiring
•Strobe wiring
•DC motor supply cables
•Inverter cabling
•Or any other potential noise source.
S-Video/Composite and Audio Wiring
Recommended cable for s-video/composite and audio purposes is PIC 75 Ohm Coax, P/N
V76261. This is a lightweight, flexible, and low signal loss cable which meets FAA
flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
Some aircraft are prone to AC noise - we recommend adding to the composite source a 75
Ohm video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1
(www.deerfieldlab.com, [phone]). In most cases this should be added to the video
output of the source.
Power and Ground Wiring
22 AWG wire is recommended for Power and Ground applications.

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 7 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Wiring

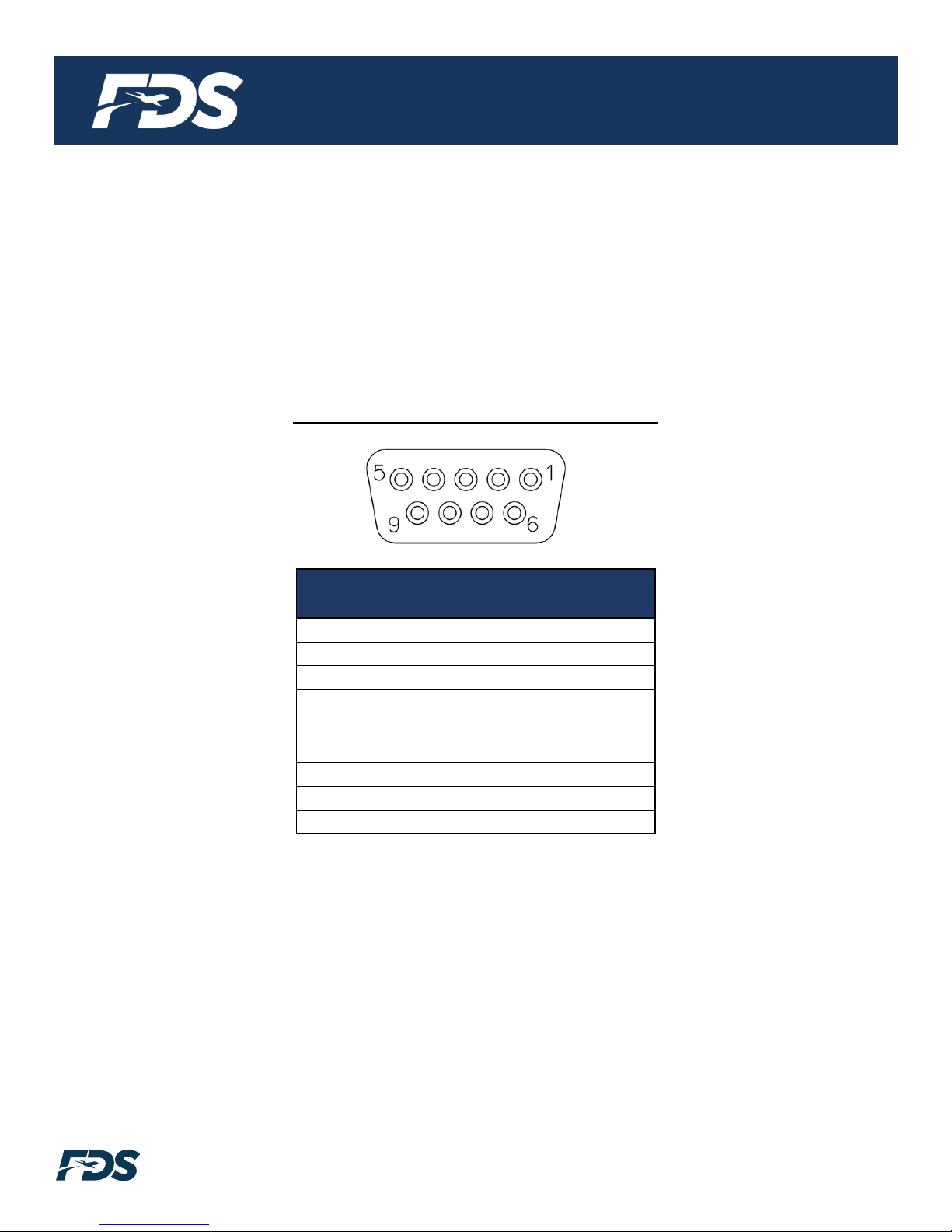

Pinout for DB-9
Part numbers for DB-9 connectors, manufactured by Amp:
Connector P/N M24308/2-281
Crimp Contacts P/N M39029/63-368
DB9 Pinout & Female Mating Face Profile
Pin
Number
Description
1
12-28VDC Power*
2
12-28VDC Ground*
3
Composite Signal
4
Audio –Left Signal
5
Audio –Right Signal
6
Composite/Audio - Ground
7
N/C
8
N/C
9
N/C
*Optionally, the FD932DVD-LP-2 can be powered through the 4 pin Molex
connector on the rear of the unit.
12- 28VDC RED
N/C BLANK
GND BLACK
N/C BLANK

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 8 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
RCA Breakout Cable
FDS Avionics Corp. supplies an optional RCA breakout cable which allows for power on a
DB9 connector with (3) RCA Connectors for Composite Video (Yellow), Left Audio (White),
and Right Audio (Red).
Part numbers for DB-9 connectors, manufactured by Amp:
Connector P/N M24308/2-281
Crimp Contacts P/N M39029/63-368
DB9 Pinout & Female Mating Face Profile
Pin
Number
Description
1
12-28VDC Power
2
12-28VDC Ground
3
N/C
4
N/C
5
N/C
6
N/C
7
N/C
8
N/C
9
N/C

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 9 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
RCA Pinout & Male Mating Face Profile
Pin
Description
Center
Signals - Composite (Yellow),
Left Audio (White), Right Audio (Red)
Shield
Ground
Remote Eye
The FD932DVD-LP-2 has an available remote IR sensor (“remote eye”) that can be used to
accept remote signals in addition to the main unit. For instance, the remote eye can be
mounted by a monitor, to allow both the monitor and the DVD player to be controlled by
pointing the remote at the same spot.
The remote IR extension cable can be extended 10 feet from the FD932DVD-LP-2.
Center
Shield

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 10 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
SHIP KIT ITEMS
PRODUCT –FD932DVD-LP-2
SHIPPING MATERIALS
1 –SHIPKIT-DB9F-LATCH
1 –REMOTE CONTROL
1- 650-00056-00 Optional
RCA Breakout Cable

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 11 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
1 –REMOTE IR
EXTENSION CABLE
1 - FERRITE INSTALL
1 –FERRITE
(240-2072-ND)
Additional Shipping Materials
•(2) MOUNTING BRACKETS
•(4) M4x6 SCREWS

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 12 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Operation Instructions
To power the unit up, press the power button. The unit will light up and display a FDS
Avionics logo on the display(s). Insert a CD or DVD into the slot, with label side up (away
from the controls, if mounted vertically). The CD or DVD will load and automatically begin to
play. The FD932DVD-LP-2 does not retain the volume setting when powered down. When
powered off either from the front panel on/off button or from the aircraft, it powers up at max
volume.
Note: CDs and DVDs are recorded at different levels, so it is normal for DVDs to be
quieter than CDs at the same volume setting.
Device Button Controls
BUTTON
FUNCTION
DESCRIPTION
Power
Turns on/off the unit.
Play/
Pause/Stop
Pauses or resumes play of a CD or
DVD
Previous/
Next
Skips forward or backward through
tracks (CD), files (MP3), or chapters
(DVD).
Fast
Forward/
Reverse
Fast forwards or reverses the
playback of the CD or DVD
SD/USB
Alternates the display between the
CD/DVD player and the SD/USB
inputs.
Eject
Ejects the CD or DVD from the slot
loader

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 13 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com

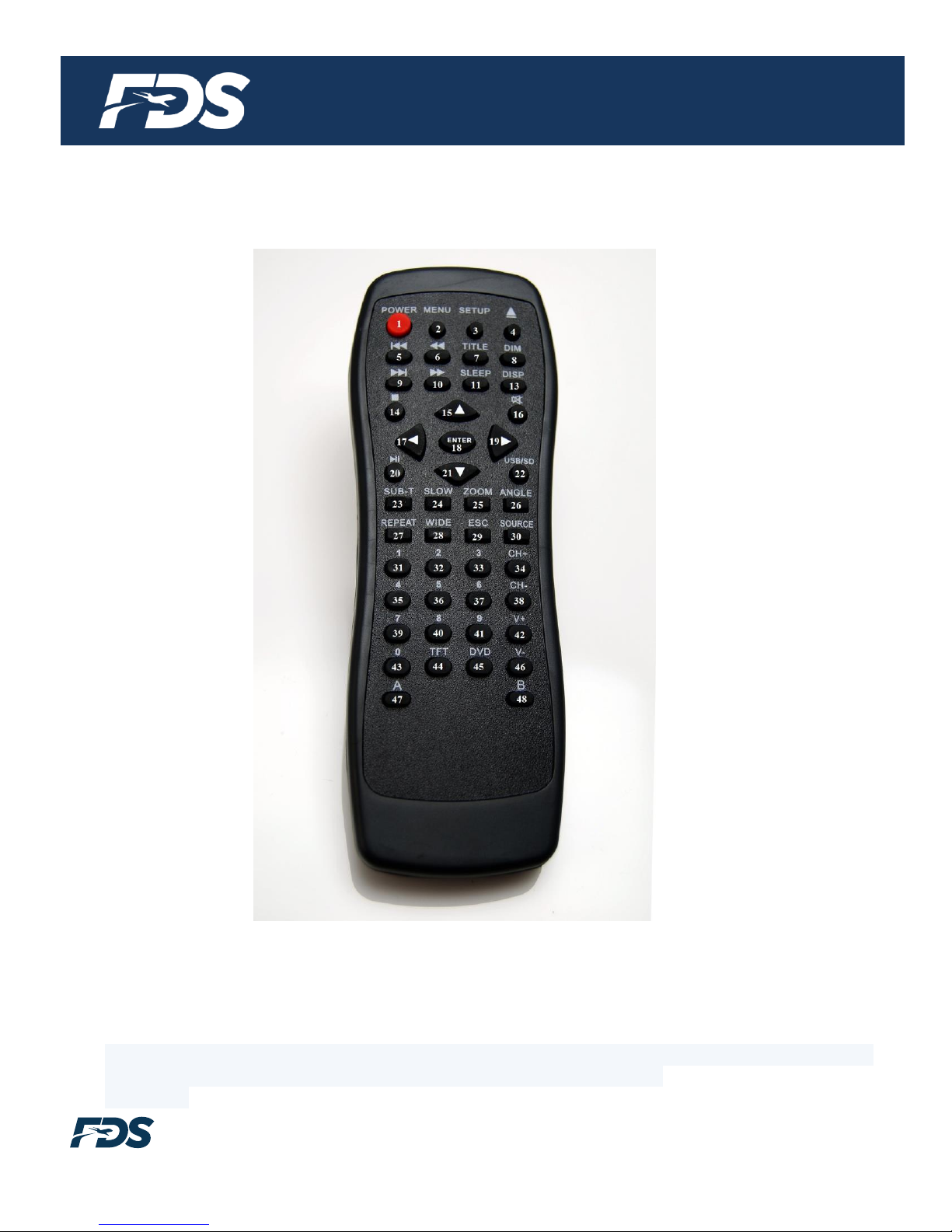

Remote Button Controls
1. Power 26. Angle
2. Menu 27. Repeat
3. Setup 28. Wide
4. Eject 29. Escape
5. Previous 30. Source
6. Rewind 31. 1
7. Title 32. 2
8. Dim 33. 3
9. Next 34. Channel+(**)
10.Fast Forward 35. 4
11.Sleep 36. 5
13.Display 37. 6
14.Stop 38. Channel-(**)
15.Up Arrow 39. 7
16.Mute 40. 8
17.Left Arrow 41. 9
18.Enter 42. Volume Up
19.Right Arrow 43. 0
20.Play/Pause 44. TFT (**)
21.Down Arrow 45. DVD
22.USB/SD 46. Volume Down
23.Subtitles 47. Change to Set A
24.Slow IR Commands
25. Zoom (Defaults)
48. Change to Set B
IR Commands
*The remote control for the FD932DVDP-LP-2 supports two different sets of IR commands, but
the unit itself only supports one. If the FD932DVD-LP-2 does not seem to be responding to
remote control button presses, press either A or B to make the remote switch between IR
command sets A and B.
Please call the FDS Support Team to inquire about the FDS Avionics Universal Remote if the
need to support multiple DVD players on a single aircraft is present.
** Unused

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 14 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
USB & SD Card Video File Types
The FD932DVD-LP-2 is capable of playing videos from the USB port and SD card slot on the
front of the unit. Only certain types of files and encoding types are supported. This is a
hardware limitation of the DVD player chipset and additional support cannot be added with
firmware updates. The table below provides guidelines on compatible file types.
Please note while the FD932DVD-LP-2 can play certain .mp4 files, not all .mp4 files are
supported. MPEG-4 Part 2, also known as DivX and Xvid encoding is compatible based on
the guidelines above. MPEG-4 Part 10, also known as H.264 encoding is not compatible.
Please play close attention to the encoding type when converting and obtaining files for the
FD932DVD-LP-2 DVD player.

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 15 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Technical Drawing

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 16 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Technical Support
Should you have any questions concerning this product or other FDS Avionics Corp.
products, please contact our Product Support representatives at [phone].
FDS Avionics Corp.
6435 Shiloh Road
Alpharetta, GA 30005
Phone: [phone]
Fax: [phone]
Email: [email protected]
For further product information, technical data and sample wiring diagrams, please click on
the Dealers section of our web site at www.FDSAvionics.com
Instructions for Continued Airworthiness
The FD932DVD-LP-2 is designed not to require regular general maintenance.

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 17 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Warranty Information
All FDS Avionics Corp. (FDS) products are warranted to be free from material or manufacturing defects for a
period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of
shipment for Government/Special Mission customers. Any material or repair workmanship for in warranty repair
service will be specifically warranted for 90 days or the remainder of the original warranty period, whichever is
longer. If the original warranty period has expired, the 90 day repair warranty is limited to the material and
workmanship specific to the repair activity completed.
The following conditions are exclusions to warranty coverage:
1. Labor costs associated with installation, removal or reinstallation of any product.
2. Damage to or malfunction caused by any unauthorized alteration made to the product.
3. Resolving signal quality issues caused by externally generated noise introduced by aircraft electrical
systems or other components connected to any FDS product.
4. Any malfunction caused by improper installation or connection to aircraft wiring, industry standard cabin
management/ inflight entertainment systems, or third party commercial equipment not specifically
identified as compatible with FDS products.
5. Any malfunction caused by installation that does not conform to precautions associated with operating
environments listed in the operating manual or consistent with industry best practices such as; high
temperature, adequate ventilation, high humidity, high dust, or power surges.
6. Cosmetic damage or damage to internal components caused by installation or removal, failure to follow
installation or operating instructions, or any neglect or misuse of the product.
7. Any product that is returned for service with a broken tamper evident seal, indicating tampering or
improper handling of the product by an unauthorized person. Violation of product tamper evident seals or
modification of factory installed serial and PMA labels voids any warranty, either expressed or implied.
The FDS technical support team is available to provide distance troubleshooting support during business hours
(8:00am to 5:00pm EST) Monday through Friday at [phone].
Many repair requests can be resolved through distance support and may not require return of merchandise to the
factory. If a product must be returned to the factory for repair, an RMA number will be issued as directed by the
technical support team and communicated by the repair coordinator.
Upon request by the customer, FDS may send a service technician onsite to repair any non-PMA products. The
travel expenses incurred to include transportation, lodging and meals along with the technician’s hourly rate shall
be payable by the customer in accordance with FDS’ applicable rates and procedures.
FDS Avionics Corp. will, upon receipt of returned merchandise, remanufacture or replace the unit at our discretion
and return the product by Ground Return Shipping. Express return shipment will be the responsibility of the
sender.
This warranty is not transferable.
Any implied warranties expire at the express limited warranty expiration date. FDS shall not be held liable for any
indirect, special, punitive, incidental or consequential damages.
Some states do not allow limitation on the length of an implied warranty. In such states, the exclusions or
limitations of this limited warranty may not apply.

Document Number:
MAN –FD932DVD-LP-2
Rev:
J
Revision Date:
06/26/2017
Page 18 of 18
©2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Revisions Log
Rev
Date
Page
Description
A
12/07/2010
---
Initial Release
B
01/04/2011
Updated cautions and remote control buttons, added important info
to option 2
C
02/11/2011
New Rear Panel Diagram, New Technical Drawing, new remote eye
pic
D
04/28/2011
7,8
Revised power info, pinout
E
06/03/2011
14
Added Region Code Info
F
07/19/2011
5, 12
USB port updates, Added operating temperature
G
11/11/2013
9,
13,15
Changed Molex Conn. Power Option, Added RCA Breakout Cable
Information, Remote Control Update, Updated MSD Drawing, Added
information on digital video file type compatibility
H
01/22/2014
11, 12
Added picture for 650-00056-00 Optional RCA Breakout Cable
I
02/28/2014
14, 17
Changed the note to reflect proper use of the remote control; also
added troubleshooting info.
J
06/26/2017
All
New Company, New Branding, New Manual.
