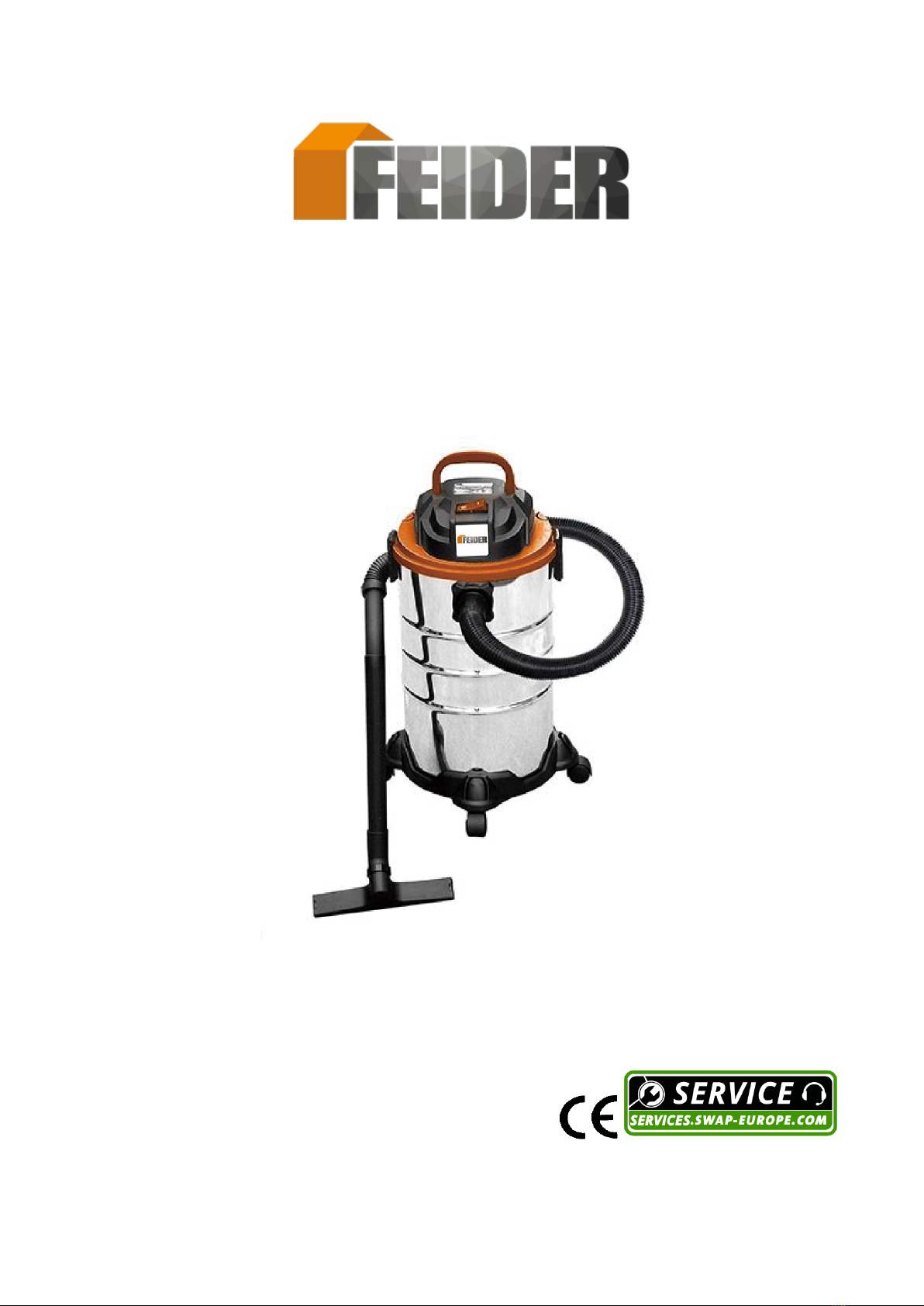

Feider FHAEP125030L User manual

Original Instructions
VACUUM CLEANER – WATER AND DUST
FHAEP125030L
Read instructions before use the tool
BUILDER SAS
ZI du Casque, 32 rue Arisde Bergès - 31270 Cugnaux - France

1
11
10
2
8
12
3
6
7
13
1

2
4
3
13
10
15
16
14
12
11
5
4
9
3

Important!
9a
8
7
6
5
10
9c
9b
15
10
11
11
12
11
16
8
10
3
7
13
7
14
17
7

When using equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the
complete operating manual with due care. Keep this
manual in a safe place, so that the information is
available at all times. If you give the equipment to any
other person, give them these operating instructions as
well.
We accept no liability for damage or accidents which
arise due to non-observance of these instructions and
the safety information.
1. Safety information
Important: Read the operating instructions before
assembling and using the appliance for the first time.
Check that the mains voltage is the same as the mains
voltage specified on the rating plate.
Only connect the appliance to a properly fitted 220-240
V~ 50 /60Hz shock-proof socket.
Pull out the power plug in the following circumstances:
Whenever the appliance is not in use, before opening
the appliance and before all cleaning and maintenance
work.

⚫Never clean the appliance with solvents.
⚫Never pull the plug out of the socket by pulling the
cable.
⚫Never leave the appliance unattended when
operational.
⚫Keep away from children.
⚫Take care to ensure that the power cable does not get
damaged by being run over, crushed, pulled or
suchlike.
⚫Do not use the machine if the power cable is in a less
than perfect condition.
⚫Never vacuum the following: Burning matches,
smoldering ash and cigarette butts, combustible,
caustic, inflammable or explosive substances, vapor
or liquids.
⚫This appliance is not suitable for vacuuming dust
which can be harmful to health.
⚫Store the appliance in a dry indoor location.
⚫Never use the appliance if it is damaged.
⚫Only allow the appliance to be serviced by an
authorized after sales service outlet.
⚫Only use the appliance to carry out work for which has

been designed.
⚫Take extra care when cleaning steps.
⚫Use only genuine accessories and spare parts.
⚫This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
⚫If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
⚫The plug must be removed from the socket-outlet
before cleaning or maintaining the appliance.

2. Layout and items supplied (Fig. 1-3)
1. Handle
2. ON/OFF/Automatic switch
3. Head
4. Filter cage
5. Safety float valve
6. Locking hook
7. Tank
8. Suction hose connection
9. Blow connector
10. Flexible suction hose
11. 3-part suction tube
12. Combination nozzle
13. Wheels
14. Dirt bag
15. Foam filter
16. Crevice nozzle
17. Hook for cable store
3. Intended use
The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the
appropriate filter. The appliance is not suitable for the vacuuming of combustible, explosive
or harmful substances.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the manufacturer will be liable for any damage
or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications. Our warranty will be voided if the machine is used in commercial,
trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage: 220-240V~ 50/60 Hz
Model
Power input
Tank volume
FHAEP125030L
1250 W
30 L
5. Before starting
Important!
⚫Before you connect the appliance to the mains supply make sure that the data on the
rating plate are identical to the mains data.
⚫The appliance may only be connected to a shockproof socket.

5.1 Appliance assembly
Fitting the appliance head (Fig. 4)
The appliance head (3) is fastened to the container (7) by the locking hook (6). To remove
the appliance head (3), open the locking hook (6) and remove the appliance head (3). When
fitting the appliance head (3), make sure that the locking hook (6) locks into place correctly.
Assembling the wheels (Fig. 5)
Fit the wheels (13) in accordance with fig. 5.
Mounting the hook for the cable store (Fig. 10)
Press the hook for the cable store (17) into the mount. After use, the power cable can be
wound up onto the hook (17) and the head (3).
5.2 Fitting the filter
Important!
Never use the wet and dry vacuum cleaner without a filter.
Check that the filter is securely fitted at all times.
Fitting the foam filter (Fig. 6)
For wet vacuuming, slip the supplied foam filter (15) over the filter cage (Fig. 3/4).
Assembling the dirt bag (Fig. 7)
For dry vacuuming, slip the dirt bag (14) over the vacuuming hole. The dirt bag (14) is
suitable for dry vacuuming only. The dirt bag makes it easier to dispose of the sucked-in
dust.
5.3 Fitting the suction hose (Fig. 3, 8, 9)
Connect the suction hose (10) to the corresponding connector on the wet and dry vacuum
cleaner, depending on the application required.
Vacuuming
Connect the suction hose (10) to the suction hose connector (8).
Blowing
Connect the suction hose (10) to the blow connector (9).
The 3-part suction tube (11) can be attached to the suction hose (10) to extend it.
5.4 Suction nozzles
Combination nozzle (12)
The combination nozzle (12) with attachments is for vacuuming solids and liquids over
medium to large areas. The crevice nozzle (16) is specially designed for cleaning cervices

and edges.
6. Operation
Important!
Switch off the equipment if liquid or foam is emitted with the exhaust air when wet vacuum
cleaning.
6.1 On/Off switch (Fig. 1)
Switch position 0: Off
Switch position I: On
6.2 Dry vacuuming
Use the dirt bag (14) for dry vacuuming (see point 5.2).
Always ensure that the filters are perfectly secure.
6.3 Wet vacuuming
For wet-vacuuming, use the foam filter (15) (see point 5.2).
Check that the filter is securely fitted at all times.
Important!
When wet vacuuming, the floating safety switch (5) closes when the maximum tank level is
reached. In doing so, the suction noise of the equipment will change and become louder.
You must then switch off the equipment and empty the tank.
Important!
The wet and dry vacuum cleaner is not suitable for the vacuuming of combustible liquids.
For wet vacuuming, use only the supplied foam filter.
6.4 Blowing
Connect the suction hose (10) to the blow connector (9) on the wet and dry vacuum cleaner.
7. Cleaning, maintenance and ordering of spare parts
Important!
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
⚫Keep all safety devices, air vents and the motor housing free of dirt and dust as far as

possible.
⚫We recommend that you clean the appliance immediately after you use it.
7.2 Cleaning the appliance head (3)
Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning
agents or solvents; these may be aggressive to the plastic parts in the appliance.
7.3 Cleaning the container (7)
The container can be cleaned with a damp cloth and some soft soap or under running water,
depending on the amount of dirt.
7.4 Cleaning the foam filter (15)
Clean the foam filter (15) with a little soft soap under running water and allow it to air-dry.
7.5 Maintenance
At regular intervals and before each use, check that the filters in the wet and dry vacuum
cleaner are securely fitted.
7.6 Ordering replacement parts
Please quote the following data when ordering replacement parts:
⚫Type of machine
⚫Replacement part number of the part required
8. Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is
raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic.
Defective components must be disposed of as special waste. Ask your dealer or your local
council.
9. Symbols used on label
Read instruction manual
Class II protection
