User Manual ►FEISOL CT-3371 and CT-3471
A. Mount and Center Column Installation
For exchanging Mounts (flat Ball Head Mount / Center Column Mount / Leveling Base/
Video Pan) on the Tripod, unscrew the three small set screws on top of the mainframe
using the included hex key (see picture), insert desired Mount and re-tighten the three
screws. To avoid possible damage to the screws or Tripod, do not over-tighten them.
B. Leg Tension Adjustment
Insert the two hexagonal wrenches (included) into the two screws at the base of the leg
(see picture) and tighten or loosen them to the desired friction, by turning the wrenches in
opposite directions.

© FEISOL INC, USA WWW.FEISOL.NET Page 2of 4

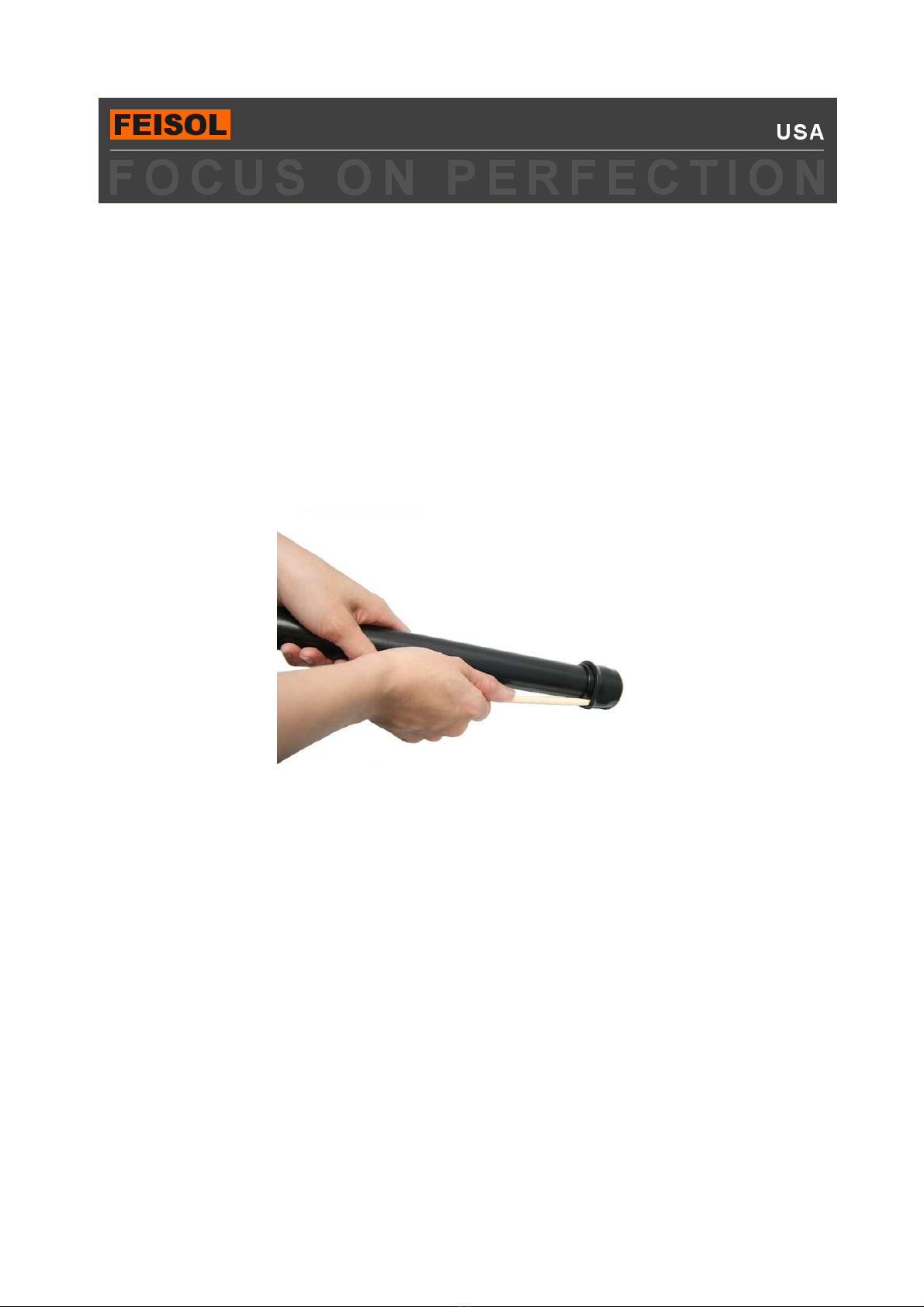

C. Leg Extension
In order to extend a leg section, turn the Twist Lock approximately one half turn in the
counterclockwise direction. Note: If the Twist Lock is turned too far (approximately 20
turns), the leg section may fall out and Compression Rings may become lost or damaged.
To firmly lock a leg section into place, turn the Twist Lock approximately one half turn in the
clockwise direction. Do not over-tighten.
D. Weight Hook Installation
To increase Tripod stability during windy conditions a Weight Hook is included, allowing for
heavier objects (backpack, weight bags) to be attached to the tripod. The Hook can be
screwed onto the bottom of the Mounting Plate. On an optional Center Column, a Weight
Hook is pre-installed (see picture).

© FEISOL INC, USA WWW.FEISOL.NET Page 3of 4
E. Ball-Head (optional) Installation
When using the flat Mounting Plate (pre-installed), after making sure that the Ball Head’s
Panning Knob is locked, screw the Ball Head into the Tripod’s 3/8” Mounting Screw by
turning the Ball-head clockwise until it fits snugly. Do not over-tighten.
When using an optional Center Column, making sure that the Center Column and the Ball
Head’s Panning Knob are securely locked, screw the Ball Head onto the 3/8” Mounting
Screw by turning the Ball Head clockwise (see picture). Do not over-tighten.

© FEISOL INC, USA WWW.FEISOL.NET Page 4of 4
F. Spike (optional) Installation
Remove the Rubber Caps on the end of the legs by inserting a wooden stick or similar
object between the Rubber Cap and the Aluminum ring at the end of each leg (see picture).
By pushing forward around the ring, the Rubber Cap can be removed, exposing a thread
into which the Spike can be screwed and locked tightly into place with the included wrench.
Once the Spike is in place, it does not need to be removed again, because the metal tip of
the Spike can be receded into its rubber sleeve when desired (for use on scratch- sensitive
surfaces).
Note that damage to your tripod’s Carbon Tubes or Aluminum parts can occur if they are
dropped, squeezed, overloaded, or forced downward (e.g. into sand dunes or snowbanks).
Exercise caution to avoid such conditions.
