Feit Electric oneSync UCL18FP/5CCTCA User manual

Model: UCL18FP/5CCTCA
READ BEFORE INSTALLATION
SAVE THESE INSTRUCTIONS
Questions, problems, missing parts? Before returning to the store,
call Feit Electric Customer Service
8 a.m. - 5 p.m., PST, Monday - Friday
We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Light. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Feit Electric.
1-866-326-BULB (2852)
FEIT.COM
IMPORTANT SAFETY INSTRUCTIONS
AND INSTALLATION GUIDE
FLAT PANEL UNDER CABINET LIGHT
FITS 18 IN. CABINETS (14 1/2 IN. TOTAL LENGTH)
ONE
LED LIGHT SYSTEM
YNC

Table of Contents ................................... 2
Safety Information .................................. 2
FCC Statement ...................................... 2
Warranty .......................................... 2
Pre-Assembly ...................................... 3
Single LED Fixture Hardwire Installation................4-5
Alternative Plug-In Installation ......................... 6
Operating Instructions................................ 7
Limited Warranty
Table of Contents
Safety Information Save These Instructions
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This
equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate the equipment. Feit Electric Company, 4901 Gregg Road, Pico Rivera, CA 90660. www.feit.com, 1-800-543-3348.
IMPORTANT SAFEGUARDS:
ALWAYS FOLLOW BASIC SAFETY PRECAUTIONS WHEN USING ELECTRICAL
PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT.
This product is warranted to be free from defects in workmanship and materials for up to 1 year from date of purchase. If the product fails within the warranty period,
please contact Feit Electric at [email protected], visit feit.com/contact-us or call 1-866 326-BULB (2852) for instructions on replacement or refund. REPLACEMENT OR REFUND
IS YOUR SOLE REMEDY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IS HEREBY EXPRESSLY EXCLUDED. Some states and provinces do not allow the exclusion of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state or province to province.
2 WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
CAUTION: Do not attempt to install while plugged in. This
fixture is for indoor use only. Not for use with plastic cabinets.
Do not install this fixture inside a totally enclosed cabinet.
Do not mount over stoves.
CAUTION: Do not install this product in a wet location.
CAUTION: Do not install this product in an outdoor location.
CAUTION: Do not use chemical solvents or harsh abrasives
to clean the fixture.
WARNING: To avoid risk of electrical shock, always make
sure the product is unplugged from the electrical outlet before
assembling, disassembling, relocating, servicing or cleaning it.

3
Pre-Assembly
TOOLS REQUIRED
NOTE: Hardware not shown to actual size.
HARDWARE INCLUDED
Part Description Quantity
AA 1

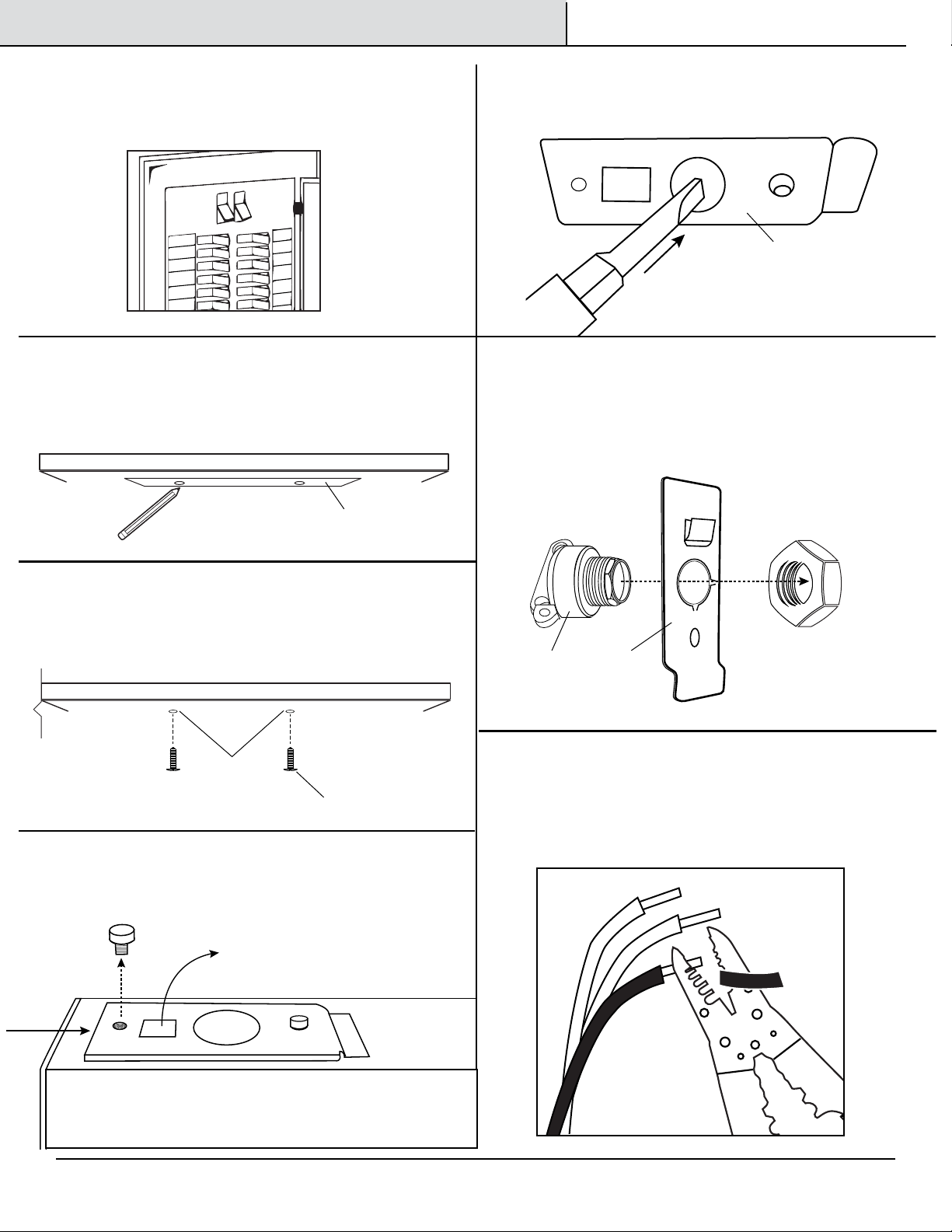

1
2
18in. LED Flat Panel Fixture
BB 18in. Connector Cable
Mounting Screws
1DD
CC
Fixture Mounting Template
1
1
EE Hardwire Bracket
FF Hardwire Bracket Screw
3GG Wire Nut
1HH Clamp Connector
WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
PHILLIPS
SCREW DRIVER
PENCIL PLIAR
WRENCH
18 AWG
WIRE STRIPPER
FLAT HEAD
SCREW DRIVER
Item No. Description Volts (V)
Wattage
Per Fixture (W)
Input
Current (mA)
Maximum Linkable
Units at 120V
Maximum Linkable
Units with
In-Wall Dimmer
UCL18FP/5CCTCA 18 Inch Flat Panel Under Cabinet
LED Fixture 120 15 180 55 7
AA BB DDCC EE FF GG HH II
1II 18AWG Wire (Green Ground Wire)

Single LED Fixture Hardwire Installation
4 WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
1
2
Turn the power OFF from the breaker panel before
starting installation.
Turn Off the Power 5
Carefully remove the knock-out with a flathead screwdriver.
Removing the Knock-out
6
Install the Clamp Connector (HH) to the knock-out hole by inserting
it through the hole and securing it with the nut. The Clamp
Connector (HH) should be on the outer side of the bracket.
Installing the Clamp Connector to the
Knockout Hole
7Cutting and Stripping Wires
Position the Fixture
Find the desired place for the LED light fixture and mark
clearly using the provided mounting bracket template (DD).
4Remove the screw on the hardwire bracket, then slide and
lift the bracket off of the fixture.
Removing the Hardwire Bracket
DD
EE
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
HH
3Screw in the Mounting Screws (CC) on the marked locations,
leaving a gap of 0.08-0.10 inches between the screw head
and the installation surface.
Installing the Mounting Screws
Marked
locations
CC
Take out of the black and white 18AWG wires in the fixture
and the green 18AWG wire (II) in the plastic bag. Cut and
strip the wires to the correct length.
EE
1
2
x
x
3

9
8
After connecting the wires correctly, place the wires inside the fixture
and reinsert the bracket, sliding it over and screwing it secure.
Wire Power Supply to the Fixture
Replace the Wiring Bracket
Connect the LED Fixtures (AA) using the provided
Connector Cable (BB).
10
Secure the supply wire by firmly screwing the clamp connectors
down on the wire.
Secure Supply Wires with the Clamp Connector
12 Linking LED Fixtures
Feed the supply wire through the Clamp Connector (HH) and
knockout hole and make all connections using the wire nuts
provided. Connect the 120V line (black) wire to the black wire.
Connect the neutral (white) wire to the white wire. Connect the
ground (green) wire to the green wire.
HH
Green
Fig. 1
NOTE: To install 2 or more LED fixtures, repeat the single
fixture installation instructions with two or more units.
BB
AA
Single LED Fixture Hardwire Installation (continued)
x
White
Black
5WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
x
11
Align holes on the back of the fixture to the heads of the
Mounting Screws. Slide fixture towards the mounting slot.
If the fixture is not snug, remove the fixture and readjust
the screws.
Installing LED Fixture
1
1
3
2
x
x
X
X
EE HH

6WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
Alternative Plug-In Installation (Electrical Plug not Included)
1Position the Fixtures
Find the desired place for the LED light fixture and mark
clearly using the provided mounting bracket template (DD).
4Connecting the Power Supply
Plug In Electrical Plug to the LED Fixture (AA).
DD
Electrical Plug
AA
NOTE: The electrical plug can be connected to either side
of the LED Fixture (AA).
5
Connect the Electrical Plug to the power outlet on the wall.
Connecting to a Power Outlet
3
Align holes on the back of the fixture to the heads of the
Mounting Screws. Slide fixture forwards to secure into
place. If the fixture is not snug, remove the fixture and
readjust the screws.
Installing LED Fixture
2
Screw in the Mounting Screws (CC) on the marked locations,
leaving a gap of 0.08-0.10 inches between the screw head and
the installation surface.
Installing the Mounting Screws
Marked
locations
CC

Operating Instructions
7 WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
Changing the Color Temperature Setting
To select the desired color temperature, cycle through 2700K - 3000K - 3500K - 4000K - 5000K
by pressing the CCT Button. This setting will be fixed each time the ON/OFF switch is turned ON.
Use the ON/OFF and Dim Button for ON/OFF Operation and to Change the Dimming Levels
To select the desired dimming level, cycle through the dimming levels (High, Medium, Low, Dim, Off) by pressing the
Dim Button. This setting will be fixed each time the ON/OFF switch is turned ON.
This LED Fixture has the feature to operate and control multiple units,
even if they are not linked.
To control multiple fixtures, Hold the CCT button for 3 seconds on all the fixtures to be controlled in a group.
To remove the individual fixture from the group, Hold the CCT button on the fixture that you want to control
individually for 3 seconds.
CCT Button
ON/OFF and
DIM Button
