Feniex AI CUBE AJ-1018 User manual

FENIEX // 2018 // INSTRUCTION MANUAL
WEB // www.feniexindustries.com
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the United States and other countries
preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make
derivative works of the copyrighted material. Accordingly, any copyrighted material of Feniex and its licensors contained herein or in the Feniex products described in this Price
List may not be copied, reproduced, distributed, merged or modied, transmitted, transcribed, stored in retrieval system or translated into any language or computer language,
in any form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S. Patent & Trademark Oce.
AJ-1018
INSTRUCTION MANUAL
Is this the latest version?
SCAN HERE
TM

Safety Regulations & Warranty 3
Service after Expiration 3
Copyright 3
Feniex Product Copyright 3
Specications, Tones, & Wiring 4
Box Content 4
Dimensions 4
System Specications 5
Wiring Diagram 5
Power 5
Mounting Instructions 5
Permanent Mount 5
Pipe Mount 5
Magnet Mount 5
TABLE OF CONTENTS
FENIEX // 2018 // INSTRUCTION MANUAL // v1.0
WEB // www.feniexindustries.com
2
TM

SAFETY REGULATIONS
The following provides all the information necessary to
safely operate the previously listed products of Feniex
Industries, Inc. Please read this manual thoroughly before
installing or operating your new product in order to
prevent any damage or injury. Failure to follow the listed
instructions in this manual may result in damage to your
products or personal injury.
• Proper installation of this product requires good
knowledge of automotive systems, electronics &
procedures.
• Please guarantee all vital components of the vehicle
are not in danger of being damaged by drilling holes
necessary for installation. Check all sides of the
mounting surface before drilling any holes into the
vehicle.
• Do not install this product in any way that interferes
with the deployment of the air bag. Doing so may
damage the eectiveness of the air bag & can lead to
serious personal and vehicle injury. The installer will
assume full responsibility of proper installation of the
new unit.
• Please clean the mounting surface before installation
of the unit when using tape, brackets, magnet, Velcro or
suction cups.
• The product’s ground wire must be connected directly
to the negative (-) battery post for eective use of the
unit. Please follow all wiring guidelines provided to
guarantee long lifespan & productivity. Failing to follow
these instructions may result in damage to the product.
WARRANTY
Feniex Industries, Inc. warrants to the original purchaser
that the product shall be free from defects in material &
workmanship for 5 years from the date of purchase for
all LED products. Feniex Industries warranties speakers,
sirens, ashers, & controllers for 2 years.
If warranty service is needed, please contact customer
support:
Phone: [phone]
Web Site: www.Feniex.com/support
Email: [e-mail]
If the product needs to be returned for repair or
replacement, contact our customer service team (using
any method listed above) to receive a Return Merchandise
Authorization (RMA) number. Operational times are from 9
a.m. to 6 p.m. central time, Monday through Friday.
CONDITIONS
Feniex Industries, Inc. will not be held responsible for any
costs associated with equipment removal and/or
re-installation resulting from a warranty claim. It is the sole
responsibility of the party initiating a warranty claim to pay
shipping charges associated with returning a product to
Feniex Industries for repair or replacement.
SERVICE AFTER EXPIRATION
Feniex Industries will still provide service for all products
after expiration of the warranty. For any issues, call the
customer support line. In some instances it may be
necessary for the product to be shipped, freight prepaid
and insured for loss or damage to Feniex headquarters.
SAFETY REGULATIONS & WARRANTY
Utilizing non-factory screws and mounting brackets may result
in the loss of warranty coverage.
COPYRIGHT
This instruction manual and the Feniex products
described in this instruction manual may include or
describe copyrighted Feniex material. Laws in the United
States and other countries preserve for Feniex Industries
and its licensors certain exclusive rights for copyrighted
material, including the exclusive right to copy, reproduce
in any form, distribute and make derivative works of
the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in
the Feniex products described in this instruction manual
may not be copied, reproduced, distributed, merged
or modied in any manner without the express written
permission of Feniex Industries, Inc.
FENIEX PRODUCT COPYRIGHTS
The products described in this document are the property
of Feniex Industries, Inc. It is furnished by express license
agreement only and may be used only in accordance with the
terms of such an agreement. Products and documentation
are copyrighted materials. Making unauthorized copies is
prohibited by law. No part of the product or documentation
may be reproduced, transmitted, transcribed, stored in
retrieval system or translated into any language or computer
language, in any form or by any means, without prior
permission from Feniex Industries, Inc.
Please do not send in product without contacting support rst
for a Return Merchandise Authorization (RMA) number.
FENIEX // 2018 // INSTRUCTION MANUAL // v1.0
WEB // www.feniexindustries.com
3
TM

BOX CONTENTS QUANTITY
AI Cube 1
Universal Bracket (w/hardware) 1

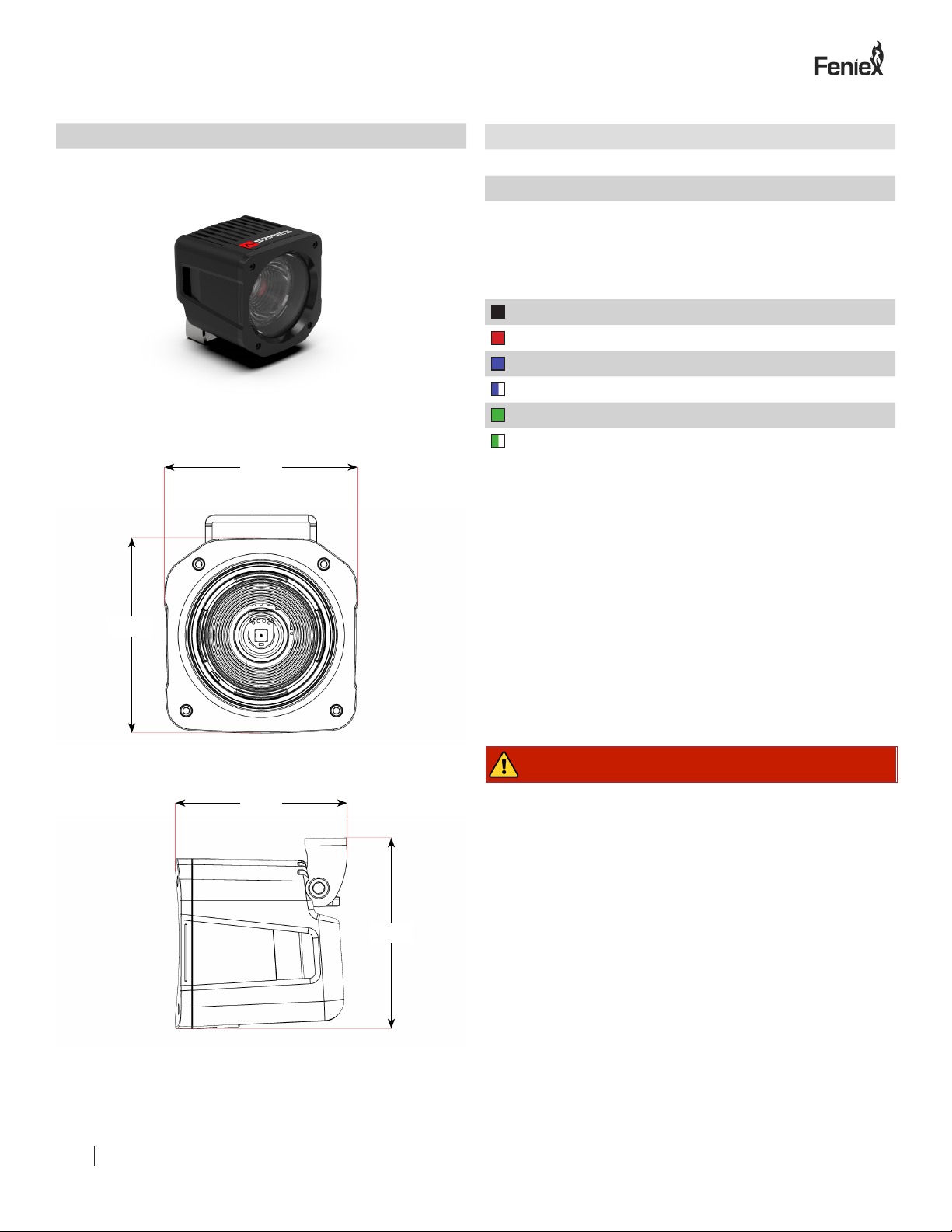

BOX CONTENTS, DIMENSIONS, & MOUNTING OPTIONS
3.0"
DIMENSIONS
3.0"
4.0"
2.9"
SYSTEM SPECIFICATIONS
Input Power 12 VDC
Current Draw 3 Amps
External Fuse (if hard wired) 125% of circuit load
Dimensions 3" H x 3" W" 3" D
COLOR FUNCTION POLARITY CONNECTION
Black
Ground 12v (-) Chasis Ground
Red
Battery 12v (+) Positive Battery Terminal
Blue Dim +
12v (+) Momentary Switch
Blue/White Dim -
12v (+) Momentary Switch
Green Zoom +
12v (+) Momentary Switch
Green/White Zoom -
12v (+) Momentary Switch
WIRING DIAGRAM
POWER
1) Simply plug the cigarette lighter adapter into your
vehicle's cigarette lighter outlet and turn on the power
switch to active the unit.
A) If hard-wiring the unit, cut cable 4" inches or
more away from the cigarette lighter adapter to
expose the red, yellow, & black wires.
B) Strip the wire jacketing back to expose the wire.
C) Extend the red wire to a 12v (+) post. Extend the
black wire to a 12v (-) ground.
The AI Cube is bright & can be harmful to your vision. Wear
protective glasses while looking directly at the product.
