Feniex TITAN S-5018 User manual
FENIEX // 2019 // INSTRUCTION MANUAL
WEB // www.feniexindustries.com
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the United States and other countries
preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make
derivative works of the copyrighted material. Accordingly, any copyrighted material of Feniex and its licensors contained herein or in the Feniex products described in this Price
List may not be copied, reproduced, distributed, merged or modied, transmitted, transcribed, stored in retrieval system or translated into any language or computer language,
in any form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S. Patent & Trademark Oce.
S-5018
INSTRUCTION MANUAL
TM
Safety Regulations & Warranty 3
Service after Expiration 3
Copyright 3
Feniex Product Copyright 3
Specications, Tones, & Wiring 4
System Specications 4
Box Content 4
Dimensions 4
Programming 5
Tone Selection 5
Wiring Diagram 5
Power 5
Programming (cont.) 6
Microphone 6
TABLE OF CONTENTS
FENIEX // 2019 // INSTRUCTION MANUAL // v1.4
WEB // www.feniexindustries.com
2
TM
SAFETY REGULATIONS
The following provides all the information necessary to
safely operate the previously listed products of Feniex
Industries, Inc. Please read this manual thoroughly before
installing or operating your new product in order to
prevent any damage or injury. Failure to follow the listed
instructions in this manual may result in damage to your
products or personal injury.
• Proper installation of this product requires good
knowledge of automotive systems, electronics &
procedures.
• Please guarantee all vital components of the vehicle
are not in danger of being damaged by drilling holes
necessary for installation. Check all sides of the
mounting surface before drilling any holes into the
vehicle.
• Do not install this product in any way that interferes
with the deployment of the air bag. Doing so may
damage the eectiveness of the air bag & can lead to
serious personal and vehicle injury. The installer will
assume full responsibility of proper installation of the
new unit.
• Please clean the mounting surface before installation
of the unit when using tape, brackets, magnet, Velcro or
suction cups.
• The product’s ground wire must be connected directly
to the negative (-) battery post for eective use of the
unit. Please follow all wiring guidelines provided to
guarantee long lifespan & productivity. Failing to follow
these instructions may result in damage to the product.
WARRANTY
Feniex Industries, Inc. warrants to the original purchaser
that the product shall be free from defects in material &
workmanship for 5 years from the date of purchase for
all LED products. Feniex Industries warranties speakers,
sirens, ashers, & controllers for 2 years.
If warranty service is needed, please contact customer
support:
Phone: 1.800.615.8350
Web Site: www.Feniex.com/support
Email: techsupport@feniex.com
If the product needs to be returned for repair or
replacement, contact our customer service team (using
any method listed above) to receive a Return Merchandise
Authorization (RMA) number. Operational times are from 9
a.m. to 6 p.m. central time, Monday through Friday.
CONDITIONS
Feniex Industries, Inc. will not be held responsible for any
costs associated with equipment removal and/or
re-installation resulting from a warranty claim. It is the sole
responsibility of the party initiating a warranty claim to pay
shipping charges associated with returning a product to
Feniex Industries for repair or replacement.
SERVICE AFTER EXPIRATION
Feniex Industries will still provide service for all products
after expiration of the warranty. For any issues, call the
customer support line. In some instances it may be
necessary for the product to be shipped, freight prepaid
and insured for loss or damage to Feniex headquarters.
SAFETY REGULATIONS & WARRANTY
Utilizing non-factory screws and mounting brackets may result
in the loss of warranty coverage.
COPYRIGHT
This instruction manual and the Feniex products
described in this instruction manual may include or
describe copyrighted Feniex material. Laws in the United
States and other countries preserve for Feniex Industries
and its licensors certain exclusive rights for copyrighted
material, including the exclusive right to copy, reproduce
in any form, distribute and make derivative works of
the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in
the Feniex products described in this instruction manual
may not be copied, reproduced, distributed, merged
or modied in any manner without the express written
permission of Feniex Industries, Inc.
FENIEX PRODUCT COPYRIGHTS
The products described in this document are the property
of Feniex Industries, Inc. It is furnished by express license
agreement only and may be used only in accordance with the
terms of such an agreement. Products and documentation
are copyrighted materials. Making unauthorized copies is
prohibited by law. No part of the product or documentation
may be reproduced, transmitted, transcribed, stored in
retrieval system or translated into any language or computer
language, in any form or by any means, without prior
permission from Feniex Industries, Inc.
Please do not send in product without contacting support rst
for a Return Merchandise Authorization (RMA) number.
FENIEX // 2019 // INSTRUCTION MANUAL // v1.4
WEB // www.feniexindustries.com
3
TM

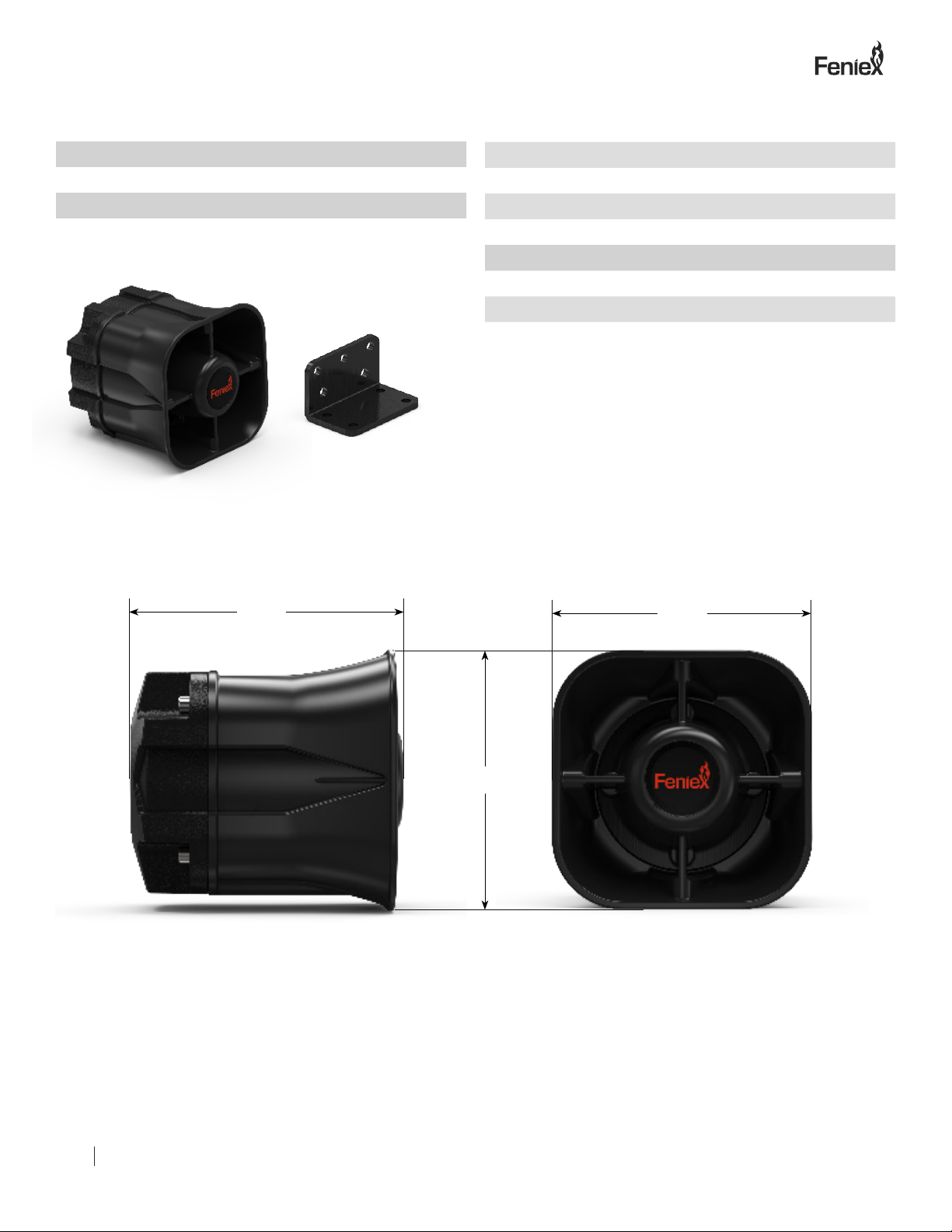

BOX CONTENTS QUANTITY
1. Titan 30w Siren/Speaker 1
2. Universal Mounting Bracket 1
3. Screws
BOX CONTENTS & DIMENSIONS
DIMENSIONS
SYSTEM SPECIFICATIONS
Operating Voltage 9-15 VDC
Operating Current 3 Amps
External Fuse (if hard wired) 125% of Circuit Load
Power Output 30 Watts
Siren Tones 30
Dimensions
4.5" D x 4.5" H x 4.8" D
Decibels Out
114dB
4.8" 4.8"
4.5"
FENIEX // 2019 // INSTRUCTION MANUAL // v1.4
WEB // www.feniexindustries.com
4
TM
APPLYING POWER
The 30W Siren should be supplied with a solid +12V
voltage and GND from the vehicle using appropriate
installation methods.
The wiring should go directly from the siren to a fuse at the
battery. The fuse and wiring should be sized and installed
such that resistance and voltage drop are minimized.
PROGRAMMING
Excessive resistance and voltage drop can cause low
performance or increased heat in power routing.
Mode 2 takes priority over Mode 1, and will interrupt any
tone currently playing on Mode1. Each mode can be
programmed to operate in either Hands Free or On/O
operation. To toggle the operation style of a Mode:
1. Power the unit o.
2. Connect the desired Mode and the Tone Select wires to
+12V.
3. Toggle between On/O Activation and Hands-Free
Activation. Apply power to the unit. A tone may start
playing and after 4 seconds an audible indicator will be
heard that veries the operation style has been toggled.
• The Mode will play its
programmed tone while +12V is applied and stop
when it is removed.
To program a Mode in On/O Operaton, activate
that Mode and use the Tone Select wire (
Blue) to
scroll through the list of tones. The tone that is left
selected will remain that Mode's tone the next time it is
activated.
•Each mode can have
a 3 tone list programmed. That mode will play its
rst programmed tone as soon as +12V is applied
(including a single tap), and stop when +12V is rapidly
double tapped. If a tone is already playing and the
Mode wire is single tapped to +12V, the next tone in
the 3 tone list will play.
To program a Mode in Hands Free Operation, activate
the Mode, scroll through the 3 tone list and use the
Tone Select wire to set the desired tones for each
position.
P
When connected to a +12V, the microphone and all tones
(including voice commands and audio les) are muted.
1) Wail 16) 'Move out of the way'
2) Yelp 17) 'Pull over'
3) Fast Yelp 18) 'Step out of the vehicle'
4) Phaser 19) 'Step out with your hands up'
5) Horn 20) 'Remain in your vehicle'
6) Mechanical 21) 'Remain...with the windows down'
7) Manual Wail 22) Test Tone
8) Hi/Lo 23) Italian Police (Policia Vibrato)
9) PCall 24) Italian Ambulance
10) PCall Fast 25) Gendarmerie
11) Horn & Phaser 26) Pompiers
12) Horn & Yelp 27) UMH
13) Phaser & Yelp 28) Police
14) Ecto Siren 29) ASA
15) Bad Boys 30) National Anthem
COLOR FUNCTION POLARITY CONNECTION
Black
Ground 12v (-) Chasis Ground
Red
Battery 12v (+) Positive Battery Terminal
Brown Mode 2 12v (+) Latching Switch
Yellow
Mode 1 12v (+) Latching Switch
White Park-Kill 12v (+) Momentary Signal
Blue Tone Select 12v (+) Latching Switch
Green Microphone Input N/A Optional Microphone
Gray Microphone Input N/A Mic GBD Input
*Should connect to the barrel of mic jack
WIRING DIAGRAM
SIREN TONES
TONE SELECT
With one of the Modes selected and a tone playing,
tap the Blue wire to +12V for 1 second to advance the
current tone to the next. Continue to repeat the tone scroll
until the desired tone is selected. That tone will now be
programmed to the selected Mode (Modes will remain
programmed even if power is removed from the unit).
FENIEX // 2019 // INSTRUCTION MANUAL // v1.4
WEB // www.feniexindustries.com
5
TM
CONNECT MICROPHONE
A microphone can be installed by cutting the splice
connecting the Green and Gray wires (default shipping
conguration). A microphone should then be connected
by soldering and heat shrinking the microphone GND to
the Gray wire, and the microphone signal to the Green
wire.
When keyed, the microphone will take priority and
interrupt any siren tone.
MICROPHONE & EXTRAS
If the microphone is not connected, the Gray and Green wires
must be connected.
*otherwise the unit will think the microphone is constantly keyed
