Fermax Cityline User manual

2012 ACCESS CONTROL
PROXIMITY
KEYPAD
FINGERPRINT
BLUETOOH
RADIO FREQUENCY
COMBINED

INDEX
QUICK GUIDE 02
STAND-ALONE 04
CENTRALIZED 36
ACCESSORIES 86
INDEX OF REFERENCES 94

22011 ACCESS CONTROL 2011 ACCESS CONTROL 3
22011 ACCESS CONTROL 2011 ACCESS CONTROL 3
KEYPAD
• STAND-ALONE
• MDS/CAC CENTRALISED
6991
6994
Cityline
7438
7453
Skyline
3610
23291
Cityline CL
4699
4696
Marine
4540
x
Loft
PROXIMITY
• STAND-ALONE
• MDS/CAC CENTRALISED
• WG-26/DATACLOCK
CENTRALIZED
6992
6992
6992
Cityline
7440
7440
7440
Skyline
2347
23351
4490
Cityline CL
5472
5472
5472
Marine
4530
x
4560
Loft
• STAND-ALONE
• MDS/CAC CENTRALISED
• WG-26/DATACLOCK
CENTRALIZED
FINGERPRINT
6959
x
6959
Cityline
6989
x
6989
Skyline
5474
x
5474
Marine

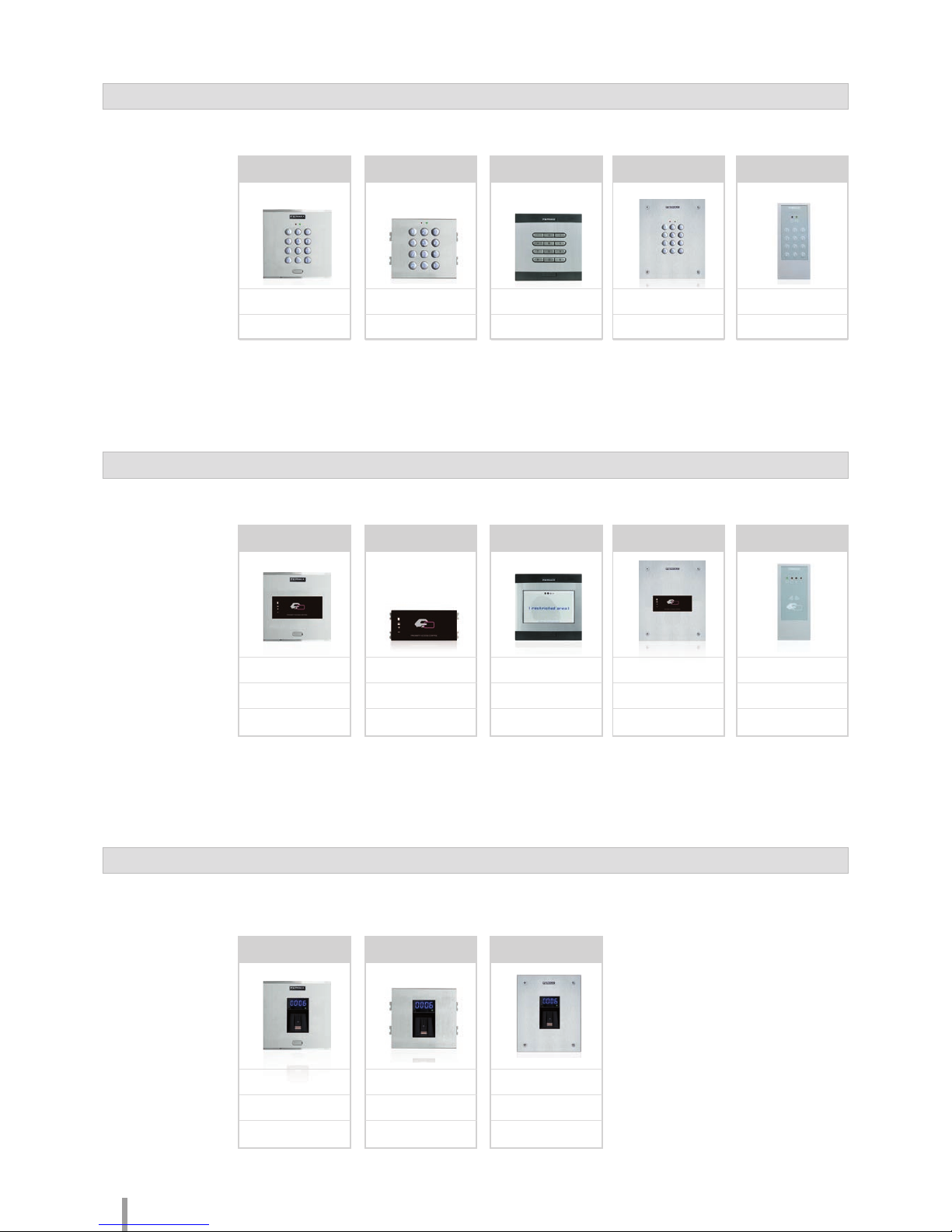

QUICK GUIDE OF REFERENCES

22011 ACCESS CONTROL 2011 ACCESS CONTROL 3
22011 ACCESS CONTROL 2011 ACCESS CONTROL 3
COMBINED
• STAND-ALONE
• MDS/CAC CENTRALISED
• WG-26/DATACLOCK
CENTRALIZED
• STAND-ALONE
• MDS/CAC CENTRALISED
• WG-26/DATACLOCK
CENTRALIZED
BLUETOOTH
6993
x
6993
Cityline
7441
x
7441
Skyline
5473
x
5473
4479
x
4479
Marine Mini
• STAND-ALONE
• MDS/CAC CENTRALISED
RADIO FREQUENCY
7952
1065
7900
x
7903
x
7960
x
Garage
receiver
Monochannel
receiver
DIN rail
receiver
Villa
receiver
Emitters Receivers
6996
6996
6996
x
6995
6995
Keypad+Fingerp. Proxi+keypad
x
x
4550
Loft Proxi+Keypad
x
x
4480
City Classic
Proxi+Keypad
79561
x
Dual channel
RF trinary emitter
24651
24651
Digital RF
emitter
25511
25511
Dual RF
emitter

STAND-ALONE
ACCESS CONTROL

62011 ACCESS CONTROL 2011 ACCESS CONTROL 7
62011 ACCESS CONTROL 2011 ACCESS CONTROL 7
STAND-ALONE
Stand-alone systems are recommended for buildings requiring
basic access control, without the need for an incidents register.
It can also be used as an add on to an electronic or video door-
entry system and allows residents access to buildings, to offices
and garages.
The system manages access through one door and is
characterised by its easy installation and programming
(activating and deactivating users). If it is necessary to control
several doors, a stand-alone access control can be installed on
each one, with each user having a single identity to access all
doors. If you want to give one sole user access through one
door, activate their identifier on the corresponding reader. If you
want to prevent access you can delete it from the machine's
memory. In this simple way, you can create a policy of restriction
by zones.
Stand-alone access control systems are also known as
CLASS I access control.

62011 ACCESS CONTROL 2011 ACCESS CONTROL 7
62011 ACCESS CONTROL 2011 ACCESS CONTROL 7

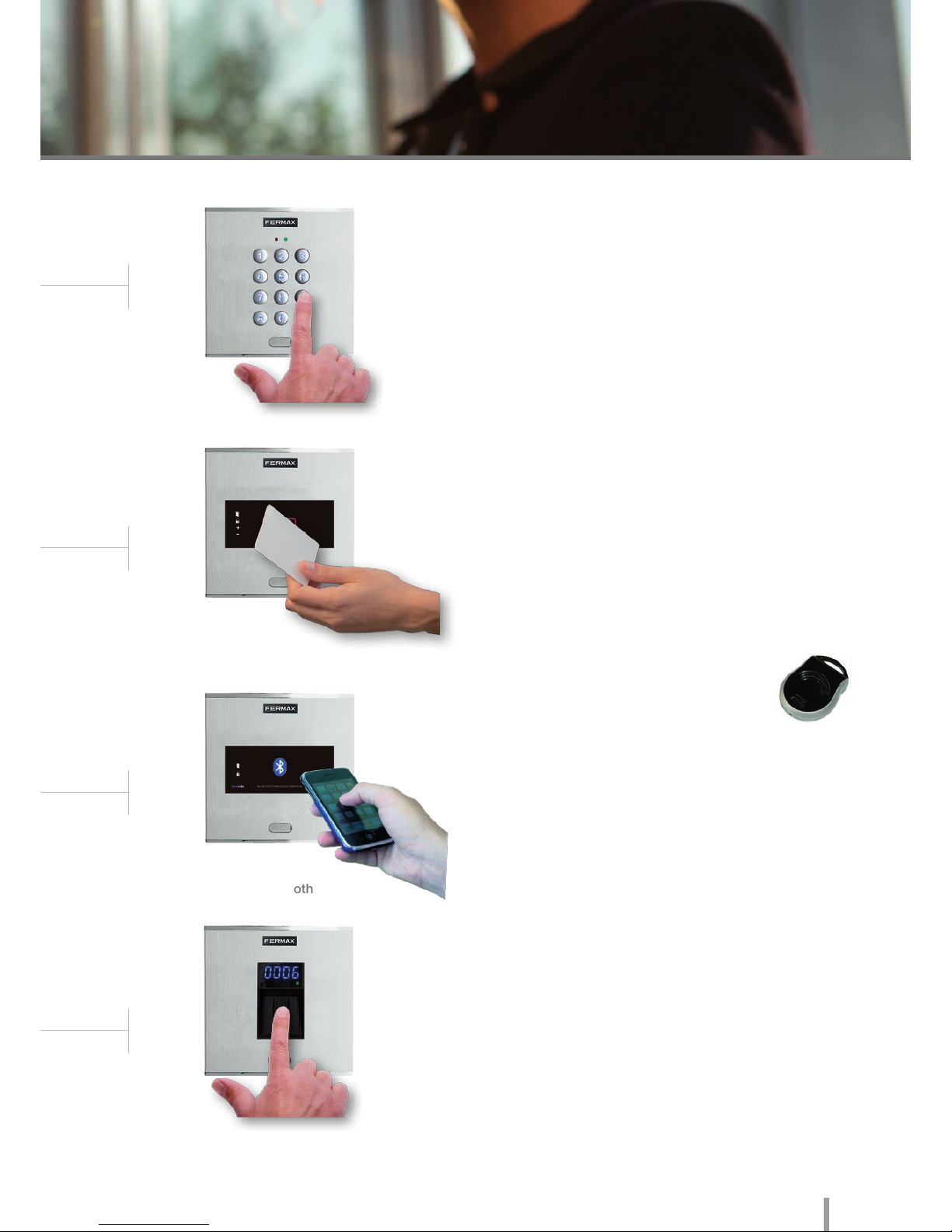

KEYPAD. The user should enter a code on the keypad. It is the
most economical model as it does not use identifiers. The same
code can be used by various users.

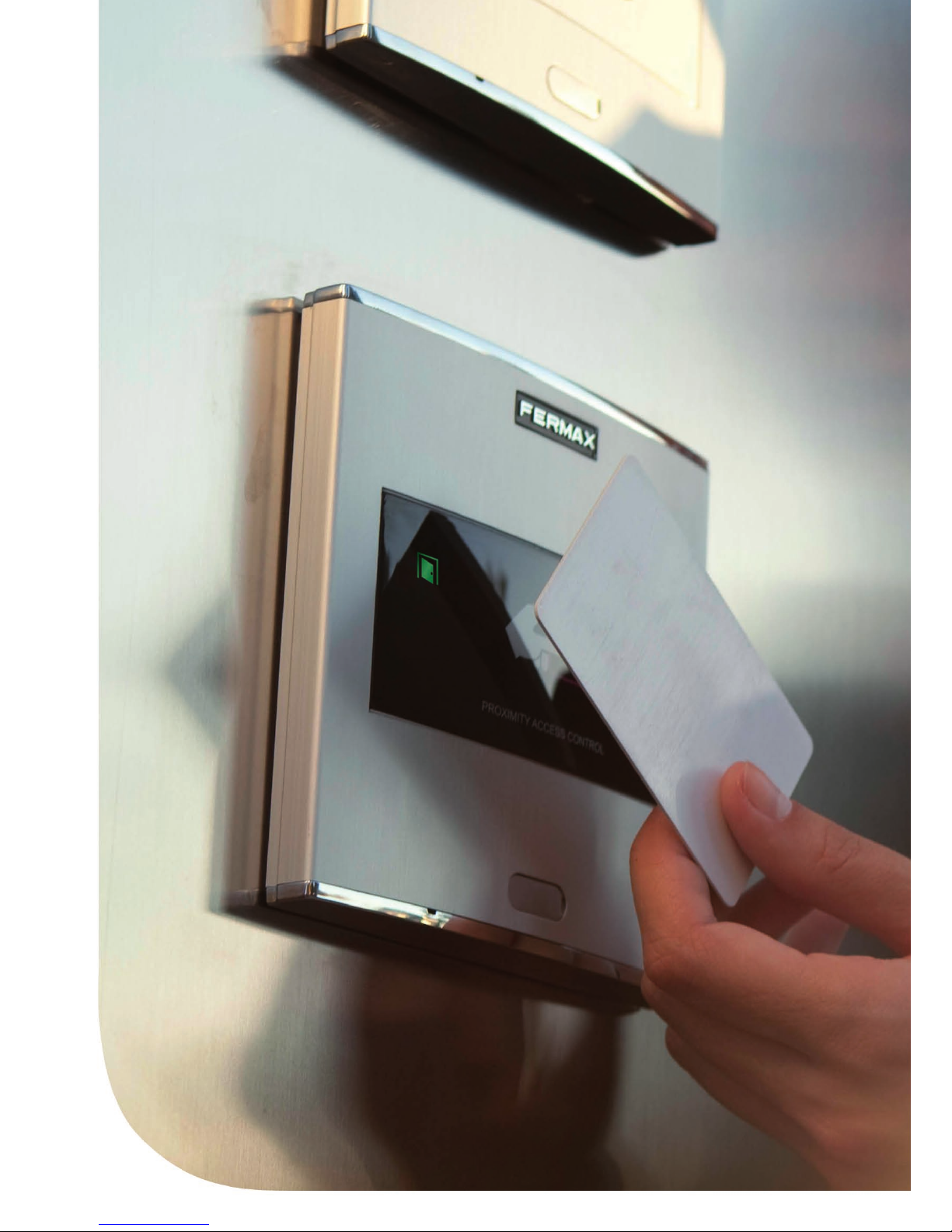

PROXIMITY. The identifier is a card (similar to a credit card)
or a proximity keyring. The identifier is swiped by the reader at
a distance of several centimetres. The reading is facilitated by
means of radio frequency data transmission.
BLUETOOTH. Access control functions by using mobile phones
with Bluetooth technology. The telephone system itself identifies
the user. The advantage of this system is the reader's operating
distance, which makes it very useful for vehicle and pedestrian
access.
BIOMETRIC FINGERPRINT. Biometric fingerprint access
reader with sensor. Identifies the user by their fingerprint (feature
which is unrepeatable and unique to each person), offering a
greater level of security than any other system using another
type of identifier.
RADIO FREQUENCY. This technology
is mainly used in garage accesses given
the flexibility allowed by the large distance
between the identifier (control) and the receiver.
There are several types of technology, depending on the
interaction between the identifier and the reader.
Keypad
Proximity Reader
Bluetooth
Fingerprint

82011 ACCESS CONTROL 2011 ACCESS CONTROL 9
82011 ACCESS CONTROL 2011 ACCESS CONTROL 9
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) s/lock-release
• Operating Temperature
130x128
115x114x45
130x128x33
54
07
12V (ac/dc)
40/110
-15º to 55º C

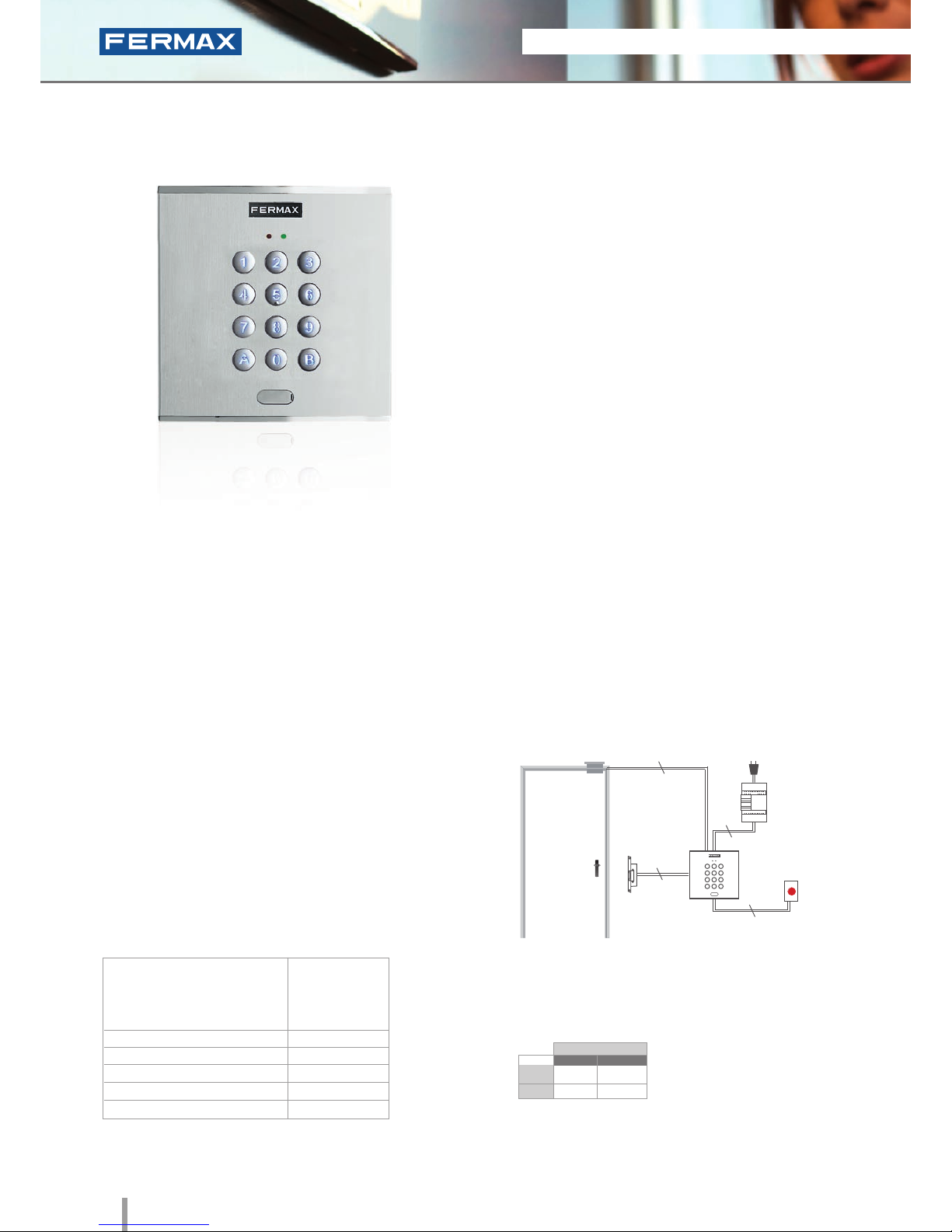

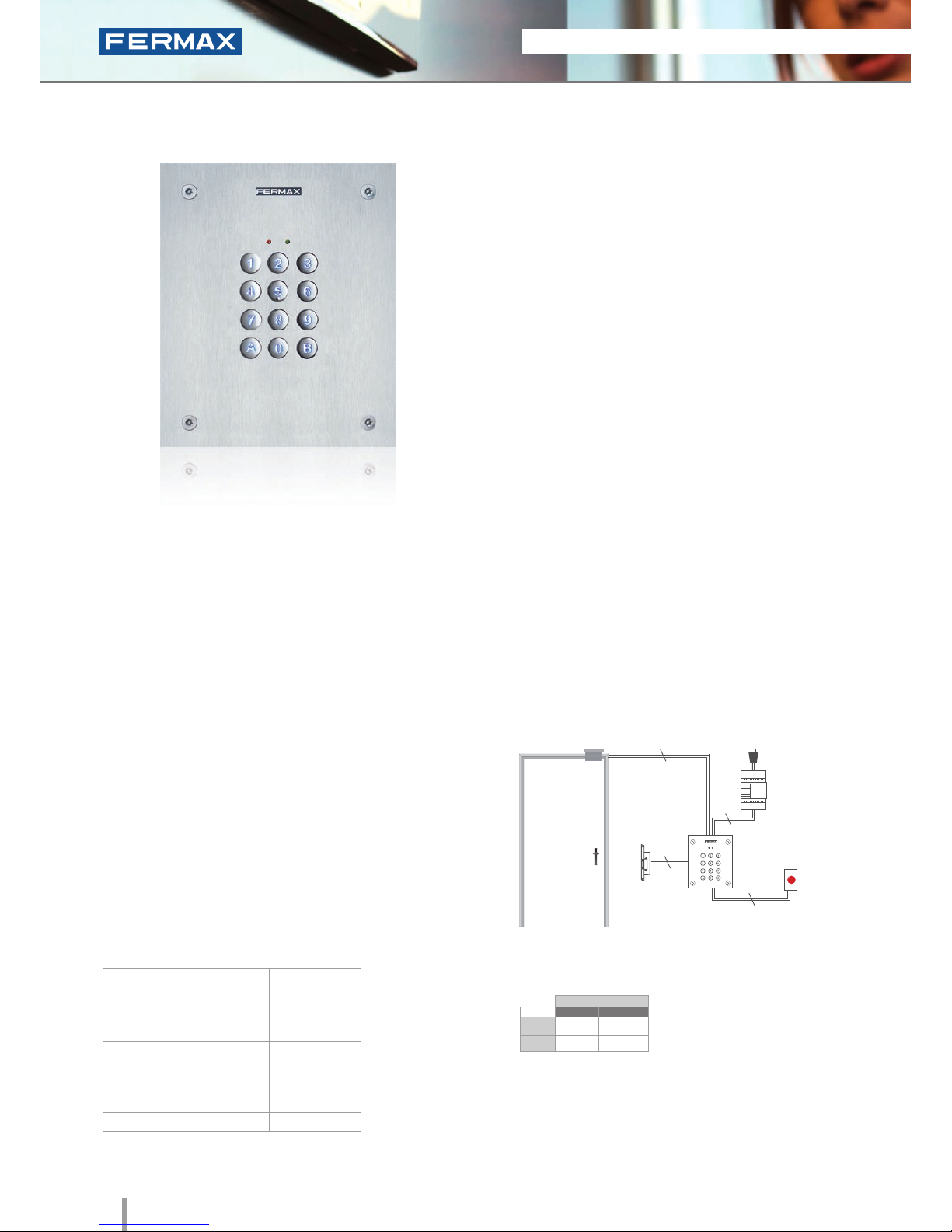

Ref.6991
Cityline Memokey
Keypad
• Access control keypad which allows the door to be
opened when a pre-programmed code of up to 6 digits
is entered.
• Capacity: up to 100 user codes.
• Length 4 to 6 digits.
• Integrated within the Cityline aluminum panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.7061, optional).
• Recommended for interiors and exteriors.
• Reader and controller integrated within the same module.
• Acoustic confirmation tone which sounds when a
button is pressed. Acoustic and visual confirmation
with LEDs showing if a code has been accepted/rejected.
• Blue backlit zamak keypad with status LED.
TECHNICAL FEATURES INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable between 1 and 99 secs or bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (150mA max) to
indicate a vandalism attempt or open/forced door.
• Each code can activate 2 relays at the same time.
The keypad is located in the exterior area. The rest of the
devices are connected to this module and installed in the
building's interior: power supply and lock-release. An exit
button can be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
Lock-Releases
Exit Button
Power Supply
Ref.6991
230Vac
2
2
2
2
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

82011 ACCESS CONTROL 2011 ACCESS CONTROL 9
82011 ACCESS CONTROL 2011 ACCESS CONTROL 9

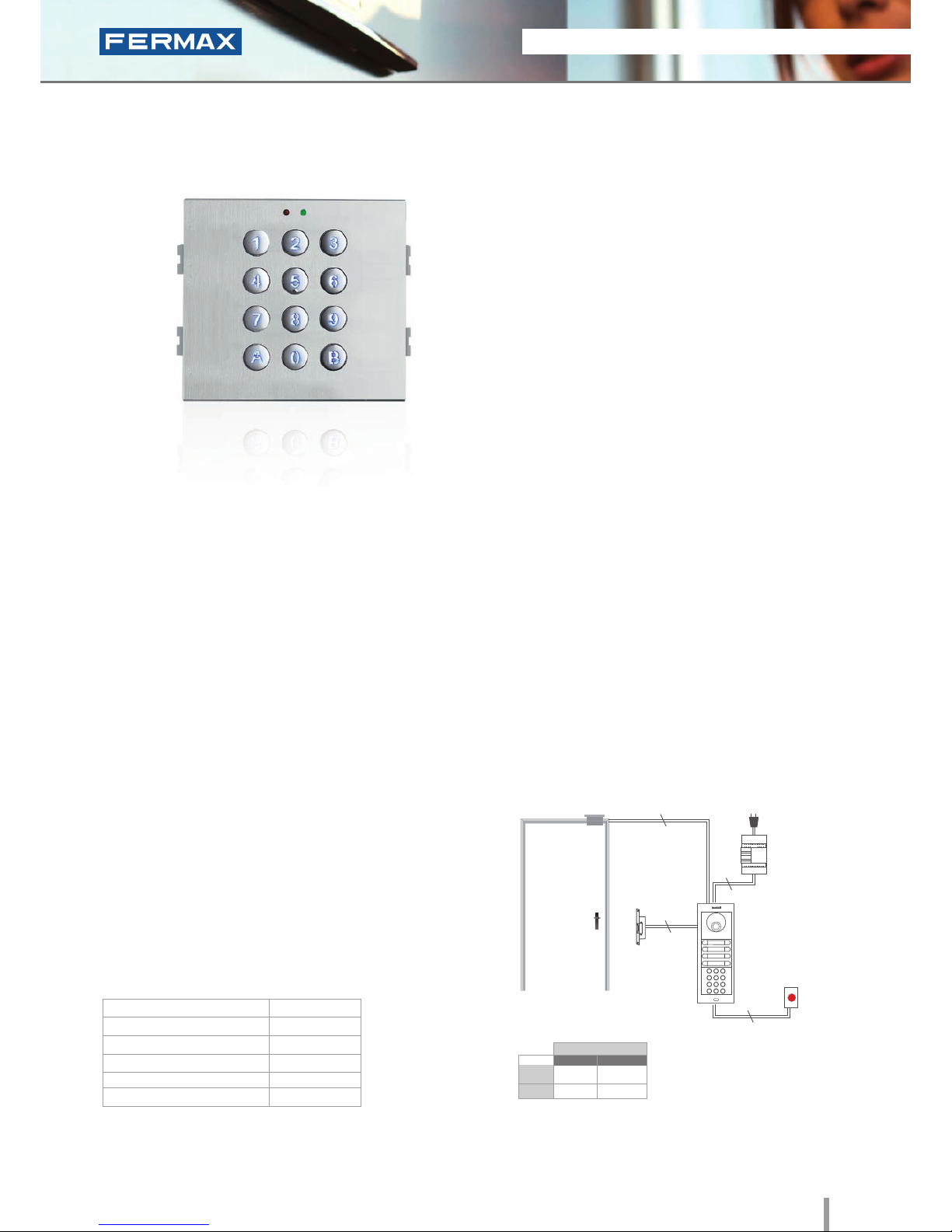

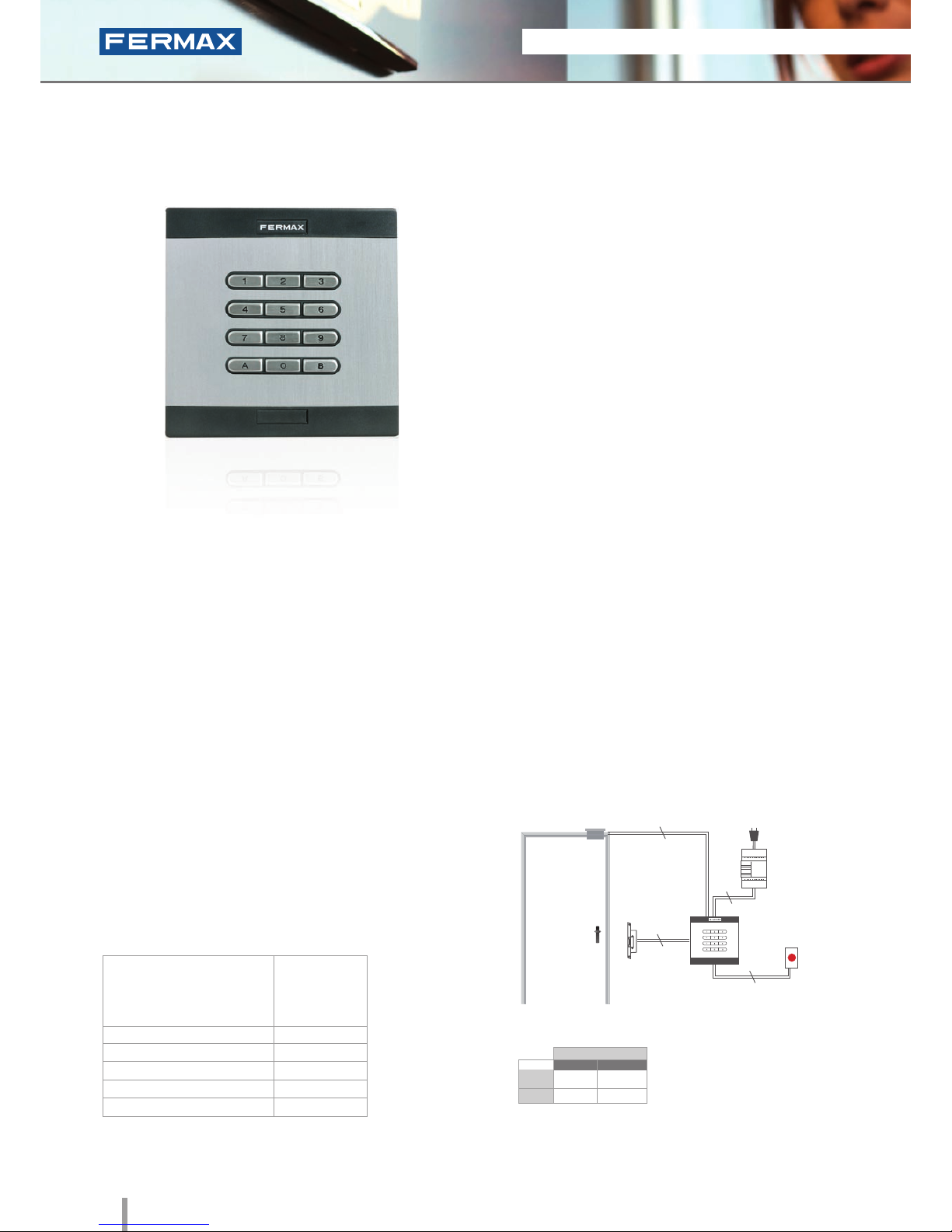

W Skyline Memokey
Ref.7438
Keypad
• Access control keypad module to be installed on
Skyline audio/video door entry system panels.
• Lock release on entering a code with up to 6 pre-
programmed digits.
• Capacity: up to 100 user codes.
• Length 4 to 6 digits.
• Blue backlit zamak keypad with status LEDs.
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Acoustic confirmation tone which sounds when a
button is pressed. Acoustic and visual confirmation
with LEDs showing if a code has been accepted/
rejected.
TECHNICAL FEATURES INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable from 1 and 99 seconds or bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (150mA max) to
indicate a vandalism attempt or open/forced door.
• Each code can activate 2 relays at the same time.
The electronic or video door entry system panels are located
in the building's exterior. The panel can be configured in
an intuitive manner using the memokey module for greater
ease of use and access security. The rest of the devices
are connected to this module and installed in the building's
interior: power supply and lock-release. An exit button can
be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Reader Dimensions
• Environmental Protection (IP)
* Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) s/lock-release
• Operating Temperature
105,2x95
54
07
12V (ac/dc)
40/110
-15º to 55º C
2
Lock-Releases
Exit Button
Power Supply
Ref. 7438
230Vac
2
2
2
Cityline Memokey
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

10 2011 ACCESS CONTROL 2011 ACCESS CONTROL 11
10 2011 ACCESS CONTROL 2011 ACCESS CONTROL 11

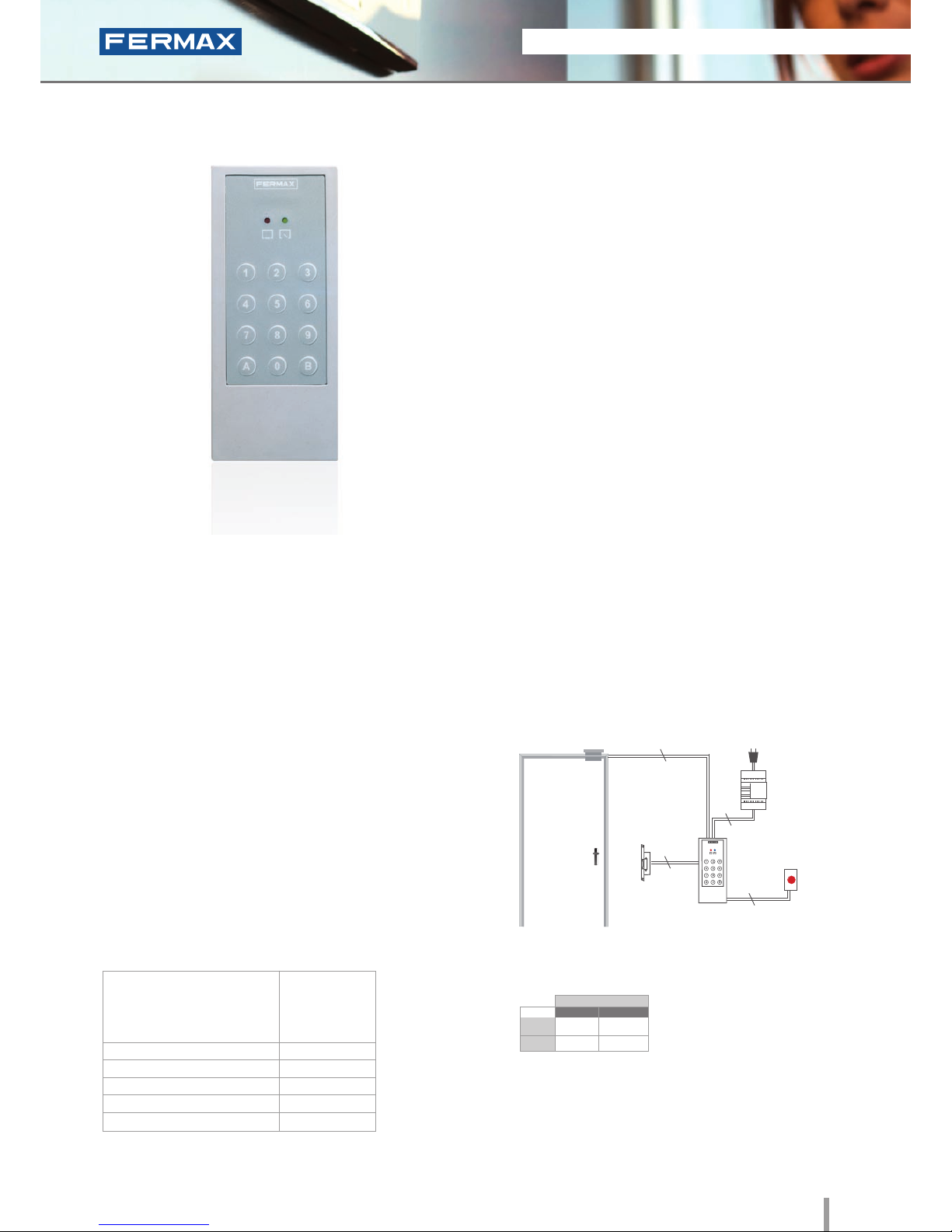

City Classic
Memokey
Ref.3610
Keypad
• Access control keypad which allows the door to be
opened when a pre-programmed code of up to 6 digits
is entered.
• Capacity: up to 100 user codes.
• Length 4 to 6 digits.
• Integrated within an aluminum City Classic panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.8951, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Confirmation tone when a button is pressed or to
indicate that the code entered has been accepted/
rejected.
TECHNICAL FEATURES
INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable at from 1 and 99 seconds or bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (150mA max) to
indicate a vandalism attempt or open/forced door.
• Each code can activate 2 relays at the same time.
The keypad is located in the exterior area. The rest of the
devices are connected to this module and installed in the
building's interior: power supply and lock-release. An exit
button can be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
* Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) s/lock-release
• Operating Temperature
130x128
115x114x45
130x128x33
43
07
12V (ac/dc)
6/60
0º to 70º C
Lock-Releases
Exit Button
Power Supply
Ref.3610
230Vac
2
2
2
2
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

10 2011 ACCESS CONTROL 2011 ACCESS CONTROL 11
10 2011 ACCESS CONTROL 2011 ACCESS CONTROL 11
City Classic CR
Memokey
Ref.3620 + Ref.3621
Keypad
• Access control keypad which allows the door to be opened
when a pre-programmed code of up to 6 digits is entered.
• Capacity for up to 100 user codes.
• Length 4 to 6 digits.
• Confirmation tone sounds when a button is pressed and to
indicate if the code entered has been accepted/rejected.
• Reader (ref.3620) and controller (ref.3621) in two
independent modules.
• The controller is installed in the building's interior near the
power supply and lock-release.
• The metallic box is included with the controller.
• Flush mounted (ref.8948, including box) or surface
installation (ref.8951, optional).
• A second keypad CR can be added in the building's
interior.
• Maximum distance between reader and controller of 100m.
• Reader and controller not integrated within the same
module.
TECHNICAL FEATURES
INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable at from 1 and 99 seconds or bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (150mA max) to
indicate a vandalism attempt or open/forced door.
• Each code can activate 2 relays at the same time.
The CR keypad is located in the exterior of the building and
is connected to the controller in the interior in the same way
as the rest of the device (power supply and lock-release).
An exit button can be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
* Metallic Box
• Environmental Protection (IP)
* Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) s/lock-release
• Operating Temperature
130x128
115x114x45
130x128x33
154x203x50
43
07
12V (ac/dc)
6/60
0º to 70º C
Lock-Releases
Exit Button
Power Supply
Ref.3621
Ref.3620
230Vac
2
2
6
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

12 2011 ACCESS CONTROL 2011 ACCESS CONTROL 13
12 2011 ACCESS CONTROL 2011 ACCESS CONTROL 13
Marine Memokey
Ref.4699
Keypad
• Access control keypad which allows the door to be
opened when a pre-programmed code of up to 6
digits is entered.
• Capacity: up to 100 user codes.
• Length 4 to 6 digits.
• Integrated within a 2.5mm stainless steel Marine panel.
• Flush mounted (ref.4641, including
box) or surface installation (ref.4701, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Acoustic confirmation tone which sounds when a
button is pressed. Acoustic and visual confirmation
with LED’s showing if a code has been accepted/
rejected.
• Blue backlit zamak keypad with status LEDs.
TECHNICAL FEATURES INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable at from 1 and 99 seconds or bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (max. 150mA) to
indicate a vandalism attempt or open/forced door.
• Each code can activate 2 relays at the same time.
The keypad is located in the exterior area. The rest of the
devices are connected to this module and installed in the
building's interior: power supply and lock-release. An exit
button can be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release.
• Operating Temperature
150x180
130x160x55
154x184x55
54
09
12V (ac/dc)
40/110
-15º to 55º C
Lock-Releases
Exit Button
Power Supply
Ref.4699
230Vac
2
2
2
2
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

12 2011 ACCESS CONTROL 2011 ACCESS CONTROL 13
12 2011 ACCESS CONTROL 2011 ACCESS CONTROL 13
Loft Memokey
Ref.4540
Keypad
• Access control keypad which allows the door to be
opened when a pre-programmed code of up to 6
digits is entered.
• Membrane keypad finished in texturised ABS plastic
with status LEDs.
• Surface installation.
• Capacity: up to 100 user codes.
• Length 4 to 6 digits.
• Recommended for interior use.
• Includes 50cm of wiring.
• Reader and controller integrated within the same module.
• Acoustic confirmation tone which sounds when a
button is pressed. Acoustic and visual confirmation
with LED’s showing if a code has been accepted/
rejected.
TECHNICAL FEATURES INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable at from 1 and 99 seconds or
bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (max. 150 mA) to
indicate a vandalism attempt or open/forced door.
• Tamper proof to indicate vandalism attempts.
The keypad is located in the exterior area. The rest of
the devices are connected to this module and they are
installed in the building's interior: power supply and lock-
release. An exit button can be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) s/lock-release.
• Operating Temperature
60x130x23
Not required
Not required
66
06
12V (ac/dc)
20/70
0º to 70º C
Lock-Releases
Exit Button
Power Supply
Ref.4540
230Vac
2
2
2
2
Marine Memokey
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

14 2011 ACCESS CONTROL 2011 ACCESS CONTROL 15
14 2011 ACCESS CONTROL 2011 ACCESS CONTROL 15
Cityline Private
Ref.6992
Proximity

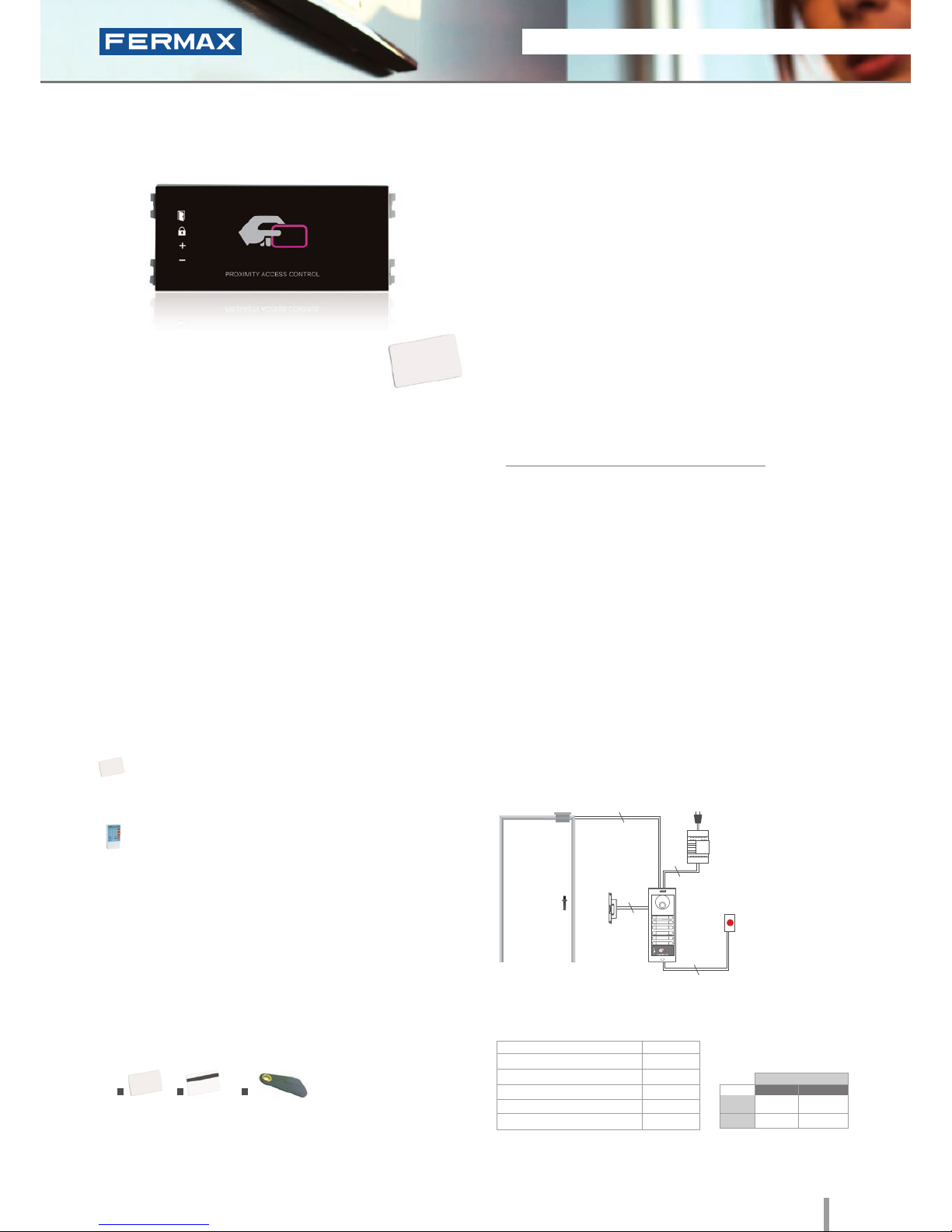

• Access control reader which allows the door to be opened
by swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is not
necessary.
• Integrated within the Cityline aluminum panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.7061, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as a STAND-ALONE system:
• Capacity: up to 400 user cards or keyrings.
• Acoustic and visual confirmation using LEDs which
advise if the card swiped has been accepted/rejected.
Dimensions: (horizontal)x(vertical)x(depth) mm
INSTALLATION
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
130x128
115x114x45
130x128x33
54
07
12V (ac/dc)
90
-15º to 55ºC
TECHNICAL FEATURES
• Does not require physical contact.
5cm (card) or 1.5cm (keyring) reading distance.
• Acoustic and visual status data.
• Status LEDs (help in programming and determining
status).
• Manual programming (using master card or keyring)
or via PC software (card activation/deactivation).
• Door sensor and exit button control.
• Relay output.
• Relay lock-release activation with programmable
time. Programmable from 1 to 99 seconds.
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip
(ref.2336); 3. Proximity keyring (ref.44501).
The reader is located in the exterior area. The rest of the
devices are connected to this module and they are installed in
the building's interior: power supply and lock-release. An exit
button can be used optionally.
Lock-Releases
Exit Button
Power Supply
Ref.6992
230Vac
2
2
2
2
PROGRAMMING
This can be done in 3 ways:
Master card: The first time the power supply is
connected, the system waits for a proximity card to be
swiped. This is then considered the "master card".
Keypad: Recommended if we want to deactivate
faulty cards.
PC Software: For managing user activation/
deactivations.
The WINPROX software can be downloaded from
www.fermax.com
1 2 3
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

14 2011 ACCESS CONTROL 2011 ACCESS CONTROL 15
14 2011 ACCESS CONTROL 2011 ACCESS CONTROL 15
• Access control reader which allows the door to be opened
by swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is
not necessary.
• Access control module to be integrated within Skyline
audio/video door entry system panels.
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as a STAND-ALONE system:
• Capacity: up to 400 user cards or keyrings.
• Acoustic and visual confirmation using LEDs which
advise if the card swiped has been accepted/rejected.
INSTALLATION
The electronic or video door entry system panels are located
in the building's exterior. The panel can be configured in an
intuitive manner using the private module for greater ease of
use and access security. The rest of the devices are connected
to this module and they are installed in the building's interior:
power supply and lock-release. An exit button can be used
optionally.
V Skyline Private
Ref.7440
Proximity
TECHNICAL FEATURES
• Does not require physical contact.
5cm (card) or 1.5cm (keyring) reading distance.
• Acoustic and visual status data.
• Status LEDs (help in programming and determining
status).
• Manual programming (using master card or keyring)
or via PC software (card activation/deactivation).
• Door sensor and exit button control.
• Relay output.
• Relay lock-release activation with programmable
time. Programmable at 1 to 99 secs.
Lock-Releases
Exit Button
Power Supply
Ref.7440
230Vac
2
2
2
2
SPECIFICATIONS
• Reader Dimensions:
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
105.2X47.5
54
07
12V (ac/dc)
90
-15º to 55ºC
PROGRAMMING
This can be done in 3 ways:
Master card: The first time the power supply is
connected, the system waits for a proximity card to be
swiped. This is then considered the "master card".
Keypad: Recommended if we want to deactivate
faulty cards.
PC Software: For managing user activation/
deactivations.
The WINPROX software can be downloaded from
www.fermax.com
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip
(ref.2336); 3. Proximity keyring (ref.44501). Dimensions: (horizontal)x(vertical)x(depth) mm
1 2 3
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

16 2011 ACCESS CONTROL 2011 ACCESS CONTROL 17
16 2011 ACCESS CONTROL 2011 ACCESS CONTROL 17

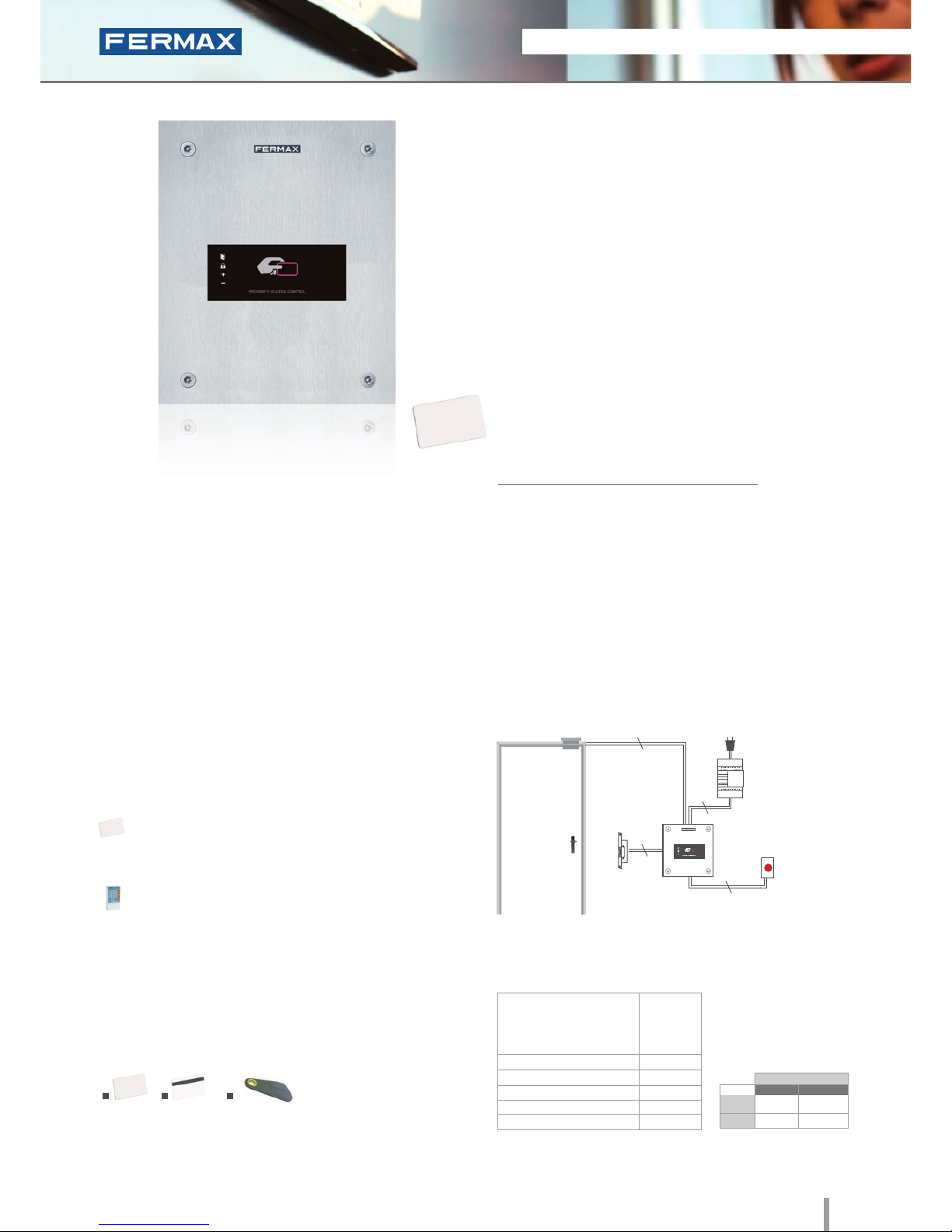

City Classic Private
Ref.2347
Proximity
• Access control reader which allows the door to be opened
by swiping the proximity card or keyring . Only authorised
cards or keyrings activate the device. Physical contact is
not necessary.
• Capacity: up to 400 user cards or keyrings.
• Integrated within the City Classic aluminum panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.8951, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Acoustic and visual confirmation using LEDs which
advise if the card presented has been accepted/rejected.
Dimensions: (horizontal)x(vertical)x(depth) mm
INSTALLATION
TECHNICAL FEATURES
• Does not require physical contact.
3cm (card) or 1cm (keyring) reading distance.
• Acoustic and visual status data.
• Manual programming (using master card or keyring)
or via PC software (card activation/deactivation).
• Door sensor and exit button control.
• Relay output.
• Relay lock-release activation with programmable time.
Programmable from 1 to 99 seconds.
• Status LEDs (help in programming and determining
status).
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
130x128
115x114x45
130x128x33
43
07
12V (ac/dc)
80/120
0º to 60ºC
The reader is located in the exterior area. The rest of the
devices are connected to this module and they are installed in
the building's interior: power supply and lock-release. An exit
button can be used optionally.
Lock-Releases
Exit Button
Power Supply
Ref.2347
230Vac
2
2
2
2
PROGRAMMING
This can be done in 3 ways:
Master card: The first time the power supply is
connected, the system waits for a proximity card to be
swiped. This is then considered the "master card".
Keypad: Recommended if we want to deactivate
faulty cards.
PC Software: For managing user activation/
deactivations.
The WINPROX software can be downloaded from
www.fermax.com
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip
(ref.2336); 3. Proximity keyring (ref.44501).
1 2 3
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

16 2011 ACCESS CONTROL 2011 ACCESS CONTROL 17
16 2011 ACCESS CONTROL 2011 ACCESS CONTROL 17
• Access control reader which allows the door to be opened
by swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is
not necessary.
• Integrated within a 2.5mm Marine stainless steel panel.
• Flush mounted (ref.4641, including box) or surface
installation (ref.4701, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as a STAND-ALONE system:
• Capacity: up to 400 user cards or keyrings.
• Acoustic and visual confirmation using status LEDs
which advise if the card swiped has been accepted/
rejected.
INSTALLATION
The reader is located in the exterior area. The rest of the devices
are connected to this module and installed in the building's
interior: power supply and lock-release. An exit button can be
used optionally.
SPECIFICATIONS
Marine Private
Ref.5472
Proximity
TECHNICAL FEATURES
• Does not require physical contact.
4cm (card) or 1cm (keyring) reading distance.
• Acoustic and visual status data.
• Manual programming (using master card or keyring)
or via PC software (card activation/deactivation).
• Door sensor and exit button control.
• Relay output.
• Relay lock-release activation with programmable
time. Programmable from 1 to 99 seconds.
• Status LEDs (help in programming and determining
status).
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
150x180
130x160x55
154x184x55
54
09
12V (ac/dc)
90
-15º to 55ºC
Lock-Releases
Exit Button
Power Supply
Ref.5472
230Vac
2
2
2
2
PROGRAMMING
This can be done in 3 ways:
Master card: The first time the power supply is
connected, the system waits for a proximity card to be
swiped. This is then considered the "master card".
Keypad: Recommended if we want to deactivate
faulty cards.
PC Software: For managing user activations/
deactivations.
The WINPROX software can be downloaded from
www.fermax.com.
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip
(ref.2336); 3. Proximity keyring (ref.44501). Dimensions: (horizontal)x(vertical)x(depth) mm
1 2 3
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

18 2011 ACCESS CONTROL 2011 ACCESS CONTROL 19
18 2011 ACCESS CONTROL 2011 ACCESS CONTROL 19
Loft Private
Ref.4530
Proximity
• Access control reader which allows the door to be opened
by swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is
not necessary.
• Capacity: up to 400 user cards or keyrings.
• Module finished in textured ABS plastic.
• Surface installation.
• Recommended for interior use.
•Includes 50 cm of wiring.
• Reader and controller integrated within the same module.
• Acoustic and visual confirmation using LEDs which
advise if the card swiped has been accepted/rejected.
Dimensions: (horizontal)x(vertical)x(depth) mm
INSTALLATION
The reader is located in the exterior area. The rest of the
devices are connected to this module and they are installed in
the building's interior: power supply and lock-release. An exit
button can be used optionally.
TECHNICAL FEATURES
• Does not require physical contact.
4 cm (card) or 1 cm (keyring) reading distance.
• Acoustic and visual status data.
• Manual programming (using master card or keyring)
or via PC software (card activation/deactivation).
• Door sensor and exit button control.
• Relay output.
• Relay lock-release activation with programmable
time. Programmable from 1 to 99 seconds.
• Status LED (help in programming and determining
status).
SPECIFICATIONS
• Reader Dimensions
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
60x130x23
66
06
12V (ac/dc)
45/75
0º to 60ºC
Lock-Releases
Exit Button
Power Supply
Ref.2347
230Vac
2
2
2
2
PROGRAMMING
This can be done in 3 ways:
Master card: The first time the power supply is
connected, the system waits for a proximity card to be
swiped. This is then considered the "master card".
Keypad: Recommended if we want to deactivate
faulty cards.
PC Software: For managing user activation/
deactivations. The WINPROX software can be
downloaded from www.fermax.com
STAND-ALONE
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip
(ref.2336); 3. Proximity keyring (ref.44501).
1 2 3
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced
