Rev 2.0 Mar.10 1
1
1: Introduction to the Raven XE
•ACEware™
•Connecting to your
cellular provider
•EV-DO
•Connection
methods
•Networking
•Applications
•Software
•Documentation The Raven XE is an intelligent wireless gateway, powered by
ALEOS™, and optimal for providing primary or backup network
connectivity for any high-reliability/ high-availability applications.
The Raven XE is the perfect solution for any device with an Ethernet
connection that requires pervasive connectivity including PCs,
routers, network equipment and POS/ATMs as well as commercial
automation equipment.
Powered by ALEOS™, Raven XE modems are designed to maintain
a reliable, consistent network connection. Class I Divison 2 certified
as nonincendive equipment, the Raven Series is ideally suited for use
in hazardous environments.
Key applications include utilities, manufacturing, automation, oil and
gas, ethernet-based SCADA, telemetry, Homeland Security and
asset monitoring.
Figure 1-1: Sierra Wireless AirLink Raven XE
ALEOS, the embedded core technology of the Sierra Wireless
AirLink products simplifies installation, operation and maintenance of
any solution, and provides an always-on, always-aware intelligent
connection for mission-critical applications. ALEOS enables:
•Persistent Network Connectivity

Raven XE
220080616
•Over-The-Air (OTA) Upgrades
•Wireless Optimized TCP/IP
•Real-Time Notification
•Packet Level Diagnostics
•Device Management & Control
•Protocol Spoofing

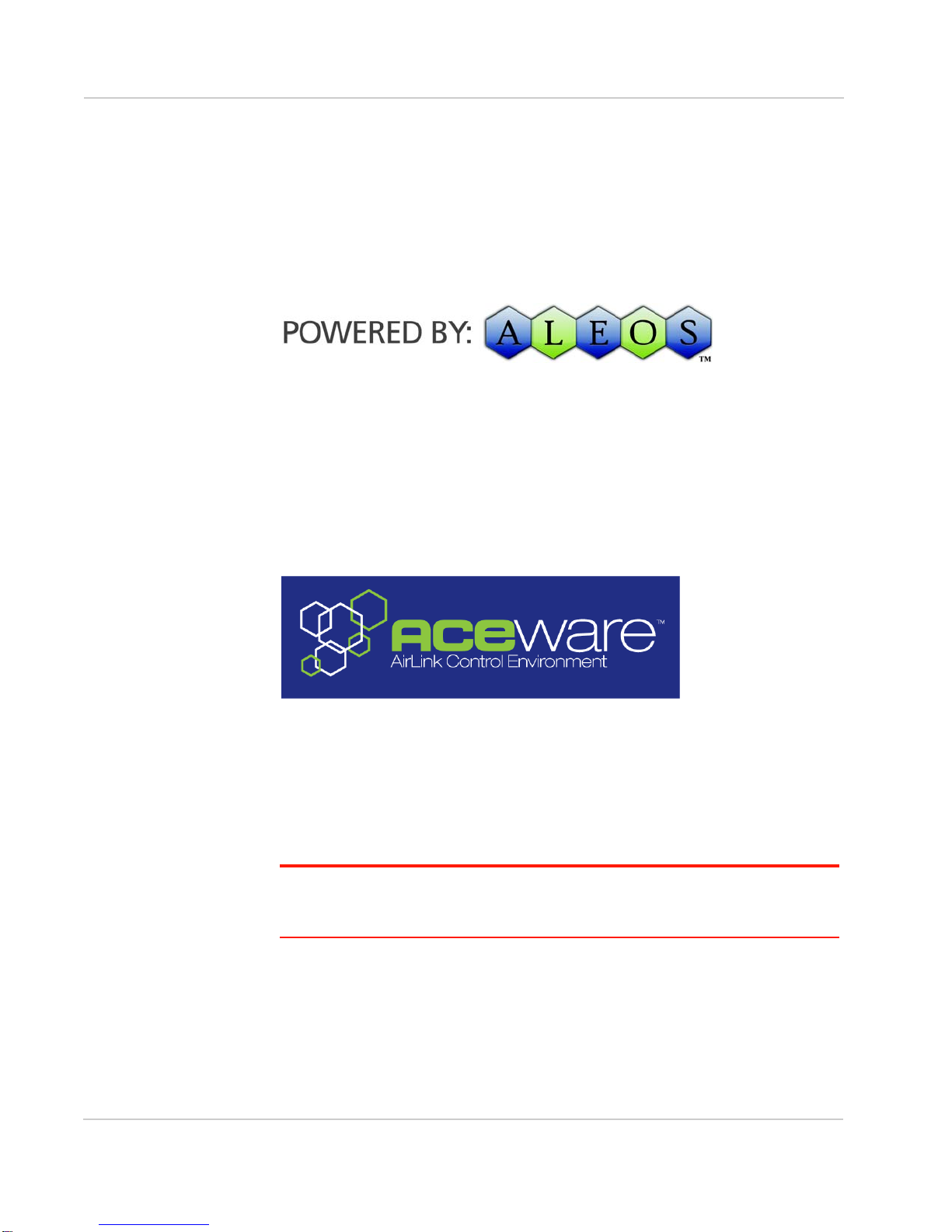

Figure 1-2: Powered by ALEOS
ACEware™
A wireless solution is not complete until you have software tools to manage the
devices monitoring your valuable equipment. Using the AirLink Control
Environment (ACE), ACEWare is the device management and monitoring
application suite for Sierra Wireless AirLink devices powered by ALEOS.
Figure 1-3: ACEware Logo
The ACEware suite encompasses an application internal to the firmware (
ACEmanager), Windows-based applications (ACEview and Modem Doctor), and
a web-hosted application (ACEnet). You can download the applications and their
user guides from the Sierra Wireless AirLink Solutions web site: http://
www.sierrawireless.com/support. Contact your dealer or Sierra Wireless
representative for any further information.
Note: ACEview requires the Microsoft .NET Framework v. 2.0 and Microsoft Windows 98,
Windows 2000, Windows XP, or later. You can obtain the Microsoft .NET Framework from
Microsoft at: http://www.microsoft.com/.
ACEmanager
ACEmanager, the AceWare remote configuration and monitoring tool, simplifies
deployment and provides extensive monitoring, control and management
capabilities. ACEmanager gives you the power to monitor and control your Sierra
Wireless AirLink communications platforms in real-time.

Introduction to the Raven XE
Rev 2.0 Mar.10 3

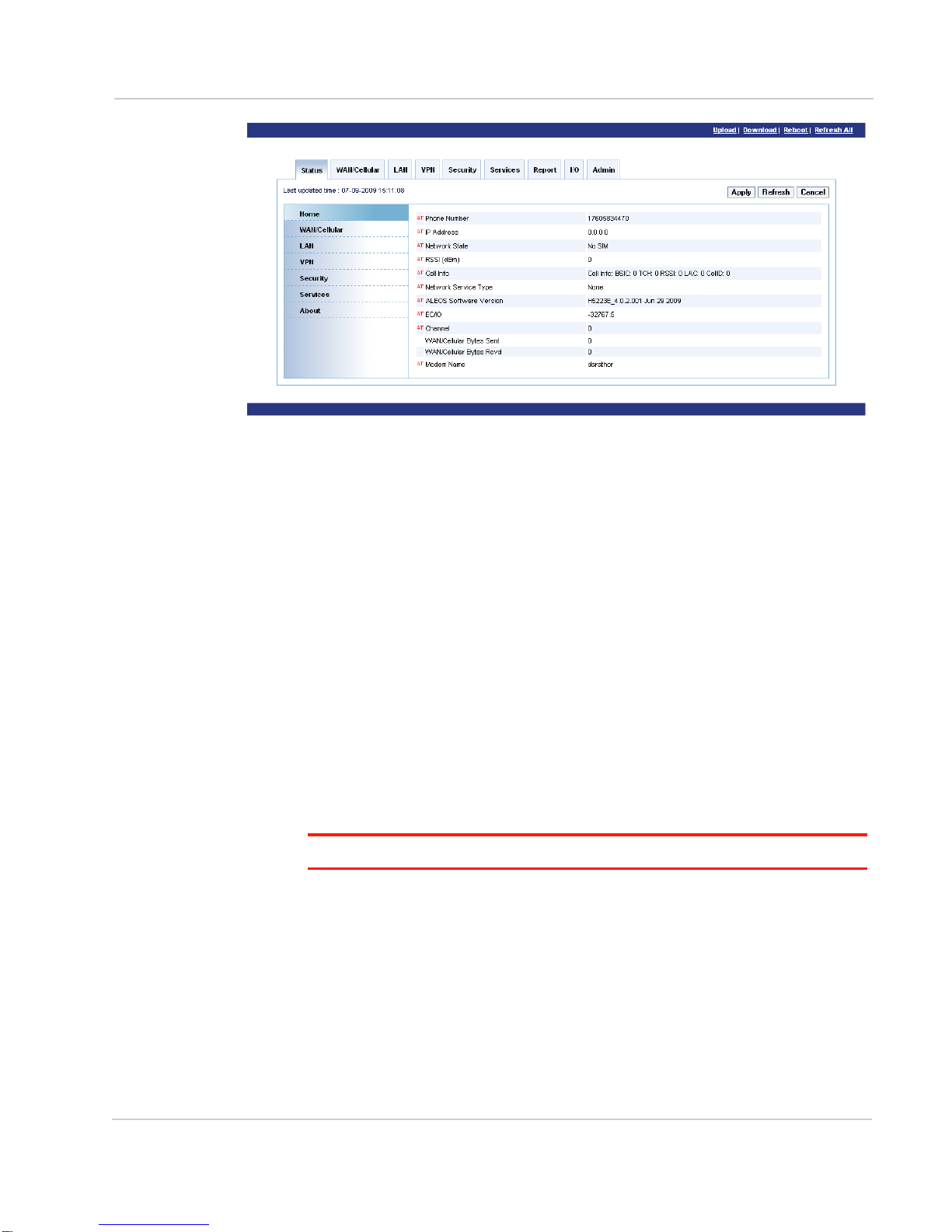

Figure 1-4: ACEmanager
Simplified Deployment
ACEmanager provides the ability to remotely set up and configure your Sierra
Wireless AirLink products. Remote device setup and configuration reduces the
deployment timeline of your wireless solution and provides a quicker path to ROI.
Templates allow you to easily configure devices in your fleet with identical
settings, ensuring a simple, accurate deployment.
Monitor and Control
ACEmanager allows an administrator to remotely monitor a modem’s status,
health and configuration settings. The user interface displays signal strength, cell
site information, byte counters and error conditions, enabling you to pinpoint any
issues and troubleshoot immediately.
ACEmanager enables remote configuration and parameter settings to be
changed or reset instantly over the air, change a device’s port configuration, IP
address settings, GPS settings, and much more. After configuring one modem,
use the template feature to copy that device configuration to other devices.
Tip: Configuration steps and examples in this guide use ACEmanager.
ACEview
ACEview is an efficient status and connection monitoring application with a low-
profile, easy to read interface. In ACEview, you can also update PRL.

Raven XE
420080616
Figure 1-5: ACEview
Modem Doctor
Modem Doctor and Modem Doctor USB is a troubleshooting and diagnostics
utility. This utility will allow you to get a log file of the Raven XE activity which you
can then send to Sierra Wireless support or erase the current configuration
completely.
Figure 1-6: Modem Doctor
Connecting to your cellular provider
The Raven XE uses your cellular provider as an ISP (Internet Service Provider) to
connect you to the Internet.
Steps of a connection:
1. When your Raven XE is powered on, it automatically searches for cellular
service using CDMA-based cellular technology.
2. Your Raven XE establishes a PPP (Point to Point Protocol or “dial” up
connection) link to your cellular provider network, also called registering on
the network, and receives an IP address.

Introduction to the Raven XE
Rev 2.0 Mar.10 5
3. When your Raven XE has received its IP address from your cellular provider,
a connection to the Internet or the cellular network is also available for
computers or other devices connected directly to the Raven XE.
The Raven XE will perform routing for all internet traffic to and from the
computers or other end devicse.
With the Raven XE in Ethernet Public mode, only one device connected to the
Ethernet port will receive the public IP address which is the one provided by the
cellular network. In Ethernet Private mode, with a hub or switch connected to the
Ethernet port, the Raven XE will provide NAT for a range of computers or other
devices connected to the switch or hub and Internet access to all of them.
Dynamic vs. Static IP Addresses
There are two types of addresses on networks: dynamic and static.
•Dynamic addresses are assigned on a “need to have” basis. Your Raven XE
might not always receive the same address each time it connects with your
cellular provider.
•Static addresses are permanently assigned to a particular account and will
always be used whenever your Raven XE connects to the Internet. The IP
address will not be given to anyone else.
Most ISPs (cellular included) use dynamic IP addresses rather than static IP
addresses since it allows them to reuse a smaller number of IP addresses for a
large number of customers. A dynamic IP address is suitable for many common
Internet uses, such as web browsing, looking up data on another computer
system, or other client functions (such as data only being sent out or only being
received after an initial request).
Tip: If your account with your cellular provider includes a dynamic IP address and you
need a static IP, please consult your your cellular provider Representative for more infor-
mation about changing your account for static IP support.
If you need to contact your Raven XE, a device connected to the Raven XE, or a
host system using the Raven XE from the Internet, you need to have a known IP
(such as one which is static) or domain name (an IP address which is converted
by a DNS server into a word based name). If you have a dynamic IP address for
your modem, you can use a Dynamic DNS service (such as IP Manager) to
translate your IP address into to a domain name.
Raven XE

Raven XE
620080616
Caution: If you want to connect remotely to your Raven XE using TCP/IP, the IP address
given to your modem by your cellular provider cannot be a private or internal IP address
(such as a special private network) unless you are on the same network or inside that
network’s firewall (such as with frame relay).
EV-DO
CDMA (Code Division Multiple Access) is the underlying digital radio network
technology used by many cellular providers across the globe and is prevalent in
North America. To provide backward compatibility and seamless connections in
a wider range of locations, Sierra Wireless EV-DO products your Raven XE will
fall back to 1x when EV-DO is not available.
Sierra Wireless is certified with your cellular provider, a prominent North
American 1x and EV-DO carrier.
EV-DO revision A is an enhancement on the original revision 0 adding expanded
upload capabilities and a more robust connection overall. In addition to increasing
the downlink speed, revision A also increases the uplink speed. In addition, it is
backwards compatible and automatically connects with existing and broadly
deployed EV-DO Rev. 0 and 1x networks ensuring reliable and pervasive
connectivity.
Security
1x data transmissions are highly secure. Originally developed based upon the
“spread spectrum” pioneered by the US Department of Defense, security in
CDMA technologies is obtained by spreading the digital information contained in
a particular signal of interest over multiple coded paths, over a much greater
bandwidth than the original signal.
Connection methods
You can connect the Raven XE to a USB or a Ethernet (RJ45) on a computer.
When connected to a USB or Ethernet port, the Raven XE behaves like a network
card.
USB
The Raven XE is equipped with a USB port which increases the methods by
which you can send and receive data. The USB port can be set to work as either
a virtual Ethernet port or a virtual serial port. A driver installation is required to
use the USB port in either mode.
It is recommended that you use a USB 2.0 cable with your Raven XE and connect
directly to your computer for best throughput.

Introduction to the Raven XE
Rev 2.0 Mar.10 7
Virtual serial port
The Raven XE supports one virtual serial port over USB. This VSP can be used,
for example, to send AT commands, or to run many serial based applications
such as HyperTerminal®.
Networking
IPSec
The IP protocol that drives the Internet is inherently insecure. Internet Protocol
Security (IPSec), which is a standards-based protocol, secures communications
of IP packets over public networks.
IPSec is a common network layer security control and is used to create a virtual
private network (VPN).
The advantages of the IPSec feature includes:
•Data Protection: Data Content Confidentiality allows users to protect their
data from any unauthorized view, because the data is encrypted (encryption
algorithms are used).
•Access Control: Access Control implies a security service that prevents
unauthorized use of a Security Gateway, a network behind a gateway or
bandwidth on that network.
•Data Origin Authentication: Data Origin Authentication verifies the actual
sender, thus eliminating the possibility of forging the actual sender’s identifi-
cation by a third-party.
•Data Integrity: Data Integrity Authentication allows both ends of the communi-
cation channel to confirm that the original data sent has been received as
transmitted, without being tampered with in transit. This is achieved by using
authentication algorithms and their outputs.
The IPSec architecture model includes the Sierra Wireless AirLink gateway as a
remote gateway at one end communicating, through a VPN tunnel, with a VPN
gateway at the other end. The remote gateway is connected to a Remote network
and the VPN is connected to the Local network. The communication of data is
secure through the IPSec protocols.

Raven XE
820080616
Figure 1-7: IPSec Architecture
GRE
GRE (Generic Routing Encapsulation) tunnel is used to carry non-IP packets
through an IP Network. Non -IP packets, that are send over the GRE tunnel, need
to be first encapsulated. Hence, ALEOS is used to configure and encapsulate
non-IP packets and transmit over IP through the GRE tunnel.
Applications
Events Reporting
Events Reporting is Sierra Wireless AirLink’s modem’s new software feature
provided via ACEmanager, that allows the users to generate reports from the
events that take place. Event Reporting Protocol is an intuitive embedded
protocol, which automatically formats the messages based on an event trigger.
The messages generated are then reported to the remote server.
Software
The Raven XE modem comes with the following software:
•AceView, the software for the Raven XE which allows you to monitor your
connections.
•The driver that forms the interface between the Raven XE and your Windows
operating system when using USB virtual Ethernet or USB virtual serial.
•The firmware that is stored in non-volatile memory and includes
ACEmanager.
The Raven XE has an embedded radio module, also made by Sierra Wire-
less, Inc. There are two firmware programs on the device—one stored on the
controller board of the Raven XE and one on the radio module.
The firmware was loaded into the radio module and controller board when the
Raven XE was assembled. As new versions of the software and firmware are
released, they are posted at www.sierrawireless.com.

Introduction to the Raven XE
Rev 2.0 Mar.10 9
Documentation
This Raven XE User Guide describes how to:
•Install the Raven XE hardware.
•Connect the radio antennas.
•Connect a notebook computer and other input/output
(I/O) devices.
•Interpret the LEDs on the Raven XE and the indicators in the AceView
software.
This User Guide is provided as a PDF (Portable Document Format) file on the
installation CD or from the Sierra Wireless support website.
Tools and Reference Documents
User Guide Description
ALEOS User Guide This document discusses software configuration in ACEmanager and explains all the
ALEOS features.
ACEview User Guide This document explains the use of this utility tools which is used to view and monitor the
connection state of a Sierra Wireless AirLink device.
ACEnet User Guide This document explains the use of ACEnet services for remote management of Sierra
Wireless AirLink device.

Raven XE
10 20080616

Rev 2.0 Mar.10 11
2
2: Specifications
•Power Connector
Features and Benefits
•Embedded Intelligence
•Low Power Consumption
•Compact Size
•Rugged Aluminium Case
•High-Speed Processor (ARM 9)
•High-Speed 2-way Data
•10/100 Mbps Ethernet Port
•Persistent Network Connectivity
•Remote Management and Configuration
•Class I Div 2 Certified
Technology
With Fallback to:
·CDMA 1xRTT
·CDMA IS-95
Bands
•800 Mhz Cellular
•1900 Mhz PCS
Environmental
•Operating Temperature:
·-30° to 70° Celsius
•° Storage Temperature:
·-40° to 85° Celsius
Power Consumption: (@12V DC)
•Transmit (Typical/Max) 110/265 mA
•Idle 80 mA
•Input Current 75 mA to 265 mA
•Input Voltage 9 - 28V DC
Standards/Approvals
•Carrier specific approvals
•CDMA EV-DO Revision A

Raven XE
12 20080616
•RoHS
•FCC
•Industry Canada
•This apparatus is suitable for use in Class I, Division 2, Groups A, B, C, D or
unclassified or non-hazardous locations.
Warning: Explosion Hazard - Substitution of any components may impair suitability for
Class I, Division 2.
Note: In consideration of
EU regulations, this
device is classified as
Class A device for use in
commercial environments.
Host Interfaces
•Ethernet: 10BaseT RJ-45
•USB Type B 5 Pin mini
•Antenna Connection:
·Cellular - 50 Ohm SMA
·Receive Diversity - 50 Ohm SMA
·I/O Ports: 2
Warning: The antenna should be installed no closer than 20 cm from the human body. It
is one of the RSS-102 requirements for devices not requiring SAR.
Dimensions
•75mm x 27mm x 103mm
•185 grams
Application Interfaces
•TCP/IP, UDP/IP, DHCP, HTTP, SNMP, SMTP, SMS, MSCI, Modbus and more
LED Indicators
•Network
•Signal
•Activity
•Power
•Reset Button
Power Connector
