FERREX 705158 User manual

User Manual
705158
1100 W TURBINE BLOWER
Read all safety warnings and all instructions
thoroughly before operating this product.
Ensure you keep your manual in a
safe place for future reference.
IM ed 2; 03/2022
Product
Info

MODEL No.: TGT2001, PRODUCT No.: 700069
QR codes take you where you want to go
quicky and easily
Whether you require product information, spare parts or accessories,
details on warranties or after sales service, or if you want to watch
a product demonstration video, our QR codes will take you there in
no time at all.
What is a QR code?
A QR-code (QR=Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You are not required to manually enter a website address
or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR codes reader
software and an Internet connection*. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and
nd out more about the Aldi product you have
purchased*.
* Depending on your tari you may be charged
for the connection.
Product
Info

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION.
The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. The benets conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Warranty details
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
MODEL No.: GBV100W •03/2022 •705158
3
1100 W Turbine Blower

MODEL No.: GBV100W, PRODUCT No.: 705158
Contents
Pack contents / parts 2
Description of symbols 3
General Safety Warnings 5
Parts List 8
Assembly 10
Unpacking 10
Assembling and disassembling the upper blower tube 10
Assembling the lower blower tube 11
Nozzle 11
Attaching the extension cord 11
Operation 12
Starting & stopping 12
Using the blower 12
Adjusting the blowing speed with 2-speed switch 13
Residual risk 13
Maintenance 14
Clean and Storage 14
Cleaning the blower 14
Storage 14
Warranty 15
Environmental Protection 15
What your 3 year warranty means 16
Service Support 16
Accessories and After Sales Parts 16
Troubleshooting 17
Technical Specications 17

MODEL No.: TGT2001, PRODUCT No.: 700069 3
Congratulations on the purchase of your FERREX® 1100 W Turbine Blower. When
you open your packaging, rst remove all items and check there are no parts
damaged or missing. If you nd anything wrong, do not operate the product
until the parts have been replaced or the fault has been rectied. Failure to do so
could result in serious personal injury.
Application
First time users or inexperienced operators pay particular attention to the
operation of the 1100 W Turbine Blower, including details of starting and
stopping and correct use of the 1100 W Turbine Blower on pages 12-13, as well
as the maintenance instructions on page 13.
Intended use of the 1100 W Turbine Blower
It is exclusively intended for home use. It is not designed for trade or commercial
use.
This 1100 W Turbine Blower is intended for residential use only. Use the blower
outdoors to move yard debris as needed.
Any other use or change to the appliance is deemed improper and poses a
signicant risk of accidents.
Contents of carton
1 x 1100 W Turbine Blower
1 x Upper Tube
1 x Lower Tube & Nozzle
1 x Instruction Manual
1 x Warranty Card & details
Pack contents / parts
2
MODEL No.: GBV100W, PRODUCT No.: 705158

MODEL No.: TGT2001, PRODUCT No.: 70096
Description of symbols
The instruction manual, rating plate, or on the product itself, may show
these symbols. These represent important information about the product or
instructions on its use.
To reduce the risk of injury, user must read instruction manual
Keep bystanders away.
Warning of hazard
SWITCH OFF: Remove plug from mains before cleaning or
maintenance.
Do not use in the rain or leave outdoors while it is raining.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear eye protection.
32 MODEL No.: GBV100W, PRODUCT No.: 705158

MODEL No.: GBV100W, PRODUCT No.: 705158 4
36
Box
Conforms to relevant standards for electrical safety and electromagnetic
compatibility.
Warning
Class II equipment
36 Months Warranty
The box is recyclable at the kerbside.
The inserts are recyclable at the kerbside.
Noise label rating 100db(A). You must wear ear protection at all times.
100

MODEL No.: GBV100W, PRODUCT No.: 705158
WARNING! Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, re and/
or serious injury.
Save all warnings and instructions for future reference.
- This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the
appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
The appliance is designed only for blowing of dry leaves in private house-
holds and as a hobby appliance in the garden. Any other utilization, which is
not explicitly approved in these directions, can lead to damage to the
appliance and represent a serious danger to the user.
• The appliance is designed for use by adults. Young people over 16 years
may use the appliance under supervision only.
• The use of the appliance in the rain or in a humid environment is
forbidden.
• The manufacturer is not liable for damage which is caused through
inappropriate use or incorrect operation.
NOTE: Do not use the machines with low power for heavy work. DO NOT use
your appliance for purposes for which it has not been designed.
WARNING! To reduce the risk of injury, user must read and
understand instruction manual.
5
General safety warnings

MODEL No.: GBV100W, PRODUCT No.: 705158 6
1) Training
a) Read the instructions carefully. Be familiar with the controls and the proper
use of the appliance;
b) Never allow children to use the appliance.
c) Never allow people unfamiliar with these instructions to use the appliance.
Local regulations may restrict the age of the operator;
d) Never operate the appliance while people, especially children, or pets are
nearby;
e) The operator or user is responsible for accidents or hazards occurring to
other people or their property.
2) Preparation
a) While operating the appliance, always wear substantial footwear and long
trousers. Do not operate the equipment when barefoot or wearing open
sandals;
b) Do not wear loose clothing or jewellery that can be drawn into the air
inlet. Keep long hair away from the air inlets.
c) Wear protective goggles while operating
d) To prevent dust irritation the wearing of a face mask is recommended
e) Before using, check the supply and extension cord for signs of damage
and aging. Do not use the appliance if the cord is damaged or worn.
f) Never operate the appliance with defective guards or shields, or without
safety devices.
g) Only use a weather proof extension cable tted with a coupler according
to IEC 60320-2-3.
h) It is recommended that the appliance should be supplied via a residual
current device (RCD) with a tripping current of not more than 30 mA.
i) If an extension cord is used make sure it is for outdoor use and marked
as such. The recommended size of extension cord is not lighter than
0.75mm2.

MODEL No.: GBV100W, PRODUCT No.: 705158
3) Operation
a) Always direct the cord to the rear away from the appliance.
b) If the cord becomes damaged during use, disconnect the supply cord
from the mains immediately. DO NOT TOUCH THE CORD BEFORE
DISCONNECTING THE SUPPLY.
c) Do not carry the appliance by the cord.
d) Disconnect the appliance from the mains supply
- whenever you leave the machine;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if the appliance starts to vibrate abnormally.
e) Operate the appliance only in daylight or in good articial light.
f) Do not overreach and keep your balance at all times.
g) Always be sure of your footing on slopes.
h) Walk, never run;
i) Keep all cooling air inlets clear of debris.
j) Never blow debris in the direction of bystanders.
h) Do not put hands or feet near or under rotating parts.
4) Maintenance and storage
a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe
working condition;
b) Replace worn or damaged parts.
c) Use only genuine replacement parts and accessories.
d) Store the appliance only in a dry place.
7

8
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
9
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: i[email protected]m 1300 889 028
(toll free)
1100 W Turbine Blower
9 10
1. Nozzle
2. Lower blower tube
3. Upper blower tube
4. On/o switch with 2 - speed control
5. Handle
6. Motor housing
7. Fan housing
8. Upper tube release button
9. Extension cord retainer
10. Power plug
11. Hanging Hole
Parts List
11

8
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
9
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
(toll free)
1100 W Turbine Blower
67
54
8
1 2 3

10
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
11
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: i[email protected]m 1300 889 028
(toll free)
1100 W Turbine Blower
Assembly
WARNING: Before assembling and disassembling the blower
tubes, be sure the on/o switch is in‘’0’’ O position and the plug
is removed from the mains power outlet.
1. Unpacking (See Fig. A)
Unpack all parts and lay them on a at, stable surface. You will nd an
upper blower tube (3), a lower blower tube (2) with a nozzle (1) are
provided with main machine. You will need to assemble the upper blower
tube (3), the lower blower tube (2) with the nozzle (1) together for use.

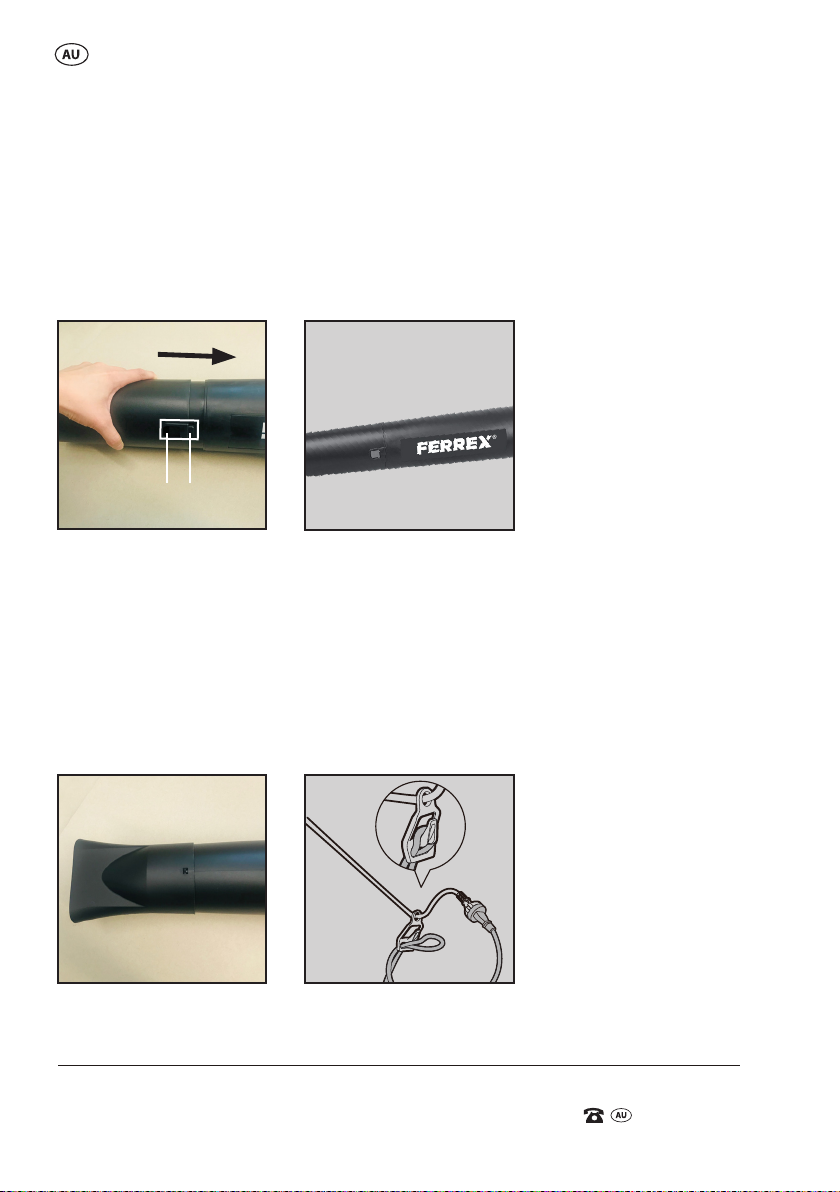

2. Assembling and disassembling the upper blower tube (3)
(See Fig. B1, B2)
To assemble, press the tube release button (8) and slide the upper blower
tube (3) into the motor housing (6). Ensure the hole (a) on the upper
blower tube (3) matches up with the tube release button (8) on the motor
housing (6).
To disassemble, press the tube release button (8), and remove the upper
tube (3) from the motor housing (6).
NOTE: Do not try to separate the tubes by force or by using tools.
AB1 B2
a

10
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
11
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
(toll free)
1100 W Turbine Blower
3. Assembling the lower blower tube (2) (See Fig. C1, C2)
To assemble, slide the lower blower tube (2) onto the upper blower tube
(3). Ensure the hole (b) on the lower blower tube (2) matches up with the
raised notch (c) on the upper blower tube (3). Pull the lower blower tube
(2) to check if it is assembled well.
NOTE: Once assembled, the lower tube cannot be disassembled from the
upper blower tube.
D E
C1 C2
b c
4. Nozzle (1) (See Fig. D)
The nozzle (1) has a compression t to the lower tube.
NOTE: It is not recommended to disassemble the nozzle from the blower.
5. Attaching the extension cord (See Fig. E)
Create a loop with your extension cord (not supplied), and place it through the
extension cord retainer (9) and over the hook. This will ensure your extension
cord is secure and reduce any incidence of the plug detatching during use.

12
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
13
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: i[email protected]m 1300 889 028
(toll free)
1100 W Turbine Blower

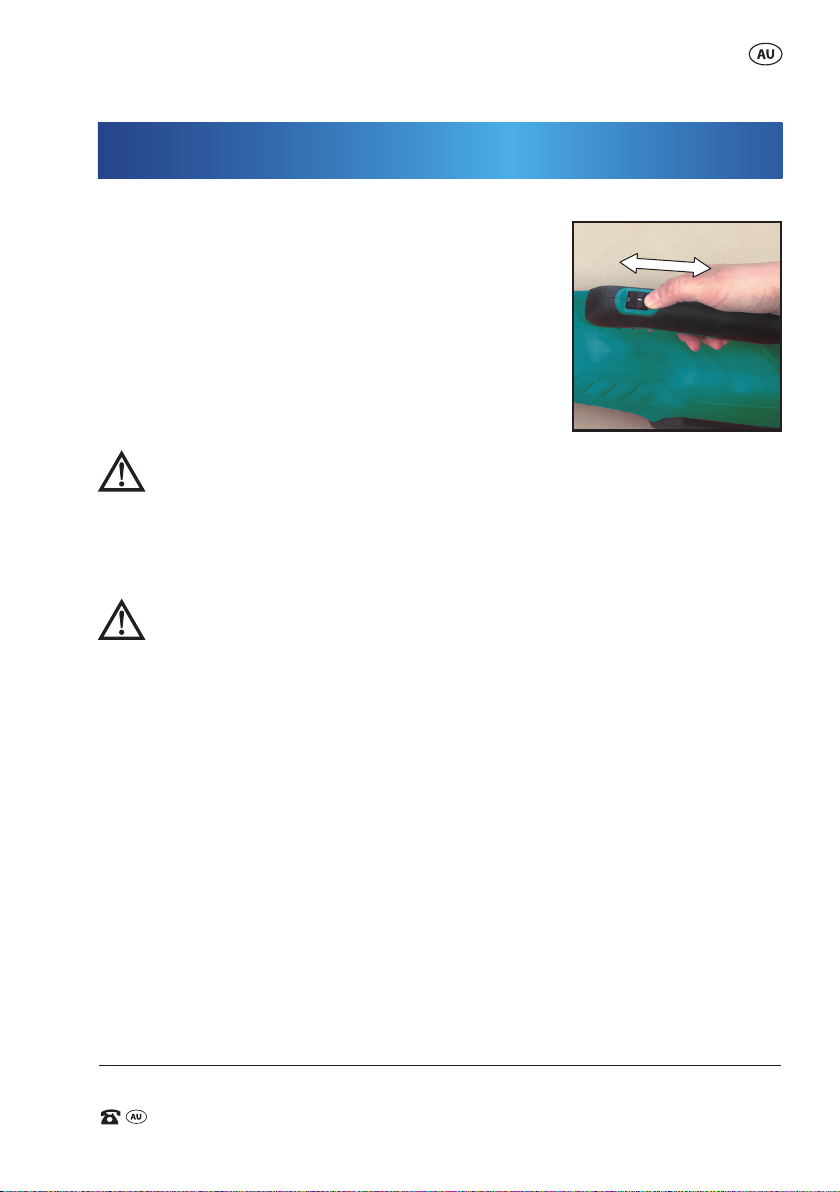

1. Starting & stopping (See Fig. F)
- Starting
Move the on/o switch (4) to the “I” or “II” On
position.
Speed "I" is the lower speed. Speed "II" is higher
speed.
- Stopping
Move the on/o switch (4) to the “0” O position.
WARNING! The blower runs for a few seconds after it has been
switched o.
NOTE: Let the motor come to a complete standstill before setting the
blower down.
2. Using the blower
WARNING: During operation of the blower it is recommended to
wear eye protection, a dust mask, and full hearing protection.
Ensure you are wearing suitable clothing.
User tips
- Adjust the blowing speed (I or II) according to the desired working
condition.
- Hold the blow tube approximately 8” (20.3cm) above the ground when
operating the blower.
- Use a sweeping motion from side to side. Advance slowly keeping the
accumulated debris/leaves in front of you.
- After blowing the debris/leaves into a pile, it is easy to dispose of the
pile.
Operation
F

12
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
13
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
(toll free)
1100 W Turbine Blower
Caution!
- Do not blow hard objects such as nails, bolts,
or rocks. It is recommended to inspect the
area you are blowing before starting use to
ensure this does not occur.
- Do not operate the blower near bystanders or
pets.
- Use extra care when cleaning debris from
stairs or other tight areas.
- Wear safety goggles or other suitable eye
protection, long pants, and shoes.
3. Adjusting the blowing speed with 2-speed
switch (4) (See Fig. G1, G2)
Move the on/o switch (4) to "I" position, and
the blower will run at a lower speed. (See Fig. G1)
Move the on/o switch (4) to "II" position, and
the blower will run at a higher speed.
(See Fig. G2)
G1
G2
Residual risk
Even if you use the 1100 W blower properly per the instructions provided
and following all safety notes, there are always residual risks. The following
risk may occur:
- Accidental Starting: Always unplug the blower from the power outlet
before carrying out any adjustment, servicing or maintenance. When not
in use, store the blower in a safe, dry, clean environment.
- Risk of blowing: Do not direct the output of the blower tube at any person,
the operator, or any animals. Never place hands in front of nozzle, direct
blowing away from self or others, and always operate in an area clear of all
persons, pets and obstacles. Do not operate the product when fatigued or
under the inuence of alcohol or drugs, stay alert at all times.
Reduce residual risks by using the 1100 W blower with care and following all
safety notes as well as other instructions.

14
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
15
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: i[email protected]m 1300 889 028
(toll free)
1100 W Turbine Blower
Cleaning and Storage
1. Cleaning the blower
Clean the blower regularly after each use.
Warning!
- Keep your blower dry. Under no circumstances spray with water.
- To clean the blower, use only mild soap and a damp cloth.
- Do not use any type of detergent, cleaner or solvent which may
contain chemicals that could seriously damage the plastic.
- Self lubricating bearings are used in your product, therefore
lubrication is not required.
2. Storage
You can store your blower by hanging it on the wall
with the hanging hole (11) at the back of the blower.
(See Fig. H)
• Dry all parts thoroughly before using the device
again or store it. Always keep the openings clean
and dry.
• Store the blower and extension cord indoors, in
a cool dry location, that is protected from dust,
moisture and direct sunlight and that is also out
of the reach of children and animals.
H
Maintenance
Remove the plug from the mains power outlet before carrying out any
adjustment, servicing or maintenance.
There are no user serviceable parts in your blower. Never use water or
chemical cleaners to clean your blower. Wipe clean with a dry cloth. Keep
the motor ventilation slots clean. Keep all working controls free of dust.
If the replacement of the supply cord is necessary, this has to be done by
the manufacturer or his agent in order to avoid a safety hazard.

14
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
15
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
(toll free)
1100 W Turbine Blower
Warranty
Environmental protection
Recycle unwanted materials instead of disposing of them as waste. All
tools, hoses and packaging should be sorted, taken to the local recycling
centre and disposed of in an environmentally safe way. Dispose of used
motor oil in a manner that is compatible with the environment. We suggest you
take it in a sealed container to your local service station for reclamation. Do not
throw it in the trash or pour it into the earth.
Your new FERREX® 1100 W Turbine Blower will more than satisfy your
expectations.
It has been manufactured under stringent FERREX® Quality Standards to
meet superior performance criteria.
You will nd your new 1100 W Turbine Blower easy and safe to operate, and,
with proper care, it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before
using your new FERREX® 1100 W Turbine Blower.
Take special care to heed the Cautions and Warnings.
Your FERREX® 1100 W Turbine Blower has many features that will make your
job faster and easier. Safety, performance, and dependability have been
given top priority in the development of this 1100 W Turbine Blower, making
it easy to maintain and operate.
Use only FERREX® replacement parts for your product.
Non-conforming parts or modications made to parts will void your
warranty.

16
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
17
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: i[email protected]m 1300 889 028
(toll free)
1100 W Turbine Blower
What your 3 year warranty means?
Service Support
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly. In the
event of product failure within its intended use over the course of the rst
3 years after the date of purchase, we will remedy the problem as quickly
as possible once it has been brought to our attention. In the unlikely event
of such an occurrence, or if you require any information about the product
please contact us via our after sales support services, details of which can be
found in this manual and on the product itself.
After Sales Support TEL: [phone]
If you have any issues with the operation of your product, please call us
1300 889 028 for advice, or email us at [e-mail].
1. GBV100 W-UBT:
Replacement Upper
Blower Tube
2. GBV100 W-LBT:
Replacement Lower
Blower Tube + Nozzle
Accessories and after sales parts are available for purchase by visiting
https://help.tools/ or calling our customer service hotline on: 1300 889 028
Accessories and After Sales Parts

16
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
(toll free)
e-mail: [email protected]1300 889 028
1100 W Turbine Blower
17
MODEL No.: GBV100W • 03/2022 • 705158
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
(toll free)
1100 W Turbine Blower
Symptom Possible causes Solution
Product does not
start
1.1 Not connected to
power supply.
1.2 Power cord or plug is
defective.
1.1 Connect to power supply.
1.2 Contact customer service.
For further inquiries or issues associated with your 1100 W Turbine Blower,
call our Customer Service on 1300 889 028 or email us at
[e-mail]
Troubleshooting
Rated voltage: 230-240V~50Hz
Rated power: 1100 W
No load speed: 29,000 /min
Air ow: 500CFM
Blower speed: 209KM/H
Protection degree: /II
Net weight: 3 kg
Product dimensions: 1016*250*280 mm
This product complies with:
Safety: AS/NZS 60335.1
AS/NZS 60335.2.100
EMC: CISPR 14-1
Technical Specications
