Subject: Beverage Dispenser Replacement Parts Date: September 30, 2000
Applies to: LD, TPD, and HBD Series Dispensers
Reference
Number
Part
Number
Description List
Price
1
All LD Sizes 102068
Handle assembly
(includes 3 piece
handle, plug-knob
assy., screw bushings
and screws)
24.00
2 All LD Sizes 102067 Plug-Knob Assy. only 15.00
3 For LD 10 21044 Sight Gauge tube, 1
gal.
5.20
3 For LD 15 21045 Sight Gauge tube, 1.5
gal.
6.80
3 For LD 20 21046 Sight Gauge tube, 2
gal.
8.40
4 All LD Sizes 83012 Sight Gauge Washer,
lower
0.50
5 All LD Sizes 83013 Sight Gauge Washer,
upper
0.50
6 All LD Sizes 71047 Sight Gauge Cap 5.00
7
All LD Sizes 71054
Faucet Upper
Assembly
(includes handle, cap,
shank, spring and seat
cup)
16.00
8 All LD Sizes 71035 Faucet Seat Cup 5.00
9 For LD 10 102069 Funnel assembly-1 gal
LD
26.00
9 For LD 15 102070 Funnel assembly-1.5
gal LD
28.00
9 For LD 20 102071 Funnel assembly-2 gal
LD
30.00
10
All LD Sizes 102066
Base assembly,
(includes base, foot, &
3 screws)
36.00
11 All
LD Sizes
71056 Faucet Handle-Black 10.00
11 All
LD Sizes
71055 Faucet Handle-Orange 10.00
Not Shown 74003 Sight Tube Brush 16" 3.00
Not Shown 74002 Sight Tube Brush 12" 3.00
40.00 minimum for all parts orders
.Shipping charges additional.
Please submit purchase order by FAX [phone]
Non-established accounts may prepay, use credit card, or C.O.D.
Most orders shipped same day if received by 12:00 noon C.S.T.
Premium next day air service available.
NOTE:
Each notch shows a ½ gallon increment
Upper notch is only assumed, therefore:
1 notch = 1 gallon dispenser (LD-10)
2 notch = 1½ gallon dispenser (LD-15)
3 notch = 2 gallon dispenser (LD-20)
Dispenser shown is a LD-10 (1 gallon)

2

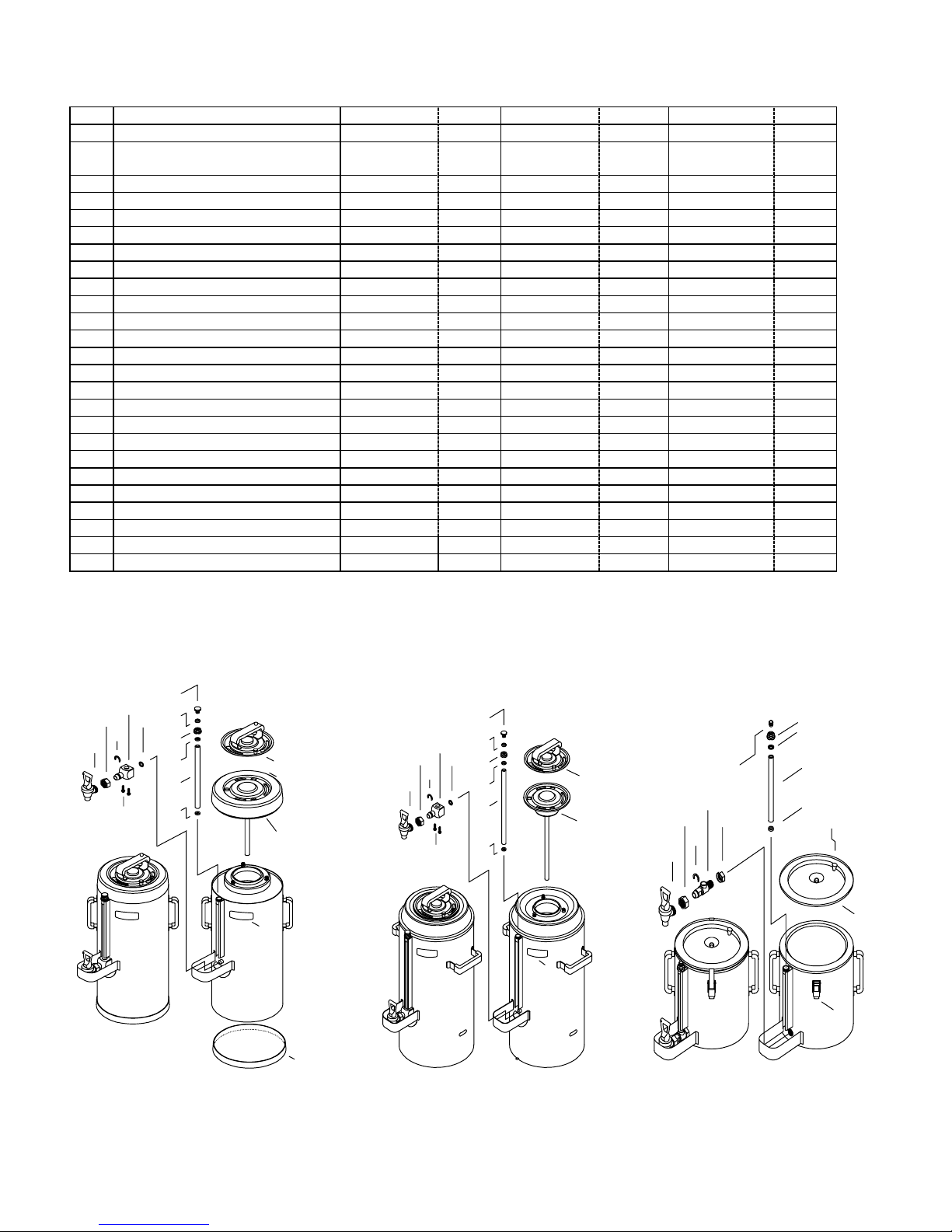

Description Part No. TPD-15 List Price Part No. TPD-30 List Price Part No. HBD-1.5 List Price
1 Faucet Complete-With Black Handle 71026 $36.00 71026 $36.00 71026 $36.00
1 Faucet Upper Assembly-Black Handle
(Handle, spring, shank, seat cup and nut)
71037 $19.00 71037 $19.00 71037 $19.00
(1) Faucet Seat Cup 71035 $5.00 71035 $5.00 71035 $5.00
(1) Faucet Handle- Black 71028 $8.00 71028 $8.00 71028 $8.00
(1) Faucet Handle- Orange Decaf style 71027 $8.00 71027 $8.00 71027 $8.00
2 Faucet Union Nut 31045 $11.20 31045 $11.20 31045 $11.20
3 Faucet "C" clip, for retaining union nut 71036 $2.00 71036 $2.00 71036 $2.00
4 Faucet Shank Assembly 102052 $32.00 102052 $32.00 102019 $21.00
5 Faucet Shank "O" Ring ½" X ¾" 24009 $1.00 24009 $1.00 Not Used
6 Vent Top Plug 12018 $11.00 12018 $11.00 71025 $3.60
7 Washer -Lower Sight Gauge Tube 71017 $0.80 71017 $0.80 71017 $0.80
8 Sight Glass Cap 71024 $7.00 71024 $7.00 71024 $7.00
9 Sight Glass Washer: Upper 71018 $0.80 71018 $0.80 71018 $0.80
6-9 Complete Vent Cap & Plug Assembly 102020 $20.00 102020 $20.00 102026 $11.00
10 Sight Glass-Plastic 21033 (10 5/16") $6.00 21035 (12 1/2") $7.40 21032 $4.80
10 Sight Glass-Glass 71038 (10 5/16") $6.00 71033 (12 1/2") $6.00 71016 $4.00
11 Faucet Shank Screw-2 Required 82015 $0.12 ea. 82015 $0.12 ea. Not Used
12 Twist Lock Cover Assembly 101038 $33.00 101038 $33.00 Not Used
13 Brew Funnel Assembly 101052 $26.00 101051 $30.00 Not Used
14 Black Plastic Replacement Bottom 23024 $4.00 Not Used Not Used
15 LUXUS Replacement Label 41011 $2.40 41011 $2.40 Not Used
16 Faucet Shank Locknut Not Used Not Used 13015 $7.00
17 Cover Assembly Not Used Not Used 101079 $36.00
18 Knob-Cover Not Used Not Used 72006 $2.00
19 Beverage Dispenser Cover Latch Not Used Not Used 72005 $21.00
HBD-15, Used for CBS-11 &12.
1
2
3
4
16
9
10
7
17
19
13
1
2
3
4
5 8
9
10
6
7
7
11
12
15
TPD-30, Used for CBS-60 series.
TPD-15, Used for CBS-50 series.
1
2
3
4
5
8
9
10
6
7
7
11
13
12
14
15
6
8
18
