FETtec OSD Board User manual

Page 1
FETtec OSD Board
Manual

Page 2
Introduction..................................................................................................................................3
Features.......................................................................................................................................3
Dimension (in mm).......................................................................................................................3
Connection Diagram ....................................................................................................................4
Layout.......................................................................................................................................4
Connection...................................................................................................................................5
To FETtec FC ...........................................................................................................................5
To FETtec AIO 35A - N.............................................................................................................6
VTX ..........................................................................................................................................7
Camera.....................................................................................................................................7
OSD Firmware.............................................................................................................................8
KISS FW on FC........................................................................................................................8
FETtec ALPHA FC firmware on FC ..........................................................................................8
Settings........................................................................................................................................9
Through the goggles.................................................................................................................9
Issues in the picture............................................................................................................10
Move elements in the OSD menu.......................................................................................10
In the ALPHA Configurator .....................................................................................................11

Page 3
Introduction
Thank you for purchasing the FETtec OSD Board which is FETtec Alpha firmware and KISS
firmware compatible
Hardware compatible: FETtec AIO 35A-N, FETtec FC F7, FETtec FC G4-N, KISS FC
Features
•Graphic OSD (STM32)
•Full KISS Tuning
◦Filter (PIDs, Rates, Settings)
◦LED control (RGB LED, Racewire)
◦VTX
◦Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
◦KISS GPS support + live map
◦Custom graphic pilot logo
◦Stick overlay
◦Custom layout
Connection via solder pads or JST 6 pin plug (FETtec FC and KISS FC compatible) + video
connection
The FETtec OSD Board works with KISS/FETtec FC firmware version 1.3RC45Y or later
Or the FETtec OSD firmware
Please use the same respective firmware for FC and OSD (KISS or FETtec Alpha),
otherwise it will not work
Dimension (in mm)

Page 4

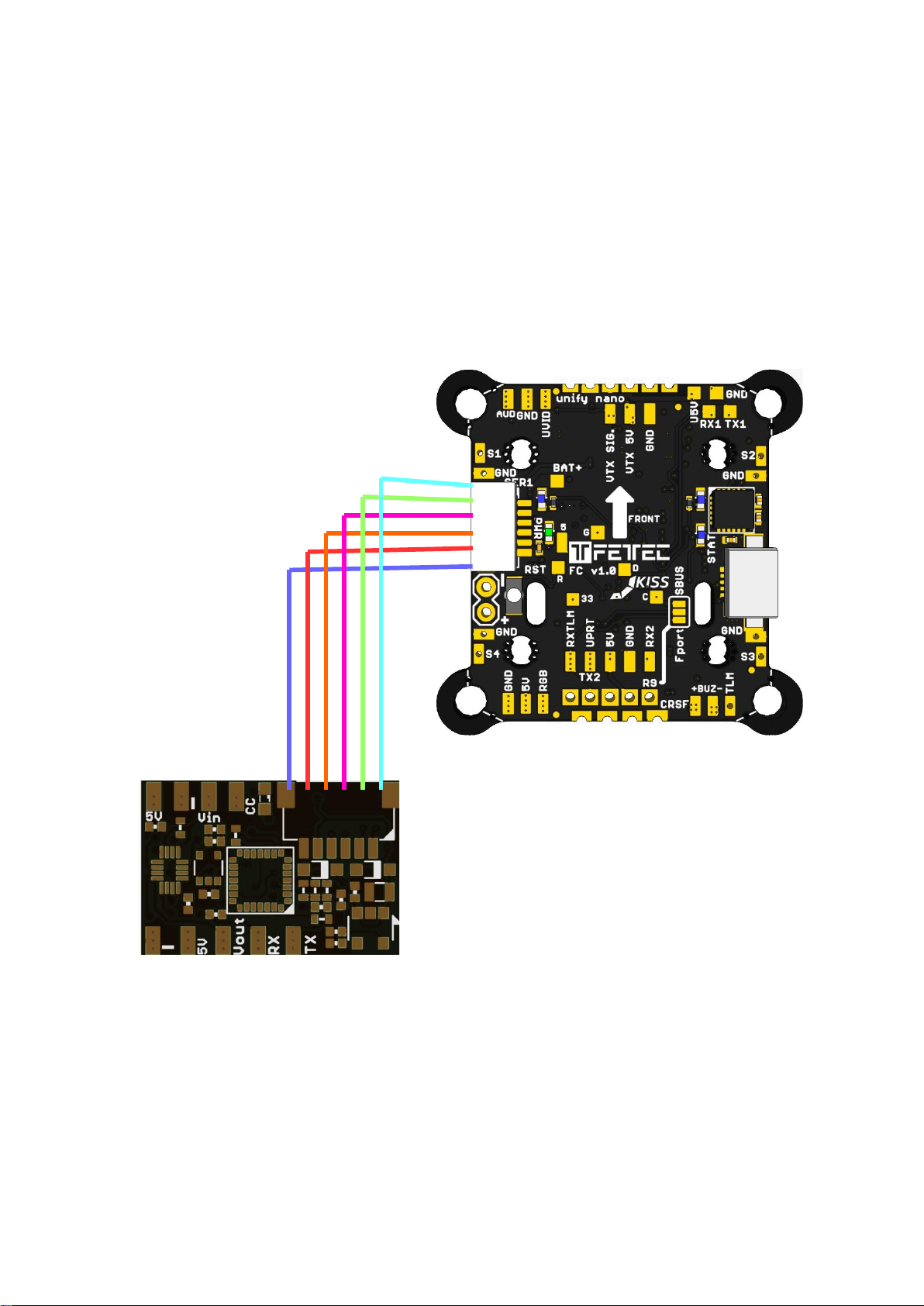

Connection Diagram
Layout
GND –Reference Signal Ground
5V from FC
Vin + Vout –Video in and out
n c –not connected
JST-SH-1mm 6-pin connection

Page 5
Connection
Hardware compatible: FETtec AIO 35A-N, FETtec FC F7, FETtec FC G4-N, KISS FC
To FETtec FC
Simple plug connection via 6 Pin cable (included)
Can be connected to any FETtec FC / KISS FC serial port
OSD only works with connected camera!
GND
VTX 5V
BAT+
RGB LED
TX 1
RX 1

Page 6
To FETtec AIO 35A - N
As the FETtec AIO 35A -N doesn’t have an onboard OSD you can simply connect the FETtec
OSD Board to get the same performance.
You can use the 4 pin cable which comes with the FETtec FC G4 or any other JST-SH-1mm 4-
pin cable and connect.

Page 7
VTX
You can use this connection instead of connecting the VTX to the FC.
But smart audio always has to be connected directly to the FC.
Camera

Page 8
OSD Firmware
KISS FW on FC
Please update the FETtec OSD Board before your first flight !
1. Open FETtec ESC Configurator
2. Connect the FETtec OSD Board to FC and via USB to FETtec ESC Configurator
3. choose KISS FC passthrough and press connect
4. latest firmware is remote available to flash
FETtec ALPHA FC firmware on FC
1. Make sure that your FC is running FETtec Alpha FC firmware
2. Connect the FETtec OSD Board to FC and via USB to ALPHA Configurator
3. Choose “Firmware”to get the latest update

Page 9
Settings
Through the goggles
All settings are to set directly in the OSD
To get in the menu move the sticks in the shown direction at the start:
Throttle 50%, then move Yaw left, Pitch up
Mode 1:
Mode 2:
In the menu:

Page 10
OSD settings:
Issues in the picture
1. OSD SYNC → AUTO SYNC
2. in case of unsharp lines play with LEFT/WITH values try to avoid WITH values above 400
3. make a PAL/NTSC layout reset
Move elements in the OSD menu
Choose LAYOUT → SET POSITIONS in the SETTINGS.
Now the elements are movable along the grid.
Skip between the elements and select them to set new position.
To exit the ´move menu´ hold stick Yaw left for a few seconds

Page 11
In the ALPHA Configurator
In the settings of the ALPHA Configurator you can choose “OSD Setup”
All parts of the OSD can be enabled/disabled and selected in their position.
Please read the explanations in the area below to be sure what the changes do.
All setting can easily be set and checked in the overview “OSD”

Page 12
Here you can get an overview of how the selected settings look in the OSD
