Fiamma Elektra Compact Silver Touch 6 kW BP-L User manual

®
ELECTRIC HEATING AND INSTANTANEOUS SANITARY HOT
WATER PRODUCTION WALL BOILER
WITH HOT WATER STORAGE TANK
series Elektra Compact.. BP-L 6-12-18 kW
USE AND MAINTENANCE MANUAL
CE APPLIANCES IN COMPLIANCE WITH EUROPEAN DIRECTIVE 2006/95/EC. Built and compliant with the
following standards: IEC 60335-2-21:2012, IEC 60335-1:2010, EN 60335-2-21:2003 + A1:2005 + A2:2008 - EN
60335-1:2012 - EN 62233:2008

3
ELECTRIC WALL BOILER
Series ELEKTRA Compact.. BP-L
Presentation
Thank you for choosing a FIAMMA electric wall boiler, a product that features the latest
heating technologies, and robust and safe materials that ensure maximum efficiency
during use, the highest appliance quality and utmost safety for the user.
The Elektra Compact... series is built according to European Machine Directive 2006/42 -
IEC 60335-1:2010 and EN 60335-2-21:2003 +A1:2005 + A2:2008 - EN 60335-1:2012 - EN
62233:2008.
The result is a product with several distinguishing features:
- Particularly quiet operation, with maximum insulation of the unit by means of innovative
special materials, for minimum heat loss.
- High level of reliability due to the careful choice of materials and the rigorous tests carried
out on each appliance after production.
- High yield, with maximum efficiency thanks to the modulation of the electric power to the
heaters following the actual energy requirements of the system, or the sanitary water
production needs. The D.E.S. system manages the appliance by means of temperature
detection probes positioned in every sensitive point of the boiler, allowing the regulation of
the "comfort" or "economy" operating modes to your requirements, in order to reduce
consumption when the appliance is not used at maximum power or demand.
- The appliance is fully adjustable both as far as central heating system water temperature
(with the possibility of choosing high and low temperature system for underfloor heating)
and sanitary hot water temperature.
- The components have been coupled together so that they are all easily accessible from
the front of the unit during routine and extraordinary maintenance activities.
We suggest that our recommendations are carefully followed, and that you contact an
authorised FIAMMA service centre in your area to agree a scheduled maintenance
contract, which will ensure that your appliance always operates at maximum efficiency and
safety, and that it lasts a long time. In thanking you again for your choice, we would like to
remind you that our technical offices and our technical-commercial network are always at
your disposal to provide you with any information of a technical or general nature that you
might require.
FIAMMA GIRO s.r.l.
Company group
FIAMMA GIRO s.r.l. rejects all responsibility for possible inaccuracies contained in this document, due to either printing or transcription
errors. The company also reserves the right to make any changes deemed useful or necessary to its products, without prejudice to the
essential characteristics of the products manufactured and sold.

4
WARNINGS:
THIS APPLIANCE MAY BE USED BY CHILDREN FROM 8 YEARS OF AGE AND
OVER AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR
MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE,
PROVIDED THAT THEY ARE SUPERVISED OR HAVE RECEIVED
INSTRUCTIONS FOR THE SAFE USE OF THE APPLIANCE, SO THAT THEY
UNDERSTAND THE RISKS INVOLVED. CHILDREN MUST NOT PLAY WITH
THE APPLIANCE. CLEANING AND MAINTENANCE ACTIVITIES MUST NOT BE
CARRIED OUT BY CHILDREN WITHOUT SUPERVISION.
THE CONNECTION TO THE ELECTRICITY NETWORK MUST BE THROUGH A
DEVICE THAT ALLOWS ITS DISCONNECTION, WITH A CONTACT OPENING
DISTANCE THAT ALLOWS COMPLETE DISCONNECTION UNDER THE
CONDITIONS OF OVERVOLTAGE CATEGORY III, IN ACCORDANCE WITH
THE INSTALLATION RULES.
IN ORDER TO PREVENT ANY RISKS, DAMAGED POWER SUPPLY CABLES
MUST BE REPLACED BY THE MANUFACTURER OR ITS TECHNICAL
SUPPORT SERVICE, OR BY SOMEONE WITH SIMILAR QUALIFICATIONS.
WATER MAY DRIP FROM THE OVERPRESSURE DRAIN PIPE OF THE
APPLIANCE. FOR THIS REASON, SUCH PIPE MUST BE DIRECTED OUTSIDE
AND LEFT OPEN.
THE PRESSURE RELIEF DEVICE MUST BE OPERATED REGULARLY TO
REMOVE LIMESCALE DEPOSITS AND TO CHECK THAT IT IS NOT BLOCKED.
THE DRAIN PIPE CONNECTED TO THE OVERPRESSURE DEVICE MUST BE
SET ON A CONTINUOUS DOWNWARD SLOPE AND IN A LOCATION
PROTECTED FROM THE FORMATION OF ICE.

5
OVERALL DIMENSIONS
The Elektra Compact.. BP-L series is available in three power versions, with same overall
dimensions:
Elektra Compact 6 kW BP-L 6 kW maximum electric power
Elektra Compact 12 kW BP-L 12 kW maximum electric power
Elektra Compact 18 kW BP-L 18 kW maximum electric power
0
1
234
5
6
bar
ELECT RIC COMBI BOILER
R
D.E. S 
digital electronic
system 
+I -I MODE +H
ON/OFF
ON
GENERAL
SWITCH -H
Appliance: Packing dimensions:
W (Width): 660 mm Width: 710 mm
H (Height): 875 mm Height: 940 mm
D (Depth): 300 mm Depth: 390 mm
Weight: 59 kg Weight: 62,5 kg
W D
H
0
1
234
5
6
bar

6

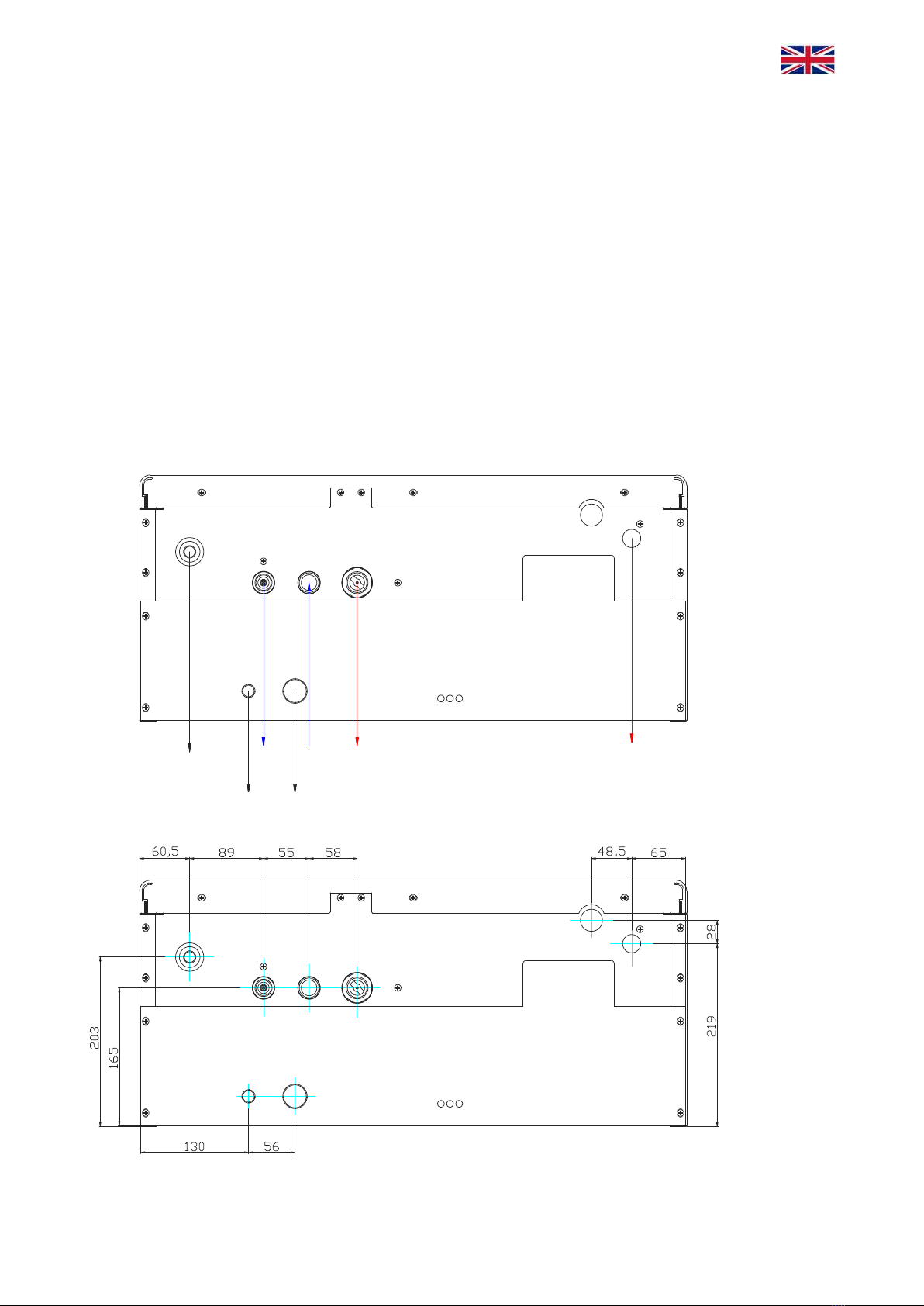

HYDRAULIC CONNECTIONS - Connection arrangement diagram:
M Central Heating Delivery: ¾” M
R Central Heating Return: ¾” M
AF Sanitary Cold Water: ½” M
AC Sanitary Hot Water: ½” M
VSR Central Heating Safety Valve (0.3 MPa - 3 bar): ½” F
VSS Sanitary Water Safety Valve (0.65 MPa - 6.5 bar): ½” F
The appliance is designed to be continuously connected to the water mains without
intermediate fittings.
View from below (under the boiler)
RMAC
AF
VSR
Allacciamenti elettrici
Electrical supply
Electric power
supply

7
MAIN TECHNICAL FEATURES
Elektra Compact 6 kW BP-L 6 kW maximum electric power
Single-phase power supply: 230-240 V - 50 Hz
Weight: 58 kg.
37 litres storage tank in vitrified steel with inspection flange and magnesium anode.
Central heating system: 6 kW electric/thermal power from no.2 heating elements (no.2 of
3x1 kW).
Sanitary hot water: 2 kW (2,000 W) electric heating element for the sanitary hot water tank.
Maximum head available to the circulator approx 7 m.
Expansion vessel capacity 9 litres.
0.3 MPa (3 bar) central heating circuit safety valve.
0.65 MPa (6.5 bar) sanitary water circuit safety valve.
Maximum central heating operating pressure: 0.25 MPa (2.5 bar).
Maximum sanitary water operating pressure: 0.55 MPa (5.5 bar).
Minimum central heating circuit operating pressure: 0.06 MPa (0.6 bar).
Minimum sanitary water operating pressure in "comfort" mode: 0.025 MPa (0.25 bar).
Minimum sanitary water operating pressure in "economy" mode: 0.005 MPa (0.05 bar).
Central heating circuit-boiler body maximum thermal safety limit: 100°C.
Elektra Compact 12 kW BP-L 12 kW maximum electric power
Single-phase power supply: 230-240 V - 50 Hz
Weight: 59 kg.
37 litres storage tank in vitrified steel with inspection flange and magnesium anode.
Central heating system: 12 kW electric/thermal power from no.2 heating elements (no.2 of
3x2 kW).
Sanitary hot water: 2 kW (2,000 W) electric heating element for the sanitary hot water tank.
Maximum head available to the circulator approx 7 m.
Expansion vessel capacity 9 litres.
0.3 MPa (3 bar) central heating circuit safety valve.
0.65 MPa (6.5 bar) sanitary water circuit safety valve.
Maximum central heating operating pressure: 0.25 MPa (2.5 bar).
Maximum sanitary water operating pressure: 0.55 MPa (5.5 bar).
Minimum central heating circuit operating pressure: 0.06 MPa (0.6 bar).
Minimum sanitary water operating pressure in "comfort" mode: 0.025 MPa (0.25 bar).
Minimum sanitary water operating pressure in "economy" mode: 0.005 MPa (0.05 bar).
Central heating circuit-boiler body maximum thermal safety limit: 100°C.

8
Elektra Compact 18 kW BP-L 18 kW maximum electric power
Single-phase power supply: 230-240 V - 50 Hz
Weight: 60 kg.
37 litres storage tank in vitrified steel with inspection flange and magnesium anode.
Central heating system: 18 kW electric/thermal power from no.3 heating elements (no.3 of
3x2 kW).
Sanitary hot water: 2 kW (2,000 W) electric heating element for the sanitary hot water tank.
Maximum head available to the circulator approx 7 m.
Expansion vessel capacity 9 litres.
0.3 MPa (3 bar) central heating circuit safety valve.
0.65 MPa (6.5 bar) sanitary water circuit safety valve.
Maximum central heating operating pressure: 0.25 MPa (2.5 bar).
Maximum sanitary water operating pressure: 0.55 MPa (5.5 bar).
Minimum central heating circuit operating pressure: 0.06 MPa (0.6 bar).
Minimum sanitary water operating pressure in "comfort" mode: 0.025 MPa (0.25 bar).
Minimum sanitary water operating pressure in "economy" mode: 0.005 MPa (0.05 bar).
Central heating circuit-boiler body maximum thermal safety limit: 100°C.
POSITIONING OF THE BOILER

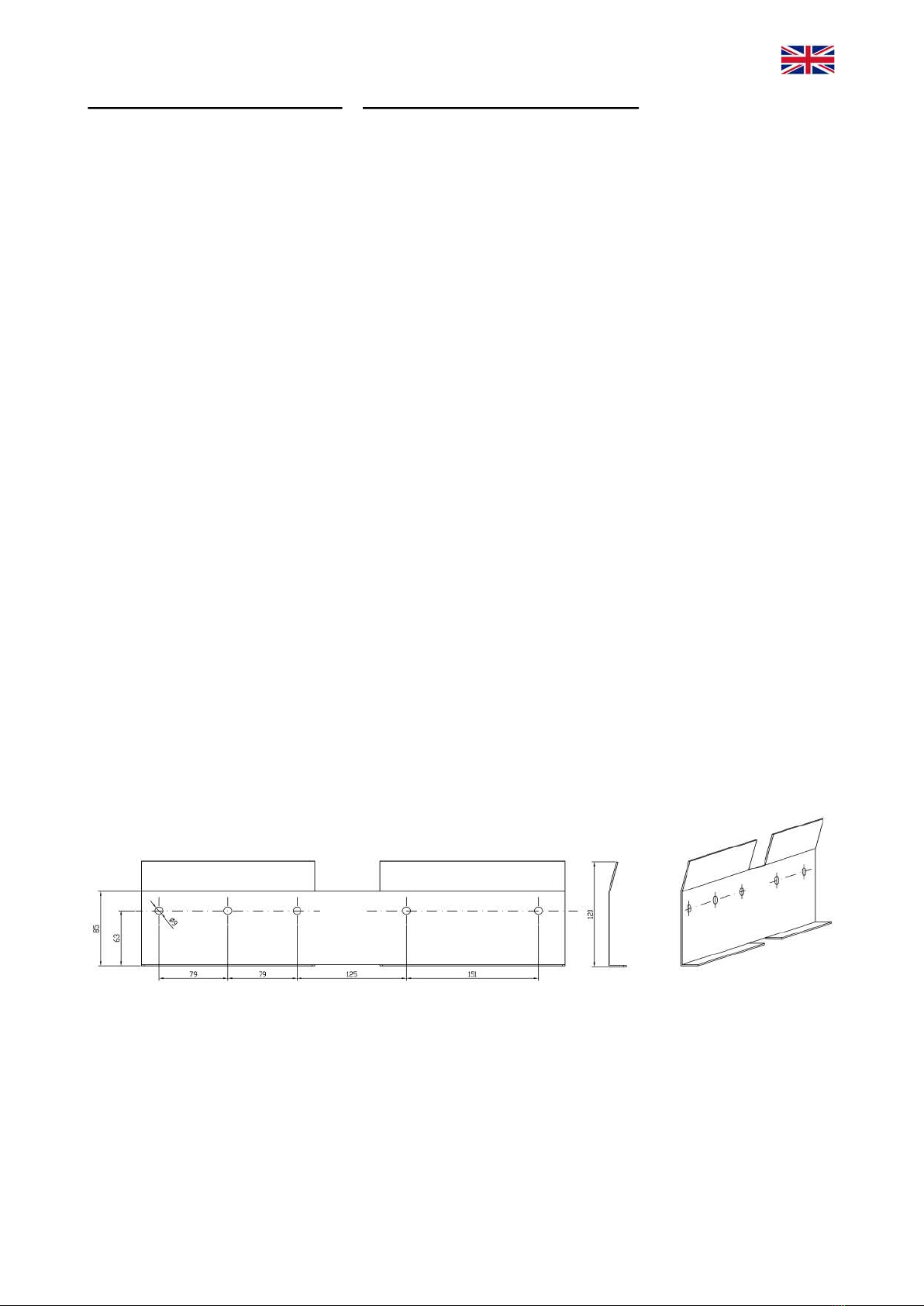

The appliance must always be installed on a vertical solid wall capable of supporting its
weight, using the support bracket included in the packaging.
The bracket must be secured to the wall by means of five M8 screws with appropriate
plugs for the type of wall (not supplied with the boiler).
The appliance must be attached to the top of the bracket, inserting the bent section of the
same through the boiler frame at the back.

9
SW
4
CONTROL PANEL
0
1
23
4
5
6
bar
The control panel, consisting of the display screen, the function selection keys, the
illuminated main switch and the hydrometer, can be found at the bottom left of the front of
the appliance (see image above).
Keypad (control panel)
Key Function
▲left (SW1) Display / Increase of the central heating system setpoint (or room
temperature)
▼left (SW2) Display / Decrease of the central heating system setpoint (or room
temperature)
◄ (SW3) Safety thermostat error reset / back function
● (SW4) Menu
■ (SW5) ON/OFF switch - Summer – Winter
"Comfort" function activation (extended pressure)
▼right (SW6) Display / Decrease of the water heater setpoint
▲right (SW7) Display / Increase of the water heater setpoint
Display
Hydrometer
Main switch
SW
5
SW
6
SW7
SW
3
SW
2
SW
1
▲ ▲
▼
▼
◄
●
■

10
Description of main screen keys:
▲ (SW1): Can be used to increase the central heating system temperature setpoint; the
status bar shows " CH Set. ”, and both the temperature setpoint value and the icon
will flash for 5 seconds.
▼ (SW2): Can be used to decrease the central heating system temperature setpoint; the
status bar shows " CH Set. ” and both the temperature setpoint value and the icon
will flash for 5 seconds.
If the board is set to manage two separate zones, at the end of the 5 seconds the status
bar shows " CH Set. 2 ”, at which moment it is possible to set the heating setpoint for
the secondary system.
If operation with external probe (SE) is set on the board, using the " idx: 006
val:001 ” parameter the ▲ (SW1) and ▼ (SW2) keys will allow to increase and
decrease the room setpoint; the status bar shows " Room Set. ” and both the
temperature setpoint value and the icon will flash for 5 seconds.
◄ (SW3): If the boiler has locked, press this button to attempt to release it.
WARNING: the locking function is a software function. Release can be attempted for
a maximum of 5 times during a period of 15 minutes.
● (SW4): Can be used to access the " SETTINGS MENU ”.
■ (SW5): Can be used to change the operating mode of the boiler: OFF, SUMMER,
WINTER.
Press this key for more than 5 seconds to activate "comfort" mode: next to the icon,
the display will also show the icon.
▼ (SW6): Can be used to decrease the sanitary hot water temperature setpoint; the
status bar shows "DHW Set." and both the temperature setpoint value and the
icon will flash for 5 seconds.
▲ (SW7): Can be used to increase the sanitary hot water temperature setpoint; the status
bar shows "DHW Set." and both the temperature setpoint value and the icon will
flash for 5 seconds.
The sanitary hot water (DHW) temperature can be changed regardless of the operating
mode, winter or summer.

11
Heating system water pressure reading
The analogue hydrometer on the control panel has a bar dial from 0 to 6 bar. The current
central heating system water pressure is indicated by the black needle. The optimum
central heating system water pressure is between 1 and 1.5 bar. The pressure can exceed
1.5 bar, to a maximum of 2 bar (maximum expansion of the system during a temperature
rise). Pressures over 2 bar are not within the operating range of the appliance. When this
level is exceeded, the action of the pressure transducer will cause the display of the
" ERROR F 10 " error message and the boiler will remain in operation. However, if the
threshold of 2.8 bar is exceeded, the system stops until the pressure falls back within the
allowed range. The minimum operating pressure is 0.8 bar (+/-0.2 bar). If the pressure
detected by the transducer is less than 0.7 bar, the " ERROR F 1 " message appears
and the operation of the system stops. The last safety feature of the boiler is the
mechanical valve, which when a pressure of 3 bar is reached starts to release water
through the VSR drain, the position of which can be found in the hydraulic connection
diagram (see page 6).
SWITCHING ON THE BOILER
The boiler is switched on by pressing the luminous main switch found on the left of the
display in the dashboard. If the boiler is connected to a single-phase power supply source,
the button lights up when pressed (230-240 V - 50 Hz). After the short graphic
presentation, set the day and time (if required) and choose summer/winter operating mode
using the ■ (SW5) key at the bottom right (pressing again will switch off the boiler, while
keeping it powered).
MAIN SCREEN
Status bar
Modulation bar
Clock
Sanitary triac
indication
Sanitary water
temperature
Boiler
mode icon
WiFi icons
triac power
icon
System
pressure
Heating water
temperature
Heating triac
indication

12
The status bar at the top shows the operating status of the boiler or, in case of fault, the
fault code.
The table below shows all the possible status bar messages:
STATUS / DISPLAY DESCRIPTION
STANDBY No heat request received by the boiler
ANTI-FREEZE STATUS Anti-freeze active
COMFORT MODE “Comfort" mode active
HEATING STATUS Heating active
ANTI-LEGIONELLA Anti-legionella active
SANITARY WATER STATUS Sanitary water active
OFF Boiler OFF
TEST STATUS Test active
CH set. Central heating setpoint
CH set. 2 Central heating setpoint zone 2
DHW Set. Sanitary hot water setpoint
Room Set. Room setpoint
ERROR F X Presence of fault or lock X
Communication error
No communication between the display and the boiler
board
NOTE: In the fault log, the communication error is
assigned code 250
DEGAS. TIME XX:XX "Degassing" function active and time to completion
During " STANDBY ", the top right of the status bar shows the day of the week and the
time.
The value below the radiator icon is the temperature detected by the central heating
system delivery probe, while below the tap icon is the temperature detected by the
sanitary hot water system probe. The and icons flash in case of central heating
system or sanitary hot water request..
If management with external SE probe is enabled (parameter menu ” idx: 001 val:
001 ”), it is also possible to set the room temperature setpoint.
The screen will show the symbol instead of the symbol, and the room temperature
setpoint instead of the central heating system delivery temperature. At the centre is a
graduated bar that shows the operating power of the boiler. In case of heating request,
the icon appears at the side of the bar.

13

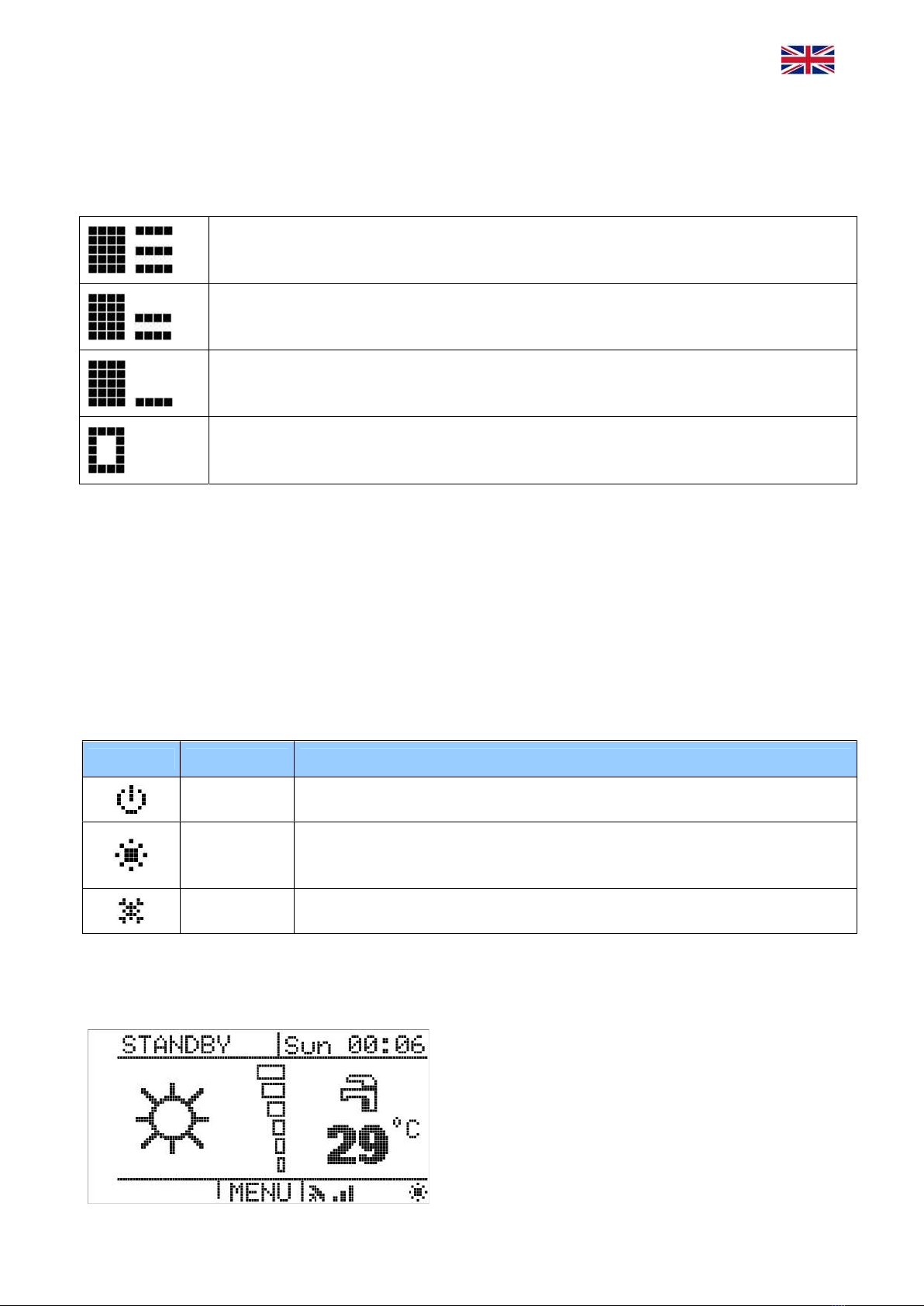

The rectangles on the left of the screen show the status of the triacs powering the central
heating system heating elements (full rectangle for active triacs and empty rectangle for
triacs that are not powered). The lines next to the rectangles show the power output on
each triac: 1 power line 1/2 kW, 2 power lines 3/4 kW and 3 power lines 6 kW.
Active Triac operating a heating element with 6 kW power
Active Triac operating a heating element with 3 or 4 kW power
Active Triac operating a heating element with 1 or 2 kW power
Triac not active
The right side of the screen shows the triac that powers the heating element of the sanitary
hot water system. If active, the rectangle is full, otherwise it’s empty. The small rectangles
on the side show the power output (in this case only one of 2 kW).
On the bottom left is the value of the system pressure detected by the pressure transducer
and on the bottom right the current boiler operating mode ( C winter mode, B summer
mode).
SYMBOL MODE DESCRIPTION
OFF Central heating and sanitary hot water functions off.
SUMMER Central heating function off.
Sanitary hot water function on.
WINTER Central heating and sanitary hot water functions on.
If "SUMMER" mode is selected in the main screen, the temperature detected by the
delivery probe disappears and is replaced with the sun icon (see screen below).

14

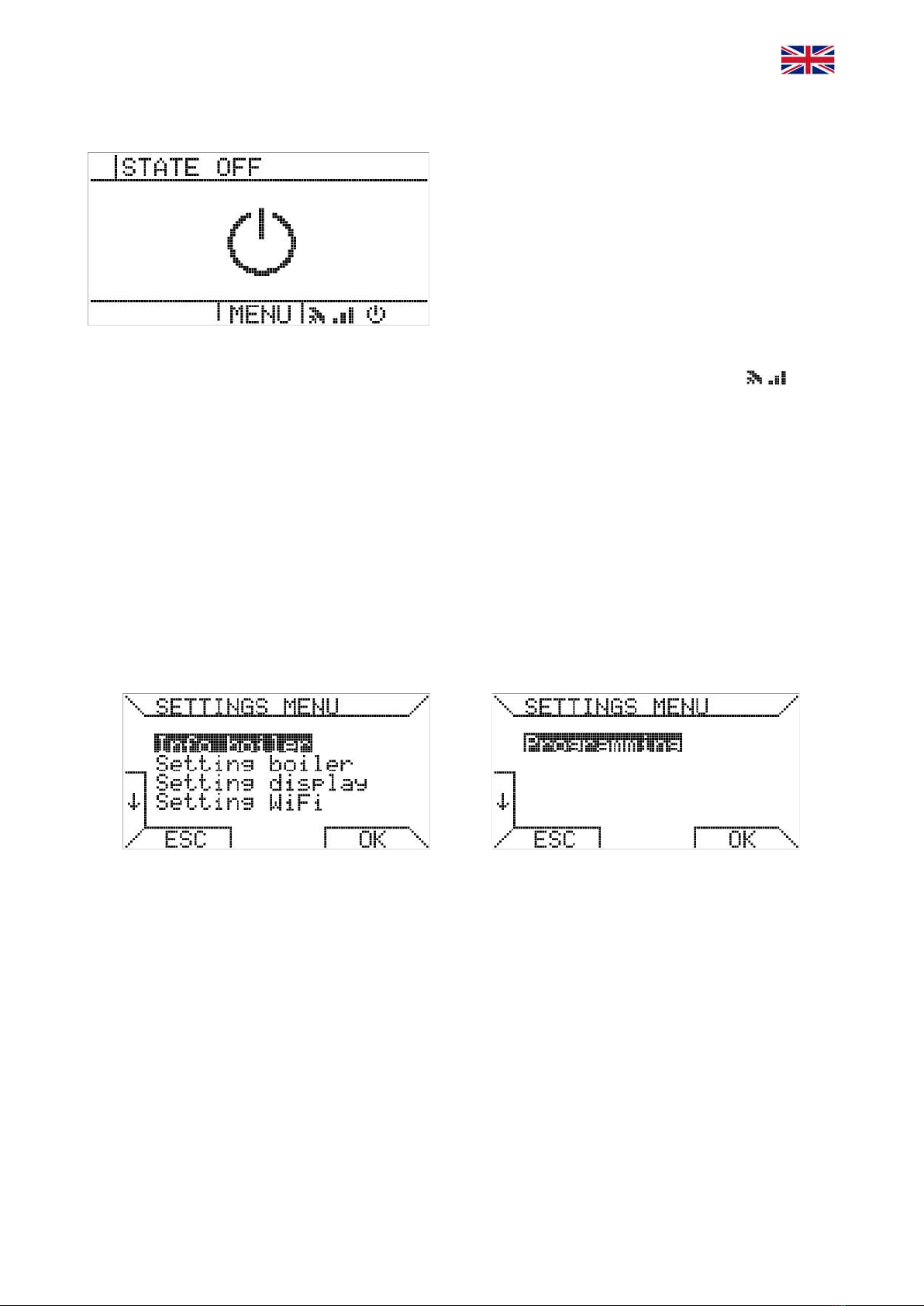

If "OFF" mode is selected, the display shows the following:
If the boiler is connected to a WiFi network, the following icons appear: . The
graduated bar indicates the quality of the WiFi signal (3 bars very good, 2 bars medium, 1
bar poor). In the event of WiFi network or internet communication fault, these icons may
start flashing or disappear. A detailed indication of the type of WiFi fault can be found
under the "Info" item in the "WiFi Menu" discussed in the appropriate paragraph.

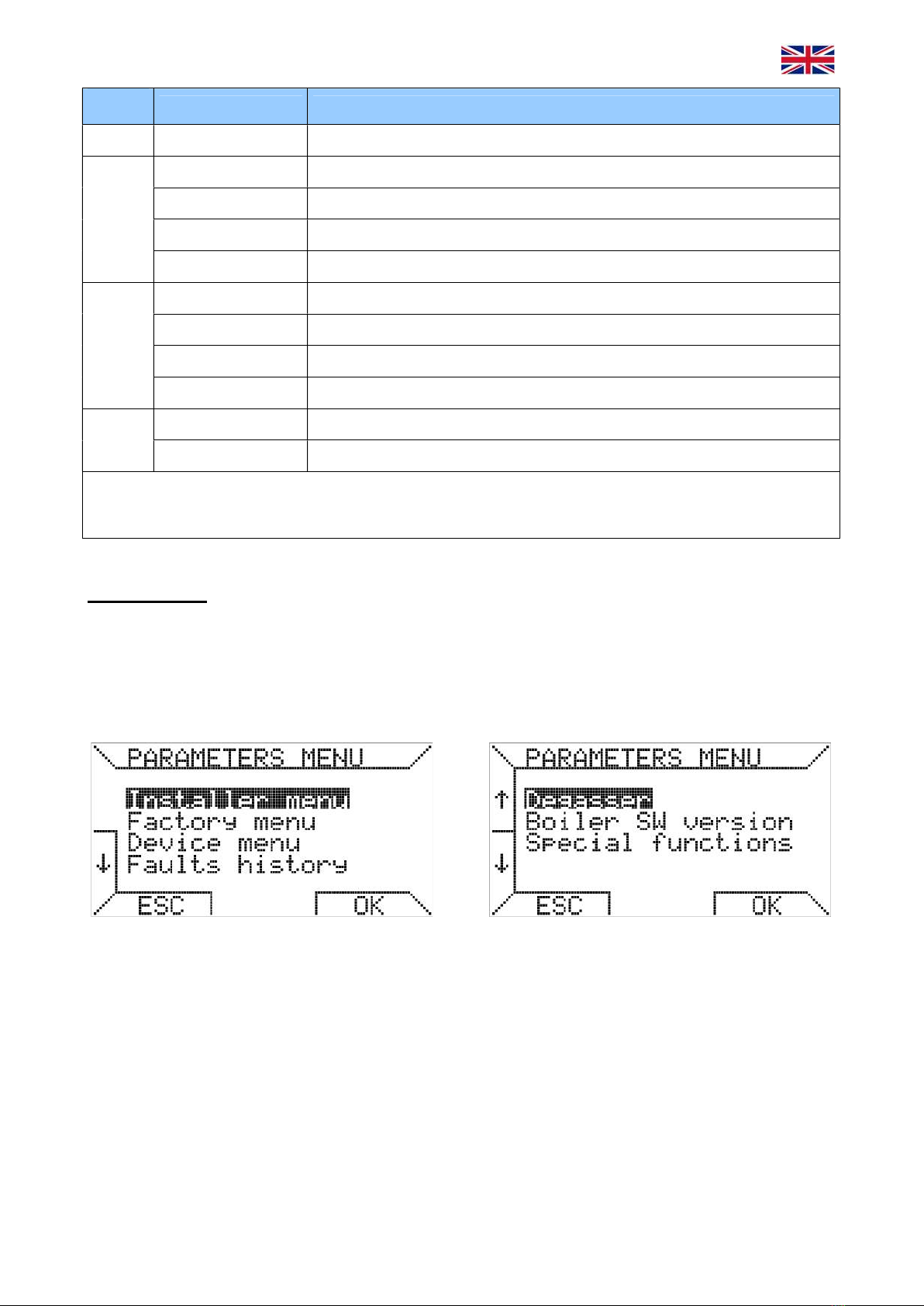

SETTINGS MENU
From the main screen, press ● (SW4) to access the " SETTINGS MENU ". The screen
displayed will be as follows:
The keys take on different functions depending on the actual screen displayed. The frame
at the edge of the screen allows to indicate which function the corresponding button is
used for. Taking the above screen as an example, press ▼ (SW2) [↓] to select
" Setting boiler ", or ◄ (SW3) [ESC] to return to the main screen, or ■ (SW5)
[OK] to access the " Info Boiler “ menu.

15
The table below describes the hierarchical system of the " SETTINGS MENU ":
SETTINGS
MENU
Info boiler
Setting boiler
Installer menu
Factory menu
Device menu
Faults history
Degasser
Boiler SW version
Special functions
Setting Display
Language
Time setting
Contrast
Brightness
Touch sensitivity
Factory reset
Data monitor
Setting WiFi
Conn. method
Server rate
Start wizard
Info WiFi
WiFi monitor
Password App
Download certs
Programming
Set program
Day Copy
Show program
Info boiler
Select "Info boiler" in the "SETTINGS MENU" to view information regarding
the devices connected to the boiler:

16
The table below summarizes all the possible devices that can be displayed in the " Info
boiler ", their description, and the values that they can assume:
INFO
BOILER
INFORMATION DESCRIPTION / VALUES
1
CH Temp Temperatures detected by the delivery probe (SM)
DHW Temp. Temperature detected by the sanitary hot water tank probe
(SB)
External T.
Temperature detected by the external probe (SE)
Th. Room
Room thermostat (TA) status:
ON: Closed
OFF: Open
2
Th. Safety
Safety thermostat (TS) status:
ON: Closed
OFF: Open
OpenTherm
OpenTherm communication status:
ON: Active
OFF: Not active
RS 485
RS485 communication status (cascade):
ON: Active
OFF: Not active
Press.H2O
Water pressure switch status (if present):
ON: Closed
OFF: Open
If transducer present:
PRESSURE TRANSDUCER VALUE
3
Flow H2O Sanitary water system flow meter value
Circulator % System circulator speed
Diverter
valve
Diverter valve status:
ON: Active
OFF: Not active
6
Th. Room2
Secondary zone room thermostat status:
ON: Closed
OFF: Open
CH Temp2 Temperatures detected by the secondary zone probe
7
Circ feedb
Pump Zone 1
Primary zone pump status:
ON: Active
OFF: Not active
Pomp Zone 2
Secondary zone pump status:
ON: Active
OFF: Not active
Mix closing
Mixing valve closing status:
ON: Active
OFF: Not active
8 Mix Opening
Mixing valve opening status:
ON: Active
OFF: Not active

17
INFO
BOILER
INFORMATION DESCRIPTION / VALUES
3 Gate 1 Power in kW of triac number 1
4
Gate 2 Power in kW of triac number 2
Gate 3 Power in kW of triac number 3
Gate 4 Power in kW of triac number 4
Gate 5 Power in kW of triac number 5
5
Gate 6 Power in kW of triac number 6
Gate 7 Power in kW of triac number 7
Gate 8 Power in kW of triac number 8
Gate 9 Power in kW of triac number 9
6
Gate 10 Power in kW of triac number 10
Gate S Power in kW of triac S (sanitary hot water triac)
N.A: " N.A " on the side of the device indicates that the device is not active or not installed
in the system.
Setting boiler
The second item " Setting boiler ” of the " SETTINGS MENU " can be used to
view and modify the boiler and central heating system setting parameters. The parameters
and their meanings are described in detail in the relevant paragraph.
The menus for setting the boiler and heating system parameters have been sorted into
sub-menus according to the type of setting and access right.
The " Installer menu " only contains the essential parameters for the configuration
of the boiler type.

18
When accessed, this menu shows the " Read parameter " screen:
where the parameter index is shown on the left and
its current value on the right. The value does not
appear instantaneously but is transferred each time
from the control board of the boiler. Before its
appearance, three dashes will be displayed for a few
moments "---“. Press ▼ (SW6) [↓] and ▲ (SW7) [↑] to scroll through the entire list of
parameters. Press ■ (SW5) [SET] to access the parameter edit screen. Finally, press ◄
(SW3 ) [ESC] to return to the " PARAMETERS MENU ".
In the " Write parameter " screen, the index is blocked and the value is highlighted.
Press ▼ (SW6) [-] and ▲ (SW7) [+] to change
the parameter value, followed by ■ (SW5) [OK] to
save the new value. Press ◄ (SW3) [ESC] to
return to the " Read parameter " screen without
changing the parameter.
Access to the other sections of the " PARAMETERS MENU " (" Factory menu ",
" Device menu ") is password protected, meaning that the correct password must be
entered in the password screen.
Accessing " Faults history " allows to view the list of the faults occurred in the
boiler. If there are no faults, the following screen is displayed

19
In case of fault or lockout, the above screen is updated as follows:
Where:
ID: Index ID of the fault occurred.
Fault F: fault or lockout code.
Faults are indexed in succession starting with " ID:
001 ". Each time there is a new fault the previous
ones are moved upwards, up to a maximum of 10. After that, every time there is a new
fault the oldest one is deleted.
Press ▲ (SW7) [+] and ▼ (SW6) [-] to scroll through the faults occurred.
The " Degasser " option allows to activate the boiler circulator, to remove air residues
from the system. Also in this case, ▼ (SW6) [-], ▲ (SW7) [+] and ■ (SW5) [OK] can
be used to activate or deactivate the function.
During this function, the PWM circulator maximum and minimum speed operating statuses
are alternated, in order to facilitate the escape of air bubbles from the hydraulic circuit. The
sequence is illustrated below.
When this function is active, a timer appears on the display to indicate the time required to
complete the function.
Speed
MAX
(15 sec)
Speed
MIN
(20
sec)
Speed
MIN
(120
sec)
Speed
MAX
(5
sec)
Speed
MIN
(5
sec)
2
r
epetitions
60
repetitions

20
Under " Boiler version ", it is possible to view the version of the software loaded on
the boiler control board.
The last item, " Special functions ", is password protected and is used to activate
the boiler demo mode. During demo mode, fictitious information is shown on the display so
that, for example, it is possible to simulate running with triacs activated, without them
actually being powered.
Setting display
The third item of the " SETTINGS MENU " can be used to change the display settings. In
the first screen, it is possible to change language, time, contrast and brightness. In the
second screen, it is possible to change the touch sensitivity, perform a factory reset and
monitor the serial communication between the display and the board of the boiler.
