Fiamma Elektra.6 BP-L HE User manual

USE AND MAINTENANCE MANUAL
ELECTRIC COMBIWALL BOILER
FORHEATINGAND SANITARYHOTWATER PRODUCTION
INSTANTANEOUSWITH ACCUMULATION TANK
Combi.Elektra.. BP-L
HE series
EQUIPMENTCOMPLIANTCEDIRECTIVE 2006/42 -IEC60335-2-21:2012withIEC60335-
1:2010 withEN
60335-2-21:2003+A1:2005+A2:2008-EN60335-1:2012 -EN62233:2008.
®

2
ELECTRIC WALL BOILER
Series ELEKTRA. … BP-L HE
Presentation
Thank you for choosing an electric wall boiler FIAMMA, built with the most modern
technologies, safe and tough materials, so as to ensure maximum efficiency of use, total
quality of the device and extreme safety for the user.
The series Elektra .. is built according to European standards dir. machines 2006/42 - IEC
60335-2-21:2012 IEC 60335-1:2010 and EN 60335-2-21:2003 + A1 : 2005 + A2 : 2008 -
EN 60335-1:2012 - EN 62233:2008 .
The obtained results can be summarized in the following key points:
- Noiseless functioning, thanks to maximum insulation of the device by means of
innovative special materials that ensures minimum heat loss.
- High degree of reliability, thanks to a careful choice of materials and to sever tests
carried out during production for each unit built.
- High performance with maximum efficiency, thanks to a modulation of electrical power to
the heating elements, according to the actual need of energy by the system or the need of
sanitary water. The system D.E.S. manages the device with temperature probes
positioned in each sensitive point of the boiler, so as to manage both comfort and
economy functioning, in order to reduce power consumption when the device is not used
at the maximum capacity or demand.
- The appliance is fully adjustable both in water temperature of the heating system (with
the possibility to choice of system at high and low temperature for underfloor systems) and
in the domestic hot water temperature.
- The assembly of the components has been realized in order to allow an easy access to
them, all from the front of the unit, for ordinary and extraordinary maintenance.
We recommend you to follow our instructions, and we suggest to contact the area
authorized service FIAMMA in order to prepare a planned maintenance contract which can
ensure suitable operation at maximum efficiency and safety, so that your machine use can
go a long way.
In renewing our thanks, our technical department and our sales network, are at your
disposal for any further information
FIAMMA GIRO s.r.l.
Company group
The company FIAMMA GIRO s.r.l. declines all responsibility for possible inaccuracies contained in this pamphlet, if due to printing
errors or inadvertent errors. However, reserves the right to make changes to its products that it deems useful or necessary, without
affecting the essential characteristics of the products manufactured and marketed.

3
P
H
L



 

Dimensions
The seriesElektra... BP-LHE hasfourpowerlevels,butthe sameoverall
dimensions:
Elektra.6BP-LHE 6kWmaximum electricaloutput
Elektra.12 BP-LHE 12kWmaximum electricaloutput
Elektra.18 BP-LHE 18kWmaximum electricaloutput
Elektra.24 BP-LHE 24kWmaximum electricaloutput
Appliance dimension Packaging dimension
L(Width): 660 mmWidth:710 mm
H(Height):875 mmHeight :940 mm
P(Depth) : 300 mm Depth : 390 mm
Weight : 61 kg Weight : 64,5 kg

4
AF
VSR
AC
M
RC
VSS
R
Electrical
supply
200
65
220
165
300
95
80
120

















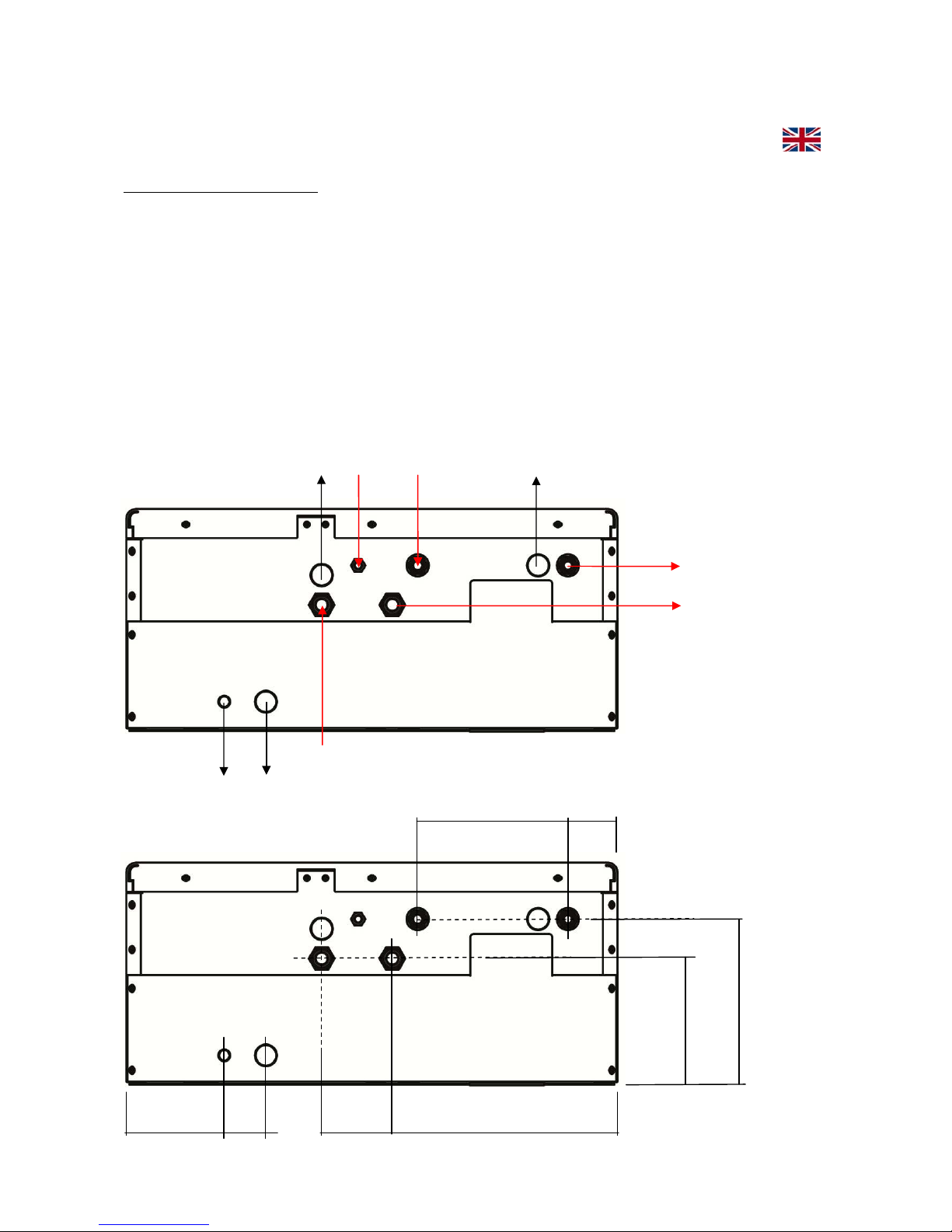

Hydraulic connections – Dimensional of connection arrangement.
Hydraulic connections
MHeating delivery : ¾” M
RHeating return : ¾” M
AF Cold sanitary water inlet : ½” M
AC Hot sanitary water output: ½” M
VSR Heating safety valve (3 bar) : ½” F
VSSSanitarysafetyvalve(6,5 bar) :½”F
RC Manual Filling tap (restoring water pressure)
Bottom view (under the boiler)

5
Main technical features Elektra 6.. - Elektra 12..
Elektra.6 BP-L HE 6 kW maximum electrical output
Single-phase electrical supply 230 V - 50 Hz.
Weight : 60 kg.
Capacity of tank 37 lt. Glass-lined steel with inspection flange and magnesium
anode.
Electrical / heat power available at heating: 6 kW obtained by n°.2resistance
group (n°.23x1kW).
Electrical power at hot water tank resistance: 2 kW (2.000 W).
Maximum head available at the pump 5 m H2O
Expansion vessel capacity of 8 lt.
Safety valve of heating circuit: 3 bar.
Safetyvalveof sanitarycircuit: 6,5 bar.
Maximum heating operating pressure: 2.5 bar.
Maximum sanitary operating pressure: 5.5 bar.
Minimum operating pressure in the heating circuit: 0.6 bar.
Minimum operating pressure in the sanitary, comfort system: 0.25 bar.
Minimum operating pressure in the sanitary, economy system: 0.05 bar.
Maximum limit of thermal safety heating circuit - boiler body: 100 °C.
Elektra.12 BP-L HE 12 kW maximum electrical output
Single-phase electrical supply 230 V - 50 Hz.
Weight : 61 kg.
Capacity of tank 37 lt. Glass-lined steel with inspection flange and magnesium
anode.
Electrical / heat power available at heating: 12 kW obtained by n°.2 resistance
groups (n°.2 3x2 kW).
Electrical power at hot water tank resistance: 2 kW (2.000 W).
Maximum head available to the pump 5 m H2O
Expansion vessel capacity of 10 lt.
Safety valve of heating circuit: 3 bar.
Safetyvalveof sanitarycircuit: 6,5 bar.
Maximum heating operating pressure: 2.5 bar.
Maximum sanitary operating pressure: 5.5 bar.
Minimum operating pressure in the heating circuit: 0.6 bar.
Minimum operating pressure in the sanitary, comfort system: 0.25 bar.
Minimum operating pressure in the sanitary, economy system: 0.05 bar.
Maximum limit of thermal safety heating circuit - boiler body: 100 °C.

6
Main technical features of Elektra 18.. – Elektra 24..
Elektra.18 BP-L HE 18 kW maximum electrical output
Single-phase electrical supply 230 V - 50 Hz.
Weight : 62 kg.
Capacity of tank 37 lt. Glass-lined steel with inspection flange and magnesium
anode.
Electrical / heat power available at heating: 18 kW obtained by n°.3 resistance
groups (n°.3 3x2 kW).
Electrical power at hot water tank resistance: 2 kW (2.000 W).
Maximum head available at the pump 5 m H2O
Expansion vessel capacity of 10 lt.
Safety valve of heating circuit: 3 bar.
Circuit safetyvalveof sanitarycircuit: 6,5 bar.
Maximum heating operating pressure: 2.5 bar.
Maximum sanitary operating pressure: 5.5 bar.
Minimum operating pressure in the heating circuit: 0.6 bar.
Minimum operating pressure in the sanitary, comfort system: 0.25 bar.
Minimum operating pressure in the sanitary, economy system: 0.05 bar.
Maximum limit of thermal safety heating circuit - boiler body: 100 °C.
Elektra.24 BP-L HE 24 kW maximum electrical output
Single-phase electrical supply 230 V - 50 Hz.
Weight : 63 kg.
Capacity of tank 37 lt. Glass-lined steel with inspection flange and magnesium
anode.
Electrical / heat power available at heating: 24 kW obtained by n°.4 resistance
groups (n°.4 3x2 kW).
Electrical power at hot water tank resistance: 2 kW (2.000 W).
Maximum head available to the pump 6 m H2O.
Expansion vessel capacity of 10 lt.
Safety valve of heating circuit: 3 bar.
Safetyvalveof sanitarycircuit: 6,5 bar.
Maximum heating operating pressure: 2.5 bar.
Maximum sanitary operating pressure: 5.5 bar.
Minimum operating pressure in the heating circuit: 0.6 bar.
Minimum operating pressure in the sanitary, comfort system: 0.25 bar.
Minimum operating pressure in the sanitary, economy system: 0.05 bar.
Maximum limit of thermal safety heating circuit - boiler body: 100 °C.

7
Display
I
drometro
General
switch
hydrometer
I
drometro
Switching-on the boiler

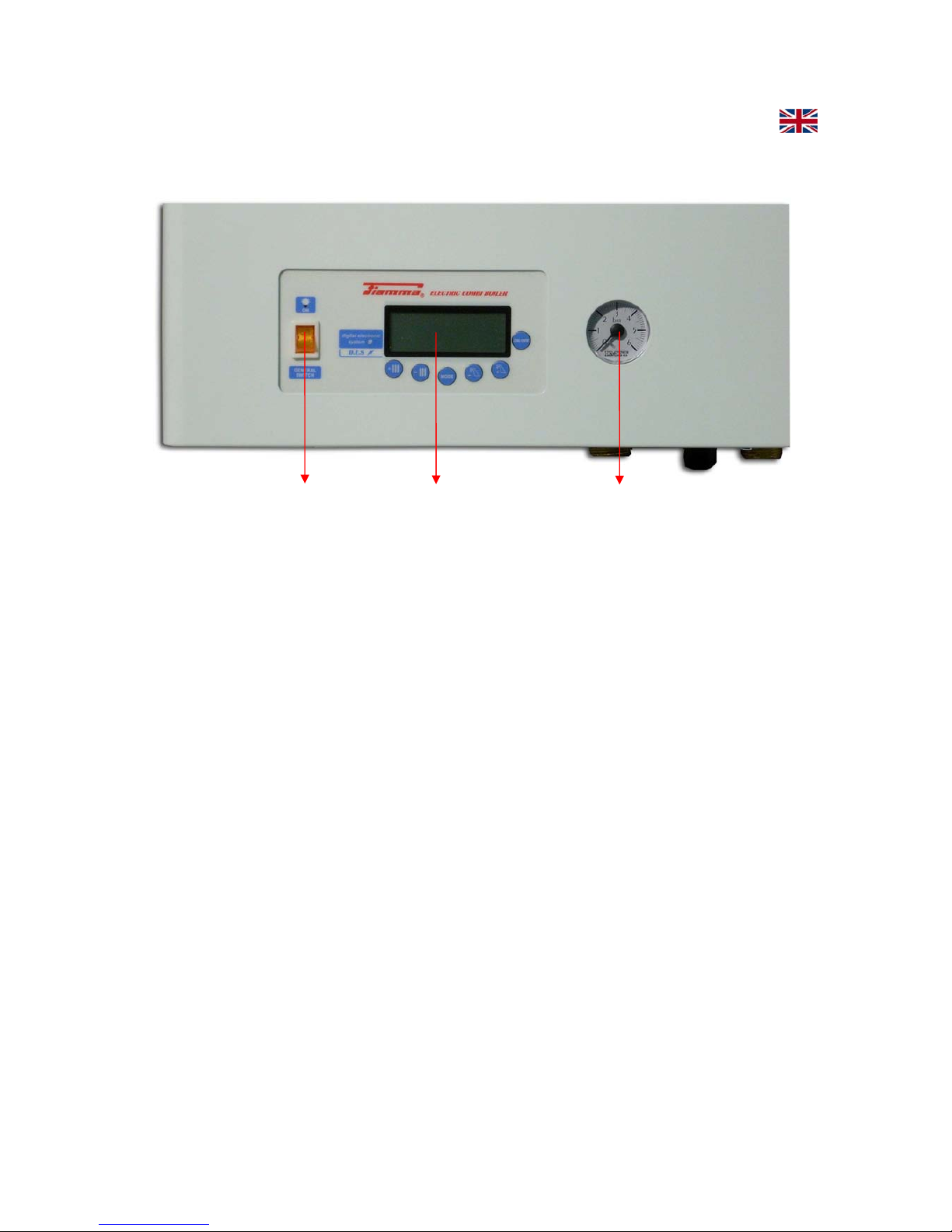

CONTROL PANEL
The control panel is composed of : display, function selection keys, general
switch and the hydrometer it is placed in the lower left corner
in front of the unit (see image above).
Using analogical hydrometer.
The analogical hydrometer control panel has a dial with unit of measure in a
bar, from 0 to 6 bar. The water pressure in the heating system is indicated by
the index of the black arrow.
The optimum pressure for the system is between 1 and 1.5 bar.
More than 1.5 bar you can have a maximum pressure of 2 bar (maximum
expansion of the system during the rise in temperature). More than 2 bar
pressure the system is not in the range of operation, and mechanical safety
valve (preset to 3 bar) can start to lose water.
The minimum operating pressure is 0.8 bar (+/- 0.2 bar). The differential
positive or negative tolerance is due to the operation of the water pressure
switch with fixed setting.

8
J7
J6
J5 J4 J3 J2

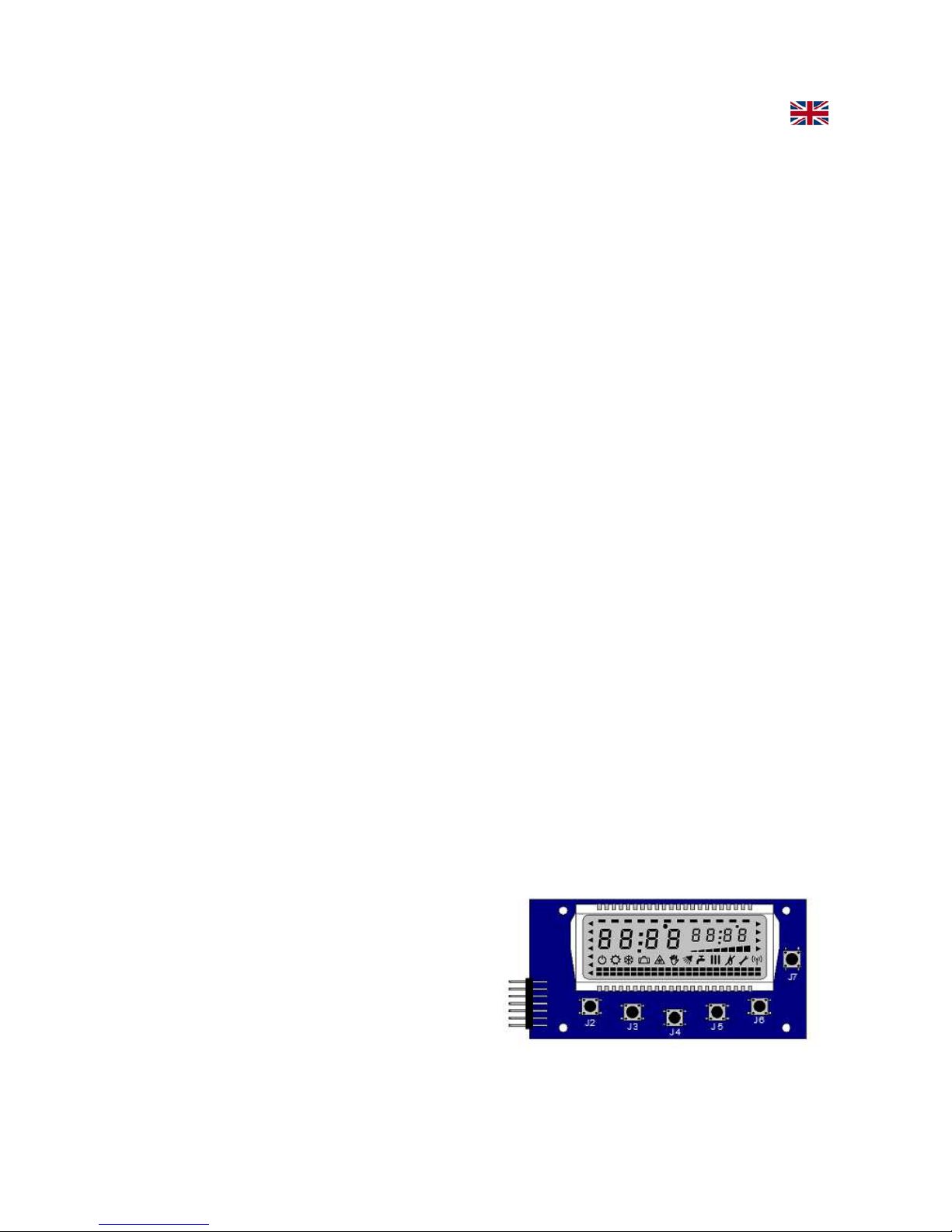

KEYBOARD PANEL (Control panel)
MEANING OF THE KEYS IN USER MODE
KEY FUNCTION
J5 Display/ Tank setpoint decrease(only if JP8 = 0)
J6 Display/ Tank setpoint increase(only if JP8 = 0)
J7 ON-OFF Switching
Displaytemperatureoutput/ Displaysetpointoutput
Unlock errorofsafetythermostat
J4 Summer–Winterswitching
J2 Display/ Increaseofheating setpoint(orroomtemperature)
J3 Display/ Decreaseof heating setpoint(orroomtemperature)
J5 +J6 Enabling function Eco/Comfort(only if JP8 = 0)
TURNING ON THE BOILER
The boiler is switched-on by means of the light General switch located on the
left of the display in the instrument panel of the boiler. Pressing the switch
upward to the ON position, it will light in the presence of single-phase supply
(230V-50 Hz).Then,itshall be pressed the ON-OFF (
J7 )on the keypad to
switch the power from stand-by to the operating position; the display will light
up of blue and will appear various symbols signaling function /faults etc.
At this point it shall be chosen the mode of operation, summer or winter
operation.
J4+J7Start function degassing

9
CHOICE OF THE OPERATION MODE (winter/summer)
Pressing the key MODE (J4), it will be chosen the mode of operation, wintry or
summery.
Pressing repeatedly each time for at least 5 seconds, you switch from WINTER
to SUMMER or from SUMMER to WINTER then.
When the device will be in WINTER mode, on the display will appear the
symbol C
CC
C(snow).
When the device will be in SUMMER mode, on the display will appear the
symbol B
BB
B(sun).
TEMPERATURE VARIATION OF THE HEATING CIRCUIT
When the apparatus has been set with the snow symbol (C
CC
C) for the wintry
functioning, you can change the maximum temperature of heating circuit
pressing one of the two keys with the radiator symbol located on the left of the
display (J2 and J3 keys).
The keywiththe symbol I+ (J2),increasesthetemperature,and
the keywiththe symbol I- (J3),decreasesthetemperature.
TEMPERATUREVARIATIONOFHOTSANITARYWATER
The temperatureofhotsanitarywatercan be varied independentlyfromthe
mode of functioning, bothwintryand summery.
The twokeys withthe Tap symbolon the left ofthe controlpanel,areusedto
set the maximumtemperatureof the hot sanitarywatercircuit.
The keywithsymbol H+ (J6)increasesthe temperature,and the one with
the symbol
H- (J5)decreasesthe temperature.
ON-OFF KEY
Display Simbols
The ON/OFF key (J7), in addition to put the
boiler in stand-by mode, allows to reset
(unlock) the apparatus in case of high
temperature lock.
If the lock would be caused by lack of water

10
pressure alarm, the recovery will be automatic after that the hydric pressure will be
restored at the minimum operating level (0,8 bar) by means of the opening and the closure
of the charging tap placed under the boiler (black handle).

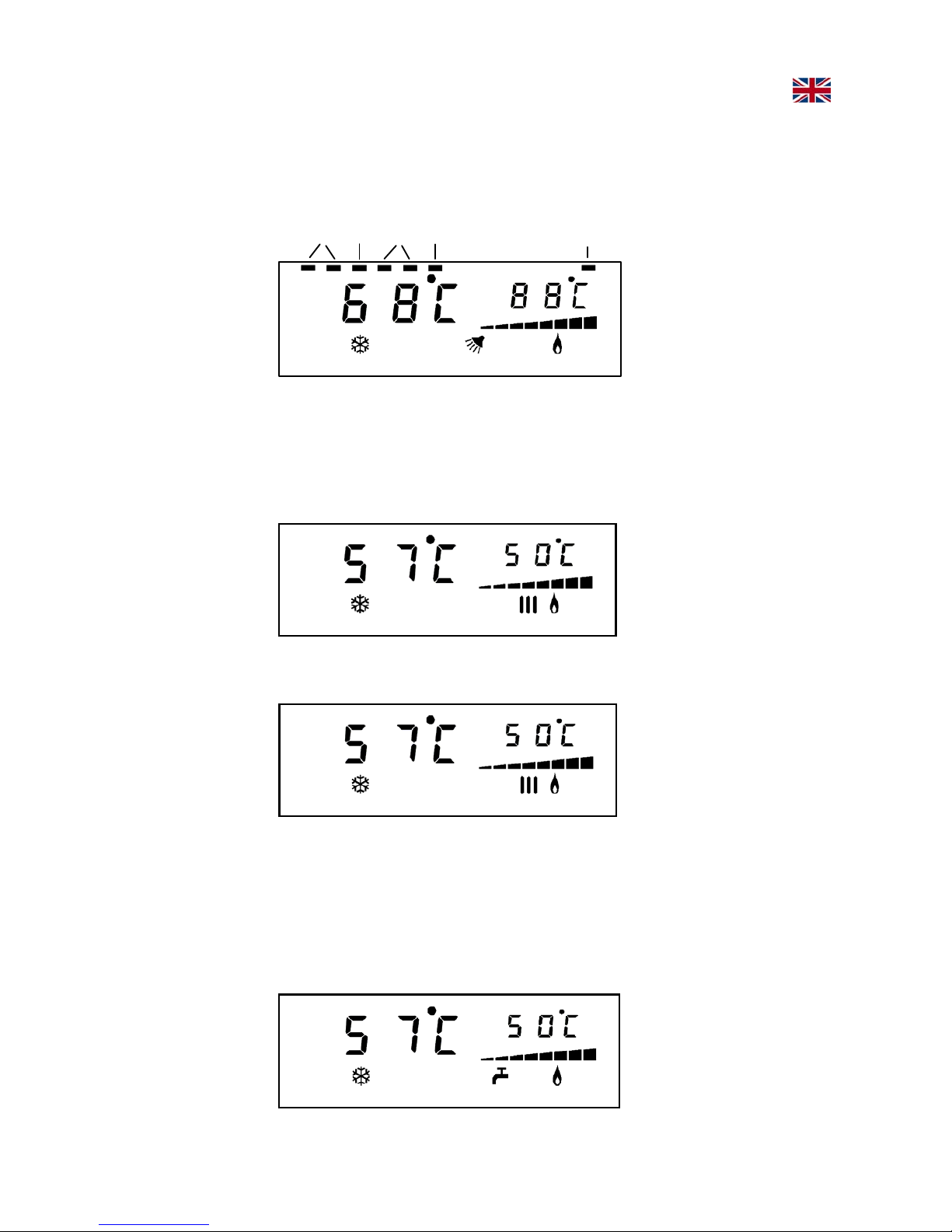

The display has several symbols, signaling in addition to operation modes, also the
various alarm or system displays:
SYMBOL MEANING
L
LL
LMalfunction
J
JJ
JRequest of burner switch-on
I
II
IHeating request
H
HH
HTank enabled
G
GG
G Function sanitary Comfort activated
F
FF
FParameter menu activated
E
EE
EAnti-freeze request activated
C
CC
CWinter mode
B
BB
BSummer mode
A
AA
AOFF mode
Level of
modulation Indicates the instantaneous power of the boiler from 0 to 100%

11
INSTALLATION
TECHNICAL NOTE FOR INSTALLER AND TECHNICAL MAINTENANCE

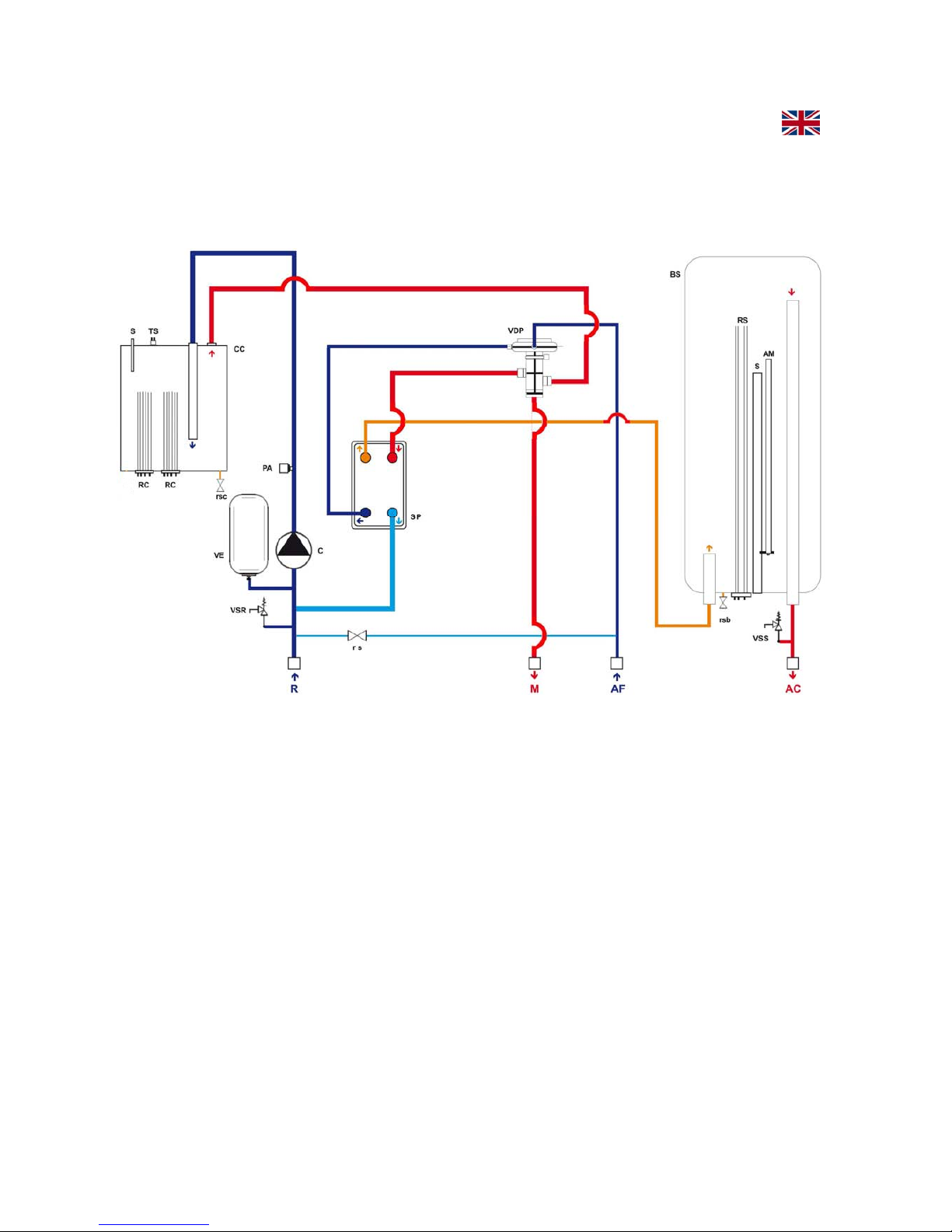

HYDRAULIC SCHEME
(Elektra 12BP-L015HE version)
Legend
-TSSafetythermostat.-rsFilling tap.
-VSSSafetyvalveforsanitarycircuit 1/2”x6,5 bar.-PAWaterpressureswitch.
-SPBrazed heat exchangers.-CCBoilerbody.
-SThermowellforimmersionsensor.-VDPPressostaticDivertervalve.
-RHydraulicconnectionin-let heating circuit. -RCBoilerresistanceof6kW.
-ACHydraulicconnectionout-let sanitaryhot-water.-rscDrainvalveof boilerbody.
-MHydraulicconnectionout-let heating circuit.-BS Hot water storage tank of 37 lt.
-RSSanitaryResistanceof 2kW.-AM Magnesium anode.
-VEExpansion vesselheating circuit. -rsb Drain valve of tank.
-VSRSafetyvalveheating circuit 1/2”x3bar
-AFHydraulicconnectionin-let sanitarycold-water.
For the other models, the only changes refer to the number of electric resistances; the 6 kW
version hastwo 3kWresistance(detail RC),the 12kWversion hastwo 6kWresistances,the
18 kW version has three 6 kW resistances and the24 kWversion hasfour6kWresistances.

13
SinglephaseF
NeutralN
Selected Phasefrom ContactorFT
ElectricPump PI
Controlof contactTSon Contactorof power(C-NO)cTS
SanitaryMicroswitch (controlComfortfunction)MS
Controlgatetriacn°1 (4KWpower) G1
Controlgatetriacn°2 (2KWpower) G2
Controlgate triacn°3 (4KWpower) G3
Controlgatetriacn°4 (2KWpower) G4
Deliveryheating probe (ntcsensor) SM
Externalprobe (sensor) SE
Waterpressure switch PSA
Safetythermostat - Safety thermostat tank TS- TSB
Roomthermostat(terminalprovided)TA
Sanitary tank probe (sensor) SS

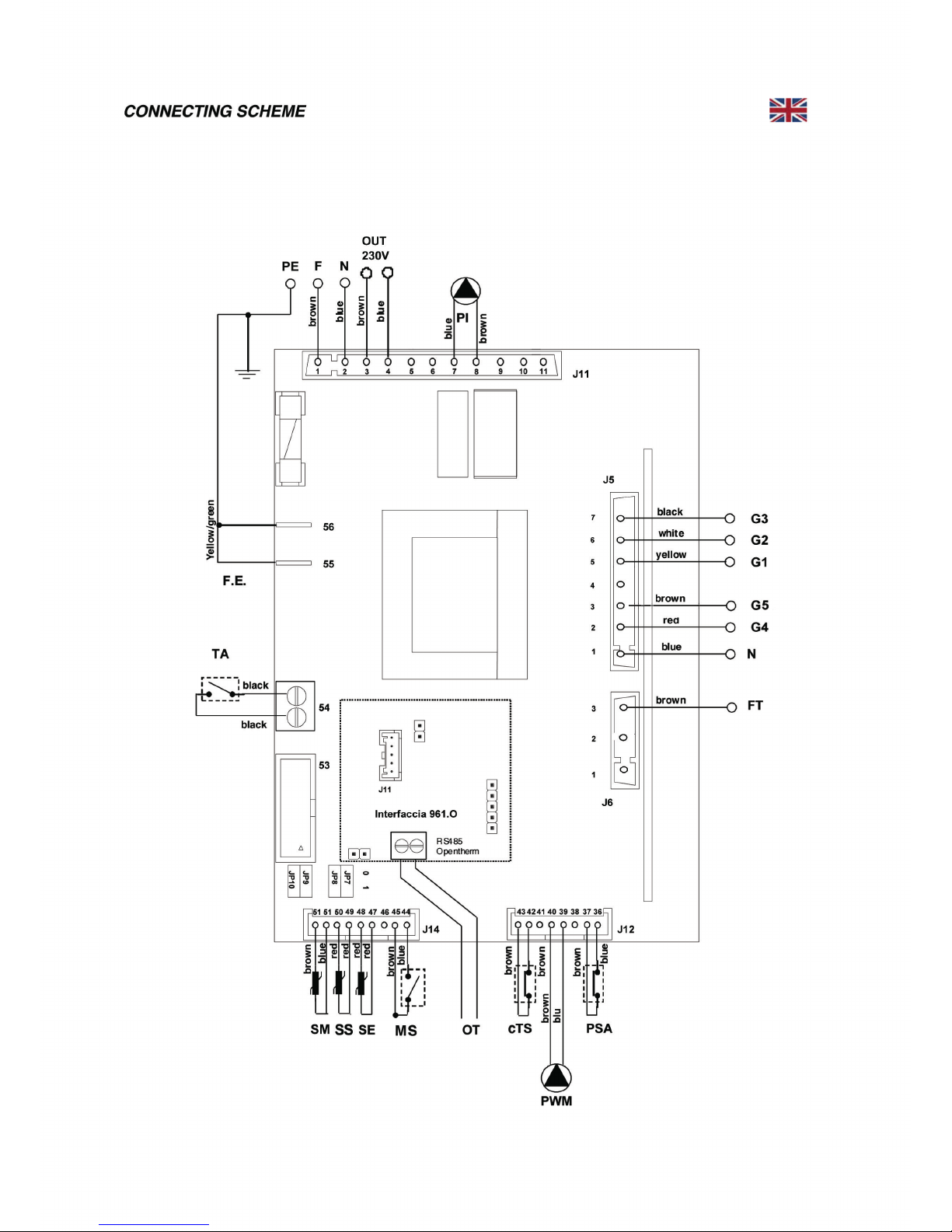

MAINELECTRICSCHEME
Legend electricscheme
F
N
GX
TS
ON/OFF
GX
Main P C B
LOVATO
BF09
Contatto
TS
FT
N
A2
LOVATO
BF09
A1
R
brown
blue
blue
blue
black
black
brown
brown
blue
blue
black black black
black
blue
230V-50Hz.
brown
brown
brown
Ground point of this affordabke security application PE
Functional heart derived from ground point of security F.E.
Connection with remote control OpenTherm (optional) OT
General switch ON/OFF
Controlgatetriacn°5(2KWsanitary tank)G5
TSB

14

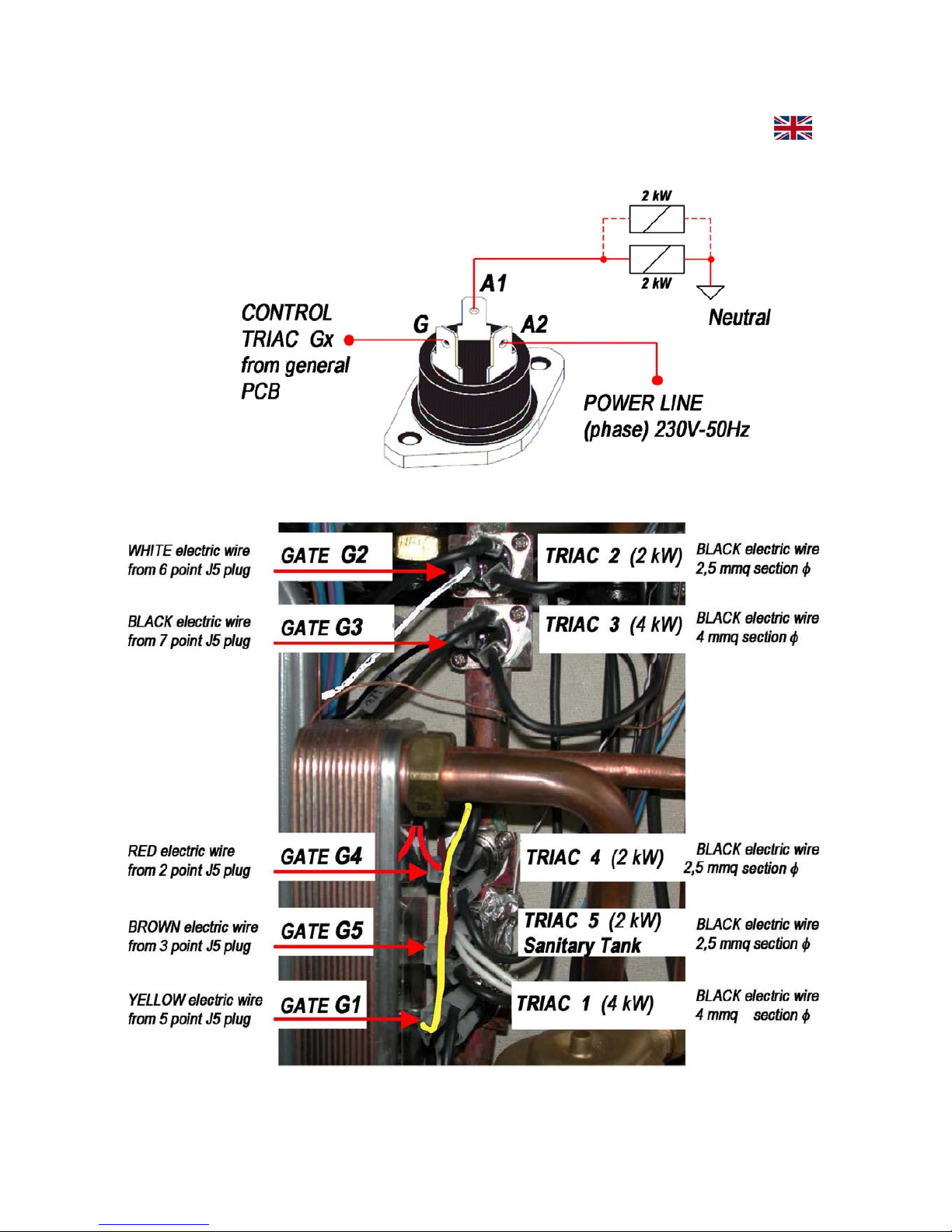

TRIAC – Connection scheme

15
MANUFACTURE CONSTANTS
FUNCTION Value
DELTA OFF TANK PROBE 0°C
DELTA ON TANK PROBE -1°C
INTERVENTION TEMPERATURE ANTI LEGIONELLA 65°C
INTERVENTION INTERVAL ANTI LEGIONELLA 7 Days
MAX TEMPERATURE PRIMARY 80°C
TIME OF PUMP FUNCTIONING IN ANTI-LOCK 10 sec
INTERVENTION TIME ANTI-LOCK PUMP 24H
TEMPERATURE ANTIFREEZE ON (only circulator) 7°C
TEMPERATURE ANTIFREEZE ON (heat exchanger ignition) 4°C
TEMPERATURE ANTIFREEZE OFF 20°C
SETPOINT AND PARAMETERS
FUNCTION Default RANGE
HEATING SETPOINT 60°C 30 – 75 °C
FLOOR HEATING SETPOINT 30°C 10 – 40 °C
ROOM SETPOINT (with external probe present) 20°C 10 – 30 °C
TANK SETPOINT 60°C 30 – 65 °C
TEMPERATURES
FUNCTION N°
DELIVERY TEMPERATURE t: “Ch”
TANK TEMPERATURE t: “Dh”
EXTERNAL TEMPERATURE t: “Ep”
OFFSET SETPOINT OF EXTERNAL PROBE t: “Se”
SELECTION JUMPERS enable
Jumper0/ 1
JP7 High temperature / Low temperature plant
INSTANTANEOUS DHW SETPOINT 50°C 30 –60 °C
JP8 Combined / Heating only
JP9 Sanitary with tank / Sanitary instantaneous
PARAMETERS
FUNCTIONN°def. RANGE
EXTERNALPROBESTARTUP10 0–1
BUILDINGCOEFFICIENTOFDISPERSION235 5–35°C
SANITARYPOSTCIRCULATION315 1–180 sec
HEATINGPOSTCIRCULATION430 1–180 sec
HEATING EXCHANGER CIRCULATION STARTING 50 0 –240sec
MIN. IGNITION TEMPERATURE CIRCULATOR 630 0–50°C
DELIVERYDIFFERENTIALOFSANITARY 715 0–20°C
TYPE KETTLE PRESENT 8 0 0=int.withprobe- 1=ext.with thermostat- 2=ext.with probe
TYPE OF SENSOR REQUIRED TANK 90 0=flowswitch+three-waypneumatic-1=flowmeter+three-wayelectric
SPEED PUMP PWM OPERATION 10 4 1=400 l/h -2=800 l/h - 3=1000 l/h - 4=1200 l/h

16

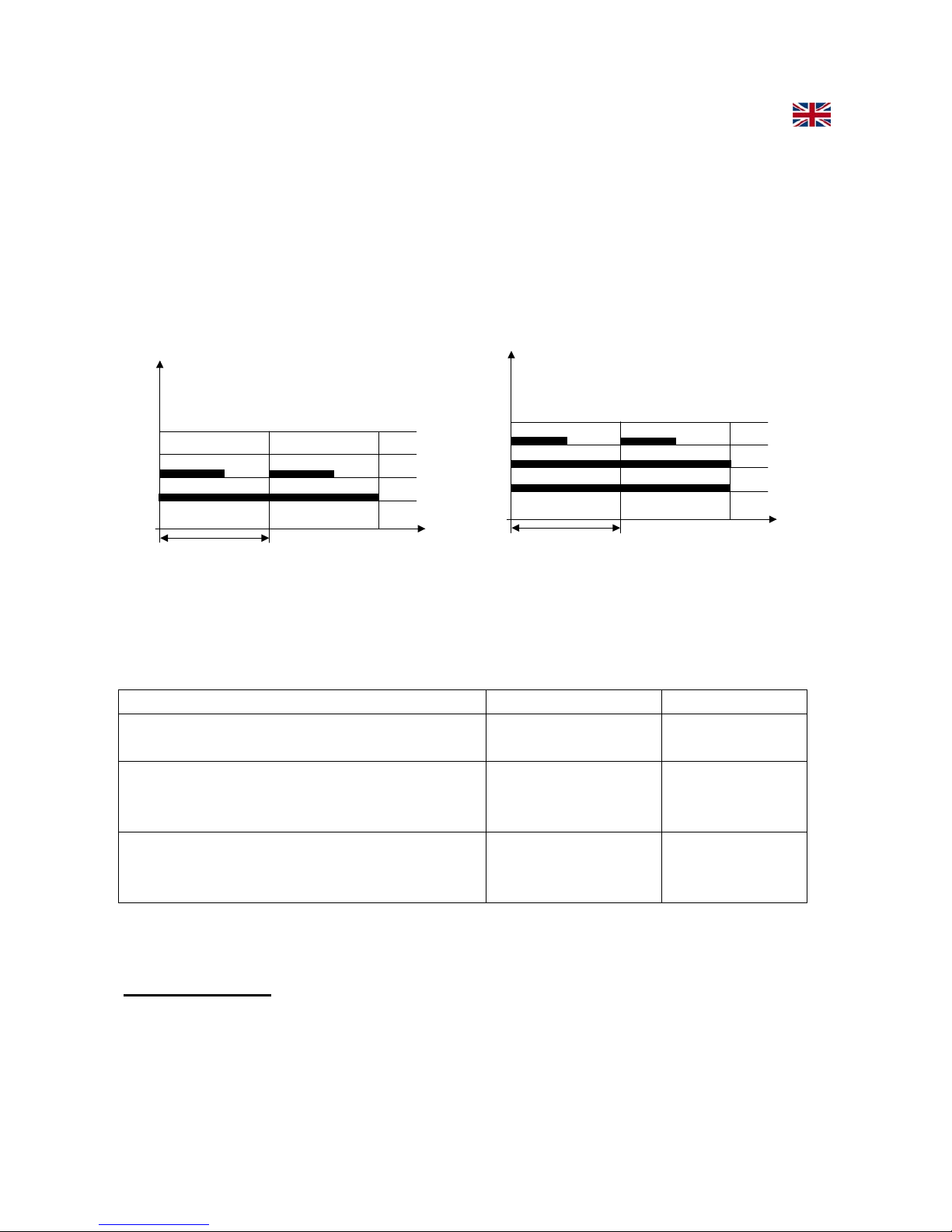

CONTROL OF MAIN HEAT EXCHANGER
According to the required power during the heat request, the controls G1-G4 related to the
main exchanger are turned on all or partially.
The actuation of each control is reduced to a lapse of 4 seconds. Higher is the required
power, more the control will remain operative in this lapse.
The power in heating or during a sanitary request is calculated by PID algorithm.
Please see in the pictures below two examples related to 40% and 60% of total power.
In case of simultaneous request of heating and tank, the controls G1-G4 related to the
main heat exchanger will be directed in the following way:
Boilerstatus PrimaryG1-G4 TankG5
Only heating request G1 – G4 =
modulation G5 = OFF
Heatingrequest +TankrequestG1–G3=modulation
G4=OFF G5=ON
Heatingrequest +FlowswitchrequestG1–G3=modulation
G4 = OFF G5 = ON
Controls rotation:
Every hour the order of ignition of triac G1-G4 controls is rotated in such a way to partition
evenly in time the use of all heating elements.
G1
G2
G3
G4
4 s
G1
G2
G3
G4
4 s

17

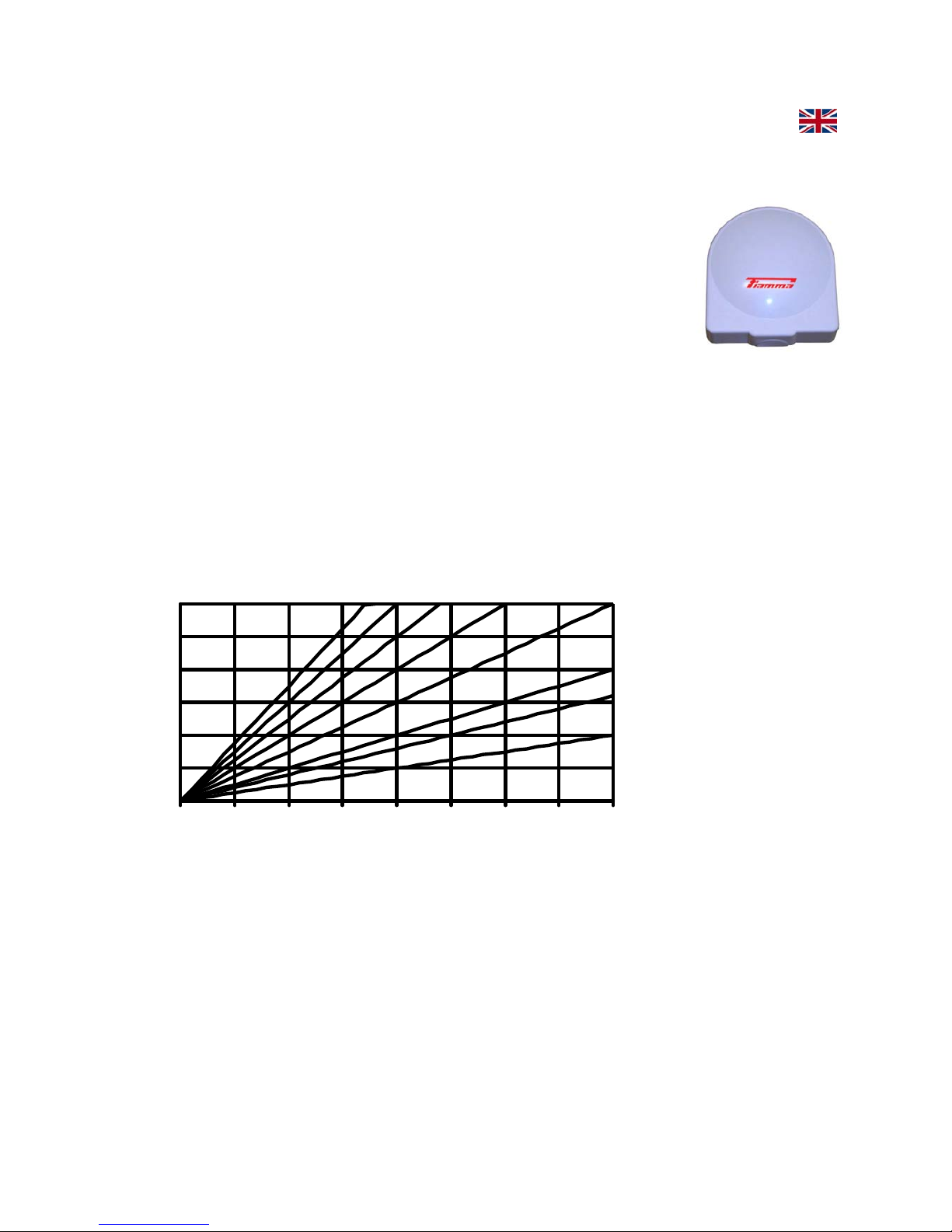

CONTROL OF EXERNAL PROBE
Installation and functioning at sliding temperature
For the connection of the external probe, it shall be used the
Original Kit FIAMMA code F.532 provided in the accessories of the
electric boilers Elektra.
The electrical connection shall be done in the external terminal at
the general electric panel already prearranged in the standard
cabling of the boiler. The connection must be carried out with
junction cables and wires having a minimum section of 1,5 mm and,
if possible, avoiding the insertion along with electric lines, digital
lines of inverter or other not compatible.
After the connection the external probe must be enabled by means of the introduction of a
variation ofN°1 parameter, changedfrom0to1.
Then the setpoint chased by the heating delivery probe will be calculated as follows:
Ti = [ (Troom – T e) * K e / 10 ] + Troom
Example of calculation for several values of Ke
The coefficientKeistheleakage ofthe building and itcanbe setbyN°2 parameter.
Te, is the temperature measured by the external probe.
Troom is the setpoint related to the desired room temperature.
20
30
40
50
60
70
80
-20-15-10-505101520
3,5 3,0 2,5 2,0 1,5
1,0
0,8
0,5
Te
Ti

18
ANTIFREEZE FUNCTION
Incasethe deliveryprobe measuresatemperaturelowerthan 7°C,the circulatoris
activated.
If thetemperaturegoesdownthevalue of4°C the mainheatexchangerisigniteduntil the
deliverytemperaturehasreached20°C.The antifreezefunctionisactivealsowiththe
boilerturned OFF(function in standby mode but with bright switch on).
TANK REQUEST(Jumper JP9 = 0)
Standbyorwithsimultaneousheatingrequest: inthiscaseifthe temperaturemeasured
bythe tankprobe islowerthan the tanksetpoint-1°C,isactivatedthe controlG5related
tothetankresistance.
Whenthe temperaturemeasured bythe probe tankishigherthanthe tanksetpoint, the
controlG5isdisconnected.
Sanitaryflowswitchrequest:when arequestgetsbythesanitaryflowswitch,thecontrol
G5related tothe tankresistanceisactivatedindependentlybythe temperature.
In ECO Mode is not activated any resistance of the primary heat exchanger.
In the COMFORT mode simultaneously are also checked the controls G1, G2. G3, G4 relative
to the primary heat exchanger bringing the flow temperature to the setpoint value tank plus a
differential set with parameter
N°7 .
At the end of the request the pump is fueled for a time equal to the value set by parameter
N°3 .
ANTILEGIONELLAFUNCTION
The systemchecks continuouslythe tanktemperature.
If withinacertaintimelapsethetemperaturedoesnotreach65°C,the tankresistanceis
automaticallyignitedinordertoavoidbacteriumgrowth.
The timeofinterventionoflegionellafunctionis3hoursbythefirstignitionandthenevery
7days.
Pre-heat exchanger primary: when COMFORT is activated in standby condition the primary heat
exchanger temperature is maintained in order to ensure a prompt response of the sanitary sector.
The primary heat exchanger is maintained at a temperature equal to the Setpoint plus a tank
temperature difference can be set by parameter
N°7 .
DHW DEMAND INSTANTANEOUS
When receiving a request by the microswitch sanitary, the circulator is powered and controlled
commands are G1, G2, G3, G4 relative to the primary heat exchanger leading the delivery
temperature to the setpoint value sanitary + a differential be set with parameter
N°7 .
At the end of the request the pump remains powered for a time equal to the value set by
parameter
N°3 .
DEGASSING FUNCTION
The degassing function is activated by simultaneously pressing the keys J4 and J7.
During this function are altered states of operation to maximum and minimum speed of the
circulating pump PWM in order to facilitate the escape of air bubbles from the hydraulic circuit.
The sequence is illustrated below.
When this function is on the display shows a timer indicating the time at the end of the function.
Vel.MAX
(15 sec) Vel. MIN (20 sec) Vel. MIN (120 sec) Vel. MAX (5 sec) Vel. MIN (5 sec)
2cycles 60cycles

INSTRUCTION GRUNDFOS PUMP
HEATING REQUEST
As the contact of room thermostat closes, if the mainboard is in winter mode, the system pump is only
activated if the temperature of the primary heat exchanger is higher than the temperature set by parameter
N°6 .If the value of temperature measured by the primary heat exchanger probe is lower than the
programmed delivery setpoint, the triac are ignited in sequence as for required power. This occurs only
after a settable time by parameter N°5 . The instant power of the boiler and the related control of triac G1-G4
takes place by means of PID regulator. At the end of the request the pump remains supplied for a time
equal to the value programmed by N°4 parameter.
MEANING O FTHEKEYS OFTEMPERATUREMENU
To log in temperature menu, press simultaneously J3 and J5 keys. The symbol FFFwill appear on the display.
KEYFUNCTION
J7Exit bytemperaturemenu
J2Temperatureindexincrease
J3Temperatureindexdecrease
19
MEANINGOFKEYSOFPARAMETERSMENU
To log in parameters menu, press simultaneously the keys J2
and J6 for 4seconds. The symbol
Fwill appear on the display.
KEYFUNCTION
J5Parametervaluedecrease
J6Parametervalueincrease
J7Exit byparametersmenu
J2Parameterindexincrease
J3 Parameterindexdecrease

20
“Heating elementsstatus”
The dasheslocatedintheupperpartindicatethe heating elementsstatus.Eachdash
correspondstoa2kWelement. The first6dashesrefertoheating modulesofprimary
heatexchanger.Thedashontherightuppercornerreferstothe heating module
dedicated tothe tank(only if JP8=0 and JP9=0)..
“Heating request”
Whenan heatingrequestoccurs,thetemperaturemeasuredbythedeliveryprobeis
displayed and the symbol
Istartstoflash.Onthesmall digitisdisplayed the tank
temperature.Theinstantaneouspoweroftheboilerisindicatedbythe levelofmodulation.
Inanymoment it ispossibletoobservewhichtriacareturned on.
“Flowswitchrequest(comfortfunction)”(only if JP8=0)
Whenaflowswitchrequestoccurs,the temperaturemeasured bythe deliveryprobeis
displayedandthe symbol
Hstartstoflash.Onthesmall digitisdisplayedthe tank
temperature.Theinstantaneouspoweroftheboilerisindicatedbythe levelofmodulation.
In any moment it is possible to observe which triac are turned on.
G1
G2
G3
G4
G5
In the case of boiler with heating only (JP8 = 1) is only displayed the temperature
of the primary heat exchanger:
