Dear Customer,
We would like to congratulate and thank you for choosing a Fiat Bravo.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way.
You are recommended to read it right through before taking to the road for the first time.
It contains important information, advice and instructions for the use of the car which will help you get the very best out
of your Fiat. The handbook also provides a description of special features and tips as well as essential information for
correct care, maintenance, safe car driving and use and preservation of your Fiat over time.
Carefully read the warnings and indications marked with the following symbols:
personal safety;
car safety;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity;
❒the range of additional services available to Fiat Customers.
We are sure that these will help you familiarise with your new car and appreciate it and the care provided by the people
at Fiat.
Enjoy reading. Happy motoring!
This Owner Handbook describes all the versions of the Fiat Bravo. As a
consequence, you should only consider the information which is related to the
trim level, engine and version that you have purchased. All data contained in this
publication are purely indicative. Fiat Group Automobiles can modify the
specifications of the vehicle model described in this publication at any time, for
technical or commercial reasons. For further information, contact a Fiat
Dealership.

ESSENTIAL INFORMATION!
REFUELLING
Petrol engines: only refuel with unleaded petrol
with octane rating (RON) not less than 95 in
compliance with the European specification
EN228.
The use of petrol that does not conform to the
above-mentioned specification will cause the
EOBD warning light to switch on and the
irregular operation of the engine.
Diesel engines: only refuel with diesel for
motor vehicles in compliance with the European
specification EN590. The use of other products
or mixtures may damage the engine beyond
repair and consequently invalidate the warranty.
STARTING THE ENGINE
Make sure that the handbrake is engaged and
place the gear lever in neutral. Fully depress the
clutch pedal, without pressing the accelerator,
then turn the ignition key to the MAR position
and wait for the and warning lights
to switch off (diesel versions); turn the ignition
key to AVV and release it as soon as the engine
starts.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high
temperatures during operation. Do not park the
car on grass, dry leaves, pine needles or other
flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows
continuous diagnosis of the components related
to emissions to ensure increased respect for
the environment.
ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add
electrical accessories (with the risk of gradually
draining the battery), contact a Fiat Dealership.
They will calculate the overall electrical
requirement and check that the car’s electrical
system can support the required load.
CODE card
(for versions/markets, where provided)
Keep it in a safe place, not in the car. You should
have the electronic code shown on the CODE
card with you at all times.
SCHEDULED SERVICING
Correct maintenance of the car is essential for
ensuring that it maintains its performance and its
safety features, its environmental friendliness
and low running costs for a long time to come.
THE OWNER MANUAL CONTAINS…
… important information, advice and warnings
for correct use, driving safety and maintenance of
your car over time. Special attention must be
paid to the symbols provided (personal safety)
(environmental protection) (car integrity).

GETTING TO KNOW YOUR CAR
DASHBOARD
The presence and position of the controls, instruments and indicators may vary according to the different
versions.
1. Diffuser for directing air to the side windows - 2. Adjustable and directable air diffuser - 3. Exterior light control lever -
4. Instrument panel - 5. Windscreen wiper/rear window wiper/trip computer control lever - 6. Adjustable and directable
air diffusers - 7. Hazard warning lights switch - 8. Passenger front airbag - 9. Glove compartment - 10. Fog lights/rear
fog lights and menu access/setting switch unit - 11. Radio controls - 12. Heating/ventilation/climate control system
controls - 13. Electric power steering and ASR system (for versions/markets, where present)/front and rear parking
sensors (for versions/markets, where present) on/off switch unit - 14. Ignition key and ignition switch - 15. Driver side
front knee bag (for versions/markets, where provided) - 16. Driver front airbag - 17. Steering wheel locking lever -
18. Fuse box access flap - 19. Bonnet release lever
fig. 1 F0Q0639
3
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CONTROL PANEL AND INSTRUMENTS
Versions with multifunction display
Warning lights supplied on diesel versions only
On diesel versions, the end of scale for the rev counter is 6000 rpm.

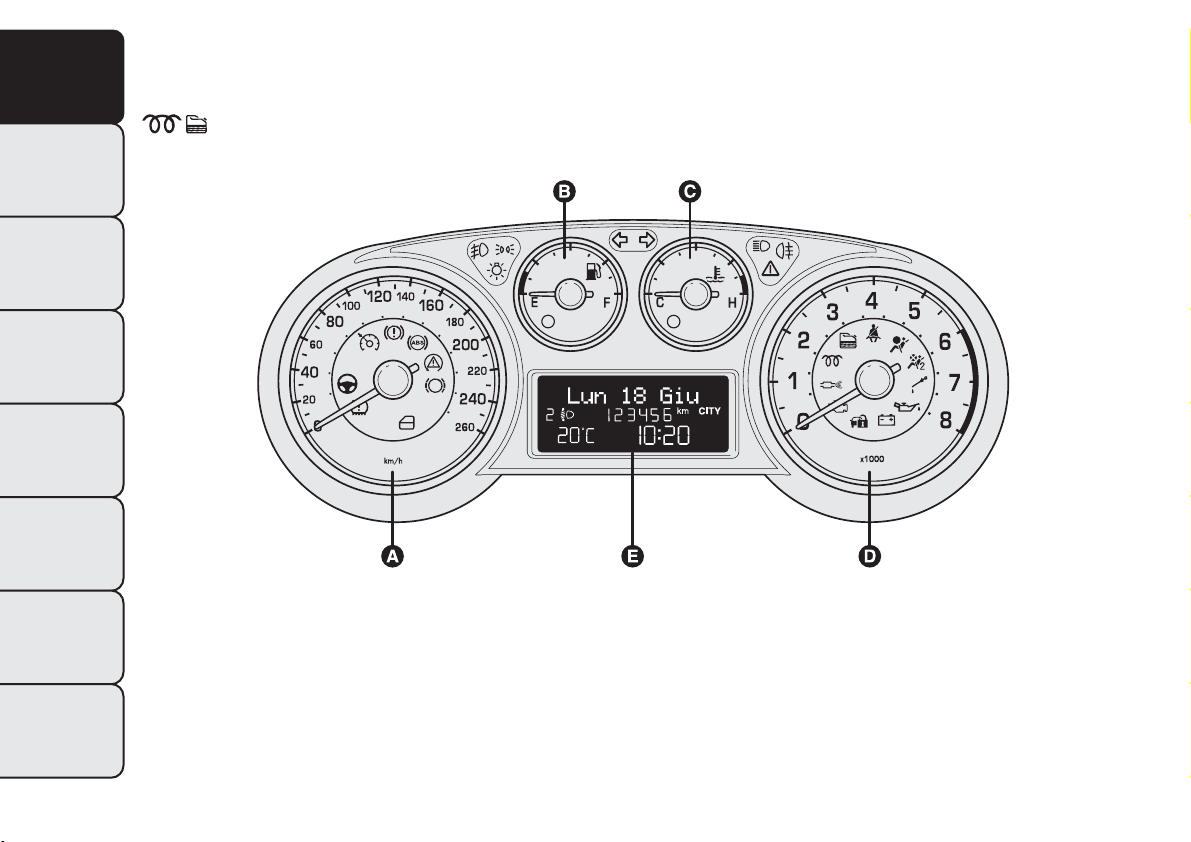

A. Speedometer B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge with overheating
warning light D. Rev counter E. Multifunction display
fig. 2 F0Q0604
4
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Sport versions with multifunction display
Warning lights supplied on diesel versions only
On diesel versions, the end of scale for the rev counter is 6000 rpm.

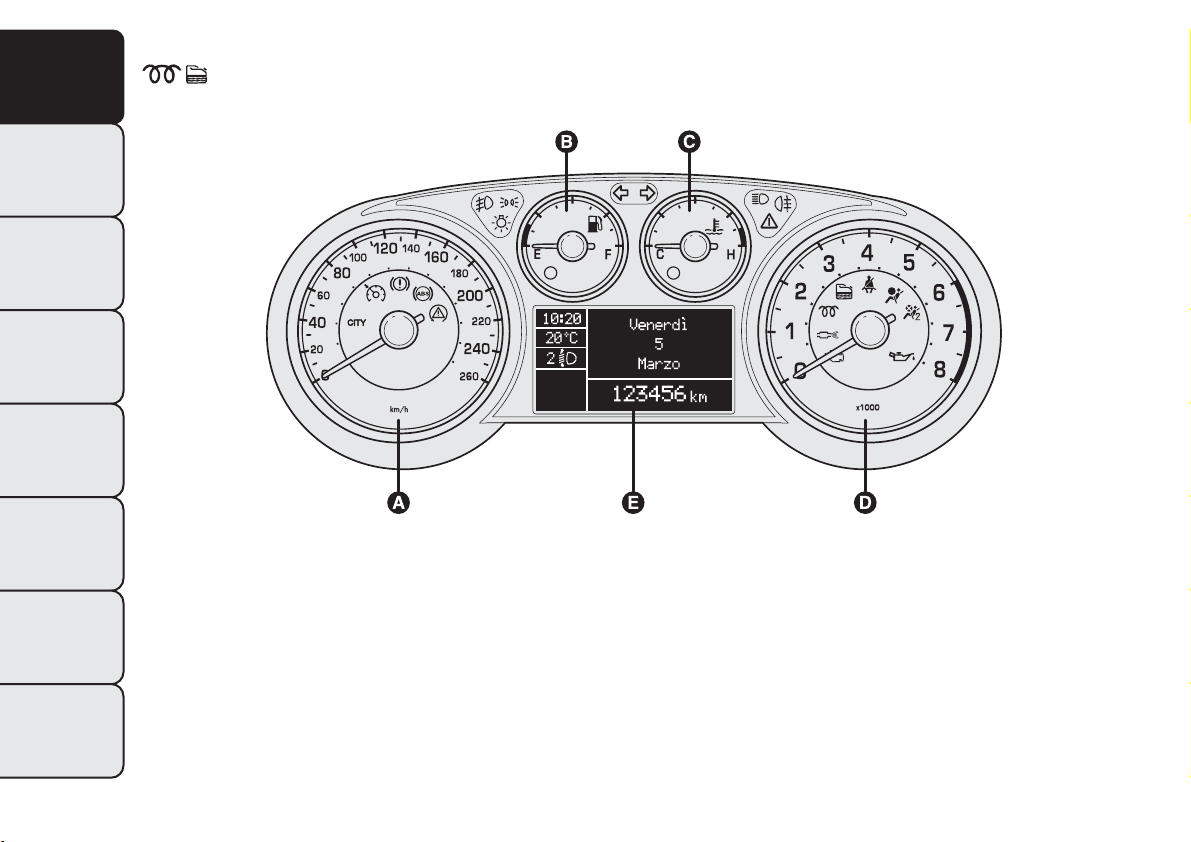

A. Speedometer B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge with overheating
warning light D. Rev counter E. Multifunction display
fig. 3 F0Q0605
5
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Versions with reconfigurable multifunction display
Warning lights supplied on diesel versions only
On diesel versions, the end of scale for the rev counter is 6000 rpm.
A. Speedometer B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge with overheating
warning light D. Rev counter E. Reconfigurable multifunction display.
fig. 4 F0Q0612
6
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Sport versions with reconfigurable multifunction display
Warning lights supplied on diesel versions only
On diesel versions, the end of scale for the rev counter is 6000 rpm.
A. Speedometer B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge with overheating
warning light D. Rev counter E. Reconfigurable multifunction display.
fig. 5 F0Q0613
7
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

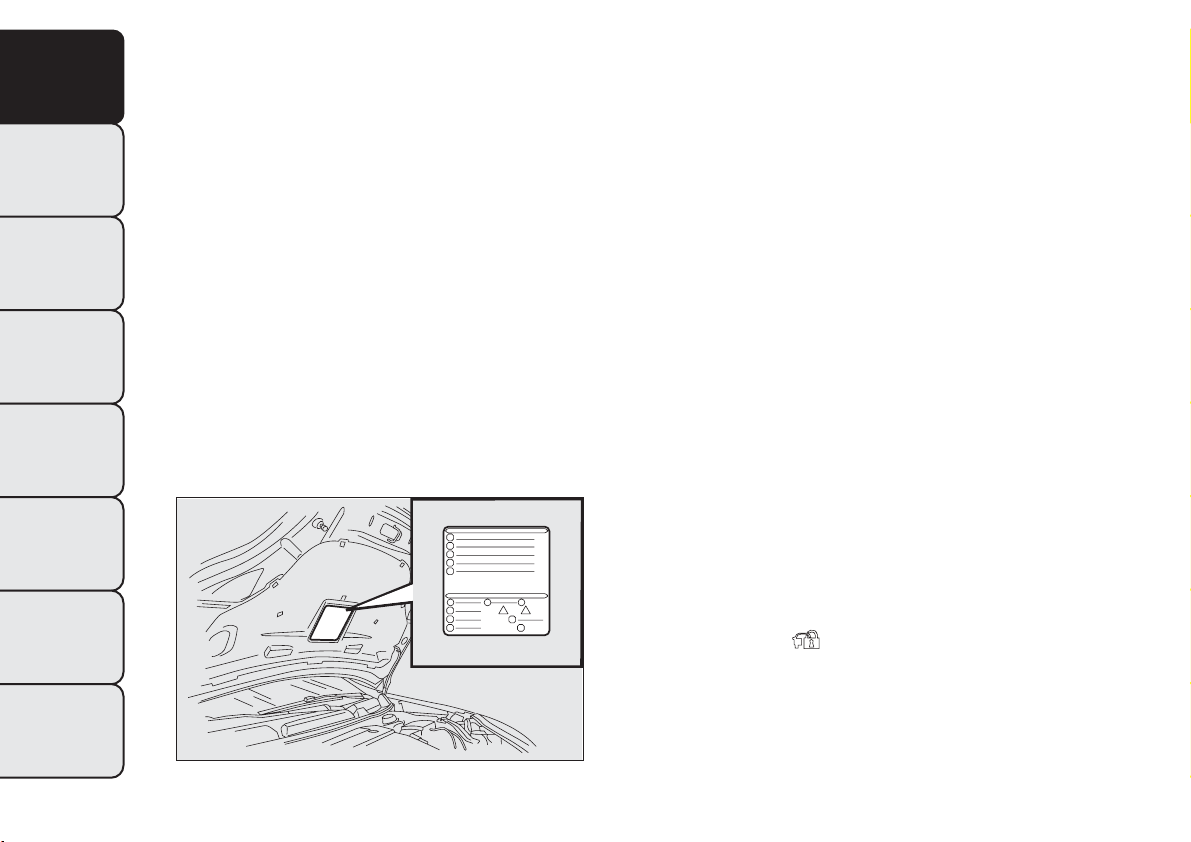

SYMBOLS
Some car components have coloured labels whose
symbols indicate precautions to be observed when
using this component.
A plate summarising these symbols fig. 6 can be
found under the bonnet.
THE FIAT CODE SYSTEM
To further protect your car from theft, it has been
fitted with an engine immobilising system. It is
automatically activated when the ignition key is
removed.

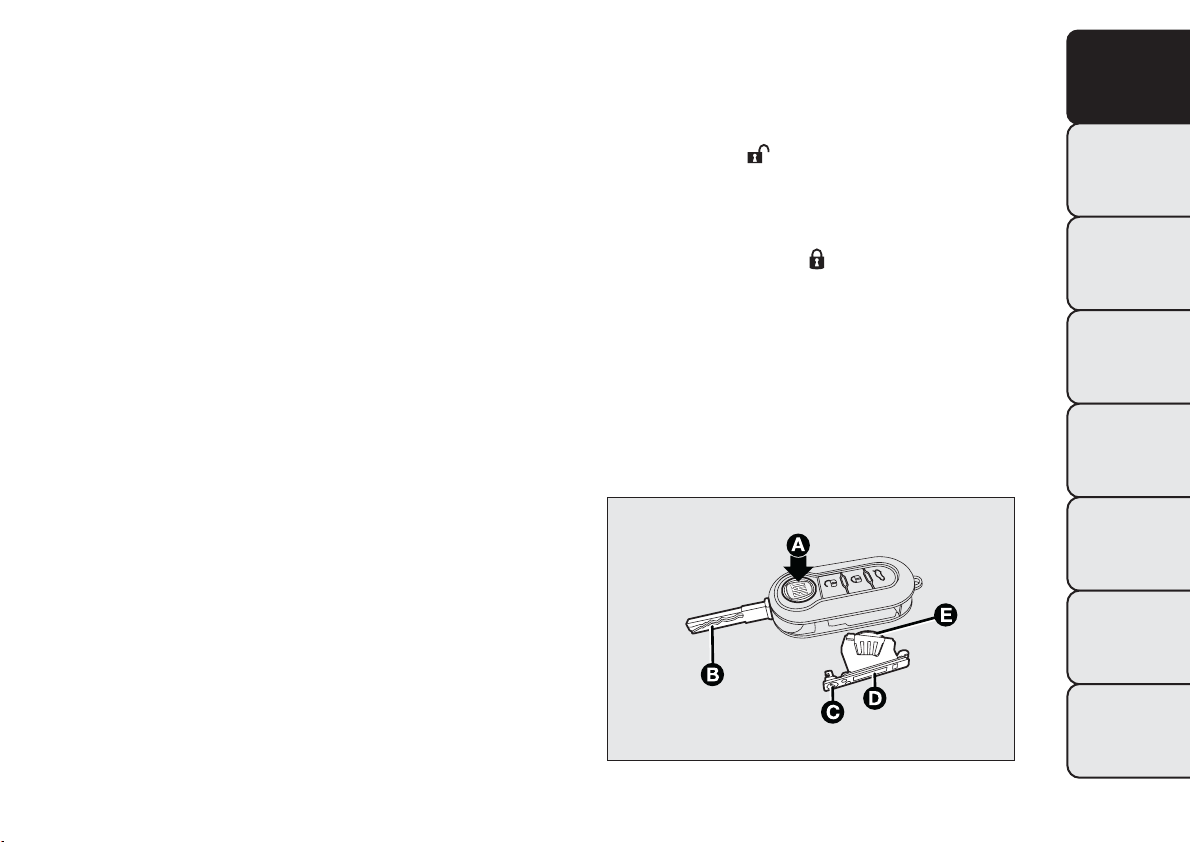

There is an electronic device in each key which can
identify the signal emitted, when the engine is
started, from an aerial built into the ignition switch.
The signal is the "password", different every time
the vehicle is started, through which the control
unit recognises the key and enables starting.
OPERATION
Each time the vehicle is started turning the ignition
key to MAR-ON, the Fiat CODE system control
unit sends an acknowledgement code to the engine
control unit to deactivate the immobiliser. The
code is sent only if the Fiat CODE system control
unit has acknowledged the code received from
the key.
Each time the ignition key is turned to STOP, the
Fiat CODE system deactivates the functions of the
engine management control unit.
If, during starting, the code is not correctly
recognised, the warning light (or symbol on the
display) switches on in the instrument panel.
In this case, turn the key to STOP and then to
MAR-ON; if it is still locked, try again with the
other keys that come with the vehicle. Contact a
Fiat Dealership if you still cannot start the engine.
fig. 6 F0Q0640
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT Each key has its own code which
must be stored by the system’s control unit. To
have new keys stored, up to a maximum number of
eight keys, contact a Fiat Dealership and be ready
to present all the keys you have in your possession,
the CODE card, a personal identity document
and the car ownership documents. The codes for
keys not presented during the storing procedure
will be deleted to ensure that any keys that are lost
or stolen cannot be used to start the engine.
warning light (or symbol on the display)
on whilst driving
❒If the warning light (or symbol in the display)
switches on, this means that the system is
running self-diagnosis (caused, for example, by a
voltage drop).
❒If the warning light (or symbol in the display)
stays on, contact a Fiat dealership.
The electronic components inside the key
may be damaged if the key is subjected
to strong shocks.
THE KEYS
CODE CARD
(for versions/markets, where provided)
A CODE card fig. 7 is provided together with the
vehicle keys. This should be presented to a Fiat
Dealership should you require any duplicate keys.
IMPORTANT In order to ensure complete
efficiency of the electronic devices inside the keys,
they should never be exposed to direct sunlight.
The ignition key and the CODE card
must be handed over to the new owner
when selling the car.
fig. 7 F0Q0001
9
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

KEY WITHOUT REMOTE CONTROL
(for versions/markets, where provided)
The key is provided with a metal insert A fig. 8,
which operates:
❒the ignition switch
❒the door lock
❒the fuel flap lock/release (on versions supplied
with a lockable plug)
❒the safe lock device (deactivation only - for
versions/markets, where provided).
KEY WITH REMOTE CONTROL
The key is provided with a metal insert A fig. 9,
which operates:
❒the ignition switch
❒the door lock
❒the fuel flap lock/unlock
❒the safe lock device (deactivation only - for
versions/markets, where provided)
To open/close the metal insert, press button B.
Button remotely unlocks the doors and the
tailgate.
Button remotely locks the doors and the tailgate.
Button remotely open the tailgate. Button B
opens power-assisted opening of metal insert A.
fig. 8 F0Q0034 fig. 9 F0Q0255
10
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

If the button for locking doors from
the inside is accidentally pressed, only
the doors opened for getting out of the
car are released; the tailgate remains locked. For
system reset, press the lock/release buttons
again / .
WARNING
Press button B fig. 9 only with the key
away from your body, specifically
from your eyes and from objects which could
get damaged (e.g. your clothes). Do not leave
the key unattended to avoid the button being
accidentally pressed while it is being handled,
e.g. by a child.
Unlocking the doors and the tailgate
Briefly press button for unlocking the doors and
tailgate with the alarm being switched off at the
same time (for versions/markets, where provided),
timed switching-on of internal roof lights and
double flashing of direction indicators (for
versions/markets, where provided).
Pressing button for longer than 2 seconds:
window opening.
Doors will be unlocked automatically if the fuel
inertia cut-off switch comes into operation.
11
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Locking the doors and the tailgate
Briefly press button for locking the doors and
tailgate with the alarm being switched on at the
same time (for versions/markets, where provided),
timed switching-off of internal roof lights and
single flashing of direction indicators.
Pressing button for longer than 2 seconds:
window closing. When the button is pressed twice
quickly, the safe lock device is activated
(for versions/markets, where provided)
(see "Safe Lock Device" paragraph hereafter).
If one or more doors are open, the doors will not
be locked. This is signalled by the LED A fig. 10
in the central panel and the direction indicators
flashing rapidly. The doors will be locked even if the
tailgate is open.
Opening the tailgate by the remote control
Press button to release (open) the tailgate
remotely even with the alarm on (for
versions/markets where provided).
The opening of the tailgate is signalled by the
direction indicators flashing twice; when it is closed
there is one flash (only with the alarm on).
If an alarm is fitted, when the tailgate is opened, the
alarm system switches off the volume sensing
protection and the perimeter sensor for the
tailgate.
When the tailgate is closed again, the volume
sensing protection and perimeter sensor are
restored.
fig. 10 F0Q0742
12
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Central panel LED indications
When locking the doors, LED A fig. 10 switches on
for about three seconds and than starts flashing
(deterrence function).
If one of the doors or the tailgate are not properly
shut when the doors are being locked, the LED
flashes quickly together with the direction
indicators.
REPLACINGTHE BATTERY IN THE KEY
WITH REMOTE CONTROL
To replace the battery, proceed as follows fig. 11:
❒press button A and open the metal insert B;
❒turn screw C to using a fine bit screwdriver;
❒take out the battery case D and replace the
battery E making sure that polarities are correct;
❒refit the battery case D inside the key and lock it
turning the screw C to .
fig. 11 F0Q0256
13
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REQUEST FOR ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8 remote controls.
Should a new remote control be necessary, contact
a Fiat Dealership, taking with you the CODE card,
an ID document and the car ownership documents.
Used batteries are harmful to the
environment.You can dispose of them
either in the correct containers as
specified by law or by taking them to a Fiat
Dealership, which will deal with their disposal.

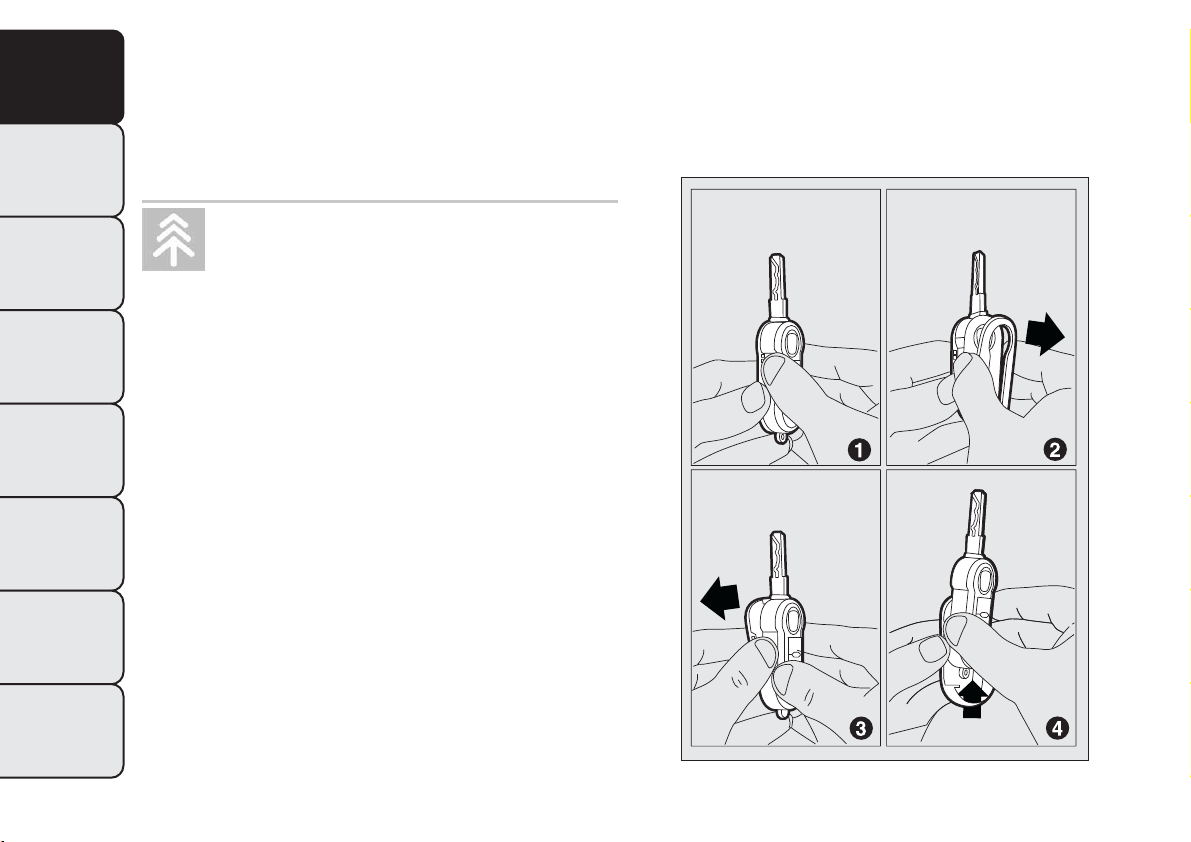

Proceed as shown in figure fig. 12 to replace the
remove control cover.
fig. 12 F0Q0257
14
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
REPLACING THE REMOTE CONTROL COVER

SAFE LOCK DEVICE
(for versions/markets, where provided)
This safety device inhibits the operation of:
❒interior handles;
❒door locking/unlocking button fig. 13 on the
central trim;
thereby preventing the opening of the doors from
inside the passenger compartment if there has been
a break-in attempt (e.g. a window has been
broken).
The safe lock device therefore offers the best
possible protection against break-in attempts. We
recommend engaging it whenever the vehicle is
parked and left unattended.
WARNING
Once the safe lock system is engaged, it
is impossible to open the doors from
inside the car.Therefore, before getting out of
the car check that there is no one left on
board.
WARNING
If the key with remote control battery
is flat, the system can be engaged by
using the metal insert in the door catch as
described previously: in this case, the device
only remains active for the rear doors.
fig. 13 F0Q0641
15
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Device activation
The system is automatically enabled on all the
doors by pressing button twice on the key with
remote control.
Device activation is indicated by 3 flashes of the
direction indicators and a flash of the LED on the
door locking button on the dashboard (see table on
next page).
If one or more of the doors is not closed correctly,
the safe lock device will not activate, thus
preventing a person from getting stuck inside the
passenger compartment by entering the car
through, and then closing, the open door.
Device deactivation
The system is disabled automatically on every door
in the following cases:
❒unlocking the doors;
❒turning the ignition key to the MAR-ON position.
16
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
