1. Vehicle identification data
2. Electrical system
2.1 Engine compartment fuse box
2.2 Control unit on battery (only for JTD engines)
2.3 Dashboard
2.4 Luggage compartment control unit
2.5 Battery positive terminal wiring
2.6 Battery negative terminal wiring
3. Emergency procedures
3.1 Jump starting
3.2 Fuel cut-off
3.3 Emergency starting with CODE CARD
4. Interventions with flat battery
4.1 Sun roof emergency closure
4.2 Tailgate emergency opening
4.3 Robotised gearbox - engagement of Neutral
5. Vehicle towing/lifting
5.1 Towing attachment points
5.2 General warnings for towing
5.3 Vehicle lifting points
6. Technical specifications
6.1 Tyre pressure (bar)
6.2 Fluids

FIAT 500L / 500L Living
Vehicle identification data
This is applied on the left side of the luggage compartment (lift the
mat for access) and bears the following data:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle fully laden.
FMaximum permitted weight of vehicle fully laden plus trailer.
GMaximum permitted weight on first axle (front).
HMaximum permitted weight on second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient (for diesel engines).
1. Vehicle identification data
1. VIN plate;
2. Body marking;
3. Bodywork paint identification plate;
4. Engine marking.

FIAT 500L / 500L Living
Electrical system

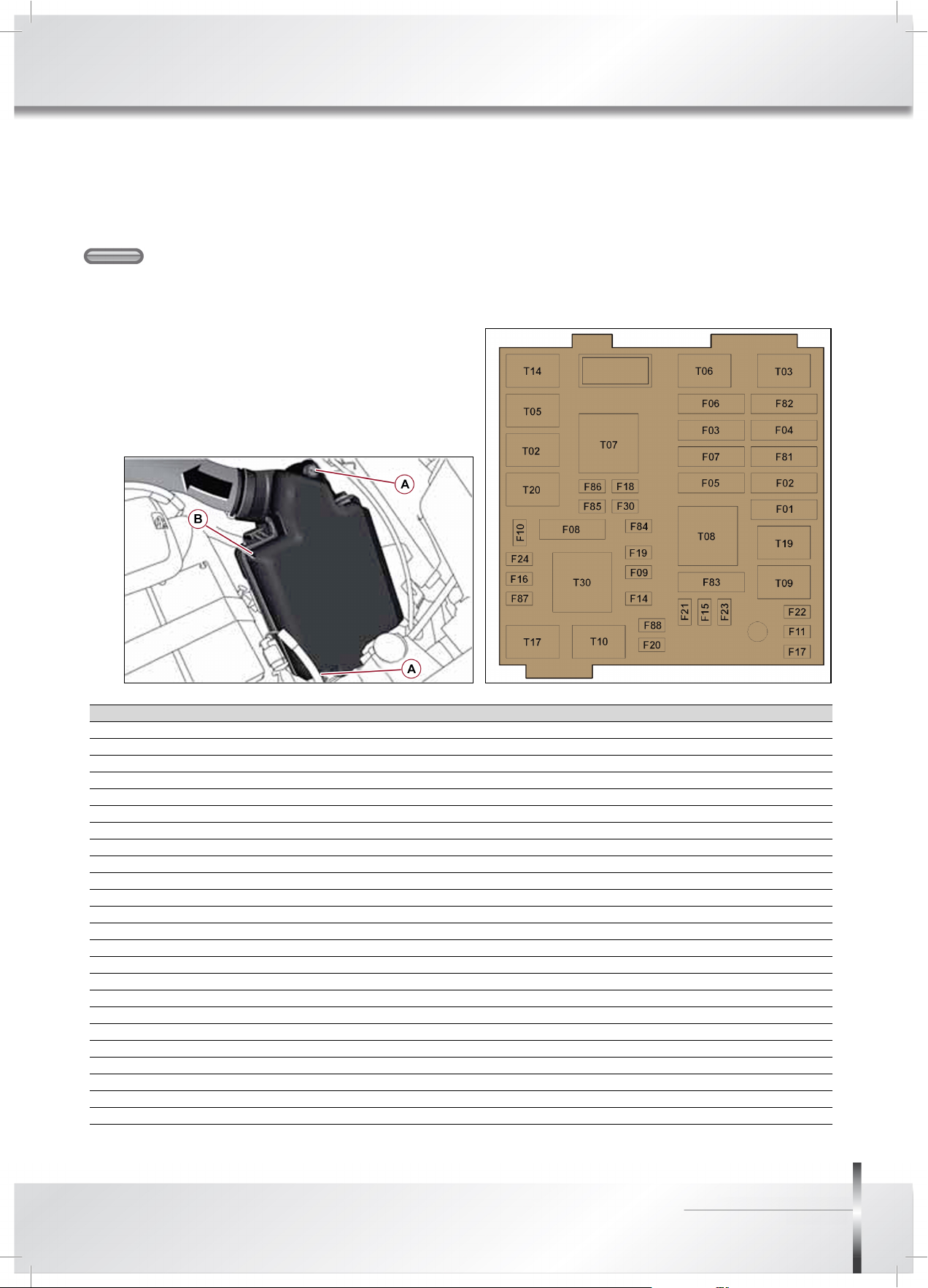

2.1 Engine compartment fuse box
2. Electrical system
User Fuse Ampere
Body Control Module (BCM) F01 70
Body Control Module (BCM), Luggage compartment fuse box (CVB) F02 60
Ignition switch F03 20
ABS/ESC braking system (pump) F04 40
Electric steering system F05 70
Low-speed engine cool. fan F06 20/30
High-speed engine cooling fan F07 40/50
Passenger compartment fan F08 40
Injectors (0.9 CNG engine) F09 10
Acoustic warning F10 15
Supply for engine system secondary loads F11 10
Robotised gearbox (control unit, solenoid valves) F14 15
Lavazza coffee machine socket F15 20
"+15/54 " supply for engine system F16 7.5
Supply for engine system primary loads F17 10
"+30 " supply for engine system F18 5
Air conditioning compressor F19 7.5
Heated rear window F20 30
Fuel pump F21 15
Supply for engine system primary loads F22 15
Supply for engine system primary loads (1.6 JTD) F22 20
ABS/ESC braking system (valves) F23 20
SPARE F24 -
Blow-by engines F30 5

FIAT 500L / 500L Living
Electrical system
2.2 Control unit on battery (only for JTD engines)
Plug preheating control unit (JTD engines) F81 60
Heater PTC2 (petrol engines) F81 70
Heated diesel filter (JTD engines) F82 40
Heated windscreen (petrol engines) F82 70
Robotised gearbox assistance pump F83 30
Heater PTC1 (petrol engines) F83 40
Gas adjustment solenoid valves (0.9 CNG engine) F84 7.5
Front power socket F85 15
Luggage compartment power socket F86 15
Battery charge status sensor (with Start&Stop) F87 5
Door mirror defrosters F88 7.5
User Relay
switch
Ampere
Heated diesel filter (diesel engines) T02 30
Acoustic warning T03 20
Air conditioning compressor T05 20
Low-speed engine cooling fan T06 30
High-speed engine cooling fan T07 50
Passenger compartment fan, power sockets T08 50
Engine management system T09 30
Fuel pump T10 20
Engine blow-by resistor (only 0.9 TwinAir eng.) T14 20
Starting relay 1 (with Start & Stop) T17 30
Injectors (0.9 CNG engine) T17 20
Heated rear window and door mirror defrosting T19 30
Starting relay 2 (with Start & Stop) T20 30
Gas adjustment solenoid valves (0.9 CNG engine) T20 30
Robotised gearbox assistance pump T30 50
PTC1 (0.9 TwinAir and 1.4 16V) T30 jumper 30 - 87

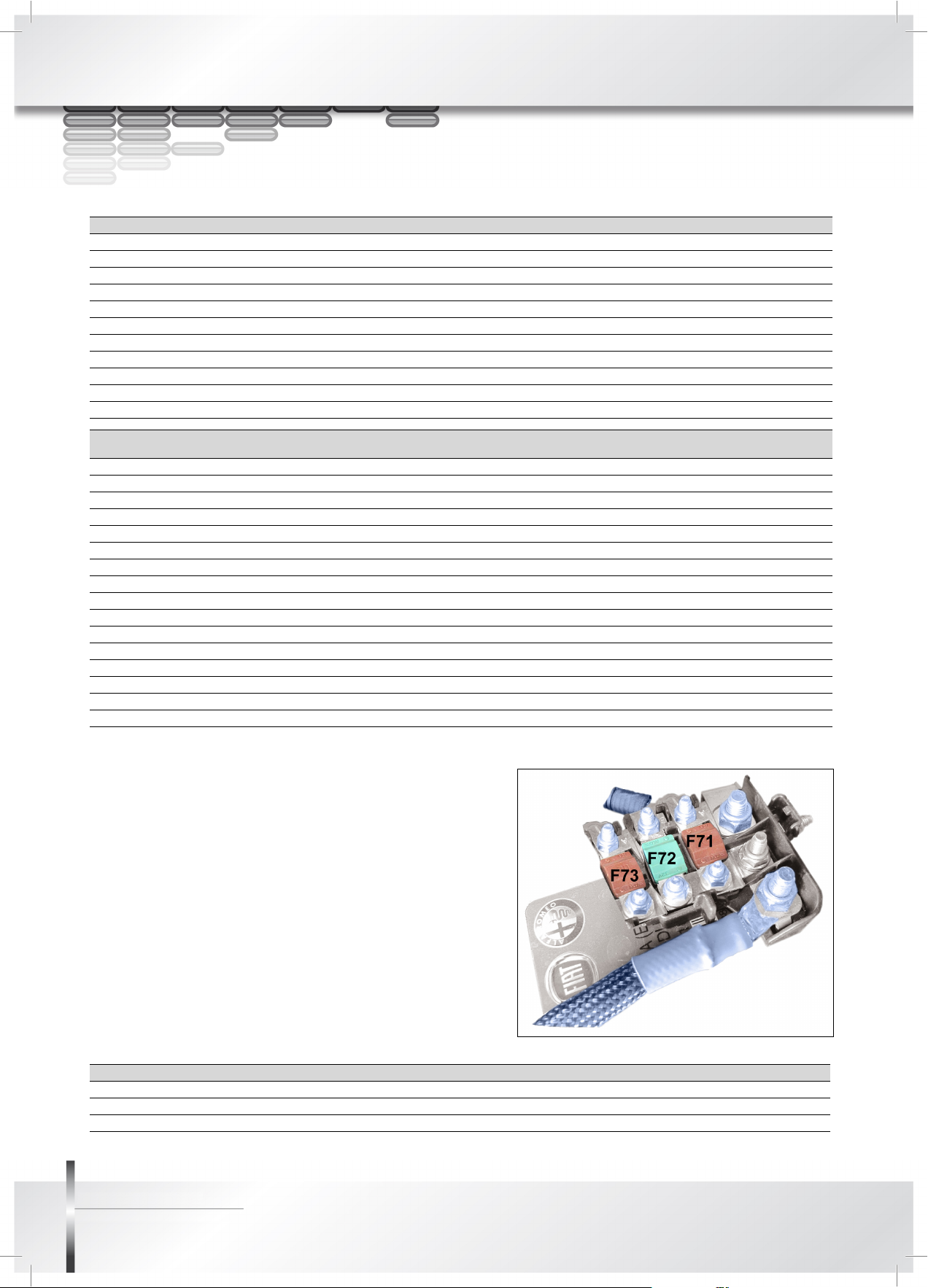

User Fuse Ampere
Heater PTC2 F71 70
Heater PTC1 F72 40
Heated windscreen F73 70
User Fuse Ampere

FIAT 500L / 500L Living
Electrical system

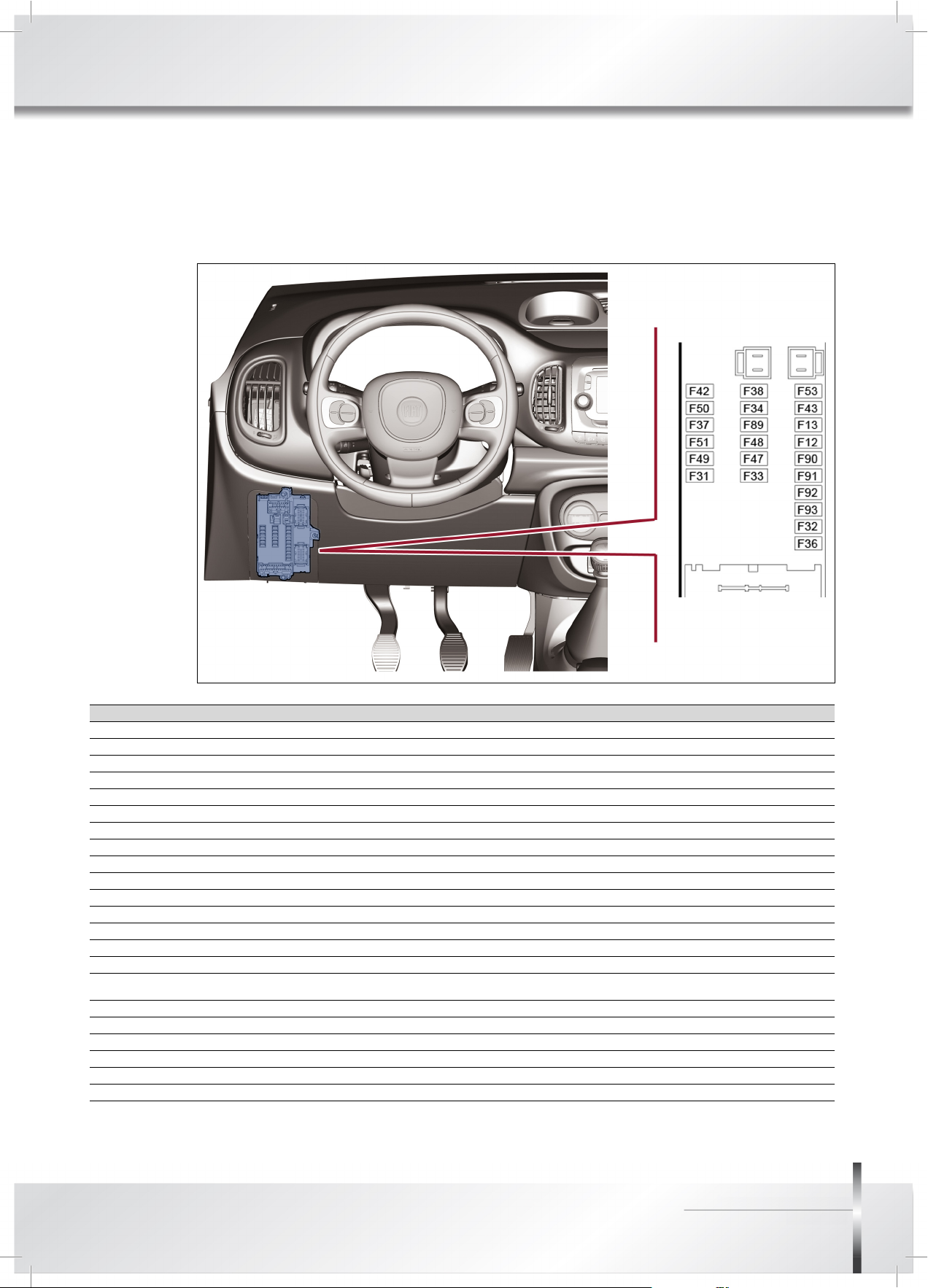

2.3 Dashboard
User Fuse Ampere
Right dipped beam headlight (only 1.4 16V eng.) F12 7.5
Left dipped beam headlight (only 1.4 16V eng.) F13 7.5
INT/A supply for cigar lighter, climate control system fan, heated seats, seat adjustment F31 5
"SBMT" supply for interior lights (only 1.4 16V eng.) F32 7.5
Rear left electric window F33 20
Rear right electric window F34 20
"+30" supply for radio, climate control system controls, diagnosis socket, rear side courtesy lights F36 10
INT supply for instrument panel, brake pedal, climate control system controls, diagnosis socket F37 7.5
Door and luggage compartment locking geared motors F38 20
INT supply for ABS/ESC, electric steering F42 5
Windscreen/rear window washer pump F43 20
Driver's front electric window F47 20
Passenger side front electric window F48 20
INT supply for instrument and control lighting, interior mirror, rain/dusk sensor F49 5
INT supply for airbag F50 7.5
INT supply for reversing switch, relay coils, sun roof, sliding blind, headlight corrector, parking sensors, radio, brake pedal,
climate control system controls, interior mirror F51 5
"+30" supply for instrument panel F53 7.5
not used F89 -
Left main beam headlight F90 7.5
Right main beam headlight F91 7.5
Left cornering/fog light F92 7.5
Right cornering/fog light F93 7.5

FIAT 500L / 500L Living
Electrical system

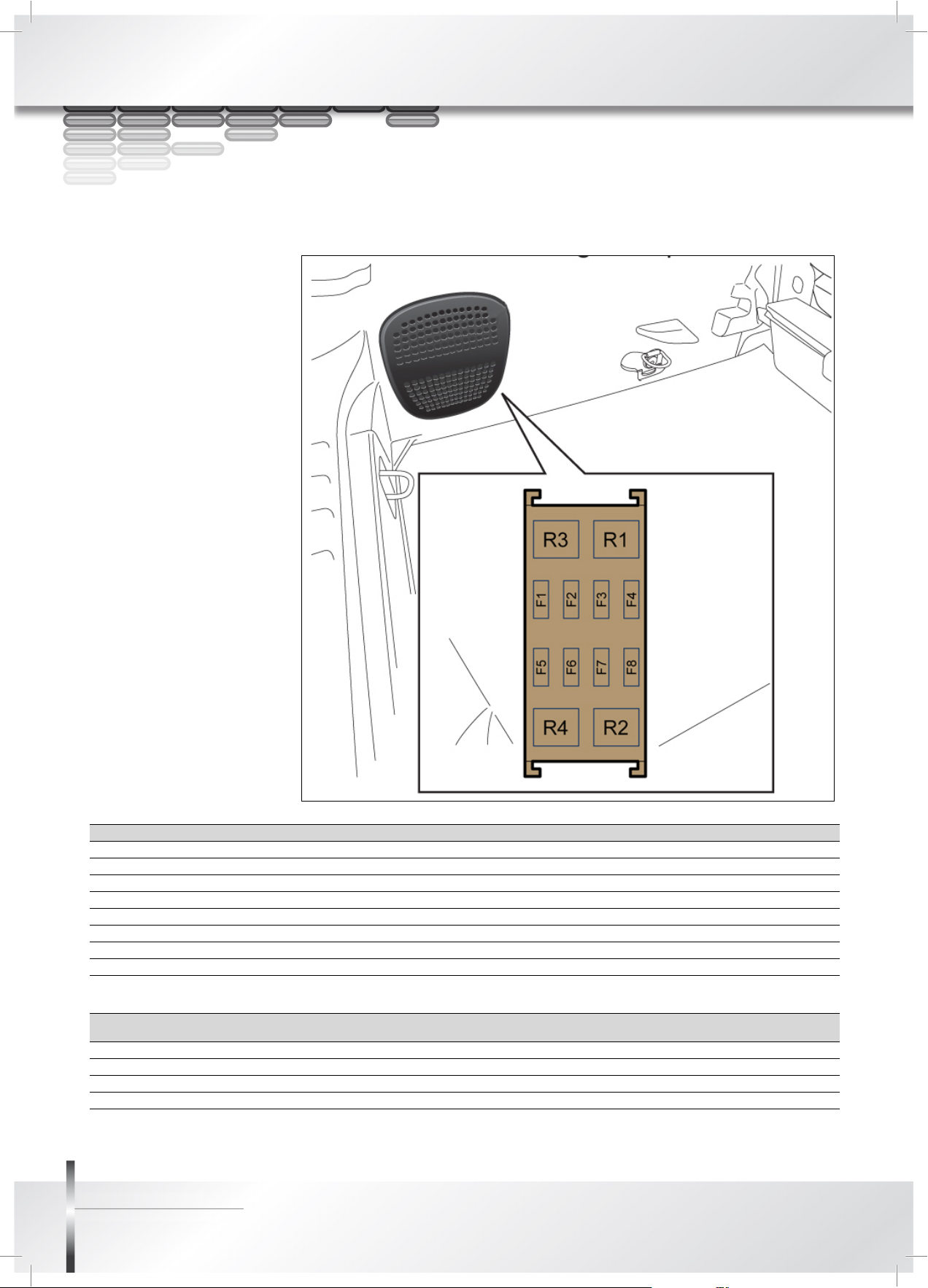

2.4 Luggage compartment control unit
User Fuses Ampere
Seat lumbar adjustment F1 15
Seat heating F2 15
Hi-Fi system F3 20
SPARE F4 -
Sun blind movement F5 20
Sun roof movement F6 20
SPARE F7 -
City Brake Control sensor (vers. with S&S) F8 5
User Relay
switches
Ampere
Seat heating R1 30
SPARE R2 -
Seat lumbar adjustment R3 30
City Brake Control sensor (vers. with S&S) R4 30

FIAT 500L / 500L Living
Electrical system
2.5 Battery positive terminal wiring
2.6 Battery negative terminal wiring
Component code Name
A001 BATTERY
A020 STARTER
B099 MAXI FUSE BOX ON BATTERY
Component code Name
A001 BATTERY
A005 TERMINAL BOX
C002 BATTERY EARTH ON ENGINE
C003 BATTERY EARTH ON BODY
K059 BATTERY CHARGE STATUS SENSOR
Diesel enginesPetrol engines Diesel engines
Without Start&StopWith Start&Stop

FIAT 500L / 500L Living
Emergency procedures
3.1 Jump starting
If the battery is flat, it is possible to start the engine using an auxiliary
battery with the same capacity or a little higher than the flat one.
IMPORTANT:
Never jump start the engine by pushing, towing or driving downhill.
Proceed as follows to start the vehicle:

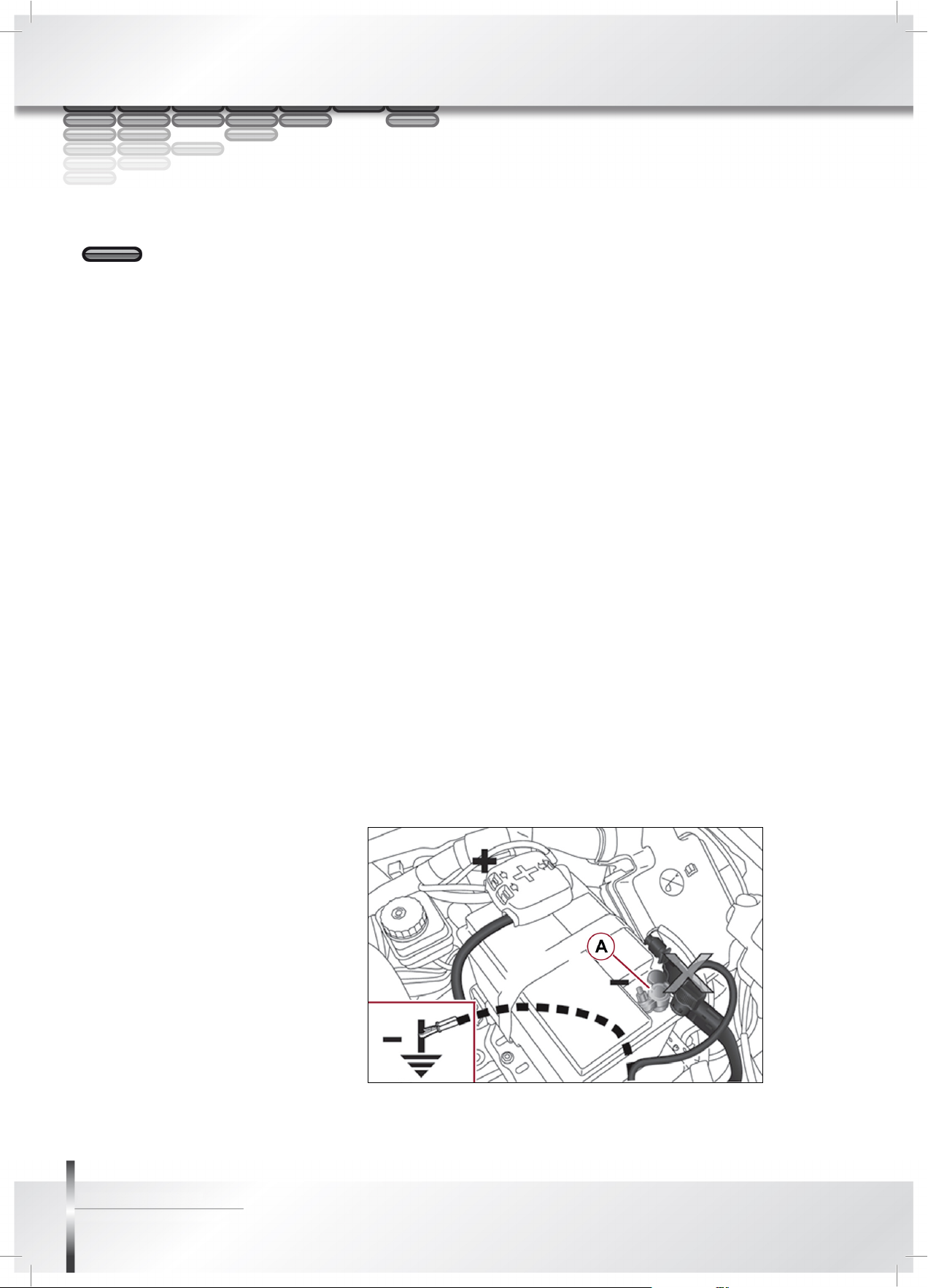

• connect the positive terminals (sign + near the terminal) of the
two batteries with a jump lead;
• with another lead, connect the negative terminal of the auxiliary
battery to an earth point on the engine or the gearbox of the car
to be started;
IMPORTANT:
Never connect the negative lead (–) of the auxiliary battery to the
negative pole A of the vehicle battery, connect it to an earth point of
the engine/gearbox.
• start the engine;
• when the engine has been started, remove the leads reversing
the order above.
3. Emergency procedures

FIAT 500L / 500L Living
Emergency procedures
3.2 Fuel cut-off
Fuel cut-off reactivation
Carefully check the car for fuel leaks, for instance in the engine
compartment, under the car or near the tank area.
After a collision, turn the ignition key to STOP to prevent battery
from running down.
The following procedure should be carried out to restore the correct
operation of the vehicle:
• turn the ignition key to the MAR-ON position;
• activate the right direction indicator;
• deactivate the right direction indicator;
• activate the left direction indicator;
• deactivate the left direction indicator;
• activate the right direction indicator;
• deactivate the right direction indicator;
• activate the left direction indicator;
• deactivate the left direction indicator;
• turn the ignition key to STOP.
3.3 Emergency starting with CODE CARD
Procedure not envisaged.

FIAT 500L / 500L Living
Interventions with flat battery
4.1 Sun roof emergency closure
If the switch does not work, the sun roof and the sun blind can be
operated manually, proceeding as follows:
• Sun blind movement: remove protective cap Aon the internal
trim
• Sun roof movement: remove protective cap Bon the internal
trim
• Take the Allen key Cfrom the tool box (in the luggage
compartment)
• fit the key Cprovided in the seat A(to move the sun blind) or B
(to move the sun roof), and rotate
- clockwise to open the sun roof or the sun blind
- anticlockwise to close the sun roof or the sun blind.
4. Interventions with flat battery

FIAT 500L / 500L Living
Interventions with flat battery
4.2 Tailgate emergency opening
To open the tailgate from the inside if the car battery is flat or the
electric lock of the tailgate is faulty, proceed as follows:
• remove the rear head restraints and fully fold the seats;
• take the screwdriver provided from the tool box;
• use the screwdriver to remove the yellow tab A;
• then insert the screwdriver in housing Bin order to activate the
luggage compartment release tab.

FIAT 500L / 500L Living
Interventions with flat battery
4.3 Robotised gearbox - engagement of Neutral
The procedure for putting the robotised gearbox in neutral in an
emergency is listed below.
IMPORTANT:
Check that the parking brake is engaged.
When the ignition key is turned to MAR-ON the "robotised gearbox"
system automatically shifts the gearbox to neutral and then, with
brake pedal pressed, enables engine starting.
A persistent acoustic and visual (display) signal might occur if the
command has been sent but the gearbox has not been
automatically shifted to neutral, and therefore remains engaged.
In this case do not tow the vehicle for any reason. To move it, lift the
front wheels.
With the door open the time for shifting to neutral is delayed with
respect to normal operation.
Procedure for jump starting
• supply the vehicle with a charged emergency battery;
• check that the vehicle system is supplied. The panel lights must
not be dimmed nor fade further on;
• pressing the brake pedal, turn the key to MAR-ON;
• wait for five seconds and turn the key to STOP;
• check that the vehicle is in neutral by pushing it.

FIAT 500L / 500L Living
Vehicle towing/lifting
5.1 Towing attachment points
The tow hook, which is provided with the car, is housed in the tool
box, under the luggage compartment mat.
Fastening the tow hook
• release the cap Aof the bumper pressing in the lower area;
• take the tow hook Bfrom its housing in the tool support;
• fully screw the hook onto the threaded front or rear pin.
5.2 General warnings for towing
Before towing, make sure that the tow hook is fully tightened.
Clean the threaded seat carefully before tightening the hook.
Turn the ignition key to ON and then to OFF and DO NOT
EXTRACT IT.
5. Vehicle towing/lifting

FIAT 500L / 500L Living
Vehicle towing/lifting
If the key is removed, the steering lock will come on automatically
and it will be impossible to steer the wheels.
Remember that the brake servo and the electric power steering are
not available during towing operations. Significantly greater force
must be exerted on the brake pedal and on the steering wheel to
operate them. Do not use flexible cables when towing and avoid
jerky movements.
During towing, make sure that the trailer hitch does not damage any
components it is touching.
Do not start the engine while towing the car.
WARNING:
Towing must be made with gearbox in neutral for versions with manual gearbox or at N for versions with
robotised gearbox. If the battery is flat or there are problems with the gearbox, follow the procedure shown
in paragraph 4.3 "Robotised gearbox - engagement of Neutral". Failure to observe the above instructions
could cause severe damage to the gearbox.
5.3 Vehicle lifting points
When lifting the vehicle with a portable jack or a workshop lift, place
the mountings only in the areas shown in the figure.

FIAT 500L / 500L Living
Technical specifications
6.1 Tyre pressure (bar)
6.1.1 500L
(*) For Trekking versions
6.1.2 500L Living
5-seater version
7-seater version
6. Technical specifications
Versions Size
Tyres provided
Space-saver wheel
front rear
0.9 TwinAir
1.4 16V
1.3 MultiJet
195/65 R15 91H 2.2 2.0
T135/70 R16 4.2
205/55 R16 91H 2.2/2.4 (*) 2.0/2.2 (*)
225/45 R17 91H 2.2/2.4 (*) 2.0/2.2 (*)
1.6 MultiJet
195/65 R15 91H 2.4 2.4
205/55 R16 91H 2.4 2.0
225/45 R17 91H 2.4 2.0
1.4 T-Jet
205/55 R16 91V 2.2 2.0
225/45 R17 91V 2.2 2.0
Versions Size
Tyres provided
Space-saver wheel
front rear
0.9 TwinAir
1.3 MultiJet
1.6 MultiJet
195/65 R15 91H 2.4 2.4
T135/70 R16 4.2
205/55 R16 91H 2.4 2.2
225/45 R17 91H 2.4 2.2
1.4 T-Jet
205/55 R16 91V 2.4 2.2
225/45 R17 91V 2.4 2.2
Versions Size
Tyres provided
Space-saver wheel
front rear
0.9 TwinAir
205/55 R16 91H 2.4 2.2
T135/70 R16 4.2
225/45 R17 91H 2.4 2.2
1.3 MultiJet
1.6 MultiJet
1.4 T-Jet
205/55 R16 91V 2.4 2.2
225/45 R17 91V 2.4 2.2

FIAT 500L / 500L Living
Technical specifications
6.2 Fluids
Use Fluid specifications Recommended fluids and lubricants
LUBRICANTS FOR PETROL ENGINES SAE 5W-40 ACEA C3 SELENIA K P.E.
LUBRICANT FOR 0.9 TwinAir ENGINE SAE 0W-30 ACEA C2 SELENIA DIGITEK P.E.
LUBRICANTS FOR MultiJet ENGINES SAE 5W-30 SELENIA WR P.E.
COOLANT CUNA NC 956-16, ASTM D 3306 MIXTURE OF PARAFLU UP AND 50%
DEMINERALISED WATER
FLUID FOR BRAKE/CLUTCH FMVSS No. 116 DOT 4, ISO 4925, SAE J 1704 TUTELA TOP 4

FIAT 500L / 500L Living
Technical specifications
