FIBARO FGTSP-001 User manual

CONTENTS
#1: Description and features 3
#2: Basic activation 4
#3: Adding to Z-Wave network 5
#4: Removing the device 6
#5: Controlling the temperature 7
#6: Extra temperature sensor 8
#7: Dismounting the device 9
#8: Menu 10
#9: Local protection 11
#10: Head calibration 12
#11: Standby Mode 13
#12: Factory reset 14
#13: Z-Wave range test 15
#14: Battery and charging 16
#15: Normal Schedules 17
#16: Override Schedule 18
#17: Z-Wave specication 19
#18: Advanced parameters 23
#19: Specications 24
#20: Accessory specication (FGBRS-001)26
#21: Regulations 27
OPERATING
MANUAL EN
v1.0
THE HEAT CONTROLLER
RADIATOR THERMOSTAT
FGT-001

2
Important safety information
Read this manual before attempting to install the device!
Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manufacturer,
Fibar Group S.A. will not be held responsible for any loss or damage
resulting from not following the instructions of operating manual.
!
This product is not a toy. Keep away from children and animals!
CR2032 coin cell battery is harmful if swallowed!
Battery pack warning!
The Heat Controller contains lithium-ion polymer battery pack, heed all
following warnings:
• If an unusual odor or malfunction is detected, avoid sources of
open ame and remove the device from the radiator.
• In the event of damage from crashes, etc., carefully remove to a
safe place for at least a half hour to observe.
• Do not leave the device unattended while charging.
• Do not attempt to replace the battery!
General information about
the FIBARO System
FIBARO is a wireless smart home automation system, based on the
Z-Wave protocol. All of available devices can be controlled through
a computer (PC or Mac), smartphone or tablet. Z-Wave devices are
not only receivers, but can also repeat the signal, increasing the
Z-Wave network’s range. It gives advantage over traditional wireless
systems that require direct link between transmitter and receiver, as
a result the construction of the building could aect network’s range
negatively.
Every Z-Wave network has its unique identication number (home
ID). Multiple independent networks can exist in the building without
interfering. Transmission security of FIBARO System is comparable to
wired systems.
Z-Wave technology is the leading solution in smart home automation.
There is a wide range of Z-Wave devices that are mutually
compatible, independently of manufacturer. It gives the system the
ability to evolve and expand over time. For more information visit:
www.baro.com.

3
DESCRIPTION AND FEATURES
Main features of FIBARO Heat Controller:
• to be installed on three types of valves: M30 x 1.5, Danfoss RTD-N
and Danfoss RA-N,
• compatible with any Z-Wave or Z-Wave+ Controller,
• supports Z-Wave network Security Modes: S0 with AES-128
encryption and S2 with PRNG-based encryption,
• built-in battery recharged through standard micro-USB port,
• easy installation - no tools required,
• can use a dedicated temperature sensor - FGBRS-001,
• supports heating schedules,
• automatic calibration,
• anti-freeze function,
• decalc function,
• unconstrained rotation spherical knob to set desired temperature.
FIBARO Heat Controller is a remotely controlled thermostatic head
to control temperature in your room. It measures the temperature
and automatically adjust the heat level.
It can be mounted without tools on three types of thermostatic
radiator valves.
You can create schedules via app to easily manage temperature
throughout the week.
#1: Description and features
FIBARO Heat Controller is a fully
compatible Z-Wave PLUS device.
NOTE
This device may be
used with all devices
certied with Z-Wave
Plus certicate and
should be compatible
with such devices pro-
duced by other manu-
facturers.
i
NOTE
Z-Wave Controller
must support Z-Wave
Security Mode in or-
der to fully utilize the
product.
i

4
BASIC ACTIVATION
#2: Basic activation
CAUTION
Install the device in
horizontal position
only!
!
CAUTION
Do not cover or veil the
thermostatic head.
!
1. Connect the charger to the micro-USB port to charge the device.
If you have the temperature sensor:
a. Use a coin to open the battery cover by turning it coun-
ter-clockwise.
b. Remove the sticker underneath the battery.
c. Use a coin to close the battery cover by turning it clockwise.
2. Disconnect the charger when the LED ring pulses green (device
fully charged).
3. Dismount your current thermostatic head.
4. Depending on type of your thermostatic valve:
5. Mount the device on the valve and tighten it by turning the cap
clockwise.
6. Use the included key to click the button.
7. The LED ring will start blinking blue.
If you have the temperature sensor:
a. Click the button on it now.
b. The LED ring will blink green 5 times
if the connection was successful.
M30 x 1.5
Danfoss RTD-N
Danfoss RA-N
Proceed normally
Use adapter:
Use adapter:
NOTE
First charging may take
up to 3 hours.
i

5
ADDING TO Z-WAVE NETWORK
#3: Adding to Z-Wave network
Adding (Inclusion) - Z-Wave device learning mode, allowing to add
the device to existing Z-Wave network.
To add the device to the Z-Wave network:
1. Make sure the device is within the direct range of your Z-Wave
controller.
2. Set the main controller in (security/non-security) add mode (see
the controller’s manual)
3. Use the included key to quickly triple click the button on the ther-
mostatic head.
4. The LED ring will start blinking white.
5. If you are adding in S2 authenticated mode, type in the device pin
code (underlined part of the public key on the label).
6. Wait for the adding process to end.
7. Successful adding will be conrmed by the Z-Wave controller.

6
REMOVING THE DEVICE
Removing (Exclusion) - Z-Wave device learning mode, allowing to
remove the device from existing Z-Wave network.
To remove the device from the Z-Wave network:
1. Make sure the device is within the direct range of your Z-Wave
controller.
2. Set the main controller into remove mode (see the controller’s
manual).
3. Use the included key to quickly triple click the button on the ther-
mostatic head.
4. The LED ring will start blinking white.
5. Wait for the removing process to end.
6. Successful removing will be conrmed by the Z-Wave controller.
NOTE
Removing the device
from the Z-Wave net-
work restores all the
default parameters of
the device.
i
#4: Removing the device

7
CONTROLLING THE TEMPERATURE
#5: Controlling the temperature
You can set temperature using app (10-30°C) or directly on the device
(16-24°C).
During manual temperature change LED ring colour corresponds to
the temperature set-point.
To check and change the temperature on the device:
1. Bring your hand close to the sphere.
2. LED ring will:
• Glow if temperature was set manually,
• Pulse slowly if device is in schedule mode,
• Pulse quickly if device is in override schedule mode.
With colour depending on set temperature:
3. Turn the sphere counter-clockwise to lower temperature or turn
clockwise to raise the temperature.
4. Remove the hand from the sphere, after 5 seconds LED will fade
and new temperature will be set.
Z-Wave Mode Temperature [°C] Colour
OFF Valve closed
(anti-freeze) White
HEAT
16°C or lower Blue
17°C Azure
18°C Cyan
19°C Spring green
20°C Green
21°C Chartreuse
22°C Yellow
23°C Orange
24°C or higher Red
MANUFACTURER
SPECIFIC Valve fully opened Magenta
Lower temperature Raise temperature
NOTE
If device is currently
during normal sched-
ule, setting tempera-
ture manually will set
Override Schedule
(see “Override Sched-
ule”on page 18).
i

8
EXTRA TEMPERATURE SENSOR
To pair the FGBRS-001 with the device:
1. Use the included key to press and hold the button.
2. Release the button when you see blue LED colour.
3. Click the button to conrm the selection, the LED ring will start
blinking blue.
4. Within 1 minute click button on the sensor.
5. The LED ring on thermostatic head will blink to conrm the result:
• 5 times green – sensor paired successfully,
• 5 times red – sensor not paired.
6. Place the sensor in same room as head, no further than 5 meters
from it.
#6: Extra temperature sensor
The device can be used with an additional, dedicated temperature
sensor (FGBRS-001) to provide the best temperature regulation.
It can be placed anywhere in the room and the device will use it as a
reference point for the room temperature.
Before using, the sensor must be paired with the thermostatic head.
One thermostatic head can be paired with only one sensor, but one
sensor can be paired with up to three thermostatic heads.
NOTE
FGBRS-001 is the only
compatible tempera-
ture sensor.
i
To remove all paired heads from the sensor’s memory:
1. Press and hold the button on the sensor for 2 seconds.
2. The LED on the sensor will blink 3 times to conrm unpairing.
CAUTION
This product is not a
toy. Keep away from
children and animals!
!

9
DISMOUNTING THE DEVICE
#7: Dismounting the device
To dismount the device:
1. Use the included key to press and hold the button.
2. Release the button when you see cyan LED colour.
3. Click the button to conrm the selection.
4. Turn the cap counter-clockwise and remove adapter if used.
5. Store the device in temperature: -10°C to 25°C.
Before dismounting, the device must be put in Standby Mode to
ensure safe removal. See chapter „Standby Mode” on page 13 for
more information.

10
MENU
#8: Menu
Menu allows to perform important conguration and maintenance
actions. In order to use the menu:
1. Use the included key to press and hold the button.
2. Release the button when you see desired LED colour:
3. Click the button to conrm the selection.
Colour Action
Blue pair dedicated temperature sensor
Red enable/disable local control protec-
tion
White perform head calibration
Green adding/removing to/from Z-Wave
network
Magenta Z-Wave network’s range test
Cyan put device in Standby Mode
Yellow factory reset

11
LOCAL PROTECTION
After enabling the local protection changing temperature directly on
the device (by turning it) will not be possible.
Enabling local protection is recommended if you want to prevent ac-
cidental temperature change, e.g. by children.
When attempting to change temperature if local protection is enabled:
• The device will not set new target temperature,
• The LED ring will blink red 3 times.
To change the temperature use the app or disable the local protection.
#9: Local protection
To enable/disable local protection using the menu:
1. Use the included key to press and hold the button.
2. Release the button when you see red LED colour.
3. Click the button to conrm the selection.
NOTE
Local protection can
also be enabled/dis-
abled using Z-Wave
protocol Command
Class Protection
i

12
HEAD CALIBRATION
Calibrating the device to your radiator valve is required for proper
controlling the temperature.
#10: Head calibration
Calibration is performed:
• Automatically, after 10 minutes from turning on if no operation on
the device has been made (only at rst installation),
• Automatically, after 10 minutes from last state change (only at
rst installation),
• Manually, using the menu (see below),
• Manually, via application.
NOTE
Calibration cannot
be performed while
the device is being
charged.
i
To perform calibration using the menu:
1. Use the included key to press and hold the button.
2. Release the button when you see white LED colour.
3. Click the button to conrm the selection.

13
STANDBY MODE
In Standby Mode the device is in deep sleep state allowing safe dis-
mounting, transporting and low as possible battery consumption.
The device is shipped in Standby Mode.
Entering the device in Standby Mode will not factory reset the device
nor will result in loosing any data.
#11: Standby Mode
To enter Standby Mode:
1. Use the included key to press and hold the button.
2. Release the button when you see cyan LED colour.
3. Click the button to conrm the selection.
To exit Standby Mode click the button once, the device will enter
rst installation procedure.

14
FACTORY RESET
Reset procedure allows to restore the device back to its factory set-
tings, which means all information about the network and user con-
guration will be deleted.
#12: Factory reset

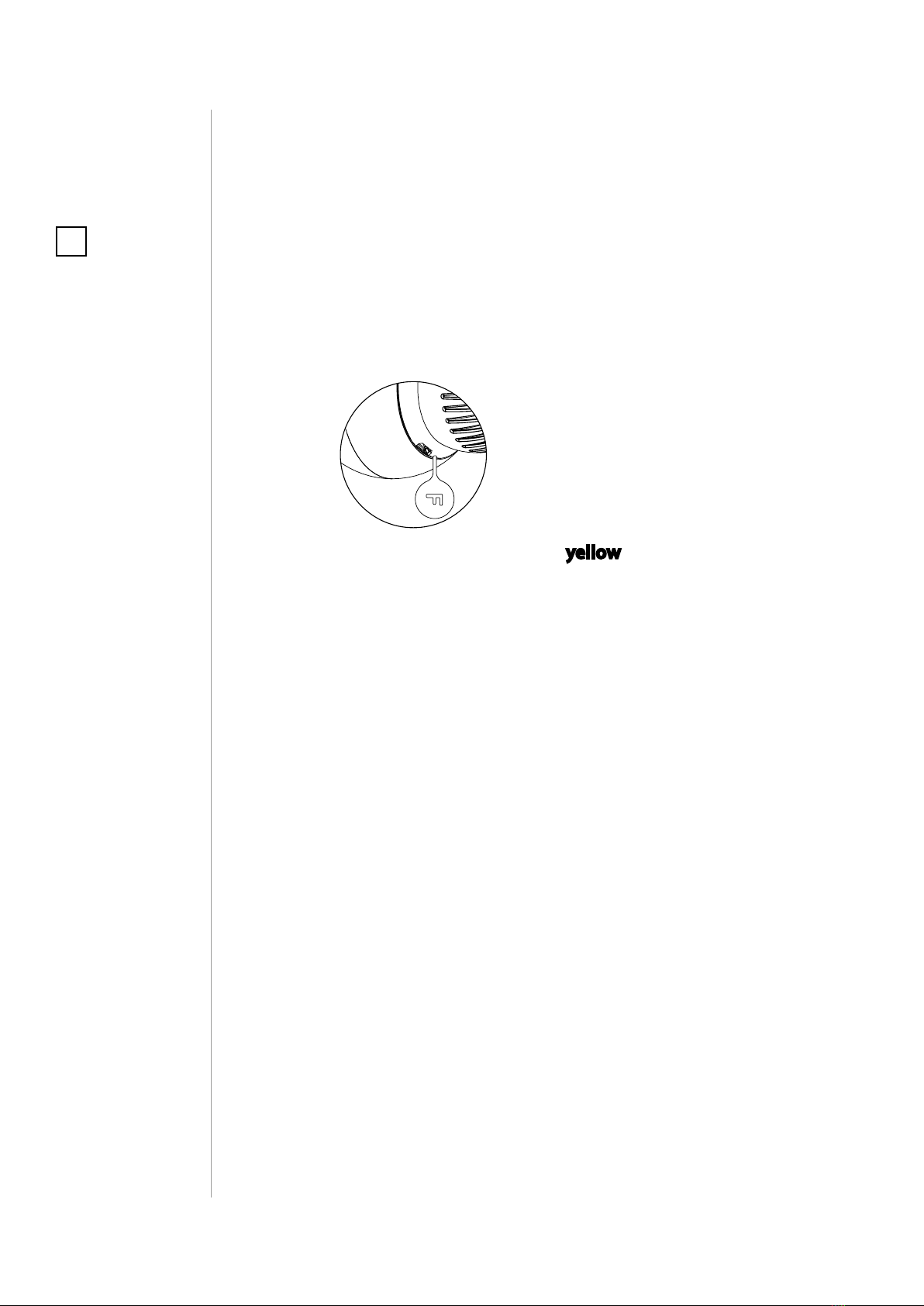

To perform factory reset:
1. Use the included key to press and hold the button.
2. Release the button when you see yellow LED colour.
3. Click the button to conrm the selection.
4. After nishing resetting the device will be put in Standby Mode.
Click the button to activate it again.
NOTE
Resetting the device is
not the recommend-
ed way of removing
the device from the
Z-Wave network. Use
the reset procedure
only if the primary
controller is missing or
inoperable.
i

15
Z-WAVE RANGE TEST
#13: Z-Wave range test
The device has a built in Z-Wave network main controller’s range
tester.
To perform range test:
1. Use the included key to press and hold the button.
2. Release the button when you see magenta LED colour.
3. Click the button to conrm the selection.
4. LED ring will indicate the Z-Wave network’s range:
5. To exit Z-Wave range test, press the button briey.
• Pulsing green - the device attempts to establish a direct com-
munication with the main controller. If a direct communica-
tion attempt fails, the device will try to establish a routed com-
munication, through other modules, which will be signaled by
visual indicator pulsing yellow.
• Glowing green - the device communicates with the main
controller directly.
• Pulsing yellow - the device tries to establish a routed com-
munication with the main controller through other modules
(repeaters).
• Glowing yellow - the device communicates with the main
controller through the other modules. After 2 seconds the
device will retry to establish a direct communication with the
main controller, which will be signaled with visual indicator
pulsing green.
• Pulsing magenta - the device does communicate at the max-
imum distance of the Z-Wave network. If connection proves
successful it will be conrmed with a yellow glow. It’s not rec-
ommended to use the device at the range limit.
• Glowing red - the device is not able to connect to the main
controller directly or through another Z-Wave network device
(repeater).

16
BATTERY AND CHARGING
#14: Battery and charging
The device is equipped with a rechargeable lithium-polymer bat-
tery pack that can be charged via micro-USB port using standard 5V
charger (not included).
When battery is low the LED ring will start to blink red. The device
will also report low battery status of itself and dedicated temperature
sensor (if paired) to the controller.
The device does not operate the valve during the charging and main-
tains the last valve position.
CAUTION
Makesureyouareusing
certied charger Class
II, marked which
complies with param-
eters specied in the
manual.
!
To charge the battery:
1. Connect charger to the micro-USB port.
2. During charging the LED ring will pulse red and valve control will
be disabled.
3. When LED starts pulsing green, disconnect the charger.
4. The device will restore its previous operation.
CAUTION
Do not leave the de-
vice unattended while
charging.
!
NOTE
Do not use cables lon-
ger than 3 meters for
charging the device.
i
CAUTION
Set the device to OFF
(white) before charg-
ing or dismount the
thermostatic head if
not possible.
!

17
NORMAL SCHEDULES
#15: Normal Schedules
The device allows to create multiple heating schedules to manage
temperature in the room throughout the week. Schedules are created
via controller interface or app.
• Up to 253 normal schedules can be created.
• The lower the schedule ID number, the higher the priority.
• Schedules with higher priority override those with lower priority
in case of overlapping schedules.
• Schedules can be disabled without deleting it.
• Schedules allow to set target temperature for HEAT mode (using
Thermostat Setpoint CC) and one of operating modes: HEAT, OFF
or MANUFAC TURER SPECIFIC (using Thermostat Mode CC)
• Only SET commands are permitted.
To create normal schedules user must specify:
• Day of the week,
• Starting time (hour and minute),
• Duration,
• Temperature Setpoint for HEAT mode in range 10-30°C (using
Thermostat Setpoint CC)
• One of the operating modes (using Thermostat Mode CC):
» HEAT for setting temperature,
» OFF for valve fully closed,
» MANUFACTURER SPECIFIC for valve fully opened.
NOTE
Schedule CC Set com-
mand payload must
not be greater than
22 bytes limit or it
would be rejected.
i

18
OVERRIDE SCHEDULE
Override Schedule is a special type schedule that has the highest
priority; thus it overrides other schedules.
The Override Schedule starts right after setting and lasts for specied
time, then it is removed and current schedule or normal operation is
restored.
To create Override Schedule user must specify:
• Starting time (START NOW),
• Duration,
• Temperature Setpoint for HEAT mode in range 10-30°C (using
Thermostat Setpoint CC)
• One of the operating modes (using Thermostat Mode CC):
» HEAT for setting temperature,
» OFF for valve fully closed,
» MANUFACTURER SPECIFIC for valve fully opened.
Override Mode can be enabled in two ways:
• By turning the knob, while normal schedule is active. The LED ring
will pulse with selected adjustment.
• Via controller, by creating schedule with ID set 255, start time set
to NOW and duration (in minutes/hours/days).
To exit Override Mode grab knob with your hand for 5 seconds.
#16: Override Schedule

19
Z-WAVE SPECIFICATION
#17: Z-Wave specication
Endpoint 1:
Generic Device Class: GENERIC_TYPE_THERMOSTAT
Specic Device Class: SPECIFIC_TYPE_THERMOSTAT_GENERAL_V2
Description: represents thermostatic head, allows to set tempera-
ture, schedules and check its battery level.
Endpoint 2:
Generic Device Class: GENERIC_TYPE_SENSOR_MULTILEVEL
Specic Device Class: SPECIFIC_TYPE_ROUTING_SENSOR_MULTILEVEL
Description: represents dedicated temperature sensor, allows to
check temperature and its battery level (if not paired reported tem-
perature and battery level are always 0).
Value Action
0 Set OFF mode (unfreeze function)
99 Set HEAT mode (last set temperature)
255 Set MANUFACTURER SPECIFIC mode (valve fully opened)
Response to Basic Command Class:
Association Command Class:
The device supports only “Lifeline” association group that reports
the device status and allows for assigning single device only (main
controller by default).

20
OVERRIDE SCHEDULE
Command Class Version Secure
ZWAVEPLUS_INFO [0x5E] V2
ASSOCIATION [0x85] V2 YES
MULTI_CHANNEL_ASSOCIATION [0x8E] V3 YES
BASIC [0x20] V1 YES
APPLICATION_STATUS [0x22] V1
THERMOSTAT_MODE [0x40] V3 YES
THERMOSTAT_SETPOINT [0x43] V3 YES
SCHEDULE [0x53] V1 YES
TRANSPORT_SERVICE [0x55] V2
ASSOCIATION_GRP_INFO [0x59] V2 YES
DEVICE_RESET_LOCALLY [0x5A] V1 YES
MULTI_CHANNEL [0x60] V4 YES
SUPERVISION [0x6C] V1 YES
NOTIFICATION [0x71] V8 YES
MANUFACTURER_SPECIFIC [0x72] V2 YES
POWERLEVEL [0x73] V1 YES
PROTECTION [0x75] V1 YES
FIRMWARE_UPDATE_MD [0x7A] V4
BATTERY [0x80] V1 YES
CLOCK[0x81] V1 YES
VERSION [0x86] V2 YES
SECURITY [0x98] V1
SECURITY_2 [0x9F] V1
CONFIGURATION [0x70] V1 YES
CRC_16_ENCAP [0x56] V1
SENSOR_MULTILEVEL [0x31] V5 YES
Supported Command Classes:
