Fiesta Outdoor Gas Barbeque / Grill User manual

WARNING!
FOR YOUR SAFETY
THIS APPLIANCE IS FOR OUTDOOR USE ONLY SP5117-37
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other
appliance.
• An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
IF YOU SMELL GAS:
1. Shut off gas supply to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call
your gas supplier or your fire
department.
FIESTA GAS GRILLS L.L.C.
One Fiesta Dr. Dickson TN, USA 37055
KEEP YOUR RECEIPT AS PROOF
OF PURCHASE TO VALIDATE THE
WARRANTY. ATTACH YOUR RECEIPT
TO THE INSIDE COVER OF THIS
MANUAL FOR EASY REFERENCE.
1
Outdoor Gas Barbeque / Grill
Use and Care Manual
TROUBLESHOOTING GUIDE...PAGE 19
!
WARRANTY
INFORMATION
Full Model # (from outer carton):
Date Purchased:
Serial Number (from rating plate):
SAVE THIS MANUAL FOR
YOUR FUTURE REFERENCE
Installer must leave these instructions
with the consumer for future reference.
Hazardous Fire or
Explosion may
result if these
instructions are
ignored.
It is your responsibility
to see that your new
grill is assembled,
installed, maintained
and cared for properly.
Failing to carefully
follow the instructions in
this manual could result
in serious bodily injury
and/or property damage.
FOR YOUR SAFETY
NOTE: CUSTOMER SERVICE
TOLL FREE 1-800-396-3838

2
THANK YOU FOR PURCHASING A FIESTA GRILL AND WELCOME TO THE FIESTA
FAMILY!
Fiesta is dedicated to creating the ultimate grill experience by providing you with all the right tools,
starting with this manual. It is important to read through the entire booklet prior to using your grill
to ensure you fully understand all of the features and how to operate your grill for optimum
performance.
The purchase of this grill is only the first step in becoming a member of the Fiesta family, and like all
good families, we are here to help. Our dedicated team of customer care support specialists are
available year-round to answer any questions you may have including; assembly, cooking questions
or tips, warranty issues, locating a retailer close to you or placing an order for replacement or
upgraded parts.
It is important to register your new grill with us by mailing in the enclosed warranty card.
Please retain this manual for the lifetime of your grill after recording the serial and model number in
the appropriate space allocated on the front cover.
• The serial number can be found on the silver rating plate located on the grill base or the back
support.
• The full model number can be found on the white label of your grill box or a partial model
number is located above the serial number on the silver rating plate.
Getting Familiar With Your Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Caring For Your Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation
Electrical Caution
L.P. Gas Cylinder
Hose & Regulator
Cleaning & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Perform A Leak Test
Cleaning Venturi Tubes
Cleaning Other Parts of Your Appliance
Storage
Using Your Appliance Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Lighting
Re-Lighting
Shutting Down
Breaking In Your Grill
Cooking Techniques
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TABLE OF CONTENTS

DO NOT USE YOUR GRILL UNTIL YOU HAVE READ AND
UNDERSTOOD ALL THE INFORMATION IN THIS MANUAL.
IT IS EXTREMELY IMPORTANT TO BE SURE THAT:
•Your grill is properly assembled.
•There are no leaks in the gas supply system (see ‘Leak Testing’ section).
• The burner is properly assembled with the venturi tubes seated over the valve
outlets (Figure 1 below) and there are no blockages present in the venturi tubes
(see ‘Cleaning Venturi Tubes’ section).
• Electrical supply cords and/or gas supply hoses are kept away from any
heated surfaces.
• Your grill is positioned in a safe location (see ‘Installation’ section).
Figure 1.
•Ensure valve outlets (orifices)
are assembled 3/8” (1 cm)
into the venturi tubes.
•Check to see that the valve
outlets and venturi tubes are
parallel to the bottom of the
base casting of your
appliance.
BEFORE YOU USE THIS APPLIANCE
WARNING
FAILURE TO ENSURE THE ABOVE MAY RESULT IN A HAZARDOUS
FIRE OR EXPLOSION CAUSING SERIOUS BODILY INJURY AND/OR
PROPERTY DAMAGE.
GETTING FAMILIAR WITH YOUR GRILL
CARING FOR YOUR EQUIPMENT
INSTALLATION
THE INSTALLATION OF THIS APPLIANCE MUST CONFORM WITH LOCAL CODES OR, IN THE
ABSENCE OF LOCAL CODES:
•In Canada: must conform to CAN/CGA - B149.2 Propane Installation Code or
CAN/CGA B149.1 Natural Gas Installation.
• In the U.S.A.: must conform to National Fuel Gas Code ANSI Z223.1.
WHEN DECIDING WHERE TO PLACE YOUR APPLIANCE, FOLLOW
THESE MINIMUM CLEARANCE DISTANCES TO ADJACENT
COMBUSTIBLE MATERIALS:
• 24 inches (61 cm) from side of unit (See Figure 2)
• 18 inches (46 cm) from back of unit (See Figure 2)
WARNING
WARNING
3/8" VENTURI
TUBE
AIR SLEEVE
VALVE OUTLETS
CASTING
Fig. 1
3

FOR YOUR OWN SAFETY:
•Only use your grill OUTDOORS in a well
ventilated area -- preferably 10 feet (3m)
from your residence or any outbuildings.
• Always keep the area around your
grill clear of any combustible
materials, gasoline, or other flammable
liquids.
• DO NOT operate this grill under
overhead or unprotected construction.
• DO NOT obstruct the flow of combustion
and ventilation air to the grill.
• DO NOT use in garages, sheds,
breezeways, or other enclosed areas.
• DO NOT store a spare L.P. (propane)
cylinder under or near your grill.
• DO NOT leave your grill unattended while in operation.
• DO NOT allow children to operate or play near your grill.
• DO NOT use while under the influence of alcohol or drugs.
• DO NOT install/use in or on recreational vehicles and/or boats
ELECTRICAL CAUTION
• If any accessory installed on this grill requires an external electrical power source, it
must be electrically grounded in accordance with local laws or in the absence of local
laws, with the Canadian Electrical Code CSA C22.1 or in the U.S., with the National
Electrical Code ANSI-NFPA 70.
• The three-prong plug provides protection against shock hazard and should be
plugged directly into a properly grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
• Ensure all electrical supply cords and fuel supply hoses are kept well away from any
heated surfaces.
L.P. GAS CYLINDER
Gas cylinders manufactured today have mechanisms to
provide worry free grilling year round:
Q.C.C.1 or Type 1-Quick Connect Coupling Valve,
ensure fast tank hook-ups requiring only hand
tightening. The redundant valve system inhibits the
flow of gas to the burner if the connection is not
100% correct.
O.P.D. or Overfill Protection Device prevents
accidental gas leaks caused by cylinder ‘over-
pressurization’, the leading cause of cylinder gas
leaks. The float in the tank will automatically stop
filling at 80% capacity, leaving a 20% area for the
expansion of liquid. Without this safety feature, the
relief valve may open and discharge propane,
creating a potential safety hazard. An O.P.D. cylinder
is easily distinguished by its triangular hand wheel
valve. (Figure 3)
MODEL MAY NOT BE EXACTLY AS SHOWN.
24"
(61cm)
18"
(46cm)
Fig. 2
4
O.P.D.
FLOAT
FILLING STOPS
AT 80%
NEW OPD
HANDWHEEL
Fig. 3

5
1. SPECIFICATIONS
Self-contained propane gas grill systems are designed to be used only with a 20 lb (9.1
kg) propane cylinder, equipped with a Type 1 cylinder valve and incorporating an overfill
protection device (O.P.D). This grill cannot be connected to an existing #510 P.O.L. type
valve (ones with left-hand threads). The cylinder for your gas grill must be constructed
and marked in accordance with the specifications of L.P. gas cylinders:
In Canada: The National Standards of Canada CAN/CSA-B339, Cylinders, Spheres
and Tubes for Transportation of Dangerous Goods; and Commission.
In the U.S.: U.S. Department of Transportation (D.O.T.)
DO NOT CONNECT TO A PROPANE GAS CYLINDER EXCEEDING THIS CAPACITY, OR USE A
CYLINDER WITH ANY OTHER TYPE OF VALVE CONNECTION DEVICE.
The Type 1 valve is recognizable by the large external thread on the outlet part of the
valve. Standard existing valves do not have these exterior threads. Any attempt to connect
a regulator, with other than the:
i) Mating Type 1 connector (recognized by the large black coupling nut)
THE CYLINDER MUST ALSO BE EQUIPPED WITH:
a. A shut-off valve terminating in a proper cylinder valve outlet specified in current
standards:
• Canada: CAN/CGA - 1.6a - M98 - Outdoor Gas Grills - Amend. 1.
• U.S.: ANSI Z 21.58a-1998 OUTDOOR COOKING APPLIANCES.
b. A listed overfilling protection device (O.P.D.).
c. A safety relief valve having direct communication with the vapor space of the
cylinder.
d. A collar to protect the tank shut off valve.
e. An arrangement for vapor withdrawal.
f. A bottom ring for mounting.
THE CYLINDER SHOULD NOT EXCEED 18 1/2" (472 MM) IN HEIGHT AND 12 1/2"
(317 MM) IN DIAMETER.
SAFETY:
• Always turn off the cylinder valve tightly when your grill is not in use.
• Handle tank valves with care.
• Never connect an unregulated L.P. gas cylinder to your grill.
• Never store a spare cylinder under or near your grill when in use.
• Never subject any cylinder to excessive heat or direct sunlight.
• Always keep your in-use cylinder securely fastened in an upright position.
• Do not insert any foreign objects into the valve outlet. You may damage the
back-check. A damaged back-check can be the source of a leak. Leaking propane
may result in explosion, fire, severe personal injury or death.
• DO NOT fill the cylinder beyond 80% full.
WARNING If the above instructions are not followed exactly, a fire
causing death or serious injury may occur.

2. TRANSPORTATION AND STORAGE:
Although it is safe when used properly, careless handling of
the propane gas cylinder could result in fire, explosion,
and/or serious injury.
PROPANE GAS IS HEAVIER THAN AIR, AND WILL COLLECT IN LOW AREAS, INCREASING
THE ABOVE RISKS. THEREFORE:
• ALWAYS use the cylinder cap provided
with your cylinder whenever the cylinder
is not connected to your grill.
(Figure 4)
• DO NOT store in a building, garage or any
other enclosed area. Store in a
well-ventilated area.
• DO NOT store near any gas burning
apparatus or in any high-heat areas such
as a closed car or trunk.
• Transport and store the cylinder in an upright position -- do not tip on its side.
• Store out of reach of children.
• DO NOT smoke while transporting a cylinder in your vehicle.
FILLING:
FOR SAFETY REASONS, IF AN OPTIONAL L.P. GAS CYLINDER WAS SUPPLIED WITH
YOUR GRILL, IT HAS BEEN SHIPPED EMPTY. THE CYLINDER MUST BE PURGED OF AIR
AND FILLED PRIOR TO USING ON YOUR GRILL. WHEN GETTING YOUR CYLINDER
FILLED:
• Allow only a qualified L.P. gas dealer to fill or repair your cylinder.
• DO NOT allow the cylinder to be filled beyond 80% full.
• Make sure the L.P. gas dealer checks the cylinder for leaks after filling.
If the above instructions are not followed exactly, a fire
causing death or serious injury may occur.
HOSE & REGULATOR
PROPANE GAS MODELS:
Your grill is designed to operate on L.P. (propane) gas
at a pressure regulated at 11" water column(2.74 kPa).
A regulator preset to this pressure is supplied with the
grill and MUST be used.
This regulator is equipped with the Q.C.C. Type 1,
quick connect coupling system, which incorporates

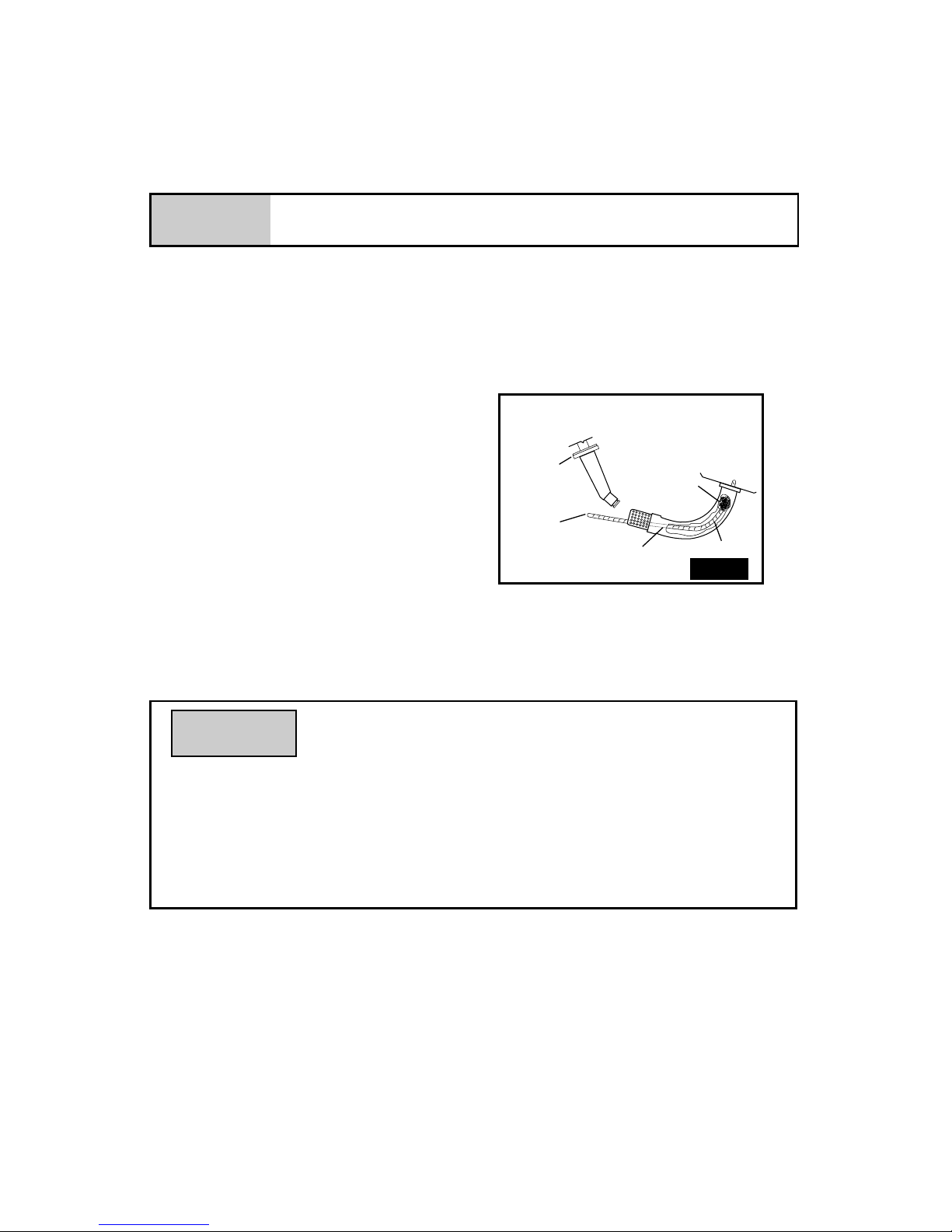

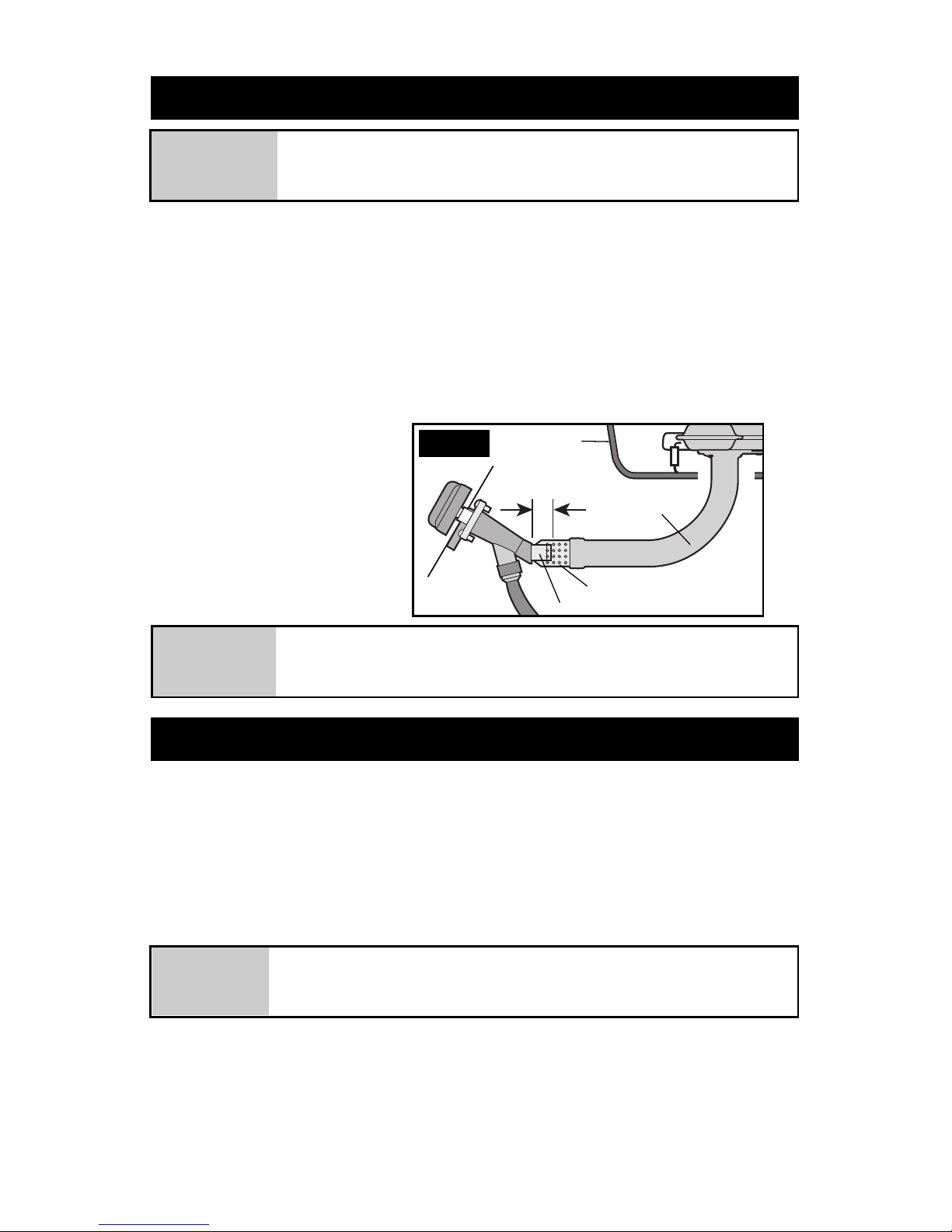

the following safety features: (Figure 5)
• It will not allow gas to flow until a positive seal has
been made. (Figure 6)
• It has a thermal element that will shut off the flow of
gas between 240 and 300°F (115 and150°C).
CYLINDER
CAP
6
WARNING
WARNING
RETAINER
STRAP
LP TANK VALVE
Fig. 4
Fig. 5
Fig. 6
REGULATOR
REGULATOR
STRAIGHT
Q.C.C.I
Q.C.C.I

• It also has a flow-limiting device which,when activated, will restrict the flow of gas to 10
cubic feet per hour (0.28 cubic meters per hour).
Prior to attaching the propane cylinder to the hose and regulator, be sure the cylinder valve
and the appliance valves are OFF. The cylinder valve is turned off by rotating the handwheel
(see Figure 3) clockwise (left to right) until it stops and all appliance valves should be in the
twelve o'clock position. When attaching the regulator to the cylinder, make sure that the small
probe in the nipple is centered in the mating Q.C.C. 1
cylinder valve (see Figure 6). Turn the right hand threaded Q.C.C.1 black nut onto the valve in
a clockwise motion until there is a positive stop. DO NOT USE A WRENCH, HAND TIGHTEN
ONLY.
Should the large black thermally sensitive coupling nut be exposed to temperatures
above 240 and 300°F, it will soften and allow the regulator probe to disengage from the
cylinder valve -- thereby shutting off the flow of gas. Should this occur, do not attempt to
reconnect the nut. Remove the entire regulator assembly, and replace it with a new one.
(See ‘REPLACEMENT PARTS’ section in assembly instructions or contact us at 1-800-
396-3838)
The cause of the excessive heat should be determined and corrected before operating
your grill again. The regulator probe also contains a flow-sensing element, which will
limit the flow of gas to the regulator to a manageable amount (10 cubic feet per hour) in
the event of a hose or regulator rupture. If it is evident that the flow control device has
been activated, the cause of the excessive flow should be determined and corrected
before using your grill again.
Please refer to the troubleshooting guide on page 19 or contact us 1-800-396-3838.
NOTE: IMPROPER LIGHTING PROCEDURES CAN CAUSE THE FLOW CONTROL TO ACTIVATE,
RESULTING IN REDUCED HEAT OUTPUT. IF THIS IS SUSPECTED, RESET THE FLOW CONTROL BY
SHUTTING OFF ALL BURNER CONTROLS AND THE CYLINDER VALVE. WAIT 30 SECONDS, THEN TURN
THE CYLINDER VALVE ON EXTREMELY SLOWLY - WAIT 5 SECONDS AND TURN THE BURNER VALVE
ON AND LIGHT AS NORMAL.
• Never connect a propane gas grill to an unregulated propane gas supply or
any other gas. Do not attempt to alter the hose or regulator in any way.
• The connection fitting must be protected when disconnected from the propane
tank. If the fitting is allowed to drag on the ground, nicks and scratches could
occur resulting in a leak when connected to the propane tank.
PROPANE AND NATURAL GAS MODELS:
• Do not allow any grease (or other hot material) to fall onto the hose, or allow
the hose to come in contact with any hot surfaces of the grill.
• Visually inspect the entire length of the hose assembly before each use of the
grill. If it is evident there is excessive abrasion/wear, or the hose is cut, it
must be replaced prior to using your grill. Only the hose assembly as
specified in the Parts List should be used.
• Follow the ‘LEAK TEST’ instructions before lighting your grill for the first time,
every time a propane cylinder is refilled, if any gas component is changed,
if the regulator flow-limiting device has been activated, after prolonged periods
of storage or non-use or at least once per season.
7

NATURAL GAS MODELS:
• Never use with propane, or any other gases.
• The appliance and its individual shut-off valve must be disconnected from the
gas supply piping during any pressure testing of the system at test pressure in
excess of 1/2 p.s.i. (3.5 kPa).
• The appliance must be isolated from the gas supply piping system by closing
its individual manual shut-off valve during any pressure testing of the gas
supply piping system at pressures equal to or less than 1/2 p.s.i. (3.5 kPa).
• The gas supply hose must be a minimum of 10 ft (3.1 m) and a maximum of
12 ft (3.6 m). Always disconnect hose at quick connect coupling when storing
your grill.
• Inspect and clean quick connect coupling, and keep it protected when it’s not in
use.
Failure to ensure the above may result in a hazardous fire or
explosion causing serious bodily injury and/or property damage.
To keep your grill working at its peak efficiency as well as contribute to the safe operation
of this unit, perform all of the operations below at least once a year -- preferably at the
start of each cooking season.
PERFORM A LEAK TEST
A leak test ensures that there are no gas leaks prior to lighting your grill.
WHEN A LEAK TEST MUST BE PERFORMED:
• Before lighting your grill for the first time.
• Every time the propane cylinder is refilled
•If any gas component is changed
• At a minimum once per season.
• After prolonged period of storage or non-use.
•If the regulator flow-limiting device has been activated.
The leak test should be performed in a well-ventilated area away from any open flame,
heat or ignition sources. DO NOT USE A MATCH, OPEN FLAME OR SMOKE DURING
LEAK TESTING.
WHAT YOU’LL NEED FOR TESTING:
1. A mixture of 50% liquid dish soap and 50% water.
2. A brush or cloth to apply the mixture.
CLEANING & MAINTENANCE
8
WARNING

9
AREAS TO TEST ON PROPANE GRILLS:
• All propane cylinder welds
(see Figure 7A)
• Propane cylinder valve --
including threads into cylinder
(see Figure 7B)
• Regulator fitting and propane
cylinder connection
(see Figure 7B)
• All hose connections (see
Figure 7C) including side
burner tubing, if equipped
(see Figure 7D)
• All valve connections
(see Figure 7C & D)
AREAS TO TEST ON NATURAL
GAS GRILLS:
• All hose connections
(see Figure 7C)
• All valve connections
(see Figure 7C & 7D)
HOW TO DO THE TESTING:
1. With the grill console
control knobs in the ‘OFF’
position, twist the valve on your
propane cylinder 1 turn, or the
main natural gas valve on.
DO NOT IGNITE THE BURNERS
WHILE PERFORMING THE LEAK
CHECK.
2. Brush your soap and water
solution on all connections and
components as outlined above.
3. Observe each place for growing
bubbles, which indicate that a leak
is present.
(continued on next page)
Fig. 7C
2 BURNER
Fig. 7D
GAS VALVE 3 BURNER
HOSE &
CONNECTIONS
SIDE
BURNER
GAS
LINE
TANK
TANK
WELDS
REGULATOR
GAS VALVE
REGULATOR
HOSE &
CONNECTIONS
GAS REGULATOR
EXTERNAL
THREAD
HAND
VALVE
Fig. 7B
Fig. 7A
THERMALLY
SENSITIVE
NUT
PROBE

4. Shut off the flow of gas while fixing the leak. Tighten any leaking connection and
repeat test until no leaks are detected.
5. If the leak(s) cannot be stopped DO NOT USE. Shut off the fuel source at the
valve immediately (if appropriate, remove propane cylinder). Call a certified
gas appliance service person, or a gas dealer for proper repairs.
Failure to ensure the above may result in a hazardous fire or
explosion causing serious bodily injury and/or property damage.
CLEANING VENTURI TUBES
Periodic cleaning of the venturi tubes is recommended for optimum burner performance,
especially after prolonged storage or a period of non-use.
How to Clean:
•Remove the burner (refer to ‘ASSEMBLY
PROCEDURE’)
•Use a venturi cleaning brush and insert
the brush into the venturi tube 1 inch at a
time, then remove to prevent moving the
debris upwards. (see Figure 8)
•As you remove the brush head inspect
and discard any debris
•Continue this procedure until the entire
lengths of all venturi tubes are free of debris
•Reinstall burner (as per assembly instructions), ensure the venturi tubes are
seated over the valve orifices (see Figure 1)
•Perform a Leak Test (see pages 8, 9 & 10)
CHECK TO ENSURE THE BURNER HAS A GOOD FLAME EACH TIME IT IS TURNED ON.
CHECK TO ENSURE THE BURNER
HAS A GOOD FLAME EACH TIME IT
IS TURNED ON.
Fig. 8
VALVE BLOCKAGE
VENTURI
AIR SLEEVE
CLEANING
BRUSH
10
WARNING
It is possible that very small insects could make webs or nest
in the venturi tubes, as they are naturally attracted to the smell
of gas. This will partially or completely block the flow of gas
through the venturi and is indicated by a smoky yellow flame, and/or a burner that
is difficult or impossible to light. Ultimately, it may cause the gas to burn outside
the venturis, which can cause a fire resulting in damage to your grill and
potential personal injury. IF THIS HAPPENS IMMEDIATELY SHUT OFF THE
PROPANE AT CYLINDER, OR NATURAL GAS AT MAIN SHUT-OFF VALVE. When the
grill has cooled, follow the "How to Clean" steps above.
WARNING

CLEANING OTHER PARTS OF YOUR APPLIANCE
BURNER:
At least twice a year, clean your burner when cleaning the venturi tubes. The burner can
be gently scraped clean with a brass bristle brush. Ensure that all burner ports (openings)
are clear (DO NOT ENLARGE BURNER PORTS). If you find cracks, abnormal holes, or
damage caused by corrosion during your inspection and cleaning, replace burner with a
FIESTA BURNER ONLY. (SEE WARRANTY).
IGNITOR:
Clean the ignitor clip lightly using a wire brush to remove rust and grease. DO NOT USE
WATER OR CLEAN THE ELECTRODE WITH THE WIRE BRUSH. Visually inspect the
ceramic of the electrode for cracks. The electrode can be wiped with a soft cloth if
necessary. If a crack is found, a replacement ignitor system will be required, look for
Fiesta O.E.M. ignition system or universal ignition system.
CLEANING GRIDS:
After each use, scrub the cooking grids with a stiff long-handled brass brush. Do not use
steel brushes, as they can scratch the nickel or porcelain coating. Grids can also be
washed with mild detergent. Never use commercial oven cleaners. If rust appears on your
cooking grids, remove the rust with a scrub pad and coat the grid with some cooking oil.
If excessive wear is evident, you might want to replace or upgrade your cooking grid.
Call our info Fiesta experts for more details at 1-800-396-3838.
COOKING SYSTEM:
All cooking systems such as Lava Rocks, Ceramic Briquettes and Ceramic Grates are self-
cleaning. When the grill is cold, turn each item over and then turn the grill on HIGH for 10
to 15 minutes. DO NOT LEAVE THE GRILL UNATTENDED. Replace or possibly upgrade
your cooking system when they begin to spread apart or fall through the grate. With
Smart Bars or Heat Distribution Plates, scrape them with a brass bristle brush; clean
using soap and water, then rinse and dry.DO NOT ALLOW EXCESSIVE GREASE OR
OTHER RESIDUE TO BUILD UP ON YOUR COOKING SYSTEM AS A FIRE MAY RESULT.
SIDE SHELVES:
Wood, Metal or Resin Shelves: Use any household cleaner, except those containing acid
or mineral spirits. Be sure to rinse well after cleaning.
DO NOT USE AS A CUTTING BOARD.
Plastic Shelf Inserts: Clean with dishwashing liquid, then wipe dry.
DO NOT USE AS A CUTTING BOARD.
MDF Inserts (Medium Density Fibre Board): Clean with mild detergent and a lightly
moistened cloth, then wipe dry. Keep away from excessive moisture. DO NOT USE AS A
CUTTING BOARD.
Stainless Steel Insert: Do wash regularly with warm water and a mild soap or detergent
using a clean cloth or soft brush, rinse thoroughly and wipe dry. (DO NOT USE STEEL
WOOL OR OTHER METAL SCRAPERS TO REMOVE STUBBORN DIRT). Always clean in
the direction of the original polish lines. Do Not Allow Dirt to Accumulate.
11

COVER YOUR GRILL WHEN IT IS NOT IN USE TO PROTECT THE SHELVES FROM THE
OUTDOOR ELEMENTS.
EXTERIOR CASTING:
The white spots that may appear on the outside of the casting are caused by the
oxidation of the aluminum. This oxidation can usually be removed with soap and water. If
not, you can repaint the outside casting using hi-heat grill paint.
CASTING INTERIOR, WARMING RACK AND ROCK GRATE:
At least once a year remove all components from inside your grill. Loosen any cooking
residue with a scraping tool for large particles and a brass brush for smaller particles.
Scrub with hot water and a strong detergent, then rinse thoroughly or spray grill
degreaser liberally on all interior surfaces. Be sure to use gloves and eye protection. Let
stand for 10 minutes, scrape off residue and repeat if required. Rinse thoroughly with
water. Replace all components as outlined in the assembly instructions. DO NOT USE
DEGREASER ON PAINTED OR PLASTIC SURFACES.
GREASE CUP HOLDER:
The grease cup holder is located on the bottom of the base casting, immediately below
the hole through which any grease will drain. A grease cup is not provided, however the
clip has been designed to accommodate a standard soup can. The grease cup should be
checked and replaced regularly to prevent grease from overflowing.
VIEWING WINDOWS (FOR GRILLS WITH THIS OPTION):
ALTHOUGH THE TEMPERED GLASS USED FOR THIS WINDOW HAS
TO MEET STRICT SAFETY AND DURABILITY REQUIREMENTS, THE
FOLLOWING INSTRUCTIONS MUST BE FOLLOWED TO HELP
PREVENT BREAKAGE.
Replace glass if any heavy surface scratches or edge chips are evident - if window has
sales stickers attached use a cloth with mild soap and hot water to remove
(DO NOT USE SHARP TOOLS)
•When cleaning glass, use hot water and a household cleaner, or a commercial
glass cleaner. Do not use abrasive cleaners or sharp tools, as they can scratch
the glass and cause the glass to shatter.
• Do not operate your grill in heavy rain or in a location where it may
experience a sudden quenching action (i.e. a lawn sprinkler).
• Do not drop the lid when closing.
• Avoid ‘Grease Fires’ which can result in flames directly contacting the glass.
• Ensure glass is not ‘pinched’ by the holding frame. Slight movement within the
frame is required. If the glass does break, it will shatter into many small blunt
pieces, since it is ‘Safety Glass’ and has been tempered. However, because these
small pieces tend to scatter and are transparent, any food in the area should not
be eaten.
12
WARNING

STORAGE
More people are discovering the pleasure of year round grilling. However, if you choose
to store your grill for the winter or any extended length of time, follow these steps:
• Clean the cooking grids, then oil lightly with cooking oil, wrap in paper and then
store the cooking grids indoors.
• Follow the same cleaning method above for the burners and any warming racks.
• Cover the grill if it is left outdoors.
• When the grill is not in use, the gas must be turned off at the L.P. cylinder
valve or main shut off valve, and stored outdoors in a well-ventilated area.
1. With a Propane appliance you can store the grill inside, PROVIDED the cylinder is
removed from the grill and stored outdoors in a well-ventilated area, out of the reach
of children. When the cylinder is disconnected from the grill, ensure the cylinder
valve safety cap is firmly threaded through onto the valve.
2. With a Natural Gas appliance, the gas must be turned off at the individual gas
shut off valve and the hose must be disconnected from the gas supply piping
system before storing the grill indoors. Install plastic covers to quick connect fittings.
After a period of storage or non-use, a leak test should be performed and the burner
venturis cleaned prior to use.
LIGHTING
Prior to lighting your grill, visually check all
hoses before each use for nicks, cracking,
abrasions or cuts. If the hose is found to be
damaged in any way, DO NOT USE YOUR
GRILL. A replacement hose and regulator is
required (see ‘PARTS LIST’ in Assembly
Brochure).
IMPORTANT
• Always raise the grill lid before lighting.
• Do not lean over the grill when lighting
the burner.
• Visually check the flames every time
you light your grill (Figure 10). If the
flame is abnormally small or smokey
yellow -- shut off the grill and check the
venturi tubes for blockage (see Figure 8)
or refer to the Troubleshooting Guide.

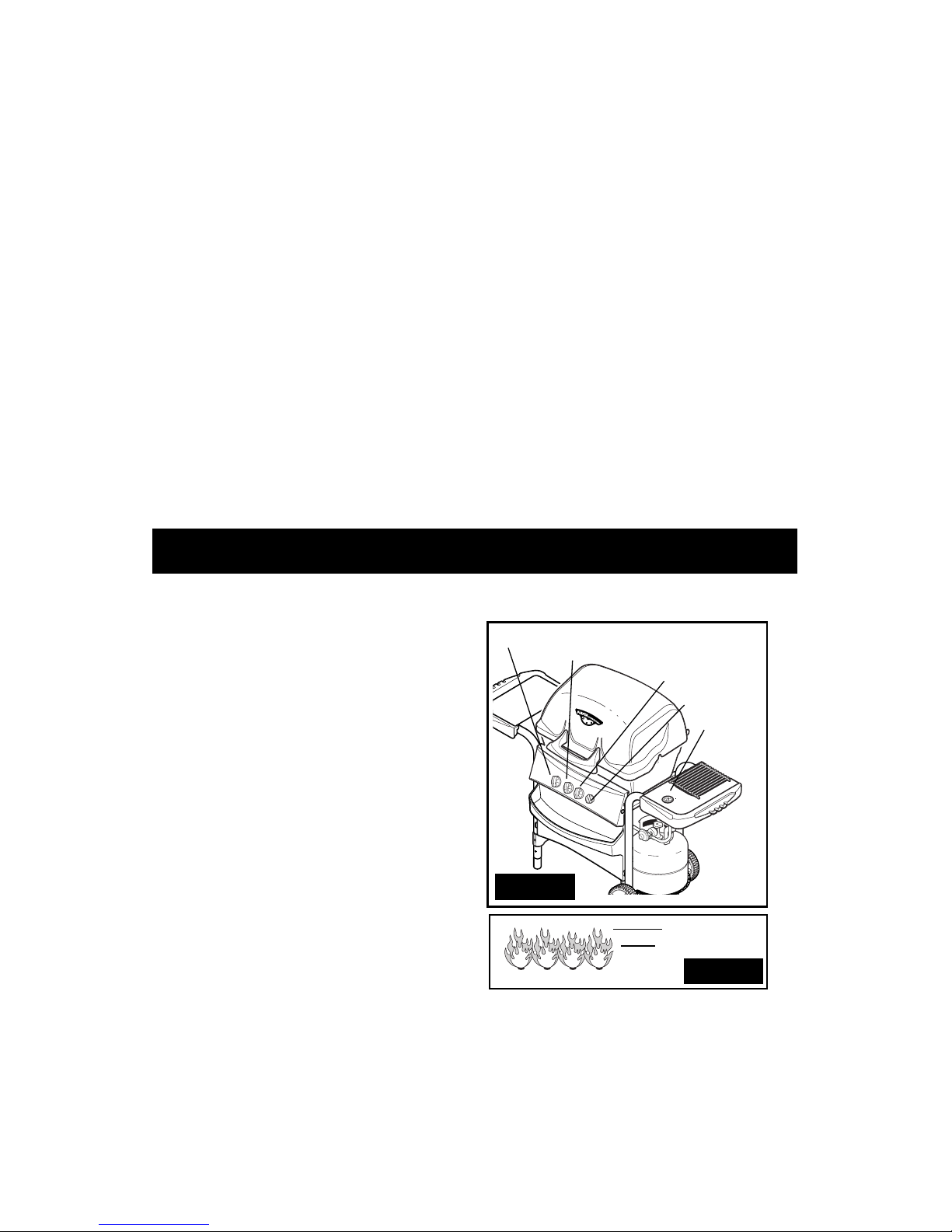

On grills with dual controls, the right control knob operates the right burner and the left
knob operates the left burner. On grills with triple control knobs the far left knob operates
the rear rotisserie burner. The side burner control knob is located on the side shelf with
the side burner. (Figure 9)
13
USING YOUR APPLIANCE CORRECTLY
REAR ROTISSERIE BURNER
LEFT BURNER
RIGHT BURNER
IGNITOR
SIDE
BURNER
HIGH
LOW
Fig. 10
Fig. 9

14
MAIN BURNER
USING THE STANDARD PUSH BUTTON OR
ROTARY IGNITOR (Figure 11A)
1. Open the lid before lighting.
2. Turn off all of the burner control knobs and
close the gas supply valve.
3. Open the gas supply valve and wait 5 seconds.
4. Push in and turn a single main burner control
knob to ‘HIGH’. All other control knobs should be in the "OFF" position.
5. Depending on which ignitor you have, turn or depress the ignitor; repeat if
necessary.
6. If the burner does not light immediately (within four seconds), turn burner control
knob off and wait 5 minutes to clear the gas.
7. Repeat steps 1 to 6. If burner still fails to light, refer to Troubleshooting Guide to
determine cause and solution, or try the Match Lighting Procedure on page 15.

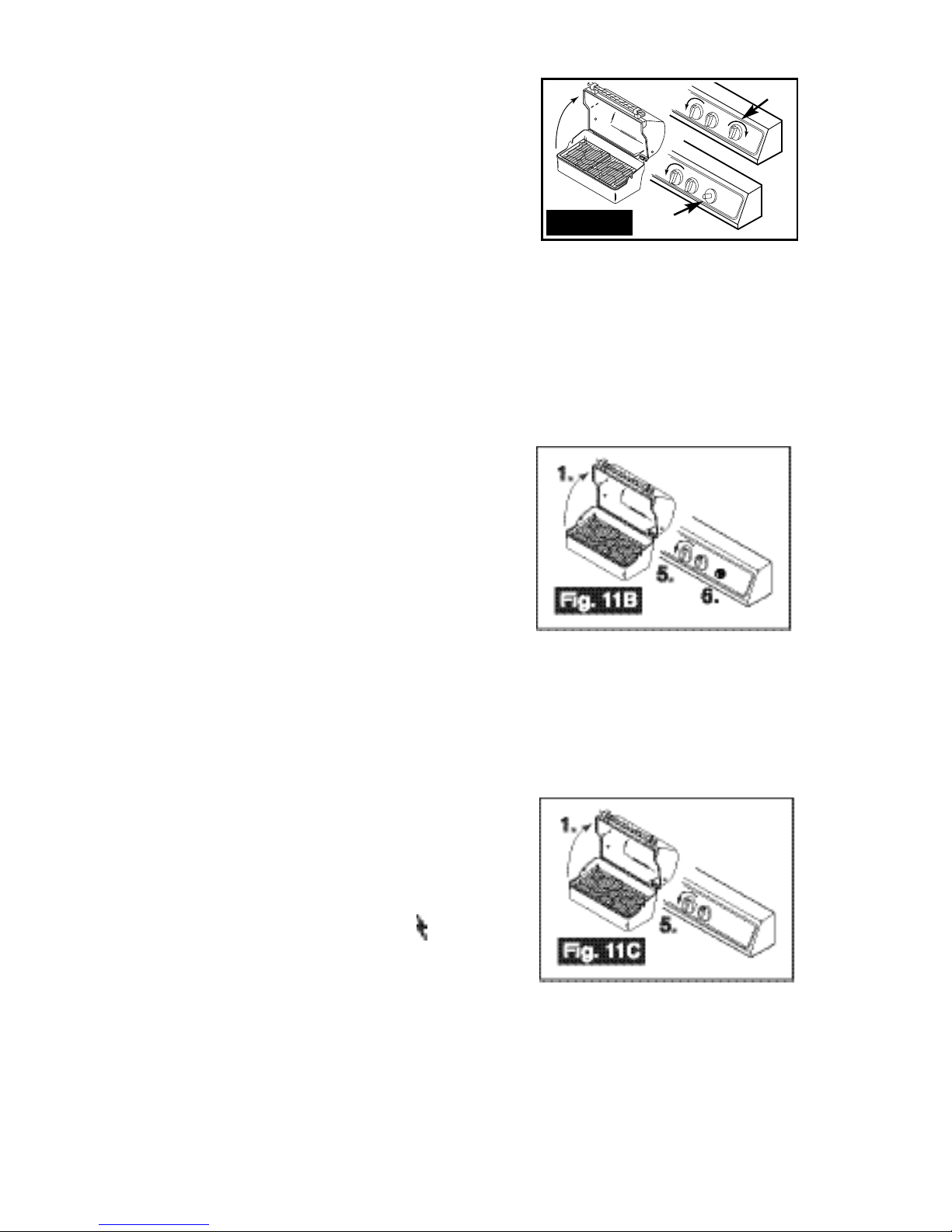

USING THE ELECTRONIC IGNITOR
(For grills with this feature, reference
Figure 11B)
1. Read instructions before lighting.
2. Open lid during lighting.
3. Turn off all burners and close tank valve.
4. Open tank valve, wait 5 seconds.
5. Turn required burner knob to “HI”.
6. Push and hold ignitor button.
7. You should hear a “clicking sound” indicating
your electronic ignition is activated.
8. If the burner does not light immediately (within four seconds), turn burner control
knob off and wait 5 minutes to clear the gas.
9. Repeat steps 1 to 8. If burner still fails to light, refer to Troubleshooting Guide to
determine cause and solution, or try the Match Lighting Procedure on page 15.
USING THE AUTO IGNITOR
(For grills with this feature, reference Figure 11C)
1. Read instructions before lighting.
2. Open lid during lighting.
3. Turn off all burners and close tank valve.
4. Open tank valve, wait 5 seconds.
5. Turn required burner knob to “ ”.
6. You should hear a “clicking sound” indicating
your electronic ignition is activated.
7. If the burner does not light immediately (within
four seconds), turn burner control knob off and wait 5 minutes to clear the gas.
8. Repeat steps 1 to 7. If burner still fails to light, refer to Troubleshooting Guide to
determine cause and solution, or try the Match Lighting Procedure on page 15.
9. After grill lights, turn knob to desired cooking position.
1. 4.
5.
5.
Fig. 11A
4.

MATCH LIGHTING PROCEDURE
1.Open the lid before lighting
2. Place an ignited lighter or lit match through the
lighting hole, approx. 1/2" (1.25 cm) from burner.
(See Figure 11D)
3. Push in and turn the LEFT burner control knob to
‘HIGH’. The burner should light immediately (within four seconds). If it does not,
extinguish the lighter or match, turn the control knob to off, and wait 5 minutes to
clear the gas.
4. Repeat steps 1 to 3. If burner fails to light, refer to the Troubleshooting Guide on
page 19 to determine cause and solution.
LIGHTING THE OTHER SIDE OF THE DUAL BURNER
Once one side of the dual burner has been lit, push in and turn the other control knob to
‘HIGH’. The unlit burner will light automatically.

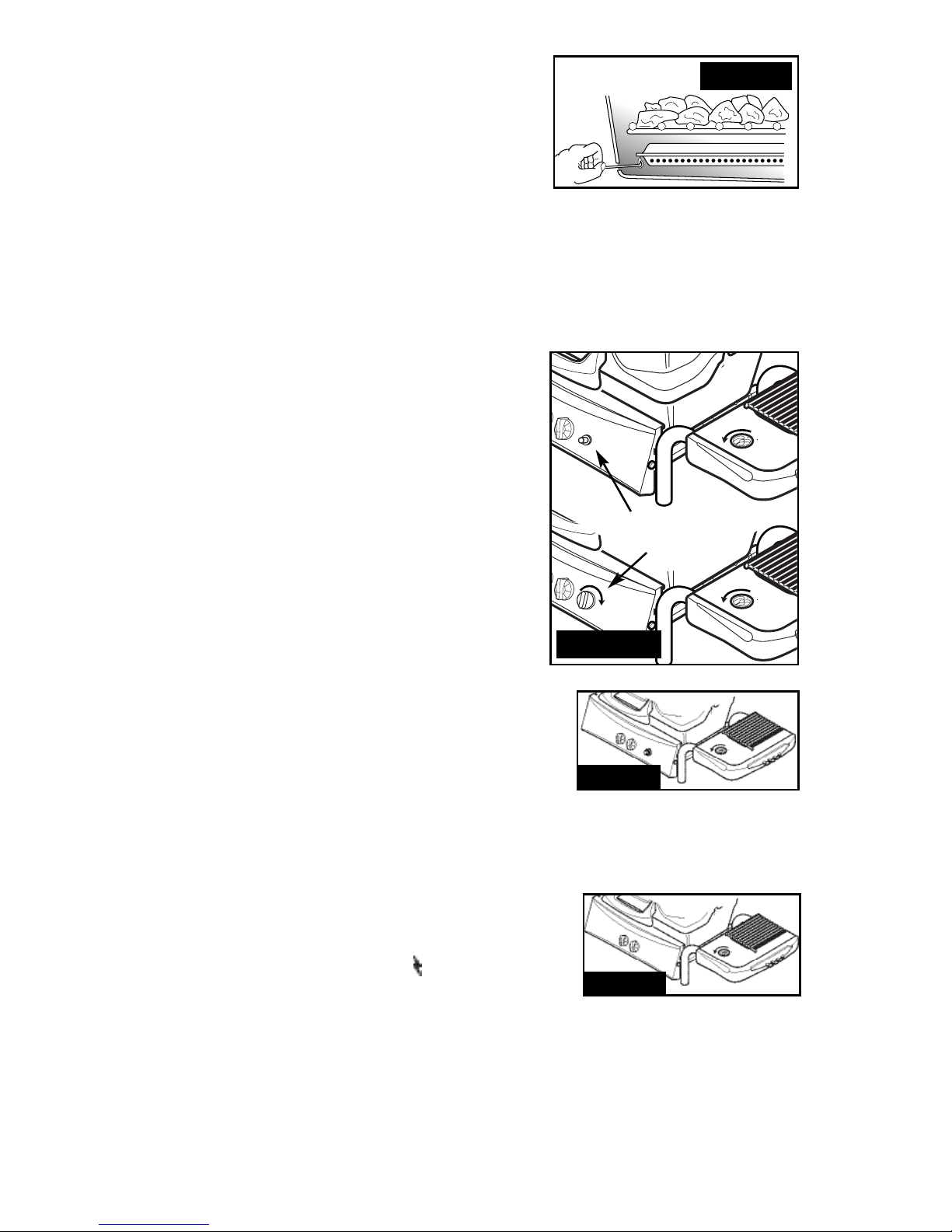

SIDE BURNER (OPTIONAL) USING THE STANDARD OR
PUSH BUTTON ROTARY IGNITOR
1. Open L.P. cylinder.
2. Push in and turn the side burner control knob to
“HI”.
3. Depending on which ignitor you have, turn or
depress ignitor. Repeat if necessary (see Figure
12A).
4. If burner does not light immediately (within four
seconds), turn the burner control knob off, and
wait 5 minutes to clear the gas.
5. Repeat steps 1 to 4. If burner still fails to light,
refer to the Troubleshooting Guide to determine
cause and solution, or try the Match Lighting
Procedure on page 16.
USING THE ELECTRONIC IGNITOR
(For grills with this feature, reference Figure 12B)
1. Open tank valve, wait 5 seconds.
2. Turn required burner knob to “HI”.
3. Push and hold ignitor button.
4. You should hear a “clicking sound” indicating your
electronic ignition is activated.
5. If burner does not light immediately (within four seconds), turn the burner control
knob off, and wait 5 minutes to clear the gas.
6. Repeat steps 1 to 5, if burner fails to light, refer to the Troubleshooting Guide to
determine cause and solution, or try the Match Lighting Procedure on page 16.
USING THE AUTO IGNITOR
(For grills with this feature, reference Figure 12C)
1. Open tank valve, wait 5 seconds.
2. Turn required burner knob to “ ”.
3. You should hear a “clicking sound” indicating your
electronic ignition is activated.
4. If burner does not light immediately (within four seconds), turn the burner control
knob off, and wait 5 minutes to clear the gas.
5. Repeat steps 1 to 5, if burner fails to light, refer to the Troubleshooting Guide to
determine cause and solution, or try the Match Lighting Procedure on page 16.
6. After grill lights turn knob to desired cooking position.
15
Fig. 11D
1.
2.2.
1.
Fig. 12A
Fig. 12B
Fig. 12C

16
MATCH LIGHTING PROCEDURE
1. Place an ignited lighter or lit match near the
ports, approximately 1/2" (1.25 cm) from burner
(see Figure 12D).
2. Push in and turn the side burner control knob to
'HIGH'. The burner should light immediately
(within four seconds). If it does not, extinguish
the lighter or match, turn the control knob off,
and wait 5 minutes for the gas to clear.
3. Repeat steps 1 and 2. If burner still fails to light,
refer to the Troubleshooting Guide to determine
the cause and solution.
REAR ROTISSERIE BURNER (OPTIONAL)
MATCH LIGHTING PROCEDURE
1. Open lid prior to lighting.
2. Place an ignited lighter or lit match near
the ports, approximately 1/2" (01.25 cm) from
burner (see Figure 12E).
3. Push in and turn the rotisserie burner control
knob to 'HIGH'. The burner
should light immediately (within four seconds).
If it does not turn off the control knob, extinguish the lighter or match, and wait 5
minutes for gas to clear.
4. Repeat steps 1 to 4. If burner still fails to light, refer to the Troubleshooting
Guide to determine the cause and solution.
NOTE: DO NOT USE THE MAIN BURNERS WHEN THE ROTISSERIE BURNER IS LIT.
PROPANE MODELS ONLY
If the heat output from the burner(s) seems abnormally low, it may be caused by the
regulator flow-limiting device being activated by a leak in the gas system, or improper
lighting procedures. If this is suspected, shut off the cylinder valve and all burner valves.
Perform a leak test to determine if a leak has caused the flow-limiting device to activate. If
the leak test is negative, then carefully follow the lighting procedures step-by-step,
ensuring all valves (including tank) are off before starting.
RELIGHTING
SAFETY WARNING
If the burner flame goes out when your grill is in operation, immediately turn off the
control valves. Wait five minutes for the gas to clear before attempting to relight the
burner. If the problem persists, refer to the Troubleshooting Guide.
SHUTTING DOWN YOUR GRILL
1. Shut off L.P. cylinder valve or natural gas main shut-off valve.
2. Shut off burner control valves.
This sequence prevents residual gas from being left in the system under pressure.
1.25 cm
NOTE: MAXIMUM WEIGHT FOR
SIDE BURNER 9kg (20 lb)
Fig. 12D
Fig. 12E

17
BREAKING IN YOUR GRILL
Before cooking on your gas grill for the first time, you should "break it in" by operating it
for a short period of time without any food.
To "break in" your grill light the grill following the lighting instructions as outlined on the
console decal or in this manual. (see pages 14, 15 & 16) . Close the lid and keep the
temperature on "HIGH" for 20 minutes. DO NOT OPEN THE LID DURING THIS PROCESS.
Then raise the lid and continue to operate your grill on "HIGH" for an additional 5
minutes. Your grill is now ready for cooking.
NOTE: IF YOU HAVE LAVA ROCKS, DO NOT OPERATE YOUR GRILL IF THEY ARE WET.
THE BUILD-UP OF STEAM MAY CAUSE THEM TO FRAGMENT.
COOKING TECHNIQUES
PREHEATING THE GRILL
The cooking system and grids require heating prior to adding food.
1. Light your grill as outlined in the ‘LIGHTING’ instruction section.
2. Once lit, preheat your grill on the HIGH setting with the lid down for 6 to 10 minutes.
3. Turn the burner control knobs to the appropriate heat setting prior to adding your
food. Preheating your grill is not required when you are cooking food using the
indirect cooking or rotisserie cooking techniques.
LID POSITION
Although keeping the lid up or down when cooking on your grill is a personal preference,
you will find that you will have fewer flare-ups, and your food will cook in less time
(therefore using less fuel) if the lid is down. Keep the lid down when cooking food that
requires a long cooking period over a low flame, such as when rotisserie or indirect
cooking.
COOKING TEMPERATURES
HIGH Setting: Use the HIGH setting to preheat the grill, sear meat such as steak, and to
burn off any cooking residue from the grids after cooking your meal. HIGH is rarely used
for extended cooking.
MEDIUM Setting: Most grilling or roasting of meat and vegetables, as well as any baking,
is best done at a medium heat.
LOW Setting: A low temperature is used when cooking lean meat or delicate items such
as fish. All rotisserie and smoke cooking is done at low heat.
GRILL COOKING METHODS
Your grill is more than just a place to grill your burgers and hotdogs - the possibilities
are as endless as your imagination. But, before you start experimenting, here are some
frequently used terms that will help:
Direct Cooking is also known as grilling. This is the most popular cooking method and
involves cooking food directly over the flame, such as searing a steak. Other good
candidates for this cooking method are thin cuts of meat, vegetables, kabobs and fillets.

18
Indirect Cooking means the food is cooked away from the direct flame by placing it on
the opposite side of the lit burner and allowing the heat to tumble within the closed
confines of the closed grill, very similar to a convection oven. Much like your oven, you
can roast and even bake, provided your grill lid is closed.
DUAL LEVEL GRIDS
By turning the grid 90°, you can lower the
grid, thus increasing your cooking flexibility.
(Available on certain Fiesta models.
See Figure 13.)
WARMING RACKS
A warming rack may be included with your grill and provides you with additional cooking
space away from direct heat. This is useful when cooking delicate items such as fish,
boneless chicken breasts or vegetables. Warming racks are also a great place to keep
food warm that is already done so you can serve your entire meal at the same time.
Fiesta offers single, double or our exclusive one-piece closed back cantilever warming
rack.
Tip: A light application of cooking oil prior to use will help to keep food from sticking to
the warming rack.
CONTROLLING FLARE-UPS
Some flare-up during grilling is desirable to create the smoke, which gives grilled food its
unique flavor and appearance. However, excessive flare-up can not only ruin your food, it
may lead to a dangerous condition as well. By excessively raising the temperature within
your grill, particularly if a build up of grease in your grill ignites, these flare-ups may
result in an uncontrolled grease fire.
TO MINIMIZE FLARE-UPS:
• Trim excess fat from meats before cooking.
• Cook fatty meats on a low setting, or use the indirect method described above.
• Ensure that your cooking system is free of excess grease from previous usage.
• Check that the grease drain hole is not blocked.
• Cook with lid down to cut down on the flow of air.
• Reduce the heat settings.
HIGH POSITION
HIGH AND LOW
POSITION
Fig. 13

WHAT HAPPENS
1. Burners will not
light.
2. Flame burns out on
"Low"
3. Burners are not hot
enough
4. Flame smokey
yellow.
5. Console Fire (Flame
coming up venturi
around console
/control knobs).
6. Grease dripping
from base
7. Regulator Humming.
8. Burner lights with
match, not with
ignitor.
9. Too much heat.
10. Excessive flare-up.
11. Incomplete burner
flame
12. Propane tank will
not fill.
19
TROUBLESHOOTING GUIDE
IF YOU ARE EXPERIENCING DIFFICULTY AFTER FOLLOWING THIS GUIDE, PLEASE CONTACT OUR
CUSTOMER SERVICE TOLL FREE - PHONE [phone] OR FAX [phone].
WHAT TO LOOK FOR
Out of propane? Is venturi properly seated over orifice? Inspect
both venturis and burner holes for obstructions. Check ignition
spark. Is cylinder valve turned on? Regulator assembly not fully
tightened to cylinder valve? If you have electronic ignitor, is the
battery good?
Has grill been sufficiently preheated before turning to "Low", is
venturi properly seated over orifice? Inspect both venturis and
burner holes for obstructions.
Your grill is equipped with a flow limiting device intended to
reduce the flow of gas in the event of a leak. This device can
also be activated if you do not follow the correct lighting
procedure. Follow proper lighting sequence (see page 6) or
correct leak in system (see page 4) as instructed. Inspect
venturi, orifice, burner holes and heat control valves for
obstructions and alignment. Make sure burners and heat
distribution system (heat distribution plates, lava rock,
briquettes or tiles) is clean.
Check to see if burners and venturis are clean (See page 5
“Spiders”). Check for proper air shutter opening in venturis.(Side
Burner Only)
Immediately shut off gas supply at tank valve. Allow grill to cool.
Remove burners and check venturis and orifices for
obstructions.
Has grease cup clip and grease can been installed? Check to
ensure bolts are tight, washers are in place. BBQ is level.
This is not a defect or hazard. The noise is internal and caused
by cold propane passing through a restricted passage.(Usually
with a full tank in hot weather. This will subside after a short
period of operation)
Broken push button or wire. Broken porcelain on ignitor
electrode - check for spark. Obstructions in venturi. If you have
electronic ignitor, is the battery good?
Excessive grease build-up ("Grease fire"). Damaged or missing
orifice. Faulty regulator. Restricted heat flow through grill.
Clogged grease drain. Overload of fatty meat. Close lid.
Plugged, leaking or rusted burner.
If during filling, the overfill protection device (O.P.D.) trips prior
to tank being full, invert tank briefly to reset O.P.D.

LIMITED WARRANTY......Fiesta Gas Grills L.L.C. warrants its gas grill,
subject to the terms set forth below, to be free from defects in materials
and workmanship during the period of warranty coverage specified. Fiesta
Gas Grills L.L.C. does not recommend fuel conversion of the Gas supply
specified on the rating plate to any other fuel. The product warranty will be
cancelled and the conversion would default legal certification without
approval by the proper gas authority.
Date and proof of purchase is mandatory for all warranty claims.
Always identify product serial no. when requesting warranty.
This warranty covers replacement parts only. All other costs including
labor, transportation, postage and other incidental service costs are your
responsibility.
All warranty service and/or replacement of parts must be performed by the
Customer Service Department of Fiesta Gas Grills L.L.C.
All Warranty replacement or repair shall be subject to the terms and
conditions of this warranty for the remainder of the original period of
coverage. Transportation charges for the shipment of the replacement
parts or the shipment of the gas grill is your responsibility.
This warranty does not apply to any failures, or operating difficulties due to
accidental damage, abuse, misuse, alteration, misapplication, careless
handling, improper installation or improper maintenance or service.
The provisions of this additional written warranty are in addition to and not
a modification of, nor subtraction from any other statutory warranties or
other rights and remedies provided by any provincial law.
Warranty will NOT apply if this gas grill is used for commercial or rental
purposes.
*NOTE: Warranty will be extended to date of purchase on condition a copy
of the original receipt is provided.
20
Scope of Coverage Period of Coverage Type of Failure Coverage
Parts Two (2) years from Defective materials
date of manufacture* or Workmanship
Stainless Burner Five (5) years from Defective materials
date of manufacture* or Workmanship
Aluminized Burner Three (3) years from Defective materials
date of manufacture* or Workmanship
Cast Aluminum Lids Lifetime Defective materials
& Bottoms(Except Paint) or Workmanship
