Fike 70-290 User manual

Product Manual
P/N 06-438, Rev. 0
June 2010
P/N 70-290
IMPULSE RELEASING INTERFACE

DEVELOPED BY Fike
704 SW 10th Street
P.O. Box 610
Blue Springs, Missouri 64013 U.S.A.
Phone: Commercial Products (800) 979-FIKE (3453)
International Calls Only [phone]
Fax: Commercial Products [phone]
COPYRIGHT NOTICE Copyright ©2010. All rights reserved.
Fike copyrights this manual and products it describes. You may not reproduce,
transmit, transcribe, or any part of this manual without express, written
permission from Fike.
This manual contains proprietary information intended for distribution to
authorized persons or companies for the sole purpose of conducting business
with Fike. If you distribute any information contained in this manual to
unauthorized persons, you have violated all distributor agreements and we may
take legal action.
TRADEMARKS Fike©is a registered trademark of Fike.
QUALITY Fike has maintained ISO 9001 certification since 1996. Prior to shipment, we
thoroughly test our products and review our documentation to assure the highest
quality in all respects.
WARRANTY Fike provides a one-year limited manufacturer’s warranty on this product. All
warranty returns must be returned from an authorized Fike Distributor. Contact
Fike’s Marketing department for further warranty information.
Fike maintains a repair department that is available to repair and return existing
electronic components or exchange/purchase previously repaired inventory
component (advance replacement). All returns must be approved prior to return.
A Material Return Authorization (MRA) number must be indicated on the box of
the item being returned. Contact the appropriate Regional Sales Manager for
further information regarding product return procedures.
LIMITATIONS OF LIABILITY Installation in accordance with this manual, applicable codes, and the
instructions of the Authority Having Jurisdiction is mandatory. Fike can not be
held liable for any incidental or consequential damages arising from the loss of
property or other damages or losses resulting from the use or misuse of Fike
products beyond the cost of repair or replacement of any defective components.
Fike reserves the right to make product improvements and change product
specifications at any time.
While every precaution has been taken during the preparation of this manual to
ensure the accuracy of its content, Fike assumes no responsibility for errors or
omissions.

PRODUCT MANUAL
Impulse Releasing Interface 1
P/N: 06-438 Rev. 0, 06/2010
TABLE OF CONTENTS
Section Title Page
1.0 About This Manual ...............................................................................................................2
1.1 Product Support......................................................................................................................2
1.2 Safety Information ..................................................................................................................2
1.3 Document History...................................................................................................................3
2.0 Product Overview.................................................................................................................4
2.1 Releasing Circuit Limitations..................................................................................................4
2.2 IRI Circuit Board Specifications..............................................................................................5
3.0 Operation...............................................................................................................................5
3.1 Module LEDs..........................................................................................................................5
4.0 Mounting ...............................................................................................................................6
5.0 Wiring ....................................................................................................................................7
6.0 Acceptance Testing .............................................................................................................8
7.0 Arming/Disarming the System............................................................................................9
8.0 Inspections and Testing....................................................................................................10
LIST OF EXHIBITS
Exhibit 1 IRI Assembly with Cover Removed........................................................................................4
Exhibit 2 IRI Quantity Limitations..........................................................................................................4
Exhibit 3 Impulse Releasing Interface Circuit Board.............................................................................5
Exhibit 4 Enclosure Mounting................................................................................................................6
Exhibit 5 IRI Field Wiring.......................................................................................................................7
Exhibit 6 Connecting the Impulse Valve Operator to the Container .....................................................9

PRODUCT MANUAL
2 Impulse Releasing Interface
Rev. 0, 06/2010 P/N: 06-438
1.0 ABOUT THIS MANUAL
This manual is intended to be a complete reference for the installation, operation, and service of Fike’s
Impulse Releasing Interface (P/N 70-290). The information contained in this manual shall be used by factory
trained service technicians who are authorized to work on this product. This manual also serves as the
Operations Manual for the component.
The first-time installer and/or user should thoroughly read and understand the instructions contained within
this manual before using this device. These instructions must be followed to avoid damage to the equipment
itself or adverse operating conditions caused by improper installation.
1.1 PRODUCT SUPPORT
If you have a question or encounter a problem not covered in this manual, you should first try to contact the
distributor who installed the Fike system. Fike has a worldwide distribution network. Each distributor sells,
installs, and services Fike equipment. Look on the back of the cabinet door, there should be a sticker with an
indication of the distributor who installed the system. If you can not locate the distributor, please call Fike
Customer Service for locating your nearest distributor, or go to our web-site at www.fike.com. If you are
unable to contact your installing distributor or you simply do not know who installed the system, you can
contact Fike Technical Support at (800) 979-FIKE (3453) for Commercial Products, Monday through Friday,
8:00 am to 4:30 pm CST.
1.2 SAFETY INFORMATION
Important safety admonishments are used throughout this manual to warn of possible hazards to persons or
equipment.
aWARNING
Warnings are used to indicate the presence of a hazard which
will or may cause personal injury or death, or loss of service if
safety instructions are not followed or if the hazard is not
avoided.
ICaution
Cautions are used to indicate the presence of a hazard which will
or may cause damage to the equipment if safety instructions are
not followed or if the hazard is not avoided.
LNote: Provides information on installation, operation,
maintenance, performance or general tips that are important
but not hazardous to anything or anyone.

PRODUCT MANUAL
Impulse Releasing Interface 3
P/N: 06-438 Rev. 0, 06/2010
1.3 DOCUMENT HISTORY
Document Title: Impulse Releasing Interface, Product Manual
Document Reorder Number: 06-438
Revision Section Date Reason for Change
0 All Sections 06/2010 Initial Release

PRODUCT MANUAL
4 Impulse Releasing Interface
Rev. 0, 06/2010 P/N: 06-438
2.0 PRODUCT OVERVIEW
The Impulse Releasing Interface (P/N 70-290) is designed to provide an interface between the supervised
releasing circuit(s) of a non Fike releasing panel (approved for suppression releasing service) and Fike’s
Impulse Valve Operator (IVO). The IVO is the mechanism that is used to release the fire suppressant agent
from a Fike impulse valve container.
The IRI comes pre-assembled from the factory and includes all of the components shown in Exhibit 1 below.
Enclosure Dimensions: 240 mm W x 160 mm H x 90 mm D
Enclosure IP Rating: IP65
2.1 RELEASING CIRCUIT LIMITATIONS
The total number of IRI modules that can be connected to the host control panel’s releasing circuit varies
depending upon the voltage supplied by the control panel to the releasing circuit. Exhibit 2 below shows the
maximum number of IRI modules that can be connected to the circuit based on the supplied panel voltage.
Number of IRI Minimum Circuit Voltage
1 17.8 VDC
2 18.8 VDC
3 19.8 VDC
4 20.8 VDC
Exhibit 2: IRI Quantity Limitations
Exhibit 1: IRI Assembly Shown With Cover Removed
Cable Gland
Connector, 6 ttl.
(P/N 02-12936)
IRI Enclosure
(P/N 02-12931)
IRI Circuit Board
(P/N 10-2749)
Mounting Plate
(P/N 02-12932)
Wire Termination
Block

PRODUCT MANUAL
Impulse Releasing Interface 5
P/N: 06-438 Rev. 0, 06/2010
2.2 IRI CIRCUIT BOARD SPECIFICATIONS
Power Input (Vdc): 17.8 V to 30 V
Current Consumption: +24V Supervisory
22.0 mA (during capacitor charging, 60 sec. or less)
2.0 mA (after capacitor is charged)
-24V Activated:
57.0 mA (both LEDs active)
Temperature: 0°C to 54.4°C, 93% maximum humidity
Module Wiring: All IRI connections (P1 and P2) are supervised and power-limited.
Compatible Actuation Devices: 02-12728, Impulse Valve Operator (IVO)
3.0 OPERATION
The IRI circuit board utilizes the 24 VDC current supplied by the host control panel to charge the two
capacitors on the IRI. Upon activation of the panel’s releasing circuit, the relays on the IRI module transfer
causing the stored energy in the capacitors to be released to the Impulse Valve Operator; thus activating the
suppression system valve.
Ground fault detection for the IRI module is performed by the releasing circuit connection to the host control
panel (if applicable). The IRI module supervises the Impulse Valve Operator wiring for opens and shorts.
3.1 MODULE LEDs
The IRI is equipped with a red and yellow LED. The red LED, when illuminated, provides positive indication
that the IRI is in the active (discharge) state or that the field wiring has been installed incorrectly (polarity
reversal). The yellow LED, when illuminated, provides indication of an open or short on the IVO circuit.
EXT OUT
+ -
EXT IN
+ -+24V 0V SHLD+24V 0V
RED BLK
Exhibit 3: Impulse Releasing Interface Circuit Board

PRODUCT MANUAL
6 Impulse Releasing Interface
Rev. 0, 06/2010 P/N: 06-438
4.0 MOUNTING
The IRI should not be installed until the installation of the associated detection and control system and
suppression system has been completed and both are ready for testing. The IRI enclosure should be
mounted on a dry, flat, vibration free surface. It should be mounted in an accessible location near the
suppression container it serves.
To install the enclosure, follow these steps:
ICAUTION
The IRI circuit board contains static sensitive components.
Handle the electronics by the edges only and avoid touching the
integrated components. Always ground yourself with a proper
wrist strap before handling the module(s). If the installer is
properly grounded at all times, damage due to static discharge
will not occur. If the module requires repair or return to Fike, it
must be shipped in an anti-static bag.
1. Remove the IRI enclosure cover.
2. Mount the IRI enclosure to the wall with suitable anchors using the pre-drilled mounting holes, as shown
in Exhibit 4.
Exhibit 4: Enclosure Mounting
4 mm ∅mounting
holes (typ. 4)
130 mm
228 mm

PRODUCT MANUAL
Impulse Releasing Interface 7
P/N: 06-438 Rev. 0, 06/2010
5.0 WIRING
The IRI circuit board is pre-wired to the termination block provided, as shown in Exhibit 5. No field
connections are to be made to the IRI card. All connections for field wiring shall be made to the wire
termination block provided on the IRI mounting plate. The terminals are capable of accepting wires of up to
2.5 mm2CSA.
LNote: All field wiring shall be completed with the host control panel powered down.
To wire the IRI, follow these steps:
1. Pull field wiring into the enclosure using the cable gland connections provided in the top and bottom of
the enclosure (6 total).
2. Clear the enclosure of all debris before proceeding to the next step.
3. Connect field wiring to the wire termination block, as shown in Exhibit 5, paying close attention to correct
wiring polarity.
EXTOUT
+ -
EXT IN
+ -+24V 0V SHLD+24V 0V
RED BLK
1234567891011121314
12345678910 11 12 13 14
[3]
24 VDC EXT IN FROM
CONTROL
PANEL
IRI CARD WIRE
TERMINATION
BLOCK
FROM DISCHARGE
PRESSURE SWITCH
FROM CYLINDER LOW
PRESSURE SWITCH
TO NEXT IRI ORRETURN TO
HOST PANEL IF CLASS A
(IF APPLICABLE)
EOL
[4]
24 VDC TO NEXT IRI
(IF APPLICABLE)
WIRE LEADS FROM IVO
NOTES: [ ]
1. PRE-INSTALLED WIRING SHOWN SOLID.
2. FIELD WIRING SHOWN DASHED.
3. 24 VDC POWER SHALL BE SUPPLIEDBY THE
HOST CONTROL PANEL ONLY.
4. HOST CONTROL PANEL'S RELEASING CIRCUIT
EOL; IF LAST DEVICE ON CIRCUIT.
-+-+
RED
BLK
-
+
-
+
LPS
DPS

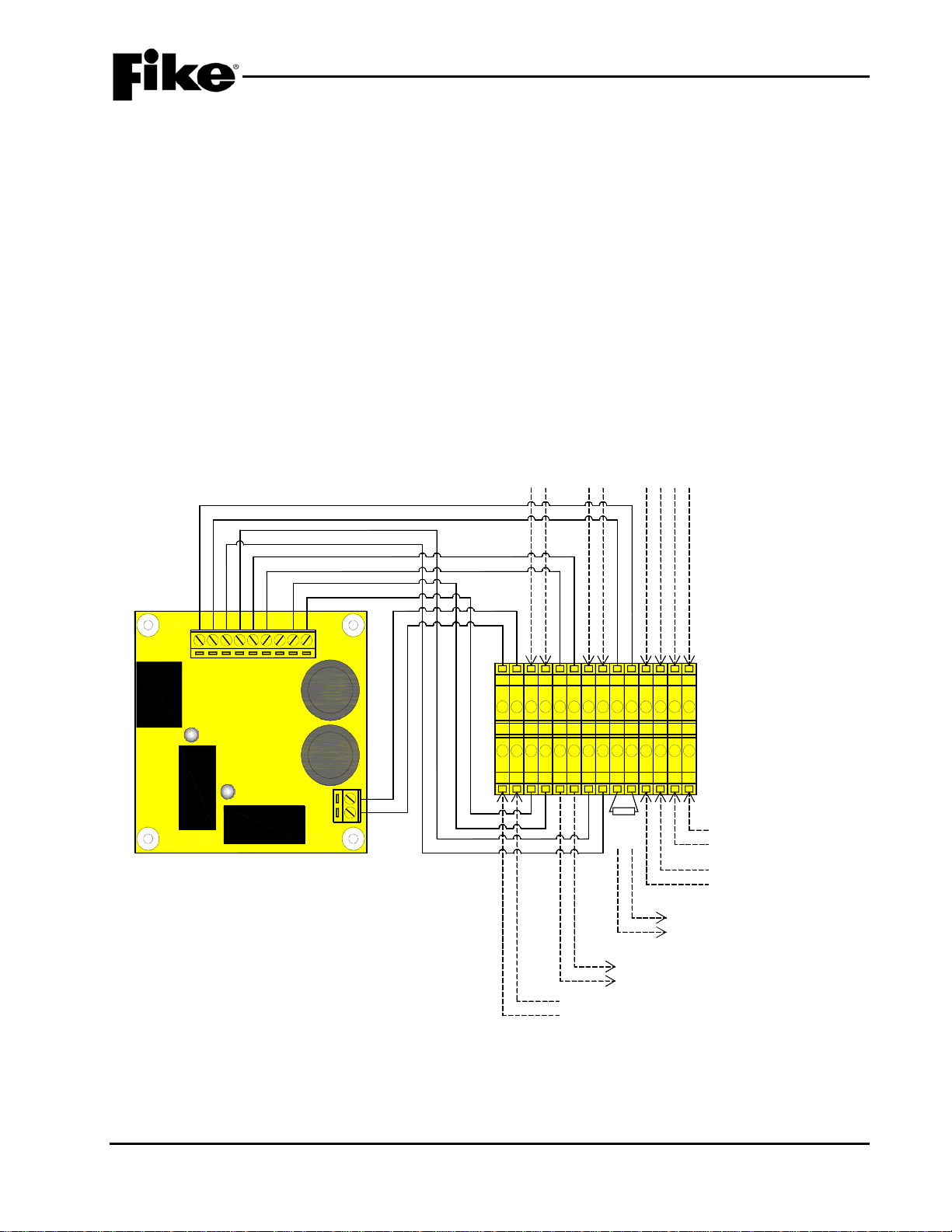

Exhibit 5: IRI Field Wiring

PRODUCT MANUAL
8 Impulse Releasing Interface
Rev. 0, 06/2010 P/N: 06-438
aWARNING
Before proceeding to the next step, make sure that the IVO’s are
NOT connected to the suppression containers.
4. Apply power to the host releasing panel. With power applied, both the red and yellow LEDs on the IRM
should NOT illuminated. If the yellow Trouble LED is illuminated, check for an open or short on the IVO
circuit, or if the releasing panel is in Trouble, check for an open or short condition on the EXT OUT
wiring. If the red Active LED is illuminated, check for proper wiring polarity between the releasing circuit
and the IRI. Correct all problems before proceeding.
aWARNING
If the red LED on the IRI is illuminated after power is applied to
the releasing panel, do NOT attempt to connect the IVO to the
suppression container. This may cause accidental release of the
suppression agent.
5. Perform acceptance testing.
6.0 ACCEPTANCE TESTING
Testing of the system should only be carried out by trained personnel and must be done with all IVO’s
disconnected from the suppression containers to ensure that accidental discharge of the extinguishant agent
is avoided.
1. Prior to commencing testing, ensure that the panel is clear of any troubles and the red and yellow LEDs
on each IRI card are not illuminated.
2. Temporarily disconnect the Impulse Valve Operator wires (Red and Black) from the field wiring terminal
strip and verify that the yellow trouble LED on the IRI card illuminates and that a trouble signal is received
by the host releasing control panel.
3. Temporarily remove the releasing circuit end-of-line from field wiring terminal on the last IRI or disconnect
the return wire leg on the last IRI and verify that a Trouble signal is received by the host control panel.
4. Using either a Manual Release or the detection method of the releasing panel, initiate the Release mode.
5. Verify that the red LED on the IRI illuminates and the piston on the Impulse Valve Operator extends,
indicating IVO activation.
6. Reset the host control panel and verify that the red LED on IRI goes out.
7. Reset the Impulse Valve Operator as detailed on the Impulse Valve component sheet, P/N 06-540-1-9.
8. Verify that the host control panel does not activate the IRI during any state other than Release.

PRODUCT MANUAL
Impulse Releasing Interface 9
P/N: 06-438 Rev. 0, 06/2010
7.0 ARMING/DISARMING THE SYSTEM
aWARNING
If there are ground faults present on the host releasing system
(control panel), do NOT connect the Impulse Valve Operator to
the suppression container. Doing so could result in accidental
agent discharge.
To Arm the system:
1. After the system has been fully tested and restored to Normal operation, make sure each IVO has been
reset (piston retracted). Refer to the instructions provided on the Impulse Valve Operator component
sheet, P/N 06-540-1-9.
aWARNING
The IVO must be reset after a system discharge and
container refill. Do not attempt to connect the IVO to the
container with the actuator pin in the extended (fired)
position.
2. Connect the Impulse Valve Operator to the suppression container as detailed on the Impulse Valve
Operator component sheet, P/N 06-540-1-9.
LNote: A discharge pressure switch (P/N 02-9635) must be installed on the discharge piping for
each IVO container equipped with a manual release actuator (required by LPCB).
To Disarm the system:
1. Disconnect the Impulse Valve Operator from the suppression container as detailed on the Impulse Valve
Operator component sheet, P/N 06-540-1-9.

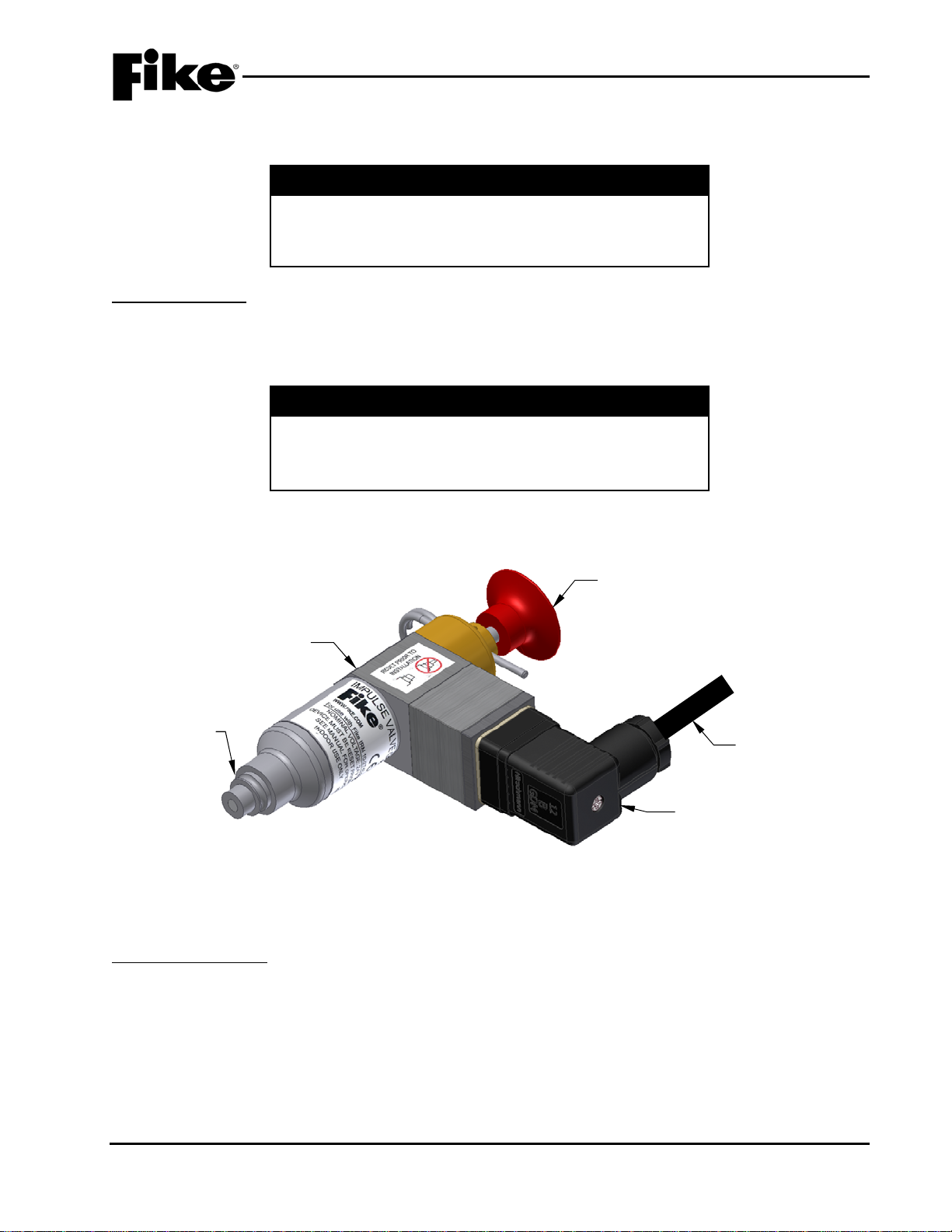

Exhibit 6: Connecting the Impulse Operator to the Container
MANUAL RELEASE
A
CTUATOR PIN
DIN CONNECTOR
IMPULSE VALVE
OPERATOR (IVO)
CONNECTS TO
CYLINDER
ACTUATION PORT CABLE TO IRI
MODULE

PRODUCT MANUAL
10 Impulse Releasing Interface
Rev. 0, 06/2010 P/N: 06-438
8.0 INSPECTIONS AND TESTING
The suppression system(s) shall be inspected and tested in accordance with the requirements of EN 15004 /
ISO 14520. Inspection and testing shall be performed by the system installer or an approved maintenance
company who has been trained in the proper operation and testing of the system. Any defects should be
recorded and reported immediately to the person responsible for routine testing.

704 SW 10th Street
P.O. Box 610
Blue Springs, Missouri 64013
Tel: [phone]
Fax: [phone]
www.fike.com
